Wire Feeder
Model No. YW-50DNW
Operating Instructions

■Feature
This wire feeder is used for water-cooled aluminum welding.
CONTENTS
1 Warning symbols for safe usage ...............................................................................I
2 Safety precautions...................................................................................................... II
3 Specifications...............................................................................................................1
4 Packing list....................................................................................................................1
5 Connection....................................................................................................................2
6 Preparation for use......................................................................................................3
7 Adjusting spool brake .................................................................................................8
8 Maintenance.................................................................................................................8
9 Overall dimensions......................................................................................................9
10 Circuit diagram.........................................................................................................10
11 Parts layout drawing...............................................................................................11
12 Parts List...................................................................................................................13

I
1 Warning symbols for safe usage
Each symbol describes things to be observed to prevent you and other personnel from hazardous conditions or
damage to property.
●The followings explains harzardous conditions or
damages that are classi-fied into the following three
levels.
●The following symbols indicates things to be
observed.
Things that MUST NOT be
performed.
A hazardous situations including death or serious
personal injury is imminent.
Things that MUST be performed.
The potential for a hazardous accident including death
or serious personal injury is high.
Things attention must be paid to.
The potential for hazardous accident including light
personal injury and/or the potential for property
damage are high.
◆Disclaimer:
Panasonic Welding Systems(Tangshan)Co., Ltd., (hereinafter called “PWST”) and its affiliates (including any
subcontractor, sales company or agent) shall not assume or undertake any responsibility or liability of the
followings:
•Any problem arising out of, or directly or indirectly attributable to,the failure of user to carry out those normal
maintenance, normal adjustment and periodical check of this product.
•Any problem arising out of any force majeure, including but not limited to, act of god.
•Any malfunction or defect of this product that is directly or indirectly the result of any malfunction or defect of one
or more related parts or products that are not supplied by PWST. Or any problem arising out of, or directly or
indirectly attributable to, the combination of this product with any other product, equipment, devices or software
that is not supplied by PWST.
•Any problem arising out of, or directly or indirectly attributable to,user’s failure to strictly carry out or follow all of
the condition sand instructions contained in this instruction manual, or user’s misusage, mishandle, operational
miss or abnormal operation.
•Any problem arising out of this product or the use of it, the cause of which is other than the foregoing but is also
not attributable to PWST.
•Any claim of a third party that this product infringes the intellectual property rights of such third party that are
directly or indirectly caused by user’s use of this product and relate to the method of production.
●The description of this manual is based on the contents as of Dec, 2020.
●The contents of this manual are subject to change without further notice.
●English version is the original instructions.

II
2 Safety precautions
Welding power source
Observe the following instructions to
prevent the hazard.
(1)Never use the welding power source for other than
welding purpose. (e.g. Never attempt to use the
welding power source for pipe thawing.)
(2)It is very important to comply with all instructions,
safety warnings, cautions and notes mentioned.
Failure to do so can result in serious injury or even
death.
(3)Work of driving source at the input side, selecting
work site, handling, storage and piping of high
pressure gas, storage of welded products and also
disposal of waste should be performed according to
the operating instructions and national, state and
local codes and regulations.
(4)Prevent any unauthorized personnel to enter in
and around the welding work area.
(5)Pacemaker wearers should consult their doctor
before going near arc welding. Magnetic fields can
affect pacemakers.
(6)Only educated and/or skilled persons who well
understand this welding power source should
install, operate, maintain and repair the unit.
(7)Only educated and/or skilled persons who well
understand the operating instructions of the unit
and are capable of safe handling should perform
operation of the unit.
Against electric shock
Observe the following instructions to
prevent the hazard.
(1)Do not touch live parts.
(2)Grounding of the case of the welding power and
base metal or a jig electrically connected to the
base metal must be performed by educated and/or
skilled persons.
(3)Before installation or maintenance work, turn off
power at the power box, wait it for at least five
minutes to discharge capacitors. Significant voltage
may exist on capacitors after turning off power at
the power box so it is imperative to check to make
sure that no charged voltage present at capacitors
before touching any parts.
(4)Do not use undersized, worn, damaged or bare
wired cables.
(5)Connect cables firm and insulate connection parts.
(6)Keep all cases, panels and covers securely in
place.
(7)Do not handle the welding power source with torn
or wet gloves.
(8)Wear safety harness in case of working above floor
level.
(9)Turn off all equipment when not in use.
(10)Perform periodic checks without fail and repair or
replace any damaged parts before using the power
source.
Ventilation and protective equipment
Oxygen deficit, fume and gas
generated during welding can
be hazardous.
(1)When conducting welding in the bottom of the tank,
boiler or hold as well as legally-defined sites, use a
local exhauster specified by the applicable laws
and regulations (occupational safety and health
regulation, rules on preventing suffocation or etc.)
or wear protective breathing gear.
(2)To prevent dust injury or poisoning by the fume
generated during welding, use a local exhauster
specified by the applicable law (occupational safety
and health regulation, rules on preventing injury by
inhaled dust or etc.), or wear protective breathing
gear.
(3)When conducting welding in a confined area, make
sure to provide sufficient ventilation or wear
protective breathing gear and have a trained
supervisor observe the workers.
(4)Do not conduct welding at a site where
degreasing, cleaning or spraying is performed.
Conducting welding near the area where any of
these types of work is performed can generate toxic
gases.
(5)When welding a coated steel plate, provide
sufficient ventilation or wear protective breathing
gear. (Welding of coated steel plates generates
toxic fume and gas.)
Against fire, explosion or blowout
Observe the following cautions to
prevent fires explosion or
blowout.
(1)Remove any combustible materials at and near the
work site to prevent them from being exposed to
the spatter. If they cannot be relocated, cover them
with a fireproofing cover.
(2)Do not conduct welding near combustible gases.
(3)Do not bring the hot base metal near combustible
materials immediately after welding.
(4)When welding a ceiling, floor or wall, remove all
flammables including ones located in hidden
places.
(5)Properly connect cables and insulate connected
parts. Improper cable connections or touching of
cables to any electric current passage of the base
metal, such as steel beam, can cause fire.
(6)Connect the base metal cable at a section closest
to the welding part.
(7)Do not weld a sealed tank or a pipe that contains a
gas.
(8)Keep a fire extinguisher near the welding site for
an emergency.

III
Installing shielding (curtain etc.)
Arc flash, flying spatter, slugs, and
noise generated during welding can
damage your eyes, skin and hearing.
(1)Install a protective curtain around the welding
manipulator site to prevent the arc flash from
entering the eyes of people in the surrounding area.
(2)When welding or monitoring welding, wear safety
glasses with sufficient light blocking structure or
use a protective mask designed for welding
operation.
(3)When welding or monitoring welding wear protective
clothing designed for welding operation, such as
leather gloves, leg cover and leather apron, and also
wear long-sleeve shirts.
(4)Be sure to wear noise-proof protective equipment if
the noise level is high.
(5)The larger the welding current is, or in case of AC
TIG or MIXTIG welding, the larger the AC frequency
is, the larger the arc sound becomes.
Gas cylinder and gas flow regulator
Overturn of gas cylinder and
blowout of gas flow regulator can
cause injury.
(1)The gas cylinder must be handled properly according
to the applicable law and in-house standards.
(2)Use the gas flow regulator that is supplied or recom-
mended by our company.
(3)Read the instruction manual of the gas regulator prior
to using it, and observe the cautions in the manual.
(4)Secure the gas cylinder to a dedicated gas cylinder
stand.
(5)Do not expose the gas cylinder to high temperature.
(6)When opening the valve of the gas cylinder, do not
bring your face close to the discharge outlet.
(7)When the gas cylinder is not used, be sure to install a
protective cap.
(8)Do not hang the welding torch on the gas cylinder, or
touch the gas cylinder with the electrode.
(9)Do not attempt to disassemble or repair the gas
regulator. Such works require special knowledge.
Rotating parts
Rotating parts can cause injury.
(1)Keep away from rotating parts such as cooling fans,
and feed roller of the wire feeder, or hand, finger(s),
hair or part of your clothes may be caught by the
parts resulting in injury.
(2)Keep all covers, panels and cases closed when
using the product.
(3)Maintenance work and repair should be perform only
by educated and/or skilled persons who thoroughly
understand welding machines. While
performing maintenance work or repair work, provide
fence or the like around the welding machine so that
unauthorized person can not come close carelessly.
Welding wire
Welding wire, especially wire tip part
can cause injury.
(1)Do not perform inching operation or pull the torch
switch with your eyes, face or body close to the end
of the welding torch - wire extends out from the end
of the welding torch and may stick into the eye,
face or body.
(2)In case of using a torch cable with the resin liner,
straighten the torch cable and reduce the preset
feed amount (current) to a half or less before
applying the wire inching.
(3)Performing wire inching while torch cable has been
bent extremely can cause the wire to pierce the
resin liner and cable. Make sure to replace any
damaged liner or cable with a new one, or
damaged liner/wire can cause gas leak or dielectric
degradation.
. Against insulation deterioration
Insulation deterioration can cause fire
of welding power source.
(1)Keep enough distance from welding power source
when performing welding or grinding work so as to
prevent spatters or iron particles from getting
into the power source.
(2)Perform check and maintenance work periodically
so as to prevent insulation deterioration due to
accumulated dust or dirt.
(3)When spatters or iron particles get into the welding
power source, turn off the power switches of the
welding power source and power distribution box,
and then blow out.
(4)Make sure to replace any damaged liner or cable
with a new one as use of damaged liner/cable may
cause gas leak or dielectric degradation.
(5)In order to avoid dust and dirt to be collected inside
of the power source, make sure not to leave the
panel and bolts (including eyebolts) open and
removed.

1
3 Specifications
SPEC. No.
YW-50DNW1HAG
Rated welding current
500A
Applicable wire
diameter
(0.8mm, 1.0mm)1.2mm, 1.6mm
material
AL
Applicable spool
shaft diameter
50mm
outer diameter
MAX. 300mm
width
MAX. 105mm
Mass
20kg
Applicable gas Kinds
CO2,MAG:80%Ar + 20% CO2,MIG:98% Ar + 2% O2
Mass
16.2kg
Input voltage
36V
Rated current
3A
Cooling mode
water-cooling
Wire feed speed
2.5~20.1 m/min
Duty cycle
60%
standard
EN IEC 60974-5/ EN60974-10
Applicable welding power supply
YD-500GP5HNX
Applicable welding gun supply
YT-40MFW2HTF
Overall dimensions
676x230x451mm
Ingress protection
IP2X
Type of electromagnetic compatibility
Class A
Caution) 1. Please attach above welding power supply to this machine.
With any other power supply, this machine neither work nor weld, and may
be damaged .
2. Duty cycle: Based upon 10 minute time period(i.e., for 60% duty cycle, it is 6 minutes on and 4
minutes off ).
4 Packing list
Wire feeder
1
Torch bracket
1
M4X10 countersunk head screw
2
Operation manual
1

2
5 Connection
To avoid electric shock, be sure to turn off all input sources connected to the switch of the distribution
box, Shut down for 5 minutes before operation.
The cable connection must be reliably fastened and insulated.
Please connect the extension cable, gas pipe, control cable and water pipe to the designated position.
Cable: it is connected with the cable interface of wire feeder.
Control cable: it is connected with the control line interface of wire feeder.
Air pipe: the air pipe is yellow and connected to the gas inlet of the wire feeder;
Water supply pipe: the water pipe is blue and connected at the water inlet of the wire feeding device;
Drainage pipe: the water pipe is red and connected at the water outlet of the wire feeding device;
1. The water supply pipe and drainage pipe of welding gun shall not be mixed with the water outlet
(return port) of wire feeding device, otherwise the heat dissipation performance of welding gun will be
affected;
2. The lock nut of welding gun cable must be reliably tightened with the European type connector of
wire feeder, otherwise, the fire may occur due to overheating after contact.
3. Do not touch the water supply pipe and return pipe joint of welding gun when welding or just finished
welding, so as to avoid scalding and other accidents.

3
6 Preparation for use
Fingers, hair, clothes, etc. close to the wire wheel and drive shaft and
other parts that may be involved in causing injuries.
Please carefully confirmed before the construction of rubber insulated cable
terminals are tightened too strong. Often caused by inadequate wiring welding
arc of instability, and even led to the breakdown terminals.
Set to use site
Please place the following conditions are met using the wire device.
The machine for indoor use machine, the protection class is IP2X.
Do not put a drop of water, rain fell on the places.
At the ambient temperature of -10 ℃to 40 ℃in the context of its use.
Do not set a strong shock or be hit on the counter.
The hanging wire devices use prohibited.
If indeed the use of conditions need to fly using this device, please separately purchase
and install a coil axis locking cover (TSMD0041) to prevent injuries caused by wire set off.
: Locking-type cover (TSMD0041) for the shopping goods disk axis.
Wire device supports between the shell and should be insulated. Or inclined position in the wire hanging
device, in the frame at the bottom of the four reserved φ7mm diameter hole to install spreader, and the
effective use M6 screws tightened to prevent loosening.

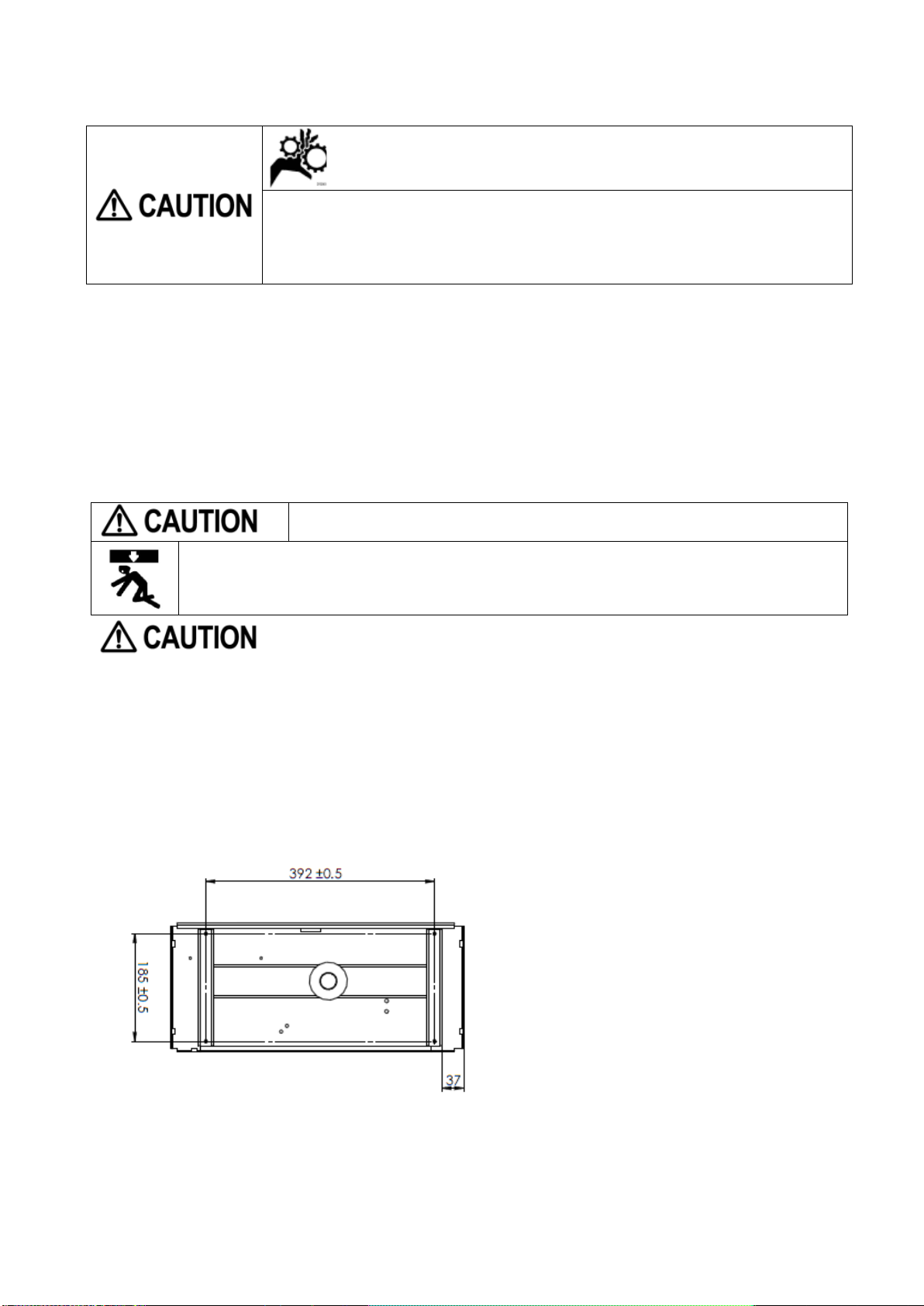

Spreader --- Please user-owned, pay attention to use enough to load-bearing.
Unit:[mm]
As shown:Install the spreader at
the four threaded holes with the
diameter of 4-M5 at the bottom of
the frame, and tighten them with
M5 screws to avoid loosening.

4
6 Preparation for use
⑨⑥
⑧
⑦

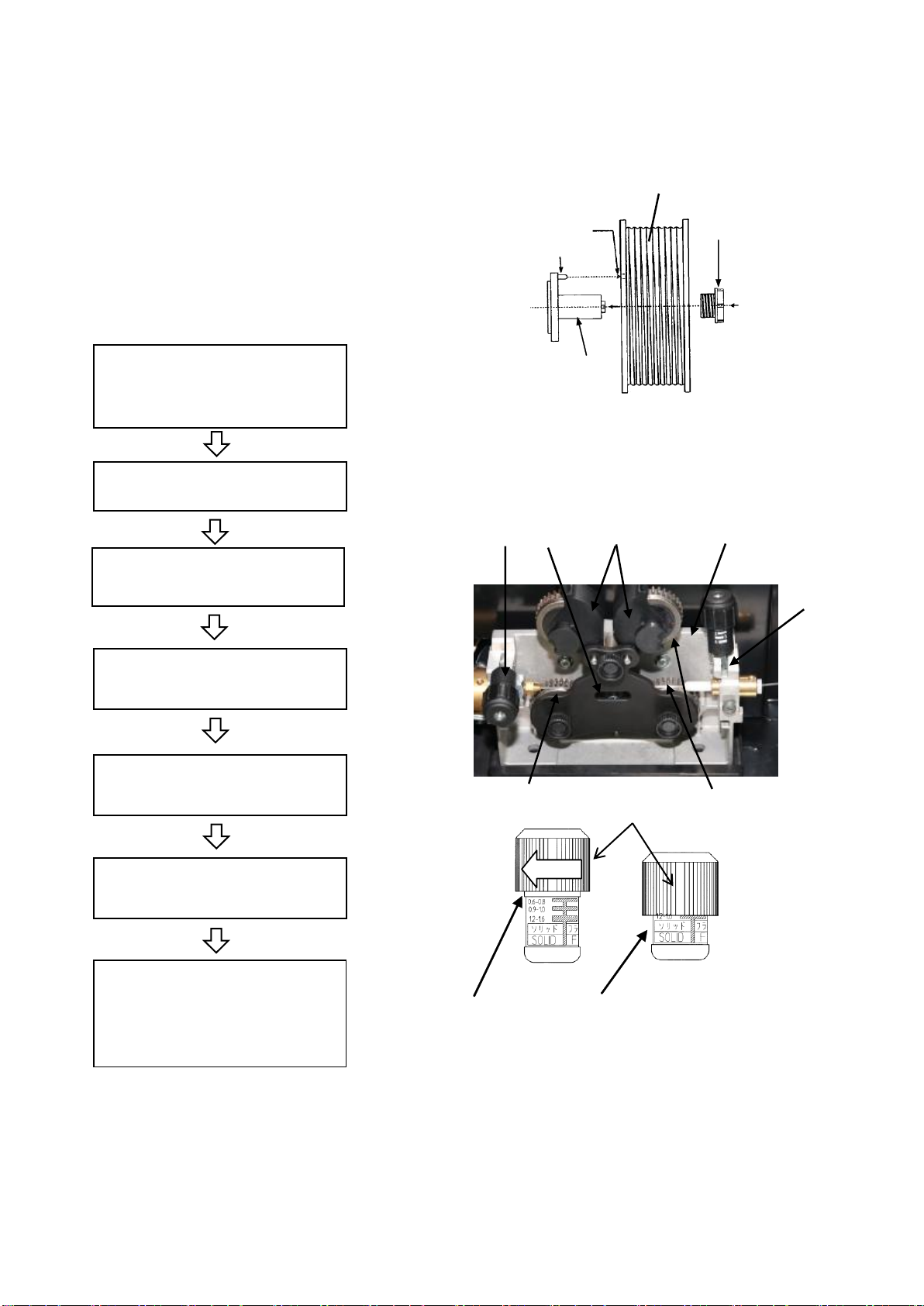

(1) Feed roller installation
There are two grooves on the feed
roller. Please confirm the size of the
groove before installation, The
indication stamp of wire diameter
must be seen outside.

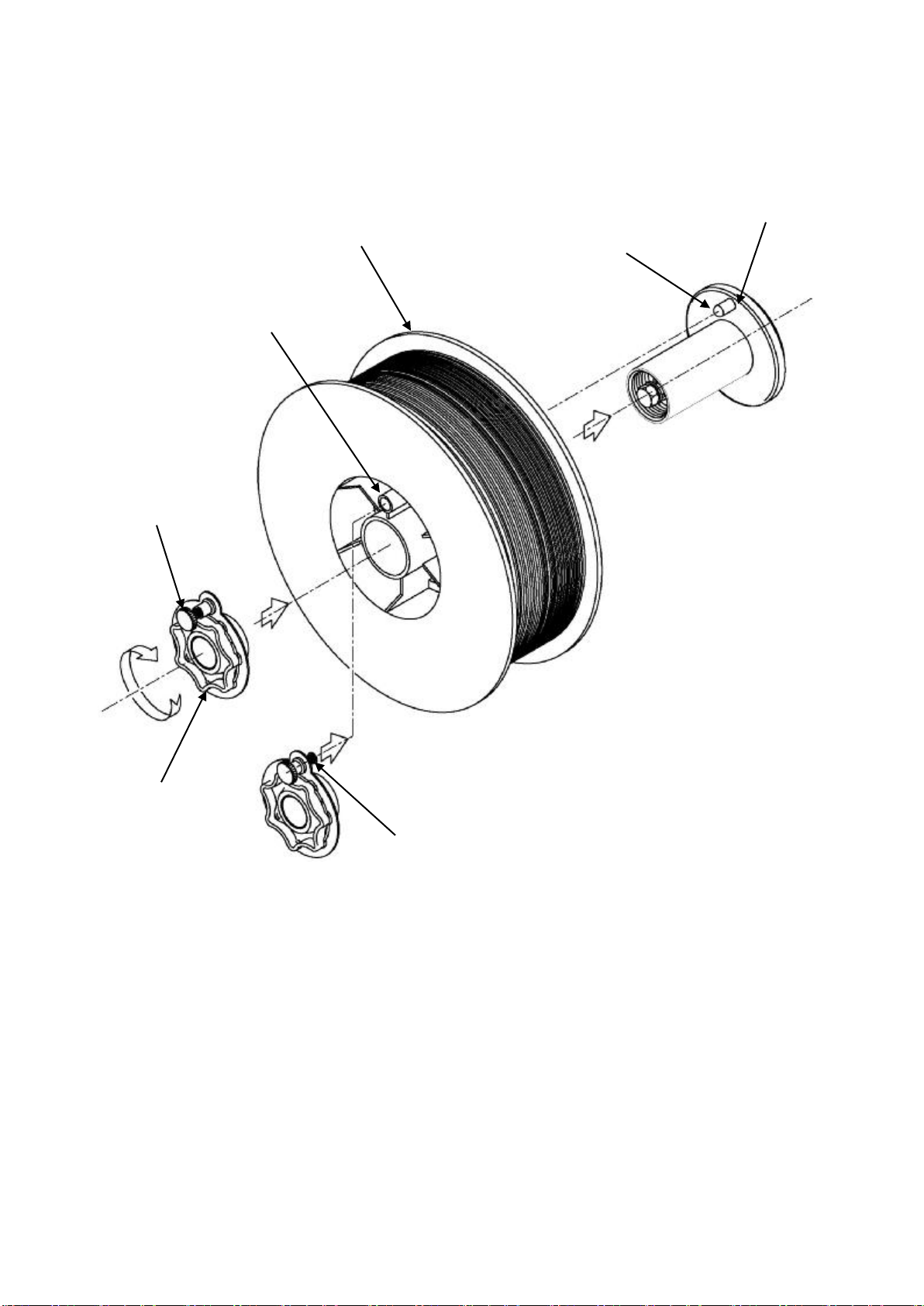

(2) Wire setting
Turn the Knob screw to
rightward and remove it from
the spool shaft.
Set the wire spool.
Return the Knob screw and fix it
tightly.
Raise the pressure arm and insert
wire 2~3cm into the SUS tube.
Replace the pressure arm and
tighten with the pressure nut.
Press the inching button on the
wire feeder.
Release from the inching button
when the wire comes out 1~
2cm from the tip of torch.
Spool shaft
Rotor pin
Pressure nut
①Pressure nut
②Pressure arm
Wire
④SUS Tube
③Feeder roller
Lock nut
②
⑤Wire guide
①Pressure nut
Wire size indication
Knob screw
Wire Spool
Spool hole
①
④
①
③
③

5
■Locking-type cover plate shaft TSMD0041 for use
When using wire hanging device must be used when locking a coil axis cover TSMD0041.
Install wire tray:
a) The wire plate retaining pin holes at the damping plate shaft retaining pin,set the wire
spool;
b) Plate shaft knurled screw the lid out of state in rotation, clockwise rotating disk shaft
cover, install it to disk axis damping;
c) Appropriate adjustments to disk drive shaft cover and wire the relative position of the
knurled screw aligned wire plate retaining pin holes and knurled screw to limit the cover
of freedom of rotation, to prevent them from damping plate axis, thus ensuring reliable
wire rotating disk.
Remove the wire tray: a note on the steps by reverse operation can be.
Damping plate
shaft
Wire Spool
Shaft cover
plate
Shaft cover plate
knurled screw (back-out)
Wire plate
retaining
pin hole
Damping plate
shaft
retaining pin
①
②
③
Shaft cover plate
knurled screw (screwing in)

6
■Remote control function description
Panel operation function description:
Name
Description
Abnormal
temperature
indicator
●When the temperature of important parts in the welding machine is
too high, an abnormal temperature alarm will be issued, the output will
stop, and this indicator will flash. Do not continue welding until this
indicator light goes out
Inching Button
●It is used to feed the welding wire into the wire feeding tube before
welding. This function is only available when this button is pressed.
After pressing the button, the motor rotates and the corresponding
panel indicator lights up. When it is released, the motor stops and the
indicator light goes out.
Initial arc Button
●2-step and 4-step switching.
Press the arc closing/initial button, the corresponding indicator light is
always on, indicating that the current state is 2 steps.
Press again to switch the status to 4 steps. Press again to switch to no
initial arc closing.
The first time it is turned on, the default state is no initial arc closing.
Switch Button
●Initial, welding, and arc current/voltage adjustment.
The first time it is turned on, the default state is that the welding
indicator is on and the welding parameters displayed by the digital
tube.

7
Press "Switch", the arc closing indicator light is on, and the digital tube
displays the arc closing parameters. Press the button again, the initial
indicator light is on, and the digital tube displays the initial parameters.
Gas check
●It is used for gas inspection (gas flow adjustment and gas presence
confirmation).
The air valve opens after being pressed, and the air valve will not close
after being released, and the corresponding indicator light is on. Press
the air valve again to close, and the corresponding indicator light goes
out.
Lock Button
●The panel is adjustable when it is turned on for the first time, and the
lock indicator is off. Long press this button for more than 3 seconds,
the indicator will light up, and the panel lock is not adjustable.
Record/Call
●The first time it is turned on, the default is no storage/recall status.
Press this button and the indicator light will be on continuously, which
means that the parameters of a certain channel are recalled. The
digital tube displays the parameters and welding mode at this time.
Press this button again, the indicator light flashes, indicating that the
current welding parameters and status are stored in a channel.
Pulse Button
●The first time it is turned on, there is no pulse state by default and the
indicator light is off. Press the button, the indicator light will light up,
indicating that the current is pulse welding.
Spot welding: Weld according to the set spot welding time, and
automatically stop welding when the spot welding time is up.
Current display
panel switch
●Current display and adjustment, current indicator light is on.
●Wire feeding speed display and adjustment, the wire feeding speed
indicator light is on.
●Board thickness display and adjustment, the board thickness
indicator lights up.
To switch the above three parameters, you need to use the switch
button. Press the switch button repeatedly, and the three parameters
will be displayed in a loop.
Voltage display
panel switch
●Voltage display and adjustment, the voltage indicator light is on.
●Arc length display and adjustment, the arc length indicator light is on.
●The arc characteristic display and adjustment, the arc characteristic
indicator light is on.
To switch the above three parameters, you need to use the switch
button. Press the switch button repeatedly, and the three parameters
will be displayed in a loop.

8
7 Adjusting spool brake
8 Maintenance
Item
Point of Inspection
Note
SUS
Tube
Entrance of SUS Tube and
nearby feed roller are clearn?
Remove dust and clean this parts once
Wire diameter and SUS tube
diameter are suitable?
Unsuitable diameter cause unstable arc and
dust increase.
Center of SUS tube entrance and
V gap of feed roller meet justly?
Unless these meet justly, unstable arc and
dust will increase.
Align center of the wire to the feed roller groove
Feed
roller
Wire diameter and feed roller are
suitable?
Any exhaustion of feed roller gap?
Cause dust increase and choked conduit
tube and unstable arc.
If exhausted, replace roller to new one.

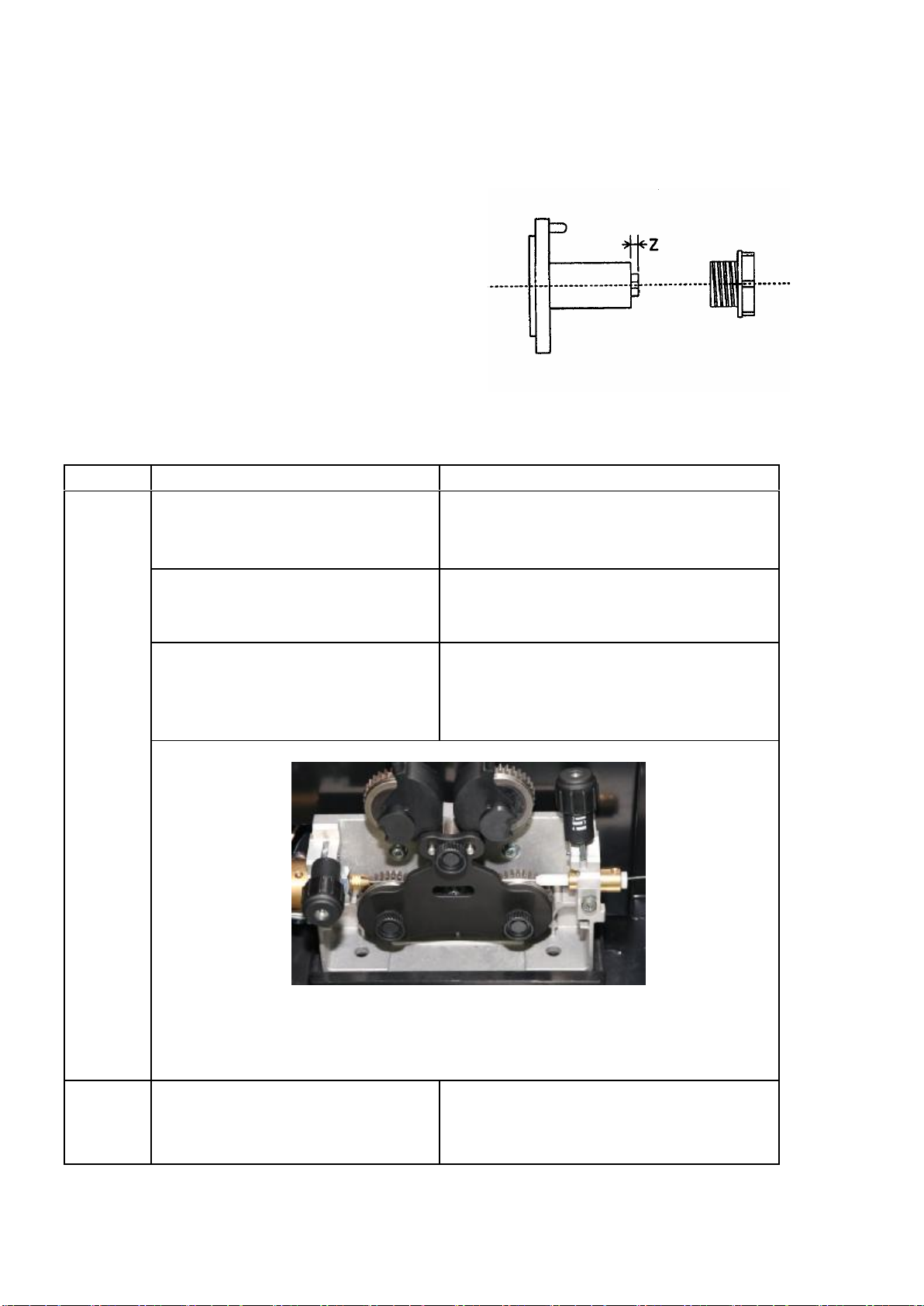

The spool shaft has adjustable braking mechanism.
Adjust it if sagging in the weld wire is observed when jogging operation is performed with the
welding current volume at the applied welding current.
.
Z=approx. 4mm
1). Insert the M10 Bolt assembly until it touches the
Brake support .
2). Adjust it by rotating it about one-half to one turn.
* Do fine adjustment if necessary.
.

9

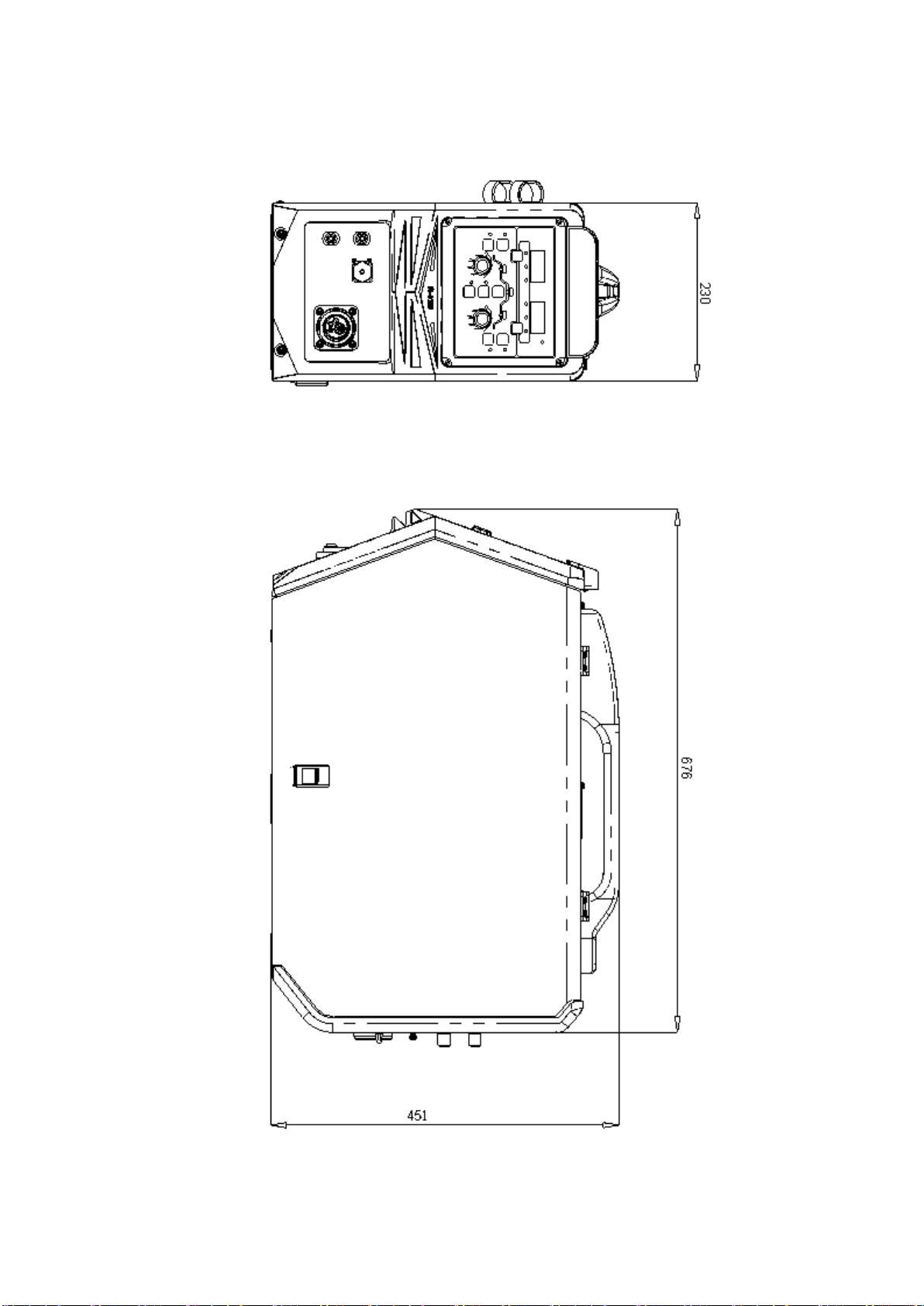

9 Overall dimensions

10

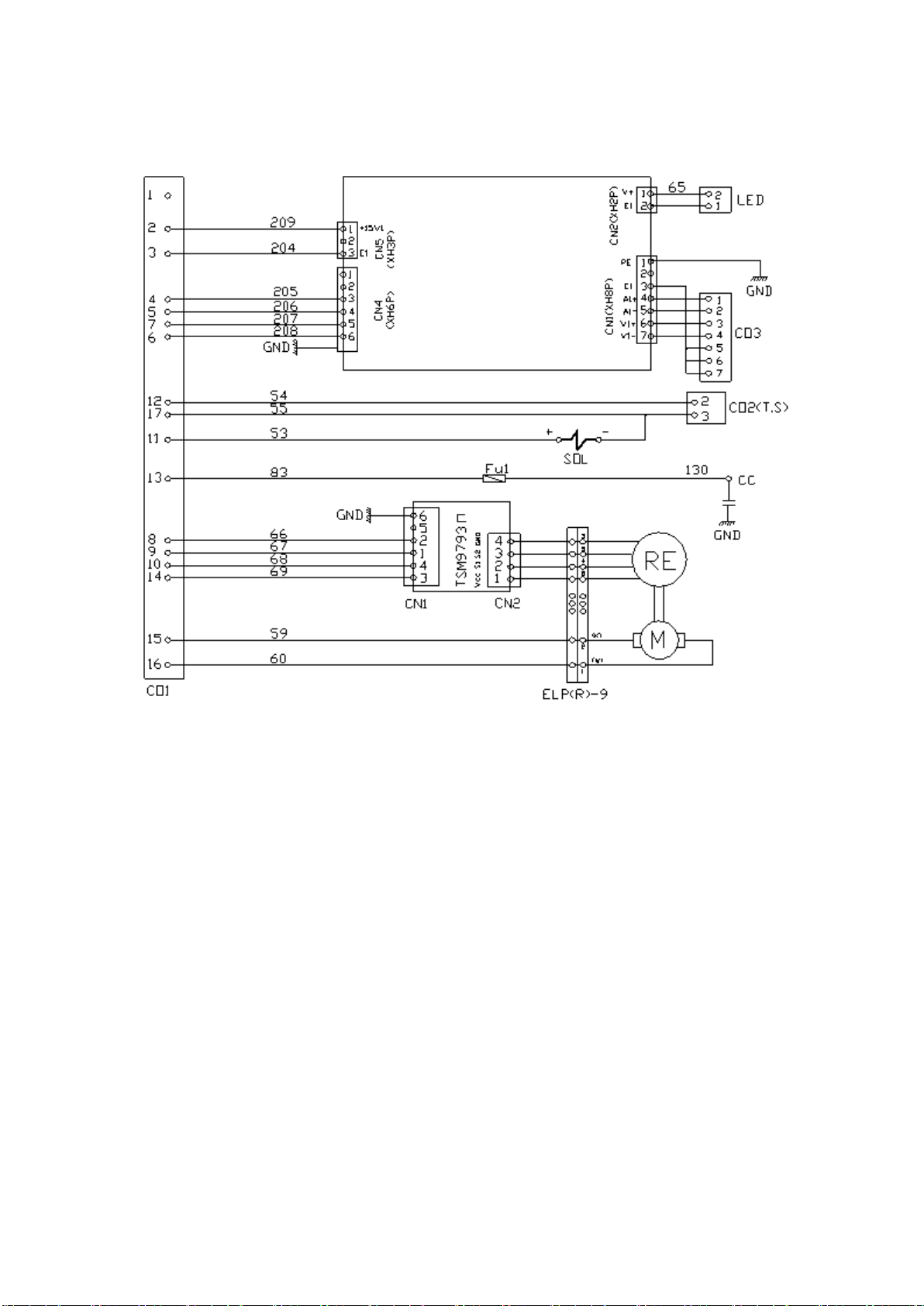

10 Circuit diagram
PCB

11

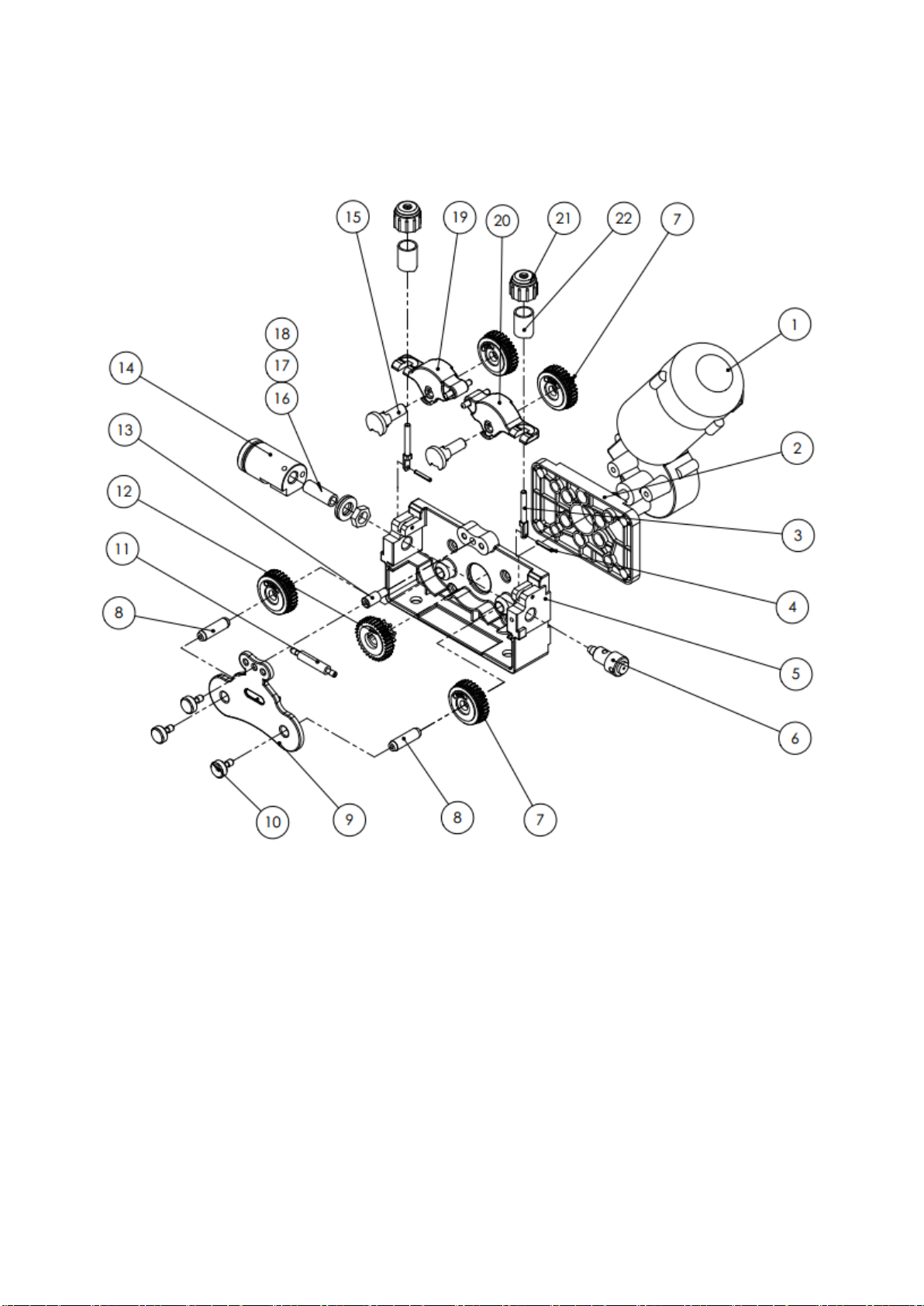

11 Parts layout drawing

12
11 Parts layout drawing
The No. column and digital S/N are in accordance with the same on parts configuration diagram.
No.
Name
Code
Pcs.
Notes
1
LED
LED-3-20
2
2
Front panel
TSMK9605
1
3
Knob
3010-01
2
4
Display PCB
TSM97933E
1
5
Quick connector (red)
BD-802041
1
6
Quick connector (blue)
BD-802042
1
7
Electrical connector
●TSMJ0552
1
8
Seven-pin socket
WY16K7Z
1
9
Lock
A3-40-625-12
1
10
Spool shaft
TSM19776
1
11
Damping hinge
E6-10-216-50
2
12
View window
TSMF0829
1
13
Handle
TSMF0825
1
14
Back plate
TSMF0824
1
15
17-pin socket (pin)
WS28J17Z
1
16
Quick connector (red)
BD-802041
1
17
Quick connector (blue)
BD-802042
1
18
Screw rings M6
R825M6BL
1
19
Cable quick plug socket (red)
●TSMDZ95-AR
1
20
Quick plug A
TSM13003
1
21
The electromagnetic valve
JZ540-745
1
22
Wire feeding motor
●TSMD0038
1
23
Torch bracket
TSMK9560
1
24
Cover
TSMF0826
1
(25)
Shaft cover plate
TSMD0041
1
Choose
Note:●stands for key materials.

13
12 Parts List

14
12 Parts List
No.
Name
Code
Pcs.
Notes
1
Wire Feeder Motor
TGF481F36V
1
2
Connecting Ass’y
TSMK8202
1
3
Pressure bar
TSMF0726
2
4
Elastic pin
R879D3X20
2
5
Feed Unit Base
TSMK6973
1
6
Wire Guide
TSMZ0556
1
Wire guide sleeve
TSMJ0484
1
7
Al Gear Ass’y
TSMD0132
4
8
Driven Gear shaft
TSMD0130
2
9
Baffle plate
TSMK8198
1
10
Knob
RWDC-M5-A20-L10
3
11
Wire Guide
TSMJ0475
1
12
Driven Gear Ass’y
TSMD0137
1
13
Supporting shaft
TSMF0801
1
14
Connector Ass’y
TSMJ0481
1
15
Pressure Roller Shaft Ass’y
TSMD0134
2
16
Wire Guide
TSMJ0516
1
17
Washer
R95D12
1
18
Spring Washer
R93D12
1
19
Pressure Arm
TSMK8195
1
20
Pressure Arm(R)
TSMK8196
1
21
Pressure nut
TSM24397
2
22
Pressure bushing
TSMK8201
2

15
Panasonic Welding Systems (Tangshan) Co., Ltd.
Add:No.9 Qingnan Road, New & Hi-Tech Development Zone, Tangshan,Hebei, China
Post Code:063020
Tel:400-612-5816
URL:http://pwst.panasonic.cn/
©Panasonic Welding Systems (Tangshan) Co., Ltd.2020
2020-12
Printed in China
【The standard of the product】
This product is designed and manufactured according to EN IEC 60974-5 /
EN 60974-10 This product may not conform to the local laws and standards of other
countries. Please be absolutely sure to consult with us before attempting to relocate or
resell this product to other countries.
【ATTENTION: The disposal of the product】
In case of disposal of the product, please sign the assignment agreement on
disposal treatment with the authorized organization and then assign the organization
to dispose the product.
Table of contents
Other Panasonic Wire Feeder manuals
Popular Wire Feeder manuals by other brands

LORCH
LORCH MF-08 Operation manual

FRONIUS
FRONIUS WF 25i Case D200 Operating instructions/spare parts list

Delta
Delta 36-851 instruction manual

Afag
Afag HLF07-M Translation of operating and installation instructions

OHTAKE
OHTAKE NSRI Series user manual

Siemens
Siemens SIRIUS S00 Original operating instructions
