Pandora DXL_5000L User manual

1USER MANUAL
Pandora would like to thank you for choosing
our service-security system
Pandora Professional is a premium car service-security system, built for cars with
on-board voltage of 12V. It is a complex engineering solution which includes car security
system, telemetry, remote and automatic engine start and various service options, all
controlled from your OEM key remote, smartphone or online service. When building
Pandora Professional we were using the most up-to-date electronics from world’s best
manufacturers. The device is built using high-precision mounting and control machinery,
thus we guarantee highest possible quality, reliability and stable technical characteristics
for the whole operation period.
With the Pandora Professional your car will have numerous new features for both
security and service. Elegant and advanced technical design and unique ergonomic
interaction algorithms that are used in the Pandora Professional allow enhancing your
car with fantastic set of intuitive and useful functions. Your car controls and monitoring
options at your fingertips.
WARNING! IT IS STRONGLY ADVISED TO HAVE PROFESSIONAL CAR MECHANIC
INSTALLING THE SYSTEM. ANY CAR ELECTRONICS INSTALLER SHOULD BE ABLE
TO INSTALL PANDORA PROFESSIONAL USING INSTALLATION SCHEME IN THIS MANUAL
AND ALARMSTUDIO SOFTWARE. MOST FEATURES ARE HIGHLY DEPENDENT ON
COMPETENT INSTALLATION. OUR SYSTEMS ARE THOROUGHLY TESTED FOR QUALITY,
SO IF A FEATURE FAILS TO PRODUCE EXPECTED RESULT, MOST LIKELY THE PROBLEM IS
IN IMPROPER INSTALLATION.
This device has limited external factors resistance. It should not be subjected to
water beyond occasional splatter, or operated in temperatures outside -40° to +80° C
Our web site: www.pandorainfo.com
Customer support: [e-mail]
Product is in conformity with Electromagnetic Compatibility
Directive EMC 2004/108/EC and R&TTE Directive 1999/5/EC.

2TELEMETRY SECURITY-SERVICE SYSTEM PANDORA PROFESSIONAL
Table of contents
General information 5
System set 5
Base unit 6
Control and monitoring 7
Remote control D670 9
Charging a remote control 10
Updating firmware of the remote control 11
Icons of the remote control 12
Quick access functions of the remote control 14
Arming 16
Disarming 16
Unlocking a trunk 17
Locking/unlocking doors when
the ignition is switched on 18
Car search function 18
Delayed arming 18
PANIC mode 19
Remote and automatic engine start 19
Program neutral procedure 20
Remote engine start 21
System settings menu 23
Main settings menu/ submenu 24

3USER MANUAL
Radio tag ВТ760 29
Replacing an immobilizer tag battery 29
Arming/disarming using the radio tag 30
Special functions of the system 30
Arming/Disarming in the Hands Free mode 30
Immobilizer and owner’s personal safety 30
Immobilizer mode 30
Anti-Hi-Jack mode 31
Anti-Hi-Jack-2 mode 31
Arming/Disarming in the “Slave” mode 32
Multi-button code immobilizer 32
Back-up power supply 32
Pandora and a phone 33
Phone notifications 33
Security zones triggered notifications 33
Receiving voice information via а phone 34
Control over the system via a phone 34
Mobile applications 46
Online service pandora-on.com and mobile applications 46
Adding a car to the online service 46
Events history 47
Mobile application for Android and iOS 47
Control via a radio channel 47
System status information 50
Security and warning zones 51

4TELEMETRY SECURITY-SERVICE SYSTEM PANDORA PROFESSIONAL
Control over the system 52
Service mode 52
Control over the system in case of emergency 54
Emergency disarming by the VALET button 54
Emergency enabling/disabling the immobilizer radio tags 56
Additional information 58
Siren sounds and turn indicators signals 58
Meaning of the LED indicator colors 58
Beeper sound signals 59
Checking the number of registered remote controls/
radio tags/ mobile phone 59
Warranty obligations 60
Installation certificate 62
Acceptance certificate 63
Warranty card 63

5USER MANUAL
System set
1. Base unit 1
2. Remote control 1
3. Radio tag 2
4. Leather case for immobilizer tags 1
5. External VALET button 1
6. User manual 1
7. Installation manual (wiring diagram) 1
8. Owner’s personal card 1
9. Relay module 1
10. Radio relay BTR-101 1
11. Radio relay BT-01 1
12. Siren 1
13. Beeper 1
14. Digital temperature sensor 1
15. External GSM antenna 1
16. Main cable of the base unit 1
17. Additional cable of the base unit 2
18. IMMO-KEY cable 1
19. USB cable 1
20. Fastening kit 1
21. Packaging 1
Manufacturer reserves the right to change set and construction of the product to
improve its technological and operational parameters without notification

6TELEMETRY SECURITY-SERVICE SYSTEM PANDORA PROFESSIONAL
Base unit
• Online service and mobile application for Android and iOS.
• Individual secret PIN-code for disarming and switching off the immobilizer.
• Hands Free mode for arming/disarming.
• Immobilizer and “Anti-Hi-Jack-1, Anti-Hi-Jack-2” modes.
• Automatic arming.
• Code immobilizer.
• Algorithms of original immobilizer bypass.
• Integrated 3G/GSM-modem.
• Built-in GPS/GLONASS – receiver.
• Integrated 868 MHz radio interface.
• Integrated 2.4 GHz module with support of Bluetooth 4.2 Low Energy protocol.
• Dialog coding of control commands.
• Individual 128-bit encryption key.
• Built-in integral accelerometer for determining motion and shocks with adaptive
processing algorithm and sensitivity controls.
• Advanced process of sensor data reading, eliminating false alarm possibilities.
• Built-in temperature sensor.
• Built-in microphone.
• Built-in battery.
• Firmware updates via built-in micro-USB connector.

7USER MANUAL
Control and monitoring
Control of the vehicles zones depends on the type of connection and system settings.
Type №1. Digital connection – It allows reading information (statuses) and
controlling vehicles (commands) by digital buses of the vehicles. The detailed
information about digital protocols is available on loader.pandorainfo.com. The
declared statuses may not be available for certain vehicle trims.
Type №2. Analog connection – It is a direct connection of analog inputs and
outputs to electrical circuits of a vehicle in accordance with a connection diagram.
Type №3. Built-in sensors – The sensors perform control and protection of the
vehicle. Additional connections are not required
Type №4. Additional sensor (*optional) – External additional sensors are connected
to the base unit (see the System set)
Type Guarded and monitored zones
1 2 3 4
• • Interior temperature (status)
• • Engine temperature (status)
• •*Outside temperature (status)
•Voltage of the on-board circuits (status, security zone – alarm level)
•Shock sensor (security zone – alarm and warning level)
•Motion sensor (security zone – alarm level)
•Tilt sensor (security zone – alarm level)
••*Additional sensor, OE alarm system status via CAN
(status, security zone – alarm and warning level)

8TELEMETRY SECURITY-SERVICE SYSTEM PANDORA PROFESSIONAL
••Turning ignition on (status, security zone – alarm level)
••Opening doors, separate indication for each door via CAN (status,
security zone – alarm level)
••Opening a trunk (status, security zone – alarm level)
••Pressing brake (status, security zone – alarm level)
• • Engine operation control - RPM (status)
• • Position of a gearbox selector/handbrake(status)
•“Parking light is not turned o” notication
Type Control (Commands)
1 2 3 4
• • Central lock
•Car original alarm system
• • Trunk
• • Turn lights
• • Closing windows
• • •*Engine pre-heaters
• • •*Block engine
• • •*Block original keyless system

9USER MANUAL

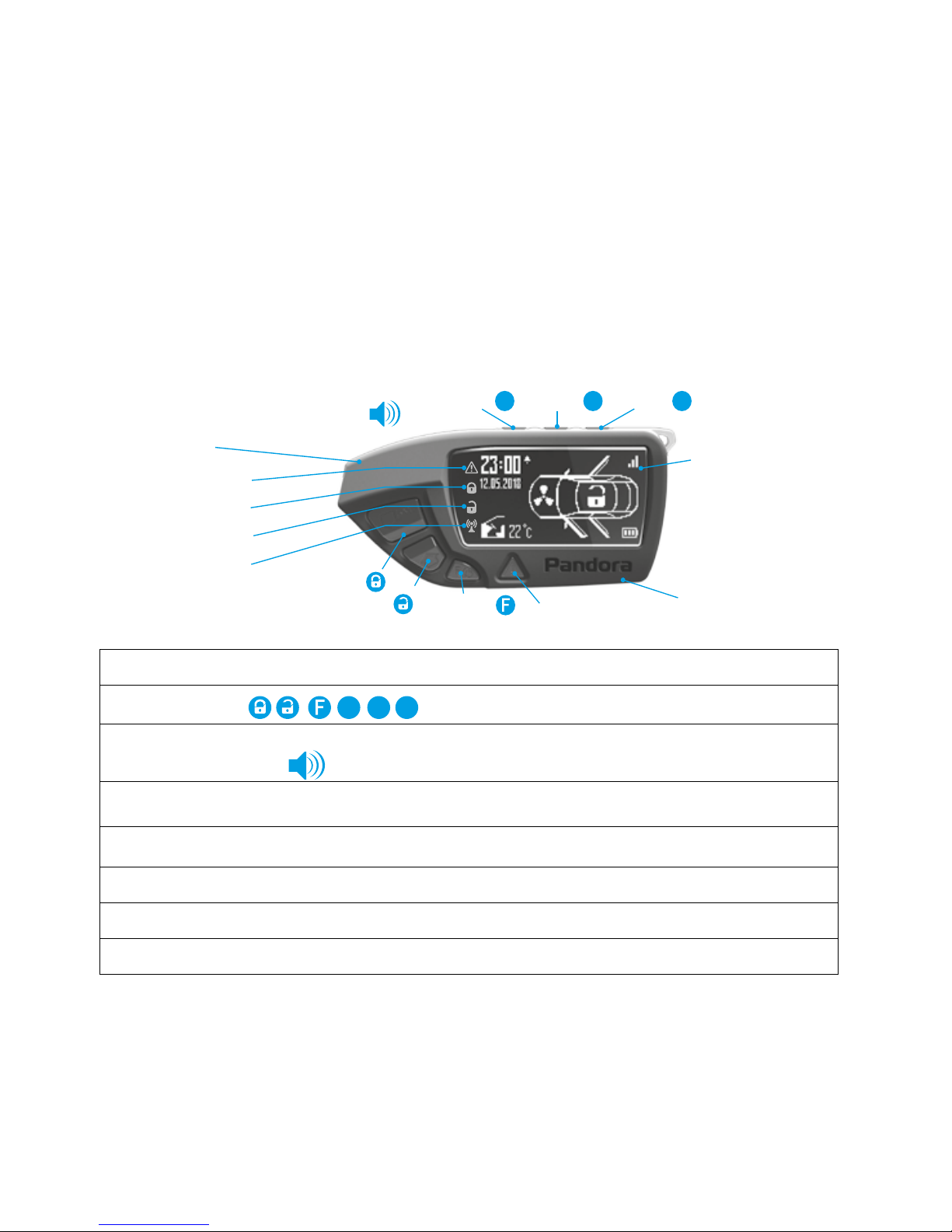

REMOTE CONTROL D670
Two-way remote control is the main mean to control the system. For easily distinguishable
notifications, the remote uses 16 ringtones. Each ringtone matches particular event. Remote has
flashing LED indicators for additional information.
OLED-display
7 control buttons SOS
4 5 6
Built-in sound indicator
(16 ringtones)
Built-in vibro-indicator (conrmation of button presses with vibrating).
Built-in LED indicators «ALARM/LOCK/UNLOCK/SEND»
Built-in radio interface 868 MHz
Built-in battery
Built-in micro-USB
micro-USB
Button
Button Button Button SOS
ButtonButton
Send indicator
Alarm indicator
Antenna
Lock indicator
Unlock indicator
OLED
Button
4
5
6

10 TELEMETRY SECURITY-SERVICE SYSTEM PANDORA PROFESSIONAL
Включение/выключение брелока
Charging a remote control
- The battery is charged
- The battery is discharged
There is an indication of the battery charge level. Charge the battery if the remote
control does not turn on or the charge level indicator displays the last segment. The
battery is charged using a standard micro-USB cable.
WARNING!
• ALL CONTROL COMMANDS ARE TRANSMITTED VIA RADIO CHANNEL, FOR
MAXIMUM EFFECTIVENESS AND RANGE IT IS RECOMMENDED NOT TO SHIELD THE
ANTENNA AREA SEE PICTURE WITH FINGERS WHEN USING A REMOTE.
• A REMOTE CONTROL IS A UNIFIED CONTROL DEVICE. ITS FUNCTIONS DEPEND ON
SECURITY SYSTEM MODEL.

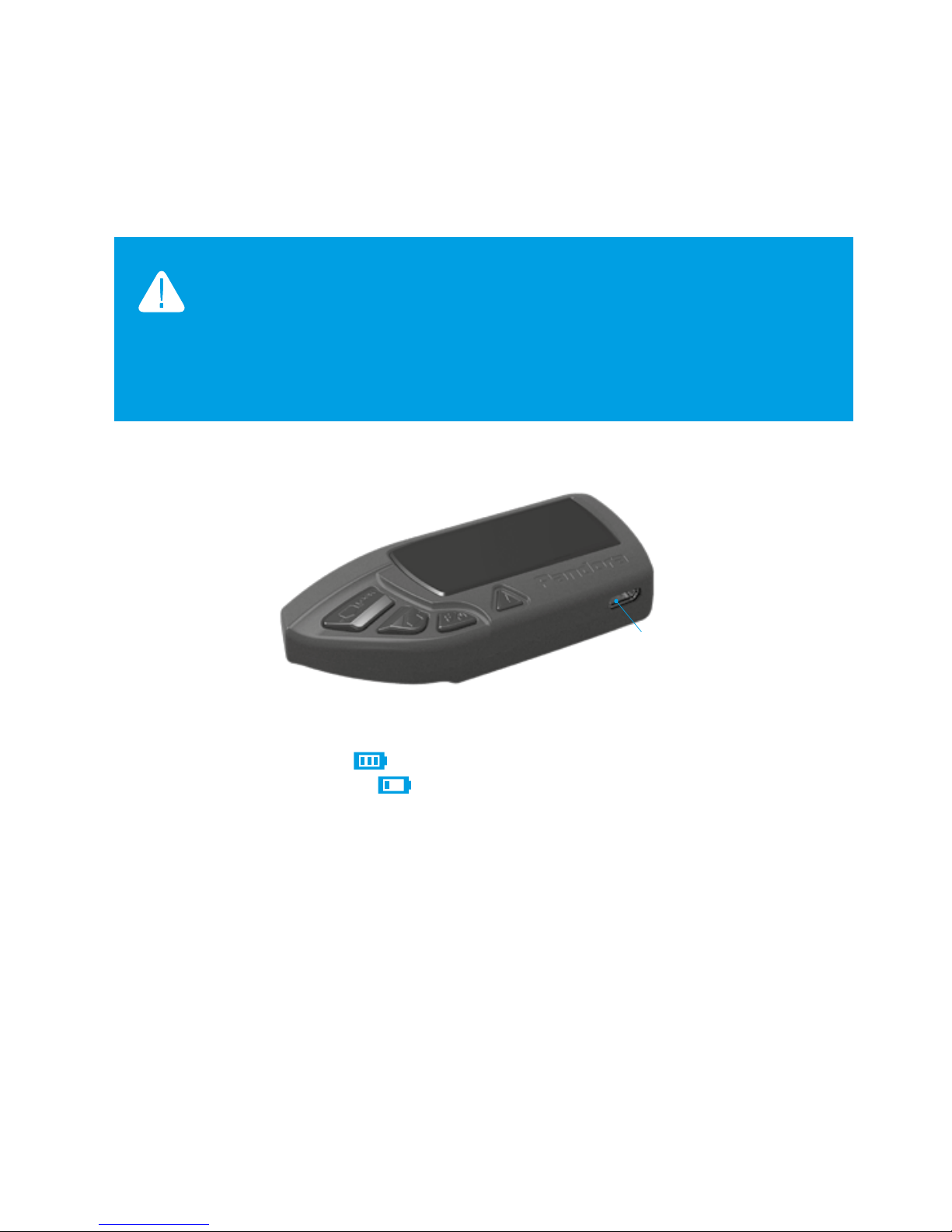

micro-USB connector
for charging
and updating rmware

11USER MANUAL
Updating firmware of the remote control
• Download the Pandora Alarm Studio application to a personal computer and run the
program (the latest version of the application can be downloaded from pandorainfo.
com)
• Download firmware for the remote control. It can be downloaded by the Pandora
Alarm Studio
• Press and hold the button 4of the remote control. Release the button right after
connecting the remote control with a PC via a USB cable. The application will offer to
update the firmware.
• Upload the firmware to the remote control using the Pandora Alarm Studio
application - «LOAD FROM FILE».
Icons of the remote control
Red ALARM indicator
Flashes occasionally and sounds a short signal one time per minute after the end of any
alarm notication. It indicates until any button you press any button.
Green LOCK indicator
Flashes occasionally if there is a connection and the system is armed
Red UNLOCK indicator
Flashes occasionally when the system is armed
Red SEND indicator
Flashes occasionally when there is no connection

12 TELEMETRY SECURITY-SERVICE SYSTEM PANDORA PROFESSIONAL

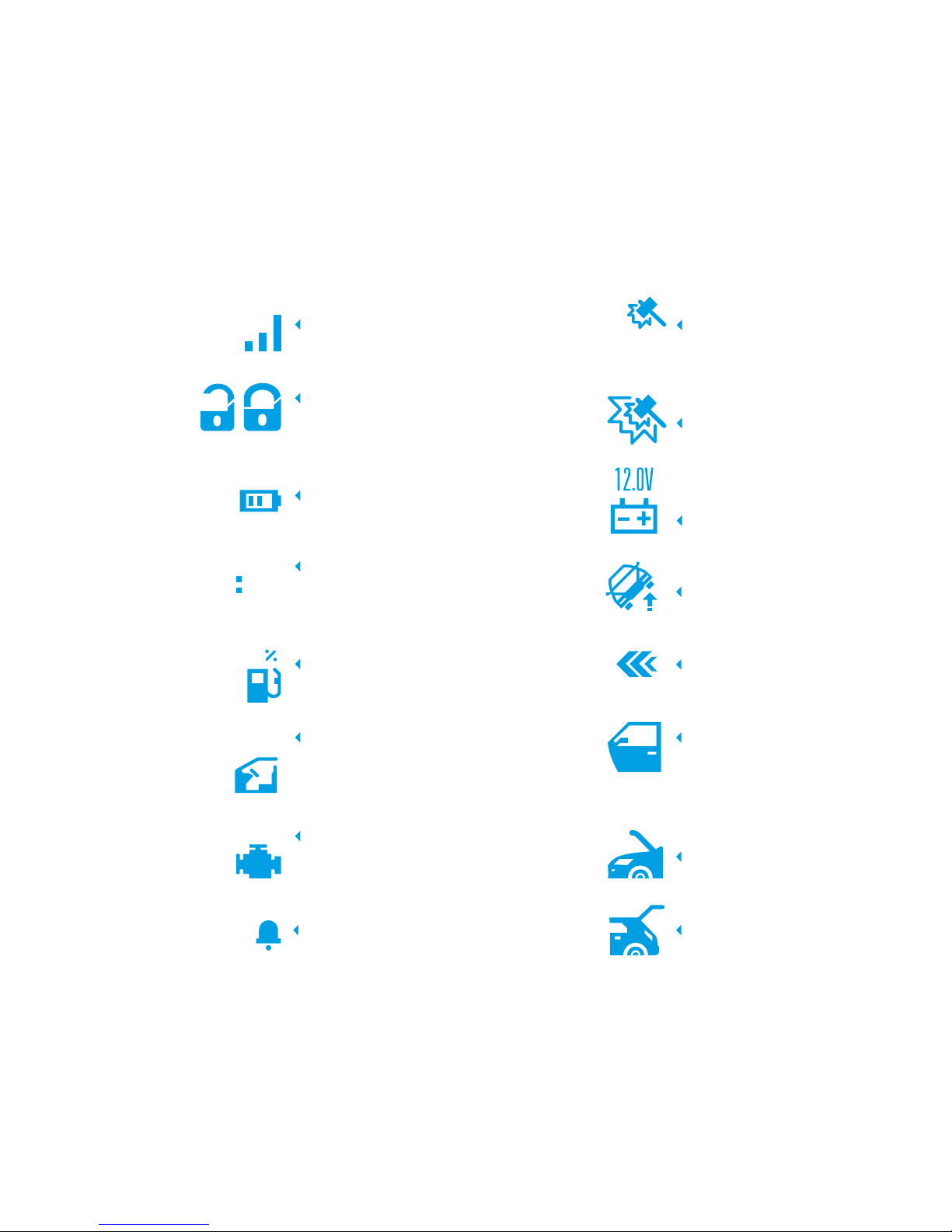

Icons of the remote control
Flashes when
a command is
transmitted
Security mode
status (Armed/
disarmed)
Battery charge
level
Current time
indicator
Fuel level
Inside temperature
Engine
temperature*
Alarm clock
12 48
Security zone
Shock sensor:
Warning level:
Security zone
Shock sensor:
Alarm level
Car battery voltage
Security zone.
Tilt sensor
Security zone
Motion sensor
Security zone
“Doors”.
separate indication
for each door
Security zone
“Hood”
Security zone
“Trunk”
24°
90°
75

13USER MANUAL
Security zone
“Ignition”
“Low voltage security
zone”
P
Handbrake/neutral
indicator, Brake
pedal security zone
“Engine is working”
icon
* Engine temperature indication is available only if a sensor is connected. Separate
indication of doors, original alarm status, fuel level depend on information in CAN-bus
digital protocol of specific car.

14 TELEMETRY SECURITY-SERVICE SYSTEM PANDORA PROFESSIONAL

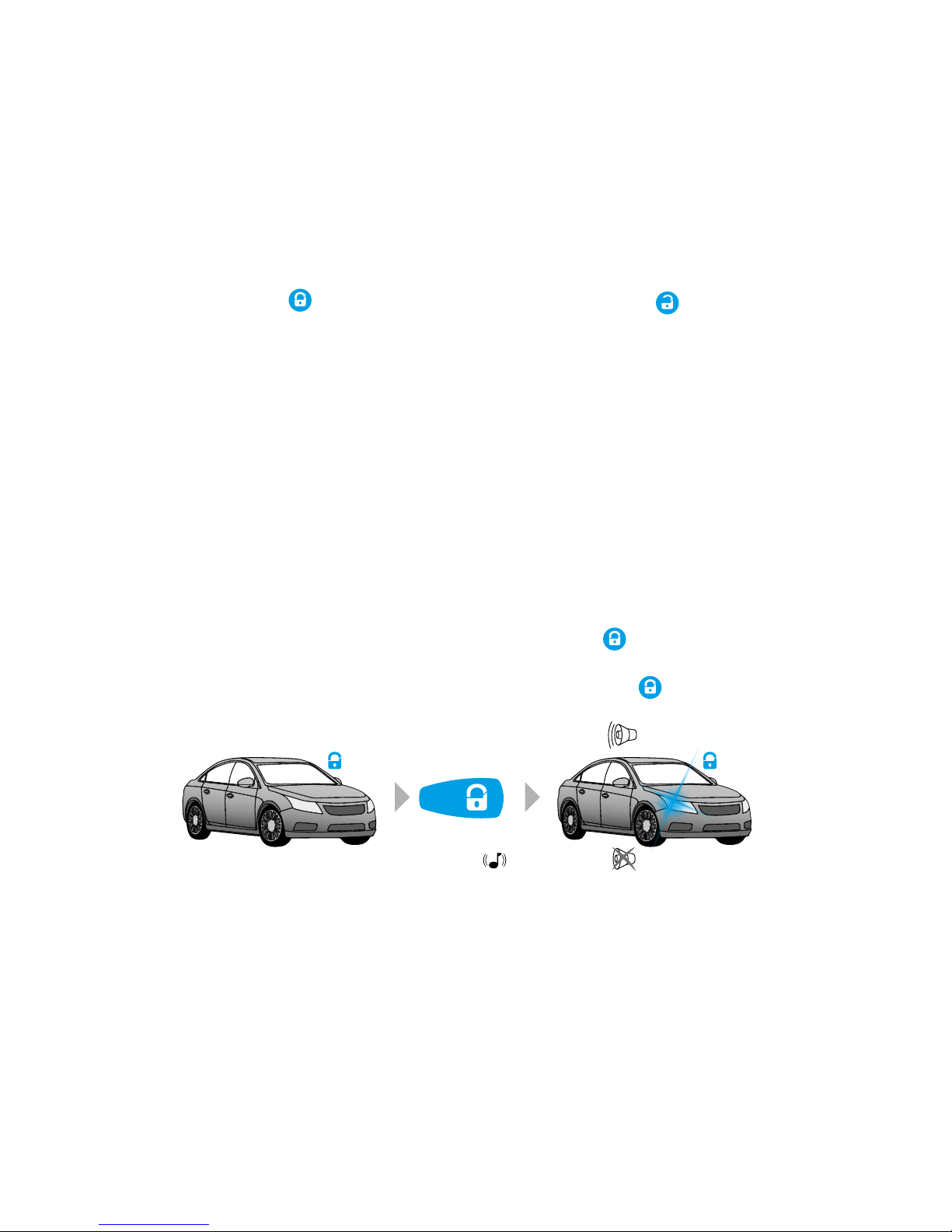

QUICK ACCESS FUNCTIONS OF THE REMOTE CONTROL
System is disarmed System is armed (no alarm
events)
Ignition is switched on Ignition is switched
o
(short press)
Lock doors without
arming
Arming with sound
conrmation
Search mode – ashes of turn
signals with sound signals for 5
seconds
(1 sec)
Arming without
sound conrmation
Search mode – ashes of turn
signals without sound signals for
5 seconds
(2 sec)
Switch on the“Ignition
backing” mode
(3 sec)
Switch on the“Program
neutral” Start engine
(short press) Unlock doors Unlock doors Disarming with sound
conrmation
(1 sec) Unlock doors Disarming without sound
conrmation
(2 sec and
more)
Switch o the“Ignition
backing” mode
Switch o the ignition during
remote or automatic engine start
procedure
(short press) Switch on LCD lighting
(1 sec) Unlock trunk

15USER MANUAL
(2 sec) Switch on/o timer channel
(3 sec) Switch on/o the remote control
+
(short press) PANIC mode
+
(short press)
Arming when the
engine is running with
sound conrmation
Arming in 30
seconds with sound
notication
+
(1 sec)
Arming when the
engine is running
without sound
conrmation
Arming in 30
seconds without
sound notication
6
(1 sec) Request current car status (“CHECK» command)
6
(2 sec) Events history
6
(3 sec) Force connection to the online service
5
(1 сек.) Enter settings menu
5
(3 sec.) Switching on engine preheater
5
(2 sec.) Switching o engine preheater

16 TELEMETRY SECURITY-SERVICE SYSTEM PANDORA PROFESSIONAL
Arming
Arming the system allows monitoring of all security zones, locks the doors and blocks
the engine.
To arm the system when the ignition is switched off, shortly press button on the
remote control. The siren will emit one sound signal and turn signals will flash once.
The remote control will play “ARMING” ringtone and security mode status icon (the
lock) will change to:
To arm the system without sound confirmation press and hold button for 1
second or more.
If doors, front hood or trunk was open when arming, the siren will sound 4 beeps instead
of 1, turn signals will flash 4 times, a remote will play the “WARNING” ringtone (after the
“ARMING”ringtone) and will show a troubled zone. This zone sensor will be disabled at that
moment. Sensor will be armed again in 15 seconds after the zone was set right.
Disarming
To disarm the system, shortly press button on the remote control. You will hear
2 short siren sounds and will see 2 flashes of turn signals. The remote will play
“Disarming”, ringtone and security mode status icon will change to:
~~
short press doors locking
system arming 1 ash
1 ash
1x
press and hold
for 1 sec.
~~
shortly
press
press
and hold for
1 sec.
doors unlocking
system disarming 2 ashes
2 ashes
2x

17USER MANUAL
To disarm the system, shortly press without sound confirmation press and button
for 1 second or more.
If there were new alarming events during the time system was armed, siren will
sound 4 times and turn signals will flash 4 times, the remote control will play the
“WARNING” ringtone (after the “DISARMING” ringtone) and will indicate zones
triggered. All recent alarm events can be viewed in the event history.
Unlocking a trunk
To independently unlock the trunk, no matter if the system is armed or not, press and
hold button for 1 second.
If the system is armed when this action is performed, the trunk zone, shock and
supplementary sensors will be disabled. All the other security zones will remain
armed.
If the trunk is not opened in 15 seconds after sending ‘Unlock a trunk’ command,
the system will enable the sensors and arm the trunk security zone. It will be
confirmed with a single flash of turn lights.
OFF
ON
ACC
doors locking
short press
doors unlocking
Press
and hold
for 1 sec.

18 TELEMETRY SECURITY-SERVICE SYSTEM PANDORA PROFESSIONAL
Locking/unlocking doors when the ignition is switched on
The system is able to control doors locking when the ignition is switched on. To lock
doors, shortly press arming button, to unlock doors , press disarming button.
There is an automatic movement lock mode that will lock the doors at the car
movement or on switching on the ignition. Doors will be unlocked after the ignition
is switched off There is an option in the settings that allows to prohibit automatic
unlocking on switching off the ignition.
When using doors locking mode on the car movement start, the system will detect
car moving and perform doors locking (it depends on motion sensor sensitivity
settings).
When using doors locking mode when switching on the ignition, in no less than 5
seconds after the ignition was switched on, the doors will be locked automatically. If
any door is being opened after the ignition was switched on, automatic locking will
be disabled to prevent locking keys inside a car.
Car search function
To easily find your car on a massive parking, shortly press press button when the
car us armed. The system will sound the siren and flash turn signals 5 times in a row.
To search for car without sound confirmation, press and hold for more than 1
second.
Delayed arming
If when leaving the car you cannot arm it using a remote control (you have your
hands full), you can use the “DELAYED ARMING” function.
short press
5 ashes
5 ashes
1x
press
and hold
for 1 sec.

19USER MANUAL
short press + lights 30 sec.
+
~~
short press
Doors locking,
system arming
1 ash
1x
short press 1 sec. 1 ash
30 sec.
+
To activate this mode, shortly press and buttons simultaneously. The LED
indicator will turn red, the system will lock doors and will arm in 30 second, a siren will
sound and turn signals will flash once indicating that the mode is triggered.
To activate this mode without sound confirmation, press and hold both and
buttons for 1 second until the sound and vibration signal.
To cancel delayed arming press button.
PANIC mode
If your car or you are in danger and you want to draw attention to your car, you can
use the PANIC mode. In this mode the siren will sound and turn signals will flash
repeatedly for 30 seconds.
To trigger the PANIC mode, press and . buttons simultaneously. To switch it
off, press either or button.
Remote and automatic engine start
The system allows for remote engine start using the “REMOTE ENGINE START”
command or preconfigured automatic engine start function. Remote start can

20 TELEMETRY SECURITY-SERVICE SYSTEM PANDORA PROFESSIONAL
be used to heat engine and interior, charge battery or to cool the interior with air
conditioning.
Remote and automatic start can only be used when the system is armed.
If a car has manual transmission, remote or automatic start will only occur if the
program neutral procedure was followed when the car was arming.
Remote and automatic engine start on automatic transmission cars will only
occur, if a transmission selector lever was left in a «P» position. When using the
remote and automatic engine start functions, make sure that a car is secured with
handbrake or some other means of fixating the car on a parking position.
While the system is in remote and automatic start mode, it keeps performing all
security functions of all of the security zones excluding a shock sensor (the system
can be configured to not disable the shock sensor during remote engine start). To
compensate, motion sensor sensitivity and responsiveness will be increased.
If any security zone will be triggered, the engine will be immediately stopped
and alarm mode will be triggered. Herewith all engine blocking functions will be
activated..
Program neutral procedure
(for cars with manual transmission)
If you are planning to use remote and automatic engine start on a car with manual
transmission, before arming you will need to perform following actions:
1. When the engine is running, fixate the car with the handbrake and put gear lever
to the neutral position.
Program neutral procedure will be switched on automatically (it depends on the
system settings) or press and hold button for 3 second to forced switch on this
program.
