Pandora Light Pro User manual

Pandora would like to thank you for
choosing our service-security system
Pandora is exclusive brand of security systems fully developed and manufactured in Russia. The
manufacturing has its owen R&D department and more than 10 years of experience in the development
of car-alarms making it able to offer the latest technology with unique features. In 2016, Pandora and
TSS Group, have formed a new strategic partnership and thanks to long experience in the car security
market, the selected functions and features have been optimized according to needs of EU and
european customers.
Pandora Light Pro – is a car service-security system built for cars with on-board voltage of 12V.
It is a complex engineering solution, which includes unique and modern technological software and
hardware solutions.
When building the Pandora Light Pro we were using the most up-to-date electronics from world’s
best manufacturers. The device is built using high-precision mounting and control machinery, thus
we guarantee highest possible quality, reliability and stable technical characteristics for the whole
operation period.
Pandora Light Pro has a cryptographically strong authorization code with unique dialog algorithm
and individual 128 bit encryption key on every device. We guarantee 100% protection form electronic
hacking for the whole operation period.
The system is built for your convenience: it’s ergonomic, reliable, has the highest security and
service characteristics, 3 years unconditional warranty and free service and support. We are happy to
provide any support we can – feel free to use our online support.
WARNING! ItIs stRoNGly AdvIsed to hAve pRofessIoNAl cAR mechANIc INstAllING the system. ANy cAR
electRoNIcs INstAlleR should be Able to INstAll pANdoRA lIGht pRo usING INstAllAtIoN scheme IN thIs mANuAl
ANd AlARmstudIo softWARe. most feAtuRes ARe hIGhly depeNdeNt oN competeNt INstAllAtIoN. ouR systems
ARe thoRouGhly tested foR quAlIty, so If AfeAtuRe fAIls to pRoduce expected Result, most lIkely the pRoblem
Is IN ImpRopeR INstAllAtIoN.
This device has limited external factors resistance. It should not be subjected to water beyond occasional splatter, or
operated in temperatures outside -40 to +85° C range. All system components must be installed only in a car interior.
The base unit, remote control and radio tags fulfil with the IP40 category of protection against water.
Our web-site: pandora-alarm.eu
Customer support: [email protected]

2SECURITYSERVICE SYSTEM PANDORA LIGHT PRO
Table of contents
System set 4
System features 4
Base unit 4
Control 5
Immobilizer mode 6
Anti-Hijack mode 6
Multi-button code immobilizer (pin-to-drive) 7
Remote control (D022) 8
Switching on/off the remote control 8
LED indicators meaning 8
Quick access functions of the remote control 9
Icons of the remote control 11
Menu of the remote control 13
Immobilizer radio tag 18
Replacing an immobilizer tag battery 18
Mobile applications 19
Control over the system 22
Arming 22
Disarming 23
Unlocking a trunk 25
Locking/unlocking doors when ignition is on 25
Delayed arming 26
Car search function 26
Panic mode 26
Remote and automatic engine start 27
Program neutral procedure (reservation mode) 27
Remote engine start 28
Automatic engine starts 29

3USER MANUAL
Service mode 29
Control over the system in case of emergency 31
Emergency disarming 31
Emergency disabling immobilizer radio tags 32
Deactivating code immobilizer (pin-to-drive) 33
Additional information 34
Siren sounds and light signalizations 34
Beeper sound signals 34
Meaning of the LED indicator colors 35
Checking the number of recorded radio tags 35
System module layout 36
Warranty obligations 37
Installation certificate 38
Acceptance certificate 39
Warranty card 39

4SECURITYSERVICE SYSTEM PANDORA LIGHT PRO
SYSTEM SET
1. Base unit 1
2. Owner’s personal card 1
3. Remote control 1
4. Radio tag 1
5. User manual 1
6. External “LED/VALET» button 1
7. Beeper 1
8. Analogue temperature sensor 1
9. Blocking relay 1
10. Main cable of the base unit 1
11. IMMO-KEY interface cable 1
12. LIN-interface cable 1
13. Micro-USB cable 1
14. Fastening kit 1
15. Packaging 1
NOTE! ThE maNufacTurEr rEsErvEs ThE righT TO chaNgE ThE sysTEm sET aNd cONsTrucTiON Of ThE prOducT TO imprOvE
iTs TEchNOlOgical aNd OpEraTiONal paramETErs wiThOuT NOTificaTiON.
SYSTEM FEATURES
Base unit
• Integrated868MHzradiointerface
• Integrated2.4GHzmodulewithsupportofBluetooth5.0LowEnergyprotocol
• Dialogcodingofcontrolcommandswithanindividual128-bitencryptionkey(thekeyischanged
every time you re-record a peripheral device)
• Built-in integral accelerometer for determining motion and shocks with adaptive processing
algorithm and sensitivity adjustment.
• Builtintemperaturesensor,additionalenginetemperaturesensor
• Integratedportandalgorithmsforbypassoforiginalimmobilizers
• Built-inmicro-USBport
• Individual“SecretPIN-code”,changeable“ServicePIN-code”and“ImmobilizerPIN-code”.

5USER MANUAL
Control
Control of the vehicles zones depends on the type of connection and system settings, original car
operation and trim.
TYPE №1 Analog connection – It is a direct connection of analog inputs and outputs to electrical
circuits of a vehicle in accordance with a connection diagram.
TYPE №2 Digital connection – It is a connection to digital (CAN, LIN) buses. It allows reading
information (statuses) and controlling vehicles (commands) by digital buses of the vehicles. The detailed
information about digital protocols is available on loader.pandorainfo.com. The declared statuses may
not be available for certain vehicle trims.
TYPE №3 Built-in sensors – These sensors are integrated in the base unit. The sensors perform
control and protection of the vehicle. Additional connections are not required.
TYPE №4 Additional sensor (*optional) – External additional sensors are connected to the base unit.
TYPE
Protected and monitored zones
1 2 3 4
• • •*Interior temperature (status)
• • Engine temperature (status)
• •*Outside sensor (status)
•Voltage of the on-board circuits (status, security zone – alarm level)
•Shock sensor (security zone – alarm and warning level)
•Motion sensor (security zone – alarm level)
•Tilt sensor (security zone – alarm level)
••*OE alarm system status via CAN, additional sensor, (status, security zone –
alarm and warning level)
••Turning ignition on (status, security zone – alarm level)
••Opening doors, separate indication for each door via CAN (status, security
zone – alarm level)
••Opening a trunk (status, security zone – alarm level)
••Pressing brake (status, security zone – alarm level)
• • Engine operation control - RPM (status)

6SECURITYSERVICE SYSTEM PANDORA LIGHT PRO
• • Position of a gearbox selector/handbrake(status)
•“Parkinglightisnotturnedo”notication
1 2 3 4 Control (commands)
• • Central lock
•Car original alarm system
• • Trunk
• • Turn lights
• • Closing windows
• • •*Engine pre-heater
Immobilizer mode
When switching on the ignition, a base unit of the security system performs a search for immobilizer
tags in the radio coverage zone. If no radio tags are detected at the time of switching on the ignition,
the system will block the engine. Engine blocking will occur immediately or at the time a motion sensor
detects movement, it depends on the system settings.
This mode is enabled by default. Use the mobile app or Pandora AlarmStudio to disable it.
WARNING! Ifthe system does Not RecoGNIze ARAdIo tAG, the beepeR WIll emIt 5 souNd sIGNAls WheN the
IGNItIoN Is tuRNed oN, thIs WIll RepeAt 5 tImes. check ARAdIo tAG bAtteRy, move AtAG (It Goes to the sleep
mode WheN It RemAINs motIoNless ANd the IGNItIoN Is off. A buIlt-IN AcceleRometeR hAs to RecoGNIze movemeNt
to ActIvAte AtAG).
Anti-Hijack mode
The Anti-Hi-Jack mode helps to prevent aggressive seizure of a car using delayed engine blocking on
door opening. Every time on opening/closing a door when the ignition is on, the system requests a
response from a radio tag using a unique algorithm. After a door was opened while the ignition is
on, if the system cannot detect a radio tag, the engine will be stopped after 1 minute (general safety
requirement). The siren will play the ‘ENGINE BLOCKING WARNING’ ringtone before blocking. The
engine will be blocked immediately or at the time the car starts moving, it depends on system settings.
Blocking will be disabled if the system detects a radio tag.

7USER MANUAL
This mode is disabled by default. Use the mobile app or Pandora AlarmStudio to enable it.
Anti-Hijack 2 mode
The Anti-Hi-Jack-2 mode helps to prevent aggressive seizure of a car using delayed engine blocking
on radio tag disappearance. The system constantly requests a response from a tag using a unique
algorithm when the ignition is on. If the system cannot detect a radio tag, the engine will be stopped
after 1 minute (general safety requirement for car movement). The siren will play the‘ENGINE BLOCKING
WARNING’ ringtone before blocking. When warning signals end, the system will block the engine.
Engine blocking will occur immediately or at the time the car starts moving, it depends on block
implementation and system settings.
This mode is disabled by default. Use the mobile app or Pandora AlarmStudio to enable it.
Multi-button code immobilizer
Multi-button code immobilizer (pin-to-drive) is a function that allows disarming, disabling blocking
and controlling service mode and time channels using original vehicle controls (button, lever or pedal)
andapre-programmedPIN-code(the“ImmobilizerPIN-code”).Thefunctionworksusingspecialanalog
inputs or digital buses of a car.
An example of using the function:
• Turn on the ignition to disable engine blocking or enable service mode, turning on the ignition is not
required if you want to disarm the system or control time channels.
• Enter the“Immobilizer PIN-code”. Press a programmed button/lever/pedal the number of times
equals to the first digit. Pauses between presses should not exceed 1 second. More than 1 second
pause will be interpreted as the start of the next digit input. The immobilizer code can consist max
of 4 digits from 1 to 9.
• The system will confirm the correct input by a sound signal of the beeper and a programmed
function will be performed.
NOTE! iTis rEquirEd TO makE addiTiONal cONNEcTiONs aNd sETTiNgs TO usE This fuNcTiON.

8SECURITYSERVICE SYSTEM PANDORA LIGHT PRO

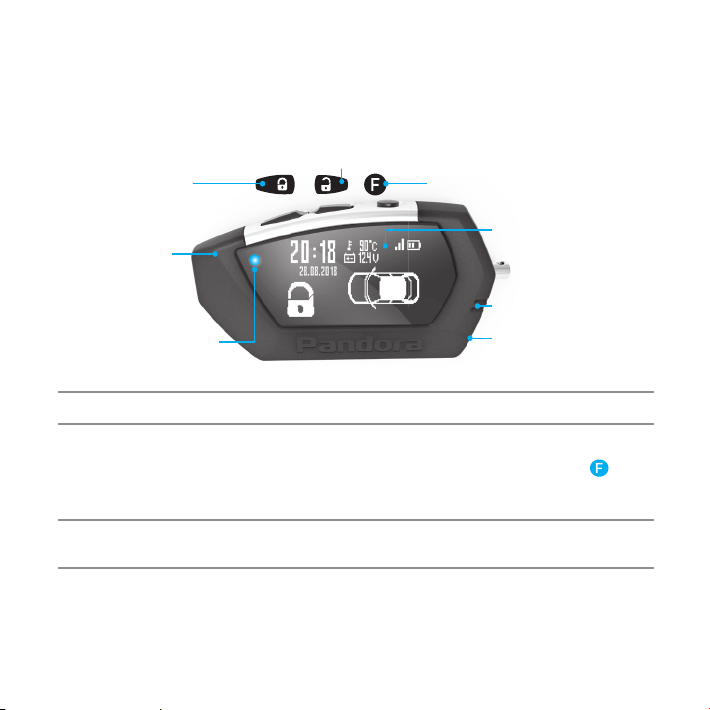

REMOTE CONTROL D022
A two-way remote control is the main mean of control over the system.
For easily distinguishable notifications the remote uses 16 ringtones. Each ringtone matches
particular event. Remote has flashing LED indicators for additional information.
NOTE! a rEmOTE cONTrOl is auNifiEd cONTrOl dEvicE. iTs fuNcTiONs dEpENd ON sEcuriTy sysTEm mOdEl.
Switch on/off the remote control
The remote is fully operational when shipped. To switch on the remote, press and hold the button
for3seconds.The“REMOTEON”ringtonewillplay.Pressingandholdingthisbuttonagainfor3seconds
will cause the remote to switch off.
AtteNtIoN! All coNtRol commANds ARe tRANsmItted vIA RAdIo chANNel, foR mAxImum effectIveNess ANd
RANGe It Is RecommeNded Not to shIeld AeRIAl AReA (see pIctuRe) WIth fINGeRs WheN usING ARemote coNtRol.
LED indicator signals
Green indicator:
• Flashes if there is a connection with the base unit
• Goes dark when there is no connection with the base unit
Aerial
868 MHz
SEND/ALARM
Indicator
OLED-
display
Sound
source
Button 1
Button 2
Button 3
micro-USB

9USER MANUAL
Red indicator:
• Flashes frequently if there is any notification
• Flashes occasionally when there is no connection

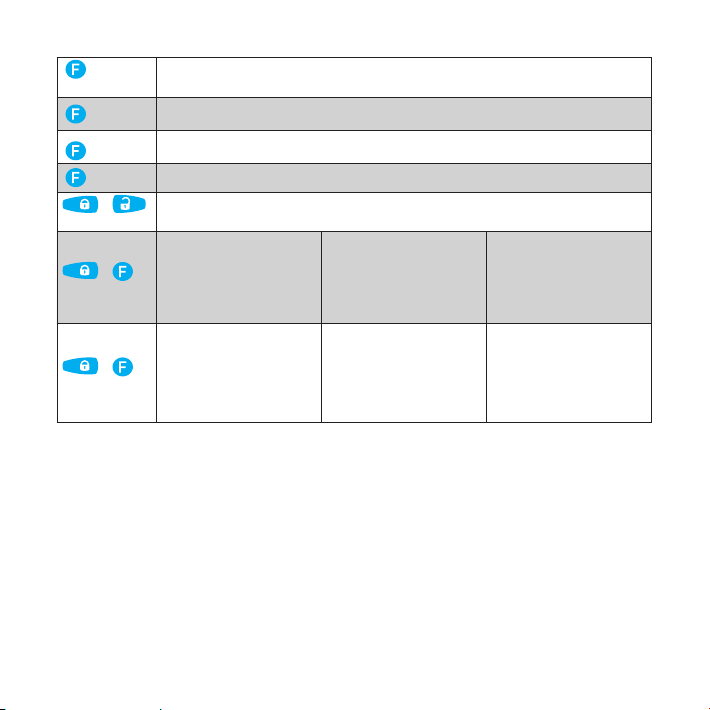

Quick access functions of the remote control
System is disarmed System is armed
(no alarm events)
Ignition is switched on Ignition is switched o
(short press)
Lock doors without
arming
Arming with sound
confrmation
Search mode – flashes of
turn signals with
sound signals for 5
seconds
(1 sec.)
Arming without sound
confrmation
Search mode – flashes of
turn signals without
sound signals for 5
seconds
(2 sec.)
Switch on‘Ignition
maintenance’ mode
(3 sec.)
Switchon“Programneutral”
(reservation mode) Remote engine start
(short press) Unlock doors Unlock doors Disarming with sound
conrmation
(1 sec.)
Disarming without sound
conrmation
(2 sec. and
more)
Switch o‘Ignition
maintenance’ mode
Switch o the ignition
during remote or
automatic engine start
procedure

10 SECURITYSERVICE SYSTEM PANDORA LIGHT PRO
(short press) Switch on LCD lighting (available only on the remote with LCD)
(1 sec.) Unlock trunk (CH1)
(2 sec.) Switch on/o timer channel (CH2)
(3 sec.) Switch on/o remote (available only on the remote with LCD)
+
(short press) PANIC mode
+
(short press)
Arming when the engine
is running with sound
conrmation
Arming in 30 seconds
withsoundnotication
+
(1 sec.)
Arming when the engine
is running with sound
conrmation
Arming in 30 seconds
without sound
notication

11USER MANUAL

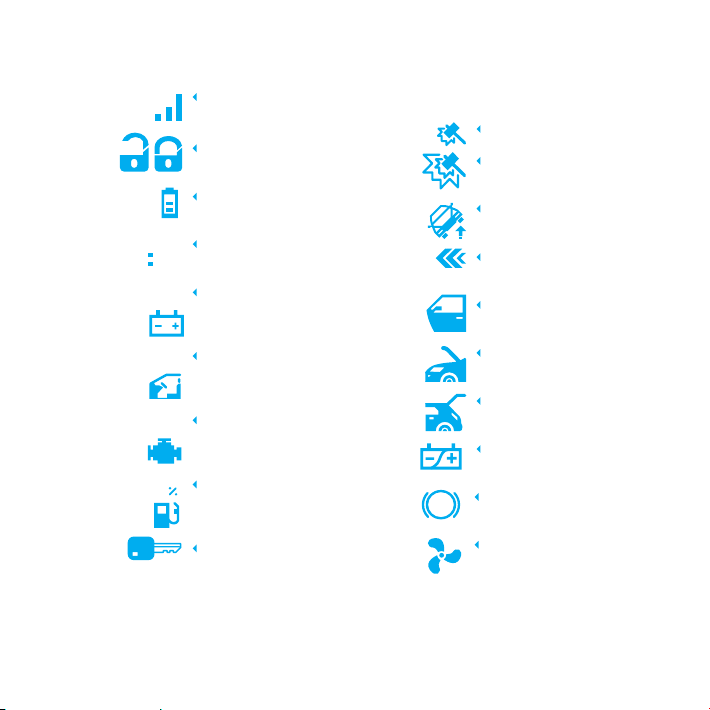

Icons of the remote control
Flashing when
command sending
Security mode status
Remote control
battery level
Current time
Battery voltage
Interior temperature
Engine temperature
Fuel level
Ignition security
zone
12 48
Shock sensor security
zone:
Warning level
Alarm level
Tilt sensor security zone
Motion sensor security
zone
Doors security zone*
Front hood security zone
Trunk security zone
Low voltage security zone
Handbrake/neutral
indicator, Brake pedal
Engine operation icon
* Separate display indication of doors, original alarm status, fuel level depend on information in CAN-bus digital protocol of specific car
P
22
°
90
°
55
1
2
.4B

12 SECURITYSERVICE SYSTEM PANDORA LIGHT PRO
Charging the remote control
•Batteryischarged
•Batteryisdischarged
There is battery charge level indication on the display of the remote control. Charge the battery if
the remote control doesn’t turn on or the charge indicator displays low level. Charging is performed
using a standard micro-USB cable.
Firmware update
• Run the Pandora Alarm Studio application on a PC and connect a USB-cable to it.
• Press and hold the , button and connect a USB cable. Release the button after connection. The
remote control and the app will enter boot mode.
• Upload firmware, disconnect the USB-cable after completion of the procedure.
NOTE! ThE alarmsTudiO applicaTiON is prOvidEd ONly TO auThOrizEd iNsTallErs Of paNdOra. iTis availablE ON Our
wEb-siTE paNdOraiNfO.cOm

13USER MANUAL
REMOTE CONTROL MENU
You can control and manage all main settings and parameters of the system using the menu of the
remote control.
Briefly press the button to enter the menu. The following presses of the button will switch
between menu items. Press the or button to enter a selected item.
Check menu
To get information about engine temperature, interior temperature, battery voltage and fuel level,
select the CHECK menu by short presses of the button and briefly press the or button.
If there are no any actions within 5 seconds, the remote control will exit the main menu automatically.
You can manually exit the menu by pressing the button.
PROCEED TO THE MENU
(press briefly)
GO TO THE NEXT ITEM
(press briefly)
GO TO THE NEXT ITEM
(press briefly)
EXIT THE MAIN MENU
(press briefly)
ENTER THE MAIN MENU
(press briefly)
F
F
F
F
or
PROCEED TO THE MENU
(press briefly)
or
PROCEED TO THE MENU
(press briefly)
or
CHECK
SETTINGS
INFORMATION
12 4V
22 °
90° 55
Battery
Voltage
Interior
temperature
Engine
temperature
Fuel
level

14 SECURITYSERVICE SYSTEM PANDORA LIGHT PRO
Settings
To change settings and parameters of the system, select the SETTINGS menu by short presses of the
button and briefly press the or button.
Shortly press or buttons to select a sub-menu. To enter a sub-menu, briefly press button.
decrease
Enter/confirmation button
a parameter
is enabled
a parameter
is disabled
save parameter
exit a menu/submenu
navigation buttons
increse
up
down
PROCEED TO THE SETTINGS MENU
(press briefly)
or
PROCEED TO THE SETTINGS/PARAMETERS
(press briefly)
MENU NAVIGATION
(press briefly)
up
down
EXIT THE MENU
(press and hold for 1 sec.)
F
F
HISTORY
AUTOSTART
HEATER
SENSORS
TRACKING
SIREN
HANDS FREE
CHANNELS
GPS RECEIVER
GSM MODEM
VALET MODE
SETTINGS

15USER MANUAL
VIEW EVENT HISTORY
This menu allows viewing the event history stored in the remote control memory. The remote control
displays an event name and its time.
NOTE! ThE NumbEr Of EvENTs is limiTEd by ThE mEmOry Of ThE rEmOTE cONTrOl. usE Our iNTErNET sErvicE TO viEw mOrE
dETailEd EvENT hisTOry.
AUTOMATIC ENGINE START SETTINGS
This menu allows configuring the automatic engine start and stop settings. A synchronized real-
time clock in the remote control and the base unit and other autonomous system settings allow to
implement set of conditions of engine start and operation regardless of whether the remote control is
in the radio coverage zone or not.
NOTE! ifyOu havE NOT savEd NEw sETTiNgs, rEmOTE aNd auTOmaTic ENgiNE sTarT sETTiNgs will rEmaiN ThE samE as
bEfOrE. ENgiNE sTarT via TEmpEraTurE is availablE ONly if TEmpEraTurE sENsOr is cONNEcTEd. auTOmaTic ENgiNE sTarT
sETTiNgs dON’TaffEcT rEmOTE ENgiNE sTarT fuNcTiONs.
• ENABLE - this submenu switches on/off all automatic engine starts.
•
TIMER - this submenu allows starting an engine every day at the scheduled time.
•
START TEMP - this submenu allows starting an engine automatically when the engine temperature is
low.
•
WORK TIME - This submenu determines the maximum engine operation time for automatic and
remote starts.
•
PERIODICALLY - this submenu allows starting engine periodically with a configured time interval.
•
STOP TEMP - this submenu determines the engine stop temperature.
CONTROL OVER AN ENGINE PREHEATER
This menu allows switching on/off an engine pre-heater.
SETTINGS AND ADJUSTMENT OF THE SENSORS
This menu allows controlling and adjusting sensors (shock/motion/tilt) sensitivity. SHOCK and additional
EXTERNAL sensors have separate sensitivity zones. Alarm zone triggers when there are considerable
impact on a sensor. If the alarm zone is triggered, the system will indicate it with light and sound alarm
for 30 sec. Warning zone triggers when there are minor impact on a sensor (the sensitivity of the warning
zone should be higher than the alarm level sensitivity for correct operation). Warning level is indicated by

16 SECURITYSERVICE SYSTEM PANDORA LIGHT PRO
one light and three sound signals.
•SHOCK — This submenu allows adjusting sensitivity of the alarm and warning zones of the
shock sensor.
- Warning and alarm zones are enabled
- Warning and alarm zones are disabled
- Warning zone is disabled
• MOTION — This submenu allows adjusting sensitivity of the motion sensor
- Motion sensor is enabled
- Motion sensor is disabled
• TILT — This submenu allows adjusting sensitivity of the tilt sensor
- Tilt sensor is enabled
- Tilt sensor is disabled
• EXTERNAL — This submenu allows adjusting sensitivity of the alarm and warning zones of the
additional sensor.
- Warning and alarm zones are enabled
- Warning and alarm zones are disabled
- Warning zone is disabled
THIS FUNCTION IS NOT AVAILABLE FOR THE SYSTEM
OPTIONS OF SIREN SOUND SIGNALS
This menu allows configuring siren sound notifications.
- All sound signals are enabled
- Warning signals are disabled
- Warning and alarm signals are disabled
SETTINGS OF THE HANDS FREE MODE
This menu allows configuring the Hands Free mode for arming/disarming.
- Enable arming in the Hands Free mode
- Enable disarming in the Hands Free mode
- Enable arming and disarming in the Hands Free mode
TIME CHANNEL CONTROL
This menu allows switching on/off time channels. These channels are used to implement additional

17USER MANUAL
functions and to control external devices. The channels are configured using the Pandora Alarm Studio
application.
THIS FUNCTION IS NOT AVAILABLE FOR THE SYSTEM
THIS FUNCTION IS NOT AVAILABLE FOR THE SYSTEM
SERVICE/VALET MODE
Thismenuallowsenabling/disablingtheservice(valet)mode(seethe“Servicemode”section).
SETTING OF THE REMOTE CONTROL
This menu allows configuring the remote control operation.
•SOUND — This submenu allows switching on/off sound signals.
•VIBRO — This submenu allows switching on/off vibrations.
•BACKLIGHT — This submenu allows adjusting LCD backlight brightness.
•RFM LOST — This submenu allows configuring sound notifications in case of losing connection
between a remote control and a base unit.
- Disable notification signals
-Enablenotificationby“Connectionislost”ringtone
-Enablenotificationby“ALARM”ringtone
• lANGuAGe - This submenu allows changing interface language of a remote control.
• WIdGets - This submenu allows configuring information about a car state that is displayed in the
main screen of a remote control.
To get technical information about the remote control, select the INFORMATION menu by short presses
of the button and briefly press the or button.

18 SECURITYSERVICE SYSTEM PANDORA LIGHT PRO
RADIO TAG 760
A radio tag is a means of control security and anti-theft functions of the system used for concealed carrying.The
radiotagisusedtoauthorizeauserintheradiocoveragezoneofthebaseunitforsuchmodesas”Immobilizer”,
”HandsFree”,”Slave”.
A radio tag has a control button for arming/disarming and switching on and off the service mode. A
built-in motion sensor allows the tag to go into energy saving mode when there is no movement. The
tag also has a LED indicator SEND.
•Controlbutton
•IntegratedLEDSENDindicator
•IntegratedBluetoothinterface
•Integratedaccelerometer
•BatteryCR2032
•2.4GHzfrequency(dialogencryptionAES-128)
Light indication of the SEND indicator when there is a short press
of the button:
• No flashes – a battery is discharged
• 1 flash – radio tag operation is correct
Light indication of the SEND indicator when installing a battery:
• No flashes – a battery is discharged
• 1 flash – low battery level
• 3 flashes – high battery level
WARNING! AvoId moIstuRe oN the RAdIo tAG. doNot plAce the RAdIo tAG NeAR mAGNets oR pRoducts WIth
self-mAGNetIc fIelds.
Replacing an immobilizer tag battery
Carefully open the cover of the tag’s battery compartment. Extract
discharged battery and insert a new one keeping in mind the
correct polarity. Replacing a battery will not cause a loss of tag
code information, as authorization data is stored in the non-volatile
memory of the MCU. Carefully close the cover of the tag’s battery
compartment. All elements of construction should be rigidly locked
in places. If it is so, the tag can be operated as usually.
SEND
Open here

19USER MANUAL
MOBILE APPLICATIONS
The mobile applications Pandora Online (for Android) and
Pandora Pro (for iOS) are additional tools to control the system
state. The connection is established only with one phone that
was previously paired with the system via a special Bluetooth
Low Energy protocol.
WARNING! mINImum RequIRemeNts foR mobIle devIces: pANdoRA
oNlINe - ANdRoId v4.4, bluetooth 4.0 loW eNeRGy; pANdoRA
pRo - Ios v10.
Using the application
Run the application when you are near the system in the
Bluetooth radio range.The application will automatically detect
your system and will open the main screen with the connected
system.
The main screen contains the following information and
functions:
I. MAIN MENU - provides access to event history, help, system
and application settings.
II. VEHICLE – displays current status information about the
vehicle and system.
aTTENTiON! ifyOu waNT TO chaNgE vEhiclE TypE Or applicaTiON ThEmE, gO TO maiN mENu – sETTiNgs -
applicaTiON
System modes:
- System is armed
- System is disarmed
START
ENGINE
I
1 1
1
2 3
1
MAIN MENU
II VEHICLE
III BLUETOOTH DEVICES
IV CONTROL BUTTONS
- Service mode is enabled
- System is in programming mode

20 SECURITYSERVICE SYSTEM PANDORA LIGHT PRO
Displayed zones:
1- Doors - Interior/engine temperature
2- Front hood - Outside temperature
3- Trunk - Shock sensor
- Ignition - Tilt sensor
- Brake pedal - Motion sensor
- Engine is running - Additional sensor
- On-board voltage - HANDS FREE function state
- Fuel level - Siren sound notification state
III. BLUETOOTH-DEVICES - displays current number and state of recorded Bluetooth radio tags and
radio relays.
IV. CONTROL BUTTONS - this panel is used to control a system using buttons. To activate or deactivate
a function, press and hold the button for more than 3 seconds (this behavior is implemented to prevent
accidentally button presses.
Control buttons:
- Arm/Disarm buttons - PANIC mode button
- Trunk control button - Update current state button
- Service mode button - Time channel control buttons
- Engine preheater control button
NOTE! yOu caN chaNgE buTTON layOuT iN ThE “maiN mENu – sETTiNgs – cONTrOl buTTONs”
