Panduit CM661A User manual

STOP
READ ALL OF THE FOLLOWING INSTRUCTIONS BEFORE
REMOVING CABINET FROM CARTON
CM661A

INSTRUCTIONS CM661A
© Panduit Corp. 2013
FOR TECHNICAL SUPPORT www.panduit.com/resources/install_maintain.asp
Page 2 of 12
Enterprise Cabinets
(E6212B1FP, E6212B1FP5, E6412B2FP, E6412B2FP5 - Server Configured )
NOTE - Some views in this document may vary
slightly from your actual cabinet configuration.
Tool List:
-27mm wrench
-22mm wrench
-10mm wrench
-Phillips Screwdriver
-T30 Torx bit (included with cabinet configuration)
-Wire Cutter (optional)

INSTRUCTIONS CM661A
For Technical Support: www.panduit.com/resources/install_maintain.asp
Cabinet Operation Page
Frame Assembly……………………………………………...………………..………
…
4
Leveling Leg and Caster Installation…………………………..………………………
…
5
Leveling…………………………..……………………………………………………
…
6
Equipment Rail Adjustment…………………………………………………………… 7
Top Cap Installation and Overhead Cable Openings…………………………………
…
8
Grounding……………………………………………………………………………… 9
Door & Side Panel Bumper Installation………………………………………………
…
10
Front & Rear Doors (Installation and Removal) ……………………………………… 11
Side Panels (Installation and Removal) ………………………………………………
…
12
Table of Contents
Page 3 of 12

INSTRUCTIONS CM661A
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page 4 of 12
Upper
Cabinet
Frame
Member
[24] M6 Torx Screws
(use T30 Torx bit)
Left Front Post
(note diamond cutout)
Frame Assembly
• Use [24] M6 Torx Screws to assemble [4] Cabinet Posts
to Upper and Lower Cabinet Frame Members
ASSEMBLED FRAME
Lower
Cabinet
Frame
Member
Left Front Post
(with integrated
cage nut cutouts)
Left
Rear
Post
Right
Rear
Post
ENSURE that leveling
leg nuts of rear posts
are at bottom of cabinet
Right Front Post
(with integrated
cage nut cutouts)

INSTRUCTIONS CM661A
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page 5 of 12
Leveling Leg and Caster Installation
• Install [4] Leveling Legs into cabinet frame to fully retracted position
• Install [4] Caster Assemblies with [4] Hex Nuts per caster
[4] Leveling Legs
(use 22mm Wrench)
[4] Hex Nuts per Caster
(use 10mm Wrench)
[4] Caster Assemblies

INSTRUCTIONS CM661A
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page 6 of 12
Front-to-Back Cabinet Leveling
Side-to-Side Cabinet Leveling
Leveling
• Ensure that [4] Leveling Legs are fully retracted
• Roll Cabinet into final position
• Lower the [4] Leveling Legs until the cabinet weight is fully supported
• Adjust the [4] Leveling Legs so that the cabinet is level front-to-back and side-to-side
[4] Leveling Legs
(use 22mm Wrench)

INSTRUCTIONS CM661A
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page 7 of 12
Equipment Rail Installation
• Move equipment rail to desired positon
• Secure equipment rail to cabinet with[4] Torx screws and [4] hex nuts per rail
• NOTE: Front equipment rails are integral to the cabinet frame and are in a fixed position
• NOTE: Diamond cutouts on cabinet frame indicate mounting holes to allow for 742mm industry standard
equipment rail spacing. Mount equipment rails to mounting holes immediately in front of diamond cutouts.
[2] M6 Torx Screws
(use T30 Torx bit)
[2] Hex Nuts
(use 10mm wrench)
[2] M6 Torx Screws
(use T30 Torx bit)
[2] Hex Nuts
(use 10mm wrench)
Diamond Cutout
Diamond Cutout

INSTRUCTIONS CM661A
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page 8 of 12
Top Cap Installation and Overhead Cable Openings
• Install Top Cap with [6] M6 Torx Screws
• Cut [4] tabs of each Cutout with wire cutter to open each cable opening - OPTIONAL
• NOTE: If Cutouts are removed, Panduit recommends installing CTCN1X5 Bezel and Cover (not included) for cable protection.
[2] 40mm x 131mm Openings
[1.57” x 5.15”]
[2] M6 Torx Screws
(use T30 Torx bit)
Top Cap
(note orientation)
REMOVE CUTOUTS - OPTIONAL
(for cable exit/entry - see note)

INSTRUCTIONS CM661A
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page 9 of 12
[8] Grounding Lug Locations
(Front and Rear of Beams)
Grounding
• Attach Grounding Lug or Grounding Bar at any of the [2] location(s) shown below
• Grounding location is indicated by universal ground symbol
• Use M5 bonding screws (not included)

INSTRUCTIONS CM661A
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page 10 of 12
Door & Side Panel Bumper Installation
• Install [4] Rubber Bumpers on each side panel
• Install [5] Rubber Bumpers (for 24 RU doors) or [3] Rubber Bumpers (for 12 RU doors) on each door
•NOTE - Front Door is indicated by PANDUIT label
[4] Rubber
Bumpers
Rubber Bumper
[installed]
Rubber Bumper
[installed]
[5] Rubber Bumpers
(24 RU Doors)
[3] Rubber Bumpers
(12 RU Doors)
-or-
24 RU
ONLY
24 RU
ONLY
PANDUIT Label
indicates front
door

INSTRUCTIONS CM661A
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page 11 of 12
Front & Rear Doors (Installation and Removal)
• Install [2] Door Handles and [2] Quarter-turn Lock Assemblies (as shown below)
• Align [4] Locating Pins of each Hinge Bracket with matching hole pattern of cabinet frame
• Secure [4] Hinge Brackets to cabinet frame ([2] left-front / [2] right-rear) with [1] M6 Torx Screw per bracket
• Open Door(s) to approximately 90º
• Lift Door(s) up and insert hinge pins of door(s) into hinge brackets
• REVERSE STEPS to remove split doors
•IMPORTANT - Use M6 x 12.0mm screws with nylon patch for mounting hinge brackets ([4] screws packed with hinge brackets)
[4] Hinge
Brackets
[4] M6 x 12.0mm Torx Screws
(use T30 Torx bit)
[4] Locating Pins
[2] Door
Handles
(Snap in)
[2] Quarter-turn
Lock Assemblies
(use Phillips screw-
driver and 27mm
wrench)

INSTRUCTIONS CM661A
For Instructions in Local Languages
and Technical Support:
www.panduit.com/resources/install_maintain.asp
E-mail:
[email protected]
Phone:
866-405-6654
www.panduit.com
Page 12 of 12

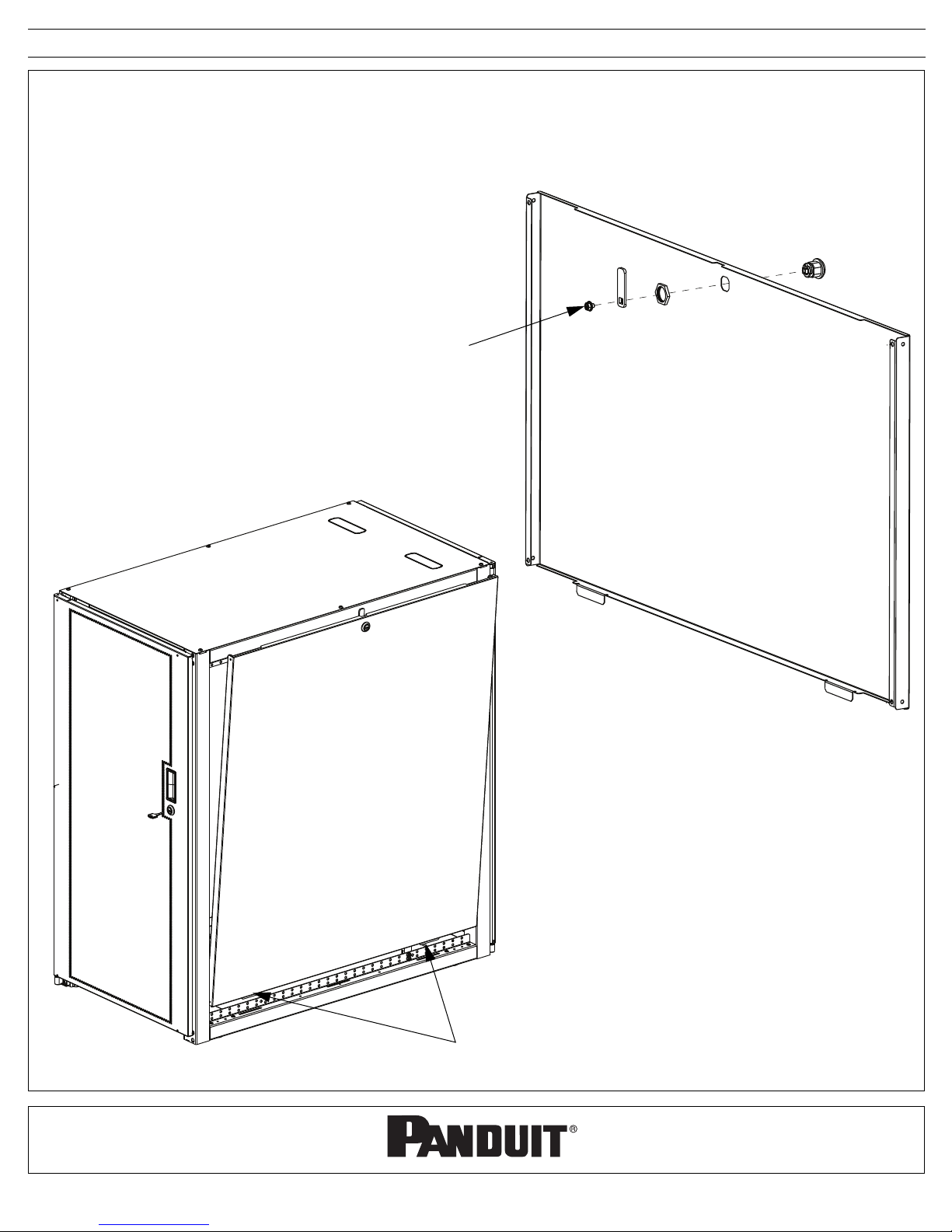

Side Panels (Removal and Installation)
• Install [2] Quarter-turn Lock Assemblies (as shown below)
• Move Side Panel into place and insert tabs of panel into slots in beam of cabinet frame
• Push top of Side Panel towards cabinet frame
• Lock Side Panels
• REVERSE STEPS to remove Side Panel
Side Panel Tabs
[2] Quarter-turn
Lock Assemblies
(use Phillips screw-
driver and 27mm
wrench)
