Pani BP 6 GT User manual

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
1
Version of July 2010
CONTENTS
Page
1) Dimension Drawing
High Performance HMI Projector BP 6GT + Ballast 3
2) Projector
2,1) Position Drawing Projector and Legend 4
2,2) Position Drawing Control Panel at the projector and Legend 5
3) Ballast
3,1) Position Drawing Ballast and Legend 6
3,2) Control Panel at the Ballast 7
3,3) Voltage-and Frequency Selection on the
Ballast BC 6000/ E 7
4) Construction
4,1) Mechanical Construction of the Projector 8
5) Operation
5,1) Installation of the HMI-Lamp 8
5.2) Using the Tilt Angle Meter 9
6) Condenser System Position Drawing and Legend 9
7) Electrical Connection
7,1) Main Connection 10
7,2) Connecting Cables Ballast – Projector 10
7,3) Remote Ignition - DMX 512 10
8) Objective Lenses
8,1) Front Condenser Lens 11
8,2) Projection Objective 11
8,3) Effect-and Vario-Objective 11
IMPORTANT NOTES 11
9) Projection Diagram 12
10) Slide Material 13
11) Ventilator Cooling 13
11) Electrical Schematic 14
13) Basic Unit as Delivered 15
14) Accessories 15-17
15) General Technical Data 17
16) Spare Parts 18-20

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
2
Slide projection is also a phi
Slide projection is also a phiSlide projection is also a phi
Slide projection is also a philosophical issue:
losophical issue:losophical issue:
losophical issue:
Slides can produce images to linger, relax and rest.
Slides can produce images to linger, relax and rest.Slides can produce images to linger, relax and rest.
Slides can produce images to linger, relax and rest.
In times, when fast moving video clips are consumed daily,
In times, when fast moving video clips are consumed daily,In times, when fast moving video clips are consumed daily,
In times, when fast moving video clips are consumed daily,
a large and fully detailed image slide projection
a large and fully detailed image slide projection a large and fully detailed image slide projection
a large and fully detailed image slide projection -
--
-
often using handpainted or handcolored artwork
often using handpainted or handcolored artwork often using handpainted or handcolored artwork
often using handpainted or handcolored artwork -
--
-
can represent a sensi
can represent a sensican represent a sensi
can represent a sensible antipole.
ble antipole.ble antipole.
ble antipole.
It can transport messages and contents to reach inner layers
It can transport messages and contents to reach inner layersIt can transport messages and contents to reach inner layers
It can transport messages and contents to reach inner layers
of human beings and so decrease
of human beings and so decreaseof human beings and so decrease
of human beings and so decrease
today s contemporary thrill and agitation.
today s contemporary thrill and agitation. today s contemporary thrill and agitation.
today s contemporary thrill and agitation.
We therefore strongly believe in its right to have
We therefore strongly believe in its right to haveWe therefore strongly believe in its right to have
We therefore strongly believe in its right to have
a leading role in today s cultural happening.
a leading role in today s cultural happening.a leading role in today s cultural happening.
a leading role in today s cultural happening.
Sin
SinSin
Sincerely your PANI
cerely your PANIcerely your PANI
cerely your PANI-
--
-Team.
Team.Team.
Team.
PANI Projection and Lighting Vertriebs GmbH
A – 1070 Vienna, Kandlgasse 23
Austria, Europe
Phone: + 43 1 / 521 08 – 0
Fax: + 43 1 / 526 42 87
Mail: [email protected]
Web: www.pani.com

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
3
1) Dimension Drawing
High Performance HMI Stage Projector BP 6 GT
Ballast

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
4
2.1) Position Drawing – Projector
Legend
(1) Lockdown Spindles
(2) Side Adjustment (Pan)
(3) Height Adjustment (Tilt)
(4) Locking Bolts for Front Condenser Lens Support
(5) Slide Carrier Position Locking Pin
(6) Slide Carrier
(7) Housing Cover
(8) Lamp Access Cover
(9) Objective Lens Support Bolts
(10) Control Panel on the Projector
(11) Centrifugal Blower
(12) Slide Ventilator Duct
(13) Mounting Yoke for Slide Ventilator Duct

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
5
2.2) Position Drawing – Control Panel on the Projector
Legend
(1) Power Indicator Lamp
(2) “ON” - Pushbutton (Green)
(3) “OFF” – Pushbutton (Red)
(4) Circuit Breaker 2 pole 10A for Fans and Accessories (Air Conditioner)
(5) Hour Counter
(6) Control Connector
(7) Lamp Power Connector
(8) Accessory Connectors (Phase, Neutral, Groand) 4 pole Amphenol
(9) Remote Ignition (4 – pole XLR)
HOURS
10
1
CURTIS

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
6
3) Ballast

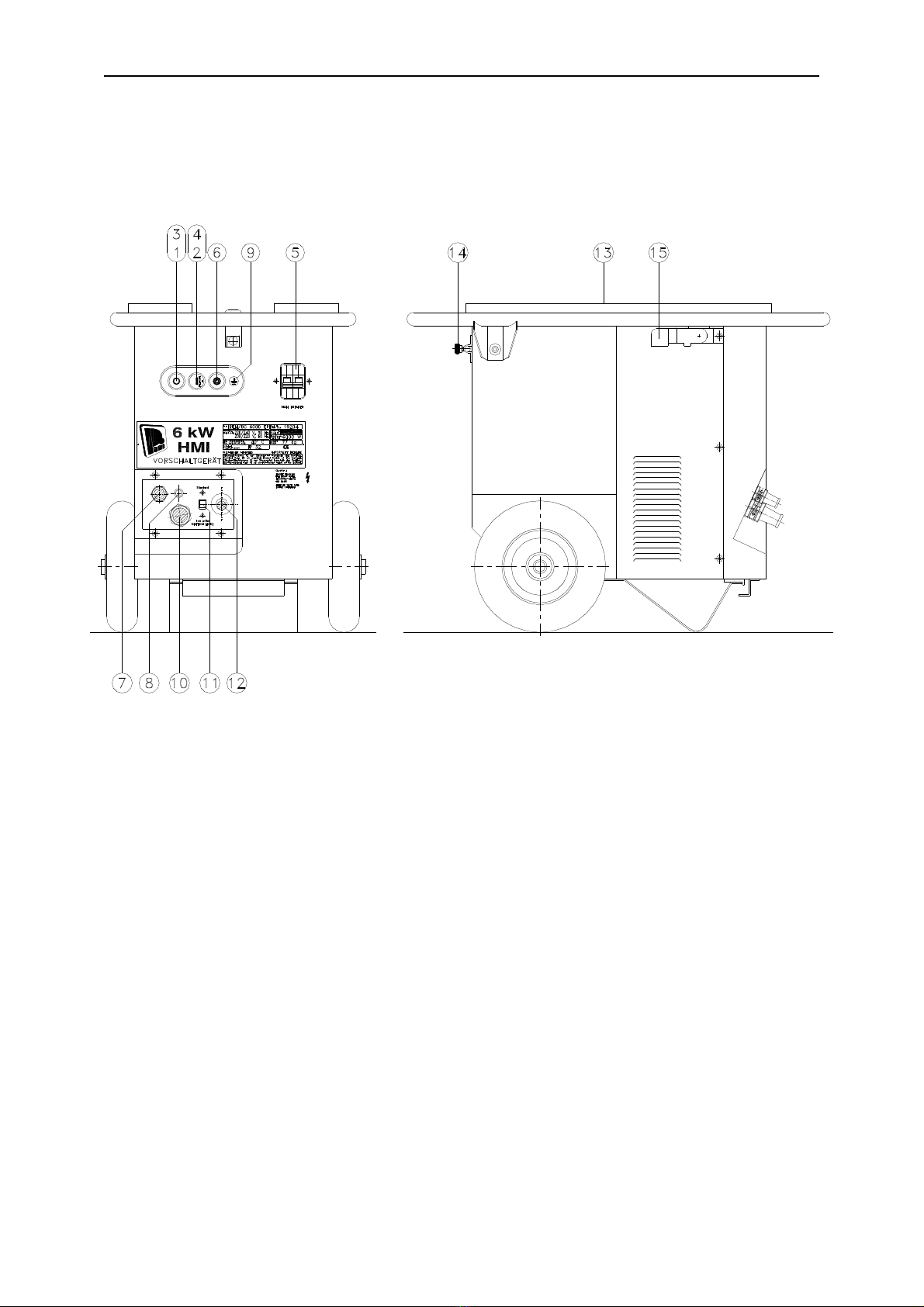

3.1) Position Drawing – Ballast
Legend
(1) Power Indicator Lamp
(2) “ON” - Pushbutton (Green)
(3) “OFF” – Pushbutton (Red)
(4) Remote Mode Switch (Remote Ignition)
(5) Main Circuit Breaker
(6) Ground Test Pushbutton
(7) Control Cable to Projector
(8) Control Fuse F1
(9) Ground Indicator Lamp
(10) Lamp Power Cable to the Projector
(11) Low Noise Ignition Mode Switch
(12) Main Power Cable
(13) Voltage and Frequency Selector for Ballast BC 6000/E
(14) Vertical Transport Grip Release
(15) Horizontal Transport Grip Release Clip

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
7
3.2) Control Panel on the Ballast
( 1) Power Indicator lamp
Illuminated when power is connected to the ballast
(2) ON- Push-button (green)
When the "ON" - Push-button is momentarily pressed, the ignition cycle is
activated and high voltage is applied to start the HMI lamp
(3) OFF- Push-button (red)
Lamp voltage is interrupted. It is recommended that the unit be allowed to cool
down a few moments before re-ignition
ATTENTION: Re-ignition within 10 seconds of shut down is not possible.
(4) Remote Switch (remote ignition)
When the switch is rotated 90°
(remote mode) ignition is automatic, when power is applied
(5) Main Circuit Breaker
2-pole Magnetic Circuit Breaker
(6) Ground Test Indicator
When depressed the indicator glows yellow indicating correct polarity and
grounding.
(8) Control Fuse F1, 10 AT
(9) Ground Indicator Lamp
see 6.)
(12) Low- Noise Switch
In Low-Noise mode, silent ignition of the lamp is possible
(13) Main Connection Cable
3x 62, 2m long with open leads.
3.3) Voltage and Frequency Selection
on the Ballast BC 6000/ E
ATTENTION: Disconnect Power to the Ballast
The cover on the top of the Ballast [Pos.3.1/ (13)] can
be opened to change the operating voltage and
frequency by connecting the wires to the appropriate
terminals (11)
POSITION NUMBERS SEE PAGE 6

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
8
4) Construction
4.1) Mechanical Construction of the Projector
The sheet metal housing is supported in a stable, mobile Undercarriage. When the
unit is moved into position, the front casters may be lifted off of the floor by means of
two front spindle jacks (1), which prevent the unit from moving. For horizontal
adjustment, a hand-wheel (2) is provided at the right rear side of the Undercarriage,
The hand-wheel for tilt adjustment (3) is located at the back of the unit. The image
plane with slide carrier can be rotated +/- 45° , by loosening the two clamping bolts (4)
+/- 45°. The 18x 18 cm slide individually can be exactly adjusted with the aid of
adjustment screws on the slide carrier (6). The slide carrier is held in exact position by
means of a spring loaded locking pin (5). By lifting the ball knob (5), the slide may be
freely moved into the new position where it locks into position automatically.
5) Operation
5.1) Installation of the HMI- Lamp
For operation of the projector, a double ended HMI- Lamp 6000 W is required. Order
Code: 37204
a) Disconnect power from the projector.
b) Open the quick fasteners for the left and right lamp access covers with a screwdriver
on both sides of the housing (8). Built in safety switches prevent an accidental
operation of the unit when the housing is open.
c) Remove the wing nuts and washers on the lamp cable terminals on both sides of the
unit
d) Open the heat sink clamps fully with the fluted knobs on both sides of the unit
e) Guide the lamp through the open housing set it into the open heat sink lamp
terminals.
ATTENTION:
• Do not touch the quartz envelope of the lamp with your fingers during
installation. Finger prints can be burned in!!
• Position the lamp such that the fill port is in the direction of the reflector.
• Lamp must be positioned along the optical axis, symmetrically in the heat sink
clamps.
• Keep the triangular part beneath the lamp clean. Control frequently, at least at
each changing of the lamp. In case of fouling clean with methylic alcohol.
f) Hand-tighten the terminals with the star grip bolts. Be sure that no rotational or lateral
stress is placed on the quartz envelope of the lamp.
g) Place the lamp cable shoes on the lamp cable terminals, replace the washers and
hexagonal nuts and securely tighten.
ATTENTION:
Be sure all connections are secure before closing the lamp access covers and check it
after each transporting the projector too !!!
POSITION NUMBERS SEE PAGE 4

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
9

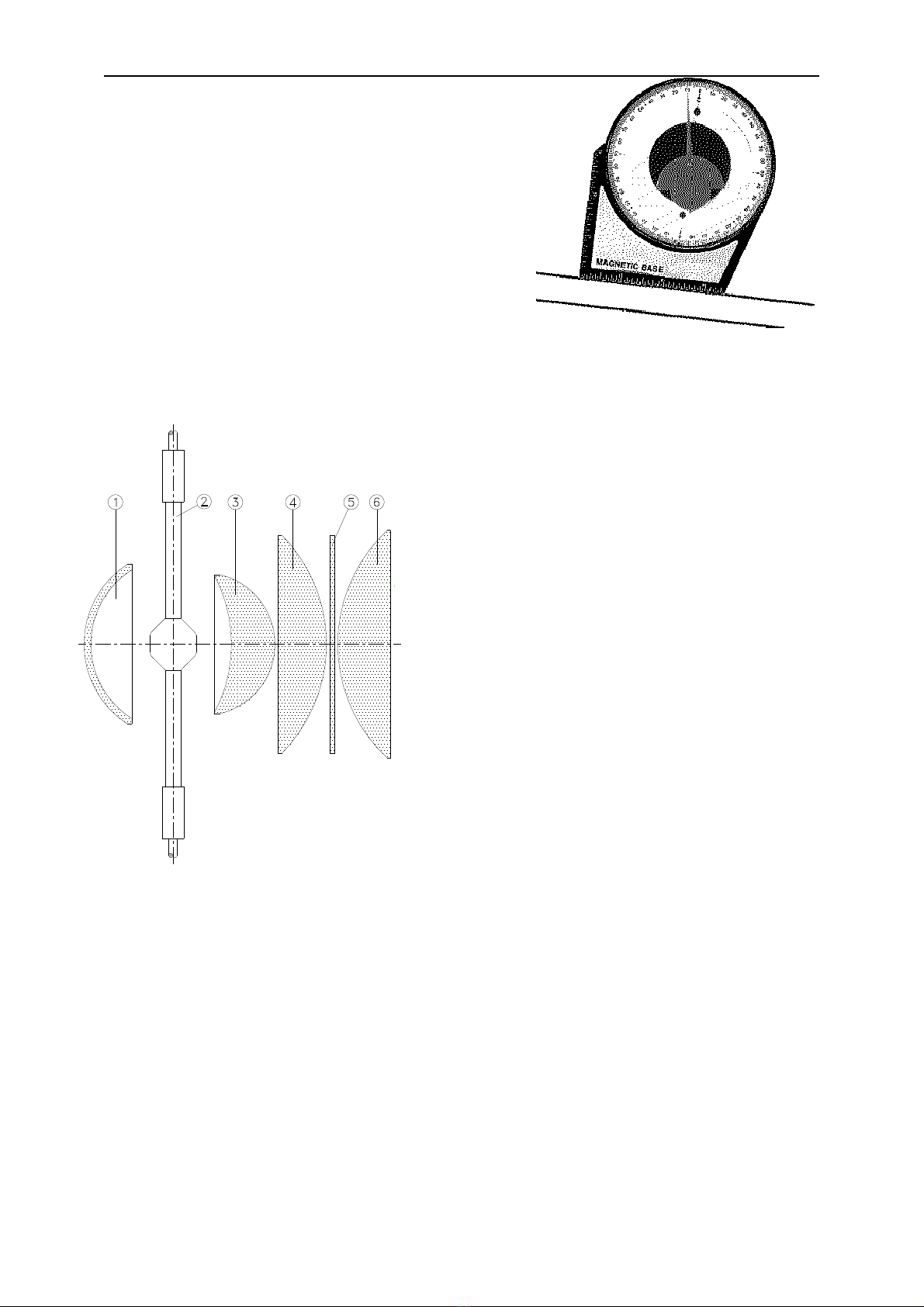

5.2) Using the Tilt Angle Meter
For safe operation it is necessary to respect the tilt
range of the projector (see General Technical Data
on page 16).
Use the delivered Tilt Angle Meter by applying it
on the top edge of the projector (before operation).
The red locator indicates the actual tilt angle.
6) Condenser System BP 6GT
Position Drawing
Legend
Order Code:
(1) Spherical Cold Mirror, Ø 165 mm 100-15-19
(2) HMI-lamp 6000W GS double ended 37204
(3) Meniscus Lens, Ø 147 mm 222-03-05
(4) Middle Condenser Lens, PC Ø 220 mm/R 156,1 46217
(5) PANI-Universal Filter Ø219 x 4 12046
(6) Front Condenser Lens for Objective Lens 11-27 cm,
PC Ø 230 mm, multicoated, with Mounting Plate 12440
Front Condenser Lens for Objective Lens 33-40 cm,
PC Ø 230 mm, multicoated, with Mounting Plate 12441
Front Condenser Lens for Objective Lens 50-60cm,
PC Ø 230 mm, multicoated, with Mounting Plate 12442
Front lens for lenses 80-125 cm,
PC Ø 230 mm, multicoated, with Mounting Plate 12443

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
10
7) Electrical Connection
(See Electrical Schematic 100- 05-35 on page 13)
The High Performance- HMI- Stage Projector BP 6 GT is used in conjunction with the
Universal- Ballast BC 6000/ E (Order Code: 19204). The ballast incorporates a choke
which limits lamp power to 60 A. Main power is interrupted when the projector housing
is opened.
7.1) Main Connection
Universal- Ballast 6000 W, 220/ 240 V- 50 Hz, 208/ 220 V- 60 Hz with 2 m main power
cable 3x 6 mm2with open leads, Hot R: brown, Neutral N: blue, Ground PE: yellow/
green. Connected to power source 50 A
7.2) Connecting Cables Ballast- Projector
On the Universal- Ballast is a lamp power cable with a PANI stage coupling 63A/250V
and a control cable with a 10- pole connector installed. The standard length is 3 meters
(This can be extended but must be tested if extremely long runs are required.). Both
cables are connected to the projector with mating connectors on the lamp housing. The
"ON" function can be performed at either the ballast or the projector. Thus, it is
possible to locate the ballast away from the projector.
7.3) Remote Ignition - DMX 512
For ignition and shut down of the projector by a DMX 512 signal, a relay card and
associated DMX In connector are located on the projector (Ignition Pos. 9). In addition
the optional Universal DMX 512 interface and the corresponding ignition cable are
necessary (for further information see the instruction manual of the Universal DMX 512
Interface).
POSITION NUMBERS SEE PAGE 5

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
11
8) Objective Lenses
8.1) Front Condenser Lens
(see also Page 10, Pos.6) Condenser System: Position Drawing
In the BP 6 GT there are 4 different front condenser lenses to choose from, depending
on the focal length Objective Lens required. These are as follows:
Front Condenser Lens for Objective Lens es 11-27 cm,
PC Ø 230 mm, multicoated, with Mounting Plate Order Code: 12440
Front Condenser Lens for Objective Lens es 33-40 cm,
PC Ø 230 mm, multicoated, with Mounting Plate Order Code: 12441
Front Condenser Lens for Objective Lens es 50-60cm,
PC Ø 230 mm, multicoated, with Mounting Plate Order Code: 12442
Front lens for lenses 80-125 cm,
PC Ø 230 mm, multicoated, with Mounting Plate Order Code: 12443
8.2) Projection Objective Lenses
Optional projection Objective Lens es (focal lengths from f=11 to 125cm and ZOOM
Objective 25 – 60cm ) are mounted on the four support bolts on the front of the
projector. Each lens is fixed in place by four wing nuts. The focal length (f=) depends
upon the projection distance and desired picture size. This is illustrated further with the
aid of the projection diagram. Focus is achieved by sliding the Objective Lens forward
or back along the optical axis. The focus position is fixed in place by two milled nuts
located on either side of each Objective Lens .
8.3) Effect- and Vario-Objective
To enhance the system of projection Objective Lens es, effects and vario-Objective
Lens are available. Effects Lenses (focal lengths of f=80/100 mm, 150 mm, 180 mm,
250mm and 310 mm) provide a strong light output with good color correction, and may
be used where an increase in depth or specific distortions are desired.
With the aid of the vario-Objective Lens [focal lengths of f=20-40 cm (motorized) and
f=30-60 cm manual it is possible to enlarge or reduce image size. With the f=20 – 40
cm / motorized it is possible to change the image size at different speeds.
IMPORTANT NOTES
WHEN USING WIDE ANGLE LENSES (11-18cm) TOGETHER WITH A GREY SCALE
OR A BLACK OUT SHUTTER
The projector must never be operated without a slide, with dimming shutters closed for
longer than one minute
GENERAL SAFETY:NOTE
For safety reasons the projector must NEVER be used without an Objective Lens

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
12
9) Projection Diagram
for O= 17cm
calculating formulas
F ... focal length of projection lens
B ... width of the image
D ... projection distance (measured from the middle of the objective lens)
O ... object size (i.e. the used slide format)
used slide format (O)= 17cm for glass slides
15,5cm for filmholder
11cm
13,5cm
18cm
22cm
25cm
27cm
33cm
40cm
50cm
60cm
80cm
125cm
projectiondistance
METER
100
90
80
70
60
50
40
30
20
10
width of projection METER30252015105
focallength
F

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
13
10) Slide (Transparency) Material
Because of the ever changing available film materials, we do not wish to suggest any
specific type. Our best recommendation however comes from our own experience with
film type Agfaclear (from Agfa), type Duraclear (from Kodak) and type Ilfochrome (from
Ilford). We can suggest that only professional photo labs who will care for your work be
used. Not only for which development process is used but also the quality.
Since short times also budget-priced ink jet printed foils are used to make slides.
Please infourm yourself about actuals on our homepage ( www.pani.com ). In the
download area you´ll find the latest information.
Photographic transparencies should not be mounted between glass. The heat build-up
will be such that the slides will be destroyed. Necessary cooling of photographic
transparencies can only be guaranteed when using Special Slide Frames (Order code:
12802 for 18 x 18 cm).
For simple and fast mounting in these frames we recommend the use of the Special
Slide Punching Machine (Order code: 12801 for 18 x 18 cm slides).
With hand painted slides,
two glass plates are
required such that the hand
painted side is protected by
a cover glass. An air gap of
1mm is achieved by placing
4 cardboard strips between
the plates at the corners.
The assembly is held
together with two strips of
tape as shown below.
General remark:
If possible, insert the slide
with the layer averted
from the projector to
protect the layer!
11) Ventilator Cooling
POSITION NUMBERS SEE PAGE 4
The slide cooling ventilator– consisting of a centrifugal blower (11) and a slide cooling
air duct (12) – is mounted by two screws using standard position. But there are two
more holes below.
Use this holes to mount the cooling unit in the case of using the following accessories:
Slide -changers AMD 15 and AMD 32, Film Scroller AS 100 and Rotation Attachment.
The new Film Scroller CS 70 has its own integrated film cooling. In this case it is
necessary to remove the standard ventilator cooling from the unit.

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
14
12) Electrical Schematic
(Drawing No.: 100- 15-35a)

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
15
13) Basic Unit as Delivered
1HIGH PERFORMANCE HMI STAGE PROJECTOR BP 6GT
with rolling Undercarriage
1Universal-Ballast 6000W, Type: G 602 Order Code: 19204
220/ 240V-50Hz, 208/ 220V-60Hz
with 2 m power cable 3x 6 2 with open leads,
3 m lamp power cord with PANI stage connector 63A/ 250V
and 3 m control cable with 10-pole connector
HMI-lamp 6000W-GS
1 Front condenser lens, of choice for 11-27cm, 33-40cm, 50-60cm or 80-125cm
1 Dual slide carrier for 2 projection slides 18x 18 cm
Test slide with raster grid on tempered glass 18x 18 cm, Order Code: 12805
1 Adjustable slide mask-standard, Order Code: 12019
1HMI-lamp 6000W-GS Type: H 1601 Order Code: 37204
1 Raster Pad, Type: G 1583
1 Dark slide, (for the protection of the Dimming Shutter), Type: G 1581
1 Tilt Angle Meter
1 User Handbook
1 Pani "Effect " brochure
14) Accessories
Description Type: Order Code:
HMI-lamp 6000W-GS 37204
Interchangeable Front Condenser Lens for objective f= 11 cm -
27 cm, multicoated, Ø 230 mm 12440
Interchangeable Front Condenser Lens for objective f= 33 cm and
40 cm, multicoated, Ø 230 mm 12441
Interchangeable Front Condenser Lens for objective f= 50 cm and
60 cm, multicoated, Ø 230 mm 12442
Interchangeable Front Condenser Lens for objective f= 80 cm and
125cm, multicoated, Ø 230 mm 12443
Ventilator for Dimming Shutter G 405/II 12004
and for wide-angle lenses 11-18 cm with
Dimming Shutters G 405/PCS and G405-PCS-II-DMX
Dimming Shutter PCS -III-DMX
with Processor Control for Grey scale plates 20,5x 22 cm, inc. Control Box
120/ 230 V- 50/ 60 Hz, external control 0 - +/- 10 VDC and 120/ 230 VAC
phase clipped dimmer output voltage, DMX-control, dampening electronics
for smoothing of 8 bit control voltage steps, Selectable linearity,
incl. Extension Rails for use with Objectives f= 11- 27 cm G 405/ PCS 22704
BOS Black Out Shutter for simple shutting and short shutting time
incl. Extension Rails for use with Objectives f= 11- 27 cm 22705
Interchangeable - Extension Rails,
1 Pair for use with Objective Lens f= 11- 13,5 cm (BOS) 12010
1 Pair for use with Objective Lens f= 11- 27 cm (PCS) 18-27cm (BOS) G 405/ 27 12011
1 Pair for use with Objective Lens f= 33- 40 cm, 80 cm and 125 cm G 405/ 40 12012
1 Pair for use with Objective Lens f= 50 cm and Vario- f= 20- 40 cm G 405/ 50 12013
1 Pair for use with Objective Lens f= 60 cm and Vario- f= 30- 60 cm G 405/ 60 12014

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
16
Description Type:: Order Code:
Film Scroller CS-70
DMX-, PC- or automated driven film moving unit for up to 70 slides
or scenes up to 13m usable film per cassette 12520
Automatic Slide Changer- 32/ Random Access AMD-32 12511
for 32 slides in one Magazine, Interchangeable, commands forward, back
and reset position, 2 speeds, 2 control possibilities:
either +10 VDC, dry contact, DMX 512 or RS 232 (UMC) with Random Access
capability and analog output 0 bis 10 VDC for Dimming Shutter,
Power source 120/ 230 VAC, including AMD- slide frames and Universal- Mount
Extra- Universal- Mount 12503
For mounting AMD- 15, A 32 and AS 100 on all projectors
with slide format 18x 18 cm
Motor Drive for Slide Carrier 18x 18 cm 12502
For remote changie of 2 slides in the standard- Slide Carrier, Control
via dry closure (Dimmer Controlled Switching Unit)
Dimmer Controlled Switching Unit 15201
for Endless- Slide Changer and AMD- 15 with function +1 and Reset, ie.
Forward, back/ reset, controlled by a regulated circuit or 0 - +/- 10 VDC
Film Mounting System for 18x 18 cm Film Slides 12801
Slide Frame 18x 18 cm for Film Slides 12802
Tempered Glass Plate 18x 18 cm 12803
13x13 cm 12804
Reducer Frame from 18x 18 cm to 13x 13 cm 12015
Test Slide with Raster on tempered glass 18x 18 cm 12805
Divertor Mirror for HMI- Projectors with
Dimming Shutter G 405/ II, G 405/ PCS or G 405 PCS-II-DMX 12017
Adjustable Slide Mask for AMD- 15/ RA and motor drive for 12020
Slide Carrier
Aluminum Tape for Double Glass Slides 32812
19 mm wide, 55 m long
High-performance- Objective Lens f= 11 cm/ 1: 1,8 G 903/II 12413
High-performance- Objective Lens f= 13,5 cm/ 1: 1,8 G 904/II 12414
High-performance- Objective Lens f= 18 cm/ 1: 2,4 G 918/II 12415
Objective Lens f= 33 cm/ 1: 2,8 G 907 12417
Objective Lens f= 27 cm/ 1: 3 G 908 12418
Objective Lens f= 40 cm/ 1: 3,6 G 910/II 12420
Objective Lens f= 50 cm/ 1: 3,8 G 911/II 12421
Objective Lens f= 60 cm/ 1: 3,8 G 912 12422
Objective Lens f= 80 cm/ 1: 4,5 G 913 12423
Objective Lens f= 125 cm/ 1: 7,6 G 914 12424

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
17
Description Type:: Order Code:
ZOOM- Projection Objective Lens 25- 60 cm/ 1: 2,7- 3,9
without motor drive 12433
Effect Lens f= 85/ 100 mm G 951 12426
Effect Lens f= 110 mm, wide angle G 952 12427
Effect Lens f= 150 mm G 953 12428
Effect Lens f= 180 mm G 954 12429
Effect Lens f= 250 mm G 957 12430
Effect Lens f= 310 mm G 958 12431
Effect Vario- Objective Lens f= 20- 40 cm-
with motor drive 230 V, including Control Box G 915 12432
Effect Vario- Objective Lens f= 30- 60 cm- manual G 916 12425
A wide range of effect devices can be seen in our "Effects" brochure
15) General Technical Data
Tilt range of the Projector: vertically:
Limited by undercarriage 10°up
25°down
permitted during operation ±90°
Pan adjustment (undercarriage) ±7°
Protection Class: IP 20
Ambient Operating Temperature: max. 30°
Weight: unpacked packed
Projector: 72 kg 93 kg
Ballast: 76, 5 kg 87 kg
Carton Dimensions:
Projector: 80x 65x 108 cm
Ballast: 75x 48x 75 cm
Ballast:
Supply Voltage: 220/ 240 V- 50 Hz
208/ 220 V- 60 Hz
Supply Current: 37 A
Circuit Rating: 50 A
Lamp
Wattage 6000 W
Rated Life 500 hours
Color Temperature 6000 K
Lumen Output 570 000 lm
Lamp Voltage 123 V
Lamp Power 55 A
Lamp Base S 25,5
Ignition Voltage 55 kV

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
18
16) Spare Parts
BP 6 GT Main Assy. No.: 100-
Description Order Code: Qty./Unit
Undercarriage Main Assy. No.: 68- 01-
Casters MD 80 KB 2
Wheels MDF 80 KB 2
Hand Wheel DIN 950- AL- 100- B12- A 2
Lift –off Spindle 68- 28- 04/a 2
Pressure Piece DIN 6311- 32- S 2
Disc Grip GN 226/80/M16 2
Complete tilt adjustment including
Upper mounting bracket and lower support 68314- 6831
PN 1011, hand-wheel 1
Condenser Carrier Main Assy. No.: 68- 02-
Objective Lens Supports PN 1024 4
Wing Nuts DIN 315- M8 4
Cross Grip Bolts GN 6335. 4- SK- 32- M6- 50 2
Flat Milled Nuts DIN 467- M4 4
Housing Main Assy. No.: 68- 03-
Hinges for Lamp Access Doors 68- 05- 48 4
Side Locks (available as a set) 68- 05- 14/c 1 left + 1 right
Switch Brackets for (available as a set) 69- 05- 15/a 2
Safety Switch complete 68- 36- 2
Bracket for Control Box 68- 05- 46 1
Lamp Base Main Assy. No.: 91- 18-
Lamp Base left and right complete 91- 18- 1 left + 1 right
Heat Shield for Cooling Fins (half circle) 91- 18- 07 2
Heat Shield (angularly) 100-15-28 2
Cross Grip Bolts GN 6335. 4- SK- 32- M6- 35 2

High Performance Projector BP 6 GT PANI Projection and Lighting Vertriebs GmbH
19
Description Order Code: Qty./Unit
Electrical Materials Main Assy. No.: 100- 01-
Igniter 22-0167/US 1
Cables for Igniter l= 320 mm 2x 1x 622
Tangential Blower (mounted left) 21-0058 1
Tangential Blower (mounted right) 21-0059 1
Tangential Blower (igniter area) 32-0053 1
Thermo switch 90° 331-528 1
Lamp Carriage Main Assy. No.: 100- 06-
Lamp Carriage complete 100- 06-1- 1
Reflector Springs 100-15-15/a 3
Spherical Cold Mirror - Diameter 165 mm 100-15-19 1
Lamp Supports 100-15-08 2
Optical Materials Main Assy. No.: 100- 03-
Plano-convex for lens 11-27 cm Ø 230/ 300MC 1
Plano-convex for lens 33-40 cm Ø 230/ 360MC (1 opt.)
Plano-convex for lens 50-60 cm Ø 230/ 390MC (1 opt.)
Plano-convex for lens 80 -125cm Ø 230/ 500MC (1 opt.)
Plano-convex (middle lens) Ø 220/ 300BS 1
Meniscus Lens Ø 147 222-03-05 1
PANI-universal filter Ø 219x4 12046 1
Spherical Cold MIrror Diam.165 mm 100-15-19 1
Control Housing (Projector) Main Assy. No.: 100- 04-
Connector Housing / Pin Unit 432522 /431756 1
Auxilliary Connectors 3- pole 31. 11. 000 5
„ON“ Pushbutton (green) 1111 PNF B5 220V N/KV 1
„OFF“ Pushbutton (red) 1105 PN B5 220V N/KR 1
Annex Housing HB. 10. AG- VS 100- 04- 11 1
Pin Inserts HB. 10. Sti. S 1
Elapsed Hour Counter 1900. 00005 A0 220V 50Hz 1
Cover Insulation Main Assy. No.: 100- 11- T
Insulation complete 100- 11- T 2
