Pansar X1-Airborne 003 Flight Edition User manual

PANSAR SWEDEN AB
mässvägen, 125 30 Älvsjö, Sweden
Movement Instructions Manual
CAL. YM92 (Manufacturer Shiojiri) 1/20 SECOND CHRONOGRAPH

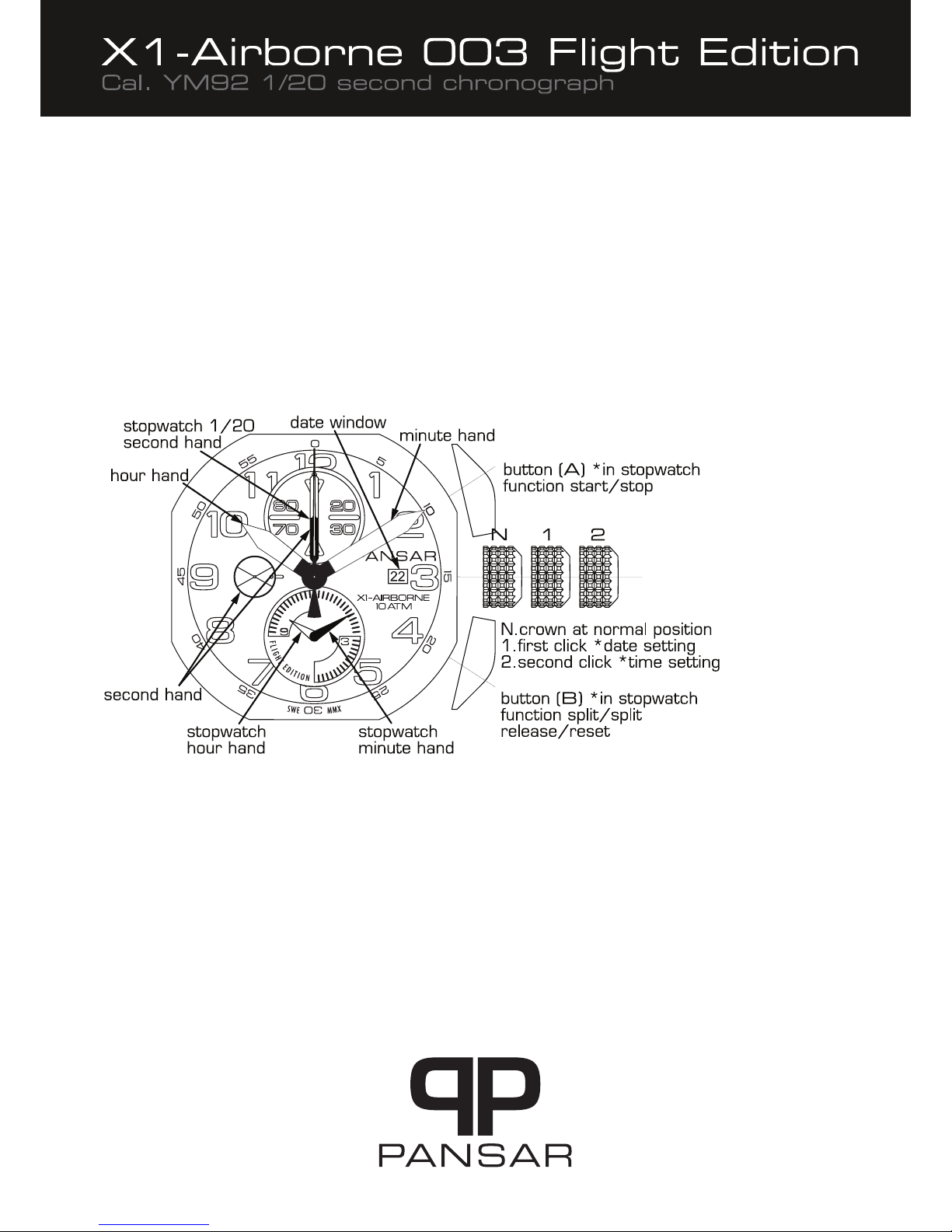

Features
-Hour, minute- and second hands.
-Date
-Stopwatch
-4 Stopwatch hands: 1/20 second, second, minute and hour hand.
-The stopwatch can measure up to 11:59' 59" 95.
-Split time measurement.
Movement Size 12'''
Outside Diameter 27.60 mm (12H-6H) x 24.00 mm (3H-9H)
Casing Diameter 27.00 mm (12H-6H)
Height 3.70 mm (Including battery)
Battery SR927SW
Battery life approx. 2-3 years
-Battery Life Indicator.
When the battery nears its end, the small second hand moves at two second intervals instead of normal
one second intervals. In that case, have the battery replaced with a new one as soon as possible.
Note: The watch remains accurate while the small second hand is moving at two second intervals.
1/4

PANSAR SWEDEN AB
mässvägen, 125 30 Älvsjö, Sweden
• Turn the crown clockwise until the previous day’s
date appears.
Note: Do not set the date between 9:00 PM and 1:00 AM.
Otherwise, the date may not change properly.
• Turn to set the hour and minute hands.
• Turn clockwise to advance the hour and
minute hands past 12:00 AM. Doing so will
advance the date to the current date.
• Set the hour and minute hands to the desired
time taking AM or PM into consideration.
Recommended:
• Do not set the date between 9:00 PM and 1:00 AM.
Otherwise, the day may not change properly.
If it is necessary to set the date during that time period, first
change the time to any time outside it, sett the date and then
reset the correct time.
• When setting the Minute hand, first advance it 4 to 5
minutes ahead of the desired time and then turn it back to
the exact minute.
• Pull crown out to 1st. click position.
• Pull crown out to the 2nd click position when
the second hand is at the 12 o'clock position.
Note: When the stopwatch is or has been measuring
or is stopped,if the crown is pulled out to the 2nd. click
position, it will automatically reset the Stopwatch hands to
"0".
• Push crown back to normal position.
Movement Instructions Manual

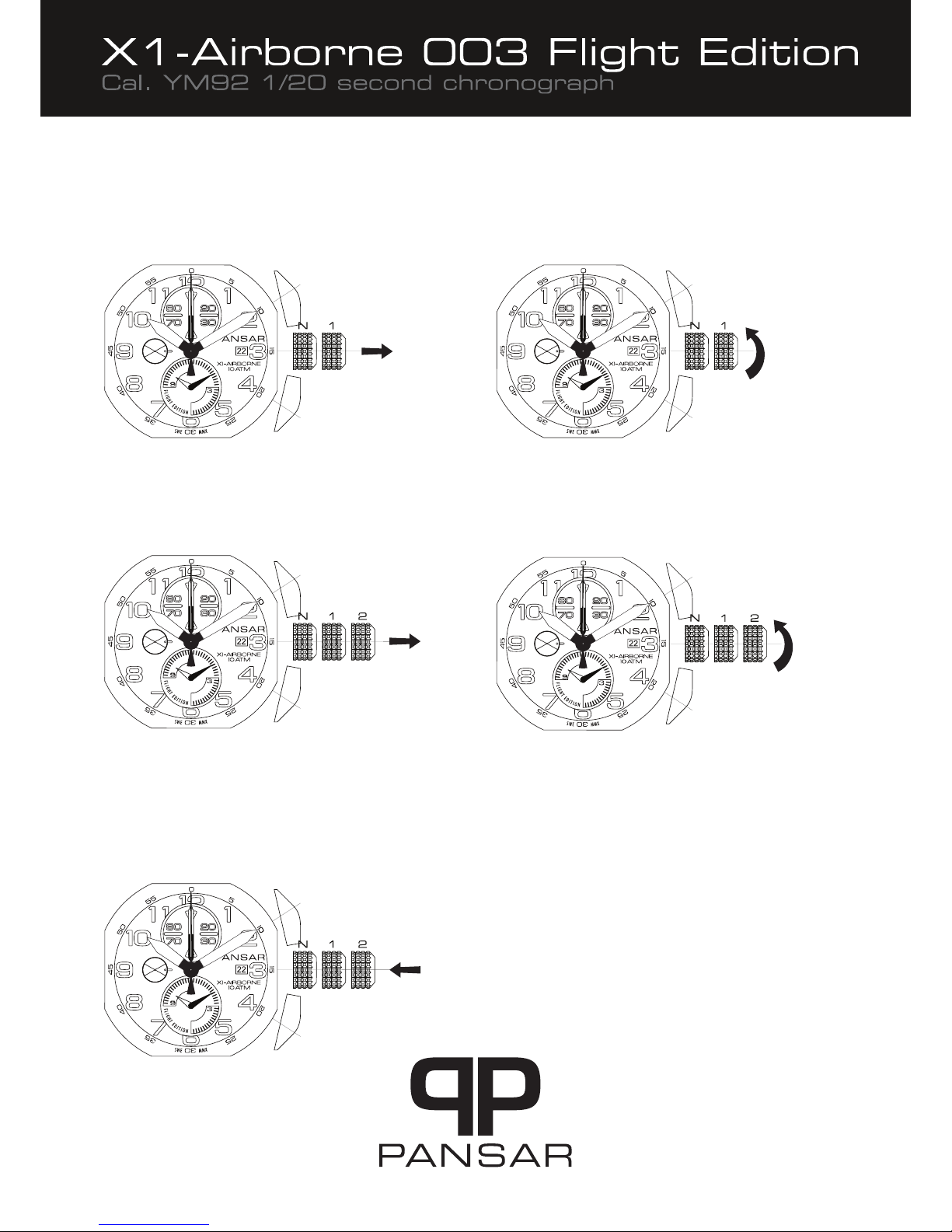

How to set time and date:
Before setting the time, check if the stopwatch second and minute hands are at the “0” position (12
o’clock). If the stopwatch is in use, press the button in the following order to reset it, and then, check if the
hands return to “0” position.
2/4

PANSAR SWEDEN AB
mässvägen, 125 30 Älvsjö, Sweden
Movement Instructions Manual
How to use stopwatch functions:
The stopwatch can measure up to 11:59' 59" 95 in 1/20 second increments.
When the measurement reaches 12 hours, the stopwatch automatically stops counting.
• 1/20 second hand is capable of timing 12 minutes. (1 second x 43,200 times)
• Second hand is capable of timing 12 hours. (60 seconds x 720 times)
Movement of stopwatch 1/20 second hand
• After the stopwatch is started, stopwatch 1/20 second hand moves for about 10 minutes and automati-
cally stops at the "0" position.
• When the measurement is stopped or split time is measured, it moves to indicate the elapsed 1/20
seconds.
• After the stopwatch is restarted or split time is released, stopwatch 1/20 second hand moves for about
10 minutes and stops automatically.
• In the same manner, if the stopwatch is stopped and restarted repeatedly or split time is measured and
released repeatedly, stopwatch 1/20 second hand moves for about 10 minutes and stops automatically.
Note: If the stopwatch hands do not return to the "0" position when the stopwatch is reset to "0", follow the procedure in
"How to adjust the stopwatch”.

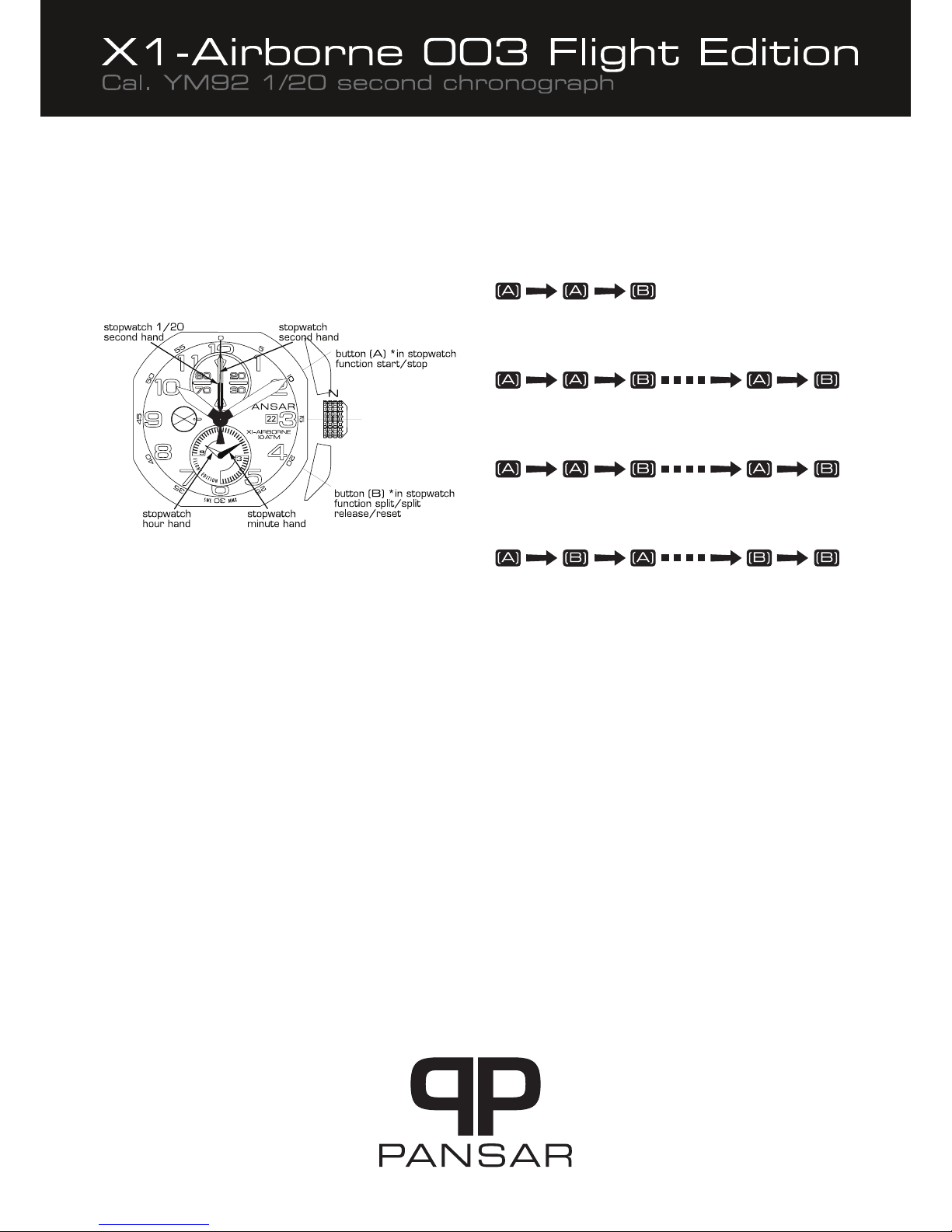

Stop ResetStart
Stop Reset Stop ResetStart
Split Split
Release Stop ResetStart
Start Finish time
of 1st
competitor
2nd
competitor
finishes
Stop Reset
Standard measurement
Accumulated elapsed time measurement
Split time measurement
Measurement of two competitors
3/4

PANSAR SWEDEN AB
mässvägen, 125 30 Älvsjö, Sweden
• Press button (A) for 2 seconds.
Stopwatch 1/20-second hand turns a full round and can
now be set to correct position.
• Press button (B) repeatedly to set it to “0” position.
Note: Stopwatch 1/20-second hand moves quickly if button "B" is
kept pressed.
• Press button (A) for 2 seconds.
Stopwatch hour and minute hands turn and can now
be set to correct position.
• Press button (B) repeatedly to set it to “0” position.
Note: Stopwatch hour and minute hands move quickly if button "B" is
kept pressed.
• Pull the crown out to 2nd. click position.
Note: When the stopwatch is or has been measuring or is
stopped, if the crown is pulled out to the 2nd. click
position, it will automatically reset.
• Press button (A) for 2 seconds.
Stopwatch second hand turns a full round
and can now be set to correct position.
• Press button (B) repeatedly to set it to “0”
position.
Note: stopwatch second hand moves quickly if button "B" is
kept pressed.
• Push crown back to normal position.
Movement Instructions Manual

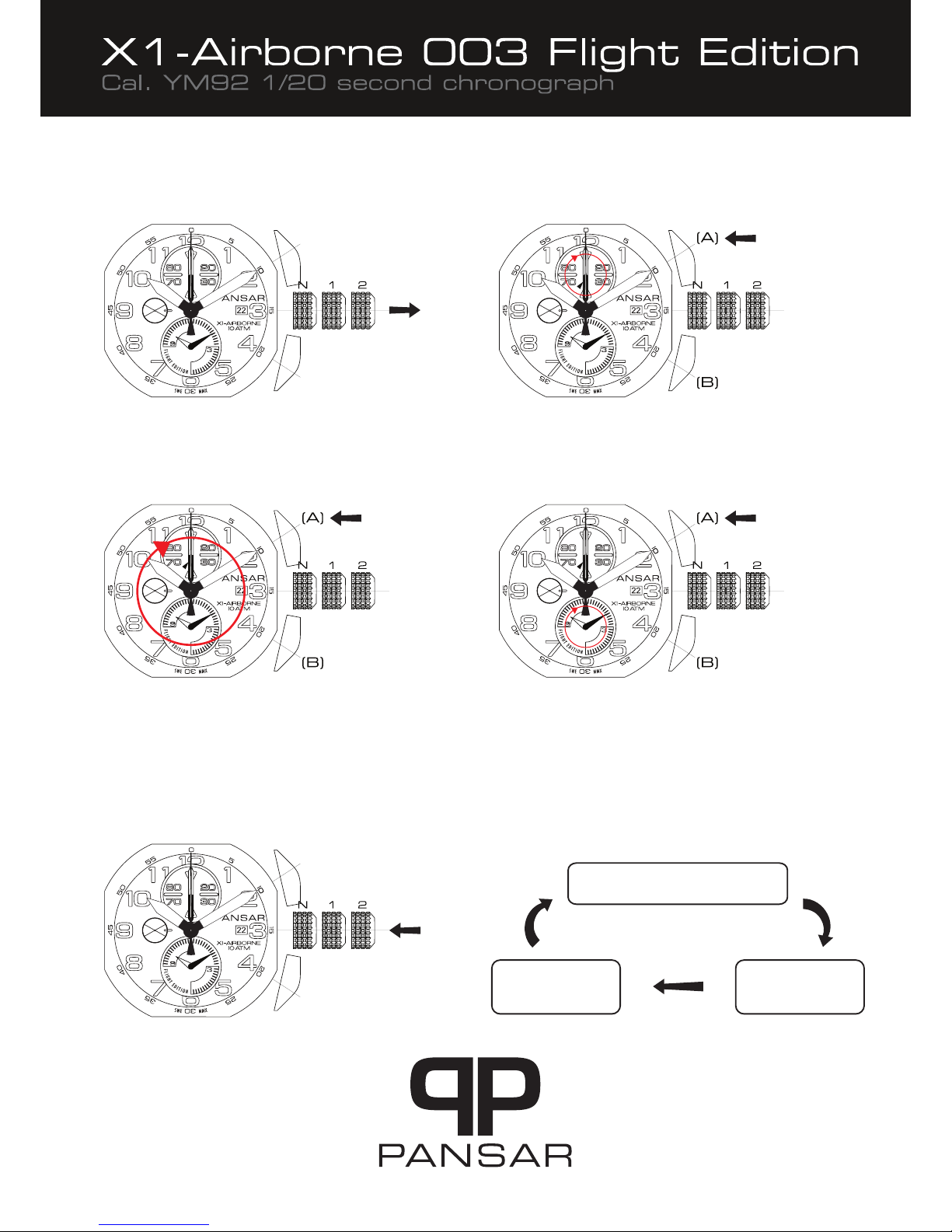

How to adjust the stopwatch:
If the stopwatch hands are not in “0” position, follow the procedure below to set them.
The hands can be readjusted in the
following order by pressing button
"A" for 2 seconds.
Stopwatch 1/20 second hand
Stopwatch
second hand
Stopwatch hour
and minute hands
