Paradyne Hotwire 8786 User manual

Hotwire8786 TDM SDSL
Termination Unit
with G.703 Interface
User’s Guide
Document No. 8786-A2-GB20-20
February 2001

AFebruary 2001 8786-A2-GB20-20
Copyright © 2001 Paradyne Corporation.
All rights reserved.
Printed in U.S.A.
Notice
This publication is protected by federal copyright law. No part of this publication may be copied or distributed,
transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language in any form or
by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express
written permission of Paradyne Corporation, 8545 126th Ave. N., Largo, FL 33773.
Paradyne Corporation makes no representation or warranties with respect to the contents hereof and specifically
disclaims any implied warranties of merchantability or fitness for a particular purpose. Further, Paradyne Corporation
reserves the right to revise this publication and to make changes from time to time in the contents hereof without
obligation of Paradyne Corporation to notify any person of such revision or changes.
Changes and enhancements to the product and to the information herein will be documented and issued as a new
release to this manual.
Warranty, Sales, Service, and Training Information
Contact your local sales representative, service representative, or distributor directly for any help needed. For additional
information concerning warranty, sales, service, repair, installation, documentation, training, distributor locations, or
Paradyne worldwide office locations, use one of the following methods:

Internet: Visit the Paradyne World Wide Web site at www.paradyne.com. (Be sure to register your warranty
at www.paradyne.com/warranty.)

Telephone: Call our automated system to receive current information by fax or to speak with a company
representative.
— Within the U.S.A., call 1-800-870-2221
— Outside the U.S.A., call 1-727-530-2340
Document Feedback
We welcome your comments and suggestions about this document. Please mail them to Technical Publications,
Paradyne Corporation, 8545 126th Ave. N., Largo, FL 33773, or send e-mail to [e-mail]. Include the
number and title of this document in your correspondence. Please include your name and phone number if you are
willing to provide additional clarification.
Trademarks
ACCULINK, COMSPHERE, FrameSaver, Hotwire, MVL, NextEDGE, OpenLane, and Performance Wizard are
registered trademarks of Paradyne Corporation. ReachDSL and TruePut are trademarks of Paradyne Corporation. All
other products and services mentioned herein are the trademarks, service marks, registered trademarks, or registered
service marks of their respective owners.

8786-A2-GB20-20 February 2001 B
Important Safety Instructions
1. Read and follow all warning notices and instructions marked on the product or included in the manual.
2. Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to
protect it from overheating, these slots and openings must not be blocked or covered.
3. Do not allow anything to rest on the power cord and do not locate the product where persons will walk on the power
cord.
4. Do not attempt to install or service this product yourself, as opening or removing covers may expose you to
dangerous high voltage points or other risks. Refer all installation and servicing to qualified service personnel.
5. General purpose cables are provided with this product. Special cables, which may be required by the regulatory
inspection authority for the installation site, are the responsibility of the customer.
6. When installed in the final configuration, the product must comply with the applicable Safety Standards and
regulatory requirements of the country in which it is installed. If necessary, consult with the appropriate regulatory
agencies and inspection authorities to ensure compliance.
7. A rare phenomenon can create a voltage potential between the earth grounds of two or more buildings. If products
installed in separate buildings are interconnected, the voltage potential may cause a hazardous condition.
Consult a qualified electrical consultant to determine whether or not this phenomenon exists and, if necessary,
implement corrective action prior to interconnecting the products.
8. In addition, if the equipment is to be used with telecommunications circuits, take the following precautions:
—Never install telephone wiring during a lightning storm.
—Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
—Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the
network interface.
—Use caution when installing or modifying telephone lines.
—Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of
electric shock from lightning.
—Do not use the telephone to report a gas leak in the vicinity of the leak.
!

CFebruary 2001 8786-A2-GB20-20
EMI Notices
UNITED STATES – EMI NOTICE:
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
The authority to operate this equipment is conditioned by the requirements that no modifications will be
made to the equipment unless the changes or modifications are expressly approved by Paradyne
Corporation.
CANADA – EMI NOTICE:
This Class A digital apparatus meets all requirements of the Canadian interference-causing equipment
regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du règlement sur le matérial
brouilleur du Canada.
!
!

8786-A2-GB20-20 February 2001 i
Contents
About This Guide

Document Purpose and Intended Audience . . . . . . . . . . . . . . . . . . . . v

Document Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

Product-Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
1 About the Hotwire 8786 Termination Unit

TDM SDSL Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Hotwire 8786 Termination Unit Features . . . . . . . . . . . . . . . . . . . . . . . 1-2


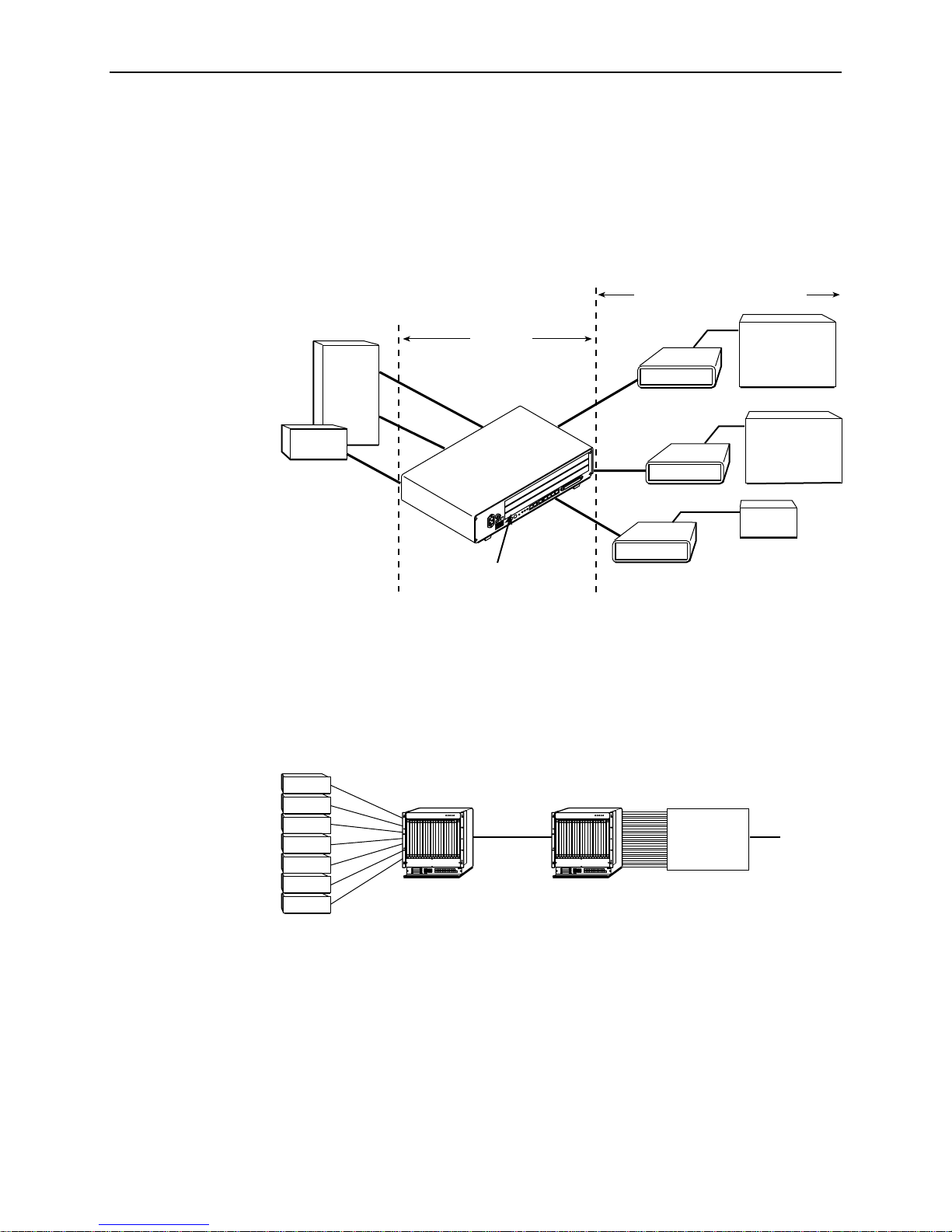

Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

SNMP Management Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Management Information Base (MIB) Support . . . . . . . . . . . . . . . 1-4
SNMP Trap Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
2 Using the Asynchronous Terminal Interface

User Interface Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Management Serial Port Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Logging In to the Hotwire DSLAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Initiating an ATI Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Menu Hierarchy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Screen Work Areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Navigating the Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Keyboard Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Function Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Switching Between Screen Work Areas . . . . . . . . . . . . . . . . . . . . 2-8

Ending an ATI Session. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Exiting From the DSLAM Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Contents
ii February 2001 8786-A2-GB20-20
3 Initial Startup and Configuration

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Entering Identity Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Configuring the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Current and Default Factory Configurations . . . . . . . . . . . . . . . . . 3-4
Configuration Loader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Saving Configuration Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Downloading Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

AutoRate Feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Disabling AutoRate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Resetting AutoRate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

Restoring Access to the User Interface . . . . . . . . . . . . . . . . . . . . . . . . 3-12

Resetting the Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
4 Monitoring the Unit

What to Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Viewing System and Test Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Health and Status Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Self-Test Results Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Test Status Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Performance Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Viewing Network Error Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Viewing Network Performance Statistics. . . . . . . . . . . . . . . . . . . . 4-8
Viewing Current Network Performance . . . . . . . . . . . . . . . . . . . . . 4-10
Viewing G.703 Performance Statistics . . . . . . . . . . . . . . . . . . . . . 4-12

Viewing LED Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

Front Panel LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

Contents
8786-A2-GB20-20 February 2001 iii
5Testing

Accessing the Test Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Running Network Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Network Line Loopback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
G.703 Repeater Loopback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
G.703 DTE Loopback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Network Remote Send Line Loopback . . . . . . . . . . . . . . . . . . . . . 5-6
Send and Monitor 511 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Device Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Lamp Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Ending an Active Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
6 Messages and Troubleshooting

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Configuring SNMP Traps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Device Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
7 Security

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

ATI Access Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Creating a Login. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

Deleting a Login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

Controlling SNMP Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Assigning SNMP Community Names and Access Types . . . . . . . 7-4
Limiting SNMP Access through the IP Addresses of the
Managers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
8 IP Addressing

Selecting an IP Addressing Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
Configurations Not Running IP Conservative Software. . . . . . . . . 8-1
All Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

IP Addressing Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

Contents
iv February 2001 8786-A2-GB20-20
A Configuration Options

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Network Interface Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

G.703 Interface Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Copy Port Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7

System Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-8

Management and Communication Menu . . . . . . . . . . . . . . . . . . . . . . . A-10
Telnet Session Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-10
General SNMP Management Options. . . . . . . . . . . . . . . . . . . . . . A-12
SNMP NMS Security Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-14
SNMP Trap Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-16
B Standards Compliance for SNMP Traps

SNMP Traps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
warmStart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
authenticationFailure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
linkUp and linkDown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2

Enterprise-Specific Traps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3
C Connector Pin Assignments

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1

Front Panel 50-Pin DTE Connector Pinouts . . . . . . . . . . . . . . . . . . . . C-1
D Technical Specifications
Glossary
Index

8786-A2-GB20-20 February 2001 v
About This Guide
Document Purpose and Intended Audience
This guide contains information needed to set up, configure, and operate the
2-port Hotwire 8786 Time Division Multiplexer Symmetric Digital Subscriber Line
(TDM SDSL) Termination Unit, and is intended for installers and operators.
Document Summary
Section Description
Chapter 1, About the Hotwire
8786 Termination Unit
Describes the Hotwire 8786 Termination Unit’s
features and capabilities.
Chapter 2, Using the
Asynchronous Terminal Interface
Provides instructions for accessing the user interface
and navigating the screens.
Chapter 3,
Initial Startup and
Configuration
Provides procedures for setting up the user interface
and configuring the unit.
Chapter 4, Monitoring the Unit Describes using the LEDs, status, and network
statistics to monitor the unit.
Chapter 5,
Testing Provides information about available tests and test
setup.
Chapter 6,
Messages and
Troubleshooting
Provides information on SNMP traps, device
messages, and troubleshooting.
Chapter 7,
Security Presents procedures for creating a login, setting the
effective access levels, and controlling SNMP
access.
Chapter 8, IP Addressing Provides information and examples regarding IP
addresses.
Appendix A,
Configuration
Options
Contains all configuration options, default settings,
and possible settings.
Appendix B, Standards
Compliance for SNMP Traps
Contains SNMP trap compliance information.
Appendix C, Connector Pin
Assignments
Lists the pin assignments for the front panel DTE
connector.

About This Guide
vi February 2001 8786-A2-GB20-20
Product-Related Documents
Contact your sales or service representative to order additional product
documentation.
Paradyne documents are also available on the World Wide Web at
www.paradyne.com. Select
Library
→
Technical Manuals.
Appendix D,
Technical
Specifications
Contains physical and regulatory specifications,
network and port interfaces, power consumption
values, and accessory part numbers.
Glossary
Defines acronyms and terms used in this document.
Index
Lists key terms, acronyms, concepts, and sections in
alphabetical order.
Section Description
Document Number Document Title
7970-A2-GB20
Hotwire TDM SDSL Standalone Termination Units,
Models 7974, 7975, 7976, 7984, 7985, and 7985,
User’sGuide
8000-A2-GB22
Hotwire Management Communications Controller (MCC)
Card, IP Conservative, User’s Guide
8000-A2-GB29
Hotwire Management Communications Controller (MCC)
Card User’s Guide
8600-A2-GN20
Hotwire 8600 Digital Subscriber Line Access Multiplexer
(DSLAM) Installation Guide
8610-A2-GN10
Hotwire 8610 DSLAM Installation Instructions
8620-A2-GN20
Hotwire 8620 GranDSLAM Installation Guide
8786-A2-GZ40
Hotwire 8786 TDM SDSL Termination Unit,
with G.703 Interface, Installation Instructions
8800-A2-GN21
Hotwire 8800 Digital Subscriber Line Access Multiplexer
(DSLAM) Installation Guide
8810-A2-GN11
Hotwire 8810 DSLAM Installation Instructions
8820-A2-GN20
Hotwire 8820 GranDSLAM Installation Guide

8786-A2-GB20-20 February 2001 1-1
1
About the Hotwire 8786
Termination Unit
TDM SDSL Overview
HotwireTime Division Multiplexer Symmetric Digital Subscriber Line (TDM
SDSL) products maximize customer service areas by varying the DSL line rate.
This ensures symmetric DSL connectivity over a wide range of telephone line
distances and transmission line qualities.
TDM SDSL termination units can transport data at full (2.048 Mbps) or fractional
payload rates over a 4-wire, full-duplex circuit over varying distances based on the
conditions of the 4-wire loop. Examples include support for router, multiplexer and
PBX connections on 24 gauge (.5 mm) cable up to 21,000 feet (6.4 km).
The termination unit is equipped with an automatic configuration capability that
reduces the installation process to a simple plug-and-play procedure. Simply
connect the unit to the line and it automatically configures itself for the maximum
data rate supported by the local loop. The unit can also be configured for fixed line
speeds to achieve maximum distances.

1. About the Hotwire 8786 Termination Unit
1-2 February 2001 8786-A2-GB20-20
Hotwire 8786 Termination Unit Features
The 2-port Hotwire 8786 TDM SDSL Termination Unit is a circuit board mounted
in a Hotwire 8600 or 8800 Series Digital Subscriber Line Access Multiplexer
(DSLAM) and used to transport signals at high speeds over a twisted-pair
connection.
The Hotwire 8786 TDM SDSL Termination Unit offers these standard features:

AutoRate Capability. Provides automatic configuration of line speed and data
rate upon connection.

Embedded Operations Channel (EOC). Provides remote management via
SNMP or Telnet session capability over the SDSL network.

Asynchronous Terminal Interface (ATI). Provides a menu-driven
VT100-compatible terminal interface for configuring and managing the unit
locally or remotely by Telnet session.

Local Management. Provides local management using the Management
Communications Card (MCC) with a:
—Terminal or PC via the Management Serial port of the DSLAM.
—Network Management System (NMS) via the Management MCC port of
the DSLAM.
—NMS connection through the 10BaseT port.

Remote Management. Provides remote management:
—Out-of-band, using an external modem through the Management Serial
port of the DSLAM.
—Telnet over the EOC.
—Using SNMP or Telnet through the 10BaseT port or the Internal
Management Channel (IMC).

Alarm Indication. Activates front panel LEDs.

Diagnostics. Provides the capability to diagnose device and network
problems and perform tests, including digital loopbacks, pattern tests, and
self-test.

Device and Test Monitoring. Provides the capability of tracking and
evaluating the unit’s operation, including health and status, and error-rate
monitoring.

1. About the Hotwire 8786 Termination Unit
8786-A2-GB20-20 February 2001 1-3
Network Configuration
Figure 1-1, Sample CO-to-CP Configuration, shows an E1 network application
using a Hotwire 8786 TDM SDSL Termination Unit for access concentration in a
central office (CO). A frame relay switch and a router are connected to partner
units through the termination unit, supporting an E1 host or router and frame relay
encapsulated or unframed data.
Figure 1-1. Sample CO-to-CP Configuration
Figure 1-2, Sample Campus Configuration, shows termination units used to
distribute T1 lines over a campus.
Figure 1-2. Sample Campus Configuration
Frame
Relay
Switch
Router
E1 Host
(Frame Relay
Encapsulated
Data)
99-16416
Router
(Frame Relay
Encapsulated
Data)
G.703
EIA-530-A
Router 2.048 Mb
over
DSL
G.703
G.703
G.703
8786 Termination Unit
in 8600 Series DSLAM
CO Site 7986
7986
7985
G.703
Customer Premises (CP)
01-16939
Multiple
DSL Lines Multiplexer
Routers
G.703,
DSX-1,
or V.35
Building B Building A
G.703
E3

1. About the Hotwire 8786 Termination Unit
1-4 February 2001 8786-A2-GB20-20
SNMP Management Capabilities
The unit supports SNMP Version 1, and can be managed by any industry-standard
SNMP manager and accessed using SNMP by external SNMP managers.
Management Information Base (MIB) Support
For a detailed description of supported MIBs, visit Paradyne’s Web site at
www.paradyne.com. The following MIBs are supported:

MIB II (RFC 1213 and RFC 1573) –Defines the general objects for use with a
network management protocol in TCP/IP internets and provides general
information about the unit. MIB II is backward-compatible with MIB I.

DS1/E1 MIB (RFC 1406) –Reports the performance status of the G.703
interface and supports the features found on the G.703 Performance Statistics
screen.

Enterprise MIB –Supports configuration, status, statistics, and tests.
SNMP Trap Support
The Hotwire 8786 Termination Unit supports traps as defined in RFC 1215. They
may include variable-bindings specified in the following MIBs:

MIB II (RFC 1573) –Defines the general objects for use with a network
management protocol in TCP/IP internets and provides general information
about the unit. MIB II is backward-compatible with MIB I.

Enterprise MIB –Supports configuration, status, statistics, and tests.
01-16148-02
G.703
8600 Series
DSLAM
Network
7986
AC
INPUT
AC
48VDCCLASS 2 OR
LIMITEDPWR SOURCE
RTN48V
AAB B
T5A
2
46
AB
.
.
.
3.
1
2
POSITION
STACKALM A
IN
B
DCFUSES
T4A,MIN. 48V 5DC PWR
FAN
OUT SERIAL MCC 1 3
1
2
3
SYSTEM
OKAlrm Test
250V
SYSTEM
OKAlrm
Test 1234
G.703ALRM
DSLPORT
LINK-UP
1234
SYSTEM
OKAlrm
Test 1234
G.703ALRM
DSLPORT
LINK-UP
SDSL
8715
1234
Router
SNMP NMS
Ethernet
Interface
TDM SDSL
EOC
Data
Voice
Operation, Maintenance
and Provisioning Center
Ethernet
LAN
1234
G.703ALRM
DSLPORT
LINK-UP
1234
8786

8786-A2-GB20-20 February 2001 2-1
2
Using the Asynchronous
Terminal Interface
User Interface Access
You can communicate with the asynchronous terminal interface (ATI) using one of
the following methods:

Direct connection through the Management Serial port of the DSLAM (locally
or via an external modem).

Telnet session using a Network Management System (NMS) connected to a
LAN port on the DSLAM.

Telnet session through the Embedded Operations Channel (EOC).
NOTE:
Only one ATI session can be active at a time, and another user’s session
cannot be forced to end. To automatically log out a user due to inactivity,
enable the Inactivity Timeout option (refer to Table A-5, Telnet Session
Options, in Appendix A,
Configuration Options
).
Security can limit ATI access several ways. To set up security or a login ID, refer to
Chapter 7,
Security
.
Management Serial Port Settings
Ensure that the device you connect communicates using these settings:

Data rate set to 9.6 kbps

Character length set to 8

Parity set to None

Stop Bits set to 1

Flow Control to None
Refer to the installation document for your DSLAM.

2. Using the Asynchronous Terminal Interface
2-2 February 2001 8786-A2-GB20-20
Logging In to the Hotwire DSLAM
You can log in to the Hotwire DSLAM system using either a local
VT100-compatible terminal or a remote Telnet connection.
After you enter your user ID and password, the system displays the Hotwire
Chassis Main Menu. See your Management Communications Controller (MCC)
documentation for information about selecting the unit from the MCC card
selection screen.
Initiating an ATI Session
The Main Menu screen is displayed unless a login ID and password is required or
the ATI is already in use.
If the ATI is already in use, the message connection refused is sent to the
terminal attempting Telnet access.
If security is enabled and Telnet is used to access the terminal unit directly (you did
not log in through the MCC), the system prompts you for a login ID and password.
If you enter an invalid login ID and password three times, the Telnet session closes
or the terminal connection returns to an idle state. Refer to Chapter 7,
Security
.
Login Hotwire
Slot: 2 Model: 8786
LOGIN
Login ID:
Enter Password:
--------------------------------------------------------------------------------
Ctrl-a to access these functions Exit

2. Using the Asynchronous Terminal Interface
8786-A2-GB20-20 February 2001 2-3
After you enter a valid login ID and password, the Main Menu appears.
Entry to all of the termination unit’s tasks begins at the Main Menu screen. The
four branches of the Main Menu are as follows:
What appears on the screens depends on the:

Current configuration –How your unit is currently configured.

Effective security access level –An access level that is typically set by the
system administrator for each interface and each user.

Data selection criteria –What you entered in previous screens.
main Access Level: Administrator Hotwire
Slot: 4 Model 8786
MAIN MENU
Status
Test
Configuration
Control
--------------------------------------------------------------------------------
Ctrl-a to access these functions Exit
Screen
Area
Function Keys
and
Message Area
Select . . . To . . .
Status View system status, diagnostic test results, statistics, LED status, and
device identity information.
Test Select, start, stop and cancel tests for the unit’s interfaces.
Configuration Display and edit the configuration options.
Control Change the device identity, administer logins, download new firmware, or
initiate a power-up reset of the unit.

2. Using the Asynchronous Terminal Interface
2-4 February 2001 8786-A2-GB20-20
Menu Hierarchy
The following illustration shows the paths to the different ATI screens.
Main
Status Test
System and
Test Status Performance Statistics Display LEDs Identity
Network
Error
Statistics
Network
Performance
Statistics
Configuration Control
Default
Factory
Configuration
Configuration
Loader
Current
Configuration
Network G.703 Copy
Ports System Options Management and
Communication
Change
Identity
Administer
Logins
Download
Code Apply
Download
Reset
AutoRate
Network &
G.703 Tests Device Tests Abort All Tests
01-16044-03
G.703
Statistics
Telnet
Session SNMP NMS Security
General SNMP
Management SNMP
Traps
Reset
Device
Current
Network
Performance

2. Using the Asynchronous Terminal Interface
8786-A2-GB20-20 February 2001 2-5
Screen Work Areas
There are two user work areas:

Screen area –This is the area above the dotted line that provides the menu
path, menus, and input field selections.
The menu path appears on the first line of the screen. In this manual, the
menu path is presented as a menu selection sequence:
Main Menu
→
Configuration
→
Current Configuration
→
Network

Function keys and message area –This is the area below the dotted line
that lists function keys specific to the screen, field value choices, and system
messages.
main/config/network Hotwire
Slot: 2 Model: 8786
Port: 1
NETWORK INTERFACE OPTIONS
Margin Threshold: –3db
Excessive Error Rate Threshold: 1E–5
AutoRate Disable
DSL Line rate 2064 Kbps
Circuit Identifier: Clear
--------------------------------------------------------------------------------
Ctrl-a to access these functions, ESC for previous menu MainMenu Exit
Save
Select: 1E–4, 1E–5, 1E–6, 1E–7, 1E–8, 1E–9 LOS at Net, Pt n
Input
Fields
Menu
Path
Field Value
Choices System
Messages
Function
Keys

2. Using the Asynchronous Terminal Interface
2-6 February 2001 8786-A2-GB20-20
Navigating the Screens
You can navigate the screens by:

Using keyboard keys

Using screen function keys

Switching between the two screen work areas
Keyboard Keys
Use the following keyboard keys to navigate within the screen.
Procedure
To make a menu or field selection:
1. Press the Tab or right arrow key to position the cursor on a menu or field
selection. Each selection is highlighted as you press the key to move the
cursor from position to position.
2. Press Enter. The selected menu or screen appears.
3. Continue Steps 1 and 2 until you reach the screen you want.
Press . . . To . . .
Ctrl-a Move cursor between the screen area and the screen function
keys area below the dotted line at the bottom of the screen.
Esc Return to the previous screen.
Tab Move cursor to the next field on the screen.
Backspace Move cursor to the previous field on the screen.
Enter Accept entry or display valid options on the last row of the screen
when pressed before entering data or after entering invalid data.
Ctrl-k Tab backwards (move cursor one field to the previous field).
Spacebar Select the next valid value for the field.
Delete (Del) Delete character that the cursor is on.
Up Arrow or Ctrl-u Move cursor up one field within a column on the same screen.
Down Arrow or Ctrl-d Move cursor down one field within a column on the same screen.
Right Arrow or Ctrl-f Move cursor one character to the right if in edit mode.
Left Arrow or Ctrl-b Move cursor one character to the left if in edit mode.
Ctrl-l Redraw the screen display, clearing information typed in but not
yet entered.
