Hotwire®8799 TDM SHDSL Line Card
with G.703 Interface
Installation Instructions
Document Number 8799-A2-GZ40-10
April 2003
Product Documentation Online
Complete documentation for this product is available at www.paradyne.com.
Select
Support → Technical Manuals → Hotwire DSL Systems.
Select the following documents:
8799-A2-GB20
Hotwire 8799 TDM SHDSL Line Card, with G.703 Interface, User’s Guide
8000-A2-GB22
Hotwire Management Communications Controller (MCC) Card, IP
Conservative, User’s Guide
To order a paper copy of a Paradyne document or to speak with a sales
representative, please call 1-727-530-2000.
Hotwire 8799 TDM SHDSL Line Card
The Hotwire®8799 Line Card is a circuit card assembly that contains eight Time
Division Multiplexer Symmetric High-bit-rate Digital Subscriber Line (TDM SHDSL)
ports and a G.703 interface. When the card is used in a Hotwire 8610/8620 or
8810/8820 Digital Subscriber Line Access Multiplexer (DSLAM) chassis, it
transports up to 2048 Kbps signals over traditional twisted-pair telephone wiring.
HANDLING PRECAUTIONS FOR
STATIC-SENSITIVE DEVICES
This product is designed to protect sensitive components from damage
due to electrostatic discharge (ESD) during normal operation. When
performing installation procedures, however, take proper static control
precautions to prevent damage to equipment. If you are not sure of the
proper static control precautions, contact your nearest sales or service
representative.
!

2April 2003 8799-A2-GZ40-10
Installation Overview
Installation and configuration of the Hotwire 8799 TDM SHDSL Line Card consists
of:
 Installing the card in the DSLAM.
 Connecting to the DTE.
 Installing the supplied ferrite chokes.
 Connecting to an MDF.
 Providing initial card identity information or changing existing identity
information.
 Configuring your card using the Configuration Edit menus.
Before you install the card, read the
Important Safety Instructions on page 25.
Be sure to register your warranty at www.paradyne.com/warranty.
Planning the Installation
Review the following list to help plan for the installation.
❑Obtain the applicable cables; refer to Cables You Need , below.
❑Make sure the Hotwire DSLAM chassis is installed and power is supplied to
the chassis.
❑After the Hotwire TDM SHDSL Line Card is installed, there are configuration
procedures that must be performed before you can begin to use the card.
Refer to the
Hotwire 8799 TDM SHDSL Line Card, with G.703 Interface,
User’s Guide
for more detailed configuration procedures.
Cables You Need
The following standard cables are used with this product.
For the network connection:
 Plug-ended Telco 50-pin cable for connection from the Hotwire 8610/8620
DSLAM LINE port or one of the Hotwire 8810/8820 DSLAM LINES ports to the
Main Distribution Frame (MDF) or other demarcation point.
For the DTE connection:
 The 50-position plug-to-four 8-position unkeyed modular jacks, such as
Paradyne Feature No. 8700-F1-505.
For further information refer to
Connector Pin Assignments in the Hotwire 8799
TDM SHDSL Line Card, with G.703 Interface, User’s Guide
, and the appropriate
DSLAM installation document.

8799-A2-GZ40-10 April 2003 3
Installing TDM SHDSL Cards
A Hotwire 8799 TDM SHDSL Line Card can be installed, removed, and replaced
from the DSLAM chassis without disrupting service to the other cards in the
chassis.
Procedure
To install the card:
1. Determine in which slot the card will be installed. Verify that cards in adjacent
slots have been fastened.
2. Remove the filler plate from the installation slot.

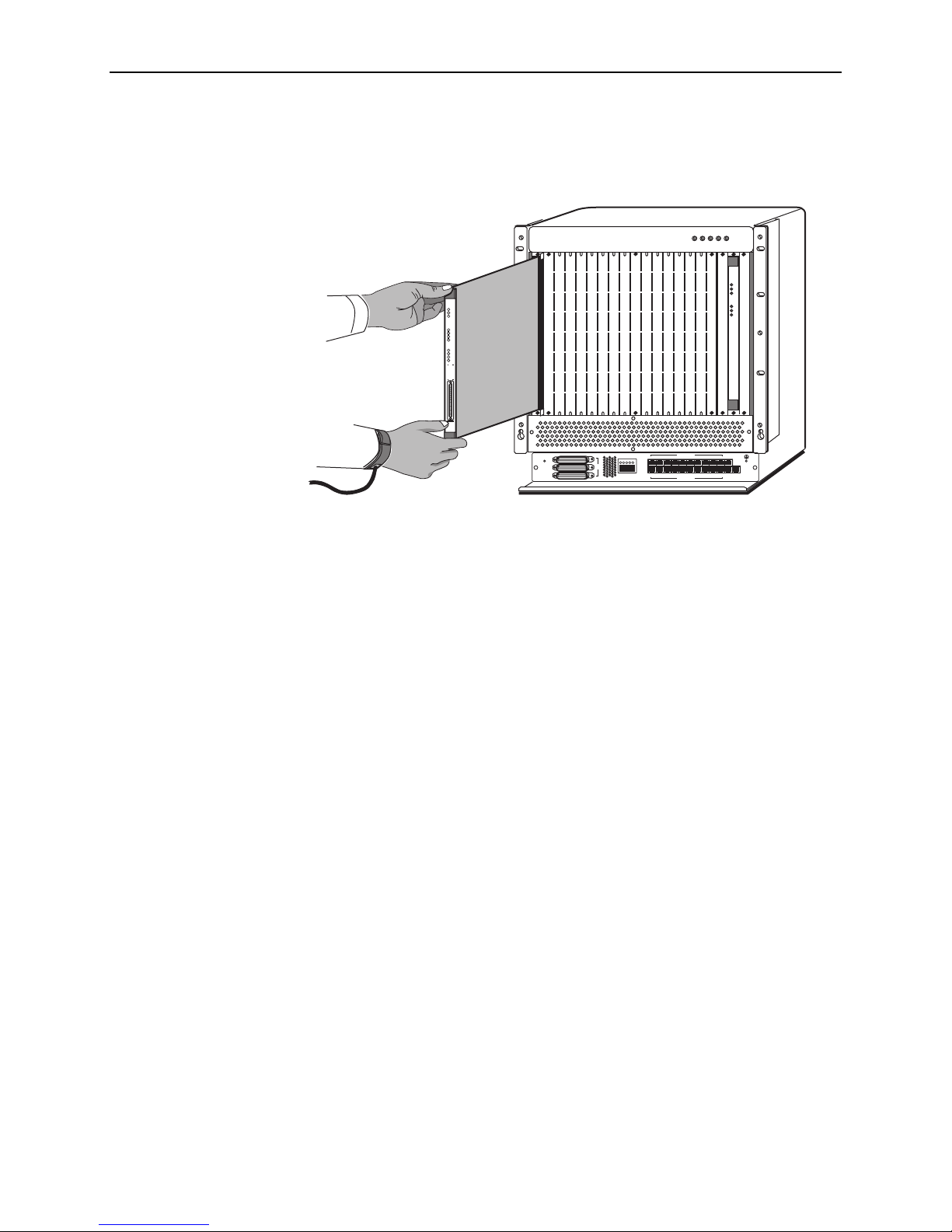

3. Insert the card:
—ForaHotwire 8610/8620 DSLAM chassis – Hold the Hotwire 8799 TDM
SHDSL Line Card horizontally, with the component side facing up, and
insert it into the left and right card guides.
02-17114
MCP
8000
SYSTEM
OK
Alrm
Test
TX
RX
Coll
ETHERNET
GranDSLAM
8620
ESD
SIM
A
1
2
3
AC INPUT
DC FUSES
AB
-48V RTN
ABAB
AB
DC
POWER
F
A
N
M
A
J
O
R
M
I
N
O
R
ALARMS ALARM CLOCK
AB
SERIAL
SCM MCP
LAN
SCM MCP
SIM
IP
MVL
8314
SYSTEM
OK
Alrm
Test
TX
RX
LOC
1
2
3
4
ATM BUS
DSL PORT
5
6
7
8
9
10
11
12
8
TDM
SHDSL
8799
SYSTEM
OK
Alrm
Test
1
2
3
5
6
7
PORTS
4

4April 2003 8799-A2-GZ40-10
—ForaHotwire 8810/8820 DSLAM chassis – Hold the Hotwire 8799 TDM
SHDSL Line Card vertically, with the component side facing right, and
insert it into the top and bottom card guides.
4. Slide the card into the slot until the power and network connectors seat firmly
in the mating connectors on the backplane.
CAUTION:
Do not force the card into the slot. This could damage the backplane
connectors. If the card does not seat properly, remove the card and
reinstall it. If it still does not seat properly, call your service
representative.
The card performs a power-on self-test. All of the LEDs turn ON and OFF
briefly. When the self-test is completed successfully, the SYSTEM OK LED
begins to pulse.
5. If the LED is not pulsing, refer to
Messages and Troubleshooting in the Hotwire
8799 TDM SHDSL Line Card, with G.703 Interface, User’s Guide
.
6. Secure the card by fastening the screws at each end of the faceplate.
ALARMS
Major MinorFanBA
POWER
MCC
SYSTEM
OK
Alm
Test
ETHERNET
TX
RX
Coll
02-17113
MGT
SERIAL
MGT
10BT
ALARM
SLOTS 1 - 6
SLOTS 7-12
SLOTS 13-18
LINES
AB
-48V (A)
-48V INPUT
-48V (B) RET (A) RET (B) FR GND
246810 12 14 16 18
19
1357911 13 15 17
LAN/WAN SLOT
20
LAN/WAN SLOT
8
TDM
SHDSL
8799
SYSTEM
OK
Alrm
Test
1
2
3
5
6
7
PORTs
4

8799-A2-GZ40-10 April 2003 5
Connecting to the DTE
Connection to the four ports of the Hotwire 8799 TDM SHDSL Line Card is
through the 50-pin interface connector on its faceplate. Refer to
Connector Pin
Assignments
in the Hotwire 8799 TDM SHDSL Line Card, with G.703 Interface,
User’s Guide
.
Procedure
To connect the Hotwire 8799 TDM SHDSL Line Card to your DTE:
1. Connect the 50-position connector of the cable to the connector on the
faceplate of the card. Align one end of the cable connector with the card
connector, then push on the cable connector until it seats.
The end of the cable connector has a release button. To remove the
connector, press the release button and pull the connector away from the
card.
2. Feed the cable through the Cable Guide if it is in use. When all cables are
installed, anchor them with cable ties to the rack, DSLAM, or Cable Guide.
3. Connect the four terminating connectors to your DTE.
Installing the Ferrite Chokes
Two ferrite chokes (supplied) must be installed on the DTE cable to ensure
compliance with EN 55022.
Procedure
To install the ferrite chokes on the DTE cable:
1. Open a ferrite choke and place it around the cable as close to the Hotwire
8799 TDM SHDSL Line Card as possible.
2. Close the two halves around the cable and snap the choke shut, pressing
down on the plastic latch to secure it.
3. Install the second ferrite choke adjacent to the first.
4. If necessary to prevent the ferrite chokes from slipping down the cable, install
a tie wrap behind the second ferrite choke.

6April 2003 8799-A2-GZ40-10
Connecting to an MDF
You can connect the Hotwire DSLAM chassis containing the Hotwire 8799 TDM
SHDSL Line Card to an MDF or other demarcation point. Do not connect it to a
POTS splitter.
Procedure
To connect the Hotwire DSLAM chassis containing the Hotwire 8799 TDM SHDSL
Line Card to an MDF:
1. Plug the Telco 50-pin cable into the appropriate LINE port on the chassis.
2. Replace the longer Telco cable captive screw with a shorter connector captive
screw, which is provided with the Hotwire DSLAM chassis.
3. Insert a cable tie (provided with Hotwire DSLAM chassis) through the tie
mount to hold the Telco 50-pin connector in place. If more than one Telco
cable is being connected, span the two or three connectors.
4. Make sure the other end is connected to the appropriate MDF or demarcation
point.
Refer to
Connector Pin Assignments in the Hotwire 8799 TDM SHDSL Line
Card, with G.703 Interface, User’s Guide
for pinouts.
NOTE:
If you are connecting the Telco 25-pair, 50-pin cable to an MDF, a converter
may be necessary for terminating the other end of the cable on a punchdown
block before cross-connecting to an MDF.

8799-A2-GZ40-10 April 2003 7
Front Panel LEDs
The following table describes the meaning and states of the LEDs on the
Hotwire 8799 TDM SHDSL Line Card’s faceplate.
NOTE:
Use the Main Menu → Control → Port LEDs branch of the Asynchronous
Terminal Interface to change the definition of the G.703 LEDs to DSL PORT
and vice versa.
Type LED LED is . . . Indicating . . .
SYSTEM OK
(Green)
On
Off
Pulsing*
Slow cycling*
Unit failure; system processing functions have
stopped.
No power to card.
Normal operation; card functioning normally.
Card is in minimum mode and a download is
required.
Alrm
(Amber)
On
Off
Card failure, or Power-On Self-Test (POST) is
not complete, or an alarm was reported on a
DSL or G.703 port.
No alarms.
Te s t
(Amber)
On
Off
Slow cycling*
Loopback test or 511 test pattern in progress.
No tests.
POST in progress.
G.703 1 – 8
(Green)
On
Off
Slow cycling*
Fast cycling*
Recoverable signal present on the G.703
network.
No signal on the port.
Remote Alarm Indication (RAI) present.
An OOF, LOF, EER, or AIS condition exists.
DSL PORT 1 – 8
(Green)
On
Off
Slow cycling*
DSL link is up.
DSL link is down.
DSL training in progress.
* Slow cycling: LED turns off and on in equal duration once per second.
Fast cycling: LED turns off and on in equal duration 5 times per second.
Pulsing: LED turns off momentarily once per second.

8April 2003 8799-A2-GZ40-10
Logging In to the Hotwire DSLAM
You can log in to the Hotwire DSLAM system using either a local VT100-
compatible terminal or a remote Telnet connection.
After you enter your user ID and password, the system displays the Hotwire
Chassis Main Menu. See the
Hotwire Management Communications Controller
(MCC) Card, IP Conservative, User’s Guide
for information about selecting the
TDM SHDSL card from the MCC card selection screen.
Asynchronous Terminal Interface Menu

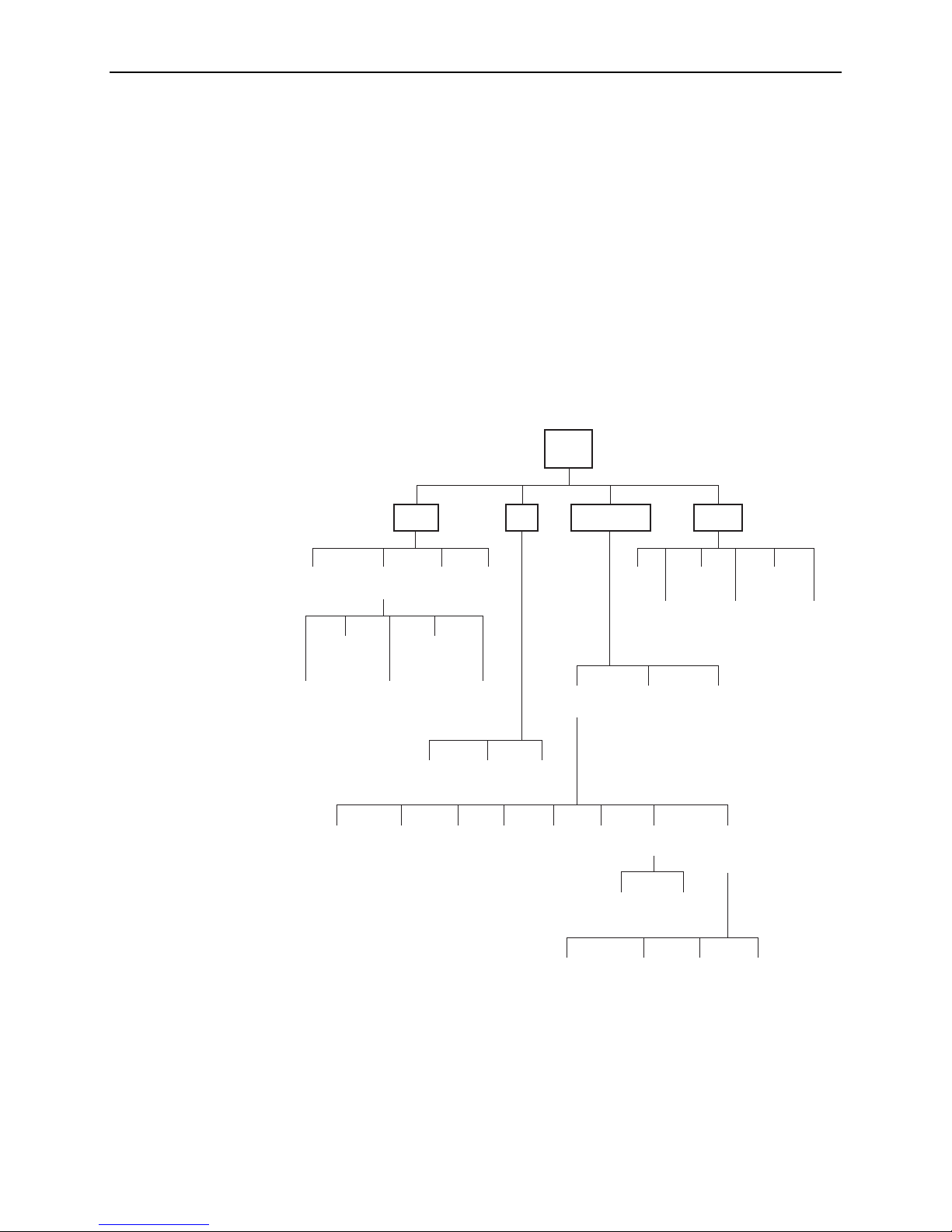

The following illustration shows the paths to the Hotwire 8799 TDM SHDSL Line
Card’s various ATI screens.
Main
Status Test
System and
Test Status
Performance
Statistics
Display
LEDs
Identity
DSL
Error
Statistics
DSL
Performance
Statistics
Configuration Control
Default
Factory
Configuration
Configuration
Loader
Current
Configuration
G.7 3 Copy
Ports
System
Options
Cross
Connect
Change
Identity
Download
Code
Apply
Download
Port
LEDs
DSL &
G.7 3 Tests
Device
Tests
Abort All
Tests
3-17112- 1
G.7 3
Statistics
Reset
Device
Current
DSL
Performance
DSL Port DSL Port
Threshold Traps
System
Clock
Management
and
Communication
Set Cross
Connect
Assign
Time Slots
SNMP NMS
Security
General SNMP
Management
SNMP
Traps
Inband
Management
Channel
Inband
Management
Statistics
Inband
Management

8799-A2-GZ40-10 April 2003 9
Entering Identity Information
After accessing your card for the first time, use the Change Identity screen to
determine SNMP administrative system information that will be displayed on the
Identity screen of the Status branch. To access the Card Identity screen, follow this
menu selection sequence:
Main Menu → Control → Change Identity
Configuring the Card
Configuration option settings determine how the card operates. Use the
Configuration branch of the Hotwire 8799 TDM SHDSL Line Card’s menu to
display or change configuration option settings.
If the factory default settings do not support your network’s configuration,
customize the configuration options for your application.

10 April 2003 8799-A2-GZ40-10
Accessing and Displaying Configuration Options
To display the configuration options, you must first load a configuration option set
into the edit area.
To load a configuration option set into the configuration edit area, follow this menu
selection sequence:
Main Menu → Configuration (Load Configuration From)
Make a selection by placing the cursor at your choice and pressing Enter.
If you select . . . Then . . .
Current
Configuration
The selected configuration option set is loaded and the
Configuration Edit/Display menu screen appears.
Configuration
Loader
The Configuration Loader screen is displayed allowing you to
upload or download configurations from a TFTP server.
Default Factory
Configuration
The selected configuration option set is loaded and the
Configuration Edit/Display menu screen appears.
main/configuration
Slot: 4 Model: 8799
LOAD CONFIGURATION FROM
Current Configuration
Configuration Loader
Default Factory Configuration
--------------------------------------------------------------------------------
Ctrl-a to access these functions, ESC for previous menu MainMenu Exit

8799-A2-GZ40-10 April 2003 11
Configuration Edit/Display
The Configuration Edit/Display screen is displayed when the current, customer, or
default configuration is loaded and allows groups of configuration options to be
displayed. To access the Configuration Edit/Display screen, follow this menu
selection sequence:
Main Menu → Configuration → Current Configuration
– or –
Main Menu → Configuration → Default Factory Configuration
Select . . . To Access the . . . To Configure the . . .
DSL Port DSL Interface Options (Ta bl e 1 ) DSL interface Ports 1–8.
DSL Port
Threshold Traps
DSL Port Threshold Trap Options
(Ta b le 2 )
Threshold traps for the DSL
ports 1–8.
G.703 G.703 Interface Options (Ta bl e 3 ) G.703 interface.
Copy Ports Copy Ports Options (Ta b l e 4 ) DSL and G.703 interface ports
by copying options from port to
port.
System Options System Options (Ta bl e 5 ) General system options of the
card.
System Clock System Clock Options (Ta bl e 6 ) System clock.
Cross Connect
 Cross-Connect Mode Options
(Ta b le 7 )
 Assign Time Slots Options
(Ta b le 8 )
The card’s cross connections
and timeslot assignments.
main/config/edit
Slot: 4 Model: 8799
CONFIGURATION EDIT/DISPLAY
DSL Port
DSL Port Threshold Traps
G.703
Copy Ports
System Options
System Clock
Cross Connect
Management and Communication
--------------------------------------------------------------------------------
Ctrl-a to access these functions, ESC for previous menu MainMenu Exit
Save

12 April 2003 8799-A2-GZ40-10
For complete details about the configuration options, see the Hotwire 8799 TDM
SHDSL Line Card, with G.703 Interface, User’s Guide.
Select . . . To Access the . . . To Configure the . . .
Management and
Communication
 General SNMP Management
Options (Table 9)
 SNMP NMS Security Options
(Ta b le 1 0 )
 SNMP Traps Options
(Ta b le 1 1 )
 Inband Management Channel
Options (Table 12)
Management support of the
card through SNMP and the
Inband Management Channel.
Table 1. DSL Interface Options (1 of 2)
Port Status
Possible Settings: Enable, Disable
Default Setting: Enable
Specifies whether the DSL port is operational.
Estimated Line Length
STU-C Only.
Possible Settings: short, medium, long
Default Setting: short
Determines the estimated line length for the distance from the local exchange. Estimated
line length determines the speeds that can be supported.
Startup Margin
Possible Settings: 0dB – 15dB
Default Setting: 4dB
Specifies the Signal to Noise Ratio (SNR) margin a port must exceed to successfully train
up with the remote unit.
Max DSL Rate
STU-C Only.
Determines the maximum speed of the DSL line.
Min DSL Rate
STU-C Only.
Determines the minimum speed of the DSL line.

8799-A2-GZ40-10 April 2003 13
EIA-530 Payload Rate
Possible Settings: 64, 128
Default Setting: [Highest multiple of 64 Kbps supported by the DSL Line Rate]
When the remote STU-R has an EIA-530-A interface, the Payload Rate set on the STU-C
determines the port speed of the synchronous port of the STU-R. This option is read-only
unless the line rate is 200 Kbps.
Remotely Initiated Loopback
Possible Settings: Enable, Disable
Default Setting: Enable
Specifies whether the line card will respond to a loopback command from the endpoint.
Peer IP Address
Possible Settings: 001.000.000.000 – 223.255.255.255, Clear
Default Setting: 000.000.000.000
Specifies the peer IP address for the remote management link.
Circuit Identifier
Possible Settings:
ASCII text field , Clear
Default Setting: [blank]
Uniquely identifies the circuit number of the transmission vendor’s DSL line for
troubleshooting purposes.
Table 1. DSL Interface Options (2 of 2)

14 April 2003 8799-A2-GZ40-10
Table 2. DSL Port Threshold Trap Options
ES Trap Threshold
Possible Settings: 1–900, or 0 to Disable
Default Setting: 120
Specifies the threshold for Error Seconds events in a 15-minute interval after which a
trap will be sent.
SES Trap Threshold
Possible Settings: 1–900, or 0 to Disable
Default Setting: 15
Specifies the threshold for Severely Error Seconds events in a 15-minute interval after
which a trap will be sent.
UAS Trap Threshold
Possible Settings: 1–900, or 0 to Disable
Default Setting: 0
Specifies the threshold for Unavailable Seconds events in a 15-minute interval after
which a trap will be sent.
LOSW Trap Threshold
Possible Settings: 1–900, or 0 to Disable
Default Setting: 0
Specifies the threshold for Loss of Sync Word Seconds events in a 15-minute interval
after which a trap will be sent.
CRC Trap Threshold
Possible Settings: 1–900, or 0 to Disable
Default Setting: 0
Specifies the threshold for CRC events in a 15-minute interval after which a trap will
be sent.
Attenuation Trap Threshold
Possible Settings: 1–127 dB, or 0 to Disable
Default Setting: 0
Specifies the threshold for loop attenuation in a 15-minute interval after which a trap
will be sent.
Margin Trap Threshold
Possible Settings: 1–15 dB, or 0 to Disable
Default Setting: 4
Specifies the threshold for the Signal-to-Noise ratio margin in a 15-minute interval
after which a trap will be sent.

8799-A2-GZ40-10 April 2003 15
Table 3. G.703 Interface Options
Port Status
Possible Settings: Enable, Disable
Default Setting: Enable
Determines whether the port can be configured and used.
Framing
STU-C Only.
Possible Settings: Framed, Unframed
Default Setting: Framed
Specifies whether G.704 framing is used for the G.703 interface.
Line Coding
Possible Settings: AMI, HDB3
Default Setting: HDB3
Specifies the line coding format to be used by the G.703 interface.
Line Framing
STU-C Only.
Possible Settings: CRC4, noCRC4
Default Setting: noCRC4
Specifies the framing format to be used by the G.703 interface.
Time Slot 16
Possible Settings: Signaling_CAS, Signaling_CCS, Data
Default Setting: Signaling_CCS
Specifies whether the G.703 interface is used for voice or data.
Primary Clock Source
STU-C Only.
Possible Settings: Internal, G.703
Default Setting: Internal
Determines the primary clock source for the card when in Bypass mode.

16 April 2003 8799-A2-GZ40-10
Table 4. Copy Ports Options
From: Port n
Possible Settings: 1,2,3,4,5,6,7,8
Default Setting: 1
Controls the source of the configuration options.
To: Por t y
Possible Settings: 1,2,3,4,5,6,7,8, All
Default Setting: 2
Controls the target of the configuration options.
NOTE: Circuit Identifier is
not copied.
Table 5. System Options (1 of 2)
DSL Mode
Possible Settings: STU-C, STU-R
Default Setting: STU-C
Controls whether the card is configured as an SHDSL Central Office Control Terminating
Unit (STU-C) or an SHDSL Remote Terminating Unit (STU-R).
NOTE: Changing this option will reset the card.
Test Timeout
Possible Settings: Enable,Disable
Default Setting: Enable
Allows tests to end automatically. The feature should be enabled when the card is
remotely managed, so that control can be regained after a test is accidentally executed.
Test Duration (min)
Possible Settings: 1–120
Default Setting: 10
Number of minutes for a test to be active before automatically ending.
G.703 Line Termination
Possible Settings: 75 ohms, 120 ohms
Default Setting: 120 ohms
Specifies the line impedance of the G.703 interface.
Region Setting
STU-C Only.
DIsplays: Annex B
Specifies the set of unique, regional SHDSL operations parameters to be used by the
card. Displays Annex B for European networks.

8799-A2-GZ40-10 April 2003 17
Spectrum Management
STU-C Only.
Possible Settings: Enable, Disable
Default Setting: Disable
Enabling spectrum management limits the DSL speeds on the card to meet either ANSI
T1.417 or BT Access Network Spectrum standards.
Country Code
STU-C Only.
Displays: UK
Displays the spectrum management standard to be used (ANFP for UK) to calculate the
speeds allowed on this card which comply with spectrum management.
Table 6. System Clock Options
System Primary Clock Reference
Possible Settings (STU-C): G.703 Port 1–8,Internal
Default Setting: Internal
Possible Settings (STU-R): DSL Port 1–8,Internal
Default Setting: DSL Port 1
Specifies the primary clock source to be used for system timing. Failure of this clock
results in an automatic fallback to the secondary clock source.
System Secondary Clock Reference
Possible Settings (STU-C): G.703 Port 1–8,Internal
Default Setting: Internal
Possible Settings (STU-R): DSL Port 1–8
Default Setting: DSL Port 2
Specifies the secondary clock source to be used for system timing. Failure of this clock
results in an automatic fallback to the internal clock.
Table 5. System Options (2 of 2)

18 April 2003 8799-A2-GZ40-10
Table 7. Cross-Connect Mode Options
Source
Possible Settings: DSL, G.703
Defaault Setting: G.703
Selects a reference for how cross-connection information is displayed. The values in the
Mode column refer to the ports entered as the source.
Cross-Connect Mode
Possible Settings: DS1 Bypass, DS1 Cross-connect, DS0 Cross-connect,
Unassigned, Disabled
Default Setting: DS1 Bypass
Determines the cross-connect mode for the port.
Destination
Possible Settings: DSL (1–8), G.703 (1–8), Unassigned, I
Default Setting: DSL
Specifies which destination port is cross-connected to the selected source port.

8799-A2-GZ40-10 April 2003 19
Table 8. Assign Time Slots Options
G.703/DSL
Possible Settings: G.703, DSL
Default Setting: G.703
Determines the port for which time slots are displayed. The card can be configured
using the viewpoint of the G.703 interface or the DSL network interface.
Port Type
Possible Settings: D, G, I
Default Setting: D
Specifies the type of port to which this time slot is connected.
Port
Possible Settings: 1 – 8
Default Setting: [Blank]
Selects the port to which this time slot is connected.
DS0s to Allocate
Possible Settings: 1 – 31
Default Setting: [Blank]
Specifies the number of contiguous time slots to be assigned at this time for the selected
port. Only unassigned time slots can be selected.
Start TS
Possible Settings: 1 – 31
Default Setting: [Blank]
Specifies the time slot where time slot assignment is to begin in the contiguous time slots
specified in the DS0s to Allocate option for the selected port. Only unassigned time slots
can be selected.
Assign To
Possible Settings: D, G
Default Setting: D
Assigns the corresponding port and beginning time slot specified in the DS0s to Allocate
and Start TS options to a Port Type and Data or Voice setting. After the time slot is
assigned, the Data or Voice setting can be changed.
Time Slot Number
Possible Settings: 1 – 31
Default Setting: [Blank]
Determines the time slot to which this time slot is connected.
Data or Voice
Possible Settings: d, v
Default Setting: d
Determines whether the time slot is dedicated to the transmission of voice or data.

20 April 2003 8799-A2-GZ40-10
Table 9. General SNMP Management Options
SNMP Management
Possible Settings: Enable, Disable
Default Setting: Enable
Enables or disables the SNMP management features.
Community Name 1
STU-R Only.
Possible Settings:
[ASCII text] , Public
Default Text: Public
Identifies the name of the community allowed to access the card’s MIB. The community
name must be supplied by an external SNMP manager when that manager attempts to
access an object in the MIB.
Name 1 Access
STU-R Only.
Possible Settings: Read, Read/Write
Default Setting: Read/Write
Determines the access level for Community Name 1.
Community Name 2
STU-R Only.
Possible Settings:
[ASCII text]
Default Text: [null string]
Identifies the name of the second community allowed to access the card’s MIB. The
community name must be supplied by an external SNMP manager when that manager
attempts to access an object in the MIB.
Name 2 Access
STU-R Only.
Possible Settings: Read, Read/Write
Default Setting: Read
Determines the access level for Community Name 2.
