HotWire 8540 Digital Subscriber Line (DSL) Card
Installation Instructions
Document Number 8540-A2-GN10-00
October 1997
What is a 8540 DSL Card?
A Digital Subscriber Line (DSL) 8540 card is a circuit card assembly (CCA) that
contains four Rate Adaptive Digital Subscriber Line (RADSL) ports, an Ethernet
interface to the Internet Service Provider (ISP), and a processor. The processor
controls the RADSL ports and forwards the packet traffic to and from the Ethernet
and DSL interfaces. When the 8540 DSL card is used in a HotWire 8600 or 8800
DSL Access Multiplexer (DSLAM) chassis and connected to HotWire 5100/5200
series Remote Termination Units (RTU), it provides high-speed Internet or
Intranet access over traditional twisted-pair telephone wiring.
!HANDLING PRECAUTIONS FOR
STATIC-SENSITIVE DEVICES
This product is designed to protect sensitive components from damage
due to electrostatic discharge (ESD) during normal operation. When
performing installation procedures, however, take proper static control
precautions to prevent damage to equipment. If you are not sure of the
proper static control precautions, contact your nearest sales or service
representative.
Package Checklist
Verify that your package contains the following:
DSL CCA
Warranty card
Tools Required
Small- to medium-size flat-blade screwdriver to install the DSL card.
496-15104

2 8540-A2-GN10-00
October 1997
Technical Specifications
Specifications Criteria*
Size 10.4 inches (L) x 11.15 inches (H) x .8 inches (W)
Weight Approx. 1.4 lbs.
Approvals
Safety Certifications Refer to the equipment’s label for approvals on product.
Power The DSL card contains a DC-to-DC converter that
requires –48V power input. The –48V power is
distributed through the HotWire DSLAM backplane.
Maximum Power Dissipation = 18 watts
Physical Environment
Operating temperature
Storage temperature
Relative humidity
Shock and vibration
32°to 122°F (0°to 50°C)
–4°F (–20°C) to 158°F (70°C)
5% to 85% (noncondensing)
Withstands normal shipping and handling.
* Criteria of technical specifications are subject to change without notice.
Planning the DSL Card Installation
Review the following list to help plan for the installation.
Obtain the applicable cables; refer to the next section,
Cables You Need .
Make sure the HotWire DSLAM chassis is installed and power is supplied to
the chassis.
After the DSL card is installed, there are configuration instructions that must
be performed before you can begin to use the DSL cards for Internet or
Intranet connectivity. Refer to the
HotWire DSLAM for 8540 and 8546 DSL
Cards User’s Guide
, Document No. 8000-A2-GB20, for more detailed
configuration procedures.

3
8540-A2-GN10-00 October 1997
Cables You Need
The following customer-provided cables are used with this product:
HPlug-ended Telco 50-pin cable for connection from the HotWire DSLAM Line
port to the CO POTS splitter shelf, Main Distribution Frame (MDF), or other
demarcation point.
HOne 8-pin modular UTP (Unshielded twisted Pair) CAT5 cable for each
connection from a LAN/WAN port associated with a 8540 DSL card in the
HotWire DSLAM chassis to the Ethernet hub or switch.
CAUTION:
Use of any non-twisted pair wiring arrangements, such as jumpers, can
cause reduction in overall DSL reach performance, even over short
distances. Please refer to the Special Notice shipped with the
HotWire 8800/8600 DSLAM.

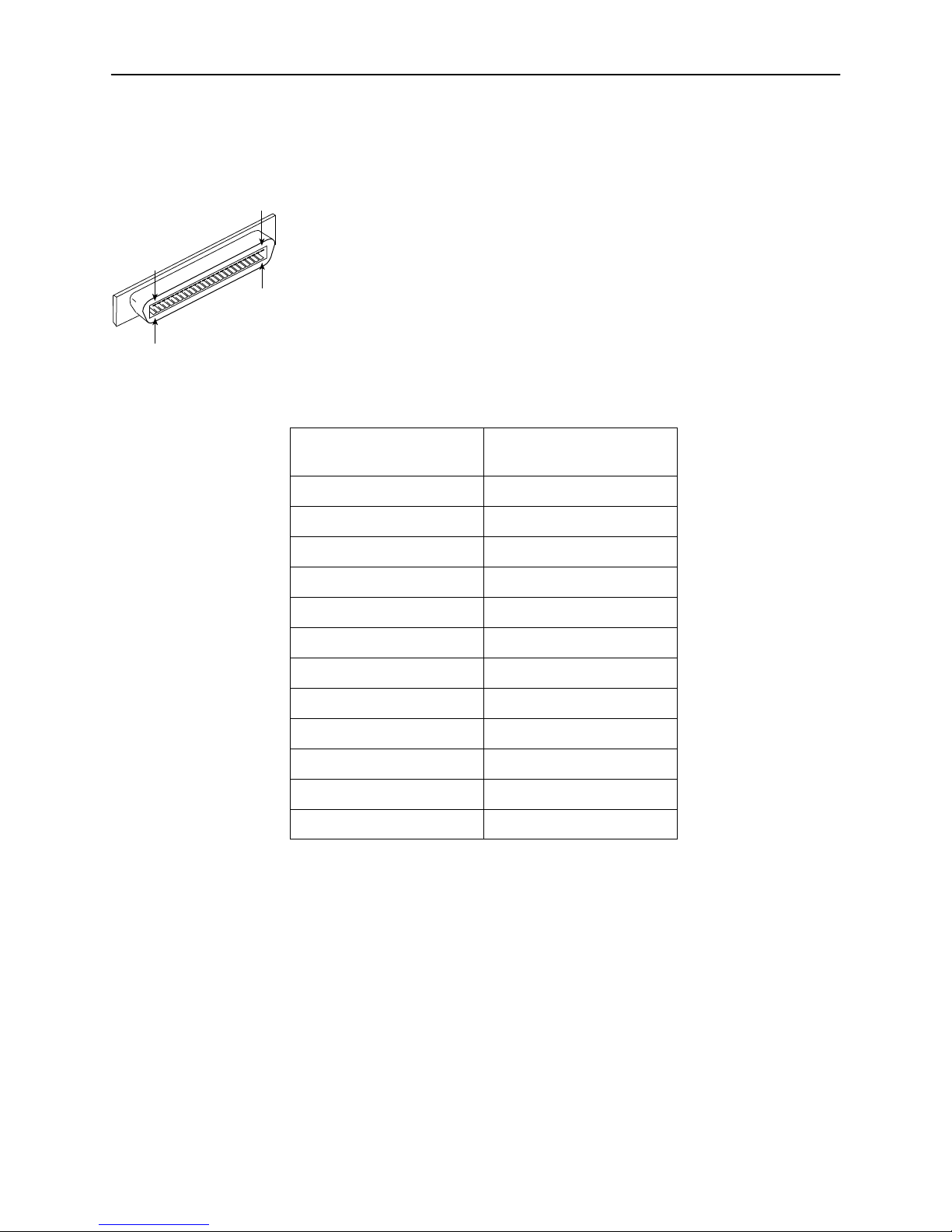

Refer to
Pin Assignments on page 9 for pinouts.
Installing 8540 DSL Cards
Use a small- to medium-size flat-blade or Phillips screwdriver to install the
8540 DSL card.
When using a . . . Install the DSL card into . . .
HotWire 8600 DSLAM base chassis Slot 2 or 3 (Slot 1 of the HotWire 8600
DSLAM base chassis must contain a
Management Communications
Controller (MCC) card.)
HotWire 8600 DSLAM expansion chassis Slot 1, 2, or 3
HotWire 8800 DSLAM chassis Any one of the first 18 slots (i.e., Slot 1
through 18)
An 8540 DSL card can be installed, removed, and replaced from a HotWire
DSLAM chassis without service disruption (i.e., you can replace a card without
powering down the chassis and disrupting service to the other cards in the
chassis).
NOTE:
When installing the 8540 DSL card, you will need to remove the filler plate
before proceeding.
Do not discard unused filler plates. Each slot in the chassis must contain a
circuit card or a filler plate. Store all unused filler plates in a safe place. You
may need to use the filler plates to cover open slots in the chassis at a later
time.

4 8540-A2-GN10-00
October 1997
"Procedure
To install an 8540 DSL card:
1. Remove the filler plate from the desired slot.

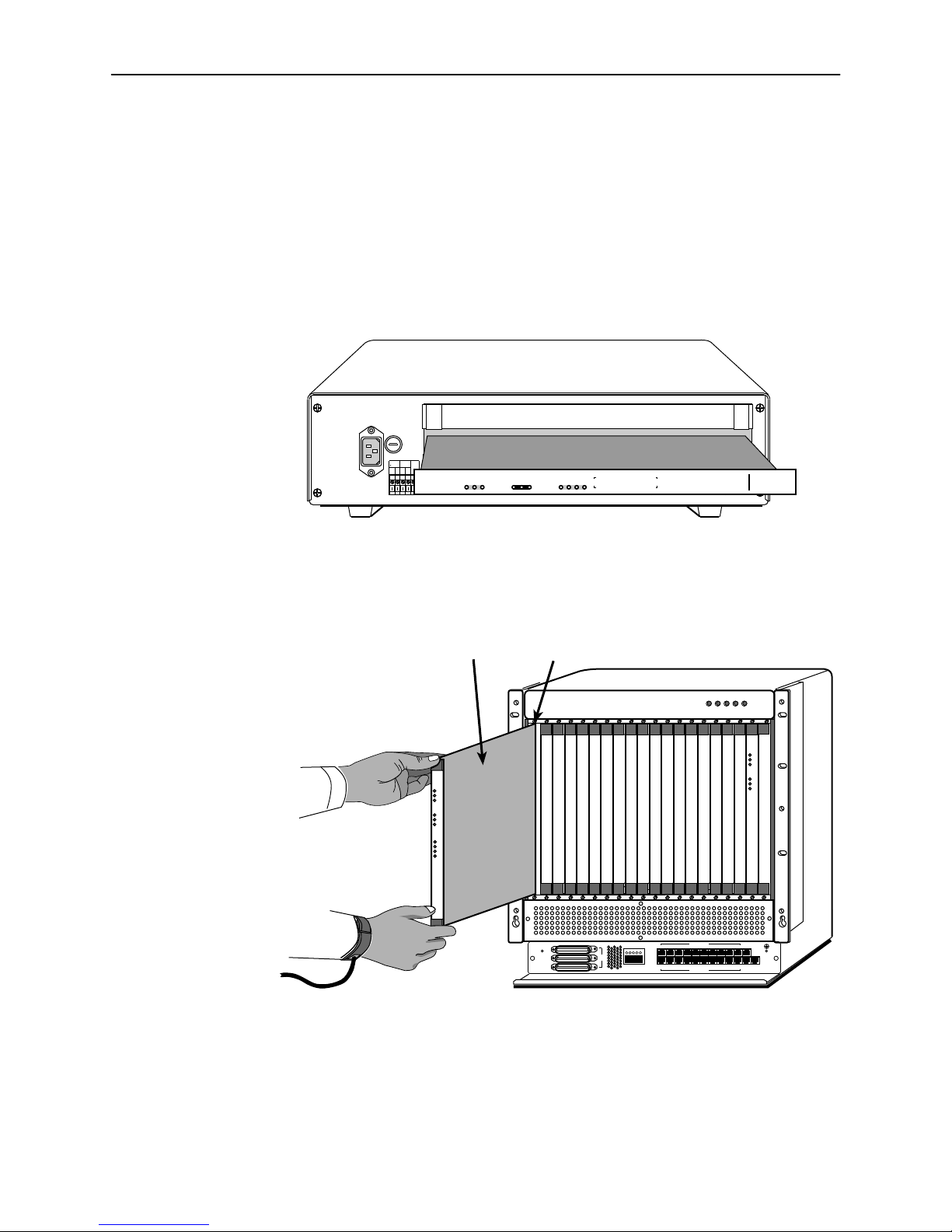

2. Insert the 8540 DSL card into this slot:
— For a HotWire 8600 DSLAM chassis – hold the 8540 DSL card
horizontally with component side facing up and insert it into the left and
right card guides.
A
AC
INPUT
AC
48VDC CLASS 2 OR
LIMITED PWR SOURCE
RTN48V
AAB B
T5A
250V
LAN/WAN SLOT
2
46
B
.
.
.
3
.
1
2
POSITION
STACK
ALM A
IN
B
DC FUSES
5
DC PWR
FAN
OUT SERIAL MCC 1
MANAGEMENT
3
LINE
1
2
3
97-15374-01
SYSTEM
OK Alrm Test TX RX Col
ETHERNET
RADSL
8000
SYSTEM
OK Alrm Test TX RX Col 1 2 3 4
ETHERNET
DSL PORT
— For a HotWire 8800 DSLAM chassis – hold the 8540 DSL card vertically
with component side facing right and insert it into the top and bottom card
guides.
ALARMS
Major MinorFanBA
POWER
MCC
SYSTEM
OK
Alm
Test
ETHERNET
TX
RX
Coll
97-15328
MGT
SERIAL
MGT
10BT ALARM
SLOTS 1 - 6
SLOTS 7-12
SLOTS 13-18
LINES
AB
-48V (A)
-48V INPUT
-48V (B) RET (A) RET (B) FR GND
246810 12 14 16 18
19
13579
11 13 15 17
LAN/WAN SLOT
20
LAN/WAN SLOT
Slot 1
DSL
SYSTEM
OK
Alm
Test
ETHERNET
TX
RX
Coll
DSL PORT
1
2
3
4
DSL Card

5
8540-A2-GN10-00 October 1997
3. Slide the 8540 DSL card into the slot until the power and network connectors
seat firmly in the mating connectors on the backplane.
CAUTION:
Do not force the 8540 DSL card into the slot. If it does not seat properly,
remove the card and reinstall it. If it still does not seat properly, call
service.

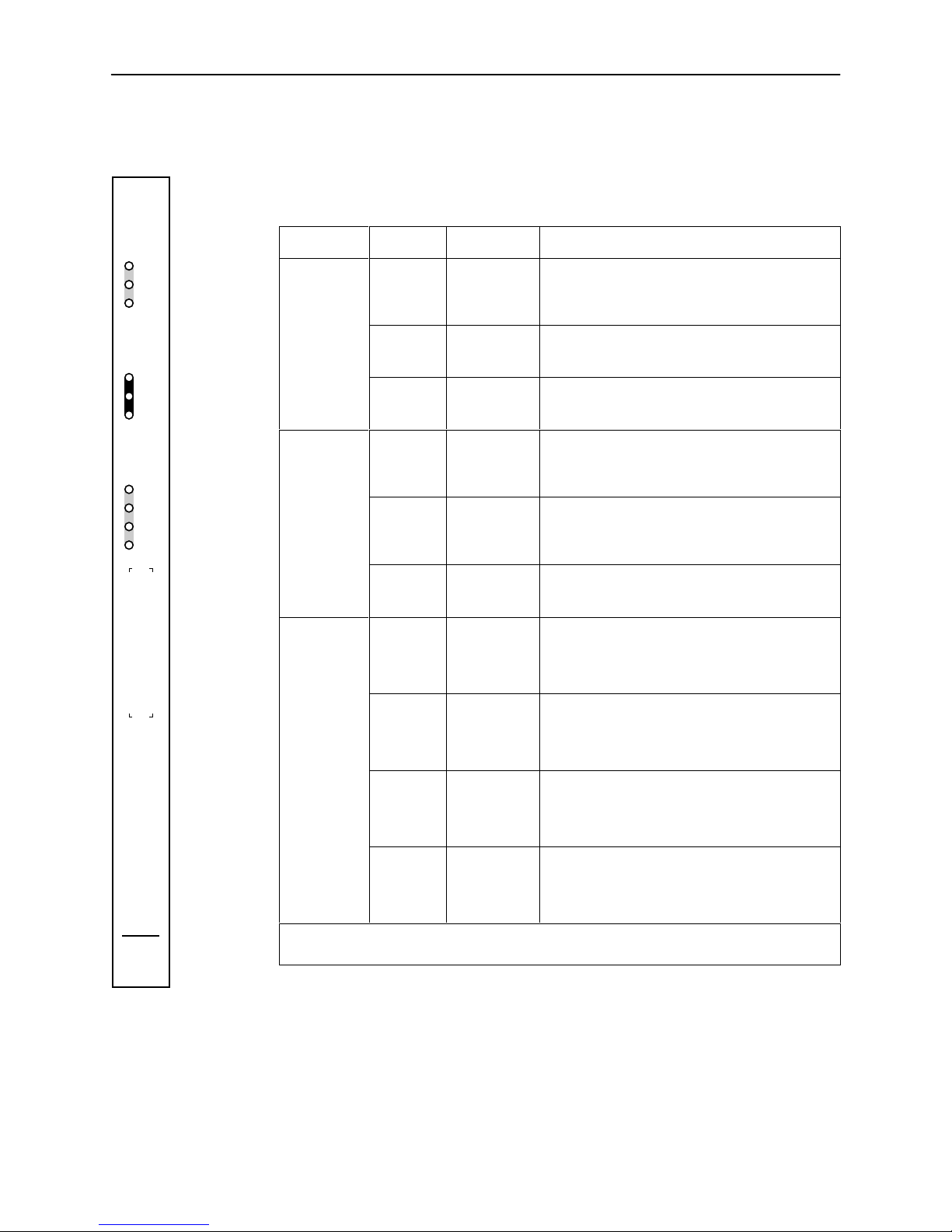

The 8540 DSL card performs a power-up self-test. All of the LEDs turn ON
and OFF briefly. When the self-test is completed successfully, the SYSTEM
OK LED will turn ON. Make sure the SYSTEM OK indicator on the DSL card
faceplate is ON (winking green).
4. If the LED is not ON, refer to the
Troubleshooting chapter of the appropriate
HotWire DSLAM Installation Guide.
5. Secure the DSL card by fastening the screws at each end of the faceplate.
NOTE:
The 8540 DSL cards may be replaced without system disruption (i.e., you
can remove and re-install a card without powering down the HotWire DSLAM
chassis and disrupting service to the other cards). To remove an 8540 DSL
card from the HotWire DSLAM chassis, unfasten the screws on both ends of
the faceplate. Then, simply push the ejector handles outward and slide the
card out.
When swapping the old 8540 DSL card with a new 8540 DSL card, it is
important to note that the 8600 DSLAM retains the Media Access Control
(MAC) address, also referred to as the physical address. This means that the
new DSL card will have the same MAC address as the old one.

6 8540-A2-GN10-00
October 1997
Connecting to a POTS Splitter or an MDF
You can connect the HotWire DSLAM chassis containing the 8540 DSL card to a
POTS splitter shelf, MDF, or other demarcation point.
NOTE:
If you are connecting the HotWire DSLAM to a CO POTS splitter, this
procedure assumes that the CO POTS splitter shelf is already installed. For
information on how to install the CO POTS splitter, refer to the
HotWire POTS
Splitter Central Office Installation Instructions,
Document No. 5020-A2-GN10.
"Procedure
To connect the HotWire DSLAM chassis containing the 8540 DSL card to a POTS
splitter shelf or MDF:

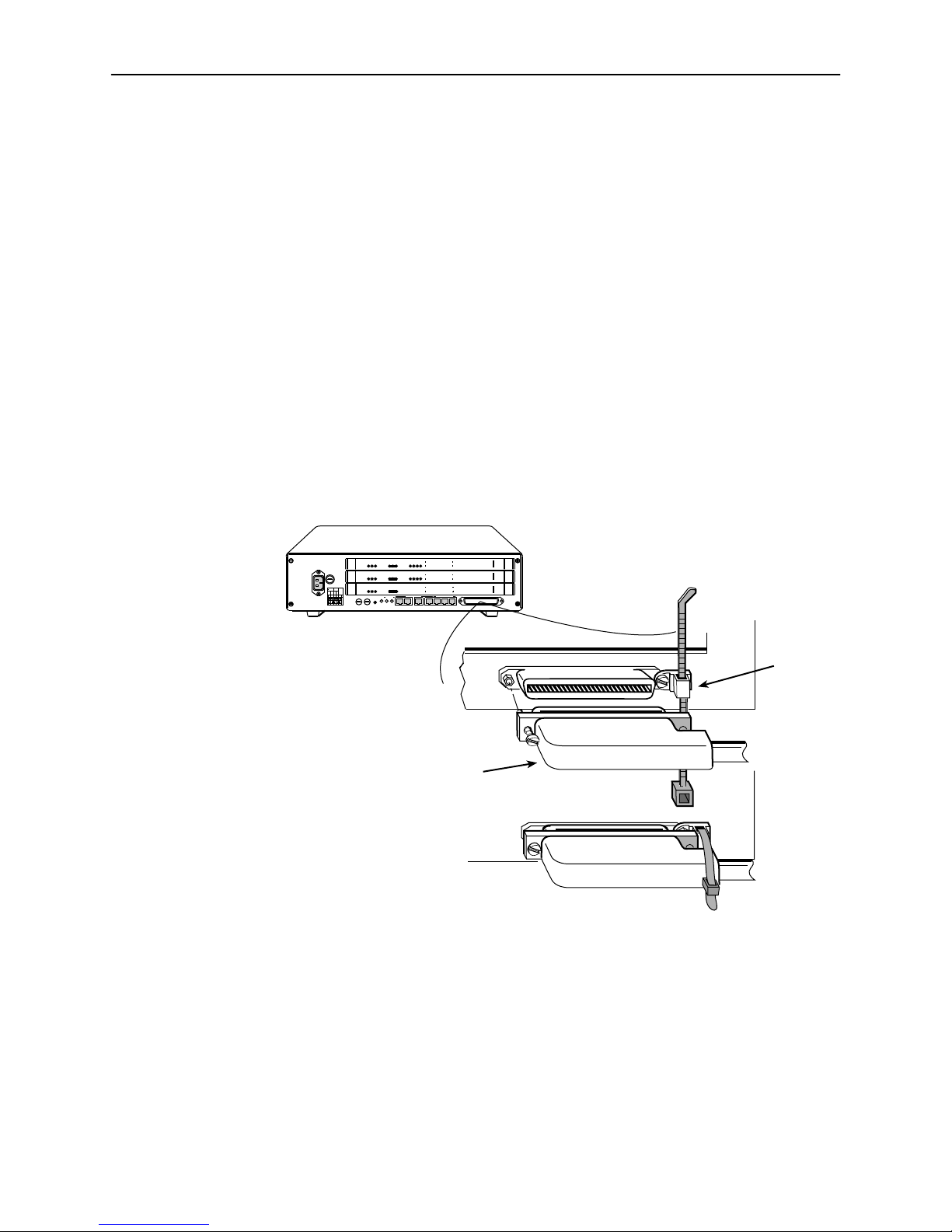

1. Plug the Telco 50-pin cable into the appropriate LINE port on the front panel
of the chassis:
—On a HotWire 8600 DSLAM chassis:
97-15480-01
A
AC
INPUT
AC
48VDC CLASS 2 OR
LIMITED PWR SOURCE
RTN48V
AAB B
T5A
250V
LAN/WAN SLOT
2
46
B
.
.
.
3
.
1
2
POSITION
STACK
ALM A
IN
B
DC FUSES
T4A, MIN. 48V 5
DC PWR
FAN
OUT SERIAL MCC 1
MANAGEMENT
3
LINE
1
2
3
SYSTEM
OK Alrm Test TX RX Col
ETHERNET
MCC
8000
SYSTEM
OK Alrm Test TX RX Col 1 2 3 4
ETHERNET
DSL PORT
RADSL
8546
SYSTEM
OK Alrm Test TX RX Col 1 2 3 4
ETHERNET
DSL PORT
RADSL
8546
Anchor
Mount
Telco 50-Pin
Connector

7
8540-A2-GN10-00 October 1997
—On a HotWire 8800 DSLAM chassis:
SLOTS 13-18
SLOTS 7-12
SLOTS 1-6
97-15325
Anchor Mount
Telco 50-Pin
Connector
LINES
SLOTS 1-6
LINES
Shorter
Telco
Captive Screw
2. Replace the longer Telco cable captive screw with a shorter connector
captive screw, which is provided with the HotWire DSLAM chassis.
3. Insert a cable tie (provided with HotWire DSLAM chassis) through the tie
mount to hold the Telco 50-pin connector in place. If more than one Telco
cable is being connected, replace the existing cable tie with a single tie to
span the two or three connectors.
4. Make sure the other end is connected to the appropriate POTS splitter shelf,
MDF, or demarcation point.
Refer to
Pin Assignments on page 9 for pinouts.
NOTE:
If you are connecting the Telco 25-pair, 50-pin cable to an MDF without a
POTS splitter in the line, a converter may be necessary for terminating the
other end of the cable on a punchdown block before cross-connecting to an
MDF.

8 8540-A2-GN10-00
October 1997

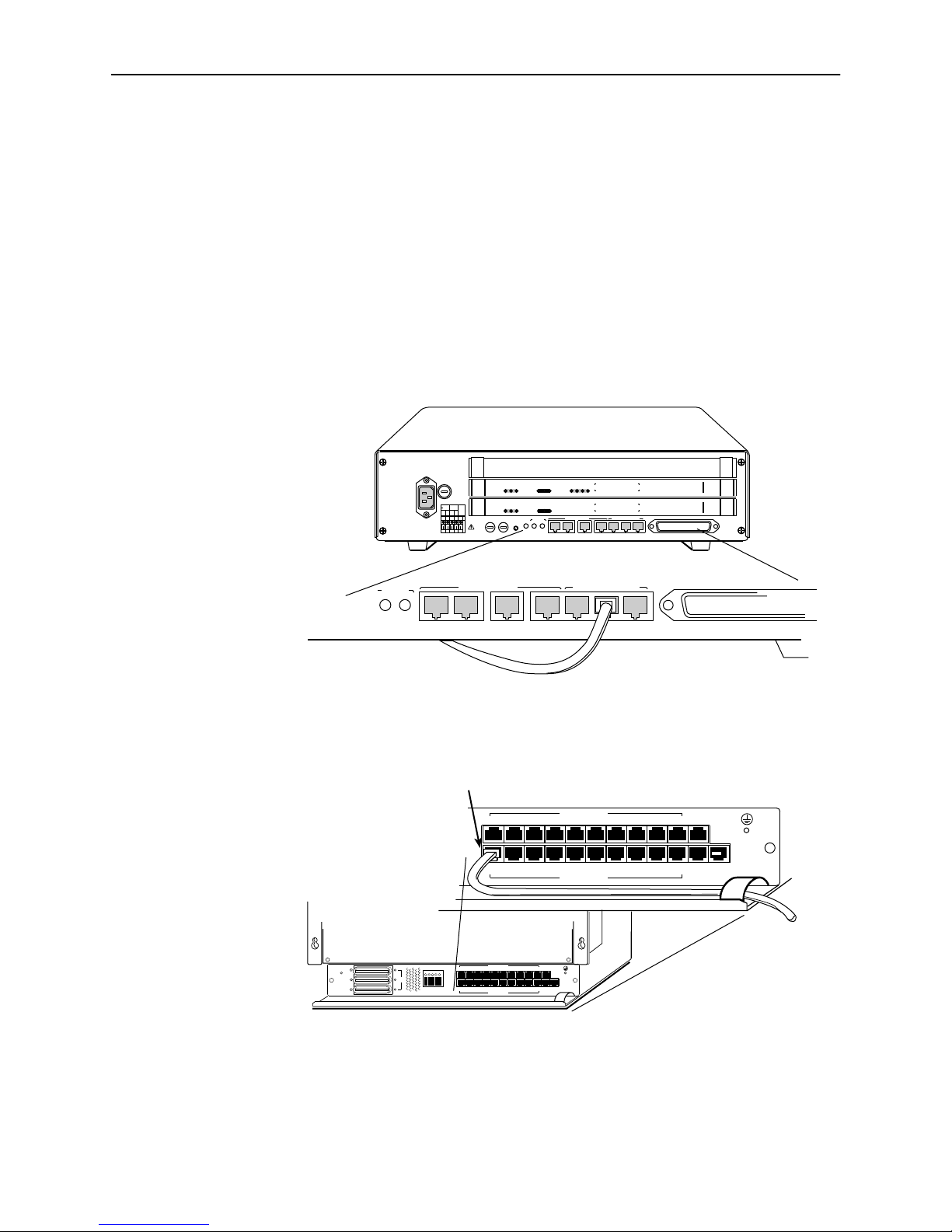

Connecting the DSL Cards to the Ethernet Hubs or Switches
"Procedure
To connect the 8540 DSL cards to the Ethernet hubs or switches:
1. Plug the end of an 8-pin modular cable into the appropriate LAN/WAN SLOT
port of the chassis. For example, if you want to connect to the LAN/WAN port
of an 8540 DSL card, insert the 8-pin modular cable in LAN/WAN Slot #2.
2. Plug the other end of the cable into your Ethernet hub or switch connector.
Refer to
Pin Assignments on page 9 for pin assignments.
—On a HotWire 8600 DSLAM chassis:
97-15375-01
LAN/WAN SLOT
2
A
IN
B
DC PWR
OUT SERIAL MCC 1
MANAGEMENT
3
A
AC
INPUT
AC
48VDC CLASS 2 OR
LIMITED PWR SOURCE
RTN48V
AAB B
T5A
250A
LAN/WAN SLOT
2
46
B
.
.
.
3
.
1
2
POSITION
STACK
ALM A
IN
B
DC FUSES
T4A, MIN. 48V 5
DC PWR
FAN
OUT SERIAL MCC 1
MANAGEMENT
3
LINE
1
2
3
SYSTEM
OK Alrm Test TX RX Col
ETHERNET
MCC
8000
SYSTEM
OK Alrm Test TX RX Col 1 2 3 4
ETHERNET
DSL PORT
RADSL
8546
SYSTEM
OK Alrm Test TX RX Col 1 2 3 4
ETHERNET
DSL PORT
RADSL
8546
To Hub Connector
—On a HotWire 8800 DSLAM chassis:
MGT
SERIAL
MGT
10BT ALARM
SLOTS 1 - 6
SLOTS 7-12
SLOTS 13-18
LINES
AB
-48V (A)
-48V INPUT
-48V (B) RET (A) RET (B) FR GND
246810 12 14 16 18
19
1357911 13 15 17
LAN/WAN SLOT 20
LAN/WAN SLOT
MGT
SERIAL
MGT
10BT ALARM
246810 12 14 16 18
19
13579
11 13 15 17
LAN/WAN SLOT 20
LAN/WAN SLOT
LAN/WAN SLOT
PORT 1
97-15385

97-15449
Pin 1 Pin 8
9
8540-A2-GN10-00 October 1997
Pin Assignments
HotWire 8600 DSLAM LAN/WAN Connector Pinouts
The 8-pin modular interface for the LAN/WAN 10BaseT connection on a HotWire
8600 DSLAM chassis has the following pin assignments:
Pin Number Use
1TX Data +
2TX Data –
3RX Data +
4 Reserved
5 Reserved
6RX Data –
7 Reserved
8 Reserved

26
97-15526
50
1
25
10 8540-A2-GN10-00
October 1997
HotWire 8600 DSLAM Telco 50-pin Connector Pinouts for DSL Loops
and POTS Splitters
The Telco 50-pin receptacle on the front panel provides the two-wire loop
interface from each 8540 DSL port to either the POTS Splitter shelf or, if the
loop is not being shared with POTS, then to the MDF. The following table lists
the pin assignments for each of these interfaces.
NOTE:
When the 8600 chassis is the base chassis, the MCC is installed in Slot 1
and the Tip and Ring wiring for Slot 1 is not active.
Also, pins 13 through 25 and 38 through 50 of all HotWire 8600 chassis
are not used.
CONNECTOR
(8540 DSL Slot, Port #) CONNECTOR PINS
(Tip, Ring)
Slot 1, Port 1 1, 26
Slot 1, Port 2 2, 27
Slot 1, Port 3 3, 28
Slot 1, Port 4 4, 29
Slot 2, Port 1 5, 30
Slot 2, Port 2 6, 31
Slot 2, Port 3 7, 32
Slot 2, Port 4 8, 33
Slot 3, Port 1 9, 34
Slot 3, Port 2 10, 35
Slot 3, Port 3 11, 36
Slot 3, Port 4 12, 37

26
97-15323
50
1
25
11
8540-A2-GN10-00 October 1997
HotWire 8800 DSLAM Telco 50-pin Connector Pinouts for DSL Loops
and POTS Splitters
The three Telco 50-pin connectors on the 8800 DSLAM Interface Module
provides the two-wire loop interface from each 8540 DSL port to either the
POTS splitter shelf or, if the loop is not being shared with POTS, then to the
MDF. The following table lists the pin assignments for each of these interfaces.
Note that Pins 25 and 50 are
not used.
CONNECTOR #1
Slots 1–6
(DSL Card,
Port #)
CONNECTOR #2
Slots 7–12
(DSL Card,
Port #)
CONNECTOR #3
Slots 13–18
(DSL Card,
Port #)
CONNECTOR
PINS
(Tip, Ring)
Card 1, Port 1 Card 7, Port 1 Card 13, Port 1 1, 26
Card 1, Port 2 Card 7, Port 2 Card 13, Port 2 2, 27
Card 1, Port 3 Card 7, Port 3 Card 13, Port 3 3, 28
Card 1, Port 4 Card 7, Port 4 Card 13, Port 4 4, 29
Card 2, Port 1 Card 8, Port 1 Card 14, Port 1 5, 30
Card 2, Port 2 Card 8, Port 2 Card 14, Port 2 6, 31
Card 2, Port 3 Card 8, Port 3 Card 14, Port 3 7, 32
Card 2, Port 4 Card 8, Port 4 Card 14, Port 4 8, 33
Card 3, Port 1 Card 9, Port 1 Card 15, Port 1 9, 34
Card 3, Port 2 Card 9, Port 2 Card 15, Port 2 10, 35
Card 3, Port 3 Card 9, Port 3 Card 15, Port 3 11, 36
Card 3, Port 4 Card 9, Port 4 Card 15, Port 4 12, 37
Card 4, Port 1 Card 10, Port 1 Card 16, Port 1 13, 38
Card 4, Port 2 Card 10, Port 2 Card 16, Port 2 14, 39
Card 4, Port 3 Card 10, Port 3 Card 16, Port 3 15, 40
Card 4, Port 4 Card 10, Port 4 Card 16, Port 4 16, 41
Card 5, Port 1 Card 11, Port 1 Card 17, Port 1 17, 42
Card 5, Port 2 Card 11, Port 2 Card 17, Port 2 18, 43
Card 5, Port 3 Card 11, Port 3 Card 17, Port 3 19, 44
Card 5, Port 4 Card 11, Port 4 Card 17, Port 4 20, 45
Card 6, Port 1 Card 12, Port 1 Card 18, Port 1 21, 46
Card 6, Port 2 Card 12, Port 2 Card 18, Port 2 22, 47
Card 6, Port 3 Card 12, Port 3 Card 18, Port 3 23, 48
Card 6, Port 4 Card 12, Port 4 Card 18, Port 4 24, 49

SYSTEM
OKAlrm
Test
TXRXColl
1234
ETHERNET
DSL PORT
RADSL
8546
97-15387
12 8540-A2-GN10-00
October 1997
8540 DSL Card LEDs
The following table describes the meaning and states of the LEDs on the 8540
DSL card faceplate.
Type LED LED is . . . Indicating . . .
SYSTEM OK Green,
Winking*
Off
Normal operation; card functioning normally.
No power to card or card failure.
Alrm Amber
On
Alarm present on 8540 DSL card.
No alarms.
Test Amber
Off
Test in progress.
No tests.
ETHERNET TX Green
Blinking
Off
A packet is being sent.
Inactive.
RX Green
Blinking
Off
A packet is being received.
Inactive.
Coll Off
Blinking
Normal operation.
A collision has been detected.
DSL PORT 1 Green
Off
Amber
Link is up.
DSL link is down or disabled.
DSL handshake and PPP startup in progress.
2 Green
Off
Amber
Link is up.
DSL link is down or disabled.
DSL handshake and PPP startup in progress.
3 Green
Off
Amber
Link is up.
DSL link is down or disabled.
DSL handshake and PPP startup in progress.
4 Green
Off
Amber
Link is up.
DSL link is down or disabled.
DSL handshake and PPP startup in progress.
* Winking describes a recurring pulse when the LED is ON longer than OFF at a ratio of
approximately 10:1.

*8540–A2–GN10–00*
