Paradyne COMSPHERE 6700 Series User manual

You have accessed an older version
of a Paradyne product document.
Paradyne is no longer a subsidiary
of AT&T. Any reference to
AT&T Paradyne is amended to
read Paradyne Corporation.

6700-A2-GB20-00
Issue 1
September 1994
COMSPHERE
6700 Series
Network Management System
SNMP Proxy Agent Feature
User’s Guide
P a
r
a dyn e
Printed on recycled paper

AIssue 1 September 1994
COMSPHERE
6700 Series
Network Management System
SNMP Proxy Agent Feature
User’s Guide
6700-A2-GB20-00
Issue 1 (September 1994)
Changes and enhancements to the product and to the
information herein will be documented and issued as a new
release.
A Reader’s Comments form is provided at the front of this
publication and your comments are appreciated. If the form has
been removed, address comments to AT&T Paradyne
Corporation, Technical Publications, 8545 126th Avenue North,
P.O. Box 2826, Largo, Florida, 34649-2826. AT&T Paradyne
may use or distribute any of the information supplied, as
appropriate, without incurring any obligation whatsoever.
COPYRIGHT E 1994 AT&T Paradyne Corporation.
All Rights Reserved
Printed in U.S.A.
This publication is protected by federal copyright law. No part of this publication may be copied
or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any
human or computer language in any form or by any means, electronic, mechanical, magnetic,
manual or otherwise, or disclosed to third parties without the express written permission of
AT&T Paradyne Corporation, 8545 126th Avenue North, P.O. Box 2826, Largo, Florida
34649-2826.
AT&T Paradyne Corporation makes no representation or warranties with respect to the
contents hereof and specifically disclaims any implied warranties of merchantability or fitness
for a particular purpose. Further, AT&T Paradyne Corporation reserves the right to revise this
publication and to make changes from time to time in the contents hereof without obligation of
AT&T Paradyne Corporation to notify any person of such revision or changes.

Trademarks
B
Issue 1 September 1994
Trademarks
COMSPHERE is a registered trademark of AT&T.
Ethernet is a registered trademark of Xerox Corporation.
Hayes is a registered trademark of Hayes Microcomputer Products, Inc.
Hewlett-Packard is a registered trademark of Hewlett-Packard Company.
HP OpenView is a trademark of Hewlett-Packard Company.
IBM is a registered trademark of International Business Machines Corporation.
Intel is a registered trademark of Intel Corporation.
MS-DOS is a registered trademark of Microsoft Corporation.
NEWT is a trademark of NET
MANAGE , Inc.
Proteon is a registered trademark of Proteon, Inc.
SunNet is a trademark of Sun Microsystems, Inc.
UNIX is a registered trademark in the United States and other countries, licensed
exclusively through X/Open Company Limited.
Windows is a trademark of Microsoft Corporation.

i
Issue 1 September 1994
Contents
Preface
G Related Documents v. . . . . . . . . . . . . . . . . . . . . . . . . .
Ordering Information vi. . . . . . . . . . . . . . . . . . . . .
1Overview
G What is SNMP? 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
G What is the SNMP Proxy Agent Feature? 1-1. . . . . . . .
G Software Description 1-2. . . . . . . . . . . . . . . . . . . . . . . . . .
G Feature List 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
G Sample SNMP Network Topology 1-3. . . . . . . . . . . . . . .
G SNMP Proxy Agent Feature Package Contents 1-4. . .
2Installation
G Hardware and Software Requirements 2-1. . . . . . . . . .
Supported Network Adapters 2-1. . . . . . . . . . . . . .
G Preparing for Installation and Configuration 2-3. . . . . .
G Installing the SNMP Proxy Agent Feature 2-5. . . . . . . .
G Configuring the SNMP Proxy Agent Feature for
TCP/IP Networks 2-8. . . . . . . . . . . . . . . . . . . . . . . .

ii Issue 1 September 1994
Contents
3Management Information Bases
G MIB-II Support 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MIB-II System Group Overview 3-2. . . . . . . . . . . .
MIB-II Interface Group Overview 3-2. . . . . . . . . . .
G COMSPHERE 6700 Series NMS
Enterprise MIBs 3-3. . . . . . . . . . . . . . . . . . . . . . . . .
COMSPHERE 6700 NMS MIB Overview 3-5. . . .
COMSPHERE 6700 Device MIB Overview 3-5. .
Front Panel MIB Overview 3-6. . . . . . . . . . . . . . . .
Call Directory MIB Overview 3-6. . . . . . . . . . . . . .
G DOS, Windows, and Workstation MIBs 3-6. . . . . . . . . .
G SNMP Traps Overview 3-7. . . . . . . . . . . . . . . . . . . . . . . .
G Device Traps 3-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
G SNMP Community Views 3-11. . . . . . . . . . . . . . . . . . . . . .
Community Name Example 3-11. . . . . . . . . . . . . . .
AMIB Definition
BDevice Enterprise MIB Definition
CEnterprise Trap Definitions
DEnterprise Common MIB Definitions
Glossary
G Refer to Document No. 6700-A2-GB22-00.
Index

iii
Issue 1 September 1994
Figures
1 Overview
G 1-1 Sample SNMP Network Topology 1-3. . . . . . . . . .
2 Installation
G 2-1 Welcome Window 2-5. . . . . . . . . . . . . . . . . . . . . . . .

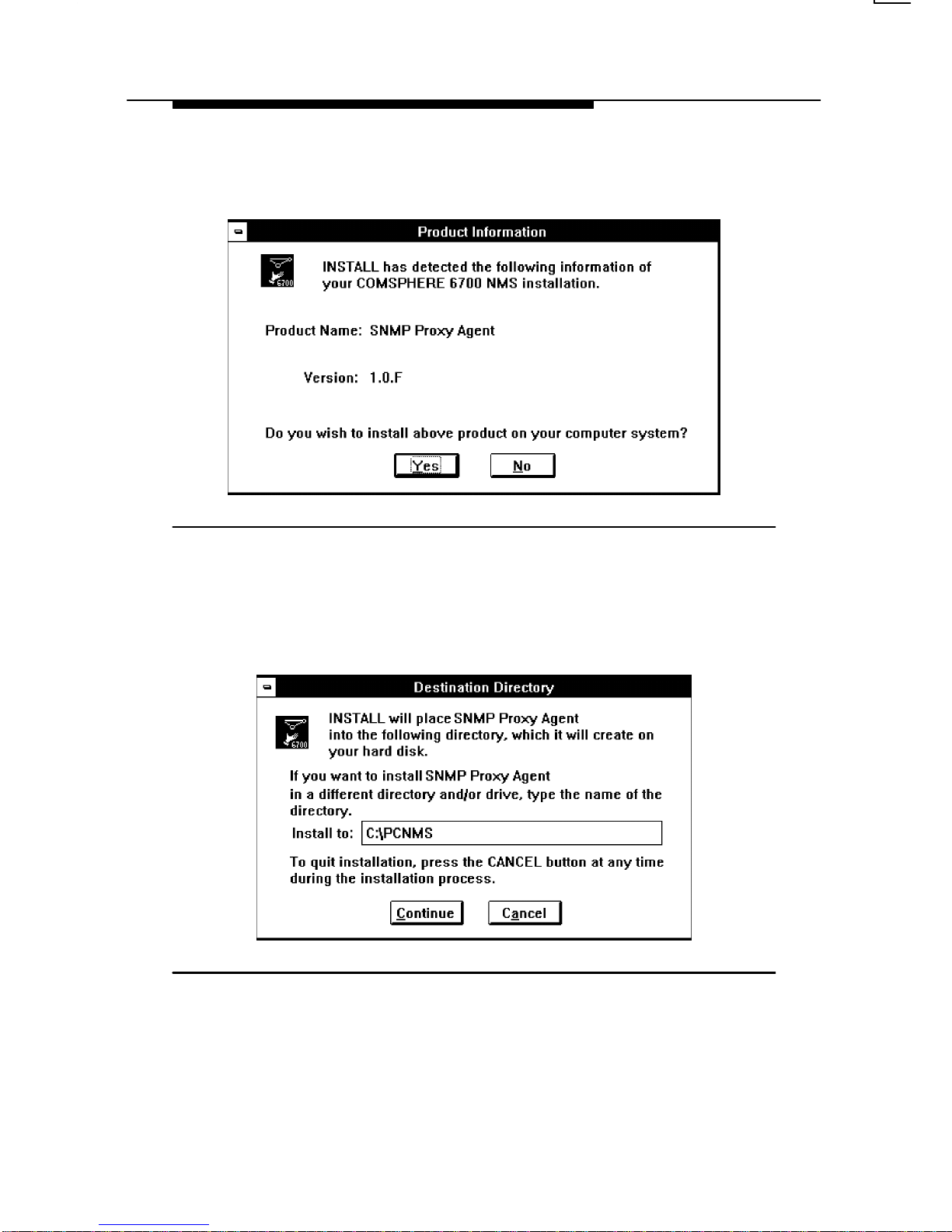

G 2-2 Product Information Window 2-6. . . . . . . . . . . . . .
G 2-3 Destination Directory Window 2-6. . . . . . . . . . . . .
G 2-4 Confirmation Window 2-7. . . . . . . . . . . . . . . . . . . . .
G 2-5 Completion Status Window 2-7. . . . . . . . . . . . . . . .
G 2-6 Installation Completed! Window 2-8. . . . . . . . . . . .
3 Management Information Bases
G 3-1 SMI Defined Object Identifier Prefix Tree 3-4. . . .

iv Issue 1 September 1994
Tables
2 Installation
G 2-1 Supported Network Adapter Boards 2-2. . . . . . . .
3 Management Information Bases
G 3-1 MIB Browser Output Table 3-2. . . . . . . . . . . . . . . .
G 3-2 Primary Alert Traps 3-8. . . . . . . . . . . . . . . . . . . . . .
G 3-3 System Event Traps 3-9. . . . . . . . . . . . . . . . . . . . . .
G 3-4 Primary Alert Clear Notifications 3-10. . . . . . . . . . .

v
Issue 1 September 1994
Preface
This guide describes how to install and use the COMSPHERE r
6700 Series Network Management System (NMS) SNMP Proxy
Agent feature.
This manual assumes you have a basic understanding of
COMSPHERE modems and data service units (DSUs) and their
operation, are knowledgeable about data communications, and
are familiar with Windows t terminology and conventions.
Related Documents
3510–A2–GA31 COMSPHERE 3000 Series Carrier, Installation
Manual
3610–A2–GB41 COMSPHERE 3600 Series Data Service Units,
Models 3610 and 3611, Time Division
Multiplexer, Multichannel Multipoint, and Digital
Bridge Options, Applications Guide
3610–A2–GB91 COMSPHERE 3600 Series Data Service Units,
Models 3610 and 3611, Operator’s Guide (with
Reference Card insert)
3610–A2–GN32 COMSPHERE 3600 Series Data Service Units,
Models 3610 and 3611, Dial Backup Module
and SNA Diagnostic Interface Options,
Applications Guide
3810–A2–GB91 COMSPHERE 3800 Series Modems, Models
3810, 3811, and 3820, User’s Guide
3910–A2–GN32 COMSPHERE 3900 Series Modems, Models
3910 and 3911, Point–to–Point/Multipoint,
Installation and Operation Manual

Preface
vi Issue 1 September 1994
6700-A2-GB21
COMSPHERE 6700 Series Network
Management System Multiuser Feature User’s
Guide
6700-A2-GB22 COMSPHERE 6700 Series Network
Management System Network Configuration
Guide
6700-A2-GB41 COMSPHERE 6700 Series Network
Management System Security Manager
Feature Supplement
6700-A2-GY31 COMSPHERE 6700 Series Network
Management System User’s Guide
1001-40-1940 NEWT TCP/IP for Windows Installation and
User’s Guide
Ordering Information
To order AT&T Paradyne documentation, please call
1-800-545-2354.

1-1
Issue 1 September 1994
Overview
1
What is SNMP?
Simple Network Management Protocol (SNMP) is an Internet
standard protocol for managing TCP/IP devices.
Using SNMP, a network administrator can address queries and
commands to network nodes and devices. You can use SNMP
to monitor network performance and status; control operational
parameters; and report, analyze, and isolate faults.
Agents, managers, and Management Information Bases
(MIBs) combine to control network devices.
Agents collect management information and store it in a
database called the MIB. The agent provides management
information to an SNMP manager upon request.
Non-TCP/IP devices can be managed with SNMP proxy agents.
What is the SNMP Proxy Agent
Feature?
The COMSPHERE r 6700 Series Network Management System
SNMP Proxy Agent feature provides the capability for any
device managed by a COMSPHERE 6700 Series Network
Management System (NMS) to also be monitored and controlled
by an SNMP network management system, such as HP
OpenView t or SunNet t Manager.

Overview
1-2 Issue 1 September 1994
Software Description
The SNMP Proxy Agent feature includes NetManage Enhanced
Windows TCP/IP (NEWT t ) software, which supports
transmission of SNMP messages across Ethernet r , Token Ring,
FDDI, SLIP, and PPP interfaces.
The SNMP Proxy Agent feature is a software package that can
be installed on top of the COMSPHERE 6700 Series NMS
Release 4.0.0 or higher at any time.
NOTE:
COMSPHERE 6700 Series NMS Release 4.0.0 or higher
is required to execute the SNMP Proxy Agent feature.
You can install the SNMP Proxy Agent feature in any of the
following COMSPHERE 6700 Series NMS installations:
G Single user
G Multiuser server
G Multiuser client
Feature List
The SNMP Proxy Agent feature provides the following features:
G SNMP Proxy Agent for COMSPHERE devices using
Enterprise MIBs
G SNMP Agent for COMSPHERE 6700 Series NMS using
Enterprise MIBs
G SNMP Agent for MIB-II
G SNMP Agent for DOS, Windows t , and workstations
using NetManage Enterprise MIBs
G COMSPHERE 6700 Series NMS Alerts exported as
SNMP Traps
G One IP address per COMSPHERE 6700 Series NMS
G Specific Community View Access for each managed
device

Overview
1-3
Issue 1 September 1994
G Integrated TCP/IP, UDP/IP, and SNMP Protocol support
G Concurrent Ethernet, Token Ring, FDDI, SLIP, and PPP
interface support
Sample SNMP Network
Topology
Figure 1-1 shows a sample SNMP network topology.
Figure 1-1. Sample SNMP Network Topology

Overview
1-4 Issue 1 September 1994
SNMP Proxy Agent Feature
Package Contents
The SNMP Proxy Agent feature package includes the following:
G SNMP feature software on one 3 1/2″disk
G COMSPHERE 6700 MIBs 3 1/2″disk
G One
COMSPHERE 6700 Series Network Management
System SNMP Proxy Agent Feature User’s Guide
G One COMSPHERE 6700 Series Network Management
System Network Configuration Guide

2-1
Issue 1 September 1994
Installation
2
Hardware and Software
Requirements
The SNMP Proxy Agent feature has the same hardware and
software requirements as the basic single-user NMS. Refer to
the
Hardware Description and Software Description sections of
the
COMSPHERE 6700 Series Network Management System
User’s Guide
for details.
Supported Network Adapters
To use the SNMP feature on Ethernet, Token Ring, or FDDI, you
must install a supported network adapter board. Supported
boards are listed in Table 2-1.

Installation
2-2 Issue 1 September 1994
Table 2-1. Supported Network Adapter Boards (1 of 2)
Interface Vendor Model
Ethernet 3COM 3C501 Ether Link
3C503 Ether Link II
3C505 Ether Link Plus
3C507 Ether Link 16
3C509 Ether Link III
3C523 Ether Link/MC TP
3C527 Ether Link/MC 32
Allied Telesis AT-1500 Network Adapter
Hewlett Packard r
HP27247/HP27252 Plus
Intel r
EtherExpress 16 and 16T
Novell/Excelan EXOS105T
NE1000
NE2000
Racal InterLan NI5210
NI6510
SMC SMC 8000
SMC Elite 16
Ungermann-Bass Networth EtherNext 16-Bit UTP
NIUpc/EOTP
NIUps
Western Digital EtherCard Plus
EtherCard Plus Elite 16
Xircom All PE Models
All PE2 Models

Installation
2-3
Issue 1 September 1994
Table 2-1. Supported Network Adapter Boards (2 of 2)
Interface ModelVendor
Ethernet Xircom (Continued) All PE3 Models
Other (NDIS Driver Required)
Token Ring IBM
r
16/4 Token Ring Adapter
Xircom All PT Models
Madge Smart 16/4 RingNode adapter
Proteon r
p139X
p189X
p1990
Raycone 16/4 Token Ring Adapter
Other (NDIS Driver Required)
FDDI Any (NDIS Driver Required)
Preparing for Installation and
Configuration
Before installing and configuring the SNMP Proxy Agent feature,
you need some system and network information. Use the
following form to collect the necessary information before you
start the installation process. Retain this form as a record of this
information. Examples are shown in parentheses.

Installation
2-4 Issue 1 September 1994
SNMP Feature Installation and Configuration Information
General
Where to install the software (c:\pcnms):
Network Interface Name (Ethernet0):
Network Interface Type (Ethernet):
Workstation
Internet Address of Workstation (192.0.2.2):
Unique Node Name (Largo Bld. G):
SNMP Manager
Internet Address of Manager (192.0.2.8):
Unique Manager Name (Help Desk1):
LAN/Hardware Interface
Adapter Vendor Name (Western Digital):
Board Type (Ether Card Plus):
Interrupt Level (5):
I/O Base Address (0x300):
SLIP Interface
Baud Rate (9600):
Flow Control (Hardware):
Modem Type (Hayes r compatible):
Port (COM 1):
Telephone Number (9,1,813–555–2671):
Optional
Subnet Mask (255.255.255.0):
Default Gateway (192.0.2.254):

Installation
2-5
Issue 1 September 1994
Installing the SNMP Proxy
Agent Feature
To install the SNMP Proxy Agent feature software, start from the
Program Manager window and perform the following steps:
1. Insert Disk #1 into Drive A.
2. From the Program Manager window, choose File.
3. From the File menu, choose Run.
4. In the Command Line field, type A:\INSTALL.
5. Choose OK. The Welcome window appears, as shown in
Figure 2-1.
Figure 2-1. Welcome Window

Installation
2-6 Issue 1 September 1994
6. Choose Continue. The Product Information window
appears, as shown in Figure 2-2.
Figure 2-2. Product Information Window
7. Choose Yes. The Destination Directory window appears, as
shown in Figure 2-3.
Figure 2-3. Destination Directory Window
The Destination Directory window allows you to place the
NMS software into a specific directory. A single directory
within a single partition is required.
8. Enter a subdirectory location or choose the default setting
C:\PCNMS.
