Paramount Fitness FPT1524 User manual

Model#：
Item#：
FPT1524
1
Lorem ipsum
FP-285

Page 3
Page
Page 5-6
Page 7
Page 8-12
2
Page 17-18
Page 19
Page 20
Page 20

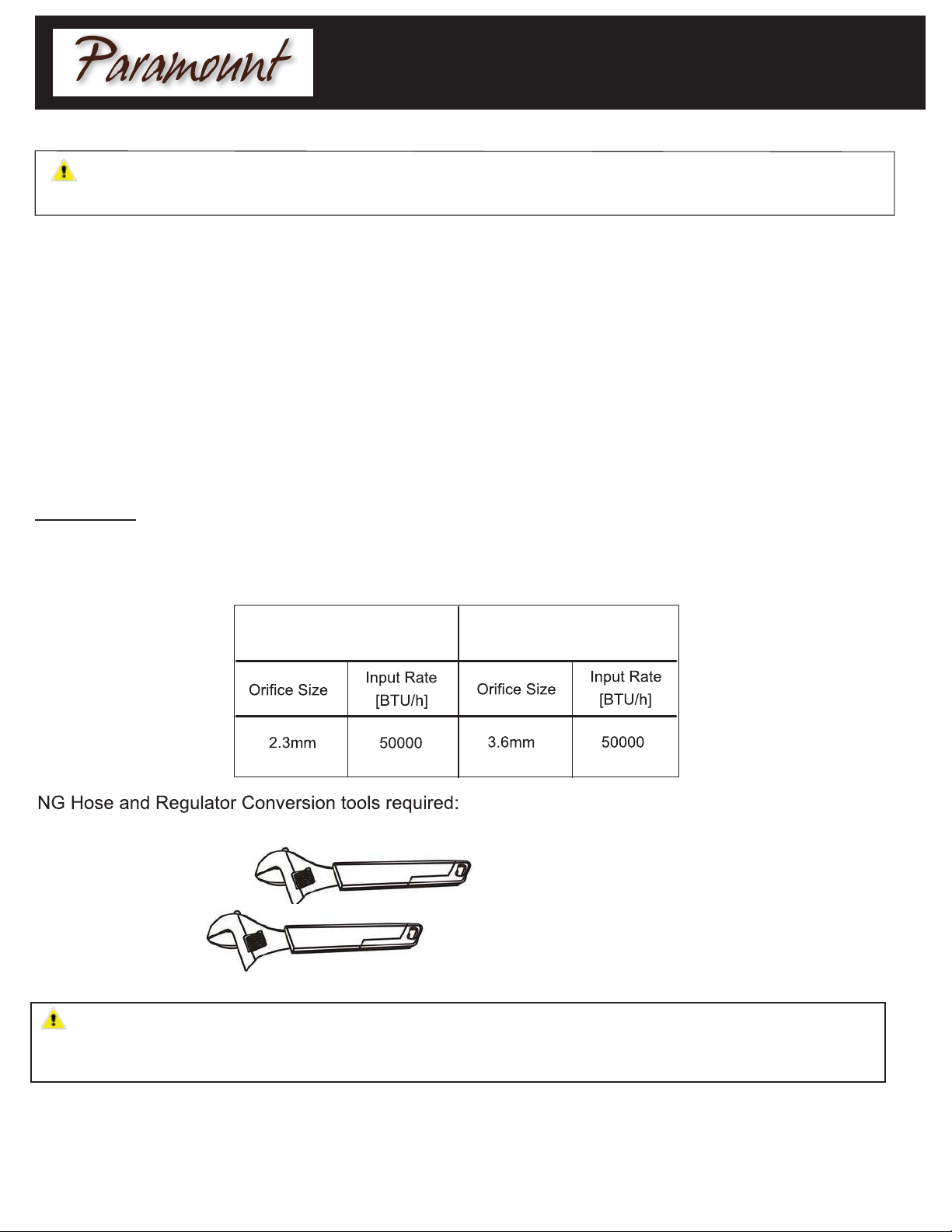

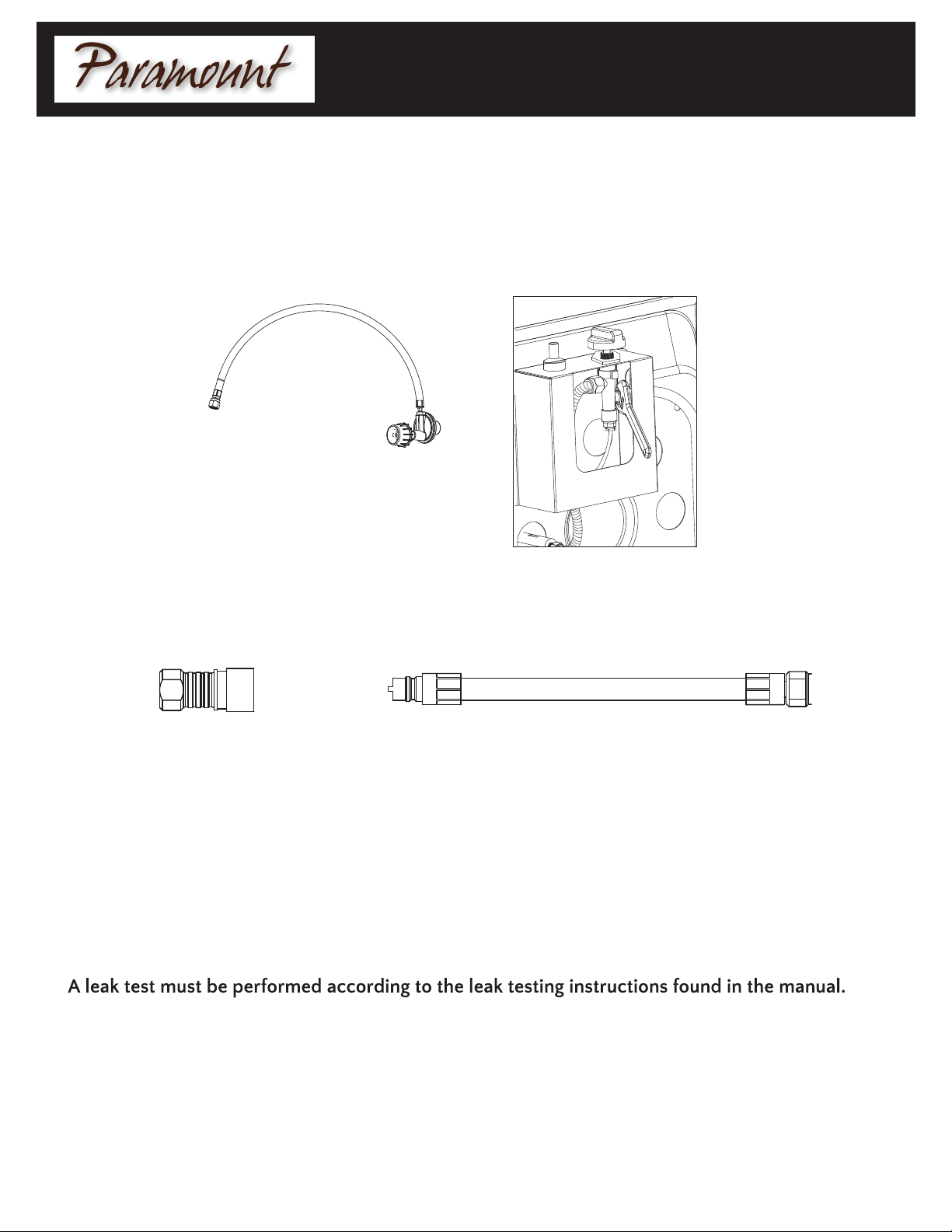

CONVERSION TO NATURAL GAS Page 13-16
Page 21
WARRANTY / REVIEWS

3
PACKAGE CONTENTS
,
-
PART DESCRIPTION QUANTITY
Removable Burner Cover 1
Table Top
1
Burner
1
3
Legs
1
Side Panels
4
Door Panel
1
Gas Tank Support Bar
1
Gas Tank Support Ring
1
Protective Cover
1
Fire Glass
B
A
C
D
E
F
I
G
J
H

4
HARDWARE CONTENTS
1-800-561-5550,7am-4pm,PST,
I J
N O P Q
K L M
Stud 8x30mm
Qty: 5
(4 for assem. +1 extra)
Spring Washer M6
Qty: 17
(16 for assem. +1 extra)
Washer M6
Qty: 22
(21for assem. +1 extra)
Washer, Spring
Washer, Nut 8mm
Qty: 5
(4 for assem. +1 extra)
Nut M6
Qty: 17
(16 for assem. +1 extra)
Stud 6x40mm
Qty: 17
(16 for assem. +1 extra)
Bolt 6x18mm
Qty: 6
(5 for assem. +1 extra)
L
Q
K
P
O
NM
Screwdriver
Qty: 1
Wrench
Qty: 1
Allen Wrench
Qty: 1
STR

5

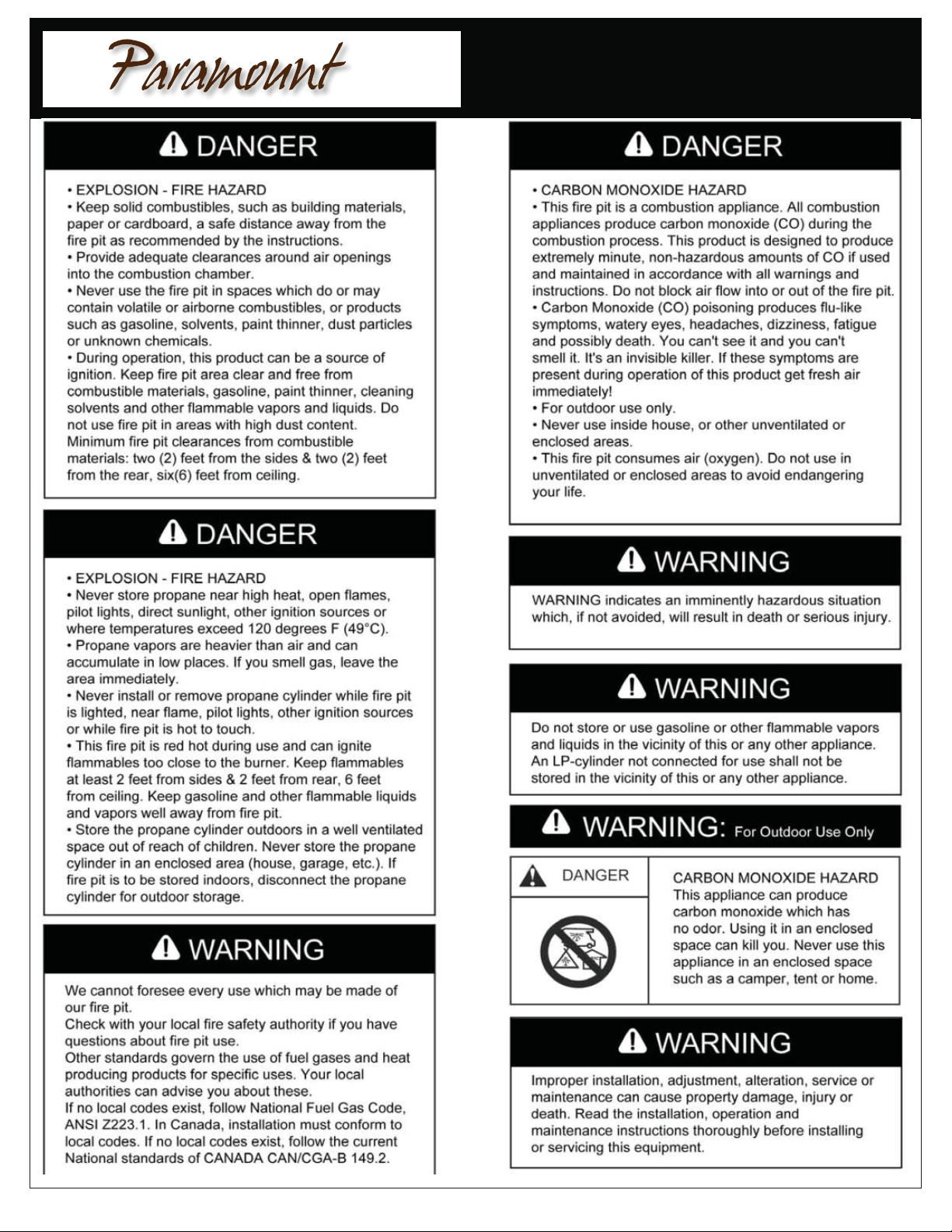

SAFETY INFORMATION

California Proposition 65
Combustion by-products produced when using
this product contain chemicals known to the State
of California to cause cancer, birth defects, and
other reproductive harm.
BURN HAZARD
Never leave fire pit unattended when hot or in use.
Keep out of reach of children.
WARNING
Alert children and adults to the hazards of high surface
temperatures. Stay away from these surfaces to avoid
burning skin or igniting clothing.
Carefully supervise young children when in the vicinity
of the fire pit.
Do not hang clothing or any other flammable materials
from the fire pit, or place on or near the fire pit.
Replace any guard or protective device removed for
servicing the appliance prior to placing back in service.
Installation and repair should be done by a qualified
service person. The fire pit should be inspected
before use and annually by a qualified service person.
More frequent cleaning may be required as necessary.
It is imperative that the control compartment, burners,
and circulating air passageway of the appliance be
kept clean.
CAUTION
CAUTION indicates an imminently hazardous situation
which, if not avoided, may result in minor or moderate
personal injury, or property damage.
CAUTION
SERVICE SAFETY
Keep all connections and fittings clean. Make sure
propane cylinder valve outlet is clean.
During set up, check all connections and fittings for
leaks using soapy water. Never use a flame.
Use as a heating appliance only. Never alter in any
way or use with any device.
Certain materials or items, when stored under the
fire pit, will be subjected to radiant heat and could be
seriously damaged.
CARBON MONOXIDE HAZARD
This fire pit is a combustion appliance. All combustion
appliances produce carbon monoxide (CO) during the
combustion process. This product is designed to produce
extremely minute, non-hazardous amounts of CO if used
and maintained in accordance with all warnings and
instructions. Do not block air flow into or out of the fire pit.
Carbon Monoxide (CO) poisoning produces flu-like
symptoms, watery eyes, headaches, dizziness, fatigue
and possibly death. You can't see it and you can't
smell it. It's an invisible killer. If these symptoms are
present during operation of this product get fresh air
immediately!
For outdoor use only.
Never use inside house, or other unventilated or
enclosed areas.
This fire pit consumes air (oxygen). Do not use in
unventilated or enclosed areas to avoid endangering
your life.
6
SAFETY INFORMATION

Operation Checklist
For a safe and pleasurable heating experience, perform this check before each use.
Before Operating ensure:
1. You are familiar with entire owner manual and understand all precautions noted.
2. All components are properly assembled, intact and operable.
3. No alterations have been made.
4. All gas connections are secure and do not leak. （perform leak test)
5. Wind velocity is below 10 mph.
6. Unit will operate at reduced efficiency below 40 F / 4.44 C
7. Fire pit is outdoors (outside any enclosure).
8. There is adequate fresh air ventilation.Do not use this appliance if any part has been under water.
Immediately call a a qualified service technician to inspect the appliance and to replace any part of
the control system and gas control which has been under water.
9. Fire pit is away from gasoline or other flammable liquids or vapors.
10. Fire pit is away from windows, air intake openings, sprinklers and other water sources.
11. Fire pit is at least 24 in. on rear and at least 24 in. on sides from combustible materials.
12. Fire pit is on a hard and level surface.
13. There are no signs of spider or insect nests.
14. All burner passages are clear.
15. All air circulation passages are clear.
16. Children and adults should be alerted to the hazards of high surface temperatures and should stay
away to avoid burns or clothing ignition.
17. Young children should be carefully supervised when they are in the area of the fire pit.
18. Clothing or other protective material should not be hung from the fire pit, or placed on or near the
fire pit.
19. Any guard or other protective device removed for servicing the fire pit must be replaced prior to
operating the fire pit.
20. Installation and repair should be done by a qualified service person. The fire pit should be inspected
before use and at least annually by a qualified service person.
21. More frequent cleaning may be required as necessary. It is imperative that control compartment,
burner and circulating air passageways of the fire pit be kept clean.
After Operation
1. Gas control is in OFF position.
2. Gas Tank valve is OFF.
3. Disconnect Gas line.
4. After each use, replace cap on tank.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents above. If any part is missing or damaged, do not
attempt to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time : 60 mi nutes
Tools Required for Assembly (not included):
Phillips screwdriver w/ medium blade. Leak Detection Solution.
7
OPERATION CHECKLIST

8
ASSEMBLY INSTRUCTIONS
1.NOTE: It is best to use TWO PEOPlE for assembly of this
gas fire pit. Locate 4 legs -F . Screw 2 Studs -M into the
holes on each side of the leg. Make sure all legs have the
foot end facing down, then align holes in 3 Side Panels -D
with ends of the Studs -M sticking out of each leg. Attach
the Side Panel to the leg using Washer/Spring Washer/
Nut -O / P / Q . Tighten loosely with Wrench -S . (DO NOT
OVERTIGHTEN as you will need to adjust panels to
ensure proper alignment.) Once all Side Panels are
loosely attached to the legs, align the Door Panel -E with
the Studs sticking out of the legs and attach the Door
Panel using Washer/Spring Washer/Nut -O / P / Q with
Wrench. Once all Panels are attached to the legs, tighten
nuts with Wrench.
2.Once Side Panels/Door Panel/legs have been secured,
attach Gas Tank Support bar -G to legs by aligning holes
in Gas Tank Support bar with holes in legs. Insert bolt -N
through Washer -O and then into holes and tighten with
Allen Wrench -T . Then place end of Gas Tank Support
Ring -H over Gas Tank bar and align front of Gas Tank
Support Ring with holes in Door Panel -E . NOTE: There
are two holes on the leg. Use the lower hole as shown in 2
to attach the Support Ring. Insert bolt -N through Washer
-O and then through hole. Tighten with Allen Wrench.
E
D
D
D
Use lower
hole on leg
Hardware Used
M
O
P
Q
S
Hardware Used
Bolt（6*18mm）
Spring Washer(M6)
Allen Wrench
X 5
X 5
X 1
N
O
T
8
ASSEMBLY INSTRUCTIONS
1
2

9
ASSEMBLY INSTRUCTIONS
9
ASSEMBLY INSTRUCTIONS
3. Place Table Top -C so underside is facing up on an even
soft. clean surface.Screw 4-Studs -K into the Table Top -C
using the Screwdriver -R .Then turn the Table Top over,
and align the Studs with the holes in the top of legs.Slide
Washer/Spring Washer/Nut L over the end of the Stud-K
and secure with Nut-L . Tighten with Wrench -S .Place the
burner -B into the hole in the Table Top -C . Make sure the
Control Knob on the Burner is aligned with the Door Panel.
4.Pour the Fire Glass-J around the burner. Be careful not
. to obstruct pilot light housing.Put the Removable burner
Cover -A on the burner. When the fire pit is NOT in use or
after use, when the fire pit has cooled COMPLETELY,
cover it with the Protective Cover -I . DO NOT PUT THE
PROTECTIVE FIRE PIT COVER ON A HOT FIRE PIT.
Hardware Used
K
L
L
L
S
Spring Washer(M8)
Nut(M8)
Wrench
Washer(M8)
Stud（8*30mm）X 4
X 4
X 4
X 4
X 1
3
4

10
ASSEMBLY INSTRUCTIONS
5. Connect hose and regulator to cylinder.
The propane gas and cylinder are sold separately. Use
a standard 20 Ib. propane cylinder only.
Use this heater only with a propane vapor withdrawal
supply system. See chapter 5 of the standard for
storage and handling of liquefied petroleum gas,
ANSI/NFPA58. Your local library or fire department
should ha ook.ve this b
Storage of an appliance indoors is permissible only if
nilyceht connected and removed fr theder is dis om
appliance. A cylinder must be stored outdoors in a
well-ventilated are aout of the reach of children. A
disconnected cylinder must have dust caps tightly installed
and must not be stored in a building, garage or any other
enclosed area. The maximum inlet gas supply pressure:
250 psi, The minimum inlet gas supply pressure: 5 psi.
The minimum hourly of 10000 Btu is the required input
rating for a heater for automatic operation at ratings less
than full input rating.
The pressure regulator and hose assembly supplied with
the appliance must be used.
The installation must conform with local codes, or in the
absence of local codes,with national fuel gas code,
ANSI Z223.1/NFPA45, natural ga s and prop ane
Installation Code,
CSA B149.1, or propane storage and
handling code, B14 9.2.
7

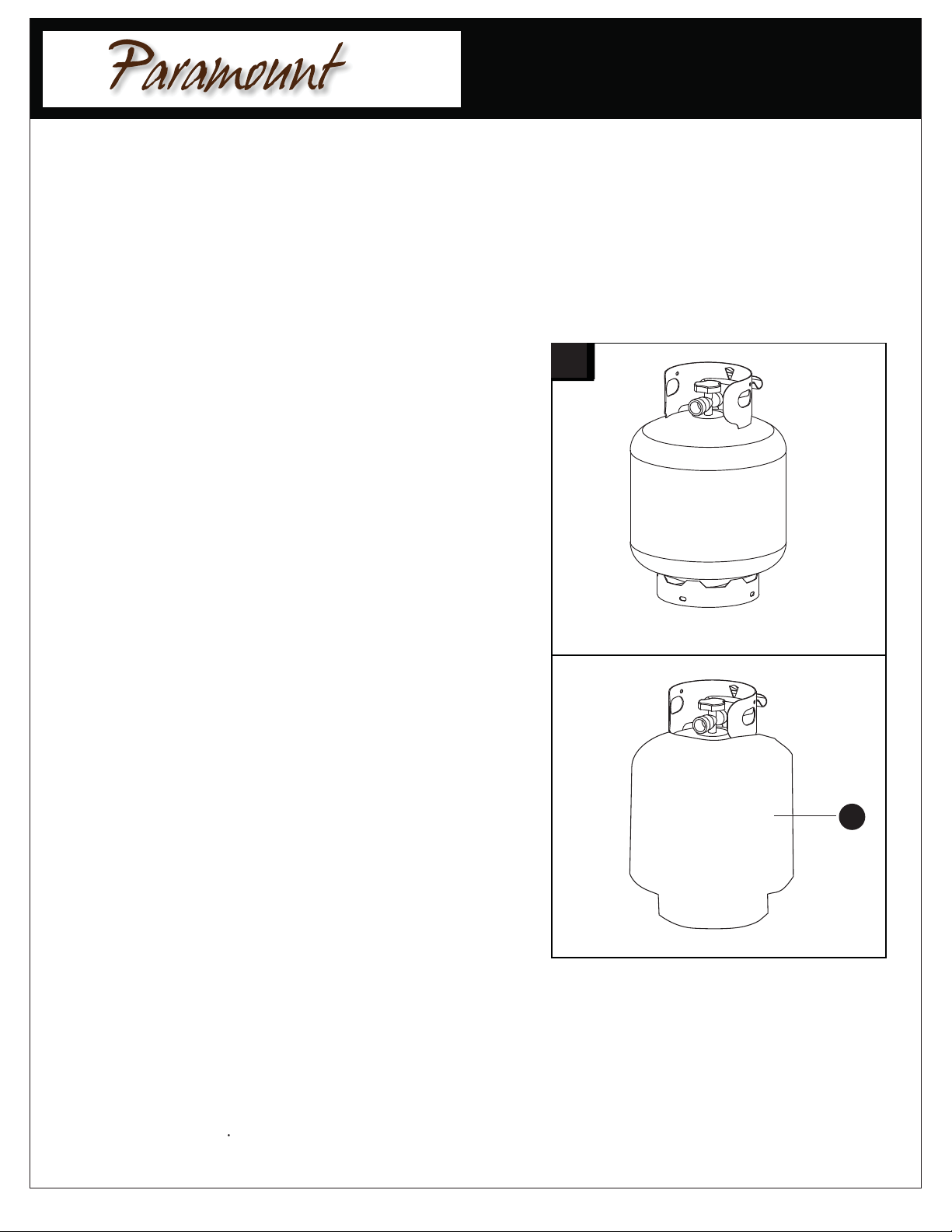

Standard 20 lb. tank
Use the L PG Cover-T t o c over the L PG t ank p rior to p lac ing t he L PG tank u nder t he ass
embled f ire pit
J
5

11
ASSEMBLY INSTRUCTIONS

12
Leak Check
1. Make 2-3 oz. of leak check solution (one part liquid dishwashing detergent and three parts water).
2. Apply several drops of solution where hose attaches to regulator.
3. Apply several drops of solution where regulator connects to cylinder.
4. Make sure all fire pit and light valves are OFF.
5. Turn cylinder valve ON.
If bubbles appear at any connection, there is a leak .
1. Turn cylinder valve OFF.
2. If leak is at hose/ regulator connection: tighten connection and perform another leak test. If bubbles
continue appearing, the hose should be returned to the place of purchase.
3. If leak is at regulator/ cylinder valve connection: disconnect, reconnect, and perform another leak
check. If you continue to see bubbles after several attempts, cylinder valve is defective and should be
returned to cylinder’s place of purchase.
eruceserasnoitcennoceht,noitcennocynataraeppaselbbubONfI.
NOTE: Whenever gas connections are loosened or removed, you must perform a complete leak test.
Complete installation.
Regulator / Cylinder
connection
Hose / Regulator
connection
WARNING
Leak Test
*Perform all leak tests outdoors.
*Extinguish all open flames.
*NEVER leak test when smoking.
*Do not use the fire pit until all connections have been
leak tested and do not leak.
OPERATION INSTRUCTIONS

Contact us for assistance: [email protected] | [phone] 13
CONVERSION TO NATURAL GAS
WARNING
MAKE SURE ALL CONTROL KNOBS & CYLINDER VALVE ARE IN OFF POSITION BEFORE CONVERTING.
This appliance is portable and shipped from the factory for use with Liquid Propane (LP Gas), which is delivered
to the grill from removable tanks (LP tanks and their use are covered elsewhere in this manual).
If a Natural Gas connection is available, the user may wish to change the gas delivery system to the
more permanent Natural Gas supply.
This appliance is certified for use with either Liquid Propane (LP Gas) or Natural Gas and comes complete
with the necessary parts to convert the appliance for use with Natural Gas hose and regulator (sold separately).
The conversion valves allows the use of Natural Gas without replacing the burners or entire valve system.
A qualified gas technician is required to do the conversion. Your warranty may be voided if the conversion
is improperly completed. Please retain the parts supplied with the appliance and these instructions so the
technician can do the conversion.
Orifice Chart
The different burner valves in this appliance have different BTU ratings. The holes in the fittings are orifices
themselves drilled to different sizes so as to allow the proper amount of gas to flow through them. Please note the
chart below to give an easy reference for the various orifice opening sizes for the different valves in the appliance.
Propane
(manifold pressure 10")
NG
(manifold pressure 4")
WARNING
Make sure all appliance components are completely cooled and gas supply is turned off and removed
from the appliance prior to performing the conversion.
GAS CONVERSION FROM LP TO NG
Adjustable Wrench (2)

Contact us for assistance: [email protected] | [phone] 14
WARNING! To avoid the possibility of burns conversions should only be done when the burner is
turned off. Turn gas off at source and disconnect the burner before beginning conversion.
WARNING! /¸¿UÐgµ¸¿ɸÁ¿Lg¿¡gµtµg_¿LÓ¿>¿Ug¸g_¿y>¸¿ÚÁÁgµ¿>_¿>¿UgUÁ¸¿ɸÁ¿Lg¿g>¿
tested before operating the appliance.
Your burner comes from the factory set up for propane but it can be easily converted to natural gas
by following these steps:
GAS CONVERSION FROM LP TO NG
1. Remove the burner from the enclosure.Take care not to damage or kink the thermocouple wire.
2. Disconnect the brass orifice coupler at the end of the steel flex connector from the air shutter using 2 wrenches.
3. Unscrew the propane orifice from the inside of the oriface coupler as illustrated.
Flex Connector
Orifice Coupler
Air Shutter
Propane Orifice Natural Gas Orifice
4. Replace the propane orifice with the natural gas orifice supplied

Contact us for assistance: [email protected] | [phone] 15
GAS CONVERSION FROM LP TO NG
7. Connect NG hose to the burner control with a wrench. Connect the quick connect adapter to the NG supply
valve.
5. Reconnect the brass coupler on the stainless steel flex connector to the air shutter. Tighten using 2 wrenches.
6. Turn all knobs to OFF. Remove propane regulator and hose with brass adapter from the burner control
(manifold) with a wrench.
Propane Regulator
& Hose
Burner Control (Manifold)
Quick Connect Natural Gas (NG) Hose
(Not Included)
Quick Connect Natural Gas Adapter
(Not Included)
9. Fill out the conversion label included with your patio flame and apply it to the inside of the control panel
access door.
8. Place the burner back into the enclosure. Connect the NG hose to the Quick Connect adapter.
PART# NL-NGHOSE
www.paramountathome.com

burner
¸É¡¡Ó¿Ág¿/1¾¿¸¡gUÚg_¿¿Ág¿µ>Áy¿¡>Ág\¿L>¸g_¿¿Ág¿gyÁ¿t¿Ág¿¡¡y¿µÉ¦¿/g¿qÉU¿
disconnect must not be installed in an upward direction and a readily accessible manual shut-off
Ð>Ðg¿ɸÁ¿Lg¿¸Á>g_¿É¡¸Áµg>¿t\¿>_¿>¸¿U¸g¿Á\¿Ág¿qÉU¿_¸UgUÁ¿>¸¿¸¿tg>¸Lg¦
GAS CONVERSION FROM LP TO NG
Contact us for assistance: [email protected] | [phone] 16

OPERATING INSTRUCTIONS
CAUTION
Do not attempt to operate until you
have read and understand all General
Safety Information in this manual and
all assembly is complete and lea
test has been performed.
BEFORE TURNING GAS SUPPLY ON:
for outdoor use only. Do NOT use it
inside a buildiny\¿garagg\¿or any other
enclosed area.
2. Mae sure surrounding areas are free of combustible material¸\ gasoling\¿and
3. Ensure that there is no obstruction to air ventilation. Be sure all gas connections
are tight and there are no lea¸.
4. Be sure the cylinder is clear of debris. Be sure any component removed during
assembly or servicing is replaced and fastened prior to starting.
BEFORE LIGHTING:
1. Fire pit should be thoroughly ¸¡gUÁg_¿Lgtµg¿g>U¿É¸g\¿>_¿LÓ >¿ªÉ>Úgd service person at least annually. If relighting a hot
Úµg¿¡Á\¿>Ñ>Ó¸ wait at least 5 minutes¿ÑÁ¿Á>¿Ð>Ðg¿U¸gd.
2. Inspect the hose assembly for evidence of excessive abrasion\¿Uuts\or wear. Suspected areas should be leatested. If the
hose lea¸\ it must be replaced prior to operation. Only use the replacement hose assembly ¸¡gUÚg_¿Ly manufacturer.
WARNING
Very hot while in operation!
Do not touch Table Top or Burner
after use before placing Lid on Table Top
or touching any surfaces. Failure to comply
with these instructions may result in
serious bodily injury.
DANGER!
FOR OUTDOOR USE ONLY
CARBON MONOXIDE HAZARD
Never use this inside a house, or other
unventilated or enclosed areas. This Öre pit
consumes air (oxygen). Do not use in
unventilated or enclosed areas to avoid
endangering your life.
WHEN FIRE PIT IS ON:
Burner will display tongues of blue and
not be yellow or produce thiU blac
smoe\indicating an obstruction of
should be blue with straight yellow
tops. If excessive yellow Û>g¿¸
_gÁgUÁg_\ turn off Úµg¿¡Á¿>_¿U¸Ét
the “Troubleshooting” section near the
end of this manual.
LIGHTING:
1. Turn the control nob to “OFF” position. (Figure A)
2. Fully open LP cylinder valve. Note: For initial start or after any cylinder change, hold Control Knob IN for 2 minutes to purge
air from gas lines before proceeding.
3. *ɸ¿¿y>¸¿UÁµ¿L¿>_ Áɵ¿UÉÁgµUUÑ¸g to “HIGH” (Figure B) to light Ág¿Úµg¿¡Á¦¿t gg_g_\¿_g¡µg¸¸¿>d turn the
UÁµ¿L¿UÉnÁgµUUÑ¸g several times until Ág¿Úµg¿¡Á¿yhts (you should hear >¿UUy¿¸Éd each time).
4. After Úµg¿¡Á¿yÁ¸\¿µgg>¸g¿UÁµ¿b. If you want a lower temperature push in the control nob and turn
countercUÑse to the “LOW” Position (Figure C).
NOTE: If burner fails to remain lit, close all valves and wait at least 5 minutes for accumulated gas to dissipate before
attempting to light.
Figure A Figure B Figure C
OPERATING INSTRUCTIONS
17
OPERATION INSTRUCTIONS

18
Leak Check
OPERATION INSTRUCTIONS
Shut Down:
1. To extinguish burner depress control knob and continue to turn it clockwise to OFF.
2. Turn cylinder valve clockwise to OFF and disconnect regulator when heater is not in use.
When fire pit is ON:
Burner will display tongues of blue and yellow flame. These flames should not be yellow or produce thick
black smoke, which would indicate an obstruction of airflow through the burners. The flame should be
blue with straight yellow tops. If excessive yellow flame is detected, turn off heater and consult
"Troubleshooting”on page 17.
Re-lighting:
1. Turn control knob to OFF.
2. Repeat the "Lighting”steps on prior page.
WARNING
FOR YOUR SAFETY
Be careful when attempting to manually ignite this
fire pit. Holding in the control know for more than 10
seconds before igniting the gas will cause a ball of
flame upon ignition.
WARNING
FOR YOUR SAFETY
Fire pit will be hot after use. Handle with extreme care.
CARE AND MAINTENANCE
WARNING
FOR YOUR SAFETY:
· Do NOT touch or move fire pit for at least 45 minutes
after use.
· Reflector is hot to the touch.
· Allow reflector to cool before touching.
To enjoy years of outstanding performance from your fire pit, make sure you perform the following
maintenance activities on a regular basis:
Keep exterior surfaces clean.
1. Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
2. While cleaning your unit, be sure to keep the area around the burner dry at all times. Do not submerge
the control valve assembly. If the gas control is submerged in water, do NOT use it. It must be replaced.
a. Keep the appliance area clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
b. Do not obstruct the flow of combustion and ventilation air.
c. Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
3. Air flow must be unobstructed. Keep controls, burner, and circulating air passageways clean. Signs
of possible blockage include:

19
Leak Check

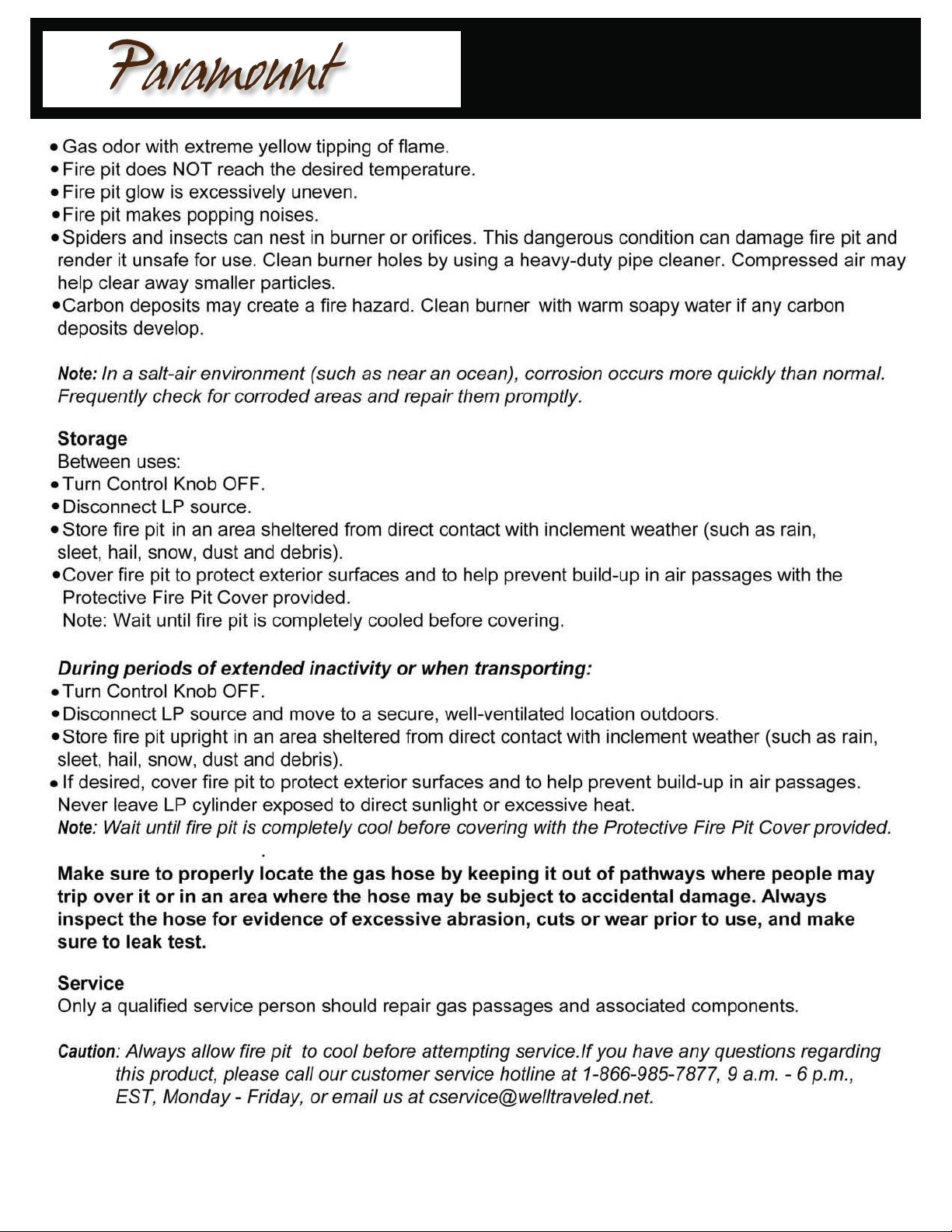

CARE AND MAINTENANCE
W
.

20
Leak Check

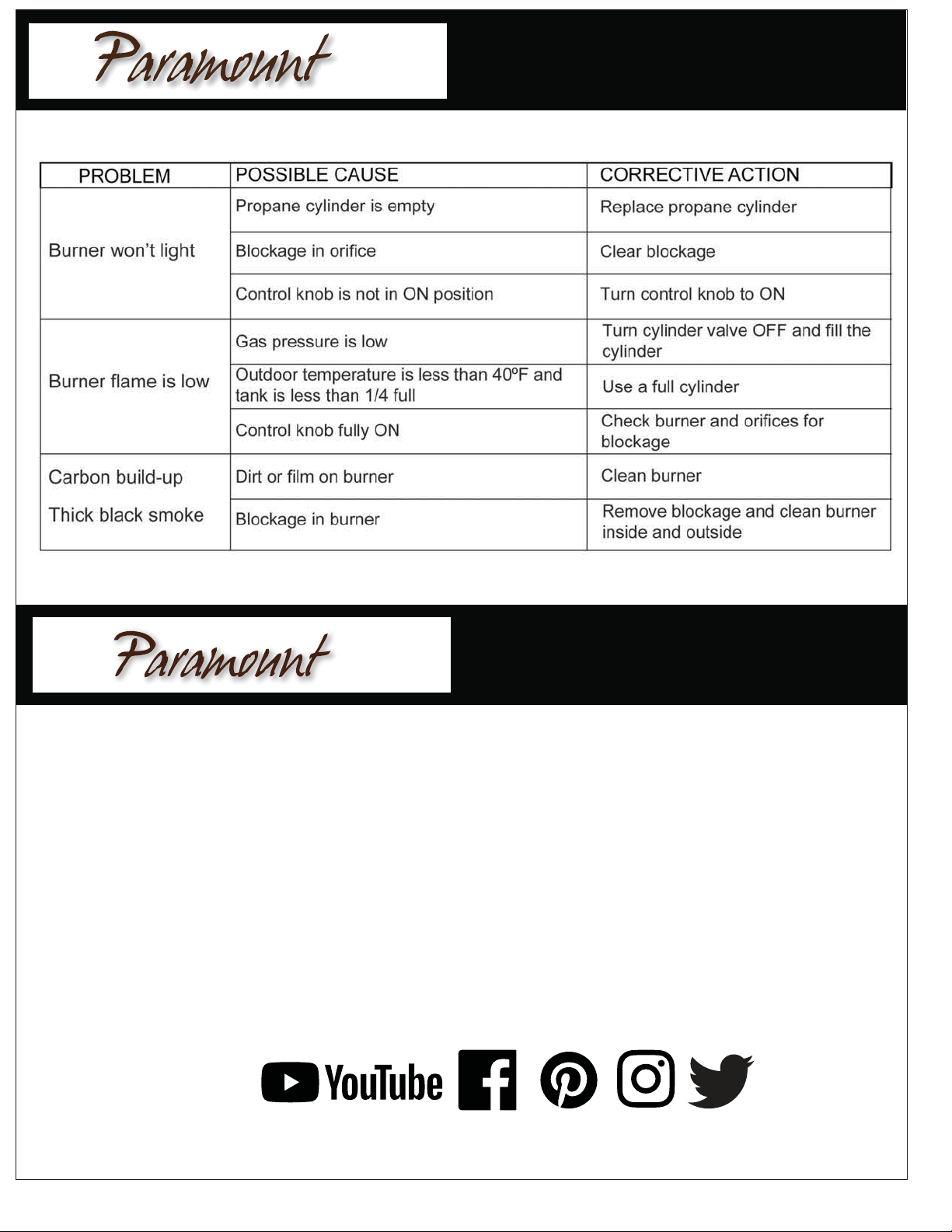

TROUBLESHOOTING
W
.
Extend Your Warranty By Leaving A Review
Follow us on:
www.paramountathome.com
Warranty And Reviews
We want your opinion about your purchase...and we
want you to tell everyone about it!
Just leave a review for the product on the retailers website
where you made your purchase, or at paramount.com, and fill
in the online warranty at www.mountathome.com/warranty to
receive a complimentary extra year of warranty protection.
