parkell TurboSENSOR D560-110 User manual

DEVICE DESCRIPTION
The Parkell TurboSENSOR™ is an autotune
magnetostrictive ultrasonic tooth scaler that
operates at either 25 KHz or 30 KHz.
The TurboSENSOR automatically detects
whether the handpiece contains a 25 KHz or
30 KHz insert, and switches to the correct
operating frequency. The TurboSENSOR has
an expanded low-power range to improve
patient comfort during debridement, and a
power-boosting, user-controlled Turbo feature
to increase scaling power when needed for
heavy deposits. The unit is designed to work
with Parkell inserts. For information about
usage with non-Parkell inserts, please see
our warranty policy.
INTENDED USE/INDICATIONS:
For removal of calculus, plaque and oral debris
from teeth during dental prophylaxis/scaling.
CONTRAINDICATIONS TO USE
Because of the potential for electromagnetic
interference, this device should not be used on
patients or by clinicians with cardiac
pacemakers, internal debrillators,
intracorporeal uid pumps or any other
implantable electronic devices, or in close
proximity to sensitive patient monitoring
devices such as pulse oximeters.
WARNINGS
• The water supply to the scaler should always
be turned off whenever the device is being
connected, disconnected, or when not in use.
• The power supply cord functions as the AC
power disconnect device for the scaler.
• The transformer should be located above and
away from any sources of water that may
enter the unit. As with all electrical devices,
the unit should not be immersed in water or
other liquids. Do not reach for the device if it
has fallen into liquid until power is
disconnected, and do not use the device after
it has fallen into liquid. Return the device to
Parkell for servicing.
• Modication of this device will void the
warranty, and may violate safety codes,
endangering the patient and/or the clinician.
• This equipment is not suitable for use in the
presence of a ammable anesthetic gas
mixture (when used along with air or oxygen).
A00414revL0218
INSTRUCTIONS FOR USE
STOCK NO. D560-110 (110VAC)
STOCK NO. D560-230 (230VAC)
STOCK NO. D560-100 (100VAC)
24-HOUR SAFETY HOTLINE
1-800-535-5053
CAUTION: RX ONLY
This manual, in whole or in part, should not be considered a substitute for formal training in Ultrasonic Scaling.
Appropriate professional education is STRONGLY RECOMMENDED prior to using this device clinically.
25KHZ OR 30KHZ INSERTS:
Device automatically switches
operating frequency to match
(insert not included).
“ON” INDICATOR:
Lights only when
footswitch is
depressed.
“TURBO” LIGHT:
Indicates the device is operating
in high-power “Turbo” mode
(footswitch fully depressed).
“PERIO” LIGHT:
Indicates low-power range where
large changes in knob produce
subtle changes in tip amplitude.
WATER CONTROL
KNOB
AUTOCLAVABLE REMOVABLE
HANDPIECE SHEATH.

• This equipment produces electromagnetic
energy and may cause interference with other
nearby electronic devices. Should this occur,
changing the position or location of the
device may be necessary.
CLINICAL PRECAUTIONS
• Protect patient’s eyes, lips, cheek, tongue or
other vulnerable soft tissues when using this
device.
• Protect the patient’s clothing from water
damage when using this device.
• Clinicians should wear eye protection and
facemask when using this device.
• Water ow through tip during use must be
sufcient to cool handpiece and insert.
• Keep the long axis of the insert tip parallel to
the long axis of the tooth to wipe deposits
from the tooth.
• Do not gouge the tooth with the point of the
tip.
INDIVIDUALIZATION OF TREATMENT
If patient or operator is pregnant, or has any
medical condition which might be affected by
this device during treatment, consult a
physician prior to use.
CONFORMANCE TO STANDARDS
The Parkell TurboSENSOR is TUV listed and
conforms to IEC 60601-1, 60601-1-2 and CAN/
CSA C22.2 No. 601.1. Parkell’s quality system
is certied to ISO 9001/ISO13485. The device
is CE marked and is certied to European
Medical Device Directive (93/42/EEC).
The symbol on the scaler indicates the
Protective Earth connection.
The symbol or is intended to alert the
user to the presence of important operating
and maintenance (servicing) instructions in the
literature accompanying the scaler
SPECIFICATIONS
• Power: 120VAC 50/60 Hz (D560-110),
230VAC 50/60 Hz (D560-230),
100VAC 50/60 Hz, 120VA (D560-100)
• Operating Temperature:
Between 50°F and 100°F (10°C - 38°C)
• Weight: 35 oz.
• Size: 1 1⁄2” H x 5 1⁄2” W x 7” D
• Handpiece Operating Frequency:
25 KHz or 30 KHz
• Protection Against Electric Shock:
Class 1, Type B applied part
• Protection Against Ingress of Liquids:
Foot Switch & Scaler: IPX1 (drip proof);
Power Supply: IPX0 (Ordinary)
• Mode of Operation of Equipment:
Intermittent – 10 minutes on, 5 minutes off
• Operating Conditions:
15-30°C, 10-80% RH (non-condensing)
• Transport and Storage Conditions:
10-40°C, 10-80% RH (non-condensing)
WHAT’S INCLUDED:
• (1) Magnetostrictive Scaler Control Unit with
attached handpiece, foot controller and water
line (with male quick-connect coupler);
(120VAC=Stock No. D560-110 /
230VAC=Stock No. D560-230 /
100VAC=Stock No. D560-100)
• (2) Autoclavable sheaths (one attached to
handpiece) (Stock No. D576)
• (2) Inline water lters (one attached to water
line)
• (1) Transformer with cable
• (1) Operator’s Manual / Instructions for Use
INSERTS
Magnetostrictive Inserts for the TurboSENSOR
scaler are available separately, and are not
included with the basic scaler unit. The unit is
designed to work with Parkell inserts. For
information about usage with non-Parkell
inserts, please see our warranty policy. The
scaler automatically adjusts the operating
frequency to match that of the insert in the
handpiece without operator intervention. Brand
new inserts may t very tightly in the handpiece
initially, and may be inserted and removed
more easily by using a slight twisting motion,
and by lubricating the insert “O” ring with water.
Old, worn or blunt inserts will perform poorly,
generate excess heat, and should be replaced
when necessary.

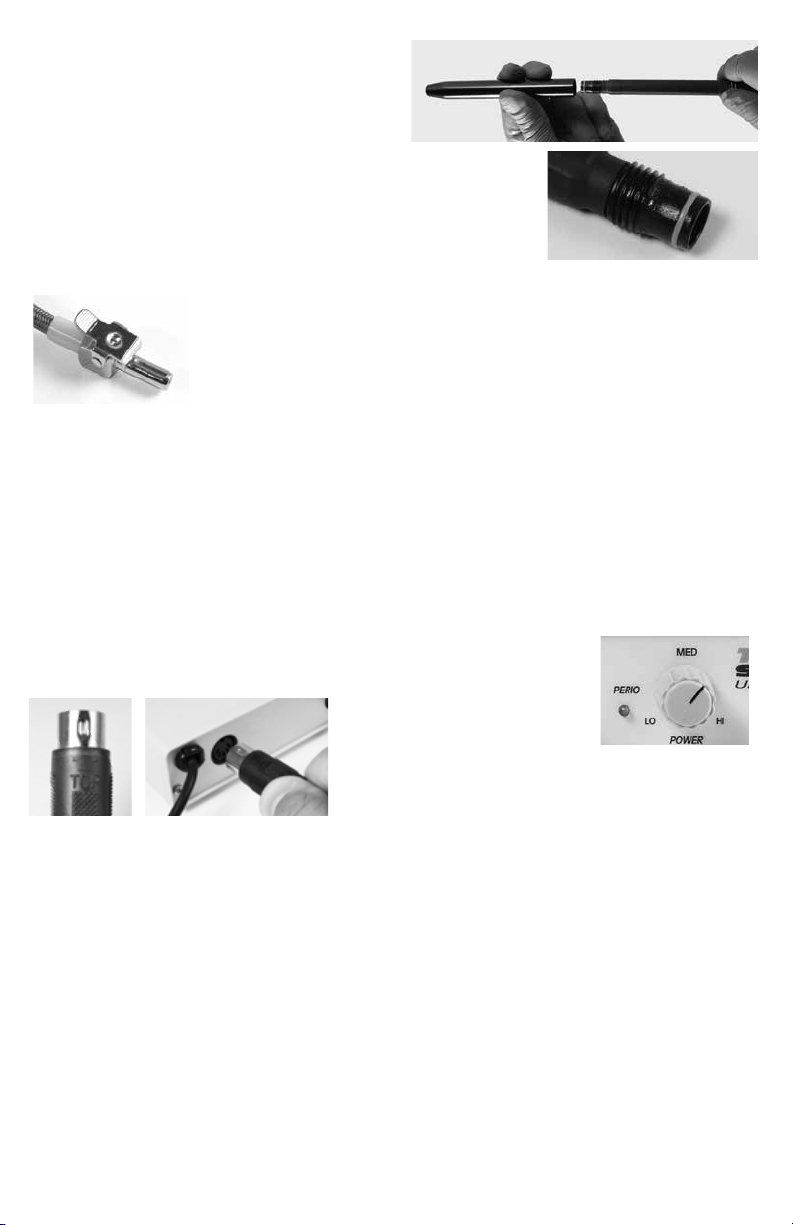

INSTALLING YOUR SCALER
Locate the device where the control panel will
be easy to reach during scaling procedures,
and where the water lter at the rear of the unit
may be periodically changed without difculty.
The scaler requires access to a grounded
electrical outlet and a source of drinking-quality
water. The device and its separate transformer
generate a minimal amount of heat. Avoid
covering them, to allow normal cooling.

WATER CONNECTION
Before plugging in the device, connect the
scaler’s water line to a drinking-quality water
supply (15-35 psi optimal), free of sediment. An
external, ofce-wide water lter is
recommended to minimize frequent changes of
the device’s in-line water lter. The male
quick-connect that comes on the end of the
water hose is the standard tting presently used
in the dental industry. If you are replacing a
scaler that uses an Adec-type or other type of
connection, remove the old tting from the unit
hose and attach it to the
new water line. Check
for leaks at all hose and
lter connections before
use, and tighten if
necessary.
CONTROLLING THE WATER FLOW
Observing the arrow printed on the control
panel, turn the water control counter-clockwise
to increase the ow, or clockwise to decrease
water ow. If water does not ow through the
insert when the foot pedal is depressed, the
water passage in the scaling insert may be
clogged.
ELECTRICAL CONNECTION
The scaler must only be powered via the
Transformer Assembly that is supplied with the
device by Parkell.
1. Plug the round transformer power cord
connector into the back of the scaler, with the
arrow on the plug on top.
2. Plug the transformer into a grounded
electrical outlet. Stepping on the pedal will
activate the scaler.
USE OF AUTOCLAVABLE SHEATHS
AND ULTRASONIC INSERTS
1. The TurboSENSOR handpiece is provided
with the autoclavable handpiece sheath
attached. Prior to use, the sheath should be
sterilized. To remove it, hold the handpiece at
the base with one hand and turn the sheath
counter-clockwise with the other, taking care
not to twist the hose. The sheath will unscrew
and slip off.
2. To replace
the sheath,
gently thread
it onto the
handpiece
clockwise,
until there is no gap between the two. Take
care not to damage or dislodge the O-ring.
Do not overtighten.
TURNING ON THE SCALER AND
CONTROLLING THE POWER OUTPUT
The unit does not have a traditional on/off
switch. The foot pedal turns the unit on when
depressed, and off when released. The pedal
should be placed where it will not
accidentally be pressed when the device is
not in use.
The TurboSENSOR gives you two ways to
adjust the scaling power, by using the Power
Control Knob for normal operation, or by
depressing the Foot Pedal to enter the “Turbo
Mode”.
Use the Power Control
Knob to set the initial
scaling power for the
procedure at hand.
Turn the knob in a
clockwise direction to
increase the power, or counterclockwise to
decrease the power.
• Usually, the Power Control Knob is set at the
“Medium” setting to start. When the foot pedal
is slightly depressed to the rst position, the
insert will begin vibrating at Medium power.
• If the Power Control Knob is set for the “Perio”
setting, the “Perio” light will illuminate, and the
tip will vibrate at a much a lower power than a
traditional scaler when the foot pedal is
depressed. This permits very subtle
adjustments in tip power, meaning that
relatively large movements of the knob within
the Perio mode of operation will produce small
increases in power. This allows more
comfortable debridement for sensitive
patients.
• When the “Perio” light is not illuminated, tip
amplitude reacts more dramatically to knob
adjustment for high power calculus removal.

Use the “Turbo Mode” for short-term
increases in power during scaling. Fully
depress the foot pedal to the oor using
increased foot pressure and the yellow
“Turbo” light will illuminate. This will instantly
boost scaling power to a point midway
between the current setting and the scaler’s
maximum power.
• Engaging the Turbo feature at a low power
setting causes a signicant boost in power.
• Engaging the Turbo feature at high power
will produce very little change.
• Since water ow is not affected by “Turbo
Mode”, extended procedures may require a
water adjustment.
• Partially lifting your foot off of the pedal will
return the scaler to normal, “non-Turbo”
mode.
Note that whenever you fully release the foot
pedal, the green “on” light on the front panel
will turn off along with the yellow “Turbo” light.
This change may take several seconds.
CLINICAL SUGGESTIONS ON
TOOTH SCALING
• Ultrasonic scalers should be used by
trained, licensed professionals only.
• Inserts and handpiece sheaths must be
sterilized before each use.
• Use of face mask by the clinician and
high-volume intraoral suction is strongly
recommended when operating this device,
to avoid inhalation of contaminated
aerosols.
• DO NOT OPERATE UNIT WITHOUT
WATER FLOWING.
• Use the lowest effective scaling power for
the case at hand. This keeps heat
generation to a minimum.
• Before using the insert in the oral cavity,
adjust the water spray following the graphics
on the faceplate of the scaler over a sink or
cuspidor until desired mist is obtained. For
maximum patient comfort, use a good ow
of water as a coolant, lubricant and to ush
out debris.
• If patient is new to ultrasonic scaling, explain
to them what to expect. Usually, the patient
should not experience discomfort. If patient
experiences uncomfortable heat, adjust
power and water controls accordingly.
• Do not test a scaler tip for vibration on your
ngers while the unit is operating. This is not
a valid test of how scaling feels to the
patient.
• Hold the handpiece in a comfortable
pen-grasp. To remove deposits from teeth,
always use a light brushing stroke with the
side of the insert tip, in contact with and
parallel to the root surface. Excess pressure
will not improve scaling action, but may
cause heating and pain to the patient. Keep
the scaler insert in motion at all times, using
repeated gentle strokes to remove all
tenacious deposits.
• Do not use the point of the insert on the
tooth surface. You may gouge the tooth.
• Pause occasionally during scaling by
removing foot from pedal to evaluate deposit
removal.
• Exercise caution near ceramic restorations,
as they can discolor or fracture if stressed.
COMMON OPERATOR ERRORS THAT
MAY RESULT IN POOR CLINICAL
PERFORMANCE
• Failure to keep insert tip parallel to the long
axis of the tooth.
• Excessive use of hand pressure.
• Failure to use the lowest effective power
setting for the case at hand.
• Insufcient water ow.
• Scaling with the point of the insert instead
of the side.
• Inserts that are damaged, bent or worn out.
CLEANING AND INFECTION
CONTROL
• Consult www.CDC.gov for the “Guidelines
for Infection Control in Dental Health-Care
Settings”.
• DO NOT AUTOCLAVE the TurboSENSOR
control unit, as autoclave heat will destroy it.
The control unit should be cleaned of debris
with a water-damp paper towel, disinfected
by wiping with a paper towel that has been
saturated with an EPA-registered low-level
(HIV/HBV claim) to intermediate-level
(tuberculocidal claim) hospital disinfectant,
wiped of chemical residue with a water-
damp paper towel, and dried. Utilize the
surface disinfecting protocol of the
disinfectant manufacturer.
• Autoclaving does not remove debris that has
accumulated on the sheath or the insert.
Failure to adequately remove debris will
result in inadequate sterilization.

The sheath and ultrasonic insert must be
washed in soap and water either manually or
in an ultrasonic cleaner, and rinsed in running
water prior to bagging them for processing in
a steam autoclave.
• Sheaths and inserts may be sterilized in any
conventional steam autoclave following
manufacturer’s instructions. A typical steam
cycle is 250°F-268°F / 121°C-131°C for 30
minutes at a minimum of 15 psi, followed by a
15 minute minimum cool-down period. After
sterilization, inspect the device in the
autoclave bag for integrity. If suspicion about
the item exists, discard it and order a
replacement from Parkell or your dealer.
• DO NOT USE DRY HEAT OR CHEMCLAVE
on the sheath or the insert.
HOW TO REPLACE THE FILTER DISK
The water lter disk coming off of the rear hose
of the unit should be replaced when it becomes
dark or clogged with debris so that water ow is
not blocked (1-3 months). Replacement Filters
are available from Parkell (Stock No. D419
– ten per package).
1. Close any water valves, and bleed all water
lines of residual water pressure.
2. Disconnect the scaler water supply hose
from the water supply at the quick-connect.
3. Remove the old lter disk by holding it in one
hand and loosening it by twisting it off the
hose connectors on either side. They rotate
in opposite directions.
4. Install the new lter disk in the same position
as the old one, and tighten the connectors in
reverse.
5. Reconnect the scaler water supply hose to
the water supply via the quick-connect and
check for leaks.
6. Note: If the lter becomes clogged and you
do not have a replacement disk, the hose
connectors may be locked together
TEMPORARILY without the lter disk to
allow emergency operation only.
TROUBLESHOOTING
Unit does not operate (“power on”
indicator does not light):
• Transformer cable disconnected from wall
outlet or scaler. Reconnect properly.
• Wall outlet not live. Reconnect properly.
• Foot Pedal or cable is damaged. Contact
Parkell.
• Unit fuse has failed. Contact Parkell.
Insert does not vibrate properly:
• Faulty, damaged or worn insert. Replace.
• Insert not correctly seated in handpiece.
Reinsert properly.
• Power control not correctly adjusted.
Readjust.
Excess heat at handle or tip of insert:
• Faulty, damaged or worn insert. Replace.
• Too little water ow. Insert may be blocked.
Inspect and clear blockage, or replace
insert.
• Power too high for the amount of water.
Increase water ow.
• Excessive hand pressure applied. Correct
technique.
No water spray when foot pedal is
depressed:
• Water line blocked or kinked. Correct.
• Water passage in the scaling insert clogged.
Inspect and clear blockage, or replace
insert.
• Water lter clogged. Replace.
• No water supply connected. Correct.
Insert does not go into handpiece:
• Insert stack is bent. Straighten plates
carefully by hand and reinsert.
• O-ring is too tight. Lubricate O-ring with
water and use twisting motion to seat insert.
• Autoclavable handpiece sheath is not
attached to handpiece.
Insert falls out of handpiece or water
leaks from front of handpiece:
• O-ring damaged or worn. Replace O-ring on
insert and/or handpiece.
Water leaks at base of handpiece:
• Orange O-ring at end of handpiece is
missing or damaged.

Insert comes out of handpiece when
pedal is depressed:
• Water pressure is too high. Adjust water
pressure to 15-35 psi at dental unit
connection or in oor junction box, or
replace insert O-ring.
USER MAINTENANCE AND
AUTHORIZED SERVICE
• The Parkell TurboSENSOR requires very little
maintenance for years of trouble-free
operation. There are no user-serviceable
parts inside the control unit or the foot pedal.
Opening the cases will void all warranties.
Authorized Parkell personnel must make all
internal repairs.
• Parkell urges all scaler users to monitor the
condition of the water lter periodically and
change the lter whenever noticeable
darkening of the disk occurs, or when water
ow decreases. The most common reason for
service for ultrasonic scalers is failure by the
user to periodically change the water lter.
This will result in contamination and clogging
of the internal water components.
• The ultrasonic inserts, handpiece sheaths,
power supply, water lter and water hose are
all detachable and may be replaced by the
user. Contact Parkell for a list of authorized
inserts and available replacement parts.
• Within the US, all repairs must be made by
Parkell. We maintain a complete service and
parts facility in our factory at 300 Executive
Drive, Edgewood, NY 11717. Equipment
needing service in the US should be returned,
freight pre-paid, via approved common
carrier (e.g. USPS, UPS, FedEx), and
adequately insured. Return all accessories
with the unit, and include an explanation of
the problem. Pack in the original box, add
plenty of cushioning material, and overbox
the unit during shipping. Transit should
maintain a dry temperature of 50°F-110°F.
You will be contacted for your approval of the
repair, along with any associated costs, prior
to any work. The unit will be repaired and
returned to you.
• Outside the US, repairs must be made by a
Parkell-authorized facility.
If you have any questions or problems with the
installation or use of your TurboSENSOR, call
Technical Support Service at 1-800-243-7446,
M-F from 8:15 AM to 5:15 PM EST. Outside of
the USA or Canada, call [phone].
WARRANTY AND TERMS OF USE
Parkell warrants the TurboSENSOR power
unit, transformer and foot pedal as follows:
• 110 VAC - Five (5) years;
• 230 VAC or 100 VAC - One (1) year.
• The handpiece, handpiece cable and water
hoses are warranted for one (1) year.
• The ultrasonic inserts and autoclavable
sheaths are not covered by this warranty, and
are not returnable. No repairs or parts
replacements made during a warranty period
extend the warranty beyond the original
expiration date.
Parkell will repair or replace, at its option, a
defective unit. This warranty is in lieu of all
warranties of merchantability, tness for
purpose or other warranties, express or
implied. Please note that any unauthorized
alteration, misuse, abuse, or failure to follow
operating instructions supplied with this unit
will automatically void all warranties associated
with the unit.
Parkell does not accept liability for any loss or
damage, direct, consequential or otherwise,
arising out of the use of or the inability to use
the product herein described. Before using, the
user shall determine the suitability of the
product for its intended use and the user
assumes all risk and liability whatsoever in
connection herewith.
If you purchased this product directly from
Parkell, your unit is automatically
registered. Your invoice is your “Warranty
Registration” receipt. If you purchased this
product from a domestic or overseas
dealer, please register your product via
the Internet at www.parkell.com. Locate
and complete the online form, print a copy
for your records, and click the “Submit”
button. Store the printout in a safe place.
PLEASE NOTE: Parkell scalers are
designed to work with Parkell inserts.
While other manufacturers claim to
produce inserts that are compatible,
Parkell cannot guarantee proper
performance therewith. Please see our
full Warranty Policy and Terms of Use
information at www.parkell.com.

300 Executive Drive, Edgewood, NY 11717
Toll-Free: 1-800-243-7446 • Phone: [phone] • Fax: [phone] • E-mail: [email protected]
www.parkell.com
THIS PRECISION DENTAL DEVICE WAS DESIGNED, MANUFACTURED AND
IS SERVICED IN THE UNITED STATES OF AMERICA BY:
European Authorized Representative (Not a dealer/distributor):
Directa AB - P.O. Box 723, Finvids väg 8 SE-194 27 Upplands Väsby - Sweden
