Parker HT9608H Guide

Blower
Model:
HT9608H
HT9711H
HT0110B
Revised 6/02
OPERATION SERVICE PARTS CARE

TABLE OF CONTENTS
General Safety Instructions 1 & 2
Warning Decal Placement 3
Assembly Instructions 4
Blower Assembly HT Series Mainframe 5
Engine Assembly 6, 7, 8, 9
Warranty Back Cover

SOUND VIBRATION
92 dB 87 dB 12.0 m/s2
Operator At 3m At Operators Handles
Tests were conducted on 4-22-96 with calibrated sound and vibration equipment under
the conditions noted below:
General Condition: Cloudy Wind: 8 km/hr
Temperature: 15°C Humidity: 85%
Barometric Pressure: 30.1

1
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING
WARNING
•To prevent personal injury or property damage, do not attempt to start engine until all assembly
steps are complete and you have read and understand the safety and operating instructions in this
manual.
•Under California law, and under laws of several other states, you are not permitted to operation
internal combustion’s engine using hydrocarbon fuels on any forest covered, brush covered, or
grass covered land, or on land with grain, hay, or other flammable agricultural crop, without an
engine spark arrester in continuous effective working order. The engine on your power equipment,
like most outdoor power equipment, is an internal combustion engine that burns gasoline, a
hydrocarbon fuel. Therefore, your power equipment must be quipped with a spark arrester muffler
in continuous effective working order. The spark arrester must be attached to the engine exhaust
system in such a manner that flames or heat from the system will not ignite flammable material.
Failure of the owner/operator of the equipment to comply with this regulation is a misdemeanor
under California law, and may also be a violation of other state and/or federal regulations, laws,
ordinances, or codes. Contact your local fire marshal or forest service for specific information
about what regulations apply in your area.
•Wear approved safety glasses when operating this equipment. The operation of any powered
machine can result in foreign objects being thrown by high-speed rotating parts.
•Wear work gloves, sturdy footwear, and hearing protection when operating this equipment.
•Remove hearing protection and watch for traffic when operating near, or when crossing roadways.
•Before inspecting or servicing any part of equipment, shut off engine, disconnect spark plug wire
from spark plug, and make sure that all moving parts have come to a complete stop. Be aware that
rotating blades slow down gradually after engine is shut off.
•Exercise extreme caution on slopes and avoid excessively steep slopes.
•Never leave equipment unattended when engine is running. Shut off engine and disconnect spark
plug wire from spark plug before leaving equipment. Turn off fuel shut-off if equipped.
•Do not blow any burning or smoldering materials such as cigars, cigarettes, ashes, or cinders.
•Do not blow areas that have been recently treated with fertilizers, pesticides, or herbicides. Follow
chemical manufacturer’s safety instructions regarding contact with treated areas.
•Keep in mind that the operator or user is responsible for accidents or hazards occurring to other
people or their property.
•Thoroughly inspect the areas where the equipment is going to be used, and remove all objects that
may be a hazard when thrown.
•Never pick up or carry equipment while the engine is running.
•Walk, never run.
•Never allow children or untrained adults to operate this equipment.
•Keep the area of operation clear of all persons, particularly small children, and pets. Keep bystanders
at least 25 feet away from the area of operation.

2
•Do not run engine in an enclosed area. Engine exhaust contains carbon monoxide gas, a deadly
poison that is odorless, colorless, and tasteless.
•Do not operate this equipment near buildings, windows, or air conditioners.
•Do not allow hands or any other part of the body or clothing inside the vacuum inlet.
•Do not start engine or operate this equipment with any safety guards or housing removed.
•Operate machine in daylight or good artificial light.
•Do not change the engine governor settings or overspeed the engine.
DANGER
Gasoline is highly flammable and its vapors are explosive. To prevent personal injury or property
damage:
•Do not add fuel if engine is running or still hot from recent operation. Allow engine to cool for at least
three minutes.
•Do not fill fuel tank indoors. After filling, wipe up any spills and move away from gasoline fumes
before starting engine.
•Do not allow open flame, matches, or smoking in area.
•Fill fuel tank with fresh, clean unleaded regular automotive gasoline, (leaded regular and unleaded
or leaded premium grades of gasoline are acceptable substitutes).
•Do not mix oil with gasoline.
•Clean the area around the fuel fill cap and remove the cap from the fuel tank. Insert a clean funnel
into the fuel tank.
•Fill the tank to 1/2 inch below the bottom of the filter neck to provide space for any fuel expansion.
•Reinstall the fuel fill cap securely and wipe up any spilled gasoline.
•Store fuel in containers specifically designed for these purposes.
•Replace faulty silencers or mufflers and muffler guards.
•Before using, visually inspect to see that the blade and blade bolts are not worn or damaged and,
if needed, replace in sets.
•Do not start the engine when standing in front of the discharge chute.
•Drain fuel outdoors.
SAVE THESE INSTRUCTIONS

3

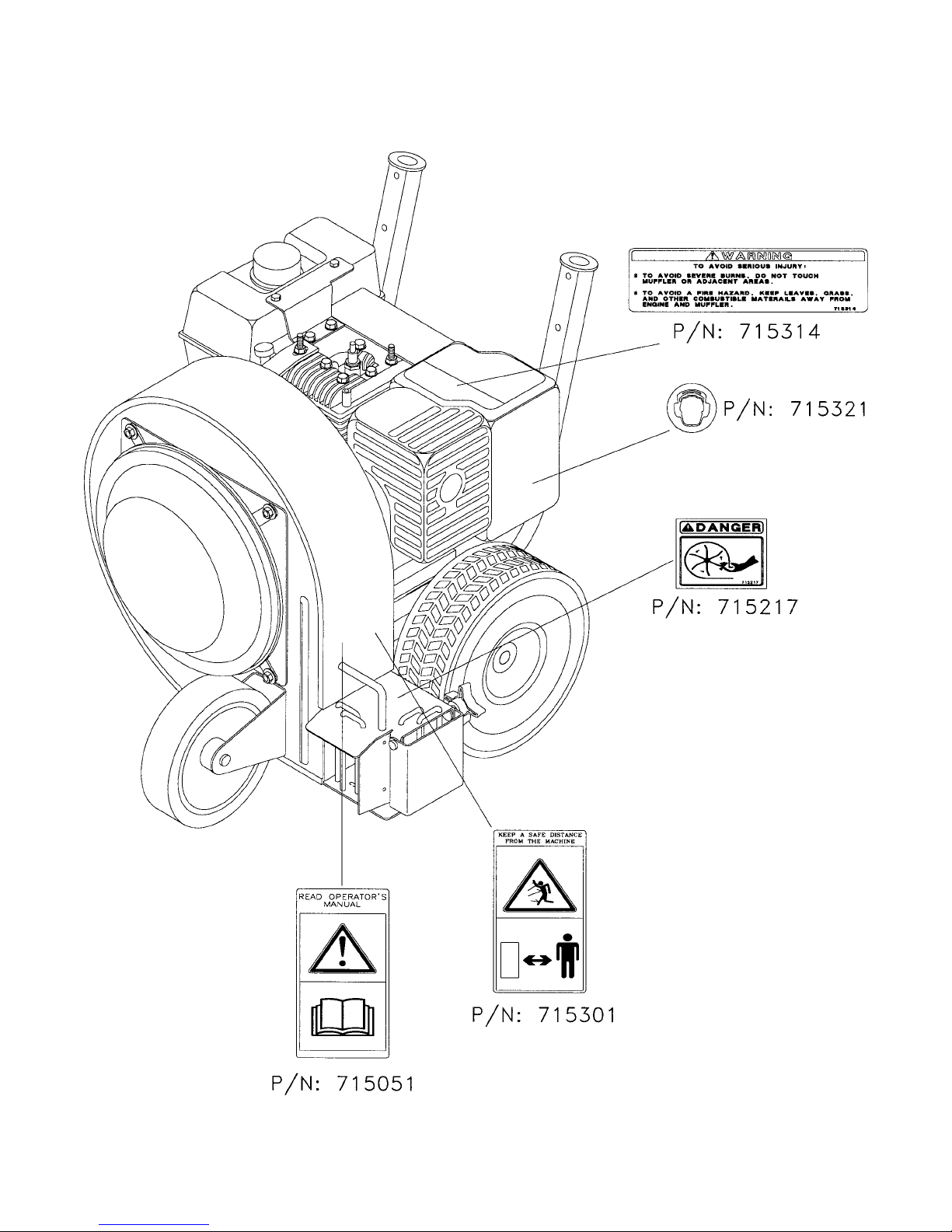

SAFETY DECALS

4
FRONT WHEEL ASSEMBLY
Install front wheel bracket (1) to front housing using 5/16 flat
washer (2) and 5/16 nyloc nuts (3) and tighten. Install front
wheel (4) into front wheel bracket (1). Slide clevis pin (5) all
the way through front wheel bracket (1) and front wheel (4).
Slide second nylon washer (7) onto clevis pin (5) and secure
with hairpin (6).
HANDLE ASSEMBLY
Install handle assembly to blower, place rubber shim (1)
under handle strut (2) and place 5/16-18 x 2 bolt (4) and 3/
8 washer (3) into holes in handle strut (2) and through frame
(5) and tighten (not all the way) with 5/16 washer (6) and 5/
16-18 nyloc nut (7). Place handle (8) into handle struts (2)
and align holes in handle (8) and struts (2). PLace 5/16-18
x 2 bolt (4) and 3/8 washer (3) into strut (2) and handle (8),
as shown, and tighten with 3/8 washer (3) and 5/16-18 nyloc
nut (7). Thighten bolts on strut/frameat this time. Pull pull-
rope hamdle (9) towards strut (2) and install rope guide (10)
around pull-rope. Place 1/4-20 x 2.5 bolt (11) through rope
guide (10) and strut (2) and thighten with 5/16 washer (6)
and 1/4-20 nut (12).
THROTTLE CABLE ASSEMBLY
From operator postion, the throttle cable can be installed
on outside of handle on right side or on inside of handle on
left side. To install throttle cable (1) to handle (5), place #10
washers (3) between throttle cable (1) and hamdle (5) as
shown. Insert 10-24 screws (2) through throttle cable (1),
washers (3) and handle (5) and thighten with 10-24 nyloc
nuts(4). Mount snap mount (6) and cable to handle (5).
PLace and thighten cable tie (7) and cable aroung handle
strut (8).
ASSEMBLY INSTRUCTIONS

5

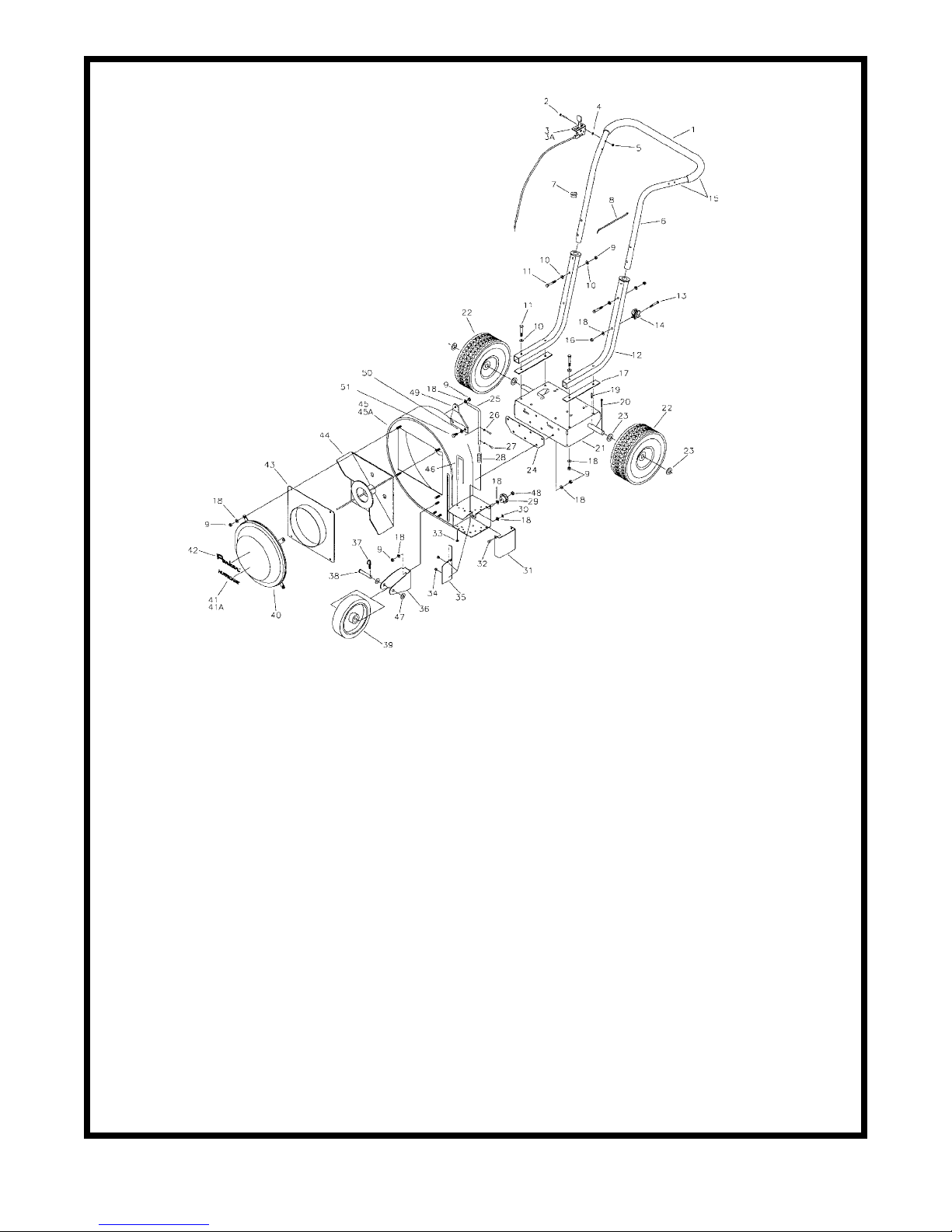

BLOWER FRAME ASSEMBLY
Item Part No. Qty. Description
1 360108 1 Handle Sleeve
2 515-10-24 2 SCR-RD-HD 10-24 x 1.5
3 83-25-B-41 1 Throttle Cable Assembly
3A 83-25-B-30 1 Throttle Briggs Only
4 711503 2 WSR-Flat #10
5 712638 2 Nut-Hex 10-24 SS Nyloc
6 360109PTD 1 Blower Handle - Painted
7 80-276-A 1 Snap Mount
8 828062 1 Cable Tie - Large
9 711374 23 Nut-Nyloc 5/16-18
10 711507 12 WSR-Flat .37 x 1.12 x .06
11 713031 8 BLT-HH 5/16-18 x 2 #5
12 360112 2 Handle Strut
13 711220 1 BLT-HH 1/4-20 x 2.50 STPL
14 350186 1 Rope Guide
15 360110 1 Blower Handle Assembly
16 711373 1 Nut-Nyloc 1/4-20
17 360129 2 Rubber Shim
18 711506 21 WSR-Flat 5/16 STPL
19 67-521-A 2 Rollpin
20 380-532-20 2 Cotter Pin
21 360120 1 Frame Weldment
22 SA-1496-C 2 Tire-Pneumatic .75 HUB
23 711512 4 WSR-Flat .75 x 1.37 x .08
24 360128 1 Blower Backer Plate
25 360126 1 Lever Valve Control
26 711502 2 WSR-Flat #8
Item Part No. Qty. Description
27 710231 2 SCR-MC 8-32 x .75 STPL
28 170051 1 Spring
29 79-94-A 1 Fluted Knob
30 75-80-A 1 Shaft Retainer
31 360100 1 Blower Door
32 831889 1 Clevis Pin 5/16 x 1/2
33 75-89-A 2 Speed Nut
34 711372 2 Nut-Nyloc 8-32
35 360101 1 Blower Flap
36 360104 1 Wheel Bracket
37 711670 1 Hairpin Cotter 21-06 1/2
38 360131 1 Pin 1/2 x 2.75 11-237
39 360133 2 Wheel 8 x 2 w/.5 Bore-Black
40 360136 1 Fan Guard Assembly
41 715186 1 Decal - Hurricane Plus 8
41A 715187 1 Decal - Hurricane Plus 11
42 715322 1 Decal - Parker
43 360105 1 Adaptor Plate
44 360115 1 Fan Blade Weldment
45 360125 1 Briggs Fan Housing
45A 360132 1 Honda Fan Housing
46 360102 4 Blower Guard
47 711892 2 WSR-Nylon .5 x 1.06 x .06
48 711383 1 Nut Hex Centerloc 5/16-18
49 360158 1 Housing Bracket B/S
50 711546 2 WSR-Helical 3/8
51 711241 2 BLT-HH 3/8-16 x .75”
PARTS LIST

6
PARTS LIST
Item Part No. Qty. Description
1 232319 4 Spacer, .359 x 1.125 x 1.078
2 350242 1 Belleville Washer 7/16
3 350602 1 Engine, 10 HP Intek B/S
4 360111 1 Spacer, 1 x 2 x 1
5 711374 4 Nut-Nyloc 5/16-18
6 711506 8 WSR-Flat 5/16 STPL
7 713034 4 BLT-HH 5/16-18 x 2.75 #5
8 60-716-24 1 BLT-HH 7/16-24 x 1. 50 #5
9 63-130-A 1 Key, 1/4 x 1-3/4”
10 82-138-B-3 2 Special Washer
BRIGGS 10 HP

7
PARTS LIST
Item Part No. Qty. Description
1 350500 1 8 HP Honda
2 715321 1 Decal - Hearing Protection
3 715314 1 Decal - Warning
4 82-24-A 2 Spacer
5 711546 2 WSR-Helical 3/8
6 713047 2 BLT-HH 3/8-16 x 2.25 No. 5
7 63-130-A 1 Key 1/4 x 1.75 Long
8 60-716-24 1 BLT-HH 7/16-20 x 1.5 No. 5
9 350242 1 Belleville Washer 7/16
10 82-138-B-3 2 Special Washer
11 73-415-A 1 Spacer 1 x 2 x .875
12 711526 5 Wave Washer
13 711380 4 Nut-Nyloc 3/8-16
14 711508 8 WSR-Flat .44 x 1.0 x .08
15 713045 4 BLT-HH 3/8-16 x 1.75 No.5
HONDA 8 HP

8

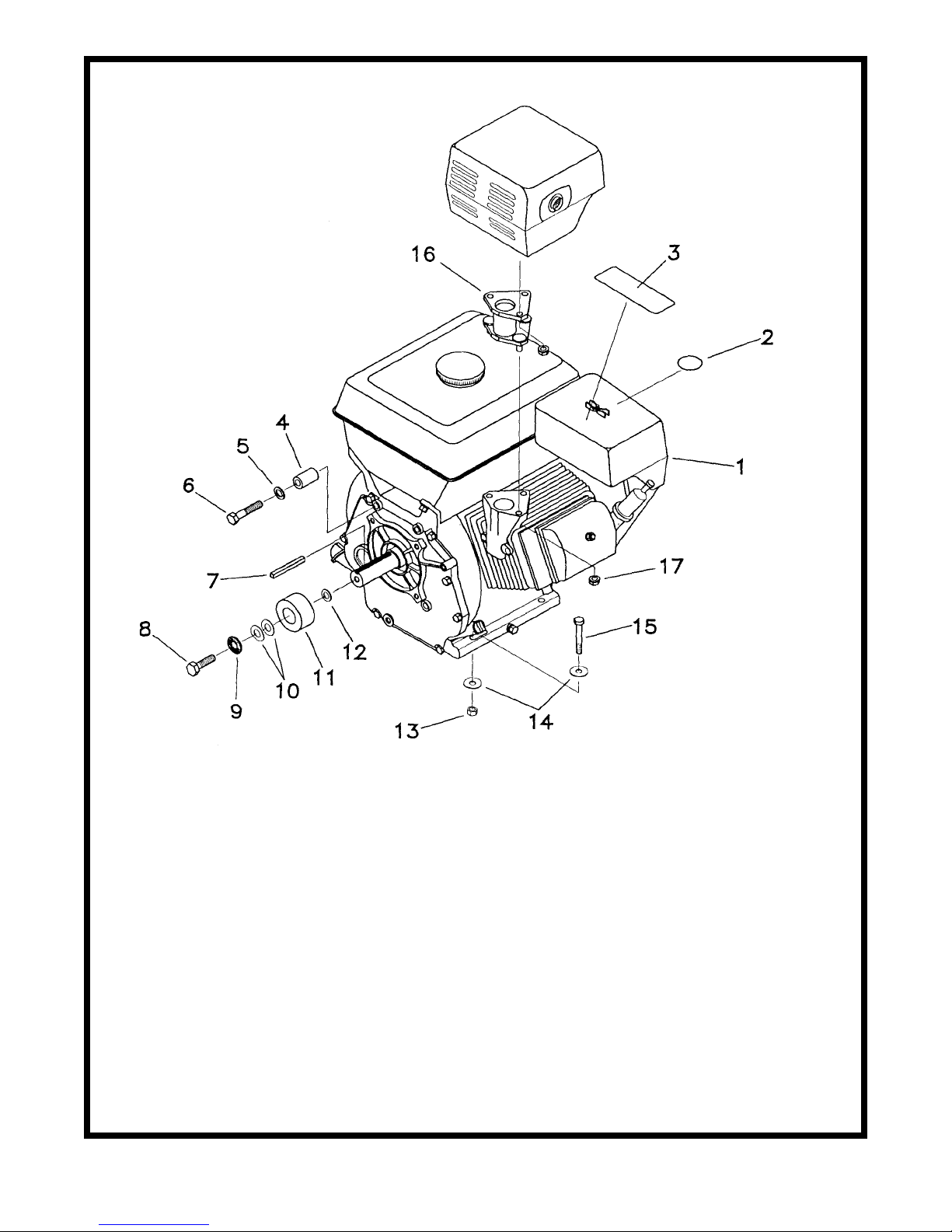

PARTS LIST
Item Part No. Qty. Description
1 350503 1 11 HP Honda
2 715321 1 Decal - Hearing Protection
3 715314 1 Decal - Warning
4 82-24-A 2 Spacer
5 711546 2 WSR-Helical 3/8
6 713047 2 BLT-HH 3/8-16 x 2.25 No. 5
7 63-130-A 1 Key 1/4 x 1.75 Long
8 713040 1 BLT-HH 3/8-24 x 1.5 No. 5
9 360154 1 Belleville Washer 3/8
10 82-138-B-3 2 Special Washer
11 360111 1 Spacer 1 x 2 x 1
12 350169 1 Shaft Spacer Washer
13 711380 4 Nut-Nyloc 3/8-16
14 711508 8 WSR-Flat .44 x 1.0 x .08
15 713045 4 BLT-HH 3/8-16 x 1.75 No.5
16 360153 1 Muffler Extension
17 711379 3 Nut-Flanged Wizz 5/16-18
HONDA 11 HP

LIMITED WARRANTY
The Parker Sweeper Company warrants to the original purchaser/user that this product is free from defects in workmanship
and materials under normal use and service for a period of two years from date of purchase. In addition, Parker Sweeper
Company will, at its option, honor labor warranty claims for the first 12 months from date of sale, provided such claims are
submitted through and approved by factory authorized repair stations. Parker Sweeper Company will, at its option, repair or
replace without charge, except for transportation costs, parts that fail under normal use and service when operated and
maintained in accordance with the applicable operation and instruction manuals.
This warranty does not apply to normal wear, or to items whose life is dependent on their use and care, such as belts, cords,
switches, hoses, rubber parts, electrical motor components or adjustments. Parts not manufactured by Parker Sweeper
Company such as engines, batteries, battery chargers, hydraulic pumps, and tires are covered by and subject to the warranties
and/or guarantees of their manufacturers. Please contact Parker Sweeper Company for procedures in warranty claims against
these manufacturers.
Special warning to purchaser — Use of replacement filters and/or prefilters not manufactured by Parker Sweeper Company
or its designated licensees, will void all warranties expressed or implied.
A potential health hazard exists without exact original equipment replacement.
All warranteed items become the sole property of Parker Sweeper Company or its original manufacturer, whichever the case
may be.
Parker Sweeper Company disclaims any implied warranty, including the warranty of merchantability and the warranty of fitness
for a particular purpose. Parker Sweeper Company assumes no responsibility for any special, incidental or consequential
damages.
This limited warranty is applicable only in the U.S.A. and Canada, and is extended only to the original user/purchaser of this
product. Customers outside the U.S.A. and Canada should contact their local distributor for export warranty policies. Parker
Sweeper Company is not responsible for costs or repairs performed by persons other than those specifically authorized by
Parker Sweeper Company. This warranty does not apply to damage from transportation, alterations by unauthorized persons,
misuse or abuse of the equipment, use of non-compatible chemicals, or damage to property, or loss of income due to
malfunctions of the product.
If a difficulty develops with this machine, you should contact the dealer from whom it was purchased.
This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Some states do not
allow the exclusion or limitation of special, incidental or consequential damages, or limitations on how long an implied warranty
lasts, so the above exclusions and limitations may not apply to you.
A Minuteman International Company
World Headquarters Minuteman Canada, Inc.
Minuteman International, Inc. 2210 Drew Road
111 South Rohlwing Road Mississauga, Ontario
Addison, Illinois 60101 L5S 1B1
[phone] [phone]
FAX [phone] FAX [phone]
988230
Printed in U.S.A.
