Parker Balston NitroFlow TG2 Series User manual

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
1
1-800-343-4048
NitroFlow TG2
Installation, Operation, and Maintenance Manual

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
2
1-800-343-4048
Symbol Description
Caution, refer to accompanying documents
for explanation.
Refer to the caution note indicated for
explanation.
Caution, risk of electric shock.
Refer to the warning note indicated for
explanation.
!
!
1
1
Explanation of Warning Symbols

www.labgasgenerators.com
3
1-800-343-4048
These instructions must be thoroughly read and
understood before installing and operating this product.
Any modification of the product will void the warranty.
Failure to operate this product in accordance with the
instructions set forth in this manual and other safety governing
bodies could jeopardize the safety of the operator and void the
safety certication of this product. Retain these instructions for
future reference.
If you have any questions, please call the Technical services
department at 1-800-343-4048, 8AM to 5PM Eastern Time
or e-mail at [e-mail]. For other locations,
please contact your local representative.
Please refer to page 2 for an explanation of the caution/warning
symbols used throughout this manual.
Installation, Operation, and Maintenance Manual
Parker Balston
NitroFlow TG2 Generator Series
Figure 1 NitroFlow TG2 Nitrogen Generator
The integrated system is engineered to produce pure nitrogen gas, hydrocarbon free air, and
clean, dry -40°F dew point air delivered by a carefully matched scroll compressor. The system is
housed in two fully integrated cabinets: the lower cabinet produces the compressed air using an
oil-less rotary scroll compressor. The upper cabinet separates the compressed air into the three
gases: nitrogen, and hydrocarbon free dry air.
General Description
The generator is certied to the electrical safety requirements as specied by the IEC, UL,
and CSA standards. These units bear the CSA marking on the product. Product supplied
internationally also carries the CE mark. The product meets EMC compliance. Internal pressure
receivers are CRN and ASTM certied or CE certied.
Regulatory
Compliance
The Nitroow TG2 generator contains the necessary components to produce hydrocarbon free,
dry air and nitrogen. The ow schematics (Figure 2A and 2B) show all of the major components of
the system. The system can be broken down into 7 stages: compressed air, liquid water removal,
pre-ltration, oxygen/water vapor removal, hydrocarbon removal, water vapor removal, and nal
ltration.
Integrated System

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
4
1-800-343-4048
The design of the oil-less rotary scroll compressor offers high reliability and quiet operation. The
scroll consists of two sets of identical spirals that are offset 180 degrees from each other. As one
scroll orbits around the other xed scroll, air is trapped, compressed, and is then directed into the
center where it is discharged from the pump.
A high output fan cools the compressor cabinet as it blows over a series of ns on the after-
cooler. The compressor operates at a lower temperature, thus increasing bearing, tip seal, and
grease life. As the fan blows across the after-cooler, the air temperature is decreased and water
is condensed in both the after-cooler and in the receiver tank. The water is discharged through
the automatic electric drain valve that is connected to a disposal container.
Compressor Pump
Compressor
After Cooler
Figure 2B, Nitrogen Generator Flow for NitroFlow TG2
Figure 2A, Compressor Flow Schematic
(Zero Air)
(Zero Air)
(N2)

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
5
1-800-343-4048
The NitroFlow TG2 generator incorporates a water separator to remove liquid water from the
compressed air before it reaches the prelters. The liquids are collected in the supplied disposal
container. Refer to the included installation and maintenance instructions.
Two stages of high efciency coalescing pre-lters are incorporated into the design of the Nitroow
TG2 to remove water and particulate contamination to 0.1 micron. The generator is equipped with
oat drain valves to automatically discharge any liquids which have accumulated in the lter bowls.
The liquids are collected in the supplied disposal container. These lters protect the membrane
and associated components from contamination.
A 3-way pneumatic valve is located after the prelters to release any leftover liquid water that may
be present on startup.
An activated carbon module is located upstream of both the nitrogen module and the dryer module
to remove any hydrocarbon contaminants that may exist in the room air. A particulate lter is
located after this carbon module to remove any carbon particles.
The NitroFlow TG2 generator has a hollow ber membrane module which converts compressed
air into high purity nitrogen. The membrane module has no moving parts assuring years of
maintenance-free operation.
There is one activated carbon module and particulate lter after the nitrogen membrane to remove
any contaminants present in the nitrogen stream.
The water vapor in the compressed air passes through the hollow bers of the membrane for
removal, resulting in dry air. A small portion of the dry air is redirected along the bers to sweep out
additional water vapor laden air and vented to atmosphere in the cabinet. A dew point of -40°F is
achieved at a pressure of 100 psig.
An activated carbon module is located downstream of the membrane dryer to remove any volatile
organic compounds that may be present in the air stream. A lter is located after this carbon
module to remove any carbon particles.
Prefilters
Water Separator
Hydrocarbon Removal
3-way Pneumatic Valve
3-way Pneumatic Valve
Dryer Membrane
Nitrogen Module
Outlet Carbon
Module & Filter
Outlet Carbon
Module and Filter
Diagnostics
Figure 3 Figure 4
There are two diagnostic indicator lights on the Parker Balston NitroFlow TG2 System:
High Temperature LED (red): The “High Temperature” LED indicator illuminates when the
compressor pump has reached its maximum temperature. The compressor will shut down by a
thermal switch opening, preventing power to the motor. Compressor restarts automatically as
soon as the over-temperature condition is corrected.
Power On LED (Green): This indicates the compressor is operating.
Installation
All installation, operation, and maintenance activities for the NitroFlowTG2 Generator System
should be performed by trained personnel using reasonable care to avoid injury or damage.
The NitroFlow TG2 system has casters and is packed in a wooden shipping container. The
installation kit, consisting of plastic tubing, tube ttings, and a plug is packed in a box inside
the wooden container. Remove the wire L-shaped fasteners from the sides of the container
(see Figure 3). Do not attempt to lift the generator from the container. Remove and locate the
plywood ramp (see Figure 4). Release the locked casters. Move the generator down the ramp.
Move the generator and installation kit to its installation location.
Unpacking

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
6
1-800-343-4048

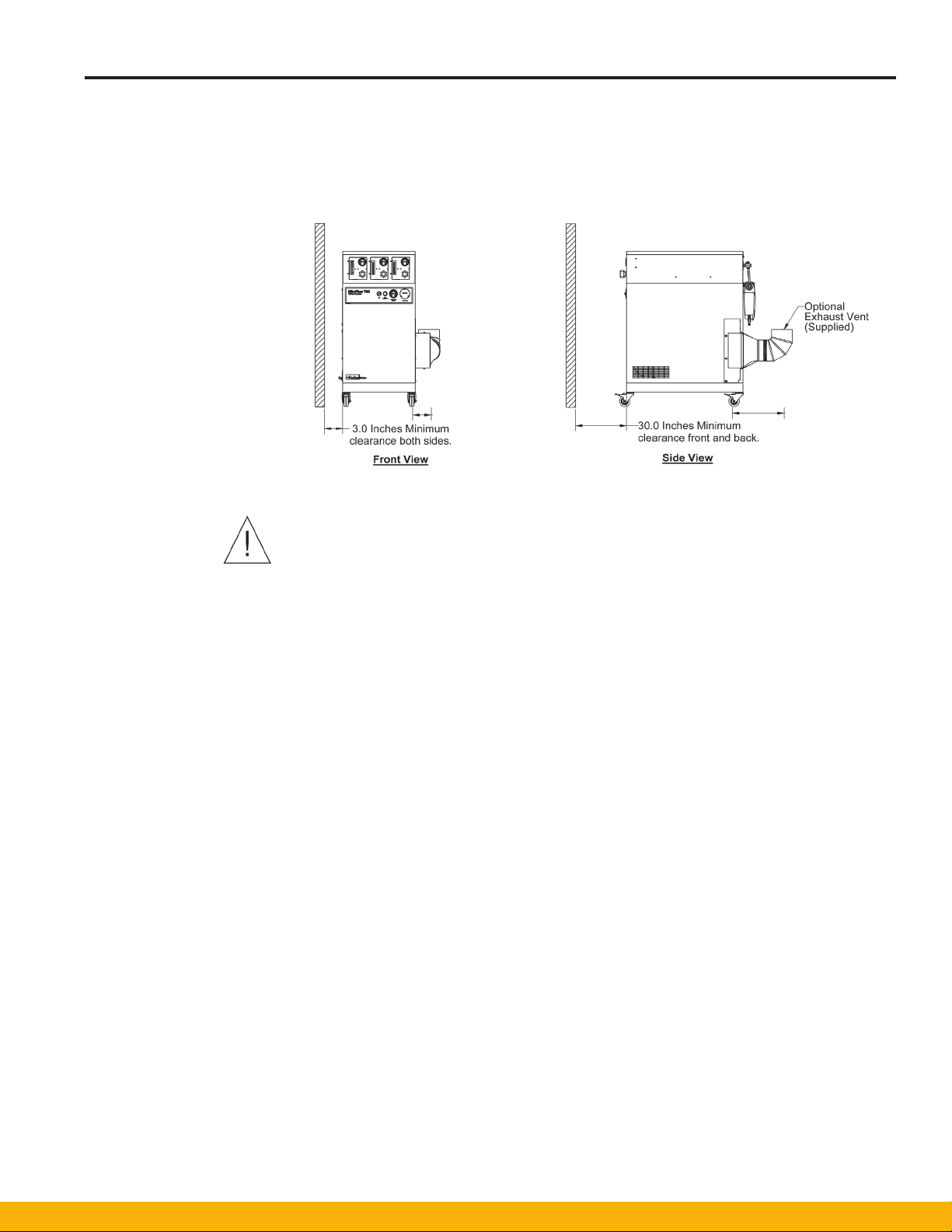

Location of the generator with proper ventilation is critical. Install the generator in a clean, well
ventilated area. To provide adequate ventilation and servicing for the generator, a minimum
clearance distance of 30 inches in front and in the rear is required (see Figure 5). Fresh intake
ventilation for the generator enters from the bottom and sides, while warm exhaust air exits from
the right, rear side. A minimum of 3 inches clearance is required on both sides of the generator
(see Figure 6).

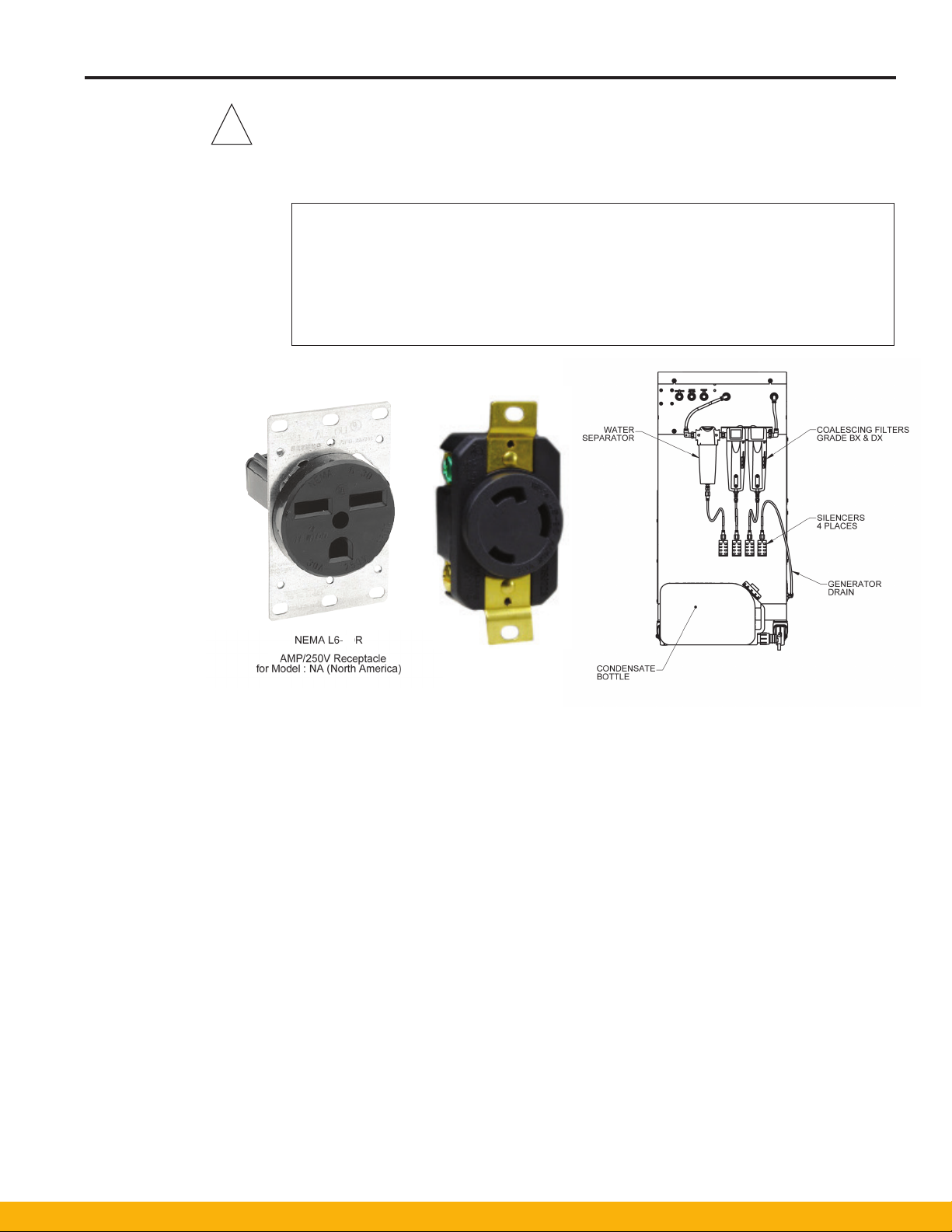

For the NA Model: The NitroFlow TG2 Generator Series requires one electrical power outlet: a
dedicated grounded 208 to 254VAC, 60Hz, single phase, minimum 30Amp circuit breaker with a
NEMA 6-30R or L6-30R receptacle (see Figure 7). Parker requires purchasing a step-down
transformer if your facility voltage is 255 or higher or a step-up transformer if your voltage
decreases below 208VAC. See the accessory section on page 17. Main supply voltage
uctuations must be within ±10% of the nominal main supply voltage.
For the JA and WD Models: The NitroFlow TG2 Generator Series, rated at 230V, 50 Hz, single
phase, 13A fully loaded installation requires the following electrical setup:
1The supply line should be dedicated to the generator. No other equipment should operate
using the same line.
2The service should be capable of carrying 20 amperes. The wire gauge should be sized
accordingly.
3The service should be protected by up to a minimum 20 Amp circuit breaker. The value
is based on the application/equipment requirements as well as the electrical components’
tolerance and uncontrollable external variables.
The generator is for indoor use only. Do not install outdoors. The generator must be
installed in a climate controlled room. The ambient temperature of the air surrounding the
generator should not exceed 85°F (29°C) or be below 60°F (16°C). The relative humidity of
the ambient should not exceed 43% at 85°F. Do not locate the generator where hot exhaust
air from other heat generating sources may be drawn into the generator. The area should be
free of excessive dust, toxic or ammable gases, solvent fumes, and moisture. An exhaust vent
attachment is available to route exhaust away from the generator(see Figure 5). The diameter of
the exhaust vent ducting must be six inches. An in-line duct fan, capable of exhausting 226 CFM,
is required for ducting greater than 15 feet. See Accessory Parts table on Page 17 for details.
The Parker Balston NitroFlow TG2 Generator Series creates minimal noise during operation. The
noise generated is about 49dB at one meter. Periodically there is an air discharge noise from the
drain port eliminating accumulated uids in the prelters and receiver tank. The noise and heat
generated by the unit should be considered when selecting an installation location. A silencer
kit is included for the drain discharge noise. There is also a pump “burp” noise lasting a few
seconds each time the generator is shut down. This is the compressor depressurizing the pump
during shutdown.
Figure 5 Figure 6
Location
Utilities

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
7
1-800-343-4048
The generator drain tube is a black nylon ¼” tubing connecting the drain outlet to the provided
disposal container (see Figure 8). A blue silencer is provided for the discharge end of the tubing
to reduce the discharge noise. Periodically check the built in strainer to ensure it has not clogged.
The pre-lter and water separator drain tubes are also a black nylon ¼” tubing connecting the
drain outlets to the same provided disposal container (see Figure 8). Blue silencers are provided
for each drain line.
The three outlet gas ports consist of three ¼” NPT bulkhead ttings. Parker Balston recommends
minimum ¼” PFA plastic tubing with a minimum pressure rating of 125 psig (8.6 bar). Check all piping
connections for leaks using a bubble-type leak detecting solution.
Drains
Outlet Gases
Figure 8
There are seven plastic tubing connections for the NitroFlow TG2 generator: (1) nitrogen outlet
gas connection; (2) dry air outlet gas connections; (4) drain connections. Press the tubing into
the quick-connect ttings. Assure tubing is fully inserted (about ½”). Tubing is provided in the
installation kit. For remote locations, additional length tubing is provided.
Piping
The following table describes the necessary mains cordset based on region. Do Not Replace the
provided cordset with an inadequately rated cordset. The plug on the cordset is the mains
disconnect.
The electrical schematic for the generator is shown in Figure 31 on page 23.
The following table
describes the cordset
required for each region:
* Note: JA-200 versions include
an external step-up transformer.
System Region Description Cordset Part
Rating Number
NitroowTG2NA North America 230V-60Hz cordset, US plug 30A, 250VAC A03-0430
NitroowTG2NA North America 230V-60Hz cordset, US twistlock 30A, 250VAC A03-0410
NitroowTG2WD EU,India,UK 230V, 50Hz cordset 32A, 250VAC A03-0344
Australia 230V, 50 Hz cordset 32A, 250VAC A03-0345
China 230V, 50 Hz cordset 32A, 250VAC A03-0347
NitroowTG2JA200 JA 230V, 50 Hz cordset, with JA PSE plug 20A, 250VAC A03-0408
!
NEMA 6-30R
Figure 7a
30
30
Figure 7b

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
8
1-800-343-4048
A03-0412 voltage step-down transformer - If your facility supply voltage is 255V or higher,
then the use of this transformer is required.
A03-0411 voltage step-up transformer - If your facility supply voltage is 208V or lower, then
the use of this transformer is required.
Recommended
Accessories
Figure 9
Generator Controls
Check that the power cord of the generator is properly connected to the generator receptacle.
Rotate clockwise to lock. Check that the power cord of the generator is connected to the proper
power supply outlet.
During normal operation, the generator’s power switch is illuminated green. The compressor
pressure gauge indicates a pressure between 125 to 130 psig (8.6 to 8.9 barg). If the pressure
drops below 125 psi, then the outlet ow is too high. Set the 3 regulators to the specied values
by the instrument. The ow rate for each gas is displayed by the ow meter designated for each
gas. Refer to the ow label on the top of the NitroFlow TG2 cabinet for the correct ow reading at
standard conditions. Do not remove the cover while the system is pressurized.
The generator has its own automatic water drain system. The 3 lters located on the back of
the generator are equipped with pneumatic drains that open when the water level reaches a
predetermined point. The compressor drain operates every 10 minutes, opens for 2 seconds; the
two internal lter bowls also drain every 10 minutes.
The generator cabinet has two LED indicators (see Figure 9): Power ON, and High Temperature.
The green LED remains illuminated during normal operation. The other LED indicator,
“High Temperature” remains unlit if the compressor is functioning properly. Red illumination
of the High Temperature LED signals a fault condition and warns the operator that the unit
requires servicing.
Ensure all 3 gas outlets at the back of the generator are not connected to pipework and are closed
using the yellow shut off valves on the back of the NitroFlow TG2. Rotate the Power Switch on
the front panel of the generator (see gure 9) to ON by turning it clockwise. The generator will start
and the green LED will illuminate. The Compressor Output pressure gauge will slowly increase to a
maximum set pressure of 137psig (9.4 barg). Full pressurization will occur within 10 minutes. Allow
the system to run for 90 minutes to reach full operating temperature. Using the regulators on the
front of the unit, adjust the outlet pressure on each gas line to 20psi and open the 3 gas outlets slightly
using the yellow shut off valves at the back of the generator allowing the system to vent to atmosphere
for approximately 1 hour (note: venting to atmosphere at 20psi is not too loud and will allow the
desired purge. Opening the valves fully will “overow” the generator and it will not maintain pressure).
Connect the gas lines to the back of the generator and allow them to purge the length of pipework to
atmosphere for another 15 minutes. Close the 3 gas outlets using the yellow shut off valves. Connect
the now purged lines to the application and slowly re-open the yellow shut off valves to pressurize
the gas lines. This procedure should also be followed any time the generator is fully up to
operating temperature and then powered off for more than 30 minutes.
Start-up/Restart
Operation
Diagnostics
Operation

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
9
1-800-343-4048
If the compressed air pressure decreases less than 90 psig (6.2 barg), the nitrogen output purity
level will decrease. Once pressure is restored, purity level will be restored.
The compressor inlet pressure gauge indicates the range of system pressure during operation,
normally between 125 psig and 130 psig.
See the Troubleshooting section of this manual on pages 17-20 to resolve any abnormal or faulty
conditions.
If the electrical power is interrupted, the generator will start automatically when power returns.
Please see Start-up/Restart procedure on previous page.
For normal or emergency shutdown, pull out the plug on the cordset to disconnect the main
power (see Figure 1). Full depressurization takes 1 hour. Do not remove cover while system
is pressurized.
Maintenance tasks for the NitroFlow TG2 Generator should be performed by trained personnel
familiar with the service and safety precautions of electromechanical devices to avoid injury
or damage. Safety risks that may affect the service personnel are identied with the
necessary protective measures described.
Parker highly recommends service be performed by a Parker trained technician only. Call
the factory about PMP, the Preventative Maintenance Program. The service personnel will
verify the safe state of the generator after the maintenance or repair is completed.
Prior to servicing the generator, turn off the system and disconnect the cordset from the power
supply. Allow the system a minimum of 1 hour to depressurize. See shutdown section above.
To ensure product performance and reliability, periodic preventative maintenance must be
performed. The three tables on page 10 detail the maintenance schedules for both the
compressor and purication components, as well as the part numbers for replacement parts and
maintenance kits.
Pressure Interruption
Power Interruption
Shutdown
Maintenance
The compressor has an hour meter to record the accumulated operating time of the compressor
for preventative maintenance scheduling of the serviceable components. The meter indicates
00000.0 hours. The hour meter is not re-settable.
Replacement Parts/
Maintenance Kits Hours
Part Code Description 5K 10K 15K 20K 25K 30K 35K 40K
PM kits for 50 Hz systems
MKNITROFLOWTG2-1
(50 Hz systems)
5K hr compressor maintenance
(50Hz) XXXX
MKNITROFLOWTG2-3-50
(50 Hz systems)
10K hr compressor /generator
maintenance (50Hz) X X X
MKNITROFLOWTG2-4
(50 Hz systems)
30K hr compressor /generator
maintenance (50Hz) X
MKNITROFLOWTG2-6
(50 Hz systems)
Replacement belts (50Hz)
MKNITROFLOWTG2-8 Grease gun
PM kits for 60 Hz systems
MKNITROFLOWTG2-2
(60 Hz systems)
5K hr compressor maintenance
(60Hz) XXXX
MKNITROFLOWTG2-3-60
(60 Hz systems)
10K hr compressor/generator
maintenance (60Hz) X X X
MKNITROFLOWTG2-5
(60 Hz systems)
30K hr compressor/generator
maintenance (60Hz) X
MKNITROFLOWTG2-7
(60 Hz systems)
Replacement belts (60Hz)
MKNITROFLOWTG2-8 Grease Gun

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
10
1-800-343-4048
Compressor Component
Maintenance
(refer to gures 11-34 and 44-47)
Service Interval Replacement Part Quantity
5,000 hours Intake Filter 1 or 2*
5,000 hours V-Belts 2
5,000 hours Tip Seal Set 1
5,000 hours Grease 1
5,000 hours Discharge Pipe Sleeve 1
10,000 hours Timer drain valve assembly 1
30,000 hours Pump 1
30,000 hours Check Valve 1
30,000 hours Intake Filter 1 or 2*
30,000 hours V-Belts 2
Purification Component
Maintenance
(refer to gures 10, 36-43)
Service intervals are determined by
an hour meter located on the front
panel of the generator.
The meter indicates 00000.0 hours.
The hour meter does not reset.
Service Interval Replacement Part Quantity
10,000 hours Carbon Module (P/N B06-0264) 1
10,000 hours Filter Silencer (P/N 75117) 1
10,000 hours Filter Element (P/N BZ100-180-DXE) 1
10,000 hours Filter Element (P/N BZ100-180-BXE) 1
10,000 hours Filter Element (P/N BZ100-090-BXE) 4
30,000 hours Carbon Module (P/N B06-0264) 2
30,000 hours Carbon Module (P/N B06-0265) 1
30,000 hours Filter Silencer (P/N 75117) 1
30,000 hours Filter Element (P/N BZ100-180-DXE) 1
30,000 hours Filter Element (P/N BZ100-180-BXE) 1
30,000 hours Filter Element (P/N BZ100-090-BXE) 4
Filter Silencer
Auto Drain
P/N 22066HK (SN>TG2-0205A)
or EF1 (SN<TG2-0205A)
REV.
NAME DATE
2441 1
SD
1
REV.:
IN INCHES
4 3 2 1
A
1
D
C
B
A
4 3 2
A
B
C
D
1
CH'KD BY: DATE:
THIS DOCUMENT CONTAINS INFORMATION THAT IS CONFIDENTIAL AND PROPRIETARY TO
PARKER FILTRATION AND SEPARATION DIVISION("PARKER"). THIS DOCUMENT IS FURNISHED ON
THE UNDERSTANDING THAT THE DOCUMENT AND THE INFORMATION IT CONTAINS WILL NOT BE
COPIED OR DISCLOSED TO OTHERS OR USED FOR ANY PURPOSE OTHER THAN CONDUCTING BUSINESS
WITH PARKER, AND WILL BE RETURNED AND ALL FURTHER USE DISCONTINUED UPON REQUEST BY
PARKER. COPYRIGHT PARKER. YEAR OF COPYRIGHTIS FIRST YEAR INDICATED ON DOCUMENT.
ALL RIGHTS RESERVED.
TITLE:
Parker Hannin Corporation
Filtration and Separation Division
Haverhill, Massachusetts USA
DRAWN BY: DATE:
P/N BZ100-090-BXE P/N BZ100-090-BXE P/N
BZ100-090-BXE
Carbon Module
P/N B06-0264
Every 10,000
hr. service
Carbon Module
P/N B06-0264
Carbon Module
P/N B06-0265
Filter Element
& Auto Drain
P/N BZ100-180-DXE
P/N 21552
P/N 75117
Filter Silencer
P/N 75117
Filter Silencer
P/N BZ100-090-BXE
Filter Element
& Auto Drain
P/N BZ100-180-BXE
P/N 21552

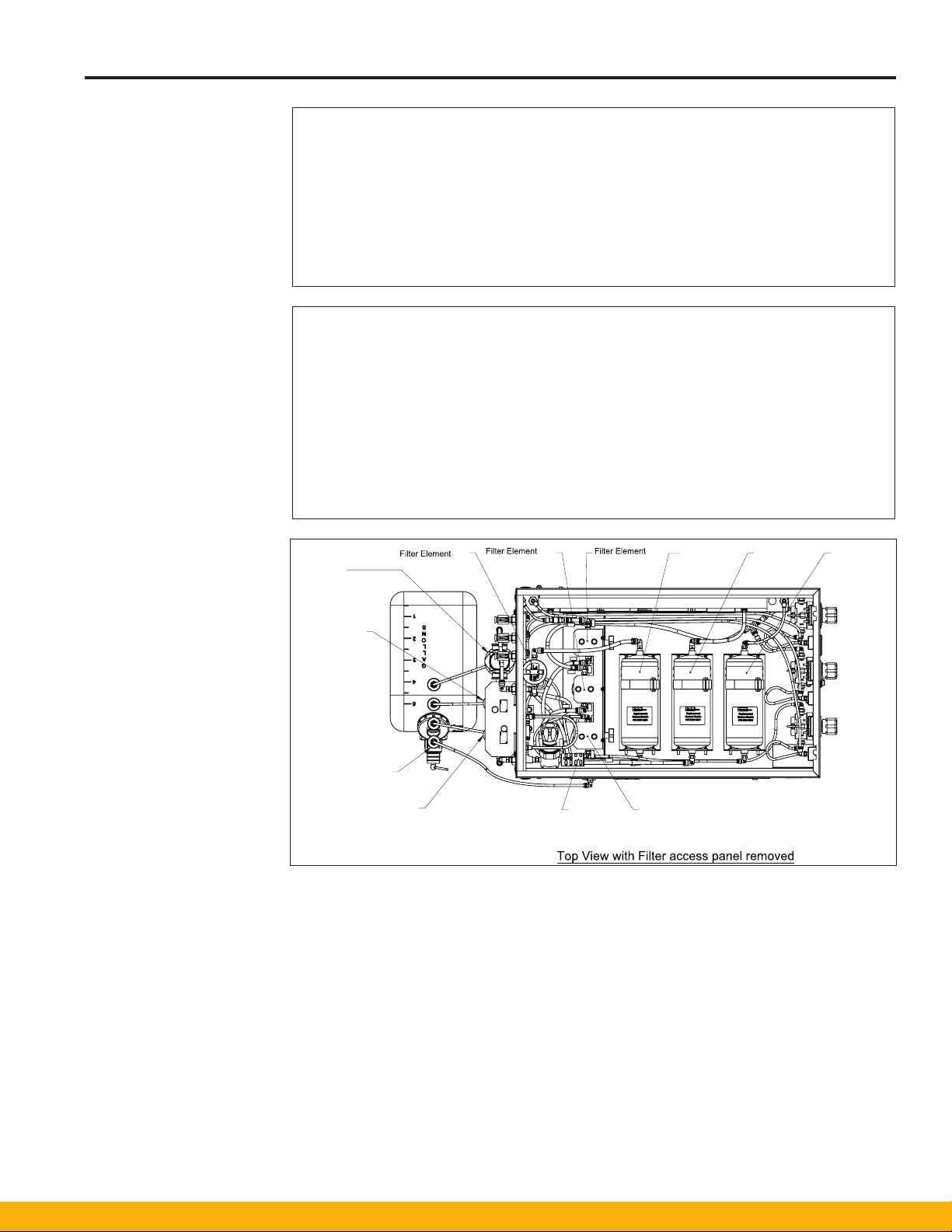

Figure 10
* depending on style

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
11
1-800-343-4048
If necessary, wipe the generator with a clean, dry cloth on an as-needed basis. Do not use
water, aerosols or other cleaning agents on the unit. Use of any liquid detergent to clean
the unit could pose an electrical hazard.
Cleaning
5,000 Hour Service Instructions
1 Remove the upper side compressor access panel (see Figure 1).
2 By hand, push-in and rotate one intake lter cap to remove. Undo latch to remove second
intake lter cap (see Figure 11).
3 Replace the old lter elements with a new one, reverse steps to reassemble.
Intake Filter
Figure 11 Figure 12
Figure 13
1Remove the top panel on the unit by removing two screws at the rear with a phillips head
screwdriver and pulling top panel to the rear.
2 Remove the black nylon tube from the drain port of the lter housing by pushing the collet
of the tting towards the body of the tting, and pulling on the tube to release it (see Figure 12).
3 Remove the compressed air inlet tube from the elbow (see Figure 12).
4 LOOSEN (do not remove) three hex head screws located at the front of the cabinet (See Figure 13).
5
Disconnect the water separator tube & prelter tubes from the rear of the generator (See Figure 8).
6Remove two screws from the rear panel with a phillips head screwdriver.
7 Pull cabinet to the rear and lift off of compressor cabinet. Be cautious of exterior pre-lters.
8 Check belt tension (see gure 14) using a belt tension gauge or the deection method.
Tension gauge should indicate minimum 45 lbs. If using the deection method, 3.0-3.38 lbs
force at mid span should yield 7/32” belt deection.
9 When making adjustments to the belts, make sure that pulley misalignment is no more than
1/16” and that both pulleys are not misaligned by more than 1/16” also (see Figure 15)
10 Adjust tension if required by adjusting motor bracket. Replace belts if needed.
Belts
Figure 14

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
12
1-800-343-4048
1 Remove the plastic dust cap from the pump (see Figure 16).
2 Rotate the compressor pulley until the grease tting is visible in the dust cap hole.
3 Using a grease gun extension adapter to engage the grease tting, supply the proper amount
of grease according to the grease delivery Table 1, Figure 16.
Note: Pump grease gun before feeding to eliminate air from the needle adapter. Each pump
equals 0.65 grams of grease. The volume of grease is less after the 2nd pump since some
grease remains in the extension adapter.
4Replace the plastic dust cap.

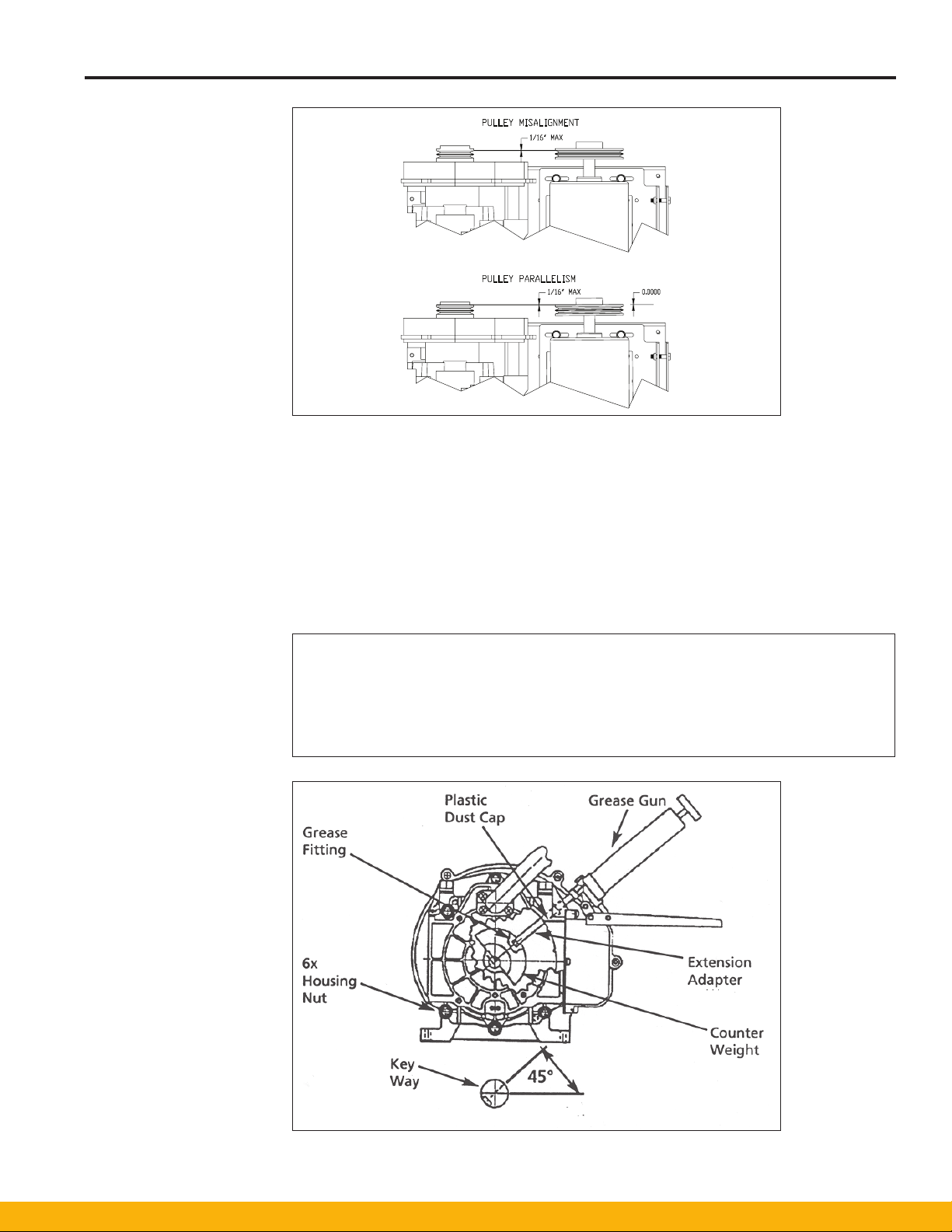

Figure 15, belt diagram
Grease Orbital
Scroll Compressor
Bearings
Table 1 - Grease Delivery SLAE03E
Bearing 1st Pump 2nd Pump
Orbit Scroll Bearing 5 times 4 times
Pin Crank Bearing 4 times 4 times
(Orbit Scroll side)
Figure 16 Grease and Orbit Scroll Bearing

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
13
1-800-343-4048
1 Remove the six housing nuts (see Figure 16).
2Remove the stationary scroll housing.
3 Remove the old tip seals from both the orbiting and stationary scroll housings (Figures 20-23).
Replace Tip Seal
1 Remove the side compressor access panel (see Figure 1).
2Remove the fan duct.
3 Remove the nuts, bolts, and then the xed scroll.
4 Grease three pin crank bearings according to Table 1 and Figure 17.
5 Replace xed scroll and fan duct. Torque bolts, initially 17 inch-lbs., then nally 175 inch-lbs.
Grease Pin Crank
Bearing
Figure 17
Note: The grease tting located in the center of the pin crank bearing feeds only the orbit scroll
side bearing. Use a needle adapter to supply grease to the housing side bearing. Pump grease
gun to eliminate any air in the needle adapter. Hold grease gun for 5 to 10 seconds after
feeding grease to prevent grease blowback from the grease tting.
Figures 18 & 19
Figure 20 LP Tip Seal
4Remove the old dust seal and backup tube from both housings.
5 Blow off any dust from both housings. (Figure 24)
Figure 21 HP Tip Seal Figure 22 Dust Seal Figure 23 Backup Tube
Figure 24
Grease fitting

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
14
1-800-343-4048
6 Install the new high pressure (shorter one) tip seal starting from the center of the scroll, outward
inside the seal channel. (Figures 25 - 27)
Note: The side and bottom lip notches of the tip seal face INWARD and DOWNWARD
in the channel.
7 Install the new low pressure (longer one) tip seal in the same way. Note: Make sure there is
no gap between the high and low pressure seals. (Figures 28, 29)
Note: Make sure there is no gap between the high and low pressure seals.
Caution! Do not attempt to remove the orbit scroll from the housing.
Figure 25
Figure 26
Figure 27
Figure 28 Figure 29
8After installing half of the low pressure seal, carefully remove the seal from the channel to
make sure the seal is properly locking onto the channel indentations located just past the high
pressure seal.
Note: The indentations are machined into the seal channel to prevent the low pressure seal
from moving.
9 Blow off any dust caused by removing the seal from the channel.
10 Install the low pressure seal completely and cut excessive material. (Figures 30-32)
Note: Make sure the side and bottom lip notches are facing INWARD and DOWN into the
seal channel.
Note: The lip notches must not be distorted in the seal or torn off.
11 Install backup tube in the dust seal channel.
Figure 30 Figure 31 Figure 32
HP Tip Seal for OS
HP Tip Seal for FS
LP Tip Seal
for OS
LP Tip Seal
for FS
Dust Seal
Backup Tube

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
15
1-800-343-4048
Fuse Replacement
10,000 Hour Service
Instructions
12 Place dust seal over the backup tube. (Figures 33, 34)
Caution! The backup tube and dust seal must meet at the bottom of the housing
in the six o’clock position.
13 Install the stationary scroll housing onto the orbiting scroll housing and reassemble the unit.
14 Tighten the pulley bolt (M8) to 265 in -lbs, using a torque wrench.
15 Tighten the six housing nuts to 265 in-lbs, using torque wrench.
There are three fuses located in the compressor cabinet (see Figure 35). Before servicing the fuses, turn
the generator off and disconnect the power cord from the power supply.
To access the fuses, remove the upper compressor access panel (see Figure 1), and locate the fuse blocks.
Both lines 1 and 2 are fused separately. Remove both line fuses with a small screwdriver. Replace either
one or both fuses as required. To maintain safety, use only fuses of the size and type specied in the
Specications section of this manual.
These instructions describe the replacing of the two coalescing pre-lters, two carbon modules, and two
particulate lters in the NitroFlow TG2 Generator System Series.
Generator must be set to “OFF” and pressure gage must read zero before lter replacement.
Figure 35
Reset
Button
DXWater
Separator
BX
Figure 36
Figure 33 without dust seal Figure 34 with dust seal
Coalescing Filters
1 The replacement elements are B100-18-DXE (rst stage) and BY100-18-BXE (second stage).
It is very important to install the proper grade lter into the proper housing. Take extra
care to install in the proper sequence (see Figure 36). From the rear, DX on left, BX on right.
2Twist the bowl loose from the head of the assembly, counter clockwise, and remove carefully
so as not to damage or lose the o-ring (see Figure 37).
3 Unscrew the element retainer at the base of the element, and replace the spent element with
a new one (see Figure 38).
4Reverse the steps to reassemble. Make sure the o-ring is sealed in the groove before
reinstalling the bowl.
Figure 37 Figure 38
Generator must be set to
“OFF” and pressure gage
must read zero before lter
replacement.

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
16
1-800-343-4048
Carbon Modules
Particulate Filters
During the 10,000 hour service interval only the inlet Carbon
Module (B06-0264) closest the rear of the generator is replaced
(see gure 10). All three carbon modules are replaced during the
30,000 hour service. Please note that the carbon modules will only
mount to the brackets in one orientation.
1 Using a 1” wrench, remove the tie nut at the base of the bowl (see Figure 40).
2Twist the bowl loose from the head of the assembly and remove carefully as not to damage or
lose the o-ring (see Figure 41).
3 Pull off the element retainer at the base of the lter, and replace the spent lter element with a
new one (see Figure 42).
4Reverse the steps to re-assemble. Make sure the o-ring is sealed in the groove before
reinstalling the bowl. Hand tighten, plus 1/4 turn using the 1” wrench.
Figure 39
Figure 40 Figure 41
Figure 42
1 Remove the top panel from the NitroFlow TG2 Generator Series by removing two screws with
a phillips head screwdriver and pulling top panel to the rear.
2 Disconnect the plastic tubing from the press ttings on the inlet and outlet ports of the module
3 Release the hook and loop strap that clamps the module to the unit (see Figure 39). Slide the
module out of the bracket.
4Replace with a new carbon module, noting the correct orientation.
5Slide the new module into the bracket fully and re-attach the hook and loop strap.
6 Re-insert inlet and outlet tubing. Use a soap or a leak detecting solution to check for leaks
when pressurizing (re-starting) the unit.
Generator must be set to “OFF” and pressure gage must read zero before lter replacement.

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
17
1-800-343-4048
1. Remove the main side access panel by removing T-25 Torx head screws.
2. Ensure that the tank is fully depressurized by pressing the “TEST” button on the drain timer
(see gure 47).
3. Disconnect the power cord from the generator power receptacle.
4. Remove the 2 bolts holding the small power cord receptacle/drain bulkhead panel in place
(see gure 44).
5. Disconnect the drain tube from the quick disconnect tting on the drain inlet (see gure 46).
6. Remove the Phillips head screw holding the electrical connector onto the timer. Note: this
connector will be reused with the new drain assembly (see gure 47).
7. Remove drain assembly from bulkhead tting and then the quick disconnect tting from
drain inlet. Note: both the bulkhead and quick disconnect ttings will be reused with the new
drain assembly. Parker recommends the use of Teon plumbers tape on the treads of these
ttings during reassembly.
8. Reverse steps to install the new drain taking care to position both the timer/coil and quick
disconnect tting in the same orientation as they were with the old drain. Note: you may
need to loosen the 14mm valve top nut to reposition the timer/coil.
9. Ensure the new timer settings match those on the old timer, 2 seconds and 10 minutes.
10. Ensure that the ball valve on the new drain is open by slowly turning the black knob in-line
with the drain body.
11. Reconnect power and test the generator and drain operation
Timed Solenoid Drain
Figure 43
Figure 44 Figure 45 Figure 46
Filter Silencer 1. Unscrew the existing lter silencer from the base of the back pressure regulator by rotating
the silencer counterclockwise (see gure 43).
2. Carefully thread and screw the new lter silencer into place by rotating clockwise until snug.
Figure 47

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
18
1-800-343-4048
System Specifications
Cautions 1The generator should be installed in an area with adequate ventilation to reduce the
ammability of the oxygen-rich permeate stream. The system should not be located in an
area where the permeate stream poses the risk of explosion or combustion
2Nitrogen is nontoxic and largely inert. It can act as a simple asphyxiant by displacing
oxygen in air. Inhalation of nitrogen in excessive concentrations can result in
unconsciousness without any warning symptoms such as dizziness and fatigue.
3 The maximum operating pressure of the system is 137 psig (9.4 barg). Operating the
generator at pressures above 137 psig (9.4 barg) will result in damage to the pump and
membrane.
4 The drain lines should be piped away to the provided collection container (open to
atmospheric pressure) to avoid any possible re-entrainment of liquid in the air which feeds
the generator.
5 Changes in inlet pressure or outlet ow demand will alter the gas purity.
6Install the generator in a room where the ambient temperature and humidity are below
85°F at 43% RH.
System Specifications NitroFlow TG2
CSA Certication Standard CAN/CSA C22.2 No. 61010-1
IEC Standard IEC 61010-1
UL Standard UL 61010
IEC 61010 Installation Category II
IEC 61010 Pollution Degree 2
Impact Code IK08
EMC Compliance EN61326-1/CISPR 11
Curtain Gas (N2) Purity 99.999% Organics, >96->93% N2 depending on ow
Curtain Gas Max. Flow/Pressure 30 SLPM/80 PSIG (5.5 barg)
Gas 1 / Gas 2 Purity2 <0.1 PPM Total Hydrocarbons / -40°F (-40°C) ATM Dew Point
Gas 1 / Gas 2 Max. Flow Pressure 34 SLPM/110 PSIG (8.2 barg)
Source Gas (Dry Air) Purity <0.1 PPM Total Hydrocarbons / -40°F (-40°C) ATM Dew Point
Source Gas Max. Flow Pressure 34 SLPM/110 PSIG (8.2 barg)
Suspended Liquids None
Particles > 0.01 Micron None
Phthalates None
Sound Level <49 dB(A) at 1 meter
Min./Max. Compressor Operating Pressure 130/137 PSIG (8.9 to 9.4 barg)
Min./Max. Ambient Temp. 60°F/85°F (16°C-29°C)
Max. Ambient Relative Humidity 43% at 86°F – see chart on page 17
Altitude 2000M (for higher altitude, see chart on page 18)
Heat Dissipation 10246 BTU/Hour
Electrical Requirements¹ - 60 Hz 208-254VAC, 60 Hz, 1 Phase, 16A
Electrical Requirements¹ - 50 Hz 230VAC, 50 Hz, 1 Phase, 13A
Power Consumption - 60 Hz 16A@230VAC, 3680 Watts
Power Consumption - 50 Hz 13A@230VAC, 2990 Watts
Start-Up Time 10 Minutes
Compressor Outlet - Tank Drain 1/4” Tube
Ports - Filter Drains (2) 1/4” Tube
Ports - Water Separator 1/4” Tube
Ports - Nitrogen Outlet 1/4” NPT
Ports - Dry Air Outlet 1/4” NPT
Ports - Hydrocarbon Free Air 1/4” NPT
Fuses - Primary FU1, FU2 10.3 x 38.1mm, Type T, 600V, 1.25A
Fuses - Secondary FU3 6.3 x 31.7mm, Type T, 250V, 1.25A
Dimensions 33.5”L x 20.75”W x 45.25”H
Product Weight 427 lbs (194 kgs)
Shipping Weight 637 lbs (289 kgs)
¹ Main supply voltage uctuations not to exceed ± 10% of nominal voltage.
2Hydrocarbons other than methane.

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
19
1-800-343-4048
Accessory Parts Part Number
Voltage Step-Down Transformer A03-0412
Voltage Step-Up Transformer A03-0411
Exhaust Ventilation Kit B04-0575
Bottle Drain Kit B04-0540
In-line Duct Fan (120V) A03-0378
Exhaust Duct Kit B04-0693
Temperature (°F) Relative Humidity (%)
86 43
80 51
75 60
70 71
65 84
60 100
Maximum Relative Humidity at Different Temperatures
Compressor Output Pressure at Different Altitudes
Disconnect the electrical power and depressurize the generator before
attempting any troubleshooting activities according to the shut down steps in
the operation section. Only trained personnel using reasonable care should
perform any troubleshooting activities.
Determine whether the trouble is with the compressor or the gas generator.
Disconnect the plastic tubing from the compressor tting (see Figure 43). Once
removed, place supplied plug into tting. Check that the compressed air source
builds full pressure and cycles off within two minutes.
If the compressor air supply is conrmed, remove lower side panel and relieve tank
pressure using auto tank drain test button. Proceed to the NitroFlow TG2 generator
Troubleshooting section (page 20), and begin troubleshooting the NitroFlow TG2
generator. Otherwise, refer to the Compressor Troubleshooting section (pages 19,
20), and begin troubleshooting the compressor.
Troubleshooting
Altitude Max Compressor Pressure Max Outlet Pressure
at Full Flow
0 – 3,280 ft (0 – 1000 m) 125 psig 115 psig
3,281 – 8,200 ft (1,001 – 2,500 m) 125 psig 115 psig
8,201 – 13,100 ft (2,501 – 4,000 m) 116 psig 106 psig
13,101 ft (4,001 m) N/A N/A

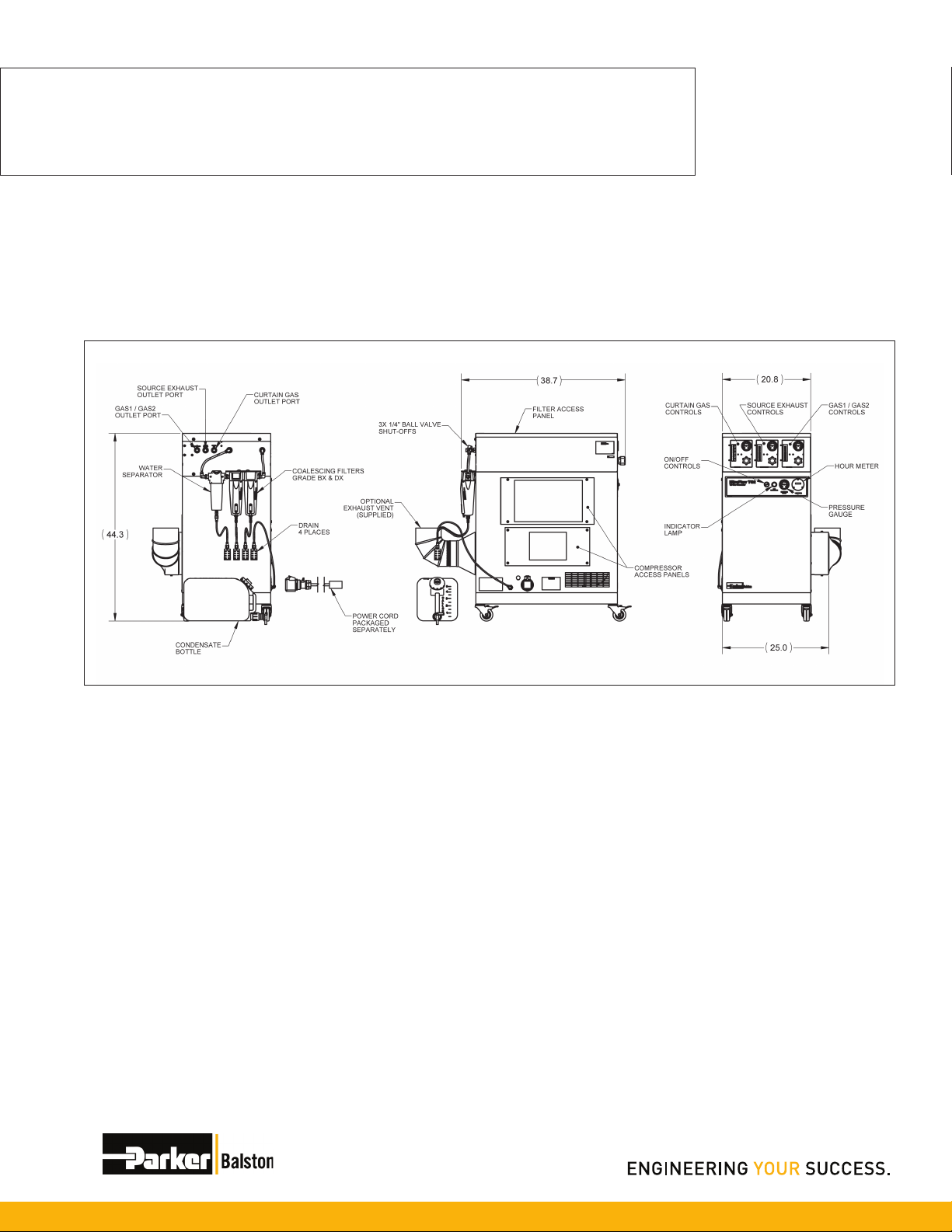

Figure 48

Bulletin TI-NITROFLOW TG2-G Installation, Operation and Maintenance Manual
TI-NITROFLOWTG2
www.labgasgenerators.com
20
1-800-343-4048
POWER ON light (green)
does not appear
• Power not plugged in
supply outlet
• Power switch is not ON
• Blown fuse or tripped OFF
circuit breaker at customer
provided power supply
• Blown fuse at primary side
of transformer
• LED power switch has
failed
• Plug in power cord
• Switch POWER to ON
• Replace fuse or switch
disconnect ON
• Replace fuse on primary
side. Be sure to use the
same type and size
• Replace switch
Compressor Troubleshooting
Symptom Probable Cause Corrective Action
POWER ON light is on but
motor will not start
• Motor overload has tripped
• Wrong or low voltage
• Starter failed
• Motor failed
• Determine fault and reset
overload (Blue button)
• Check incoming power
supply and unit power rating
•
Replace contractor assembly
• Replace motor
Compressor is running but
will not make pressure
• Auto drain valve is open
continuously
• Drive belts broke or are too
loose
• Clogged intake lter
elements
• Pressure relief valve has
opened
• Excessive tip seal wear
• Motor running wrong
direction
• Replace auto drain valve
• Replace drive belts and (or)
tighten to specication
• Replace intake lter element
per instructions
• Pressure switch needs
replacing or motor contacts
welded shut
• Replace tip seals per
instructions every 5,000 hrs
• Correct power connections
Excessive noise or vibration • Drive belts are loose
• Drive belt has separated or
at spot
• Cooling fan touching guard
• Motor bearing has failed
• Re-greasing procedure
not performed at 5,000 hr
intervals
• Pump damaged
• Intake lters loose on pump
• Tighten belts to specication
• Replace drive belt
• Adjust guard
• Replace motor
• Removal of stationary
scroll is required for pump
inspection
• Repair or replace pump
• Tighten intake lters
