Parking Facilities PF6000X Instruction manual

PF6000X
Automatic Barrier
Rev 1.0
Installation,
Operation & Maintenance
Manual

PF6000X Contents
INDEX PAGE NO
INTRODUCTION & WARNINGS 03
WARRANTY & LIMITATIONS 04
DELIVERY, MOVEMENT & TRANSPORT 05
BARRIER SETUP 06
BARRIER SEQUENCES EXPLAINED 07
GENERAL SPECIFICATION 08
COMPONENT IDENTIFICATION 09
POLE ARM ADAPTOR 10
BARRIER HANDING 11 - 13
MANUAL RELEASE GUIDE 14

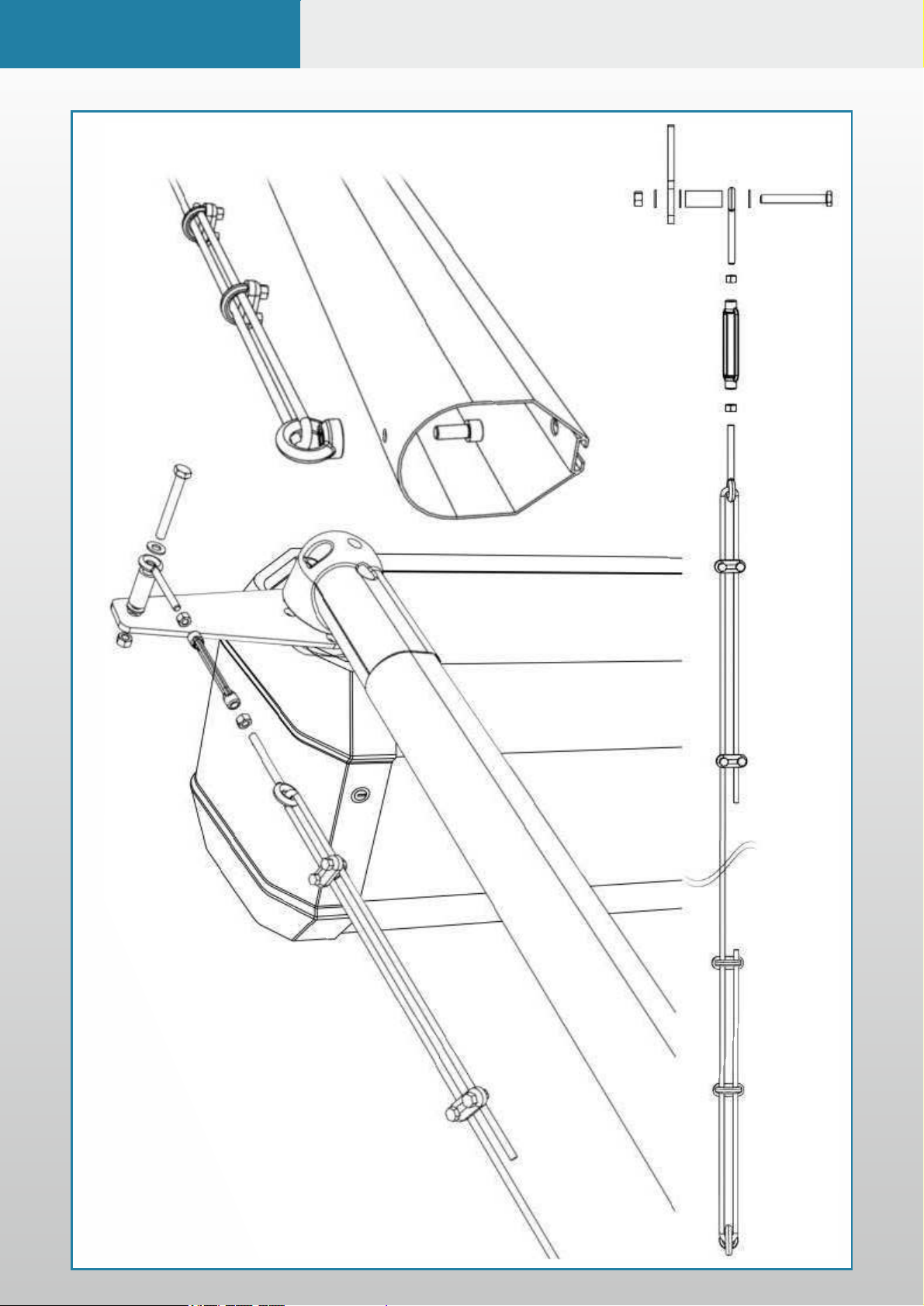

STRAINING WIRE ASSEMBLY 15
FIRST OPERATION MANOEUVRES 16
LIMIT SWITCH ADJUSTMENT 17
PLC USAGE EXPLAINED 18
UPLOADING A PROGRAM 19
PLC LOGIC 20
ALTERING BARRIER SPEED 21
EXAMPLE LOOP INSTALLATION 22
LOOP DETECTOR GUIDE 23 - 24
WIRING DIAGRAM 25 - 26
MASTER/SLAVE WIRING 27
TROUBLESHOOTING 28 - 29
BARRIER MAINTENANCE 30
POTENTIAL SYSTEM HAZARDS 31
INSTALLATION CHECK LIST 32
SERVICE LOG 33
COMMISSIONING CERTIFICATES 34 - 35

PF6000X Introduction & Warnings
This equipment is part of a large range of traffic flow products. They are designed to be easy to install,
as all settings and internal wiring have been completed in our factory. Any of the instructions in this
manual should only be carried out by a qualified service engineer or a competent person.
The steps outlined must be completed before the power is turned on to prevent accidents.
The following information is a guide only, and whilst we have made every effort to be accurate and
correct there may be printing errors which we cannot be held responsible for.
With a correct installation you can expect to enjoy many years of reliable service from this product, we
do however recommend that the product has a bi-annual service carried out by a qualified engineer.
Please contact our service department to obtain a quote. As we manufacture the products we are best
suited to care for your equipment.
/ /20
!
Important Safety Notice
Automatic barriers are designed to Control the flow of vehicular
traffic only. It can be dangerous to allow the passage of
pedestrians and any other self-powered animal or device to utilise
this method of access without appropriate warnings and or
signage.
It may be necessary for the end user of this product to provide an
alternative, safe method of access to cater for the previously
mentioned categories.
The end user should fit all necessary signage and warning notices
to either side of the gate, which should be visible and clear from
all directions of approach.
The product that was shipped to you was designed with a control
program to protect all categories from harm or affect this however
is only a fail safe and should not be modified or tampered with by
any unauthorised person not sanctioned by the manufacturer.
Please sign and date below to say that you have read and
understood this notice before ANY installation work:
Information on using
this manual
ŸRead all information thoroughly
ŸPay attention to all safety advice
ŸBe aware of the symbols (shown above right and above
left) as they have different meanings. One is an
information symbol, the other a warning.
ŸThere are many artists impressions of the product in
this manual you should refer to the images as a guide
only. Professional CAD drawings should be used as a
reference drawing and nothing else. As before every
effort has been made to be 100% accurate in this
manual but we cannot make any guarantees.
ŸAs we constantly innovate our products we may
change the quoted spec and any other details that have
been documented in this manual so you should always
refer to the supplier to see if the manual that was
shipped with your product is the latest edition.
ŸAs with all electrical installations you should use a
qualified electrician and obey all of the latest laws and
regulations.
ŸBe sure to fill out and complete ALL paperwork where
instructed as this manual is the equipments log book
and maintenance manual.
The “Warnings” leaflet and “Instruction booklet” supplied with this
product should be read carefully as they provide important information
about safety, installation, use and maintenance.
Scrap packing materials (plastic, cardboard, polystyrene etc) according
to the provisions set out by current standards. Keep nylon or polystyrene
bags out of children's reach.
Keep the instructions together with the technical brochure for future
reference.
This product was exclusively designed and manufactured for the use
specified in the present documentation. Any other use not specified in
this documentation could damage the product and be dangerous.
The Company declines all responsibility for any consequences resulting
from improper use of the product, or use which is different from that
expected and specified in the present documentation.
Do not install the product in explosive atmosphere.
The construction components of this product must comply with the
European Directives noted in this manual and subsequent amendments. As for all non-EEC
countries, the abovementioned standards as well as the current national standards should
be respected in order to achieve a good safety level.
The Company declines all responsibility for any consequences resulting
from failure to observe Good Technical Practice when constructing
closing structures (door, gates etc.), as well as from any deformation
which might occur during use.
The installation must comply with the provisions set out by the European
Directives and subsequent amendments.
Disconnect the electrical power supply before carrying out any work on
the installation. Also disconnect any buffer batteries, if fitted.
Fit an omnipolar or magnetothermal switch on the mains power supply,
having a contact opening distance equal to or greater than 3mm.
Check that a differential switch with a 0.03A threshold is fitted just before
the power supply mains.
Check that earthing is carried out correctly: connect all metal parts for
closure (doors, gates etc.) and all system components provided with an
earth terminal.
Fit all the safety devices (photocells, electric edges etc.) which are
needed to protect the area from any danger caused by squashing,
conveying and shearing, according to and in compliance with the
applicable directives and technical standards.

PF6000X Warranty & Limitations
Warranty and Limitations of Liability
WARRANTY
Our exclusive warranty is that the products are free from defects in materials and workmanship
for a period of one year (or other period if specified) from date of sale by PFL.
PFL MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING
NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE
PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS
DETERMINED THAT THE PRODUCTS WILL SUIT ABLY MEET THE REQUIREMENTS OF THEIR
INTENDED USE. PFL DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED.
LIMITATIONS OF LIABILITY
PFL SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL
DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE
PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR
STRICT LIABILITY.
In no event shall the responsibility of PFL for any act exceed the individual price of the product on
which liability is asserted.
IN NO EVENT SHALL PFL BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS
REGARDING THE PRODUCTS UNLESS PFL'S ANALYSIS CONFIRMS THAT THE PRODUCTS
WERE PROPERLY HANDLED, STORED, INSTALLE D, AND MAINTAINED AND NOT SUBJECT TO
CONTAMINATION, ABUSE, MISU SE, OR INAPPROPRIATE MODIFICATION OR REPAIR.
Application Considerations
SUITABILITY FOR USE
Schneider shall not be responsible for conformity with any standards, codes, or regulations that apply to
the combination of products in the customer's application or use of the products.
At the customer's request, Schneider will provide applicable third party certification documents identifying
ratings and limitations of use that apply to the products. This information by itself is not sufficient for a
complete determination of the suitability of the products in combination with the end product, machine,
system, or other application or use.
The following are some examples of applications for which particular attention must be given. This is not
intended to be an exhaustive list of all possible uses of the products, nor is it intended to imply that the
uses listed may be suitable for the products:
• Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions
or uses not described in this manual.
• Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical
equipment, amusement machines, vehicles, safety equipment, and installations subject to separate
industry or government regulations.
• Systems, machines, and equipment that could present a risk to life or property.
Please know and observe all prohibitions of use applicable to the products.
NEVER USE THE PRODUCTS FOR AN APPLICATIO N INVOLVING SERIOUS RISK TO LIFE OR
PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO
ADDRESS THE RISKS, AND THAT THE OMRO N PRODUCTS ARE PROPERLY RATED AND
INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.
PROGRAMMABLE PRODUCTS
Schneider/PFL shall not be responsible for the user's programming of a programmable product, or any
consequence thereof.

PF6000X Delivery, Movement & Transport
The barrier should ALWAYS be moved with care and attention. The products are very heavy
individually as well as a whole. You should not attempt to move this or any other products by
unapproved handling methods.

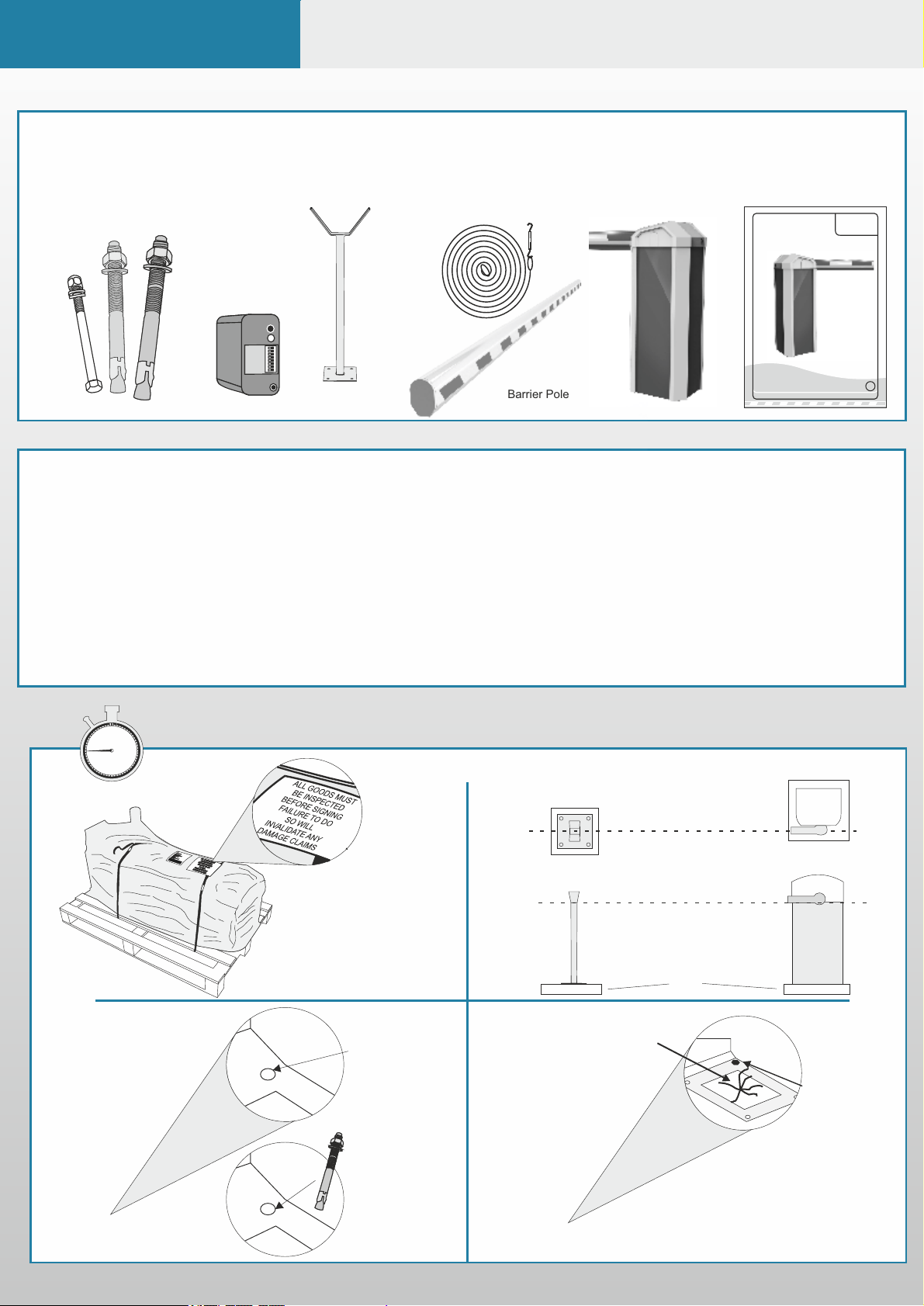

1.The barrier will be strapped to a pallet.
2. This should be moved using a fork lift truck or something
that is designed to handle/move such items.
3. The Aluminium pole will be wrapped and packaged
separately and might be delivered as a separate item.
4. If no equipment is available to unload the pallet following
correct product handling guidelines then advice is available
for separating the package to unload individually.
5. The barriers have a high centre of gravity please take
care that these machines do not fall over when moving
them about on site.
Moving Goods Safely (MGS) started out as a national project involving both the Health and
Safety Executive (HSE) and Local Authorities (LA) working in partnership. The project aimed to
reduce injuries and ill health arising from the movement of goods from supplier, through haulier
to the recipient and end user including any home deliveries, by focusing upon the delivery and
collection of goods and the hazards this generates. It covered the main areas that cause the
majority of injuries and ill-health to workers, including:
· Workplace transport;
· Slips & trips, and;
· Musculoskeletal disorders (MSD).
The movement of goods presents us, as health and safety regulators, with the challenge of
dealing with a huge variety of issues. The commercial organisations involved within the
movement of goods are diverse including hauliers, third party logistics providers, pallet
networks, retailers etc, with some very large companies, thousands of small businesses and
the self-employed. The movement of goods is more than just trucks on the road with a large
proportion of accidents happening at the delivery/collection sites that are often not directly
under the control of the company making the delivery or collection. Communication and
cooperation problems can arise due to the many organisations involved in the movement of the
goods, and this can also lead to difficulties in effectively managing health and safety.
This site provides access to information that is relevant to those organisations where the
movement of goods between sites forms a fundamental aspect of their business.
(Source: H&S Executive UK 2017)
012182658985652686652223355
Product Weight: 86Kg
Pallet Weight: 21Kg
Std Pole Weight: 1.11Kg/metre
HD Pole Weight: 2.24Kg/metre
Pallet Dimensions: 1200mm x 1600mm x 460mm

PF6000X Barrier Setup
Safety Road
Loop
Traf
Traf
fic Barrier
fic Barrier
Loop
Detector
Input
Mains Power
Free Exit Road
Loop
Safety Road
Loop
Loop
Detector
Input
Mains Power
Access Control Pedestal
ENTRY
EXIT

PF6000X Barrier Sequences Explained
Standard Barrier Entry “One Way“ Operation
1. Barrier raise requested (keypad/swipe card etc).
2. Barrier Raised.
3. Barrier “No Passage” timer started.
4. Car moves onto safety loop (free exit loop inhibited, no passage timer cancelled).
5. Car moves o ffof safety loop.
6. Barrier lowered.
Safety Loop
Free Exit Loop
ENTRY
EXIT
B2A Sequence
Where B is the safety loop, under the
barrier, and A is the free exit loop, the other
side of the barrier.
B2A (Enter Site)
1. Barrier Raise Request (Keypad/Swipe
Card etc)
2. Barrier Raised
3. Barrier “No Passage” timer started
4. Should “No Passage Timer” elapse
before safety loop seen, go to 9
5. Car move onto safety loop (free exit loop
inhibited, no passage timer cancelled)
6. Car moves o ffsafety loop
7. Car move onto free exit loop
8. Car moves o ffof free exit loop
9. Free exit loop active again
10. Barrier Lowered
A2B Sequence(Leave Site)
1. Car moves onto free exit loop
2. Barrier Raised
3. Barrier “No Passage” timer started
4. Should “No Passage Timer” elapse
before safety loop seen, go to 9
5. Car move onto safety loop (no passage
timer cancelled)
6. Car moves o ffof safety loop
7. Safety Close timer started
8. Safety Close timer elapses
9. Barrier Lowered

PF6000X Barrier Specification
Specification: CE Approved (Confirms to BS6571)
Maximum Boom Length: 4 - 9 Metres (Dependant on Barrier Model)
Boom Diameter: 86mm x 60mm Oval
Opening/Closing Time: 3.0 - 12.0 Seconds (Dependant on Barrier Model)
Drive Unit: 3 Phase Motor & Wormed Gearbox
Power Supply: Single Phase 230v, 50Hz, 10 Amps
Finish: Chromate Wash & Polyester Powder Coated
Cycles: 100% Continuous Duty Rating
ŸHeavy Duty Pillar Block Bearings for Longevity
ŸRemovable Cast Aluminium Lid - Non Rusting
Ÿ3 Phase Motor for Guaranteed Reliability
ŸAdjustable Speed, Acceleration & Deceleration
ŸNo Springs Required - No Balancing or Adjustment Necessary
ŸMotor & Gearbox - No Pulleys or Belts Required
ŸPlug in Loop Detector Bases for Single Channel Safety & Entry/Exit Control
ŸManual Override in case of Power Failure
ŸComes Complete with Anchor Bolts - No Cabinet Mounting Plate Required
ŸSafety Sensing Edges as Standard
ŸBoom Lights as Standard
Optional Extras:
ŸFoldering Bottom Skirt (Dependant on Barrier Model)
ŸHi-Bar Skirt (Dependant on Barrier Model)
ŸArticulated Arm (Low Ceilings)
ŸPogo Tip Support
ŸMagnetic Lock
ŸSignage
ŸWarning Sounder/Flashing Beacon

PF6000X Component Identification
You should check that you have received the following in your order as they are referred to throughout this
manual (note this can change per barrier spec i.e. manual components are different from automatic):
M12 Bolt
4 No.
(S/Lux)
PF6000X
PF6000X
Automatic Sliding Gate
Manual Sliding Gate
GB
O&M Manual
O&M Manual 1 No.
M16 Bolt
4 No.
(Cabinet HD)
M5 Bolt
2 No.
(Pole Arm)
Reset
OUTPUT
ON
ON DIP
1 2 3 4 5 6 7 8
PRES
PULSE
FILT
ASB
SENS
FREQ
Loop Detector(Optional)
Barrier Cabinet
c/w Pole Arm Adaptor
Barrier Pole
End Rest (Optional) Straining wire kit
for poles over 6-7 m
1. When delivered, the barrier will be on a wooden pallet. the barrier pole will be delivered separately at
the time of print it might be delivered as two separate consignments. Check before you sign!
2. Lower the barrier onto the plinth and visually align. Make sure that you have pulled all cables
through the ducting before bolting down and that the duct is in the centre of the base plate!
3.Using one M12/16 fixing, bolt down the main cabinet using one of the holes.
4. Now make sure that the barrier is now aligned perfectly, continue to bolt down through the other holes
using the remaining M12/16 bolts see below.
Now move on to step 5
The numbers in the text document below relate to the drawings below.
3.
1. 2.
4.
45 mins
60 5
10
15
20
25
30
35
40
45
50
55
012182658985652686652223355
Drill using a 12/16mm
hole using a SDS
masonry drill bit.
Clean out the hole and
then insert one M12/16
bolt nut end uppermost
hammer home until the
washer meets the
surface then tighten
the nut just hand tight
Side View of barrier bottom of
the pole arm is aligned with the
top of the catch post where the
pole comes to rest
Top View of barrier perfectly
aligned with rest of end post
Level Line
Level Line
Plinth
Drill and clean out
the other holes and
insert the other bolts,
nut end uppermost
hammer home until the
washer meets the
surface then tighten
the nut fully
Picture showing
bolt once it has
been put in.
Ducting through base
with wiring coming
through centre of
duct

PF6000X Pole Arm Adaptor Installation
5/6. 7/8.
45 mins
60 5
10
15
20
25
30
35
40
45
50
55
Pictured above is a domed pole arm adaptor the indicators show
were you should drill the 6mm holes using a standard 6mm drill
bit, drill all the way through from one side to the other.
Drill holes here Pre-cut out point
60mm
Picture shown is without pole for illustration purposes
Pictured above is a domed pole arm adaptor the indicators show
were you should drill the 6mm holes using a standard 6mm drill
bit, drill all the way through from one side to the other.
Drill holes here Pre-cut out point
200mm
60mm
Picture shown is without pole for illustration purposes Picture shown is now with a pole
Pictured above is a the pole arm adaptor(left) now covered with
a pole (this can be varying lengths) you need to now use the M6
bolts supplied to attach the pole arm.
Note! YOU CAN DRILL THROUGH BOTH THE
POLE ARM AND THE ADAPTOR AT THE SAME TIME
5/6. Now it is time to fit the pole to the barrier, you must drill through the pole AFTER you have slid it onto
arm using a 6mm HSS drill bit. The holes should be drilled at 60mm then 200mm from the knuckle as
shown above. These measurements have been supplied to maintain the optimum strength of the pole arm
adaptor. Also please note that the pole is a precise fit so may need a degree of manipulating onto the
7/8. When all holes have been drilled use the M6 bolts supplied to secure the pole to the adaptor, if you
have any accessories such as a mag lock or boom lights connect these before securing the pole. Once
this is done manually wind the pole up and down to check operation and alignment.Now connect all loops,
power and access control using the wiring diagram. For any other specific wiring access control wiring
details please contact your supplier. Just remember to check all connections and the barrier is earthed
Domed Oval Pole
Arm Adaptor
Domed Round Pole
Arm Adaptor
Flat Round Pole
Arm Adaptor
HD Round Pole
Arm Adaptor
Drill through the pole arm
in the same place as before

PF6000X Handing Change Procedure

PF6000X Handing Change Procedure

PF6000X Handing Change Procedure

PF6000X Barrier Manual Release Procedure

PF6000X Straining Wire Assembly

PF6000X First Operation Manoeuvres
1.Before attempting the steps outlined below, please obey common sense and make sure that you have
closed the passage the barrier will inhibit, provided a diversion and informed site inc pedestrians.
2.Follow the manual release guide in this manual and make sure the barrier moves un-hindered by
inserting the winding handle and turning to make the barrier open and then close.
3.If the above step is ok then proceed to close the barrier using the manual method and then power on
using the isolator switch as shown.
1. 2.
There are many options to operate the barrier as it is dependant upon which type of access control you
have connected. However there is a standard way to operate the barrier by using the key switch (optional
extra) and PLC . Instructions are assisted by pictures below.
1. Picture shown below is the key switch which is located on the outside of the barrier cabinet (it will always be on
the opposite side to the barrier arm, also picture shows the key switch keys.
2. To move the barrier arm using the PLC first make sure the screen says “RUN LD” if it does not follow the
troubleshooting guide on page 11 when the screen says “RUN LD” follow below.
3. To make the barrier move upwards or to “open” press the up arrow.
4. To make the barrier move down or to “close” press the down arrow.
Please note that the above 2 manoeuvres will not work if there is something in the way of photocells or on the loops.
1. 2.
3. 4.
Key switch
keys
This key switch is mounted on
the side of the barrier
Key switch
When the Key is inserted fully
into the centre hole turn
clockwise to open and anti-
clockwise to close. After this
you must remove the manual
release handle.
3.
Off
On
If an isolator is fitted
turn the knob
clockwise to power
on the barrier.
ROAD
CLOSED
Auto Open
IDEC
IDEC
Menu/Ok
SR2 B121BD
12
Q1
12
Q2
12
Q3
12
Q4
+ -I1 I2 I3 I4 IB IDIC IE
24VDC
24VDC 24VDC
Analog or
IB....IEInputs I1...I4
Outputs
Q1...Q4 : Relay 8A
1234 BCDE
RUN LD
SUN 20 JUL 09:36
1234
Display showing
run mode
Menu/Ok
SR2 B121BD
12
Q1
12
Q2
12
Q3
12
Q4
+ -I1 I2 I3 I4 IB IDIC IE
24VDC
24VDC 24VDC
Analog or
IB....IEInputs I1...I4
Outputs
Q1...Q4 : Relay 8A
1234 BCDE
RUN LD
SUN 20 JUL
09:36
1234
Menu/Ok
SR2 B121BD
12
Q1
12
Q2
12
Q3
12
Q4
+ -I1 I2 I3 I4 IB IDIC IE
24VDC
24VDC 24VDC
Analog or
IB....IEInputs I1...I4
Outputs
Q1...Q4 : Relay 8A
1234 BCDE
RUN LD
SUN 20 JUL
09:36
1234
Drawing showing the “UP”
arrow being pressed
Drawing showing the “DOWN”
arrow being pressed

Striker

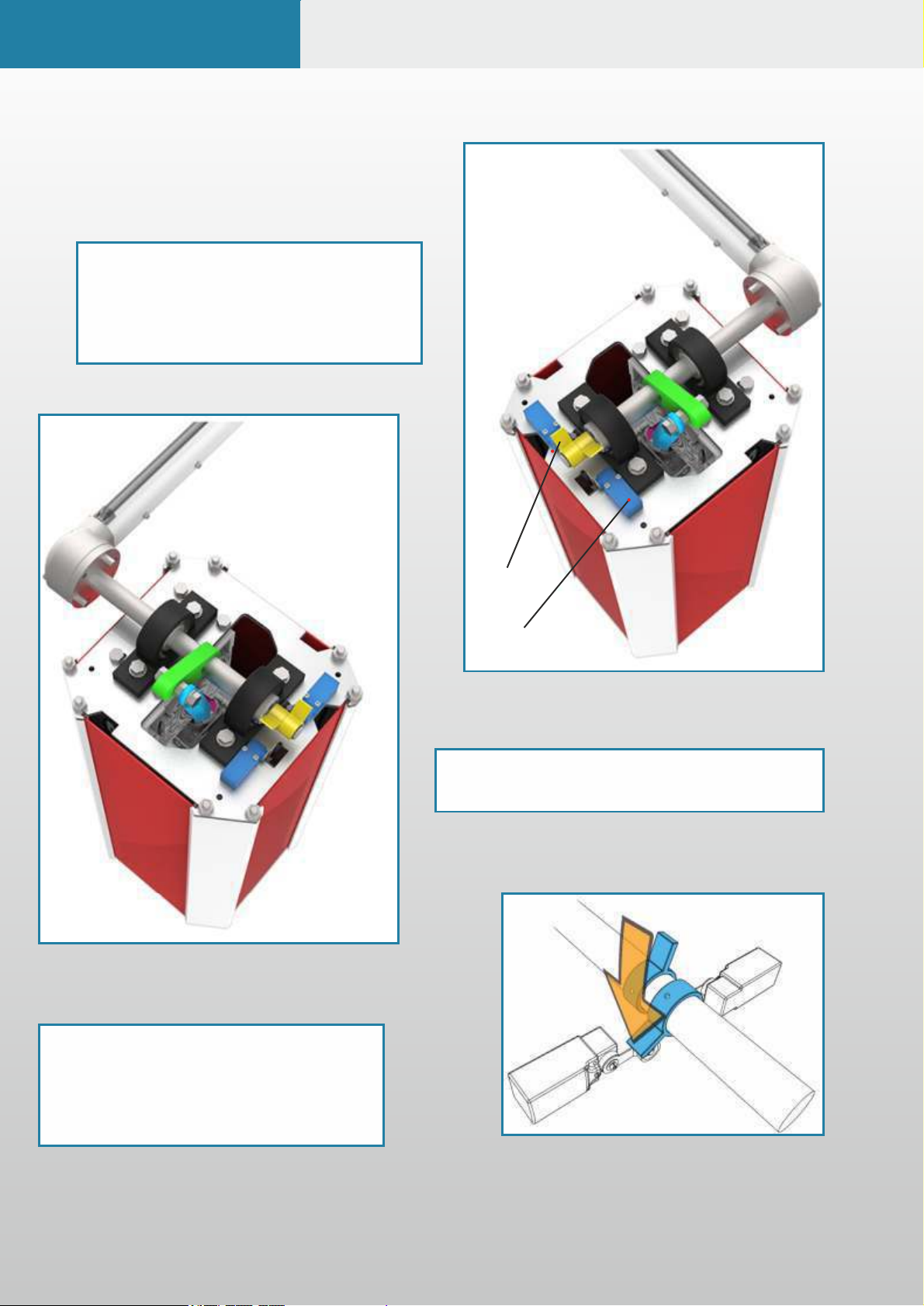

Warning! Damage to gearbox and/or motor can occur if limit striker is improperly set.
The motor will continue to spin the gear box if the limit switch is not properly engaged,
regardless of the mechanical stop position.
Limit switch
To adjust Lower limit switch trigger position.
-Set barrier to Open position.
-Loosen limit striker.
-Move striker to desired position.
-Re-tighten limit striker.
Use a rubber mallet to advance the striker in small
increments to fine tune the position of the pole arm.
To adjust Upper limit switch trigger position.
-Set barrier to closed position.
-Loosen limit striker.
-Move striker to desired position.
-Re-tighten limit striker.
PF6000X Limit Switch Adjustment

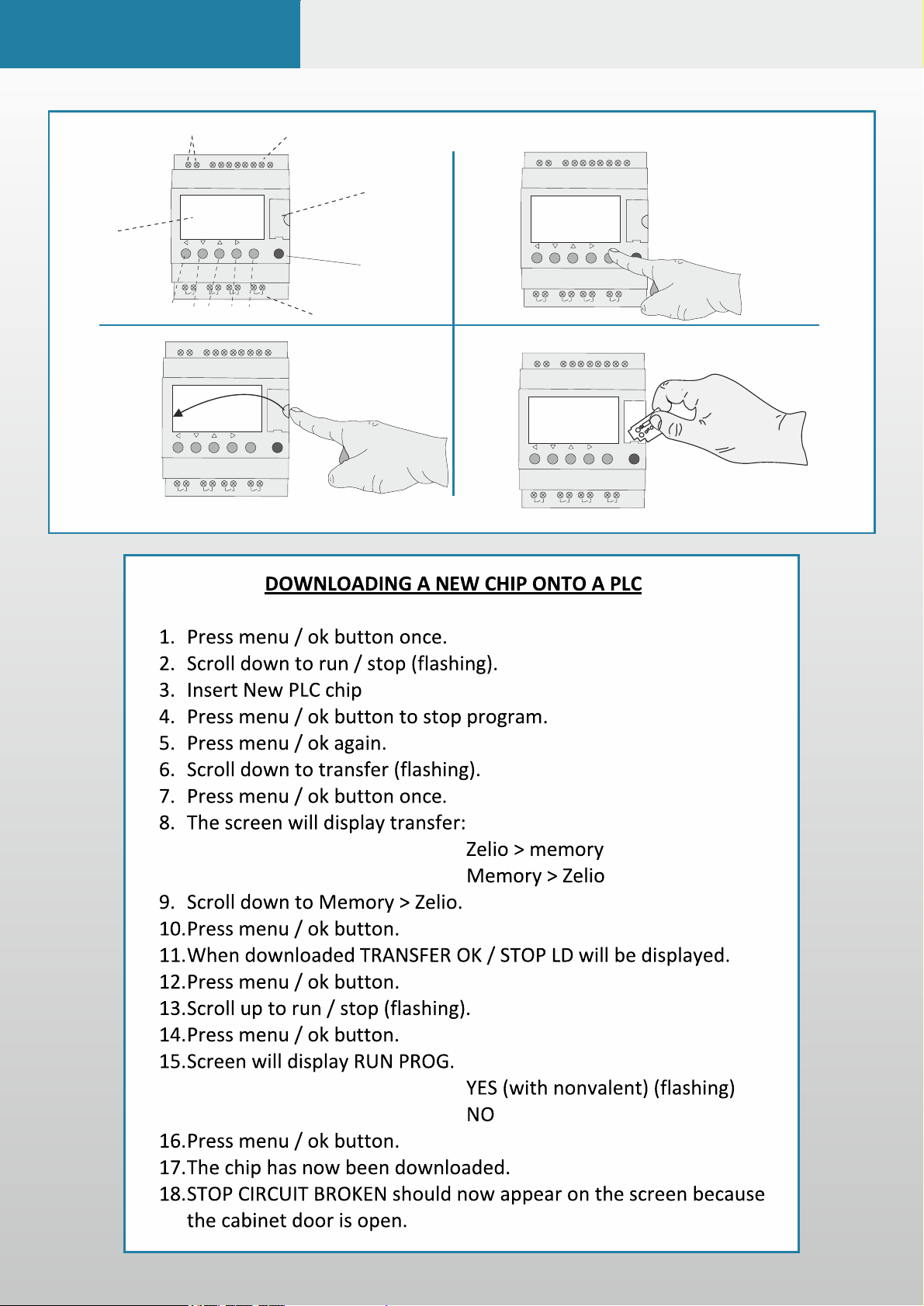

PF6000X Uploading a Program
Menu/Ok
SR2 B121BD
12
Q1
12
Q2
12
Q3
12
Q4
+ -I1 I2 I3 I4 IB IDIC IE
24VDC
24VDC 24VDC
Analog or
IB....IEInputs I1...I4
Outputs
Q1...Q4 : Relay 8A
Menu/Ok
SR2 B121BD
12
Q1
12
Q2
12
Q3
12
Q4
+ -I1 I2 I3 I4 IB IDIC IE
24VDC
24VDC 24VDC
Analog or
IB....IEInputs I1...I4
Outputs
Q1...Q4 : Relay 8A
1. 2.
4.3.
Memory card
slot
Outputs
Inputs
Power
Inputs
Left RightUpDown Menu/Ok
LCD Screen
Green Button
Menu/Ok
SR2 B121BD
12
Q1
12
Q2
12
Q3
12
Q4
+ -I1 I2 I3 I4 IB IDIC IE
24VDC
24VDC 24VDC
Analog or
IB....IEInputs I1...I4
Outputs
Q1...Q4 : Relay 8A
Menu/Ok
SR2 B121BD
12
Q1
12
Q2
12
Q3
12
Q4
+ -I1 I2 I3 I4 IB IDIC IE
24VDC
24VDC 24VDC
Analog or
IB....IEInputs I1...I4
Outputs
Q1...Q4 : Relay 8A
Telem
sgdsddvsvd
dsydsdsgdysd
ysgdsygys
ydsydgsygdsy
GL
SO

When a number or letter is shaded this denotes that input is active. So if something below should be normally closed then when shaded this is
in its normal state. If a normally closed input is unshaded then this denotes that the circuit has gone open and the input is active.
For instance if IE is shaded with a box then the photocells are in a normal state and the barrier would lower. If this becomes UN-shaded then
the photocell beam has been blocked so the barrier will no longer lower.
(if you have a separate safety edge module then input just for photocells)
(Door Safety Switch/External Stop Button)
PF6000X PLC Logic
Menu/Ok
SR2 B121BD
12
Q1
12
Q2
12
Q3
12
Q4
+ -I1 I2 I3 I4 IB IDIC IE
24VDC
24VDC 24VDC
Analog or
IB....IEInputs I1...I4
Outputs
Q1...Q4 : Relay 8A
1. Inputs
Input Polarity Connected to Operation when active
I1 Normally Closed Stop Circuit Stop Circuit Active
I2 Normally Open Raise/Open signal Barrier is getting a PERMANENT open signal
I3 Normally Open Lower/Close signal Lowers barrier (Barrier is getting a permanent Close Signal)
I4 Normally Closed Raise Limit Barrier arm has reached fully open position. Upper limit switch active
IB Normally Closed Loop detector/Safety loop Detecting vehicle on safety loop. Lowers when vehicle is not detected
IC Normally Open Free entry/Free exit loop Detecting vehicle on free exit/entry loop/ Barrier opens when vehicle present on loop
ID Normally Closed Lower limit Arm has reached fully closed position. Lower limit switch active
IE Normally Closed Safety Edge Input /Photocell Input Photocell Active or Safety Edge Active
2. Outputs
Output: Polarity: Connected to: Operation when active:
Q1 Normally Open Motor controller open direction Active to open barrier
Q2 Normally Open Motor controller close direction Active to close barrier
Q3 Normally Open Boom light or Magnetic arm lock Signal given to accessories
Q4 Normally Open Flashing beacon/Siren (if installed in
program)
Signal given to accessory if installed in PLC program
The table (bottom) relates to the diagram directly below to help you trouble shoot electrical component errors
Menu/Ok
SR2 B121BD
12
Q1
12
Q2
12
Q3
12
Q4
+ -I1 I2 I3 I4 IB IDIC IE
24VDC
24VDC 24VDC
Analog or
IB....IEInputs I1...I4
Outputs
Q1...Q4 : Relay 8A
1. 2.
1 B234 CDE
RUN LD
SUN 20 JUL 09:36
1234
1234 BCDE
STOP LD
SUN 20 JUL 09:37
1 32 4
Input displays
which change
as inputs used
detailed in the
table below.
Example
showing number
I1 and IB input
selected
Showing program in “run mode” Showing program in “Stop mode”
Output displays
which change
as Outputs used
detailed in the
table below.
Example
showing number
Q1 and Q3
output selected
Date/Time Display Date/Time Display
Note:
If barriers are set up as a master and slave then see additional wiring info in this section.
!

PF6000X Altering Barrier Speed
Inputs
LCD Display
Outputs
Enter Key &
Scroll Key
Escape Key
How to change Barrier speed
1. The display will show “ ”
2. Press the ENT Dial buton
3. Scroll the dial unl CONF is shown on the display
4. Press the ENT dial
5. Scroll the dial unl LSP is shown on the display
6. Press the ENT dial
7. The current speed is then shown Example: 50
8. Now use the scroll dial to set the desired speed you require*
9. Note if this is increased/decreased considerably then the ACC
and the DEC will also need to be adjusted to suit. For any
advice please contact the service department.
10. Press the ESC button unl RDY is shown in the display to exit
the menu.
ACC is set to “2” by default this may be increased
DEC is set to “2” by default this
may be increased
RDY
Please be aware limit switch strikers may have to be moved!!
