Parkside PTBS 30 A1 User manual

IRRIGATION KIT, TROPFBEWÄSSERUNGS-SET,
SET D’ARROSAGE GOUTTE-À-GOUTTE PTBS 30 A1
IAN 376360_2104
SET D’ARROSAGE GOUTTE-À-GOUTTE
Mode d’emploi
IRRIGATION KIT
Operating instructions
DRUPPELSPROEISET
Gebruiksaanwijzing
KAPKOVÝ ZAVLAŽOVACÍ SYSTÉM
Návod k obsluze
DRYPVANDINGSSYSTEM
Betjeningsvejledning
KVAPKOVÝ ZAVLAŽOVACÍ SYSTÉM
Návod na obsluhu
TROPFBEWÄSSERUNGS-SET
Bedienungsanleitung
ZESTAW DO NAWADNIANIA
KROPELKOWEGO
Instrukcja obsługi
SET DE RIEGO POR GOTEO
Instrucciones de uso

GB / IE Operating instructions Page 1
DE / AT / CH Bedienungsanleitung Seite 11
FR / BE Mode d’emploi Page 21
NL / BE Gebruiksaanwijzing Pagina 31
CZ Návod k obsluze Strana 41
PL Instrukcja obsługi Strona 51
SK Návod na obsluhu Strana 61
ES Instrucciones de uso Página 71
DK Betjeningsvejledning Side 81
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the
device.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit
allen Funktionen des Gerätes vertraut.
Avant de lire le mode d‘emploi, ouvrez la page contenant les illustrations et familiarisez-vous ensuite avec
toutes les fonctions de l‘appareil.
Vouw vóór het lezen de pagina met de afbeeldingen open en maak u vertrouwd met alle functies van het
apparaat.
Před čtením si otevřete stranu s obrázky a potom se seznamte se všemi funkcemi přístroje.
Przed przeczytaniem proszę rozłożyć stronę z ilustracjami, a następnie proszę zapoznać się z wszystkimi
funkcjami urządzenia.
Pred čítaním si odklopte stranu s obrázkami a potom sa oboznámte so všetkými funkciami prístroja.
Antes de empezar a leer abra la página que contiene las imágenes y, en seguida, familiarícese con todas
las funciones del dispositivo.
Før du læser, vend siden med billeder frem og bliv bekendt med alle apparatets funktioner.

GB│IE │ 1 ■PTBS 30 A1
Contents
Introduction ......................................2
Intended use .....................................2
Package contents .................................2
Technical specifications.............................3
Safety information ................................3
Connection and assembly ..........................4
Operation .......................................7
Dismantling ......................................8
Cleaning.........................................8
Storage .........................................8
Disposal .........................................9
Service ..........................................9
Importer.........................................9
IB_376360_PTBS30A1_LB8.indb 1 27.09.2021 10:48:04

■ 2 │ GB│IE PTBS 30 A1
IRRIGATION KIT
PTBS 30 A1
Introduction
Congratulations!
You have purchased a high-
quality product. Familiarise yourself
with the product before using it for
the first time. To do this, read the
following operating instructions
thoroughly. Use the product only as
described and for the range of ap-
plications specified. Keep these op-
erating instructions in a safe place.
Please, also pass all documents on
to any future owner.
Intended use
This product is intended exclusively
for watering outdoor garden beds,
pots and balcony flower boxes.
The product is not intended for
commercial use.
The manufacturer accepts no re-
sponsibility for damage attributable
to misuse.

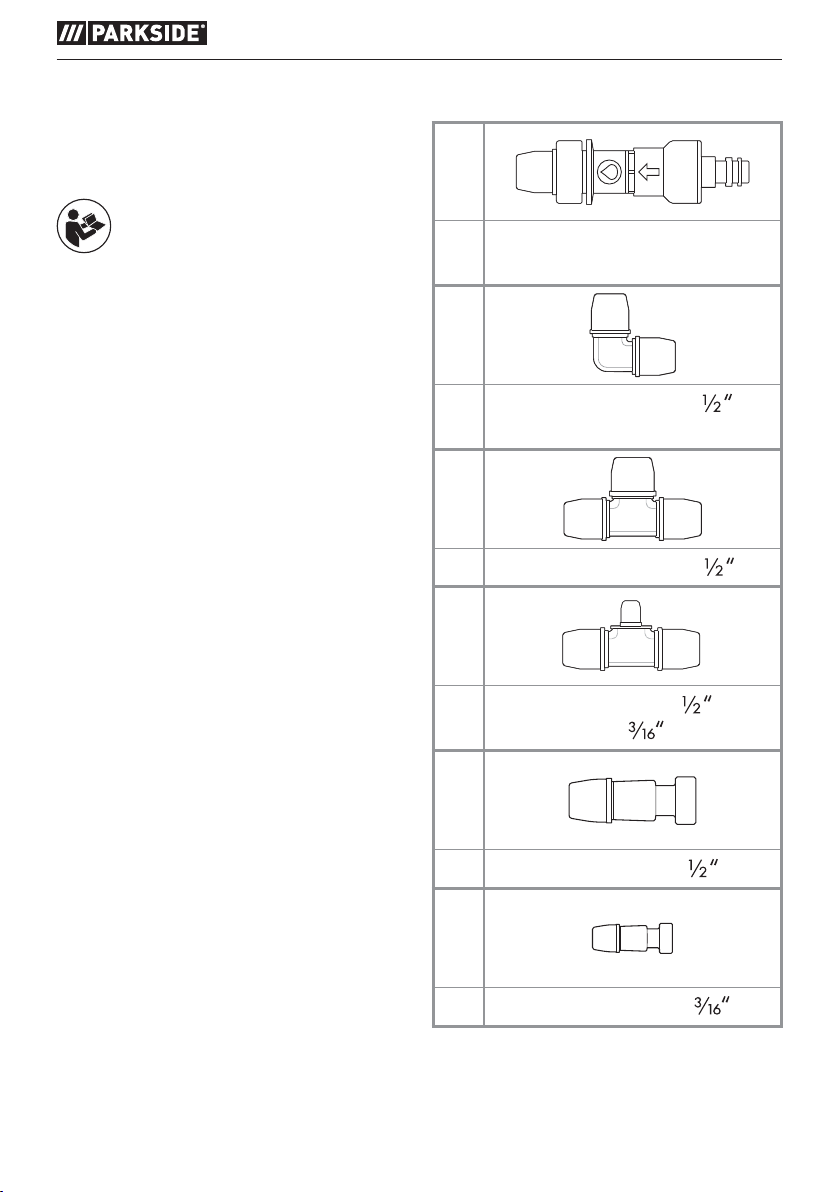

Package contents
1
1 × Base appliance with
pressure regulation
2
2 × L-connector (13 mm/ )
3
1 × T-connector (13 mm/ )
4
5 × T-reducer (13 mm/
and 4.6 mm/ )
5
2 × End plugs (13 mm/ )
6
5 × End plugs (4.6 mm/ )
IB_376360_PTBS30A1_LB8.indb 2 27.09.2021 10:48:07

GB│IE │ 3 ■PTBS 30 A1
7
2 × Shut-off valve (4.6 mm/ )
8
35 × Inline dripper (4.6 mm/ )
9
20 × Hose holder (4.6 mm/ )
0
5 × Hose holder (13 mm/ )
q
1 × 15m distributor tube
(4.6 mm/ )
w
1 × 15m distributor tube
(13 mm/ )
1 × Operating instructions
NOTE
► Check the package for
completeness and signs of
visible damage.
Technical specifications
Max. operating pressure: 2 bar
Safety information
Read all safety warnings and
all instructions!
■ Do not direct the water jet at
electrical equipment!
■ Do not direct the water jet at
people or animals!
■ Do not drink from the
hose!
■ Do not allow children to play
with the product.
■ This product may be used by
children aged 8 years and
above and by persons with
limited physical, sensory or
mental capabilities or lack of
experience and knowledge,
provided that they are under
supervision or have been told
how to use the product safely
and are aware of the potential
risks.
IB_376360_PTBS30A1_LB8.indb 3 27.09.2021 10:48:07

■ 4 │ GB│IE PTBS 30 A1
■ Use this product only in con-
junction with the base appli-
ance 1.
■ Make sure that no dirt particles
can clog the connections or get
inside the hose.
■ Make sure all the connections
are firmly attached.
■ After using the product, always
close the water outlet (tap)!
■ Dismantle the product during
cold weather to avoid frost
damage.
Connection and assembly
NOTE
► You can connect the base
appliance 1to a water tap
or to the coupler of a garden
hose. The arrow symbol on
the base appliance 1indi-
cates the flow direction of the
water.
► The wide distributor tube w
is laid from the base appli-
ance 1to the vicinity of the
desired irrigation point. The
narrow distributor tube qis
laid from the wide distributor
tube w, directly past your
plants, which are watered by
the inline drippers 8.

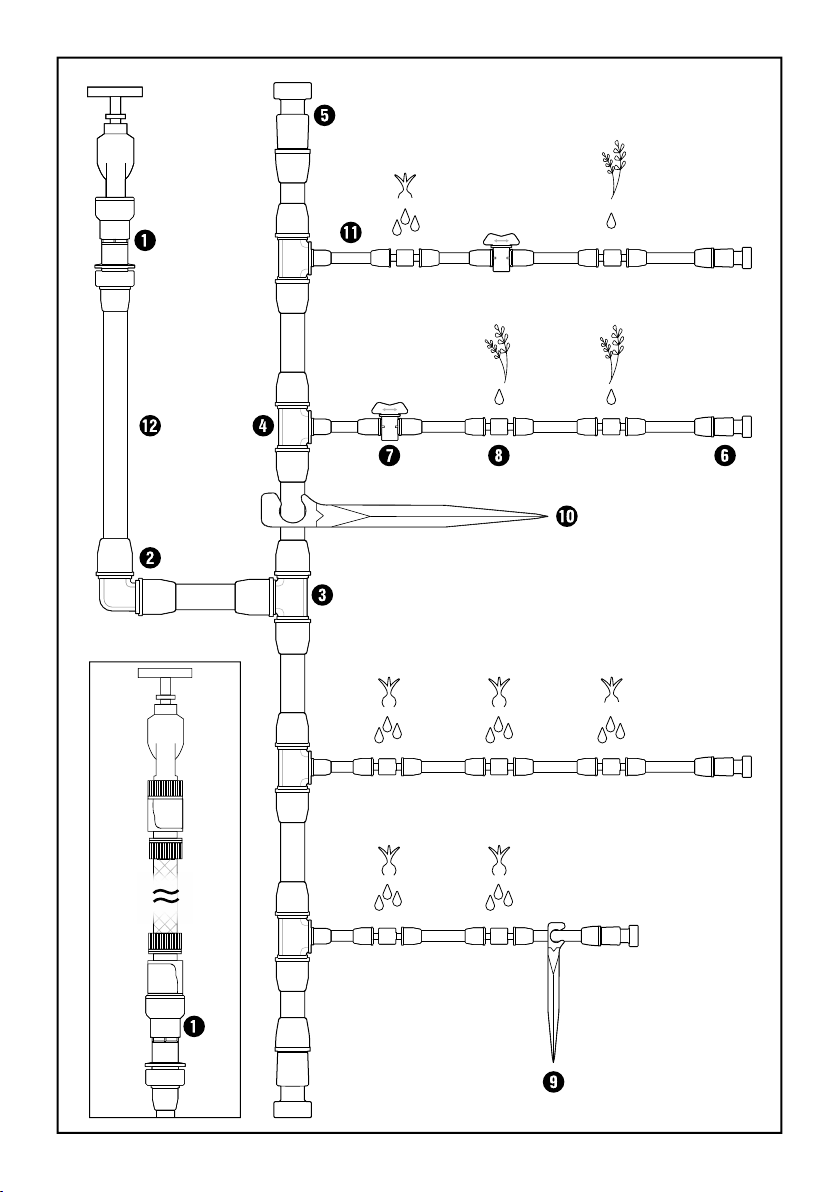

NOTE
► Before assembly, take a look
at the example connection
diagram on the fold-out page.
The following description is
based on this example.
Garden hose connection
♦ Connect the base appliance 1
to the connector of your
garden hose.

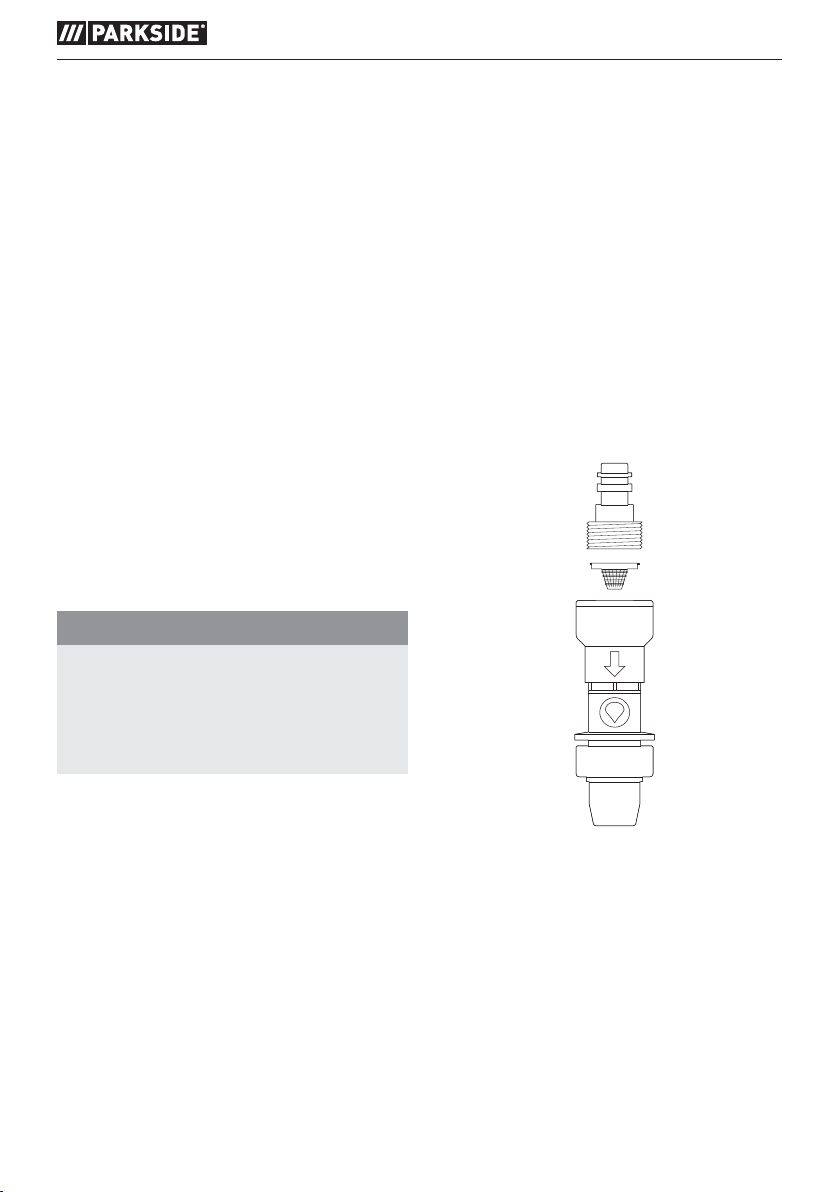

Tap connection
♦ Unscrew the garden hose
section anticlockwise from
the base appliance 1.
♦ Screw the base appliance 1
clockwise onto a water tap.
IB_376360_PTBS30A1_LB8.indb 4 27.09.2021 10:48:08

GB│IE │ 5 ■PTBS 30 A1
Connection principle of the
distributor tubes q/w
All parts of the product that you
can connect to the distributor tubes
q/wfollow the same principle.
♦ Unscrew the union nut anti-
clockwise.
♦ Push the union nut with the
narrow side onto a distributor
tube q/w.
♦ Push the distributor tube q/w
onto the bracket.
♦ Screw the union nut clockwise
onto the thread of the bracket.
Assembly
NOTE
► Spread out the distributor
tubes q/wand leave them
in the sun for one to two
hours to make them easier to
straighten.
► Use sharp all-purpose scissors
to cut the distributor tubes
q/w. Straighten and deburr
the cut with a cutter if neces-
sary.
► Use the long hose holders 0
for the wide distributor tubes
wand the short hose holders
9for the narrow distributor
tubes q.
♦ Lay out the wide distributor
tube wand cut it into the re-
quired lengths. Cut the ends of
all distributor tubes wstraight.
♦ Connect the required L- and
T-connectors 2/3with the
cut-to-size distribution pipes w.
IB_376360_PTBS30A1_LB8.indb 5 27.09.2021 10:48:08

■ 6 │ GB│IE PTBS 30 A1
♦ Connect the T-reducers 4to
the distributor tubes win the
locations where you line them
up with the rows of your plants.
♦ Connect the end plugs 5to
the distributor tubes wat the
points where you do not wish
to connect anything else.
♦ Place the inline drippers 8
near the roots of the plants
to be watered.
♦ Place the shut-off valves 7
where your plants require sep-
arately adjustable water deliv-
ery. You can regulate the water
supply for a single plant or a
whole row of plants separately.
♦ Lay out the narrow distributor
tube qand cut it into the re-
quired lengths. Cut the ends of
all distributor tubes qstraight.
♦ Connect the T-reducers 4to
the distributor tubes q.
IB_376360_PTBS30A1_LB8.indb 6 27.09.2021 10:48:09

GB│IE │ 7 ■PTBS 30 A1
♦ Connect the inline drippers 8
and the shut-off valves 7to
the distributor tubes q.
♦ Connect the end plugs 6to
the distributor tubes qat the
points where you do not wish
to connect anything else.

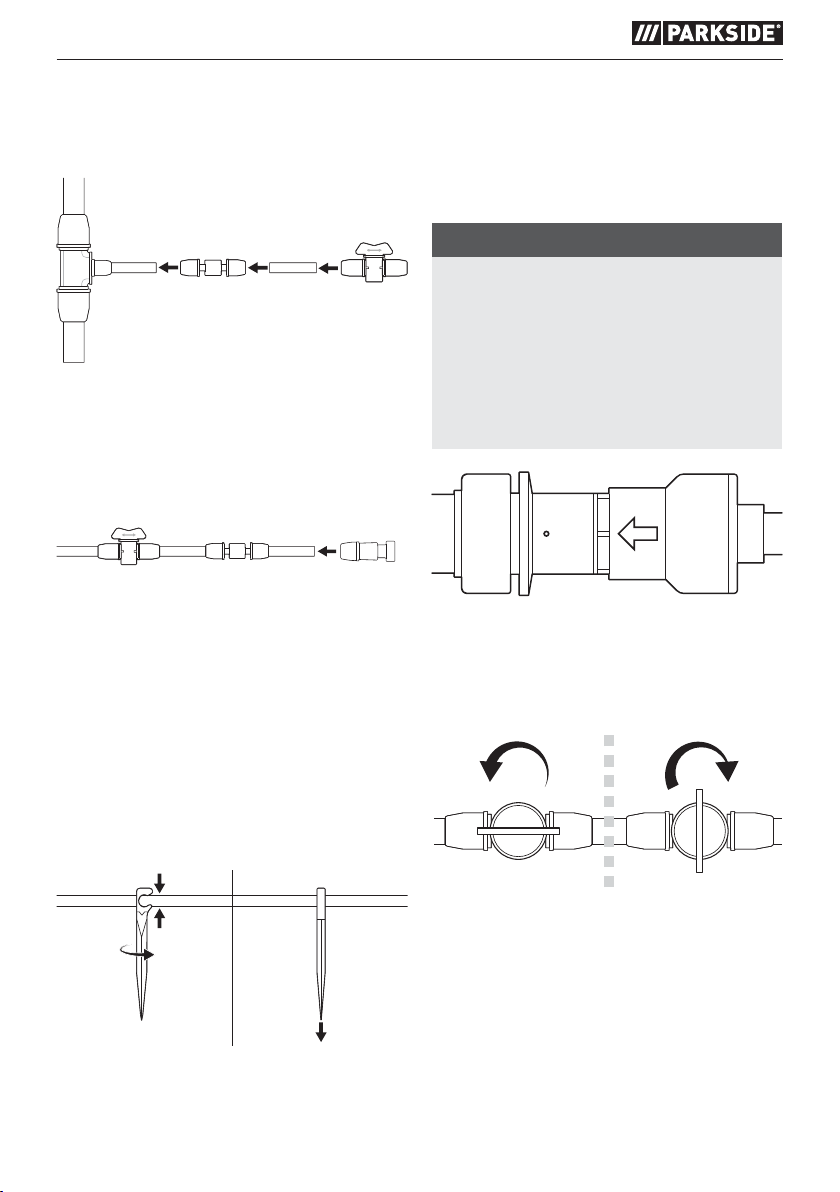

♦ Clamp the wide distributor
tubes winto the long hose
holders 0and push the hose
holders 0into the ground.
♦ Clamp the narrow distributor
tubes qinto the short hose
holders 9and push the hose
holders 9into the ground.
Operation
♦ Turn on the water tap. The base
appliance 1regulates the
water pressure.
NOTE
► The base appliance 1has an
opening on one side through
which air is released if the wa-
ter pressure is too high. Make
sure that this opening is never
obstructed.
♦ Adjust the shut-off valve 7
(turn anticlockwise to open/
clockwise to close).
♦ Turn off the tap when you are
finished watering.
IB_376360_PTBS30A1_LB8.indb 7 27.09.2021 10:48:10
