Partizan PAS-EMHK12 User manual

Keypad PAS-EMHK12
Service manual
WWW.PARTIZAN.GLOBAL
2019

1
Contents:
1. PRODUCT FEATURES & SPECIFICATIONS
– page 2
2. BASIC CONFIGURE - page 3
2.1 Set Master Code
2.2 Set Working Mode
3. STANDALONE MODE - page 4
3.1 Add Card User
3.2 Add Panic Users
3.3 Change PIN Users
3.4 Delete Users
3.5 Set Relay Configuration
3.6 Set Access Mode
3.7 Door Detecting
3.8 Set Strike-out Alarm
3.9 Set Audible and Visual Response
3.10 Master Cards Usage
3.11 Users Operation & Reset to Factory Default
4. CONTROLLER MODE – page 8
4.1 Set Wiegand Input Formats
4.2 Programming
4.3 PAS-EMHK12 Connected with Keypad Reader
4.4 Add PIN Users
4.5 Delete PIN Users
5. WIEGAND READER MODE – page 10
5.1 Set Wiegand Output Formats

2
1. PRODUCT FEATURES & SPECIFICATIONS
The PAS- EMHK12 is a universal keypad, can work as standalone keypad, access controller or
standard Wiegand output reader.
The PAS-EMHK12 supports 600 users, it supports multi access modes in either card access, PIN
access, Card+PIN access, or multi cards/PINs access, it can read 125KHz EM &HID for Low
Frequency and 13,56MHz MIFARE for High Frequency tokens, cards and tags. Another advantage
of the PAS- EMHK12 is it has extra features including block enrollment, Wiegand 26~37 bits
interface, 12~28V AC/DC voltage…etc.
User Capacity
Common Users Panic Users
600
598
2
Operating Voltage
Idle Current Active Current
12~28V AC/DC
< 65mA
< 100mA
Proximity Card Reader
Radio Technology Read Range
HID & EM & MIFARE
125KHz & 13.56MHz
2~6cm
Wiring Connections
Relay output, exit button, alarm,
door contact, Wiegand input,
Wiegand output
Relay
Adjustable Relay Output Time Lock
Output Load
One (NO, NC, Common)
0~99 Seconds (5 seconds default) 2
Amp Maximum
Wiegand Interface Wiegand
Input Wiegand Output PIN
Output
Wiegand 26~37 bits
26~37bits
(default: 26bits) 26~37bits
(default: 26bits)
4bits, 8bits (ASCII), 10 digits Virtual
Number (default: 4bits)
Environment
Operating
Temperature Operating
Humidity
Meets IP66
-40 ℃ ~60 ℃ (-40 ℉ ~140 ℉
) 10%RH~
98%RH

3
2. BASIC CONFIGURE
Programming Step
Keystroke Combination
Enter Program Mode
* (Master Code) #
(Factory default is 123456)
Exit Program Mode
*
2.1 Set Master Code
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. Update Master Code
0 (New Master Code) # (Repeat
New Master Code) #
(Master code is any 6 digits)
3. Exit Program Mode
*
2.2 Set Working Mode
Notes
Has 3 working modes: Standalone Mode, Controller Mode, Wiegand Reader Mode, choose the
mode you use. (Factory default is Standalone Mode/Controller Mode)
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. Standalone/Controller Mode
OR
2. Wiegand Reader Mode
8 0 # (Factory default)
8 1 #
3. Exit Program Mode
*

4
3. STANDALONE MODE
PAS-EMHK12 can be worked as Standalone Reader for single door.
(Factory default mode) --- 8 0 #

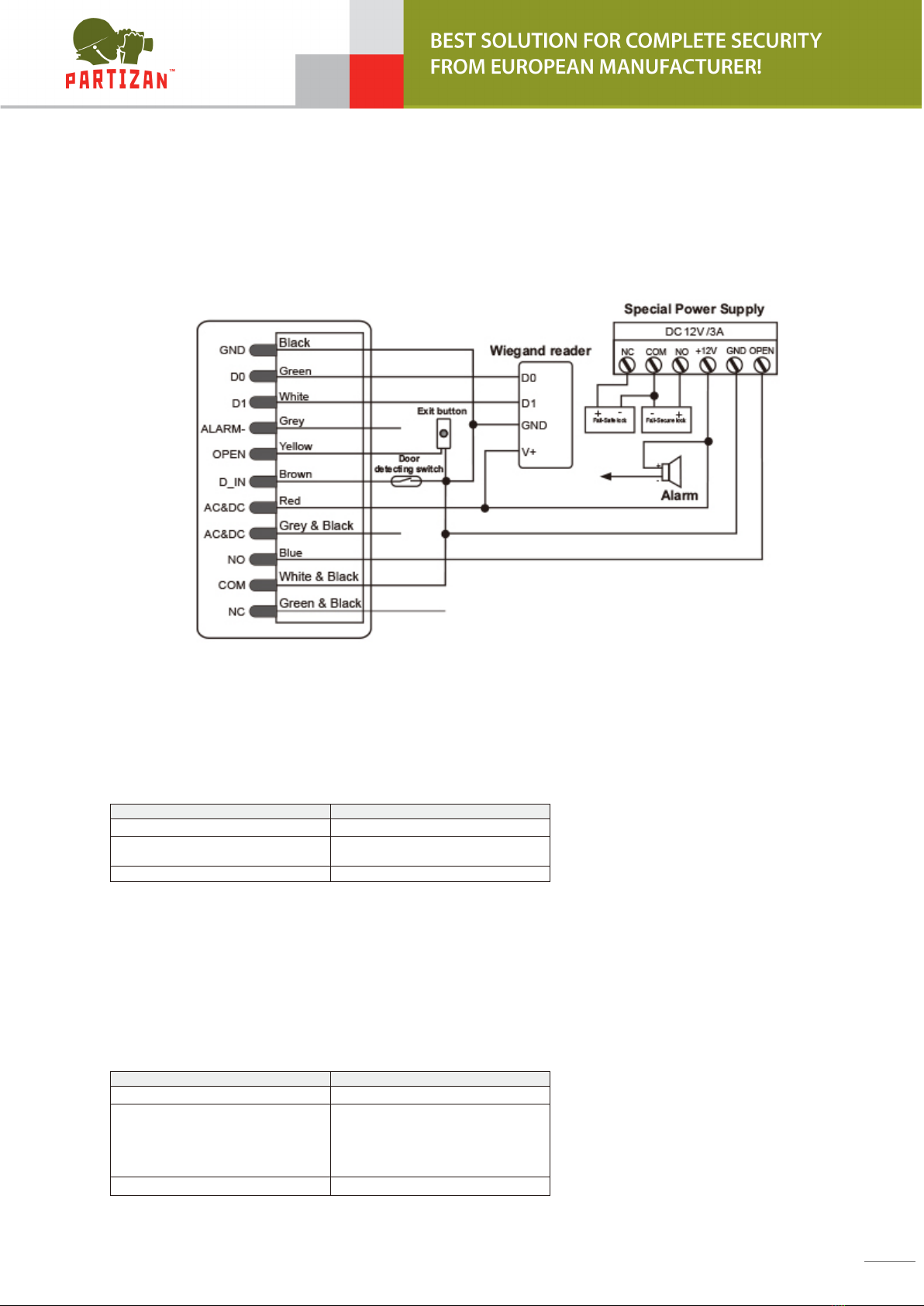

Connection Diagram
Attention
Install a 1N4004 or equivalent diode is needed when use a common power supply, or the keypad
might be damaged. (1N4004 is included in the packing)
Programming
Programming will vary depending on access configuration. Follow the instructions according to your access
configuration.
Notes
User ID number: Assign a user ID to the access card/PIN in order to track it. The common user ID
number can be any number from 1~598, the panic user ID is from 599~600.
IMPORTANT : User ID is do not have to be proceeded with any leading zeros. Recording of User
ID is critical. Modifications to the user require the User ID be available.
Proximity Card:
Any 125KHz industry standard 26 bits HID and EM cards and 13.56MHz
MIFARE card.
PIN: Can be any 4~6 digits except 8888 which is reserved.

5
3.1 Add Card User
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
Add Card User
2. Add Card: Using Auto ID
(Allows PAS
- EMHK12 to assign
Card
to next available User ID
number)
OR
1 (Read Card) #
The
cards can be added
continuously.
2. Add Card: Select Specific ID
(Allows
Master to define a specific
User ID to associate the card to)
OR
1 (User ID) # (Read Card) #
(User ID is any number from 1
-598)
2. Add Card: by Card Number
OR
1 (Input 8/10 digits Card number)
#
2. Add Card: Block Enrolment
(Allows
Master to add up to 598
card
to the Reader in a single step)
Takes
2 minutes to program.
1
(User ID) # (Card quantity) #
(The
fi
rst card number) #
Cards’ number must be
consecutive;
Card
quantity=number of cards to
be enrolled.
Add PIN User
2. Add PIN: Using Auto ID
(Allows PAS
- EMHK12 to assign PIN
to next available User ID number)
OR
1 (PIN) #
The PINs can be added
continuously.
(PIN: 4~6 digits)
2. Add PIN: Select Specific ID
(Allows
Manager to define a specific
User ID to associate the PIN to)
1 (User ID) #
(PIN) #
The
user ID is any number from 1-
598
3. Exit
*
3.2 Add Panic Users
3.3 Change PIN Users
Programming Step
Keystroke Combination
Note: Below is done outside programming mode, users can undertake
this themselves
1. Change PIN: By Card (There
will auto allocate
PIN (8888) to
cards when adding)
*(Read Card) (Old PIN) # (New PIN)
# Repeat
New PIN) #
2. Change PIN: By PIN
*
(User ID) #
(Old PIN) # (New PIN)
#
(Repeat New PIN) #
3. Exit
*
Programming Step
Keystroke Combination
1. Enter Program Mode
*
(Master Code) #
2. Add Card:
OR
2. Add PIN:
1 (User ID) # (Read Card / Input
8/10 digits
Card number) #
1
(User ID) # (PIN) #
(User
ID is any number from
599~600)
3. Exit
*

6
3.4 Delete Users
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
Delete Common Card User
2. Delete Card - By Card
OR
2. Delete Card
- By ID number
OR
2.Delete User
- By Card number
2 (Read Card) #
The cards can be deleted
continuously.
2 (User ID) #
2 (Input 8/10 digits Card number)
#
Delete Common PIN User
2.Delete PIN - By PIN
OR
2.Delete PIN - By ID number
2 (Input PIN) #
2 (User ID) #
Delete Panic User
2.Delete Panic Card User
OR
2.Delete Panic PIN User
2
(User ID) #
2 (User ID) #
Delete All Users
2. Delete All Users
2 (Master Code) #
3. Exit
*
3.5 Set Relay Configuration
The relay configuration sets the behavior of the output relay on activation.
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. Pulse Mode
OR
2. Toggle Mode
3 (1-99) # (factory default)
The relay time is 1
-99 seconds.
(1 is 50mS)
(Default is 5 seconds)
3 0 #
Sets
the relay to ON/OFF Toggle
mode
3. Exit
*
3.6 Set Access Mode
For Multi cards/PINs access mode, the interval time of reading cards/inputting PINs cannot exceed
5 seconds, or else, the PAS-EMHK12 will exit to standby automatically.
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. Card access
OR
2. Card+PIN access
OR
2. Card or PIN access
OR
2. Multi cards/PINs access
4 0 #
4 1
#
4 2 #
(Factory default)
4 3 (2~9) #
(Only after reading 2~9 cards or
PINs, the door can be opened)
3. Exit
*
3.7 Door Detecting
Door Open Too Long (DOTL) warning: when used with an optional magnetic contact or built-in
magnetic contact of the lock, if the door is opened normally, but not closed after 1 minute, the
inside buzzer will beep automatically to remind people to close the door and continue for 1 minute
before switching off automatically.
Door Forced Open warning: When used with an optional magnetic contact or built-in magnetic
contact of the lock, if the door is opened by force, or if the door is opened after 60 seconds of the
electro-mechanical lock not closed properly, the inside buzzer and alarm output will both operate.
Enter Master code # or valid user card /PIN to silence.

7
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. To disable door open detection
OR
2. To
enable door open detection
3. Exit
5 0 # (factory default)
5 1 #
*
3.8 Set Strike-out Alarm
The strike-out alarm will engage after 10 failed card/PIN attempts (Factory default is OFF). It can
be set to deny access for 10 minutes after engaging or disengage only after entering a valid
card/PIN or Master code.
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. Strike-Out OFF
OR
2. Strike-Out ON
OR
2. Strike-Out ON (Alarm)
6 0 # (factory default)
6 1 # Access will be denied for 10
minutes
6 2 #
3. Exit
*
3.9 Set Audible and Visual Response
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. Control Sounds
OR
2. Control LED
OR
2. Control Keypad Backlit
OFF = 7 0 #
OFF = 7 2 #
OFF = 7 4 #
ON = 7 1 #
ON = 7 3 #
ON = 7 5 #
(factory defaults
are ON)
3. Exit
*
3.10 Master Cards Usage
Using Master Cards to add and delete card / PIN users
Add a User
1. (Read Master Add Card)
2. (Read User Card)
Repeat Step 2 for additional user
cards
3. (Read Master Add Card)
Delete a User
1. (Read Master Delete Card)
2. (Read User Card)
Repeat Step 2 for additional user
cards
3. (Read Master Delete Card)
3.11 Users Operation & Reset to Factory Default
Open the door: Read valid user card or inputting valid user PIN
Remove Alarm: Read valid user card or inputting valid user PIN, or input Master Code #
To reset to factory default & Add Master Cards: power off, press the exit button, hold it and power
on, there will be two beeps, and the LED light turns into yellow, release the exit button, then read
any two cards(can be 125KHz EM card, 125KHz HID card or 13.56MHz MIFARE card, the LED will
turn into red, means reset to factory default successfully. Of the two cards reading, the 1-st one is
Master Add Card, the 2-nd one is the Master Delete Card.
Remarks:
1. If no Master Cards added, must press the Exit Button for at least 10 seconds before release.
2. Reset to factory default, the user's information is still retained.

8
4. CONTROLLER MODE
PAS-EMHK12 can work as Controller, connected with the external Wiegand reader.
(Factory default mode) --- 8 1#
Connection Diagram
Attention
: Install a 1N4004 or equivalent diode is needed when use a common power supply, or
the reader might be damaged (1N4004 is included in the packing).
4.1 Set Wiegand Input Formats
Please set the Wiegand input formats according to the Wiegand output format of the external
Reader.
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. Wiegand input bits
8 (26~37) # (factory default is
26bits)
3. Exit
*
4.2 Programming
Basic Programming is the same as Standalone Mode.
There are some exceptions for your attention.
PAS-EMHK12 Connected with External Card Reader:
• If EM card reader or HID card reader: users can be added/deleted on either PAS- EMHK12
or external reader.
• If MIFARE reader: users can only be added/deleted on external reader.
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2.
OR
2.
1 (Press Fingerprint A once on
F2) #
(ID auto allocated)
1 (User ID) # (Press Fingerprint A
on F2) # (Select specific ID)
3.
Exit: *

9
4.3 PAS-EMHK12 Connected with Keypad Reader
The keypad reader can be 4 Bits, 8 Bits (ASCII), or 10 Bits output format. Choose the below
operation according to the PIN output format of your reader.
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. PIN input bits
8 (4 or 8 or 10) #
(factory default is 4bits)
3. Exit
*
Remarks: 4 means 4 bits, 8 means 8 bits, 10 means 10 digits virtual number.
4.4 Add PIN Users
To add PIN users, after enter into programming mode on PAS-EMHK12, PIN(s) can be input/added
on either PAS-EMHK12 controller or the external Keypad Reader.
4.5 Delete PIN Users
The same way as add users.

10
5. WIEGAND READER MODE
PAS-EMHK12 can work as Standard Wiegand Reader, connected to the third-party Controller ---
8 1 #
Connection Diagram
Note :
When set into Wiegand Reader mode, nearly all settings in Controller Model will become invalid.
And Brown & Yellow wires will be redefined as below:
• Brown wire - Green LED light control
• Yellow wire - Buzzer control
If you need to connect Brown/Yellow wires:
When the input voltage for LED is low, the LED will turn into Green and when the input voltage for
Buzzer is low, it will sound.
5.1 Set Wiegand Output Formats
Please set the Wiegand output formats according to the Wiegand input format of the controller.
Programming Step
Keystroke Combination
1. Enter Program Mode
*
(Master Code) #
2. Wiegand output bits PIN output
bits
8 (26~37) # (factory default is
26bits)
8
(4 or 8 or 10) # (Factory default is
4bits)
3. Exit
*
