ASSEMBLY AND OPERATION MANUAL
Please read this entire manual to ensure proper
assembly and safe operation of the vehicle.
www.partyanimalinc.com

INITIAL USE________________________
NOTE: Before initial use battery
must be charged for 18 hours!
Permanent damage to the battery may occur if battery is not
charged for 18 hours before initial use!
STEPS:
1. Insert the DC Charger plug into the charger input under the seat
inside the vehicle, and then plug the charger into a wall outlet or
power socket. Charge for 18 HOURS on initial charge.
2. After the initial charge, normal charging time is 8-12 hours.
3. NEVER charge for more than 20 hours at a time.
BATTERY CHARGING AND MAINTENANCE:
• Even when not in use, the vehicle should still be charged at least once a month to
ensure the proper life span of the battery.
• Use of a battery or charger other than the supplied rechargeable battery and charger
may cause a fire or explosion. Only use the supplied battery and charger.
• Use of the rechargeable battery and charger for any other product may result in
overheating, fire, or explosion. Never use the supplied rechargeable battery and
charger with another product.
• Only an adult should handle or charge the battery. Do not charge the battery near
heat or flammable materials, and do not connect to charger if any water is present in
the vehicle. It is normal for the battery and charger to be very warm while charging.
• Never open the battery. Batteries contain lead and lead compounds (acids) that are
toxic and corrosive, and known to the state of California to cause cancer and
reproductive harm. (2)

WARNING________________________
• This vehicle must be assembled by an adult who has read and understands the
instructions in this manual.
• This product contains small parts. Keep children away during assembly. Keep all
packaging materials and bags away from children, and be sure to remove all
packaging material and parts from underneath the vehicle body. Dispose of all
packaging before use.
• For best performance, only use this vehicle on flat and hard surfaces.
• AGE RANGE: 3 to 8 years old
• CAPACITY: 80 lbs
• Children should always sit in the seat when using this vehicle. Never stand or sit on
other areas of this vehicle. Direct adult supervision is REQUIRED.
• Never leave a child unattended, and do not operate this vehicle on streets, or near
cars, swimming pools, other bodies of water, drop-offs, hills or steep inclines.
• Limbs, hair, and clothing can get caught in moving parts. Always wear shoes, keep
limbs away from moving parts, and do not wear loose clothing while operating this
vehicle.
• This vehicle does not have brakes or braking capability. Do not leave a child
unattended during operation. Do not use this in a location that may require braking
capability, as this could result in loss of control, which may cause serious injury or
death.
• Use of this vehicle near streets, motor vehicles, steps, bodies of water, sloped
surfaces, hills, wet areas, flammable vapors, in alleys, at night, or in the dark could
result in an unexpected accident.
• Use of this vehicle in unsafe conditions such as snow, rain, loose dirt, mud, sand, or
gravel may result in an unexpected accident such as tipping over, and could damage
the electrical system or battery.
• Do not operate this vehicle in an unsafe manner. Examples include but are not limited
to:
o Pulling the vehicle with another vehicle or similar device
o Allowing more than one rider
o Pushing the user
o Traveling at an unsafe speed.
(3)
• Tampering or modifying the electric circuit system may cause a shock, fire or
explosion and permanently damage the system. Exposed wiring and circuitry in the
charger may cause electric shock. Always keep the charger housing closed.
• Neither vehicle nor remote control should be exposed to rain or used in the water. Do
not pour water or other liquids in the vehicle or soak it in water. Wash with a damp
cloth. Do not store the vehicle outside where it could be vulnerable to rain or snow.
• Always keep all liquids away from the battery and keep the battery dry. Contact or
exposure to battery leakage (lead acid) may cause serious injury. If contact or
exposure occurs immediately call your physician. If the chemical is on the skin or in
the eyes, flush with cool water for 15 minutes. If the chemical is swallowed,
immediately give the person water or milk. Do not give water or milk if the patient is
vomiting or has a decreased level of alertness. Do not induce vomiting.
WARNING: Manufacturer and seller expressly disclaim any
and all liability for personal injury, property damage or loss, whether
direct, indirect or incidental, resulting from the incorrect assembly,
improper use, inadequate maintenance or neglect of this product.
SPECIFICATIONS____________________
(4)
Item
Big Team Ride On Car
Battery
6V7AH/12V7 AH/12V1 OAH
Motor
Single-drive/Double-drive
Ages
Children 3 - 8
Capacity
80 lbs.
Size
46” x 31” x 20”
Speed
2-4 mph
Remote Control
Uses 2 x AAA Batteries (Not Included)
Charger
DC 6V700MA/DC 6V800MA/DC 12V1OOOMA
Charging Time
Initial Charge: 18 hours. Normal charge: 8-12 hours.
DO NOT CHARGE FOR MORE THAN 20 HOURS.

PARTS_____________________________
No.
Part Name
Qty
No.
Part Name
Qty
1
Car Body
1
10
Right Window
1
2
Front Wheel
2
11
Back Window
1
3
Wheel Cover
4
12
Steering Wheel
1
4
Rear Wheel
2
13
Remote Control
1
5
Driving Motor
2
14
Car Charger
1
6
Rearview Mirror
2
15
Wheel Cotter Pins
4
7
Windshield
1
16
Wheel Bushings
8
8
Seat
1
17
Washers
6
9
Left Window
1
18
Wheel Cover Screws
20
(5)
ASSEMBLY_________________________
1. Assemble The Back Wheels
The back wheels are the two wheels that have drive gear connectors attached. Insert
wheel bushings on wheels. Connect the wheels to the axle, securing the drive gear to the
driving motor so that the axle rod shows through on the outside of the wheel. Next place a
washer around the axle rod on the outside of the wheel. Then insert cotter pin through
axle rod hole, and bend cotter pin tongs outward around the axle rod so it stays in place.
Finally, place the wheel covers on and secure with five screws.
2. Assemble The Front Wheels
First, insert wheel bushings on wheels and place one washer on each end of the front
axle. Then place the front wheels on the axle. Next, place one more washer on the
outside of each wheel. Insert cotter pin through axle rod hole, and bend cotter pin tongs
outward around the axle rod so it stays in place. Finally, place the wheel covers on and
secure with five screws.
(6)

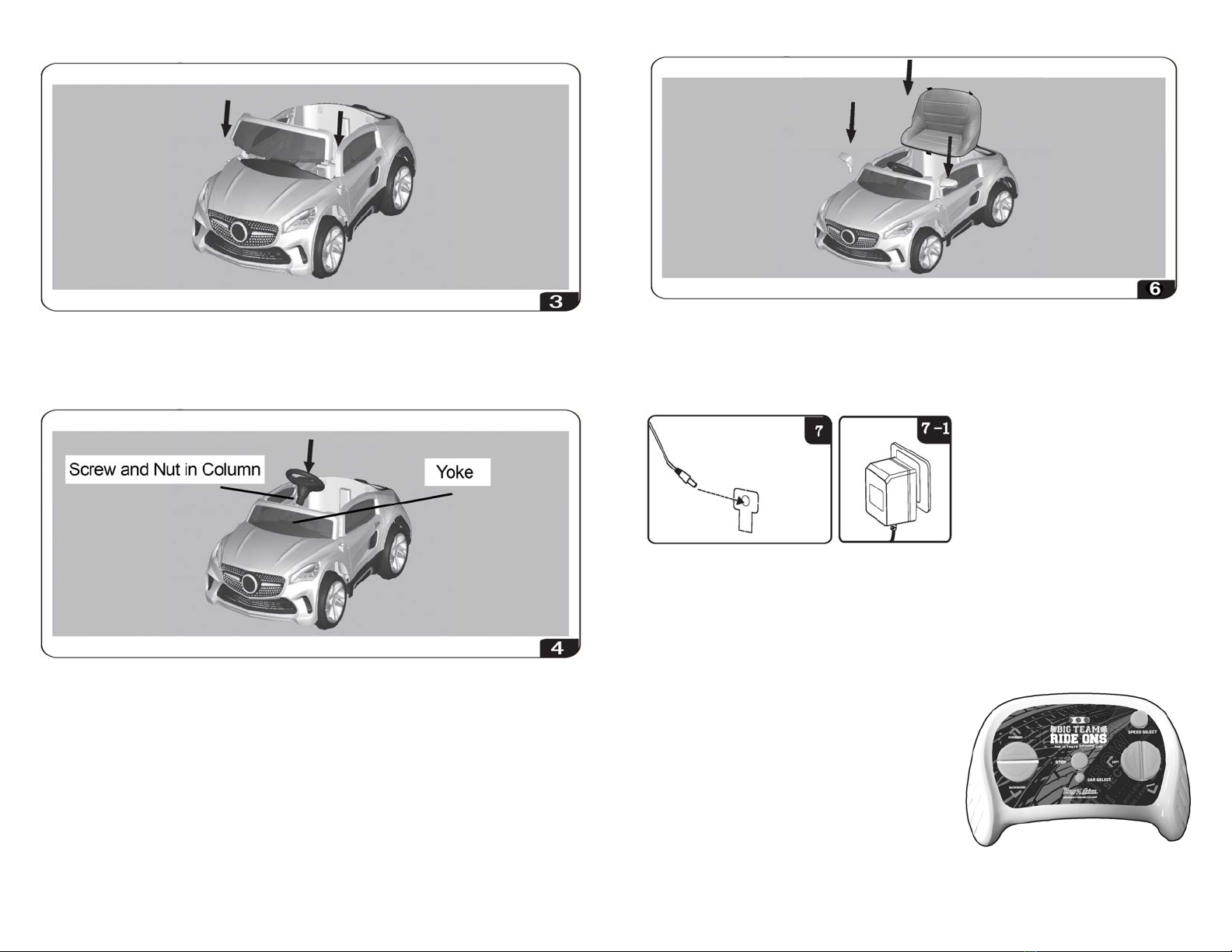

3. Install The Front Windshield
Snap the windshield into place by inserting the latches on the bottom ends of the
windshield into the grooves on the car.
4. Install The Steering Wheel
Remove the screw and nut from the column of the steering wheel. Connect the wire
terminal on the steering wheel to the wire terminal coming out of the steering yoke on the
car body. Connect the steering wheel onto the steering yoke. Align the hole in the column
of the steering wheel with the hole on the yoke, and reinsert the screw and nut to secure.
5. Connect The Battery
The battery and connection assembly is located in the area under the seat. Connect the
red plug from the wire assembly to the red plug on the battery, and the black plug from the
wire assembly to the black plug on the battery. Be sure the connection is secure and
snugly fit into place.
(7)
6. Install The Seat & Rearview Mirrors
"
Place the seat latch located on the bottom of the car seat into the groove under the seat
on the car body. Lean the chair back and snap the latches on the top back ends of the
seat into the grooves on either end behind the seat back. Insert the rearview mirrors into
the holes on the car body and secure with screw. (Mirrors may already be installed.)
7. Charge The Battery
Plug the charger into the charger input located under the passenger side of the seat
(Figure 7). Plug the charger into a power outlet (Figure 7-1). NOTE: The car will not run
or power on while charging. CHARGE FOR 18 HOURS ON INITIAL CHARGE.
Charge for 8-12 hours for normal charge. NEVER charge for more than 20 hours.
8. Remote Control Operation
Install 2 x AAA batteries (not included) to power
the remote control.
Press CAR SELECT to pair remote with the
vehicle.
Press the SPEED SELECT button to shuffle
through slow, medium and fast speeds. Lights
will blink faster or slower to indicate speed
setting.
(8)

9. Manual Operation
"
Press the POWER button to start the vehicle. Set the FORWARD/STOP/BACK button to
the FORWARD position to drive the car forward. Press the gas pedal to run the vehicle.
When the vehicle is not in motion, click the FORWARD/STOP/BACK button to the BACK
position to drive in reverse. DO NOT toggle the FORWARD/STOP/BACK button while
the vehicle is in motion.
Pressing the MUSIC SELECT and MUSIC CONTROLS buttons will toggle through 8
included preset songs and operate the car horn sound effect.

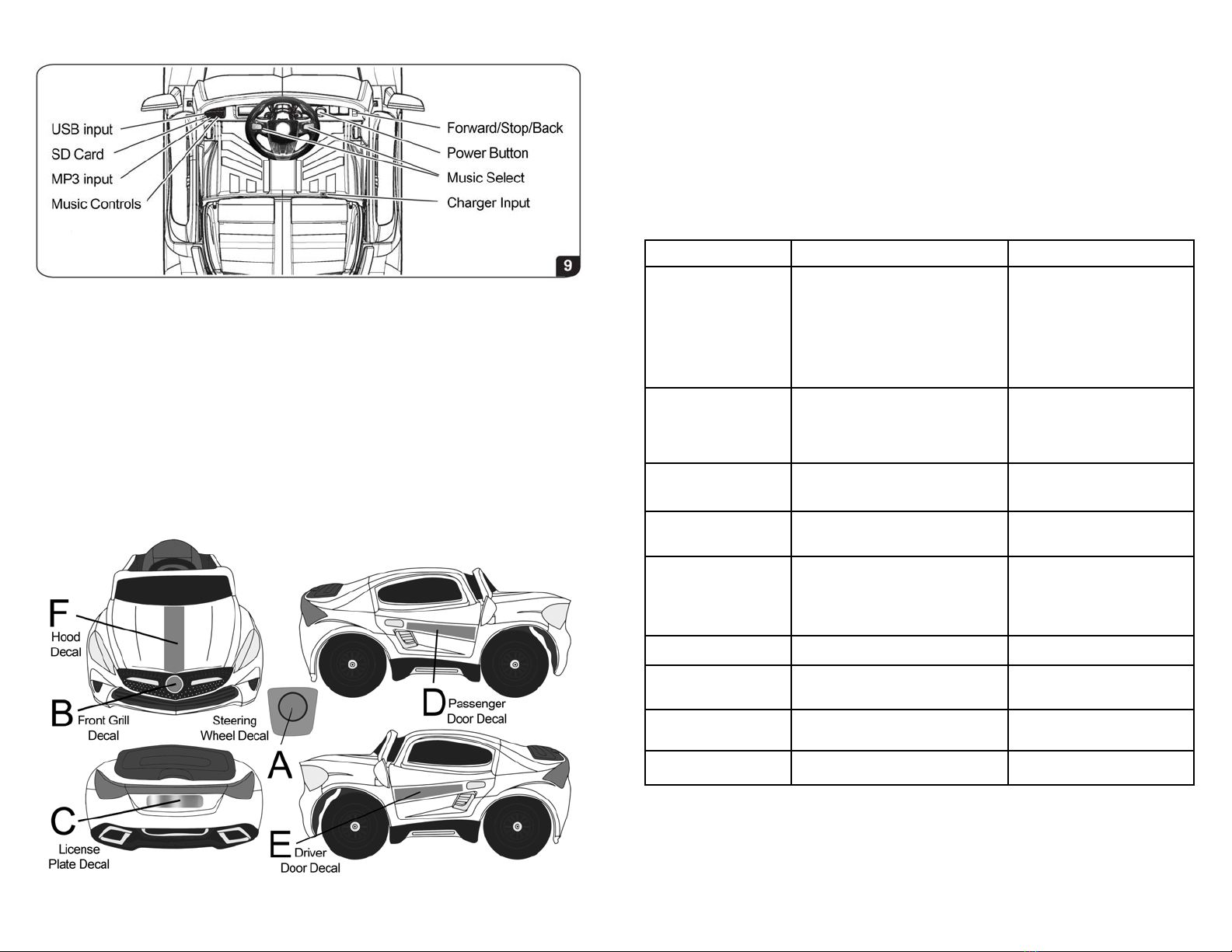

DECALS___________________________
(9)
MAINTENANCE_____________________
• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Do not leave the vehicle in the sun for long periods of time or fading may occur.
• Do not wash the vehicle with a hose or soap.
• Charge battery at least once a month to prolong the life of the battery.
TROUBLESHOOTING________________
Issue%
Causes%
Solution%Options%
Vehicle"does"not"move."
1."Low"Battery"
2."Electrical"protection"to"cool"battery."
3."Switch"not"in"correct"position."
4."The"battery"is"disconnected."
5."Abnormal"battery."
6."Electrical"damage."
7."Motor"failure."
•"Charge"the"battery"fully."
•"Stop"for"a"few"minutes"to"cool"""
"""battery"and"restart."
•"Reconnect"battery"and"switch."
•"Replace"with"a"new"battery."
•"Contact"customer"service."
The"battery"does"not"
recharge."
1."The"battery"connectors"are""
"""""disconnected."
2."Battery"charger"is"not"plugged"in."
3."The"charger"is"damaged."
•"Reconnect"the"battery."
•"Completely"plug"in"charger."
•"Replace"charger."
Battery"does"not"last."
1."Battery"does"not"have"a"full"charge."
2."Battery"is"out"of"service"life."
•"Fully"charge"the"battery."
•"Replace"the"battery."
Slight"noise"and"heat"
during"charging"process."
1."Normal"chemical"reactions"
•"This"is"normal."
Slow"running"speed."
1."Battery"does"not"have"a"full"charge."
2."Battery"is"out"of"service"life."
3."Overloaded"vehicle."
4."Uneven"or"sloped"surface."
•"Fully"charge"the"battery."
•"Replace"the"battery."
•"Reduce"weight"to"80"lbs"or"less."
•"Operate"on"flat"ground."
Gearbox"noise."
1."Gear"damage"
•"Contact"customer"service."
Vehicle"shakes"while"
driving."
1."Poor"contact"of"motor"cable."
2."Short-circuited"motor."
•"Reconnect"the"motor"cable."
•"Contact"customer"service."
Vehicle"audio"does"not"
work."
1."Steering"wheel"connector"is"not""
"""""plugged"properly."
•"Reconnect"in"accordance"with""
"""the"manual."
The"car"will"not"stop."
1."Electrical"damage."
•"Contact"customer"service."
