Paruzzi 70576 User manual

Fitting Instructions for Paruzzi VW Hammock for VW T25 Part number: # 70576
Included in the box:
lx hammock canvas, LLx brockets, 4xspacer washers
4x2cm length screws, 4x 1.5cm length screws
2x male hammock bars
2xfemale hammock bars
How to fit the hammock
Please note thatthe Paruzzi VW hammock barswill fit the original VW Westfalia bay window
support
brackets without any modification. If fitting to a Westfalia the holes may have been
predrilled
ready for the installation of a hammock.
The hammock bars are telescopic and therefore can be placed at any height desired. Please note the
canvas when installed should be drum tight and sufficient room should be left below the bars, so
that whena childis placed inthe bedthereis sufficient roomto clearthe steeringwheelandthetop
ofthe dashboard. Placingthe hammocktoo highmayrestrictthearea inwhicha childmaysleep.
Step l:
Mark and drillthe holes for the brackets on the A pillar (windscreen side surround).The bracket
must be installed at angle.

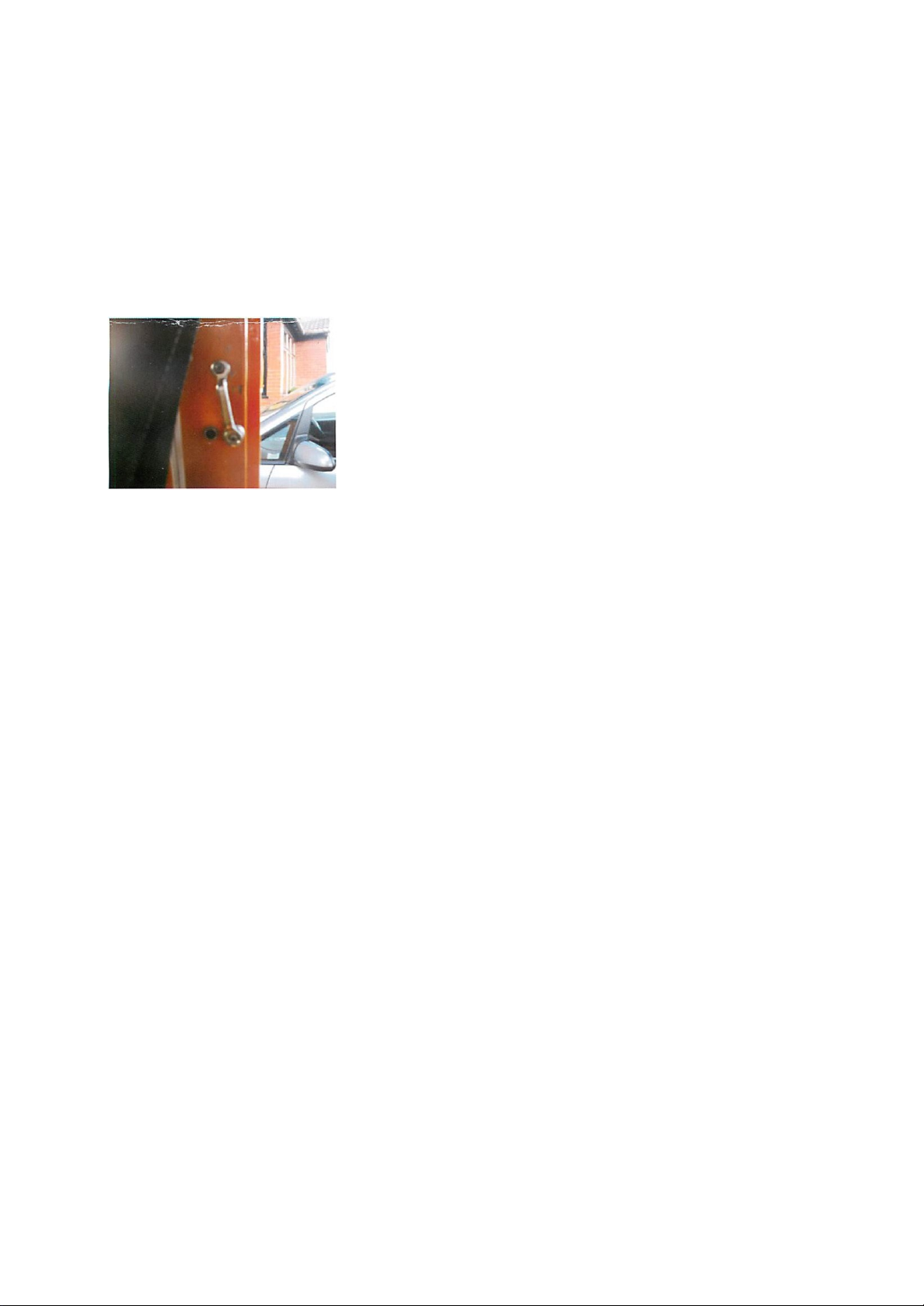

See photo (Front Bracket at Right Hand side A pillar)
Repeat the procedure on the other A pillar.

Step 2: Attach the brackets to the A pillar. On the lower drilled hole place the spacer between the A
pillar and the bracket attach the bracket usingthe longer 2cm length screw provided.The 1.5 cm
screw is for the top hole inthe bracket.Repeat the procedure on the other A pillar.
Step3: Mark and drillthe holesfor the Bpillar bracket.
Thebracketsmustbeinstalledatangle.
See photo(Rear Bracket at Right Handside Bpillar)
Step 4:Attach the bracket and spacer usingthe 2 cm screw to hold the spacer in place.Repeat the
bracket installation on the other B pillar. Check all screws are tight.
First time Hammock assembly
Step l: Unfold your new canvas and place on a flat surface.
Step 2:Slide the male hammock support bar inside the female hammock support bar. Repeat this
process with the other two bars.
Step 3: Slide each hammock support bar through the canvas. Makesure the hooked ends face
inwards to the middle of the canvas.
Step4: Roll upthe canvas with the hammock bars threaded through the canvas.
Attaching the hammock to the brackets.
Remove the headrests (if fitted).
Attach the hammock support bar to the brackets on the A pillar (wind screen surround). Unroll the
canvas and attach the hammock support bar to the B pillar.
Handytips
If there is builtinfurniture present near the bracket attach that side first.
Pulltheseatbeltsslightlyforwardastheymayobstruct.
Check the security of the hammock to brackets before placing an object onthe canvas!

New style bracket A pillar
New style bracket B pillar
