013-16105 PS-3203 Battery Replacement Instructions 05-05-22 Page 1 of 3 B

PS‐3203;WirelessPressureSensorBatteryReplacementInstructions
Reference:Batterypartnumber540‐115;Li‐Poly300mAH
RecommendedEquipment:(PS‐3299;BatteryReplacementToolSet)

Step1:PositiontheSensoronasurfaceasshown.Notethelocationofthe(4)TorxT5
Screws.

Step2:Unscrewandremovethe(4)TorxScrewswiththeT5Screwdriver.
 




PASCO Form Number Description Date Revision
013-16105 PS-3203 Battery Replacement Instructions 05-05-22 Page 2 of 3 B

Step3Whileholdingbothhalvestogether,fliptheproductoversothatthefrontsurfaceis
facingupasshown.

Step4:Whileholdingthebottomwithonehand,liftandrotatethetopcover.










PASCO Form Number Description Date Revision
013-16105 PS-3203 Battery Replacement Instructions 05-05-22 Page 3 of 3 B


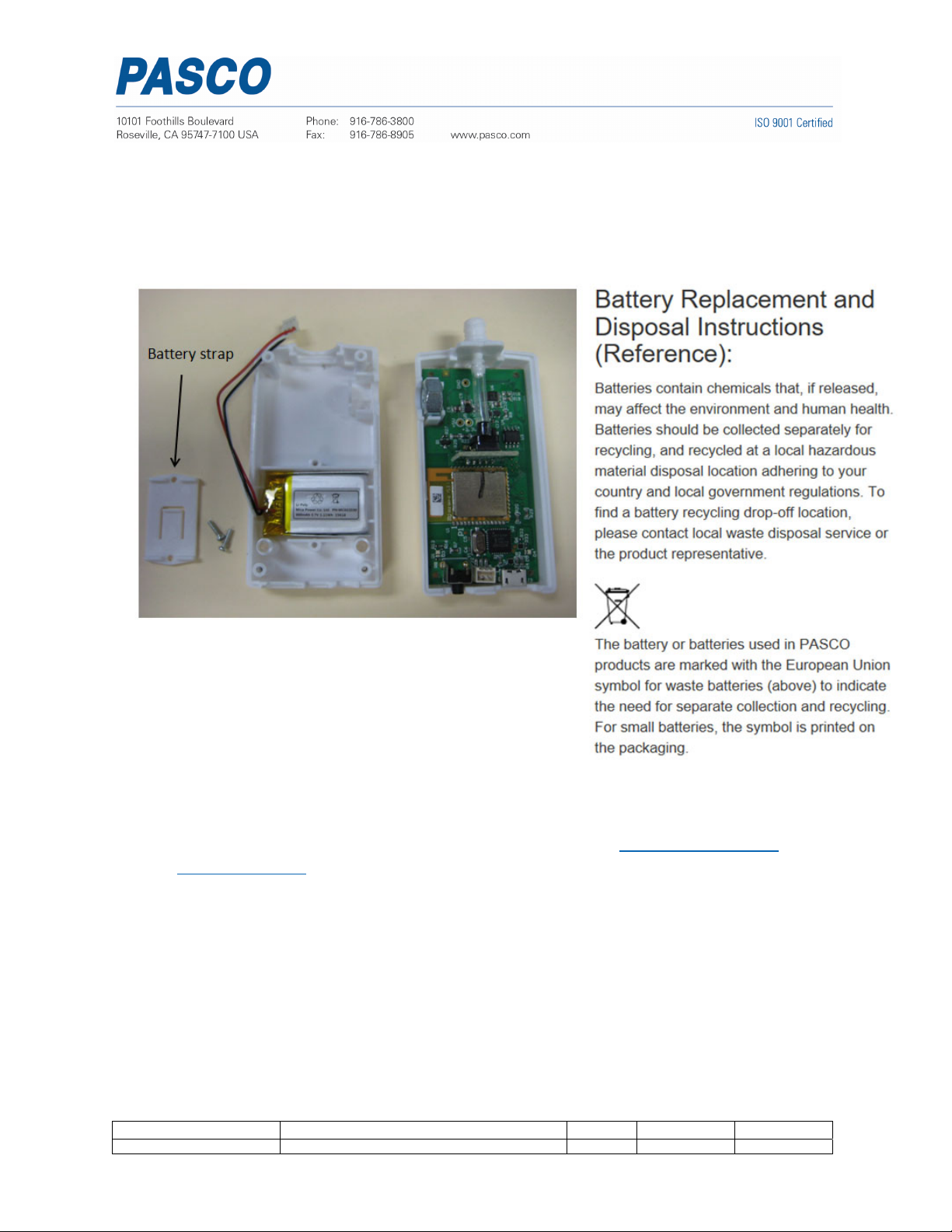

Step5:Removethebatterystrapscrews(2)withtheT5Screwdriverandremovethebattery
strap.Unplugthebatteryfromitsconnector.Removethebatteryandaddthereplacement
batteryatthelocationshown(seeabovepicture)andpositionthewiringsimilartotherouting
shownabove.Plugthebatteryintoitsmatingconnectorandreversethestepsnotedaboveto
completethereassembly.



Ifyouneedfurtherassistance,pleasecontactTechnicalSupportat[email protected]or
throughwww.pasco.comonchat.Toaccesschatthroughyourbrowser,pleaseenableall
cookiesonourwebsite.
