LOAD MOMENT INDICATOR
DS 350 / 1318 Graphic
OPERATOR’S MANUAL

© PAT Rev. 7 03/27/01 // MO 191318_7.DOC
NOTICE
The information in this document is subject to change without notice.
PAT makes no warranty of any kind with regard to this material, including, but not limited to the
implied warranties of merchantability and fitness for a particular purpose.
PAT shall not be liable for errors contained in this manual or for incidental or consequential
damages in connection with the furnishing, performance, or use of this manual. This document
contains proprietary information, which is protected by copyright. All rights are reserved.
No part of this document may be photocopied, reproduced, or translated to another language
without the prior written consent of PAT.
© 1999 PAT GmbH, D-76275 Ettlingen / Germany © 2000 PAT America, Chambersburg, PA 17201, USA

Operator's Manual DS 350 / 1318
© PAT Rev. 7 03/27/01 // MO 191318_7.DOC
TABLE OF CONTENTS
1GENERAL INFORMATION ................................................................................ 1
2WARNINGS ................................................................................................... 2
3SYSTEM DESCRIPTION ................................................................................... 3
3.1 SYSTEM FUNCTION ................................................................................................. 5
3.2 OPERATING CONSOLE .............................................................................................. 6
3.3 CONTROL IDENTIFICATION ......................................................................................... 7
4CONFIGURATION SETUP .............................................................................. 13
4.1 LMI SETUP PROCEDURE ......................................................................................... 13
4.2 QUICK SETTING OF THE REEVING .............................................................................. 18
4.3 QUICK HOIST LINE SELECTION.................................................................................. 19
5OPERATION................................................................................................. 21
5.1 LIMIT SETTING ................................................................................................... 24
5.1.1 Slewing Angle Limitation / Work Area Definition.............................................. 25
5.1.2 Tip Height Limitation .................................................................................... 32
5.1.3 Boom Angle Limitation.................................................................................. 33
5.1.4 Radius Limitation........................................................................................ 36
5.2 INFO CRANE CONFIGURATION .................................................................................. 39
5.3 DISPLAY CONTRAST CONTROL ............................................................................... 40
6PRE-OPERATION INSPECTION AND CALIBRATION VERIFICATION..................... 41
7SERVICE AND MAINTENANCE....................................................................... 47
8TROUBLESHOOTING..................................................................................... 48
9APPENDIX ................................................................................................... 52
9.1 APPENDIX A: DETAILED SYMBOL EXPLANATION OF BOOM EXTENSIONS................................. 52
9.2 APPENDIX B: DETAILED SYMBOL EXPLANATION OF COUNTERWEIGHT OPTIONS ........................ 53

General Information
© PAT Rev. 7 03/27/01 // MO 191318_7.DOC
1
1 GENERAL INFORMATION
The PAT Load Moment Indicator1(LMI) DS 350 has been designed to provide the crane operator
with the essential information required to operate the machine within its design parameters.
Using different sensing devices, the Load Moment Indicator monitors various crane functions
and provides the operator with a continuous reading of the crane’s capacity. The readings
continuously change as the crane moves through the motions needed to make the lift.
The LMI provides the operator with information regarding the length and angle of the boom,
working radius, rated load and the total calculated weight being lifted by the crane.
If non permitted conditions are approached, the DS 350 Load Moment Indicator will warn the
operator by sounding an audible alarm, lighting a warning light and locking out those functions
that may aggravate the crane’s condition.
1LOAD MOMENT: generally the product of a force and its moment arm; specifically, the product of the load and the load-radius. Used in the
determination of the lifting capacity of a crane

Operator's Manual DS 350 / 1318
© PAT Rev. 7 03/27/01 // MO 191318_7.DOC
2
2 WARNINGS
The LMI is an operational aid that warns a crane operator of approaching overload conditions
and of over-hoist conditions that could cause damage to equipment and personnel.
The device is not, and shall not, be a substitute for good operator judgment, experience and use
of accepted safe crane operating procedures.
The responsibility for safe crane operation remains with the crane operator who shall ensure that
all warnings and instructions supplied are fully understood and observed.
Prior to operating the crane, the operator must carefully and thoroughly read and understand the
information in this manual to ensure that he knows the operation and limitations of indicator and
crane.
Proper functioning depends upon proper daily inspection and observance of the operating
instructions set forth in this manual. Refer to Section 6. Pre-Operation Inspection and Calibration
Verification of this manual.
The LMI can only work correctly, if all adjustments have been properly set. For correct
adjustment, the operator has to answer thoroughly and correctly all questions asked during
the setup procedure in accordance with the real rigging state of the crane. To prevent
material damage and serious or even fatal accidents, the correct adjustment of the LMI has to
be ensured before starting the crane operation.

System Description
© PAT Rev. 7 03/27/01 // MO 191318_7.DOC
3
3 SYSTEM DESCRIPTION
The PAT Load Moment Indicator DS 350 consists of a central micro processor unit, operating
console, length/angle sensor, pressure transducers, and anti-two block switches.
The system operates on the principle of reference/real comparison. The real value, resulting
from the pressure measurement is compared to the reference data, stored in the central
processor memory and evaluated in the micro processor. When limits are reached, an overload
warning signal is generated at the operator’s console. At the same time, the aggravating crane
movements, such as hoist up, telescope out and boom down, will be stopped.
The fixed data regarding the crane, such as capacity charts, boom weights, centers of gravity
and dimensions are stored in memory chips in the central processor unit. This data is the
reference information used to calculate the operating conditions.
Boom length and boom angle are registered by the length/angle sensor, mounted inside the
cable reel which is mounted on the boom. The boom length is measured by the cable reel cable
which also serves as an electrical conductor for the anti two-block switches.
The crane load is measured by pressure transducers attached to the piston and rod side of the
hoist cylinders.
The interactive user guidance considerably simplifies the input of operating modes as well as
the setting of geometry limit values.

Operator's Manual DS 350 / 1318
© PAT Rev. 7 03/27/01 // MO 191318_7.DOC
4
Fig. 1: Components of the LMI system PAT DS 350
1 Anti Two-Block switches
2 Pressure Transducers
3 Length/Angle sensor

System Description
© PAT Rev. 7 03/27/01 // MO 191318_7.DOC
5
3.1 System Function
Upon switching on, the system starts with
an automatic test of the LMI system, of
lamps and audible alarm. During the test,
the LC display shows the initial logo.
If the system was turned off for more than
two hours, the setup configuration has to
be entered after the system test. (⇒
chapter 4)
First, the operating mode is determined by
an interactive step-by-step interrogation of
the rigging states.
Next is the interactive input of the reeving.
Now the LC display shows in symbols all
inputs and awaits acknowledgment or
canceling.
Upon acknowledgment of the inputs the
system is ready for operation.

Operator's Manual DS 350 / 1318
© PAT Rev. 7 03/27/01 // MO 191318_7.DOC
6
3.2 Operating Console
The console has 3 functions:
• Inputs by the crane operator (operating mode, reeving)
• Input of geometry limit values and signalization of exceeded limit values
• Display of important data and information
The operator’s console is mounted in the crane’s cab in the operator’s field of vision. For a
better identification of displays and operating elements, they are continuously backlit during
operation.

System Description
© PAT Rev. 7 03/27/01 // MO 191318_7.DOC
7
3.3 Control Identification
This unit contains a display and different controls which are described as follows:
Legend to Fig 2:
1 LC Display Area 10 Button and Control Light "INFO"
2 Load Moment Limit Light 11 Button and Control Light "CONTROL"
3 Load Moment Prewarning Light 12 Audible Alarm
4 Alarm Light “Anti-Two-Block” 13 By-Pass Key Switch
5 Override Key Warning Light 14 Button and Control Light "By-Pass Anti-Two-
Block"
6 Button “Alarm Stop” 15 Button and Control Light "By-Pass LMI shut-off
function"
7 Button and Control Light “TARE” F1 Button "Function 1"
8 Button and Control Light “LIMITS” F2 Button "Function 2"
9 Button and Control Light “SELECT F3 Button "Function 3"
OPERATION MODE” F4 Button "Function 4"

Operator's Manual DS 350 / 1318
© PAT Rev. 7 03/27/01 // MO 191318_7.DOC
8

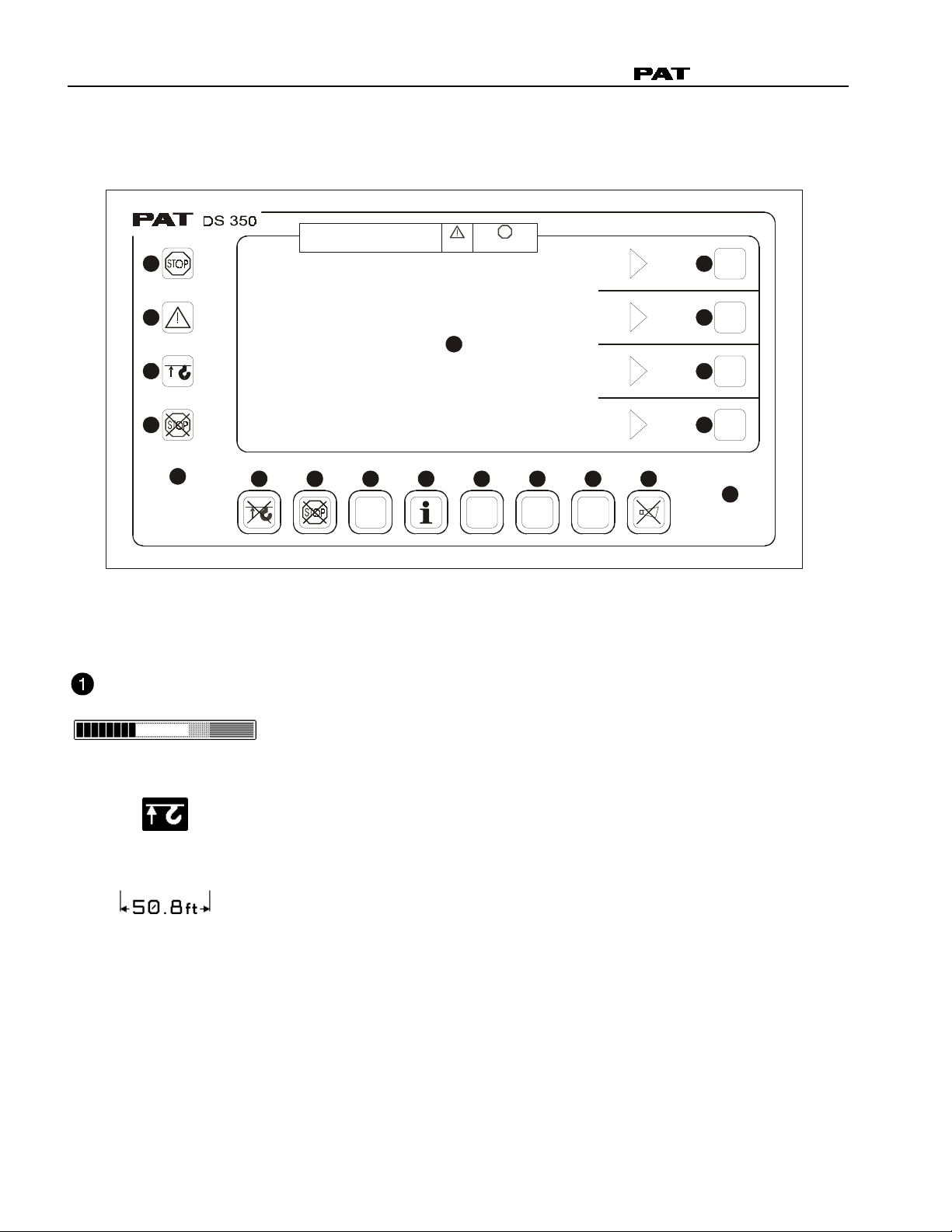

Fig. 2: Operating Console
LIMTA R E
STO P
SEL
CTRL
F12
3
4
9
1
F2
F3
F4
8 7 6
5
1114
12
15
13 10
LC-Display
The LC display visualizes graphical symbols, texts and numerical
values. Depending on the selected operating mode (setup, limit
mode or LMI representation), the corresponding information is
indicated on the display.
Please refer to the description of the different operating modes for
the signification of the individual elements.

System Description
© PAT Rev. 7 03/27/01 // MO 191318_7.DOC
9
Load Moment Limit Light
The red LOAD MOMENT LIMIT LIGHT (2) warns the operator that a
rated load condition has been reached. It lights up when the load
on the crane reaches the crane load capacity. The audible alarm
also sounds when this condition has been reached.
The following crane movements will be stopped concurrently:
− hoist up
− telescope out
− boom down
Load Moment Prewarning Light
The yellow LOAD MOMENT PRE-WARNING LIGHT (3) will light up
when the load on the crane reaches the defined prewarning area,
thus indicating that an overload condition is approaching.
This means for the operator to continue his crane operation with
extreme caution.
Alarm Light “Anti-2-Block”
The red “Anti Two-Block Alarm Light” (4) lights up when the anti-
two-block limit switch contacts open, indicating that a two-
blocking condition is approaching. At the same time the audible
alarm will sound.
The following crane movements will be stopped subsequently:
hoist up, telescope out, boom down.
Override Key Warning Light
The red OVERRIDE KEY WARNING LIGHT (5) flashes to indicate
that the cut-off function of the A2B / LMI system is deactivated.

Operator's Manual DS 350 / 1318
© PAT Rev. 7 03/27/01 // MO 191318_7.DOC
10
Button and Control Light “Alarm Stop”
This ALARM STOP BUTTON (6) allows the audible alarm to be
silenced for approximately 15 seconds by pressing this button.
Reference ⇒
⇒⇒
⇒“Audible Alarm” (12).
Button and Control Light “Tare”
The button “TARE” (7) is used to indicate the “Net load” on the LC
Display (1). Net load is the present load, less lifting tackle and
hook block. The Tare Button (7) has to be activated before lifting.
After pushing the “Tare Button” (7) the load display is set to zero
(taring) and the control light lights up. After lifting a load the
display shows the net load (pay load).
The net load display will change to the actual load display when
the boom radius is changed (either by angle or length).
Button "LIMITS"
Button to start the function "program limit values"
For the procedure, please refer to ⇒
⇒⇒
⇒chapter 5.1.
Button "SELECT"
Button to start the function "set operating mode"
For the procedure please refer to ⇒
⇒⇒
⇒chapter 4.1.
The correct setting is of utmost importance for the proper function of the system and the
crane. Therefore only operators who are thoroughly familiar with use and operation of the
system shall set this button.

System Description
© PAT Rev. 7 03/27/01 // MO 191318_7.DOC
11
Button "INFO"
Button to start the function "information crane configuration"
Please refer to ⇒
⇒⇒
⇒chapter 5.2.
Button "CONTROL"
Button to start additional functions
Please refer to ⇒
⇒⇒
⇒chapter 5.3.
Audible Alarm
The AUDIBLE ALARM (12), sounds during the following conditions:
• overload condition
• approaching two-block condition
• preset limits reached
• malfunction of the LMI system
• operating error
The alarm can be temporarily silenced by pushing the button
“Alarm Stop” (6).
Key Switch
• The anti-two-block switch cut-off function is deactivated when
the KEY SWITCH (13) is turned to position "B" and the “By-
pass A2B” button (14) is pushed.
or
• The LMI cut-off function is deactivated when the KEY SWITCH
(13) is turned to position "B" and the “By-pass LMI” button
(15) is pushed.
KEY SWITCH (13) can be operated only by using the matching
key.

Operator's Manual DS 350 / 1318
© PAT Rev. 7 03/27/01 // MO 191318_7.DOC
12
Since button (14) and (15) deactivate the cut-off function of the LMI system / the anti two-
block system, the following instructions must be obeyed:
• The by-pass function shall be used with discretion, as unwarranted use of it to override
the control lever lockout system can result in harm to the crane and danger to property
and persons.
• Never use the by-pass function to either overload or operate the crane in a non-
permissible range.
Button "By-pass A2B"
This button can be operated only if key switch (13) is turned to
position B.
After pushing this button, the cut-off function of the anti-two-
block switch is deactivated.
The Override Key Warning Light (5) flashes to indicate that the cut-
off function is deactivated.
Button "By-pass LMI"
This button can be operated only if key switch (13) is turned to
position B.
After pushing this button, the control lever lockout function of the
LMI is deactivated.
The Override Key Warning Light (5) flashes to indicate that the cut-
off function is deactivated.

Configuration Setup 13
© PAT Rev. 7 03/27/01 // MO 191318_7.DOC
4 CONFIGURATION SETUP
The LMI setup procedure allows the operator to input the crane configuration using interactive
displays. The operator must complete the setup procedure for the Load Moment Indicator
system if the system has been turned off for more than two hours or the crane operation
configuration has been changed.
4.1 LMI Setup Procedure
...starts: • Automatically, if the system was turned off for more than
two hours.
• Manually at each modification of the crane configuration by
pressing key (9) "SEL"
...is operated: • By answering the different questions using functional keys
F1...F4 in accordance with the actual configuration of the
crane.
...is cancelled: • Any time by pressing again key (9) "SEL". The system,
however, is only ready for operation, if the procedure has
been completed and the inputs have been confirmed.
If the system is turned off, for example during short breaks (less than 2 hours), all adjustments
remain stored. When turning on again the system these adjustments can be acknowledged by
merely pressing one key (provided that the crane configuration has not been modified!).
During the programming procedure, the Load Moment Prewarning Light (3) and the Load
Moment Limit Light (2) will light up and the aggravating crane movements will be interrupted.
Note: If a configuration is selected which is not available, the display will indicate error code
E04. In this case, the procedure has to be repeated with valid values!
The correct setting is of utmost importance for the proper functioning of the system and the
crane. Therefore, only operators who are thoroughly familiar with the crane and the
operation of the system should execute the setting of the system according the operating
configuration of the crane.

Operator's Manual DS 350 / 1318
© PAT Rev. 7 03/27/01 // MO 191318_7.DOC
14
The LMI programming procedure consists of the following steps:
• Setting the boom configuration
• Setting the counterweight configuration (where applicable)
• Setting the hoist configuration
• Setting the outrigger configuration
• Setting the reevings
• Confirmation of the programming procedure
For easy operation, the computer guides the operator through the procedure step by step.
(interactive operation).
Definition of the Displayed Symbols:
The following illustrations define the symbols appearing on the display during the setup
procedure. Not all symbols will be shown, depending on the crane type and the answers to the
questions.
• Select interactive configuration setup / special mode setup
interactive configuration setup
special mode setup
Note: Refer to manufacturer’s load chart for special LMI
operating code.
• (if selected special mode setup only)
Increase selected numeral
Decrease selected numeral
Select next numeral
Confirm selected operating code
