PATHFINDER 2400TRS 2022 User manual

1
Maverick Boat Group
3207 Industrial 29th St. • Fort Pierce, Florida 34946
(772)-465-0631 •Pathfinderboats.com
2400TRS Owner’s Manual
Revised November 2022

2
Maverick Boat Group
3207 Industrial 29th St. • Fort Pierce, Florida 34946
(772)-465-0631 •Pathfinderboats.com
Table of Contents
2400TRS Specifications ...........................................................................................................................3
DESIGNATED OCCUPANT POSITIONS...................................................................................................4
Pre-Operation Checklist ........................................................................................................................5
Maintenance & Cleaning ......................................................................................................................6
Engine Break-In Period...........................................................................................................................8
Switch Panel & Helm ...............................................................................................................................9
Fuel-Water Separator & Drain.............................................................................................................10
Bilge ...........................................................................................................................................................11
Systems .....................................................................................................................................................13
Trolling Motor Wiring..............................................................................................................................13
Battery Switch and Breaker Panel.....................................................................................................14
Ladder & Props........................................................................................................................................15
Fuel System..............................................................................................................................................16
Self-Bailing Cockpit & Livewell...........................................................................................................16
Wiring.........................................................................................................................................................19
Standard Features..................................................................................................................................20
Optional Features ..................................................................................................................................22
Pathfinder 2400 TRS Deck Wiring Schematic..................................................................................24
Pathfinder 2400 TRS Hull Wiring Schematic.....................................................................................25
Pathfinder 2400 Open Water System................................................................................................26
Pathfinder 2400 Open Sanitation System ........................................................................................27
Pathfinder 2400 Open Fuel System ...................................................................................................28
Location and Reordering of Warning Labels..................................................................................29
Location and Reordering of Warning Labels..................................................................................30
2400TRS Optional Trolling Motor with Battery Charger and Wire Routing...............................31
2400TRS Bunk Placement .....................................................................................................................32
2400TRS Bunk Placement .....................................................................................................................33
Upholstery Care & Cleaning Guide ..................................................................................................34
Warranty ...................................................................................................................................................35

3
Maverick Boat Group
3207 Industrial 29th St. • Fort Pierce, Florida 34946
(772)-465-0631 •Pathfinderboats.com
2400TRS Specifications
L.O.A.......................................................................................................................24’ 04”
BEAM......................................................................………………….…...........................9’
DRAFT............................................................................................................................14”
DEADRISE………………………………………………………………………………15 DEG.
WEIGHT W/ ENGINE..........................................................................................4,100 LBS.
FUEL CAPACITY....................................................................................................88 GAL.
MAXIMUM H.P.............................................................................................................350
Battery Switch /
Battery Access
Release well
Fuel Fill
Bilge Access
Fish Box
Dry Storage
Cushioned Cooler
Seat
Fresh Water Fill
Anchor Locker
Livewell

4
Maverick Boat Group
3207 Industrial 29th St. • Fort Pierce, Florida 34946
(772)-465-0631 •Pathfinderboats.com
DESIGNATED OCCUPANT POSITIONS

5
Maverick Boat Group
3207 Industrial 29th St. • Fort Pierce, Florida 34946
(772)-465-0631 •Pathfinderboats.com
Pre-Operation Checklist
We recommend you print this document and store it at the helm station.

6
Maverick Boat Group
3207 Industrial 29th St. • Fort Pierce, Florida 34946
(772)-465-0631 •Pathfinderboats.com
Maintenance & Cleaning
Maintenance
Pathfinder advises owners that maintenance and repairs should be performed at an
authorized Pathfinder Dealer. The following information is general in nature and should
not be considered a repair manual or guidelines set forth by Maverick Boat Group.
Cleaning
Each Pathfinder boat is constructed using the finest materials and components
available. However, no material is immune to the ravages of the saltwater environment.
After each use, your boat should be thoroughly washed using fresh water. To avoid water
spots, dry your vessel using a soft cloth. A fiberglass wax may be used to preserve the
luster of the hull.
Thorough and routine cleanings of your stainless fittings are required to maintain their
appearance. After each use of your boat, clean stainless fittings using fresh water and a
mild soap. Dry fittings completely. A wax or polish may be applied after cleaning. Any
rust must be removed as soon as possible to prevent irreversible damage to your vessel
and/or its components. A light coat of lubricant on metal railing, screws and electrical
connections will help prevent electrolysis. The same holds true for your trailer.

7
Maverick Boat Group
3207 Industrial 29th St. • Fort Pierce, Florida 34946
(772)-465-0631 •Pathfinderboats.com

8
Maverick Boat Group
3207 Industrial 29th St. • Fort Pierce, Florida 34946
(772)-465-0631 •Pathfinderboats.com
Engine Break-In Period
Engine Break-In Period
New engines require a period of break-in to allow the surfaces of the moving parts to
mate evenly. Different engines require different break-in periods and methods. For
instructions on break-in methods, refer to your Yamaha Engine Owner’s Manual for the
correct break-in procedures and times for your model engines.
Engine Stop Switch
If activated, the spring-loaded engine stop switch will
automatically shut down the engine during emergency
situations to prevent uncontrolled or unattended operation.
Certain emergency conditions (e.g., turbulent water, wakes,
unanticipated movement) may impair a person’s ability to
operate the craft safely. The switch, located on the helm, must
have the safety lanyard attached at its base. This activates the
protective shutdown circuitry.
Securely attach the other end of the lanyard to the operator of
the boat. If the operator moves, falls or is at an unsafe distance
from the steering wheel, tension on the lanyard will pull it
from the switch. When the lanyard is removed, the engine stop
switch is released and automatic engine shutdown occurs.
Engine Stop Switch
DANGER:
An engine stop switch system that is not used or does not function
properly can cause death or serious injury. DO NOT operate the boat if
the engine stop switch system does not function properly. Go to a
Pathfinder Dealer to have this resolved immediately.
The lanyard should be securely attached to the boat operator at all times that
the engine is on.

9
Maverick Boat Group
3207 Industrial 29th St. • Fort Pierce, Florida 34946
(772)-465-0631 •Pathfinderboats.com
Switch Panel & Helm
Switch Panel & Helm
At the helm of your Pathfinder, you have a main switch
panel, which is located above and to the right of the steering
wheel. This panel controls your lights, horn, accessories,
livewell, and your bilge. The bilge switch is an on-demand
switch to run your bilge pump and is used as a backup in case
the float indicator in your bilge pump becomes clogged.
To the right of the steering wheel you have your two trim tab
switches, which are standard on the 2400TRS. The boat also
comes standard with a compass mounted on top of the
console.
Gauges
The instrument panel on your Pathfinder is composed of one Yamaha digital gauge and
a series of dual activation switches. The switches come with accessory plug-ins for
wiring additional electronics, pumps or electrical circuits.
The standard digital gauge includes a Yamaha tachometer and a Yamaha speedometer
on one screen. The tachometer has several built-in features including an engine
temperature monitor, oil level monitor and engine trim indicator. The speedometer
includes a digital readout of the speed, an hour meter, trip meter and clock. For more
information on the specifics of your Yamaha gauges, see your Yamaha owner's manual.
Helm & Switch Panel

10
Maverick Boat Group
3207 Industrial 29th St. • Fort Pierce, Florida 34946
(772)-465-0631 •Pathfinderboats.com

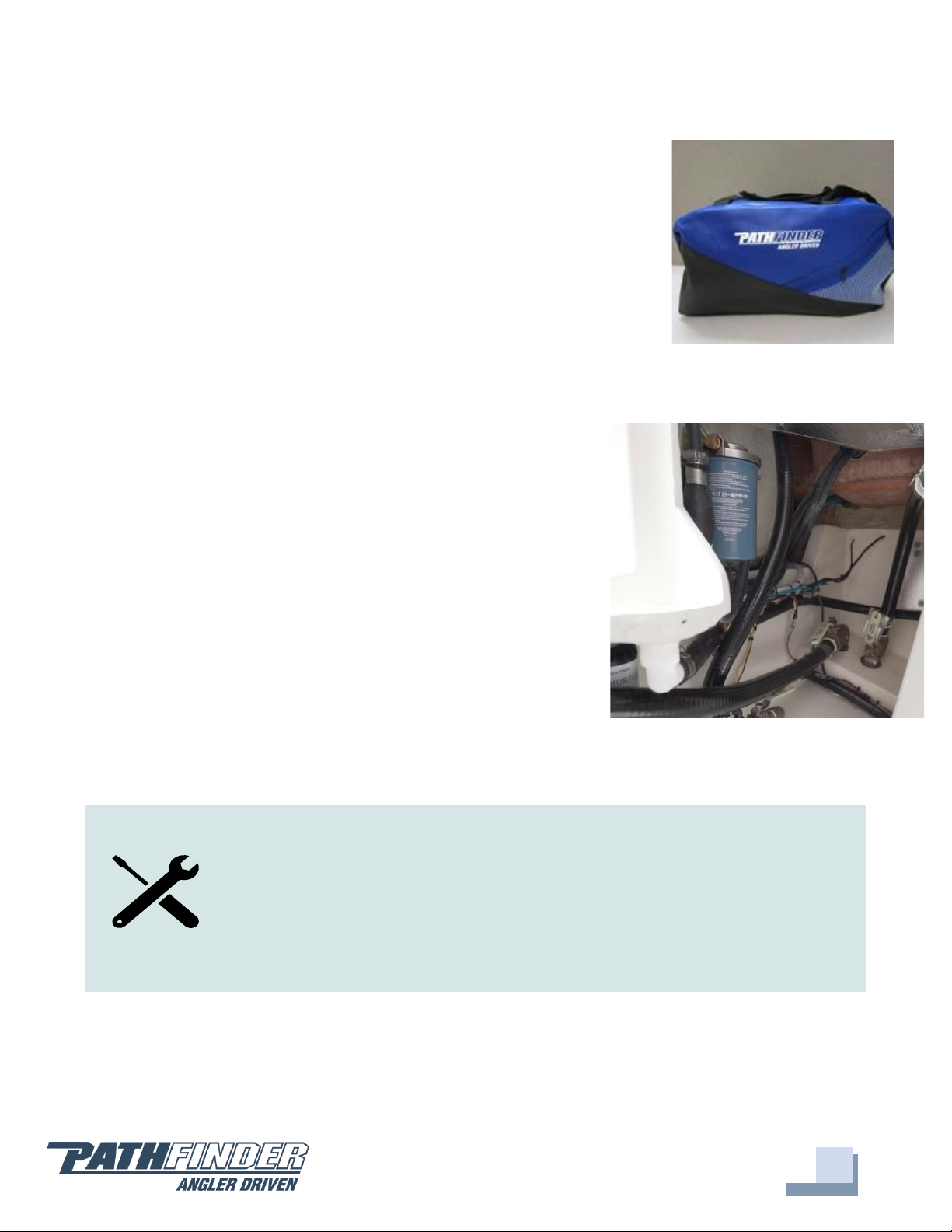

Pathfinder Duffel Bag
Along with your boat, you received a Duffel Bag with your new
Pathfinder. Inside the Duffel Bag are the following items:
oLivewell Standpipe
o1.5” Livewell Pacifier Plug
o2 ignition Keys and Emergency Kill Cord /Engine Stop Lanyard
o2 Glove Box Keys
oVarious Accessories Manuals
Fuel-Water Separator & Drain
Fuel-Water Separator
Each Pathfinder 2400TRS is equipped with one fuel water
separator per engine to ensure maximum performance
and protect the outboard engine from contaminated
gasoline. The fuel separator is a metal, cylindrical unit
secured to the starboard wall of your center aft rigging
box.
The fuel separator can be checked by removing it from the
mounting bracket in the rigging locker and dumping it
into an approved waste collection device. If there appears
to be an excessive amount of water, the filter component
should be changed. See your authorized Pathfinder dealer
for replacement parts.
Maintenance Note: Yamaha recommends replacing the 10-
micron fuel filter on new boats after the first 10 hours or 1 month of
operation and every 50 hours or every 6 months thereafter. In
areas of high humidity where water in fuel supplies is a problem or
extensive engine operation occurs, more frequent replacement
may be necessary.
Fuel-Water Separator
Pathfinder Duffel Bag
