Patron AS-550 User manual

-1-
Restoration&Moisture&Ventilation
Owner's Manual
AS-550
READ AND SAVE THESE INSTRUCTIONS
®

-2-
WARNING!
Please note that the air scrubber should only be used with parts approved by
supplier. The use of unauthorized parts or alterations to the machine could void your warranty.
Contact an approved distributor for further assistance.
To Avoid the Risk of Fire or Electric Shock:
•Unit must be electrically grounded.
•Insert 3-prong plug directly into outlet with Ground Fault Circuit Interrupting device.
•Do not use an adapter with this unit.
•Do not use the unit in standing water.
•If electrical parts get wet, they must be dried prior to use.
INTRODUCTION
The air scrubber is a convenient filtration system that cleans the air. The air scrubber uses
an effective blend of air flow and advanced filtration to expel airborne particles like mold
spores, dust, pollen, and pet dander. The air scrubber is ideal for for restoration jobs,
including water, sewage, and fire.
IDENTIFICATION
Congratulations on purchasing this air scrubber. In order to take advantage of the warranty plan, be
sure to note the serial number and date of purchase.
Serial Number: Date of Purchase:
HOW IT WORKS
When set to maximum airflow, scrubbers pass through three types of filters -- pre-filters, activated
carbon filters and H13 HEPA filters.
1. Pre-Filter
The first phase of filtration, the pre-filter, Captures initial dust and allergen particles.
2. Activated Carbon Filter
Multi-pore impregnated activated carbon can strongly adsorb VOC and remove formaldehyde.
High-quality impregnated activated carbon has developed pore structure and can firmly adsorb
formaldehyde, VOC and other gaseous pollutants. After the impregnation of the active solution, the
active molecules in the carbon hole can gradually remove the absorbed part of formaldehyde.
3. HEPA Filter (H13)
The third stage of filtration, the HEPA filter, captures even smaller particles, up to 0.3 microns.Helps
control and prevent the growth of bacteria, bacteria and molds.Capturing 99.99% of dust and
allergens.
4. UV-C Light
UV-C light technology works with filters to enhance the elimination of airborne germs Titanium Dioxide
is activated by the UV-C light to decompose remaining odor molecules caused by smoking, cooking,
and pets.

-3-
SPECIAL FEATURES
Daisy-Chain Capability
Using the auxiliary outlet on the control panel, you can link up to 3 units together. You can also
daisy-chain the machines when they are stacked vertically (limit of 2 units).
Multi-Positional
The air scrubber can be operated in the vertical position, as well as, when stacked vertically (up to 2
units). When storing, the machines can be stacked horizontally to save space.
Removable Intake Panel
The air scrubber is equipped with a removable panel on the intake side of the machine. The
removable panel is quite useful in remediation applications, so you can draw air out the room and
create more negative pressure. To use panel:
1. Remove the panel.
2. Install the machine outside the containment area to draw air out.
3. Cut a hole in the containment plastic that is the size of the unit's inlet.
4. Insert the inlet into plastic and seal the circumference tightly with duct tape.
KEY FEATURES
Vertical, upright
position
Air outlet
(dectable, 8")
Latches (2)
Inlet
(dectable, 12")
Removeable plastic
cover
Handle

-4-
INSTRUCTIONS
SETUP
1. Place the air scrubber so that it is in the upright, vertical position.
2. Plug the machine into a standard 120 volt outlet. Note: Each unit needs 3 amps to operate.
3. Power the unit on and adjust the speed by turning the variable speed control. The maximum
speed is 550 CFM and the minimum speed is 280 CFM.
4. The air scrubber can be operated in the vertical or horizontal position, depending on the exact
situation. At this point, adjust the machine to the optimal position.
THE CONTROL PANEL
Variable Speed Control
Variable speed control is used to adjust the power of the machine.Turn the knob in a clockwise
direction, to increase the speed from minimum speed to maximum, the minimum speed setting is
located immediately close to OFF.
Auxiliary Outlet
If more air filtration is necessary for a space, you can "daisy chain" or link up to 3 air scrubber to the
same outlet. There is a maximum amperage of 12 when the units are turned off, a maximum of 9 amps
when the units are turned on. Other equipment can be plugged into the same outlet as the air
scrubber as long as it doesn't go above the max amperage.
Circuit Breaker Switch
The Circuit Breaker Switch protects the unit if there are more than 12 amps of electricity passing the
circuit. If this occurs, the switch will cut off the power to the unit.
Timer
Used to time the running time of the device. Start timing when the device is running, and pause timing
when the device is stopped.
Power cord
Cord Wrap
Retaining Clips
(4 on base)
Removeable plastic
Motor
Control Panel
Retaining Clips
(4 on base)
5. When the machine total working time up to 2000 hours, the filter change warning light will blink
with buzzing on control panel to remind changing filters.(To reset the machine, need to push
the UV-C light switch 3 times continuously in 5 seconds to Reset the filter service time).
6. UV-C sterilization lamp fault detection function: when the UV-C sterilization lamp does not work,
the buzzer will keep ringing.

-5-
CHANGING THE FILTERS
1. Loosen the 2 locks that hold the filter board in place.
2. Slide out the filter panel board.
3. Remove the used filters and replace with new filters.
WARNING
•Always wear approved protective gear when changing the filters.
•Filters should be changed after each remediation job.
•If the indicator light is on, always change the HE PA/Activated Carbon Filter.
APPLICATIONS
Water Damage
In this application, the air scrubber should be placed in the center of the affected area. The air
scrubber will draw in the air, filter it, then blow out the newly cleaned air. To begin the process.simply
turn on the scrubber and it will start cleaning the air. Keep in mind that if you are working in a large
area or one divided by walls, you may need several air scrubbers to effectively clean the air.
Odor Control
The air scrubber ,when used with the HEPA/Activated Carbon Filter, is excellent at odor control, as
well. Simply place the carbon filter in the pre-filter slot and it will capture a wide variety of odor-causing
gas molecules, such as volatile organic compounds (VOC's), smoke, soot, and paint fumes.
Other Uses
The air scrubber is also useful in many other applications including mold remediation, fire damage,
dust control, and sewage remediation.
WARNING!
Breathing Hazard
When using the air scrubber in a containment area, always turn off power to open combustion
appliances, such as fireplaces, furnaces, water heaters, and HVAC systems, to avoid the risk of

-6-
back drafting carbon monoxide fumes.
If the Filter Change Light illuminates during the remediation process, immediately change the
HEPA/Activated Carbon Filter.
Tipping Hazard
•Use caution when stacking units.
•Do not stack more than 3 units on top of each other.
•Falling equipment could cause bodily harm.
SAFETY NOTES
•Always unplug the unit prior to performing any maintenance.
•Check the power cord for damage (fraying, cuts, etc.) before use.
•To avoid electric shock, never use a water hose or pressure washer to clean the electrical
components.
•Check the pre-filter prior to operating the machine to ensure it is not clogged. If there is any sign of
airflow restriction change the filter.
•Make sure the unit is dry prior to installing clean filters.
•When using the air scrubber for remediation purposes, replace both filters at the same time and
always clean machine in between jobs. This will help prevent cross contamination.
WARNING!
WARNING: To reduce the risk of electric shock, do not expose to water or rain.
WARNING: NOT SUITABLE FOR USE WITH SOLID-STATE SPEED CONTROLS.
To reduce the risk of electric shock, connect only to an outlet provided with a ground
fault circuit interrupting device.
CAUTION: To reduce the risk of electric shock, connect only to an outlet provided with
a ground fault circuit interrupting device.
WARNING - Skin or eye damage may result from directly viewing the light produced
by the lamp in this apparatus. Always disconnect power before relamping or
servicing. Replace lamp with lamp ZW4S15W-Z135, DC20V, 160mA 100-280nm.

-7-
Improper voltage
Lack of normal care
Failure to follow instructions
3. Corrosion
4. Freezing
5. Any additional costs due to changes in laws or building codes
6. Freight charges
7. Any costs due to lost profit or delay
8. Damage to property
9. Cause beyond control
10. Consumable parts, including but not limited to:
Filters
Batteries
Power cords
Valves
Switches
Rubber parts
11. Direct, indirect, collateral or inconsequential damages of any kind
WARRANTY
All warranty benefits apply to the original owner only Warranty cannot be transferred or assigned.
Customer Responsibilities: In order to take advantage of the warranty service, the customer must
do the following:
1. Customer must provide normal care and maintenance (including, but not limited to cleaning filters)
2. Removal and re-installation of unit is the sole responsibility of owner.
3. If customer cannot return unit to certified repair center, all costs associated with shipment are
borne by the customer.ln addition, all ancillary charges related to freight shipments, including but not
limited to palletizing, wrapping, labeling, andp ickup are associated with customer.
4. If shipped, customer is responsible for all risk of loss or damage.
Warranty Exclusions:
DAMAGE DUETO THE FOLLOWING IS NOT covered under warranty
1. Acts of Nature- including but not limited to:
Flooding
Fire
Water damage
Hurricane/storm
Damage
2. IMPROPER USAGE- Including but not limited to:
Misuse, abuse, or tampering whether intentional or accidental
Improper installation or design

-8-

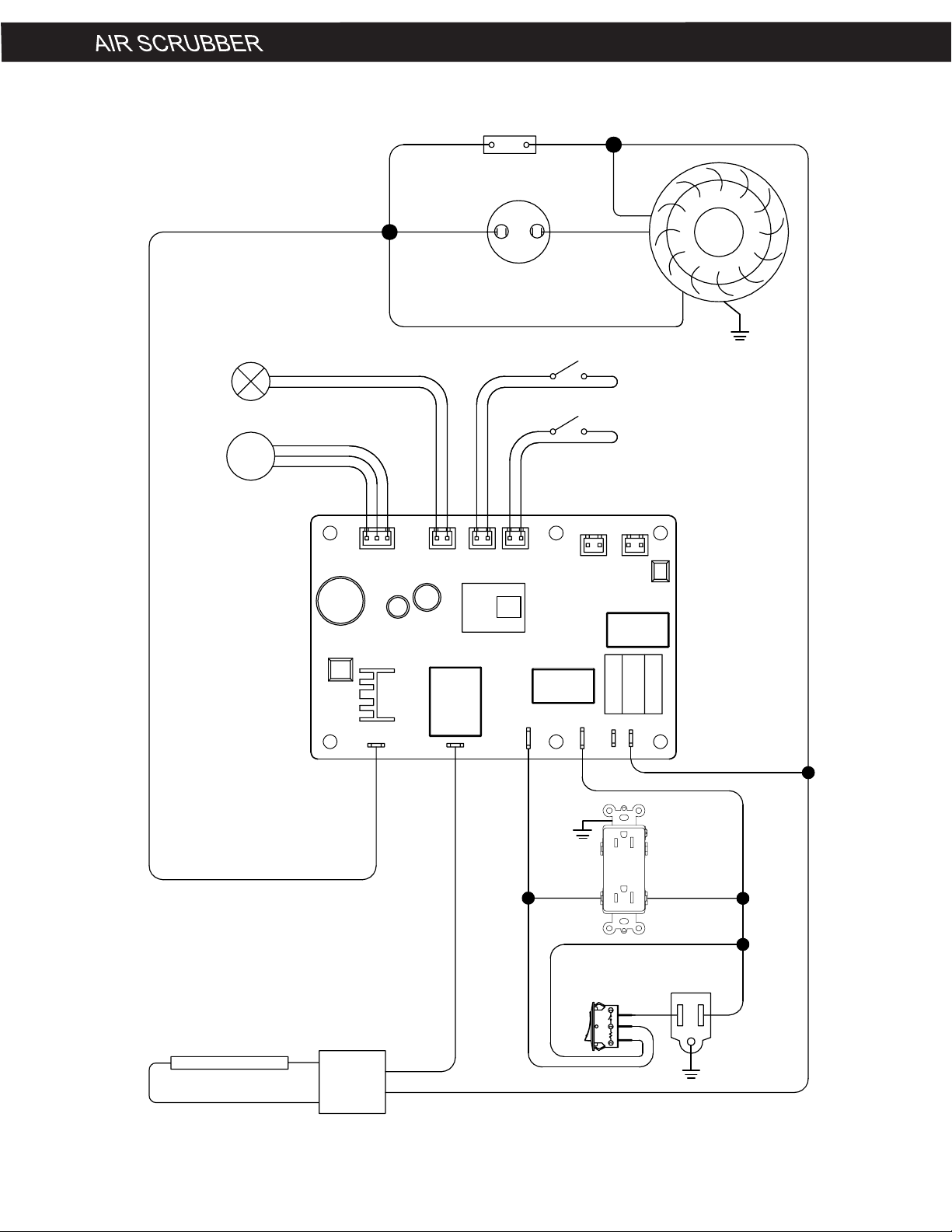

Wiring Diagram
FAN
CN1
UV
ACL ACN
COM COM
VDD S GND
- LED + K-K K-UV
CN3 CN4 CN5
- UV + - UV +
CN6 CN7
LN
CAPACITANCE
UV Germicidal
Lamp
BALLAST
TIMER
CHANGE
HEPAFILTER
Potentiometer
RT
Switch
Socket
Overload
protection
switch
Black Red Brown
Blue
Green
Black
UV-C light switch
Black Black
Black
120VAc 60Hz
White
