2.0 GENERAL INFORMATION
Thank you purchasing this Patton Electronics product.This product has
been thoroughly inspected and tested and is warranted for one year for
parts and labor. If questions arise while installing or using this product,
contact Technical Support at [phone] .
2.1 FEATURES
• Easy-to-install Ethernet Extenders— no configuration required
• Auto-rate adaption ensures the highest rate possible for each exten-
sion distance
• Data rates to 2.3 Mbps (for Model 2156) and 4.6 Mbps (for Model 2157)
• Auto-sensing 10/100Base-T
• Extends network connections up to 30,000 ft (9,144 m) over 2-wire 24-
AWG unconditioned lines (see Appendix A on page 15)
• Transparent operation to higher level protocols such as TCP/IP, DEC-
net, NETBIOS, IPX, etc.
• Compatible with 802.1QVLAN
• LED indicators for Power;Ethernet Link, 100Base-T Operation,Transmit,
Receive;WAN Link, Transmit, Receive
• Made in the USA
2.2 DESCRIPTION
The Patton Electronics CopperLink Ethernet Extenders provide high-
speed LAN connections between peered Ethernet LANs, remote PCs, or
any other network enabled 10/100Base-T device.
Operating in pairs, a Model 2156 or 2157 can automatically forward LAN
broadcasts, multicasts, and frames across a 2-wire voice-grade twisted-
pair link.The data is passed transparently (unmodified) through the Ether-
net Extenders.They automatically add and delete MAC addresses, only
passing packets across the CopperLink line that are meant for the remote
peered LAN.

7

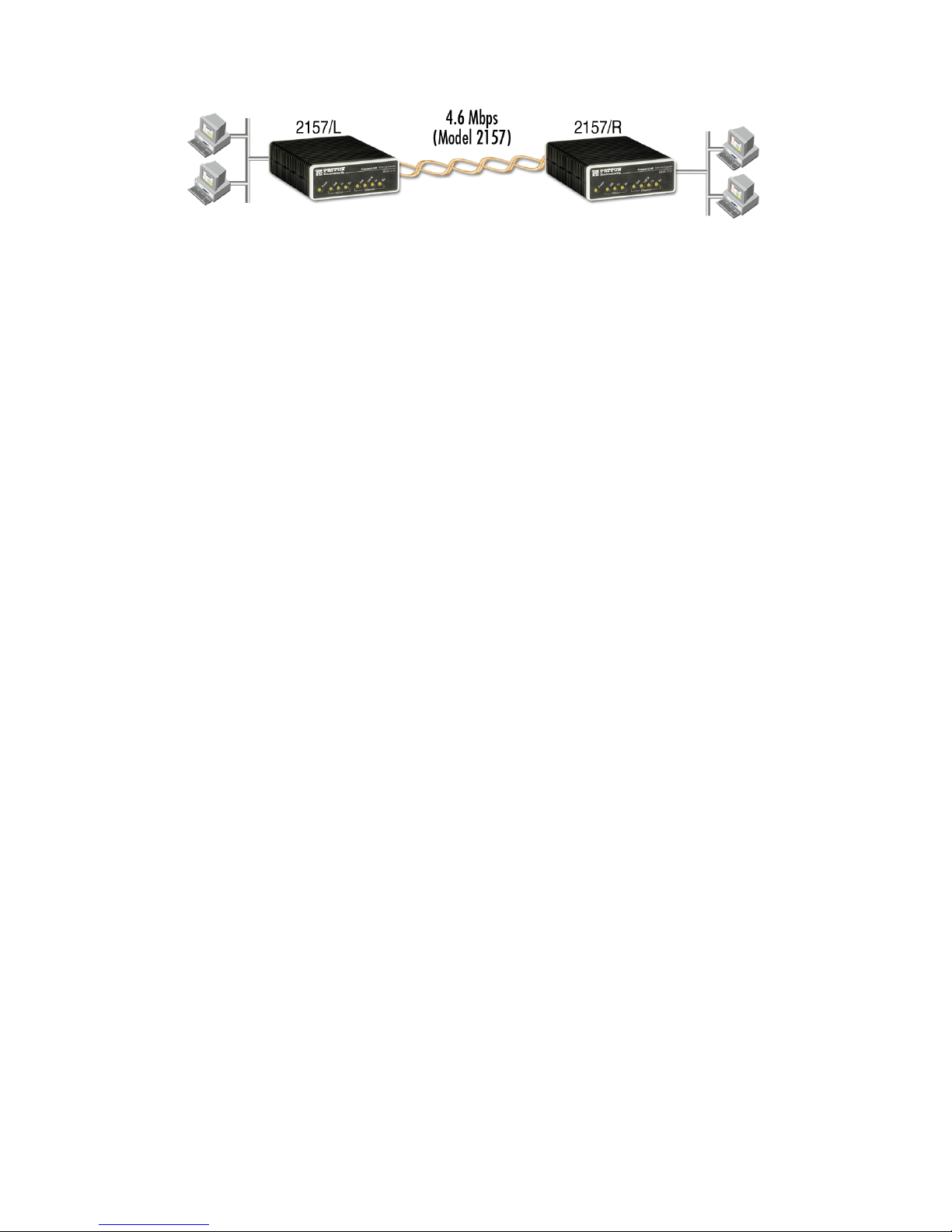

Figure 1. Typical application
The 2157/L and 2157/R work together to create a transparent extension
between two peered Ethernet LANs.Figure 1 shows a typical point-to-
point application.

8
3.0 INSTALLATION
Because the CopperLink Ethernet Extenders require no configuration, they
can be installed quickly.Installation consists of the following:
• Connect the line interface between the units (refer to section 3.1,
“Connecting the Twisted-Pair Line Interface” on page 8)
Note See Figure 2 for the rear-panel connectors locations.
• Connect the Ethernet interface (refer to section 3.2, “Line Interface—
Connecting the 10/100Base-T Ethernet Interface” on page 9).
• Connect the power plug (refer to section 3.3, “Connecting Power” on
page 11).

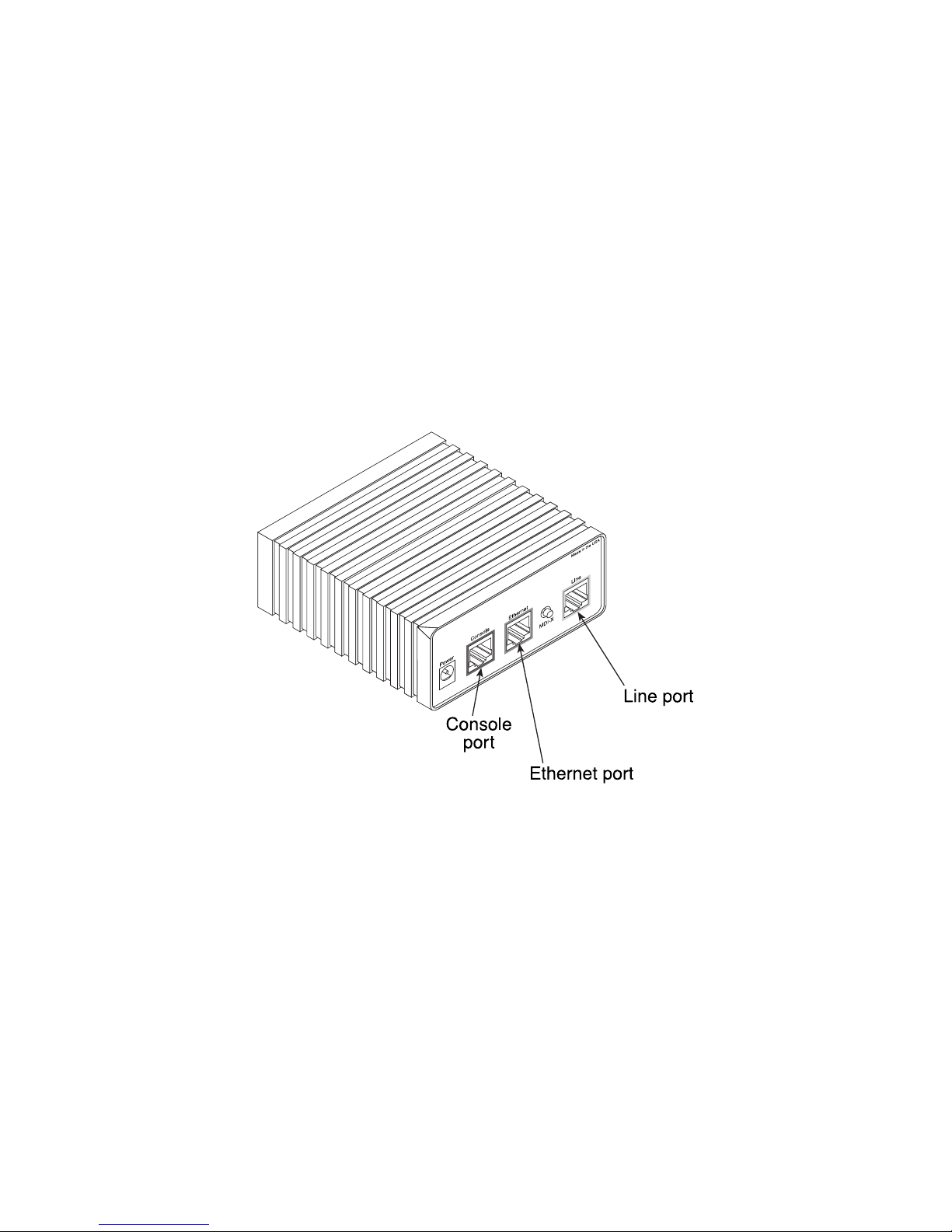

Figure 2. CopperLink Ethernet Extender rear panel
3.1 CONNECTING THE TWISTED-PAIR LINE INTERFACE
The Models 2156 and 2157 support communication between two peer
Ethernet LAN sites over a distance greater than 30,000 ft (9,144 m) over
24 AWG (0.5 mm) twisted-pair wire.
Note The Models 2156 and 2157 use an auto-rate adaption feature to
provide the fastest data rate possible over the wire and distance
of each Ethernet extension.The actual distance and rate
achieved for Ethernet extension may vary depending on the
environment and type/gauge of the wire used.

9
Follow the steps below to connect the CopperLink interfaces.
Note The Model 2156 or 2157 units work in pairs.One of the units
must be a Model 2156/L (local) or 2157/L, and the other unit
must be a Model 2156/R (remote) or 2157/R.
1. To function properly, the two Ethernet Extenders must be connected
together using twisted-pair, unconditioned, dry, metal wire, between
19 (0.9mm) and 26 AWG (0.4mm). Leased circuits that run through
signal equalization equipment are not acceptable.
2. The Models 2156 and 2157 are equipped with an RJ-11 interface.
The CopperLink interfaces are a two-wire interface.Observe the sig-
nal/pin relationships on the CopperLink interface jack.
The RJ-11 connector on the CopperLink Ethernet Extender’s twisted pair
interface is polarity insensitive and is wired for a two-wire interface.The
signal/pin relationship is shown in Figure 3.

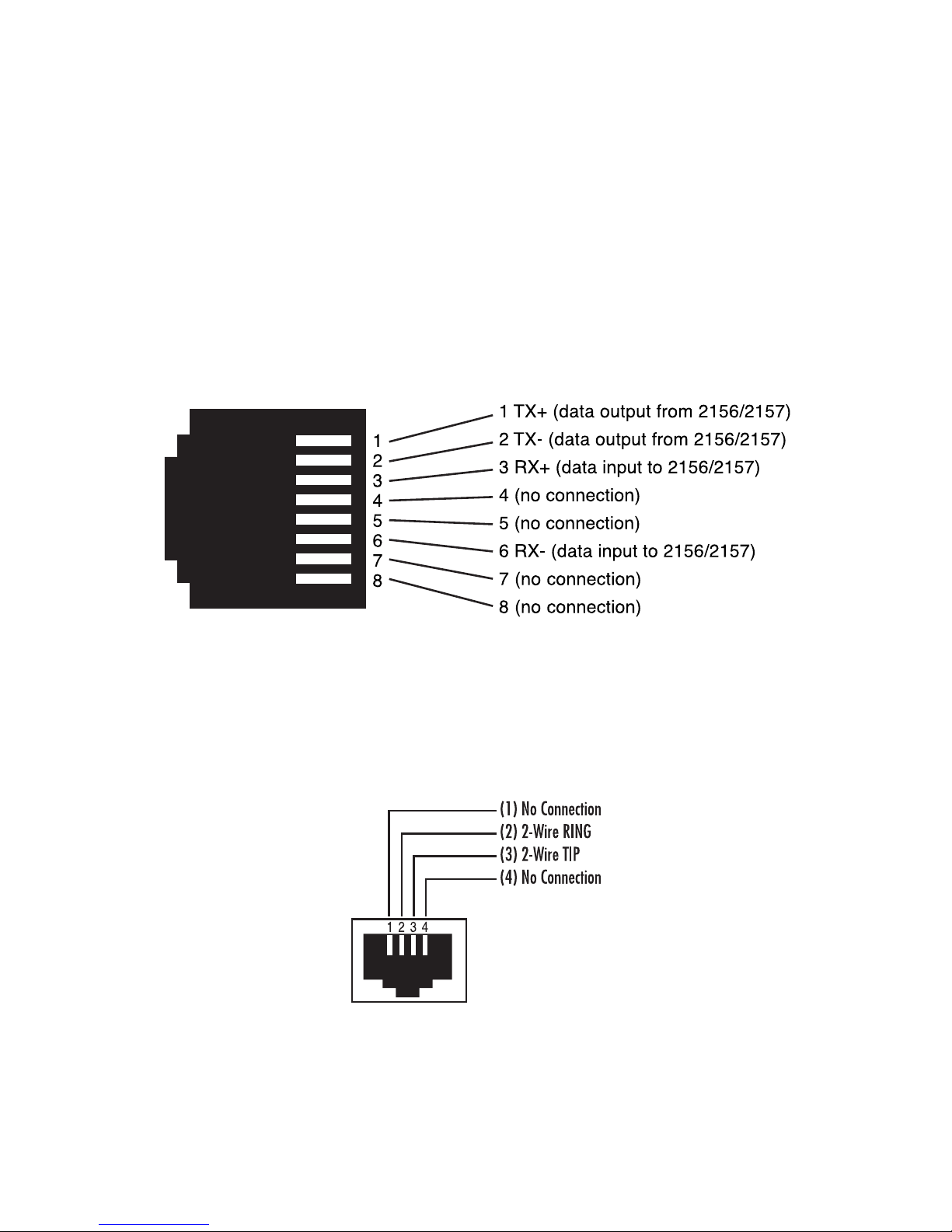

Figure 3. CopperLink Ethernet Extender (RJ-11) twisted pair line interface.
3.2 LINE INTERFACE—CONNECTING THE 10/100BASE-T
ETHERNET INTERFACE
The shielded RJ-45 port labeled Ethernet is the 10/100Base-T interface.
This port is designed to connect directly to a 10/100Base-T network.
Figure 4 shows the signal/pin relationships on this interface.You may
connect this port to another Ethernet device via aType 4 or Type 5 cable
that is up to 328 ft (100 m) long.

10

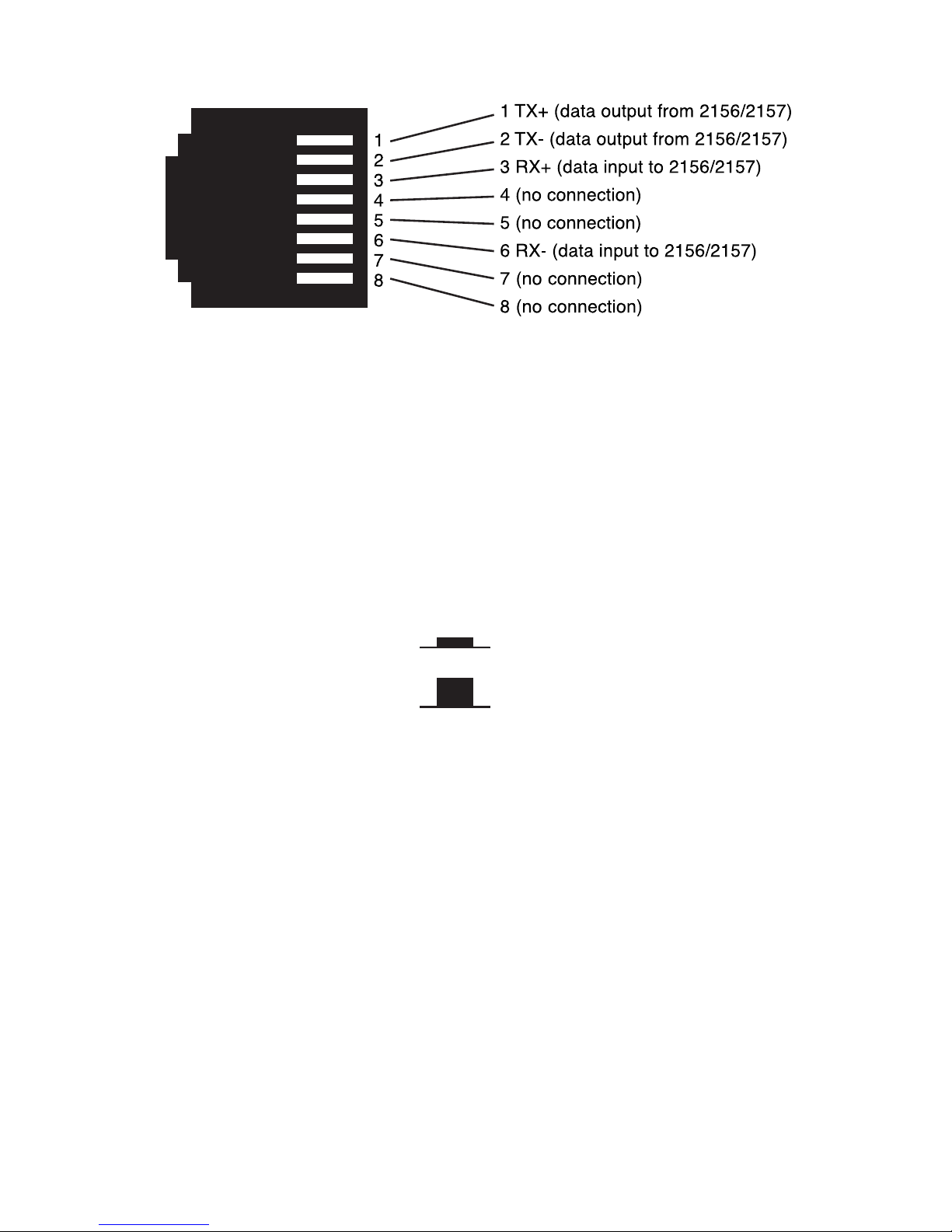

Figure 4. CopperLink Ethernet Extender 10/100Base-T RJ-45 Connector Pinout.
Connecting the 10/100Base-T Ethernet Port to a Hub or PC
The Models 2156 and 2157 are equipped with an MDI-X switch that
enables connections to a hub (DCE) or PC (DTE) interface, thereby
elimininating confusion over whether a straight-through or crossover
cable is needed.
When using a straight-through cable for connecting to a hub, the MDI-X
switch should be in its released (DCE mode) position (see Figure 5).
When connecting to a PC, the MDI-X switch should be pushed in to
engage the crossover function so you won’t have to use a crossover cable
Figure 5. MDI-X switch positions
Note If you have difficulty achieving a working connection between
the CopperLink Ethernet Extender’s Ethernet port and the hub
or PC, change the position of the MDI-X switch and try again.
In its released position, the MDI-X switch enables straight-through con-
nections (see Figure 6) or in its inserted position the MDI-X switch per-
forms the crossover function (see Figure 7 on page 11).
Figure 6. Wiring diagram for connecting the CopperLink Ethernet Extender to a
10/100Base-T hub (MDI-X switch released)
DCE mode
MDI-X
switch
DTE mode
2157 10/100Base-T Port
RJ-45 Pin No. 10/100Base-T Hub RJ-45 Pin No.
1 (TX+)--------------------------------------------------1 (RX+)
2 (TX-)---------------------------------------------------2 (RX-)
3 (RX+)--------------------------------------------------3 (TX+)
6 (RX-)---------------------------------------------------6 (TX-)

11
Figure 7. MDI-X switch pressed in performs 10/100Base-T crossover function
3.3 CONNECTING POWER
An external AC or DC power supply is available separately.This connec-
tion is made via the barrel jack on the rear panel of the Models 2156 and
2157. No configuration is necessary for the power supply (See
Appendix B on page 18 for domestic and international power supply and
cord options).
3.4 POWER INPUT CONNECTOR
The CopperLink Ethernet Extender comes with an AC or DC power supply.
• The supplies connection to the CopperLink Ethernet Extender is a
2.5 mm barrel receptacle with the center conductor positive (see
Figure 6).

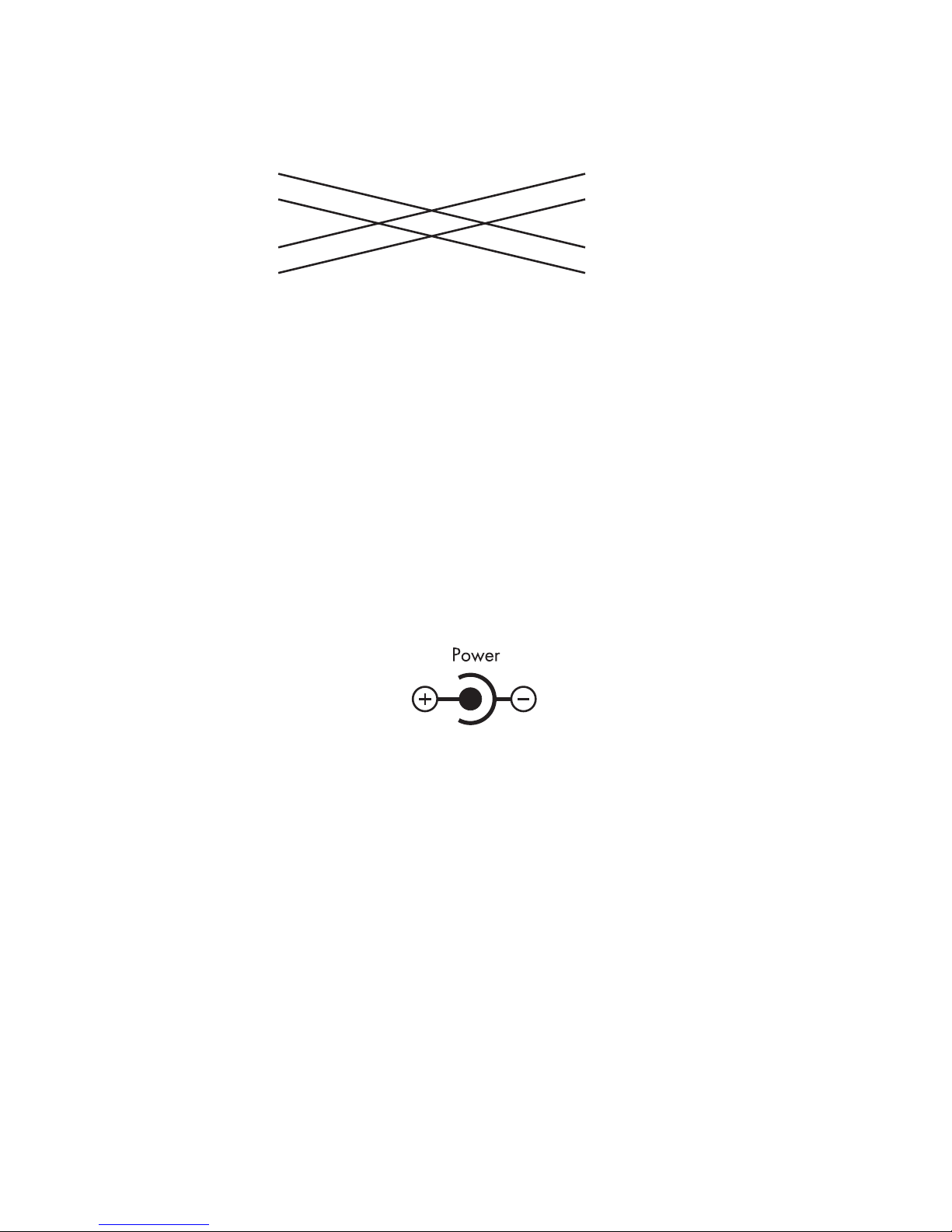

Figure 8. Power connection barrel receptacle diagram
• CopperLink Ethernet Extender’s rated voltage: 5.0 VDC
• CopperLink Ethernet Extender’s rated current: 1 A DC
External AC universal power supply
• Output from power supply: 5 VDC, 2A
• Input to power supply: universal input 100–240VAC 50/60 Hz 0.3A
2157 10/100Base-T Port
RJ-45 Pin No.
1 (TX+) 1 (TX+)
2 (TX-) 2 (TX-)
3 (RX+) 3 (RX+)
6 (RX-) 6 (RX-)
10/100Base-T DTE
RJ-45 Pin No.

12
External 48VDC power supply
• Input
– Rated voltage: 36–60 VDC
– Rated current: 0.25 A DC at nominal 48 VDC
– 3-pin locking connector, 3.5 mm pitch
– Reverse polarity protection
– Transient over-voltage protection, 100 VDC at 2 ms
• Output
– Rated voltage: 5 VDC ± 5%, 5W
– Rated current; 1 A DC
– 6-inch cable terminated with 2.5 mm barrel plug, center positive
Caution
An approved external power supply that incorporates a
disconnect device must be used and positioned within
easy reach of the operator’s position.
Caution
Connect the equipment to a 5 VDC source that is electri-
cally isolated from the AC source. The 5 VDC source is to
be reliably connected to earth.
Caution
An approved external power supply that incorporates a
disconnect device must be used and positioned within
easy reach of the operator’s position.
Caution
Connect the equipment to a 36–60 VDC source that is
electrically isolated from the AC source. The 36–60 VDC
source is to be reliably connected to earth.

13
3.5 CONSOLE PORT
The Console Port is only intended for use by Patton Electronics Technical
Support technicians.

14
4.0 OPERATION
Once the CopperLink Ethernet Extenders are properly installed, they
should operate transparently. No user settings required.This section
describes reading the LED status monitors.
4.1 FRONT PANEL LED STATUS MONITORS
The Models 2156 and 2157 feature eight front-panel LEDs that monitor
power, Ethernet signals, and the CopperLink connection.Figure 9 shows
the front panel location of each LED. Table 1 describes the LED functions.
Figure 9. CopperLink Ethernet Extender standalone unit front panel
Table 1: Front panel LED description
LED Description
Power When lit, indicates the unit is powered on
WAN Link
•
On solid—link is connected
•
Off—No signal detected
TX Flashing—Data is being transmitted from the local unit to the
remote unit
RX Flashing—Data is being received at the local unit from the
remote unit
Ethernet Link On—Ethernet is linked
100 M On—100 Mbps Ethernet is selected
TX Flashing—When data is transmitted from the unit to the LAN
RX Flashing—When data is received from the LAN

15
APPENDIX A
SPECIFICATIONS
A.1 GENERAL CHARACTERISTICS
• Compact low cost plug-and-play router
• 10/100 Ethernet
• Unlimited host support
• Eight front panel LEDs indicate Power,WAN, Ethernet LAN speed and
status
• Convenient and standard RJ connectors for Ethernet and line
• External UI or 48 VDC power supply options
• Standard 1-year warranty
A.2 WAN CHARACTERISTICS
• 2.3 Mbps (Model 2156) or 4.6 Mbps speed (Model 2157)
• RJ-11 connector
• Uses two-wire unconditioned twisted-pair
A.3 ETHERNET
• Full-duplex, auto-sensing,10Base-T/100Base-TX Ethernet
• Standard RJ-45 and built-in MDI-X crossover switch
• IEEE 8021.d transparent learning bridge up to 1,024 addresses and
spanning tree
• Compatible with 802.1QVLAN
• Addresses deleted after 5 minutes of inactivity

16
A.4 EXTENSION DISTANCE AND RATE
• 2.3 Mbps (Model 2156) or 4.6 Mbps speed (Model 2157)
• Distances up to 30,000 ft (9,144 m) on 24 AWG (0.4 mm) wire
• Auto-adjusting rate picks best rate for a given extension distance (see
tables below)
Table 2: Model 2156 Extension Distances
DSL line
rate
No Noise
26g (0.4 mm) 24g (0.5 mm) 22g (0.6 mm) 20g (0.8 mm) 19g (0.9 mm)
N kbps miles km miles km miles km miles km miles km
3 200 4.4 7.0 5.7 9.4 8.0 13.1 10.3 16.8 12.1 19.7
6 392 4.0 6.6 5.4 8.8 7.5 12.3 9.7 15.8 10.8 17.5
8 520 3.8 6.2 5.1 8.3 7.1 11.6 9.2 14.9 9.7 15.8
12 776 3.5 5.6 4.6 7.5 6.0 9.8 7.8 12.7 8.8 14.3
18 1160 3.0 4.9 4.0 6.4 5.2 8.4 6.7 11.0 7.5 12.3
24 1544 2.8 4.6 3.7 6.1 4.9 7.9 6.4 10.3 6.7 11.0
32 2056 2.5 4.0 3.3 5.3 4.2 6.9 5.6 9.0 5.9 9.6
36 2312 2.3 3.8 3.1 5.0 4.0 6.6 5.3 8.6 5.6 9.1
Table 3: Model 2157 Extension Distances
DSL line
rate
No Noise
26g (0.4 mm) 24g (0.5 mm) 22g (0.6 mm) 20g (0.8 mm) 19g (0.9 mm)
N kbps miles km miles km miles km miles km miles km
3 200 4.4 7.0 5.7 9.4 8.0 13.1 10.3 16.8 12.1 19.7
6 392 4.0 6.6 5.4 8.8 7.5 12.3 9.7 15.8 10.8 17.5
8 520 3.8 6.2 5.1 8.3 7.1 11.6 9.2 14.9 9.7 15.8
12 776 3.5 5.6 4.6 7.5 6.0 9.8 7.8 12.7 8.8 14.3
18 1160 3.0 4.9 4.0 6.4 5.2 8.4 6.7 11.0 7.5 12.3
24 1544 2.8 4.6 3.7 6.1 4.9 7.9 6.4 10.3 6.7 11.0
32 2056 2.5 4.0 3.3 5.3 4.2 6.9 5.6 9.0 5.9 9.6
36 2312 2.3 3.8 3.1 5.0 4.0 6.6 5.3 8.6 5.6 9.1
42 2696 2.3 3.7 3.0 5.0 4.0 6.4 5.2 8.4 5.5 8.9
48 3080 2.2 3.6 3.0 4.8 3.9 6.3 5.0 8.2 5.4 8.7
54 3464 2.1 3.4 2.7 4.5 3.6 5.8 4.7 7.6 4.9 8.0
60 3848 1.9 3.1 2.5 4.1 3.3 5.3 4.3 7.0 4.5 7.4
66 4232 1.7 2.8 2.3 3.7 2.9 4.8 3.9 6.3 4.1 6.6
72 4616 1.5 2.5 2.0 3.3 2.6 4.2 3.4 5.5 3.6 5.9

17
A.5 LED INDICATORS
• Eight LED indicators
•Power
• WAN Link,Transmit, and Receive
• Ethernet Link, 100M, Transmit, and Receive
A.6 POWER AND POWER SUPPLY SPECIFICATIONS
• Either AC or DC options are available
• Connection to the CopperLink Ethernet Extender requires +5VDC
±5% DC power (1.0A minimum). Center pin is +5V.The barrel type
plug has a 2.5/5.5/10mm I.D./O.D./shaft length dimensions
• CopperLink Ethernet Extender’s rated voltage: 5.0 VDC
• CopperLink Ethernet Extender’s rated current: 1A DC
A.7 ENVIRONMENTAL
• Temperature: 32–122°F (0–50°C)
• Relative Humidity: 5–90%, non-condensing
• Altitude: 0–15,000 ft (0–4,572 m)
A.8 DIMENSIONS
1.5H x 4.2W x 5.8D in. (3.8H x 10.6W x 14.8D cm)

18
APPENDIX B
MODELS 2156 AND 2157 SERIES FACTORY
REPLACEMENT PARTS AND ACCESSORIES
*Only required with optional UI power supply (08055DCUI)
Patton Model # Description
2156 Base Models
2156/L CopperLink Ethernet Extender; Line: RJ-11 (Local)
2156/R CopperLink Ethernet Extender; Line: RJ-11 (Remote)
2156-2PK CopperLink Ethernet Extender Kit:includes one local (L) and
one remote (R) Model 2156
2157 Base Models
2157/L CopperLink Ethernet Extender; Line: RJ-11 (Local)
2157/R CopperLink Ethernet Extender; Line: RJ-11 (Remote)
2157-2PK CopperLink Ethernet Extender Kit:includes one local (L) and
one remote (R) Model 2157
2156 and 2157 User Manual
07M2156_2157 User Manual
Power Supplies
08055DCUI 100–240VAC (+5V reg. DC/2A) Universal Input Adapter.
Power Cords*
0805US American Power Cord
0805EUR European Power Cord CEE 7
0805UK United Kingdom Power Cord
0805AUS Australian Power Cord
0805DEN Denmark Power Cord
0805FR France/Belgium Power Cord
0805IN India Power Cord
0805IS Israel Power Cord
0805JAP Japan Power Cord
0805SW Switzerland Power Cord

19
APPENDIX C
MODELS 2156 AND 2157 SERIES INTERFACE PIN ASSIGNMENT
C.1 10/100BASE-T INTERFACE
RJ-45
• Pin 1:TX+
• Pin 2:TX-
• Pin 3: RX+
• Pin 6: RX-
• Pins 4, 5, 7, 8: no connection
C.2 COPPERLINK INTERFACE
RJ-11
• Pin 2: RING
• Pin 3:TIP
• Pins 1 & 4: no connection

20
Notes
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
________________________________________________________
Copyright © 2002
Patton Electronics Company
All Rights Reserved.
