USER
MANUAL
MODEL 2300M SERIES
OpticLink Ethernet
Media Converters
(2300M, 2310M,
2311M,& 2312M)
SALES OFFICE
[phone]
TECHNICAL SUPPORT
[phone]
Part# 07M2300M
Doc# 077321U Rev. A
Revised 4/14/03
An ISO-9001
Certified Company

2
CONTENTS
1.0 Warranty Information ................................................................. 3
1.1 Radio and TV Interference............................................................ 3
1.2 CE Notice...................................................................................... 3
1.3 Service.......................................................................................... 4
2.0 General Information.................................................................... 5
2.1 Features........................................................................................ 5
2.2 Description.................................................................................... 6
3.0 Installation................................................................................... 8
3.1 Installing a media converter.......................................................... 8
3.2 End-to-end connection................................................................ 11
4.0 Operation................................................................................... 12
4.1 LED indicators ............................................................................ 12
A Specifications ........................................................................... 14
A.1 Interfaces/Connectors ................................................................ 14
A.2 Interface Speed .......................................................................... 14
A.3 Transmission Mode ..................................................................... 14
A.4 Twisted-Pair/Copper Cable Type* .............................................. 14
A.5 Fiber Cable Type ........................................................................ 14
1.6 Fiber Wavelength........................................................................ 14
A.7 Fiber Optic Link Budget .............................................................. 15
Transmit power........................................................................... 15
Receiver Sensitivity.................................................................... 15
Delay Time ................................................................................. 15
Typical Fiber Max. Distance....................................................... 15
A.8 Standards ................................................................................... 15
A.9 LED Status Indicators ................................................................. 15
A.10 Compliance ................................................................................. 16
A.11 Power .......................................................................................... 16
A.12 Packaged Weight ....................................................................... 16
A.13 Dimensions ................................................................................. 16
A.14 Environment ................................................................................ 16

3
1.0 WARRANTY INFORMATION
Patton Electronics warrants all Model 2300M Series components to be
free from defects, and will—at our option—repair or replace the product
should it fail within one year from the first date of shipment.
This warranty is limited to defects in workmanship or materials, and does
not cover customer damage, abuse, or unauthorized modification. If this
product fails or does not perform as warranted, your sole recourse shall
be repair or replacement as described above. Under no condition shall
Patton Electronics be liable for any damages incurred by the use of this
product.These damages include, but are not limited to, the following:lost
profits, lost savings and incidental or consequential damages arising
from the use of or inability to use this product. Patton Electronics spe-
cifically disclaims all other warranties, expressed or implied, and the
installation or use of this product shall be deemed an acceptance of
these terms by the user.
1.1 RADIO AND TV INTERFERENCE
The Model 2300M Series generates and uses radio frequency energy,
and if not installed and used properly—that is, in strict accordance with
the manufacturer's instructions—may cause interference to radio and
television reception.The Model 2300M Series has been tested and
found to comply with the limits for a Class A computing device in accor-
dance with the specifications in Subpart B of Part 15 of FCC rules, which
are designed to provide reasonable protection from such interference in
a commercial installation. However, there is no guarantee that interfer-
ence will not occur in a particular installation.If a 2300M Series unit does
cause interference to radio or television reception, which can be deter-
mined by disconnecting the cables, the user is encouraged to try to cor-
rect the interference by one or more of the following measures: moving
the computing equipment away from the receiver, re-orienting the receiv-
ing antenna, and/or plugging the receiving equipment into a different AC
outlet (such that the computing equipment and receiver are on different
branches).
1.2 CE NOTICE
The CE symbol on your Patton Electronics equipment indicates that it is
in compliance with the Electromagnetic Compatibility (EMC) directive

4
and the Low Voltage Directive (LVD) of the Union European (EU).A Cer-
tificate of Compliance is available by contacting Technical Support.
1.3 SERVICE
All warranty and nonwarranty repairs must be returned freight prepaid
and insured to Patton Electronics. All returns must have a Return Materi-
als Authorization number on the outside of the shipping container.This
number may be obtained from Patton ElectronicsTechnical Services at:
• Tel: [phone]
• Email: [email protected]
• URL: http://www.patton.com
Note Packages received without an RMA number will not be
accepted.
Caution
This device is not intended to be connected to the public
telephone network.

5
2.0 GENERAL INFORMATION
Thank you for your purchase of this Patton Electronics product. It has
been thoroughly inspected and tested and is warranted for one year for
parts and labor. If you have any questions about this product, please call
Patton Electronics Technical Support at [phone].
2.1 FEATURES
• Cost effective plug and play solution for converting both 10Base-T and
100Base-TX to 10Base-FL, 100Base-FX, and 100Base-SX
• Supports 802.3 and 802.3u, 10Base-T, 10Base-FL, 100Base-TX,
100Base-FX, and 100Base-SX industry standards
• Extends network connections up to 2 km (1.24 miles) (300 m for Model
2311 in 100BASE-SX Mode) over multi-mode fiber media.
• Low power consumption
• Auto-sensing full or half duplex Ethernet operation
• Twisted Pair MDI/MDI-X switch
• ST or SC connectors for connecting to multimode fiber media
• Ultra-miniature MicroPak Chassis
• LED indicators for Power, Fiber Link and Activity, and Twisted-pair Link
and Activity
• External power supply adapter with AC and DC options

6
2.2 DESCRIPTION
There are four base models in the Patton Model 2300M Series of stan-
dards compliant Ethernet Media Converters (see Table 1) that convert
and extend the reach of copper Ethernet over multi-mode fiber.
• The Model 2300M converts 100Base-TX to 100Base-FX and extends
up to 1.24 miles (2.0 km).
Note The Model 2300M can be used to connect auto-sensing 10/100
and 100Base-TX/100Base-FX network devices only; it is not
capable of connecting to 10Base-T/10Base-FL network devices.
• The Model 2310M converts 10Base-T to 10Base-FL and extends up to
1.24 miles (2.0 km).
Note The Model 2310M can be used to connect auto-sensing 10/100
and 10Base-T/10Base-FL network devices only;it is not capable
of connecting to 100Base-TX/100Base-FX or SX network
devices.
• The Model 2311M auto-negotiates and converts 10Base-T/100Base-
TX to 10Base-FL/100Base-SX and extends up to 1.24 miles (2.0 km)
in 10Base-FL mode and 0.19 miles (0.3 km) in 100Base-SX mode.
Note The Model 2311M can be used to connect auto-sensing 10/100,
10Base-T/10Base-FL, and 100Base-T/100Base-SX network
devices, however, it is not capable of connecting to 100Base-FX
network devices. Further, the Model 2311M cannot connect a
10Base network device on one side to a 100Base network
device on the other.
If a 10Base network device is on one side of the Model 2311M,
there must be another 10Base or an auto-sensing 10/100 net-
work device on the other.If a 100Base network device is on one
Table 1: Model 2300M configurations
Model Twisted-Pair
Standard Fiber Standard Connector Distance Wavelength
2300M-ST 100Base-TX 100Base-FX ST 2 km 1300nm
2300M-SC 100Base-TX 100Base-FX SC 2 km 1300 nm
2310M-ST 10Base-T 10Base-FL ST 2 km 850nm
2310M-SC 10Base-T 10Base-FL SC 2 km 850nm
2311M-ST 10Base-T/
100Base-TX 10Base-FL/ 100Base-SX ST 2 km/300 m 850nm
2311M-SC 10Base-T/
100Base-TX 10Base-FL/ 100Base-SX SC 2 km/300 m 850nm
2312M-ST 10Base-T/
100Base-TX 10Base-FL/ 100Bawe-Fx ST 2 km 1300nm
2312M-SC 10Base-T/
100Base-TX 10Base-FL/ 100Bawe-Fx SC 2 km 1300nm

7
side of the Model 2311M, there must be another 100Base or an
auto-sensing 10/100 network device on the other.
The Model 2311M is the ideal product for customers who currently have
10Base-T networks and/or equipment and are planning to upgrade to
100Base-TX in the future.The Model 2311 provides a migration path
from 10Base-T/10Base-FL to 100Base-TX/100Base-SX, which elimi-
nates the need to upgrade and lowers the overall cost of ownership.
• The Model 2312M auto-negotiates and converts 10/100Base-TX to
10Base-FL/100Base-FX and extends up to 1.24 miles (2.0 km).
Note The Model 2312M can be used to connect auto-sensing
10Base-T/10Base-FL and 100Base-TX/100Base-FX network
devices, however, it is not capable of connecting to 10BasE net-
work devices. Further, the Model 2312M cannot connect a
10Base network device on one side to a 100Base network
device on the other.
If a 10Base network device is on one side of the Model 2312M,
there must be another 10Base or an auto-sensing 10/100 net-
work device on the other.If a 100Base network device is on one
side of the Model 2312M, there must be another 100Base or an
auto-sensing 10/100 network device on the other.
The Model 2312M is the ideal product for customers who currently have
10Base-T networks and/or equipment and are planning to upgrade to
100Base-TX in the future.The Model 2312 provides a migration path
from 10Base-T/10Base-FL to 100Base-TX/100Base-FX, which elimi-
nates the need to upgrade and lowers the overall cost of ownership.
All Patton 2300M Series models are packaged in an ultra-miniature
MicroPak chassis and feature power, fiber link and activity, and twisted-
pair link and activity LED indicators.The Model 2300M Series of Ether-
net Media Converters can be ordered with ST or SC fiber optic connec-
tors and with 120VAC, 220VAC, universal interface (UI), -48 VDC, -24
VDC, or -12 VDC power supply adapters. Power cord designations for
220VAC and UI models must be specified at the time of purchase.

8
3.0 INSTALLATION
The following sections describe installing and configuring the Model
2300M Series of Ethernet Media Converters
3.1 INSTALLING A MEDIA CONVERTER
Do the following to install the Model 2300M Series of Ethernet Media
Converters:
1. The MDI/MDI-X switch enables you to connect the 2300M models to
different types of network devices using a standard (straight-
through) network patch cable.
To connect the 2300M models to a terminal, transceiver, or network inter-
face card (NIC), set the switch to the MDI-X (lefthand) position (see
Figure 1).
Otherwise, to connect to a hub or switch, set the switch to the MDI (right-
hand) position (see Figure 1).

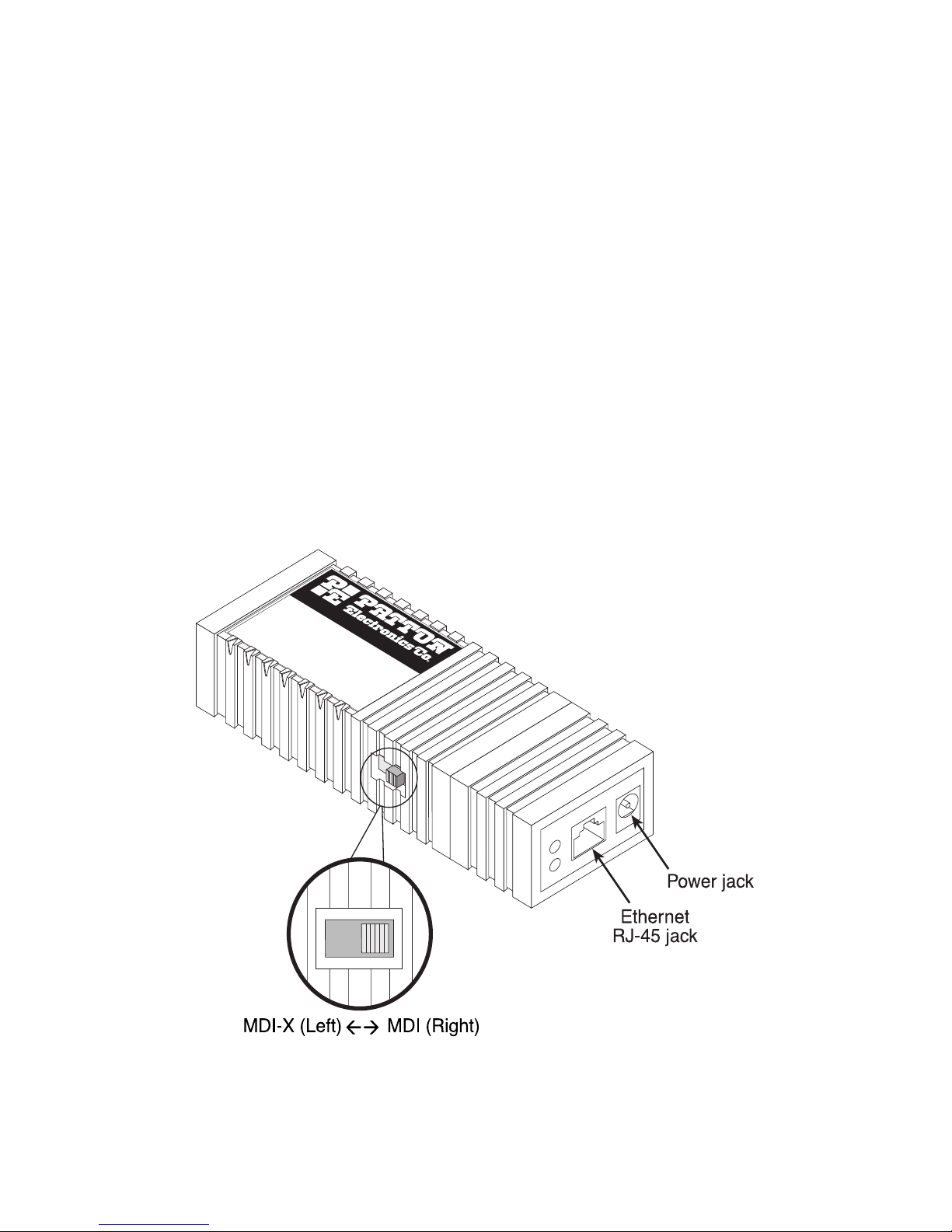

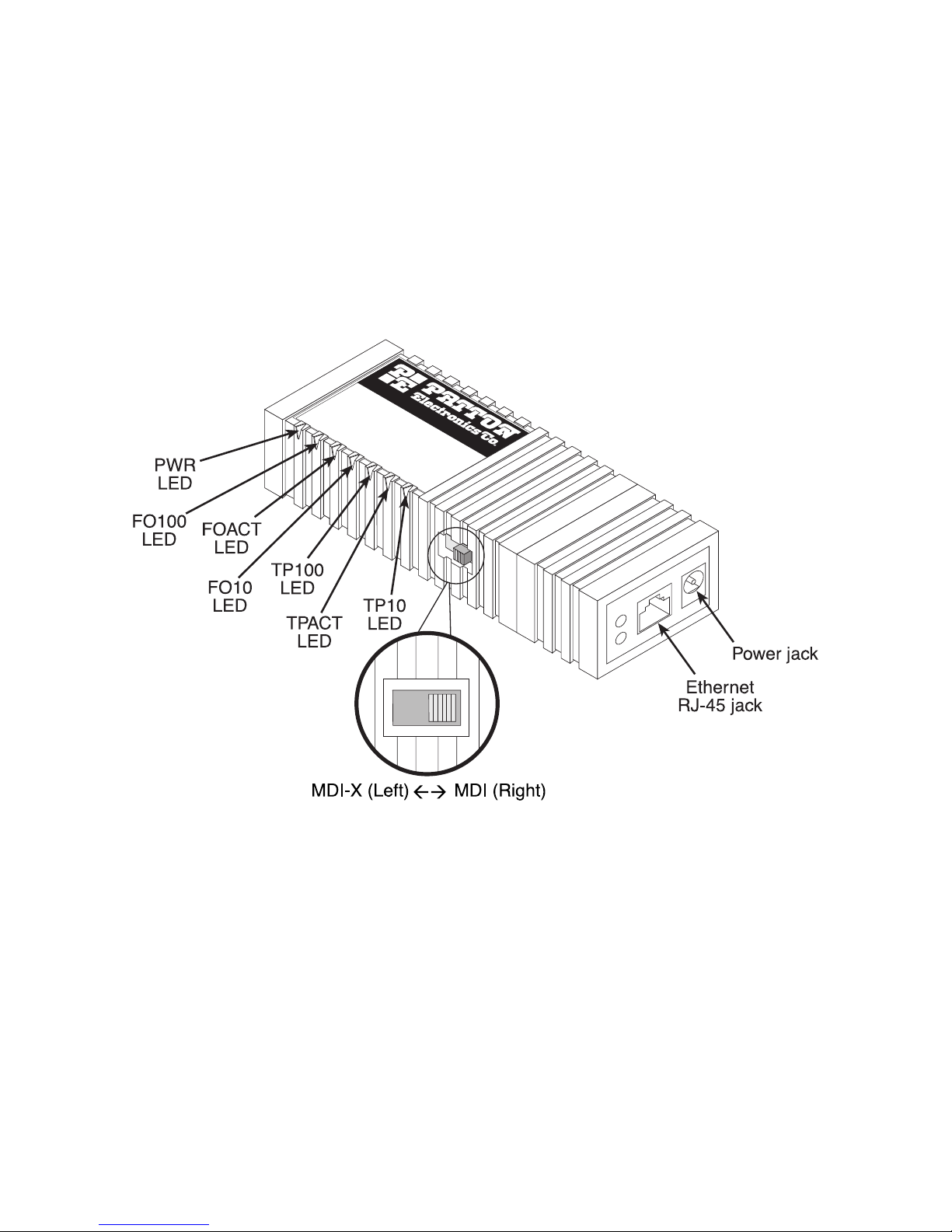

Figure 1. MDI/MDI-X switch, Ethernet RJ-45 jack, and power jack locations
Gaithersburg, Maryland
Model 2311M
Auto-Negotiating Ethernet
Media Converter
10/100Base-T/TX to 10/100Base-FL/SX
PWR
TP100
TPACT
TP10
FO100
FOACT
FO10

9
2. The media converter comes equipped with a shielded RJ-45 Jack
for Ethernet connections (see Figure 1 on page 8).
Connect the Ethernet RJ-45 jack to the appropriate 802.3 compliant
network equipment via a standard network patch cable (not pro-
vided).The pinout diagrams in Figure 2 reflect the pinouts of the
Ethernet RJ-45 jack when switched to MDI and MDI-X settings.
Note Twisted-pair connections from the Ethernet RJ-45 Jack to the
network device should be 802.3 compliant (Category 5 STP or
UTP recommended) and must not exceed 100 meters (328
feet). Do not use flat or satin cable.
Figure 2. Shielded Ethernet RJ-45 Jack pin-outs with different MDI/MDI-X switch settings
T+
12345678
T+ R+ R-
MDI
R+
12345678
R+ T+ T-
MDI-X

10
3. Connect the dual fiber ST or SC connectors on the media converter
(see Figure 3) directly to the 802.3 compliant multi-mode fiber cable
equipped with male ST or SC connectors or via 802.3 compliant
multi-mode fiber patch cord (not provided) and corresponding ST or
SC fiber wall jacks.
Note Verify that the cable connecting theTX and RX of the 2300M
Series unit is connected to the RX and TX respectively on the
remote 2300M Series unit or network device. End-to-end multi-
mode fiber connections between two Model 2300M Series
Ethernet Media Converters or between one Model 2300M
Series Media Converter and other network devices must not
exceed 2 km (1.24 miles), 298.7 m (980 ft) in 100Base-SX mode
(Model 2311M only).

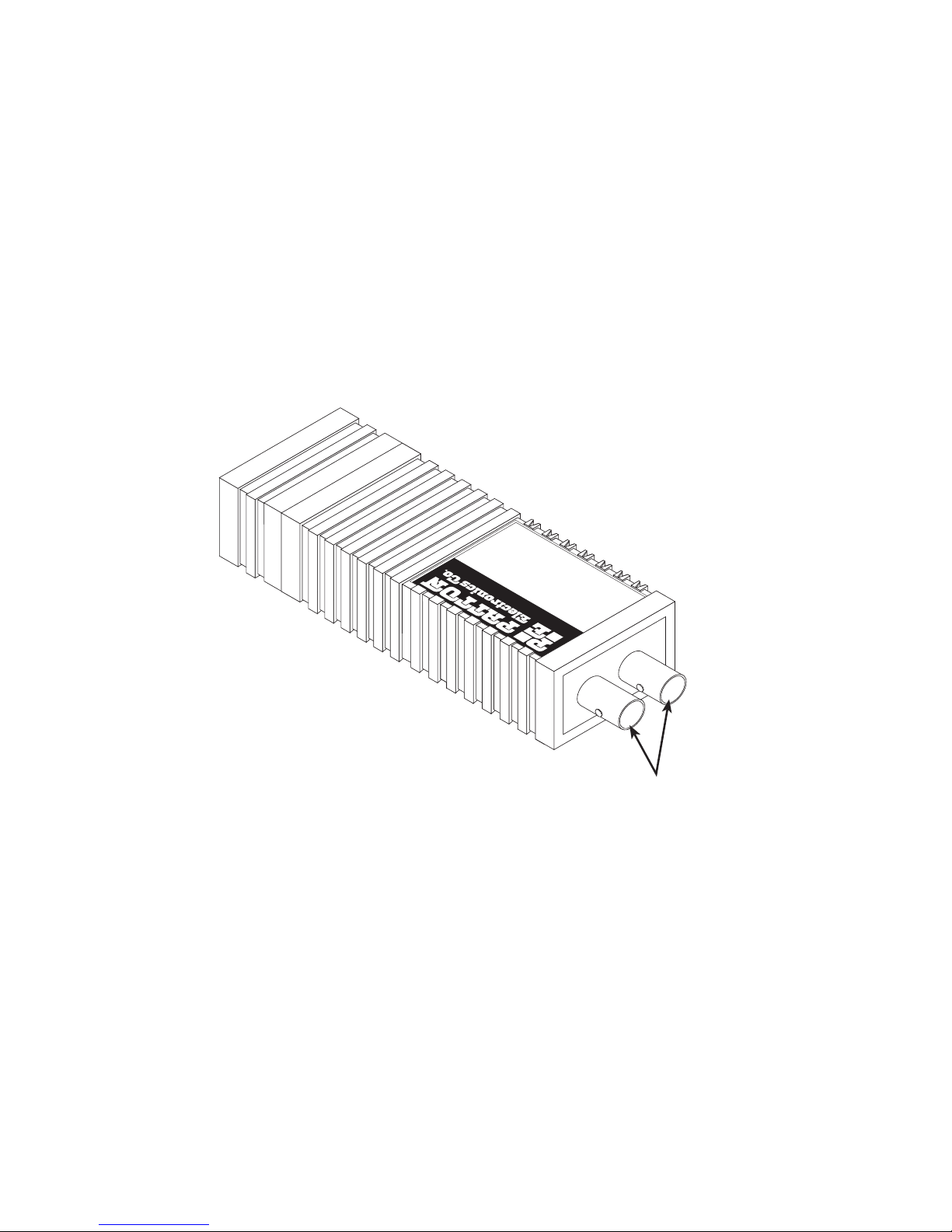

Figure 3. Fiber connector locations
4. Connect the DC power output side of the power supply adapter to
the power jack (see Figure 1 on page 8) on the 2300M Series unit.
5. Connect the AC power side/cord of the power supply adapter to the
appropriate AC power source.
The media converter will power up and LED indicators will illuminate
once connected to the power source.
Gaithersburg, Maryland
Model 2311M
Auto-Negotiating Ethernet
Media Converter
10/100Base-T/TX to 10/100Base-FL/SX
PWR
FO100
FOACT
FO10
TP100
TPACT
TP10
ST or SC style
fiber connectors

11
3.2 END-TO-END CONNECTION
Figure 4 shows an end-to-end connection between a personal computer/
terminal and Ethernet hub using two Patton Model 2300M Series Ether-
net Media Converters and a multi-mode fiber connection.
Figure 4. End-to-end multi-mode fiber connection

12
4.0 OPERATION
Once you have installed the Model 2300M Series unit and have con-
nected the External Power Supply Adapter to the appropriate power
source, the unit will power up automatically and is ready to operate.
4.1 LED INDICATORS
Once powered up, LED indicators located on the side of the Model 2300M
Series unit will illuminate to indicate the operating status of the unit.
Figure 5. Location of 2300M Series LED indicators (Move fiber connectors to the opposite
end of the converter)
Gaithersburg, Maryland
Model 2311M
Auto-Negotiating Ethernet
Media Converter
10/100Base-T/TX to 10/100Base-FL/SX
PWR
TP100
TPACT
TP10
FO100
FOACT
FO10

13
The LED indicators reflect the following operating status:
Table 2: LED indicator descriptions
Number Name Description
1 PWR Illuminates green to shown that power is applied to unit.
2 FO100 Illuminates green to show that a 100 Mbps signal is
present on the fiber optic side of the unit.(Not used
on Model 2310M.)
3 FOACT Blinks yellow to show activity on the fiber optic side
of the unit.
4 FO10 Illuminates green to show that a 10 Mbps signal is
present on the fiber optic side of the unit.(Not used
on Model 2300M.)
5 TP100 Illuminates green to show that a 100 Mbps signal is
present on the twisted-pair/copper side of the unit.
(Not used on Model 2310M.)
6 TPACT Blinks yellow to show activity on the twisted-pair/
copper side of the unit.
7 TP10 Illuminates green to show that a 10 Mbps signal is
present on the twisted-pair/copper side of the unit.
(Not used on Model 2300M.)

14
APPENDIX A
SPECIFICATIONS
A.1 INTERFACES/CONNECTORS
• Twisted-Pair/Copper Ethernet: Shielded RJ-45 Jack
• Fiber Optic Ethernet: Dual ST or SC Connectors
A.2 INTERFACE SPEED
• 2300M: 100 Mbps
• 2310M: 10 Mbps
• 2311M: Auto-Negotiating 10 or 100 Mbps
• 2312M: Auto-Negotiating 10 or 100 Mbps
A.3 TRANSMISSION MODE
Full or Half-Duplex Operating Modes (Auto-sensing)
A.4 TWISTED-PAIR/COPPER CABLE TYPE*
Category 5 or better recommended
A.5 FIBER CABLE TYPE*
Recommended: 62.5/125 µm multi-mode fiber
Optional:
• 100/140 µm multi-mode fiber
• 85/125 µm multi-mode fiber
• 50/125 µm multi-mode fiber
1.6 FIBER WAVELENGTH
• 2300M & 2312M: 1300nm
• 2310M & 2311M: 850nm
* Physical characteristics of the twisted-pair/copper and fiber
optic cable must meet or exceed IEEE 802.3 specifications.

15
A.7 FIBER OPTIC LINK BUDGET
Transmit power
• 2300M: -16.8 dBm (typical)
• 2310M: -12 dBm (typical)
• 2311M: -12 dBm (typical)
• 2312M: -16.8 dBm (typical)
Receiver Sensitivity
• 2300M: -33.5 dBm (typical)
• 2310M: -28 dBm (typical)
• 2311M: -28 dBm (typical)
• 2312M: -33.5 dBm (typical)
DelayTime
• 2300M: 5µs per km (typical)
• 2310M: 5µs per km (typical)
• 2311M: 5µs per km (typical)
• 2312M: 5µs per km (typical)
Typical Fiber Max. Distance
• 2300M—1.24 mile (2 km)
• 2310M—1.24 mile (2 km)
• 2311M—1.24 mile (2 km) in 10Base-FL mode/300 m in 100Base-SX mode
• 2312M—1.24 mile (2 km)
A.8 STANDARDS
IEEE802.3 and IEEE 802.3u (10Base-T, 10Base-FL, 100Base-TX,
100Base-SX, and 100Base-FX)
A.9 LED STATUS INDICATORS
Power, Twisted-Pair/Copper Link and Activity, Fiber Optic Link and Activity

16
A.10 COMPLIANCE
• Safety & EMC: Patton Internal Safety & EMC Testing, FCC Part 15
Class A
• Telecom—CE Mark per EMC directive 89/336/EEC and Low Voltage
Directive 73/23/EEC
A.11 POWER
• External 120 VAC, 60 Hz AC Power Supply (5 VDC output)
• External 220 VAC, 50 Hz AC Power Supply (5 VDC output)
• External UI AC Power Supply (100–240 VAC, 50–60Hz input, 5 VDC
output)
• -45 VDC
• -24 VDC
• -12 VDC
A.12 PACKAGED WEIGHT
Less than 1 lb. (0.45 kg) with power supply
A.13 DIMENSIONS
3.0L x 1.8W x 0.8H in. (7.6L x 4.4W x 1.9H cm)
A.14 ENVIRONMENT
Model 2300M and 2312M
• Temperature: 32–95°F (0–35°C)
• Humidity: up to 90% non-condensing
Model 2310M and 2311M
• Temperature: 32–113°F (0–45°C)
• Humidity: up to 90% non-condensing
Copyright © 2002, 2003
Patton Electronics Company
All Rights Reserved.
