Patton CopperLink CL1300 User manual

CopperLink™ Model CL1300
Long Range Ethernet Extender
Quick Start Guide
Important—This is a Class A device and is intended for use in a light indus-
trial environment. It is not intended nor approved for use in an industrial or
residential environment.
Part Number: 07MCL1300-QS, Rev. B
Revised: July 31, 2019
Sales Office: [phone]
Technical Support: [phone]
E-mail: [e-mail]

2CopperLink 1300 Quick Start Guide
1.0 Hardware Installation
1.1 Contents of Package
•CL1300 Long Range Ethernet Extender
•External power supply for CopperLink Model CL1300
1.2 Identify the connector and attach the cables
CL1300 connectors are shown in.figure 1 on page 3.
CL1300R connectors are shown in figure 2 on page 3.
•This device contains no user serviceable parts. The
equipment shall be returned to Patton Electronics for
repairs, or repaired by qualified service personnel.
•The external power adapter shall be a listed Limited
Power Source. The mains outlet that is utilized to power
the devise shall be within 10 feet (3 meters) of the
device, shall be easily accessible, and protected by a
circuit breaker.
•If an AC power adapter is used, ensure that the power
cable used meets all applicable standards for the coun-
try in which it is to be installed, and that it is connected
to a wall outlet which has earth ground.
•Hazardous network voltages are present in WAN ports
regardless of whether power to the unit is ON or OFF. To
avoid electric shock, use caution when near WAN ports.
When detaching the cables, detach the end away from
the device first.
•Do not work on the system or connect or disconnect
cables during periods of lightning activity.
WARNING

CopperLink 1300 Quick Start Guide 3
Figure 1. CL1300 Ethernet Extender rear panel
Figure 2. CL1300R Ethernet Extender front panel
Connect the Line Interface
To function properly, the CL1300 must be connected using a twisted-pair, uncondi-
tioned, dry, metal wire, between 19 (0.9mm) and 26 AWG (0.4mm). Leased circuits that
run through signal equalization equipment are not acceptable.
The Ethernet Extender is equipped with a RJ-45 interface jack (Line), which conforms
to the T568B standard. As such, any standard Category 5e cable can be used to directly
connect two extenders. Depending on the extender model, it will have a two-wire or
four-wire interface.
Observe the signal/pin relationship on the CL1300’s Line interface jack for each pair in
figure 3 on page 4.

4CopperLink 1300 Quick Start Guide
Figure 3. CL1300 (RJ-45) twisted pair line interface
2.0 Connecting Interfaces
2.1 Connect the Ethernet Interface
The Long Range Ethernet Extender has four unshielded RJ-45 auto-MDIX10/100Base-T
interfaces. These are designed to connect directly to a 10/100Base-TX network. shows
the signal/pin relationships on this interface. You may connect this port to a hub or PC
using a straight through or crossover cable that is up to 328 ft long.
2.2 Connect the Power Source
Refer to the appropriate section to connect power:
•Section “CL1300 Series” to install the AC power supply or optional DC power con-
verter
•Section “CL1300R Series” on page 7 to install the AC power supply or connect to
the internal DC power converter
CL1300 Series
AC power supply. The CL1300 comes standard with an AC power supply:
•There is one fuse in the equipment rated at 250V, 500 mA, 2 sec.
•Rated voltage: 5 VDC
•Rated current: 1 A DC
•Output from power supply: 5 VDC, 2A
•Input to power supply: universal input 100–240 VAC 50/60 Hz 0.3A
Do the following:
1. Plug the AC switching power supply (see figure 4 on page 5) barrel jack into the
CL1300 Power port (see figure 5 on page 5)
(Line 1 TIP)
(Line 1 (RING)
(no connection)
(Line 0 TIP)
(Line 0 RING)
(no connection)
(no connection)
(no connection)

CopperLink 1300 Quick Start Guide 5
2. If it hasn’t already been done, slide the AC plug that came with the AC switching
power supply (see figure 4) onto the AC switching power supply.
3. Connect the AC plug end of the AC switching power supply into an AC power out-
let.

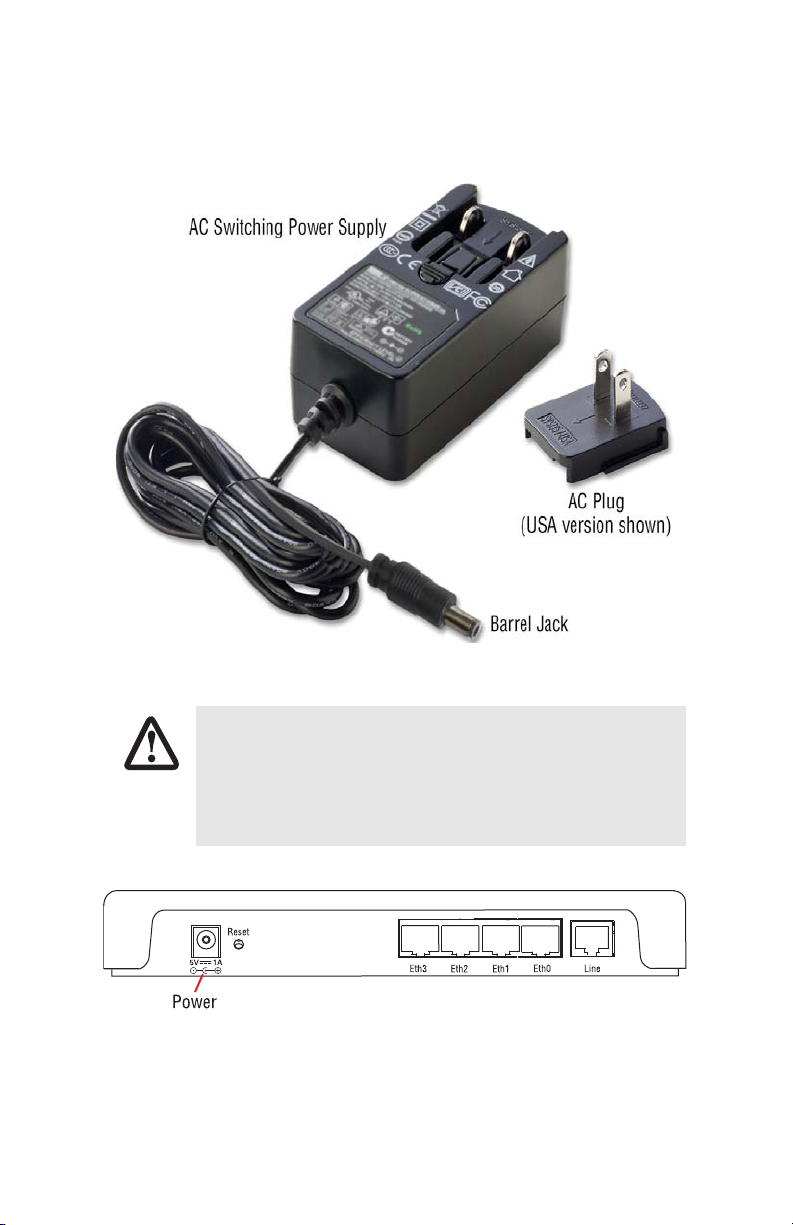

Figure 4. AC Switching Power Supply
Figure 5. CL1300 Power port
The external power adapter shall be a listed limited power
source that incorporates a disconnect device and shall be
positioned within easy reach of the operator. Ensure that
the AC power cable meets all applicable standards for the
country in which it is to be installed, and that it is con-
nected to a wall outlet which has earth ground.
CAUTION

6CopperLink 1300 Quick Start Guide
DC power supply. The CL1300 is available with an optional DC power converter (p/n
48V-PSM5)
•Input: Rated voltage:
- 36–60 VDC
- Rated current: 0.25 A DC
•Output:
- Rated voltage: 5 VDC ± 5%, 5W
- Rated current: 1 A DC
- 6-inch cable terminated with 2.5 mm barrel plug, center positive
•Isolation: 500 VDC
•Environment: 0–40°C; 5–95% relative humidity, non-condensing
Do the following:
1. Plug the DC power converter (see figure 6) barrel jack into the CL1300 Power
port (see figure 5 on page 5)
2. Connect the DC power converter’s red and black wires to the 36–60 VDC power
source.
Figure 6. DC Power Converter (p/n 48V-PSM5)
The external DC adapter shall be a listed limited power
source that incorporates a disconnect device and shall be
positioned within easy reach of the operator. The intercon-
necting cables shall be rated for the proper voltage, cur-
rent, anticipated temperature, flammability, and
mechanical serviceability.
CAUTION

CopperLink 1300 Quick Start Guide 7
CL1300R Series
The CL1300R comes standard with an AC switching power supply or an internal DC
power converter.
AC power supply. The CL1300R comes standard with an AC power supply:
•There is one fuse in the equipment rated at 250V, 500 mA, 2 sec.
•Rated voltage: 5 VDC
•Rated current: 1 A DC
•Output from power supply: 5 VDC, 2A
•Input to power supply: universal input 100–240 VAC 50/60 Hz 0.3A
Do the following:
1. Plug the AC switching power supply (see figure 7) terminal block plug into the
CL1300R terminal block (see figure 8 on page 8)
2. If it hasn’t already been done, slide the AC plug that came with the AC switching
power supply (see figure 7) onto the AC switching power supply.
3. Connect the AC plug end of the AC switching power supply into an AC power out-
let.
Figure 7. AC Switching Power Supply with Terminal Block Plug

8CopperLink 1300 Quick Start Guide
Figure 8. CL1300R Terminal Block Plug
DC power supply. The CL1300R has a built-in internal DC power converter:
•Input: Rated voltage:
- 12–60 VDC
- Rated current: 0.25 A DC
Do the following: Connect the 12–60 VDC power source wires to the CL1300R terminal
block (see figure 9 on page 9) in the order shown in figure 10 on page 9.
The external power adapter shall be a listed limited power
source that incorporates a disconnect device and shall be
positioned within easy reach of the operator. Ensure that
the AC power cable meets all applicable standards for the
country in which it is to be installed, and that it is con-
nected to a wall outlet which has earth ground.
CAUTION

CopperLink 1300 Quick Start Guide 9

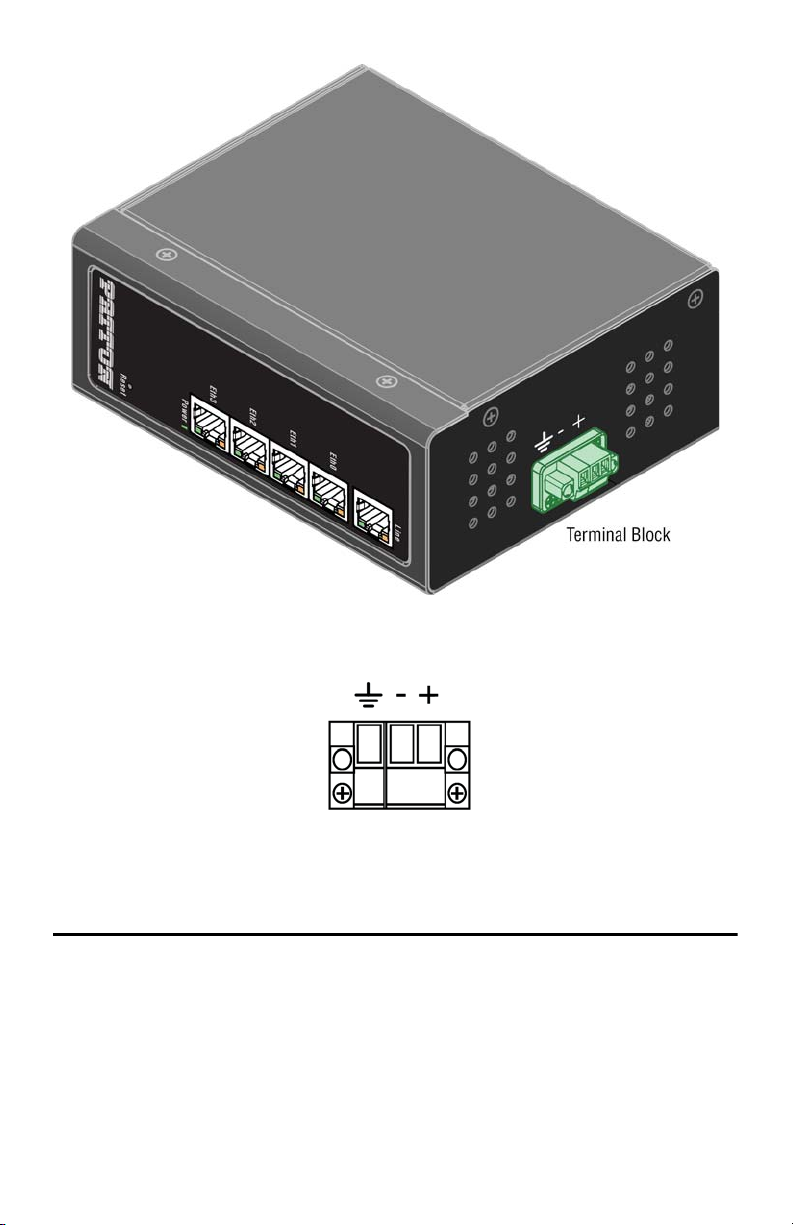

Figure 9. CL1300R Terminal Block
.
Figure 10. Terminal Block Label
2.3 Ethernet Extender Status LEDs
The LEDs indicate the status of power, CopperLink, and Ethernet connections (see
figure 2 on page 3 for CL1300R or figure 11 on page 10 for CL1300).
Note When extinguished, the LED indicators are clear; when lit, the indicators are yel-
low.

10 CopperLink 1300 Quick Start Guide
Figure 11. CL1324 front panel
3.0 Configuration
Your CopperLink Ethernet Extenders are pre-configured to work in pairs. If the factory
installed configuration needs to be adjusted, you can configure the device by using:
•DIP switches (while powered off)
•Web Wizards through HTTP access
•Command line interface (CLI) through SSH
•A combination of the above.
For simple and common configurations, you may only need to use the dip switches.
Note If you will not have physical access to the device, it is best to leave the DIP
switches disabled, as they will always override the other configuration access
methods for some settings. This will be problematic if you need to change these
settings remotely.
Table 1. CL1300 front panel LEDs
LED Name LED Function Description
Power ON Indicates power is applied.
CopperLink Pair
One LED for each
port (1 on CL1314/
CL1314R or 2 on
CL1324/CL1324R)
OFF
ON
SLOW BLINK
FAST BLINK
Port is configured as DOWN.
Port is in data mode.
Port is in handshake mode (looking for a
remote signal).
Port is in training mode (active communi-
cation with remote).
Ethernet
(0/0–0/3)
ON
OFF
Port is linked.
Data is passing over the port.
ETH3
Power
Line 1
Line 2
ETH2 ETH1 ETH0
ETH3—ETH0
LEDs
Power
LED Line 1 & 2 LEDs

CopperLink 1300 Quick Start Guide 11
The factory installed configuration is shown below.
context ip ROUTER
interface LAN
ipaddress 192.168.200.11/24 #Remote units are set to
192.168.200.10/24
ipaddress DHCP dhcp
context switch-group DEFAULT
bind interface ROUTER LAN
no shutdown
interface ETHERNET_0_0
interface ETHERNET_0_1
interface ETHERNET_0_2
interface ETHERNET_0_3
interface LINE_0_0
port ethernet 0 0
bind switch-group DEFAULT ETHERNET_0_0
no shutdown
port ethernet 0 1
bind switch-group DEFAULT ETHERNET_0_1
no shutdown
port ethernet 0 2
bind switch-group DEFAULT ETHERNET_0_2
no shutdown
port ethernet 0 3
bind switch-group DEFAULT ETHERNET_0_3
no shutdown
port line 0 0
service-mode 2-wire
mode local
bind switch-group DEFAULT LINE_0_0
no shutdown
3.1 DIP Switches
The DIP switches enable you to configure the Local/Remote and TCPAM/Rate preset.
These settings are applied when the device powers on, and they cannot be changed
while the device is powered on. Keep this in mind if you plan on adjusting these settings
later remotely, as the DIP switch settings at boot will always take priority.

12 CopperLink 1300 Quick Start Guide
To disable the DIP switches:
1. Power-off the device.
2. Set all DIP switches to OFF.
To enable the DIP switches:
1. Power-off the device.
2. Set DIP #1 to LOCAL or REMOTE. When connecting two Copperlink devices, one
needs to be configured as Local, and the other Remote:
– OFF = Local
– ON = Remote
3. Set DIP #2–5 to a TCPAM/Rate Preset. When connecting two CopperLink devices,
their speeds should be configured to match.
4. Set DIP #6–8 to OFF. These are reserved for future use.

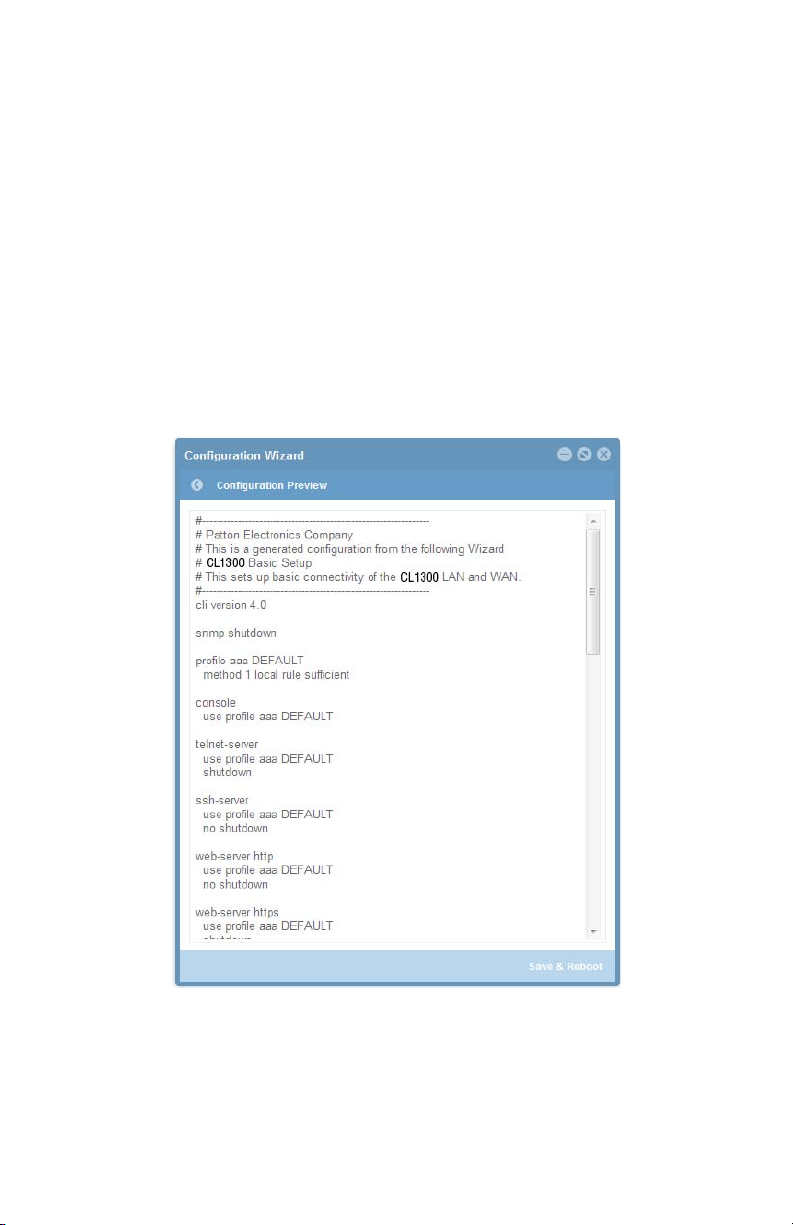

4.0 Wizard Interface

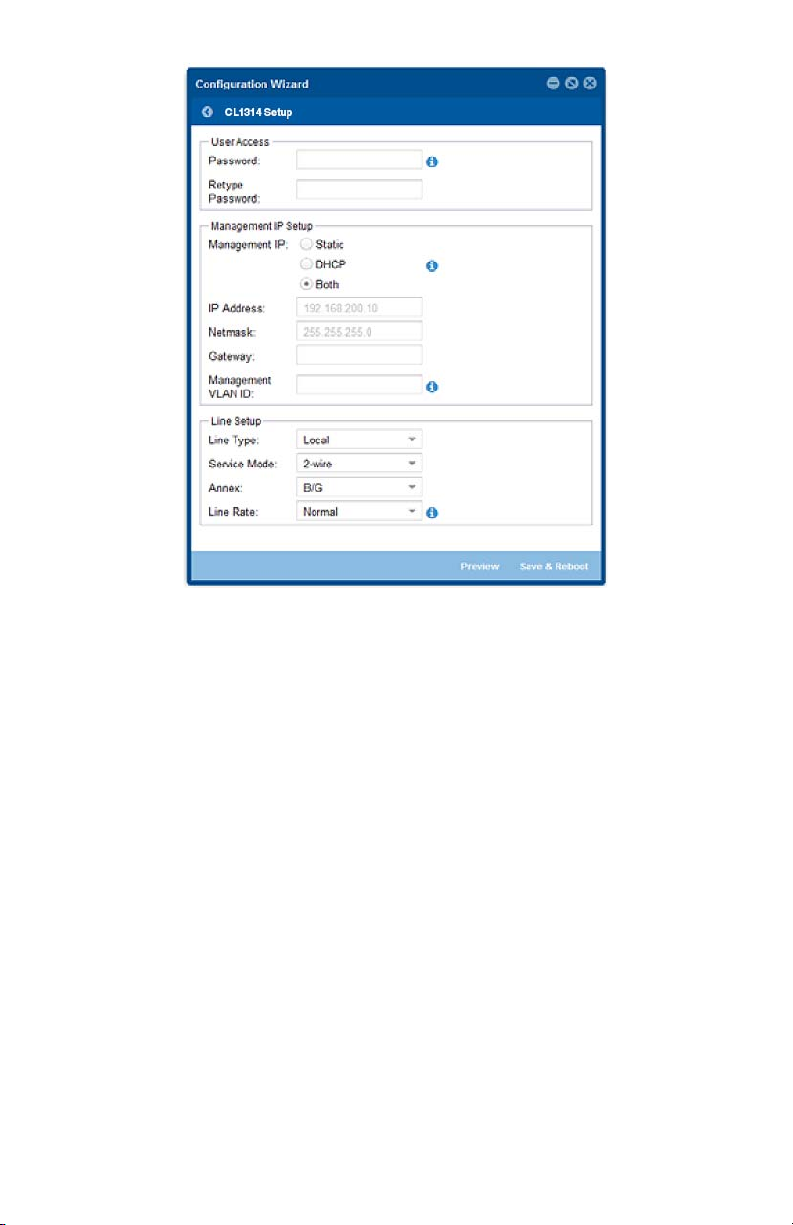

The CL1300 provides a browser interface that allows you to configure and manage the
Ethernet extender. After you set up the IP address for the CL1300, you can access the
Web interface applications directly in your Web browser by entering the configured IP
address. You can then use your Web browser to list and manage configuration parame-
ters from a PC.
#2 #3 #4 #5 TCPAM/Rate Preset
ON ON ON ON TCPAM-16/32 Autorate
ON ON ON -TCPAM-64/128 Autorate
ON ON -ON TCPAM-4 192 kbps
ON ON --TCPAM-4 2496 kbps
ON -ON ON TCPAM-8 192 kbps
ON -ON -TCPAM-8 5056 kbps
ON --ON TCPAM-16 192 kbps
ON ---TCPAM-16 3840 kbps
-ON ON ON TCPAM-32 768 kbps
-ON ON -TCPAM-32 5696 kbps
-ON -ON TCPAM-64 192 kbps
-ON --TCPAM-64 12736 kbps
--ON ON TCPAM-128 256 kbps
--ON -TCPAM-128 15296 kbps
---ON RESERVED
----DISABLE DIP SWITCHES

CopperLink 1300 Quick Start Guide 13
Note Earlier versions predating Internet Explorer 9.0 browser are not compatible with
the CL1300.

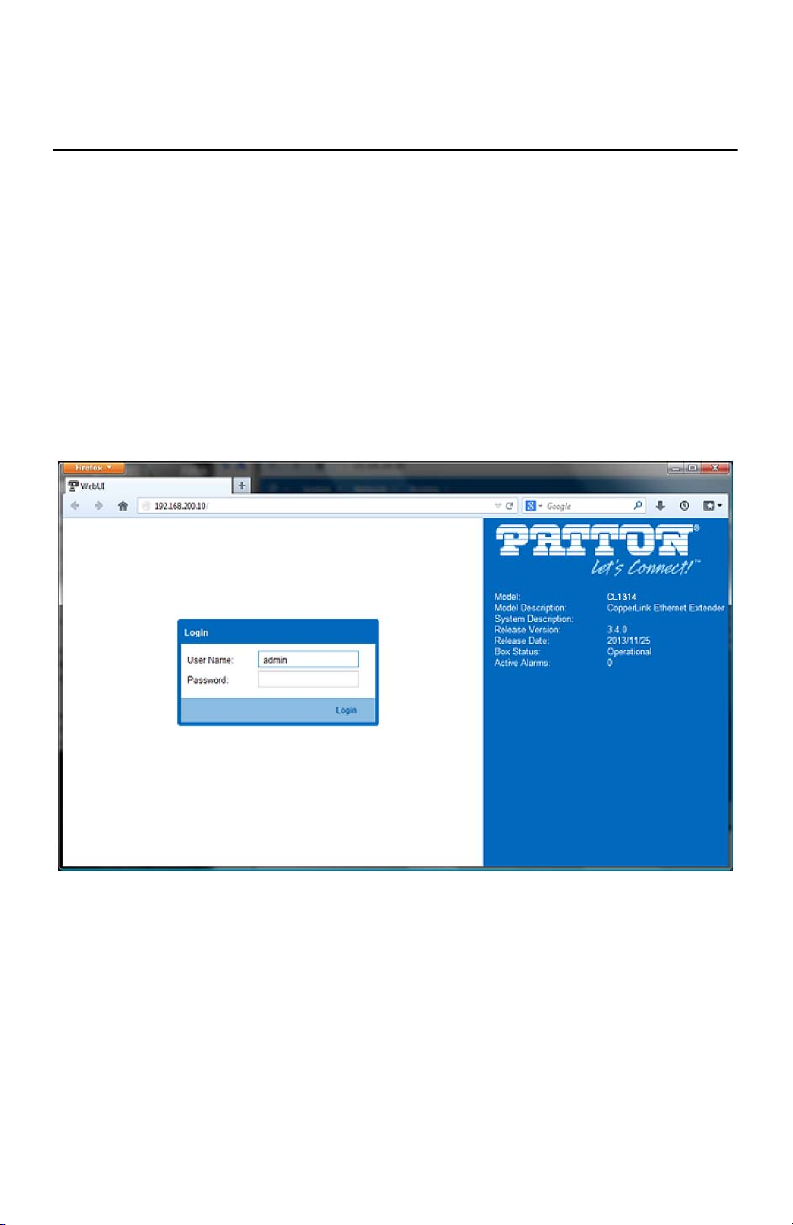

4.1 Connect with Web GUI
1. Connect the Ethernet cable.
2. Connect the power supply.
3. Connect via web browser to the default address 192.168.200.10 or connect to
192.168.200.11 for 2 pack local units.
4. Log in with the default username admin without a password.
Once the network connection is established, you will be able to reach the CL1300 Web
GUI. Log into the Web GUI using the following credentials (see figure 12).
•username: admin
•password: [blank]
Figure 12. Login
The CL1300 includes a Web Wizard within the GUI. The Icon to the wizard is in the top
right corner of your browser as shown in figure 13.

14 CopperLink 1300 Quick Start Guide
Figure 13. Web Wizard Home page

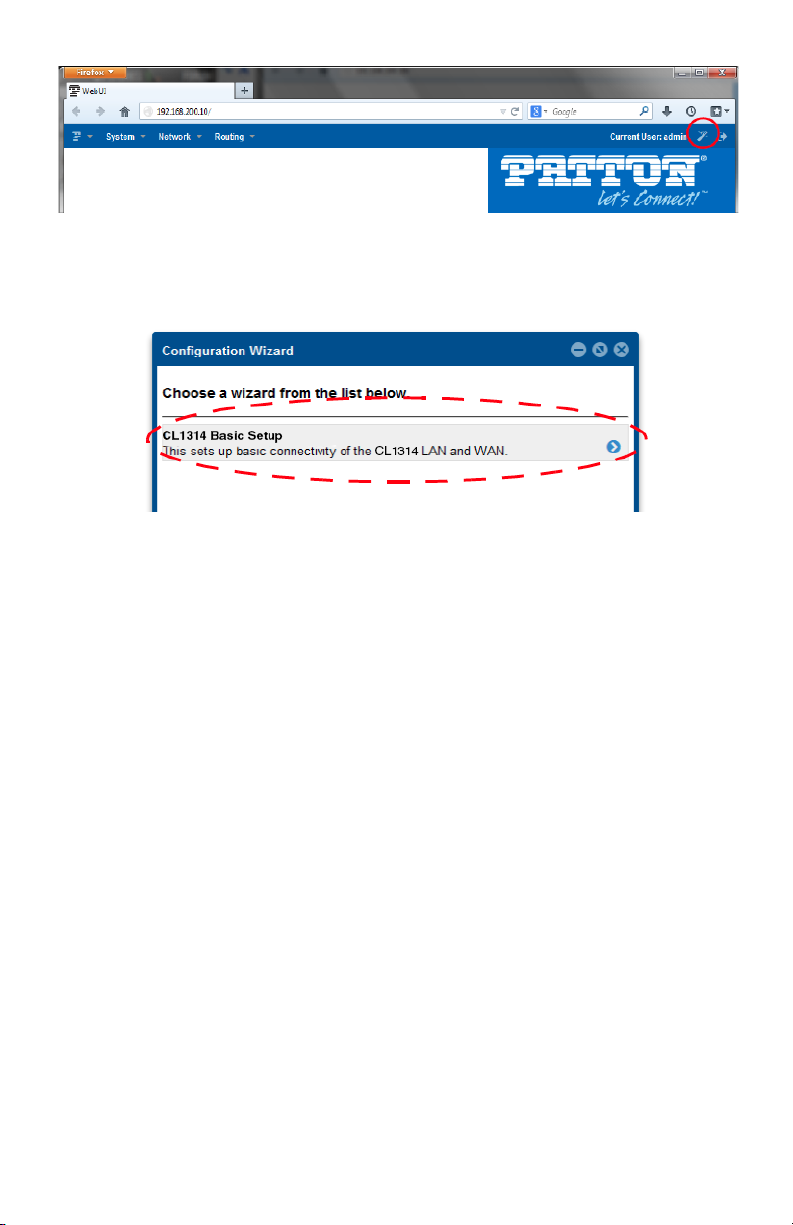

Once the wizard icon is selected, you will have the options of supported set-ups as
shown in figure 14. Click on CL1314 Basic Setup.
Figure 14. Choose Wizard
Clicking on the CL1314 Basic Setup will bring up the most common configurations
used on the CopperLink Ethernet Extenders.
Figure 15 depicts options to configure through the Basic Setup wizard.

CopperLink 1300 Quick Start Guide 15
Figure 15. Basic Setup
User Access: (optional configuration) Users may change the password for the admin
user.
•Management IP Setup:
-Static: Create your own IP address, netmask and gateway (optional–the gateway
is required for remote management).
-DHCP: The CL1314 management port will accept an IP address from a DHCP
server.
-Both: This choice will assign two IP addresses (one static and one DHCP to the
management port
-Management VLAN ID: (Optional) define a VLAN ID for management traffic.
•Line Setup: This where you can manually set your CopperLink line options.
Note The CopperLink Ethernet Extenders by default are set to plug-and-play opera-
tion.
-Line Type (Local or Remote): This will set the Ethernet Extender as Local or
Remote. Local is typically used at the network, Remote is typically used at the
remote device or remote network. Your CopperLink 1300 when received in a 2pk
is already configured one CL1300 as Local and one CL1300 as Remote.

16 CopperLink 1300 Quick Start Guide
-Service Mode: Configures the number of pairs (wires) you want to use. The
CL1300 will default to the maximum number of wires available on your version of
the CopperLink. CL1314 (2-wire) or CL1324 (4-wire).
-Annex: Consult technical support before changing this setting.
-Line Rate Configuration: This will increase the potential line rate of the CL1300.
Your CopperLink 1300 is defaulted to automatically select the optimal rate based
on the distance (adaptive).
Note There are two modes: Normal (TCPAM16|32) and Extended (TCPAM64|128).
Selecting the Extended mode will double the bandwidth, but will reduce the
reach (distance) in half. Default is normal.
On the bottom right corner of the CL1300 Basic Configuration wizard page to preview
configurations and reboot. Figure 16 on page 16 depicts is what you can expect to see
if you click on the preview tab.
Figure 16. Configure Preview Option
When the user chooses the save and reboot option a prompt will ask you to confirm. If
the configuration is correct, select Yes as shown in figure 17.

CopperLink 1300 Quick Start Guide 17
Figure 17. Confirmation
Typically the time to reboot and reestablish a CopperLink link so it can pass traffic will
be less than 2 minutes.
5.0 CLI Operation and Configuration
You can connect a PC to configure the CopperLink 1300 using the CLI.
5.1 Connect with SSH
1. Connect the Ethernet cable.
2. Connect the power supply.
3. Connect via SSH to the extender through remote or local IP addresses:
– Default remote IP address: 192.168.200.10
– Default local IP address: 192.168.200.11
4. Login with the default username admin and no password.
5.2 Change the IP address (default: 192.168.200.10)
Follow the command sequence below.
node~>enable
node~#configure
node~(cfg)#context ip router
node~(ctx-ip)[router]#interface LAN
node~(if-ip)[router.LAN]#no ipaddress 192.168.200.10/24
node~(if-ip)[router.LAN]#ipaddress <new address>/<new
mask>
5.3 Change the default username
The default username will be removed once a new one is created.
Follow the command sequence below:
node~>enable
node~#configure
node~(cfg)#superuser <username> password <password>

18 CopperLink 1300 Quick Start Guide
5.4 Save the Configuration
Follow the command sequence below:
node~>enable
node~#configure
node~(cfg)#copy running-config startup-config
5.5 CopperLink Line Commands
Local and Remote
This will set the Ethernet Extender as Local or Remote. Local is typically used at the
network, Remote is typically used at the remote device or remote network. Your Cop-
perLink 1300 when received in a 2pk is already configured one CL1300 as Local and
one CL1300 as Remote.
node(cfg)# mode {local|remote}
Annex Type
Please consult support before changing this setting.
node~(pf-dsl)[<name>]# annex-type { b-g | a-f }
Line Rate Configuration
This will increase the line rate of the CL1300. Your CopperLink 1300 is defaulted to
automatically select the optimal rate based on the distance (adaptive).
node(prt-line)[0/0]# payload-rate {adaptive [max
<192..15296>] | <192..15296>}
Modulation Scheme
Note higher TC-PAM rates will increase maximum payload rates available but will
decrease distance. Your CopperLink 1300 is defaulted to automatically select the opti-
mal setting. Please consult manual for rate reach chart to determine your optimal set-
ting if you choose to hard set this value. Higher TC-PAM rates are ideal for shorter cable
runs offering max symmetrical (upstream/downstream) speeds of 11.4 Mbps
(TCPAM64) and 15.3 Mbps (TCPAM128) per pair.
node(prt-line)[0/0]# tcpam {auto(16/32) | auto(64/128) |
16 | 32 | 64 | 128}
CopperLink Ports
The configurations below are used to configure various aspects of the CopperLink
port(s).
node~(cfg)# port dsl 0 0

CopperLink 1300 Quick Start Guide 19
Signal to Noise Ratio
Configures the acceptable noise margin for adaptive rate. SNR is the relative strength of
the DSL signal to Noise ratio. 6dB is generally the lowest dB recommended in order for
the modem to be able to synch. Generally speaking, as overall bandwidth increases,
your signal to noise ratio decreases. The higher the number the better. Your CL1300 is
defaulted at 6 giving you the highest likelihood to connect.
node(prt-line)[0/0]# snr-margin <-10..22>
Description
This is the description of the port/line (CopperLink connection). (Ex: "This line goes to
building 4") When entering a description with spaces in the text, the description must
be in quotations.
node~(prt-dsl)[0/0]# description <description>
Service Mode
Configures the number of pairs (wires) you want to use. The CL1300 will default to the
maximum number of wires available on your version of the CopperLink: CL1314 (2-
wire) or CL1324 (4-wire).
node~(prt-dsl)[0/0]# service-mode { 2-wire | 4-wire }
Shutdown
Disables or enables CopperLink port(s).
node~(prt-dsl)[0/0]# [no] shutdown
Exit
Goes back to parent mode.
node~(prt-dsl)[0/0]# exit
Show
Displays all the configured options of the CL1300 CopperLink port(s)
node(cfg)# show prt-line 0
6.0 Additional Information
For detailed information about configuring and operating guidance, set up procedures,
and troubleshooting, refer to the CopperLink 1300 Series User Manual available online
at www.patton.com/manuals
Below 6dB bad
6dB–10dB fair
11dB–20dB good

20 CopperLink 1300 Quick Start Guide
7.0 Customer and Technical Support
Toll-Free VoIP support: call sip:[email protected] with a VoIP SIP phone
Online support: www.patton.com
E-mail support: [e-mail]—answered within 1 business day
Telephone support:
8.0 Compliance
8.1 EMC
•FCC Part 15, Class A
•EN55022, Class A
•EN55024
8.2 Safety
•UL 60950-1/CSA C22.2 N0. 60950-1
•IEC/EN60950-1
•AS/NZS 60950-1
8.3 PSTN Regulatory
•FCC Part 68
•CS-03
•AS/ACIF S043:2003
8.4 FCC Part 68 (ACTA) Statement
This equipment complies with Part 68 of FCC rules and the requirements adopted by
ACTA. On the bottom side of this equipment is a label that contains—among other
Standard USA [phone] Monday–Friday
8:00 am–5:00 pm EST
(1300–2200 UTC/GMT)
Alternate Switzerland [phone] Monday–Friday
8:00 am–5:00 pm CET
(0900–1800 UTC/GMT)
Fax
USA
Switzerland
[phone]
[phone]
