PAXXO Pactosafe 4.0 540WS User manual

1

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
2

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
3
S.4100:20
English (original instructions)................................................7
Français (traduction de la notice d’instructions originale).........19
Español (traducido de las instrucciones originales)..................31

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
4
DECLARATION OF CONFORMITY
Directive 2006/42/EC
PAXXO AB
Bjurögatan 35
SE-211 24 MALMÖ
Sweden
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Web: www.paxxo.com
We declare under our sole responsibility that the product
with machine article no. 540WxPS901-
is manufactured in conformity with COUNCIL DIRECTIVE 2006/42/EC, 29 Dec. 2009, with reference
to the approximation of the laws of the Member States relating to machinery with special reference
to Annex 1 if essential health and security requirements in relation to construction and
manufacturing of machines to which this declaration relates are in conformity with the following
standard(s) or other normative document(s)
following the provisions of the Directives
EC Low Voltage Directive (2006/95/EC)
EC Electromagnetic Compatibility (2004/108/EC
EC Machinery Directive (2006/42/EC)
EC WEEE Directive - Waste Electrical and Electronic Equipment (2002/96/EC)
EC RoHS Directive - the restriction of the use of certain hazardous substances in electrical
and electronic equipment (2002/95/EC)
following the provisions of harmonized Standard
EN ISO 12100-1/2 “Safety of machinery –Basic concepts, general principles for design.
Basic terminology, methodology (ISO 12100-1:2003)”
EN 60204-1 “Safety of machinery – Electrical equipment of machines”
IEC 61010-1 “Safety requirements for electrical equipment for measurement, control and
laboratory use –Part 1: General requirement”
EN 61326:2006 Electrical equipment for measurement, control and laboratory use - EMC
requirements. Emission Class A and B. Immunity: Basic and Industrial.

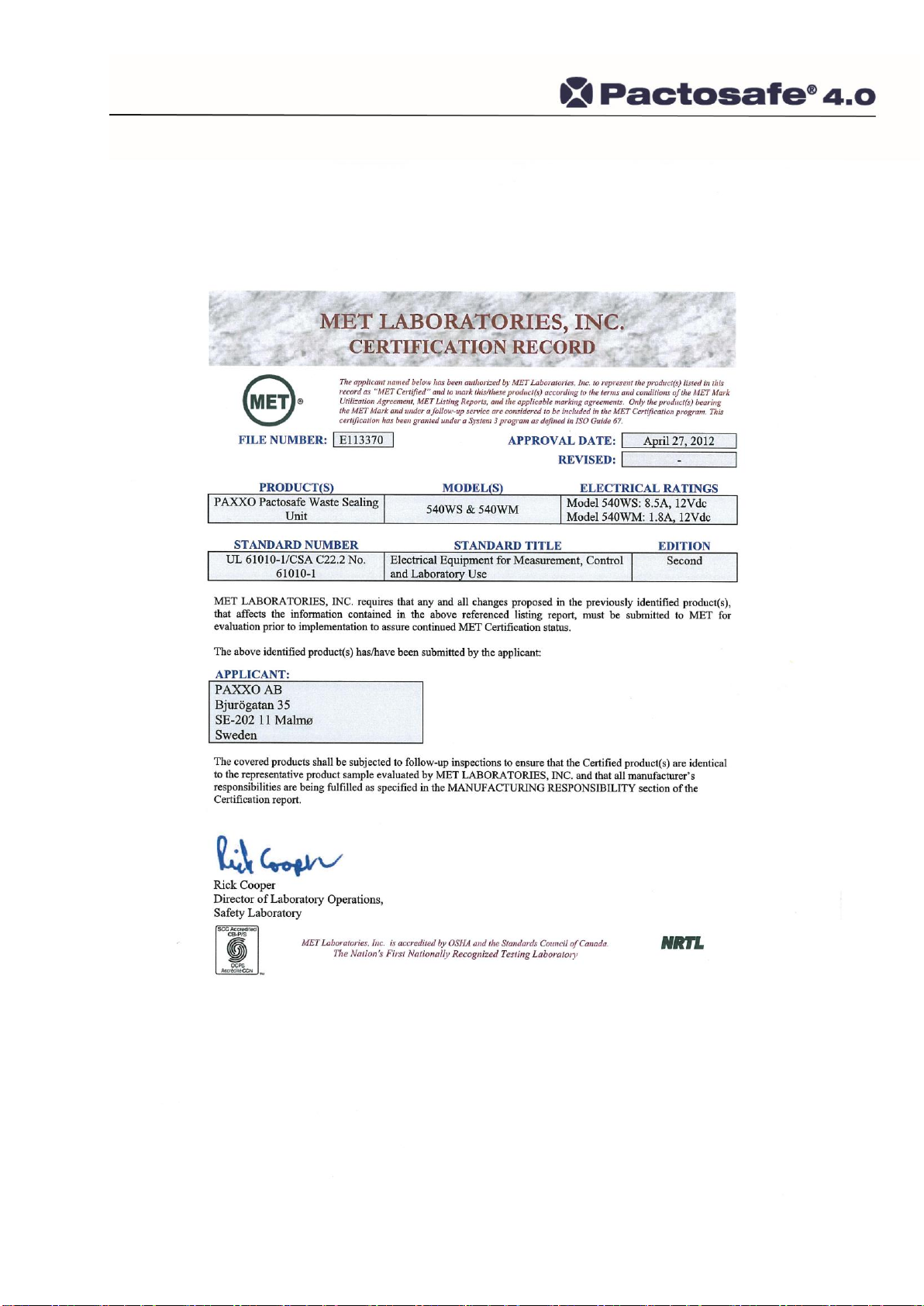

The machine is approved by MET LABORATORIES, INC in accordance with UL 61010-1/CSA C22.2
No 61010-1. MET Certificate no. E113370, dated April 27, 2012.
Tests and measurement have been done by:
NEMKO A/S, IEC 61010-1 Report 187875
CB test certificate IEC 61010-1 by NEMKO, test report 187875
Managing Director
PAXXO AB
Malmö 2012-05-01

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
5

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
6

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
7
TABLE OF CONTENTS - ENGLISH
Introduction ................................................................ 6
Safety instructions ...................................................... 7
Functional description ................................................ 9
Technical specification.................................................10
Unpacking / Putting into operation ............................. 11
Replacement of foil .................................................... 12
Disposal of used foil.................................................... 12
Adjustment of bag length ........................................... 12
Battery operation ........................................................ 13
Checking the welding result ....................................... 13
Checking the safety device ........................................ 13
Troubleshooting ......................................................... 14
Cleaning and decontamination.................................... 15
Replacing the plug-in unit............................................ 15
Disposal ..................................................................... 15

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
8
1. Introduction
This manual contains information about the Pactosafe®.
Manufacturer:
PAXXO AB
Bjurögatan 35
SE-222 24 MALMÖ
Sweden
Tel: [phone]
Fax: [phone]
e-mail: [e-mail]
www.paxxo.com
Important!
All personnel working with this product must read and understand this manual.
Special attention should be paid to the section regarding safety.
No changes may be made to the product without the written consent of the manufacturer.
The company is certified in accordance with ISO 9001 and 14001.
Application:
The Pactosafe waste sealing unit is designed to be used for the safe packaging of hazardous waste. No
sharps or syringes.
Placing:

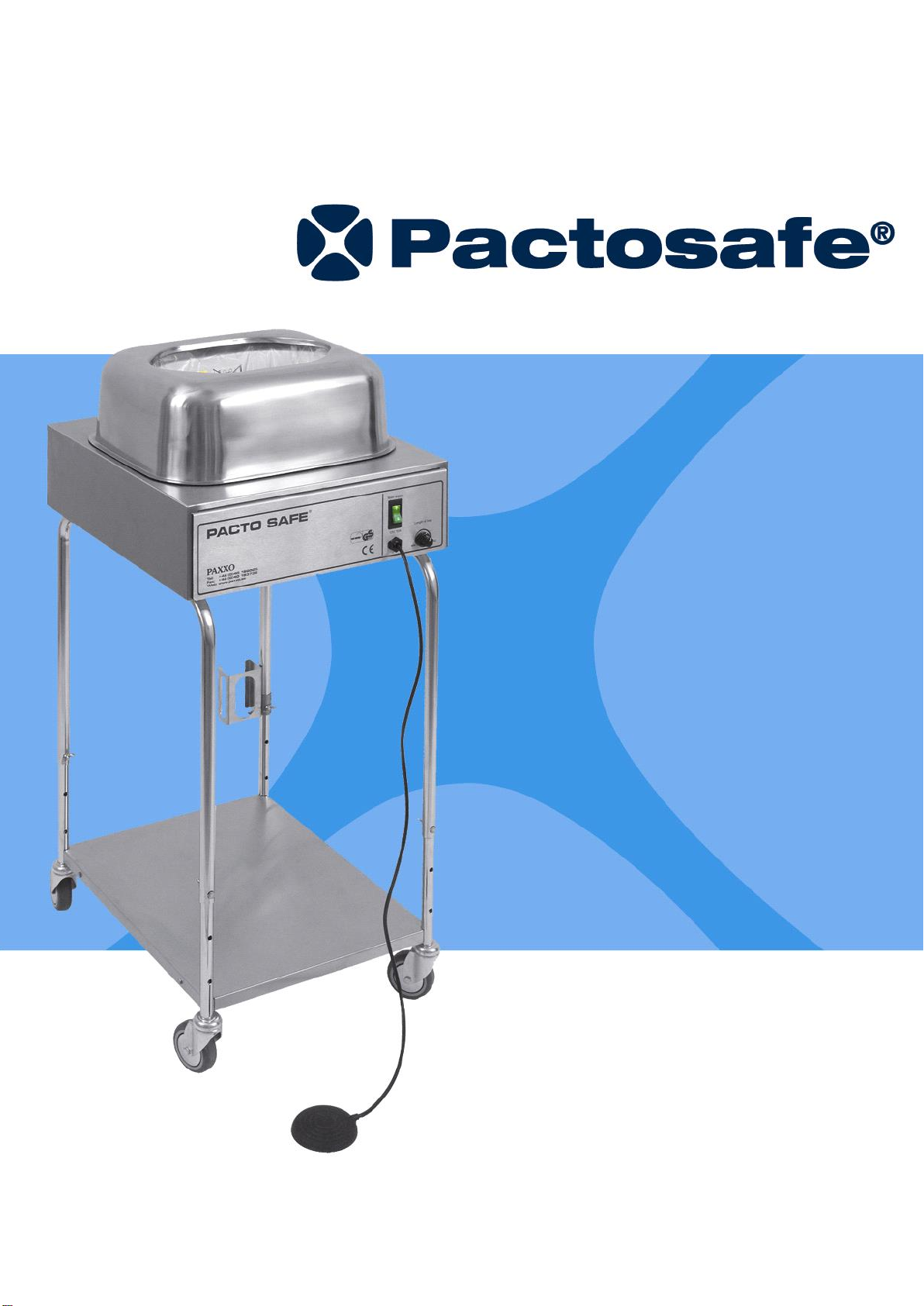

The Pactosafe waste sealing unit is supplied with a stand on wheels which is designed to rest on the floor.
PAXXO AB
Henrik Péters
Managing Director

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
9
2. Safety instructions
For safe use of the Pactosafe, the following instructions must be followed:
Before using the machine the Operator must have undergone training and have read
and understood the manual and its instructions. It´s important with the training to avoid
danger and injury. If the equipment is used in a manner not specified by the
manufacturer, as indicated in this manual, protection provided by the equipment, this
manual, and accessories may be impaired.
The Pactosafe 540WS (stationary version) must be connected to an earthed wall
socket and a maximum length of powercord 10 feet/3 meter.
The powercord may only be connected to an easy reached mains socket. Nothing is
ollowed to hide the mains socket for Pactosafe
When plugging and unplugging the unit from the mains socket, it is important to only
pull the plug and not the cable.
Statement of signs :
Symbol A Symbol B Symbol C Symbol D Symbol E
Symbol A :
Attention! Read the operators manual end statement of signs.
Symbol B :
Keep fingers and hands clear of the funnel when the welding bars are closing. Long
hair or jewels may cause injury.
Symbol C :
Caution, hot surface can occur during, or after, welding of material
Symbol D :
Warning, biohazard
Symbol E :
It´s prohibited to put metal parts or medical instruments in the Pactosafe.
The waste must have passed the welding bars before they close.
The Pactosafe machine may not be used in operating rooms (OP) of hospitals! The
machine can be used in patient rooms of hospitals, if the machine is placed at least 1,5
m away from the patients. The machine may not be left unattended.
The user must show due regard to the environment when handling residual products by
avoiding the release of hazardous substances and/or must adhere to local, national or
international regulations.
The machines must not be used with any sharps or syringes.

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
10
Continues of safety instructions.
We assume that the machine is to be used in an area in which the general lighting
complies with the requirements of AFS 2000:5 (the Swedish Work Environment
Authority’s statute book) or equivalent European, national or international regulations
and directives.
The control systems or electrical installation not covered by our delivery must be
installed by authorised personnel and the installation must conform to the relevant EU
directive, standards and/or local regulations.
It is not allowed, that the user itself performs any modifications, repairs and
maintenance on the Pactosafe machine! Modifications, repairs, servicing and
maintenance have to be performed by authorised personnel from PAXXO only! The
user may perform only routine cleaning activities on the Pactosafe machines according
to the description of this manual.
The machine may not be used until any fault or shortcoming has been rectified.
If the machine cannot be used, replacement plug-in units are available.
Do not work with the Pactosafe machine if the power cord or housing of the power supply or
battery charger is damaged. This can cause an electric shock! A damaged power cord or
housing of the power supply or battery charger must be replaced by a component of same
type immediately.
The rechargeable battery pack has to be replaced only by authorized personnel from the
company PAXXO. It is not allowed that the users replace the batteries.
Attention: Avoid the risk of explosion and burning! Don´t replace the batteries by
nonrechargeable batteries! Use only rechargeable batteries of the same type and
manufacturer as specified in the manual.
Safety devices and warning stickers must be checked regularly. If stickers that have
been applied become damaged or unreadable, they must be replaced immediately.
Only cassettes designed for Pactosafe may be used. The warranty is only valid when
Pactosafe cassettes are used.Other types of foil might inflame and start burning.
This maschine has a noice level, methode A, below 70 dB (A).
For any cleaning operations, the Pactosafe must be switched off and unplugged. More
instructions for cleaning under chapter 13.
Any kind of flammable liquids are not allowed to be put into waste.

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
11
3. Functional description
The Pactosafe is designed for the handling of hazardous waste.
The waste is placed in a funnel (a), which is covered by an endless PE foil (b).
When pressing the foot pedal, the open end of the PE foil (c) with the waste inside, is
welded together.
The welded bag is then fed down (d) into the hazardous waste container (e), while at
the same time a new PE foil is fed in so that further waste can be packaged.
Should a bag be required that is longer than the length preset on the front panel, press
the foot pedal until the waste has passed the welding bars.
Pactosafe does not release any hazardous substances, gases or other emissions during welding. Complete
incineration of the foil will yield water, carbon dioxide (CO2) and energy only.
Storange/transportation :
Pactosafe may only be stacked two in height.
Humidity range 10-90%
Temperatur 32-100 Fº, 0-40Cº
Maximum 6000Ft / 2000 m above sea level

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
12

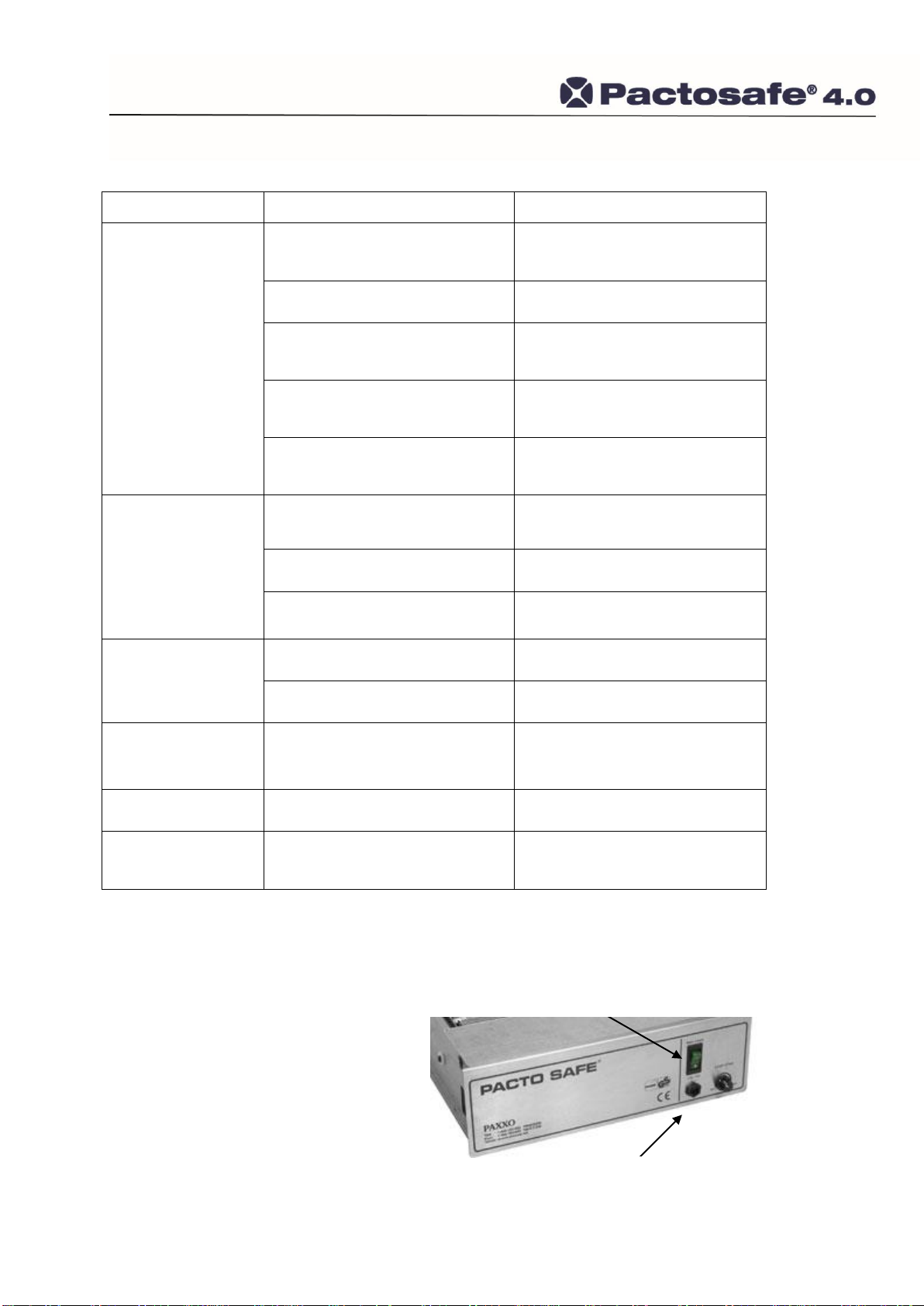

4. Technical specification
Device Pactosafe 4.0 Wide
Type 540WS, 540WM
IP Class IP20
Protection class III, SELV (safety extra-low voltage)
Rated Voltage 12 V DC
Rated current 9 A ±10%
Warranty on unit 2 years
Electrical specification for switching power adapter:
Mains voltage input 100-240 V AC
Mains frequency 50/60 Hz
Mains voltage output 12 V DC
Rated current 0.7 A input Max 10 A output
Power consumption 130 W
Power consumption in standby 1 W
Connection input EU, UK or JP plug
Approvals GS mark approved
Manufacturer Power-Win Technology Corp.
Model PW-100A-1Y12GPB
Electrical specification for battery charger:
Mains voltage input 100-240 V AC
Mains frequency 50/60 Hz
Rated current input 0.6 A
Output 5,0-15V DC 1A, 2,1 mm pin
Connection input EU, UK or JP plug
Approvals GS mark approved
Manufacturer Mascot
Model Pactosafe, Type 2216
Pactosafe may only be used with Pactosafe charger Type 2216 made by Mascot
Battery specification
Battery pack 12V Ni-MH, 8000mAh
Model 10 cells D size
Battery charging Max. 1.8 A 12 V DC
Manufacturer Shenzhen Suppower
Warranty on battery 1 year
Manufacturer’s declaration:
Manufacturer Paxxo AB is checking that 100% of incoming power supplies and battery chargers are tested
by suppliers according to requirements of the product.

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
13
5. Unpacking / Putting into operation
Pactosafe is delivered partly mounted, in a box.
The stand and the mechanism have to be mounted together, the foil has to be inserted
and the foot pedal and cable have to be connected.
The packing must be recycled.
Remove all components from their packaging.
Check that all components are present, see pictures 1-6.

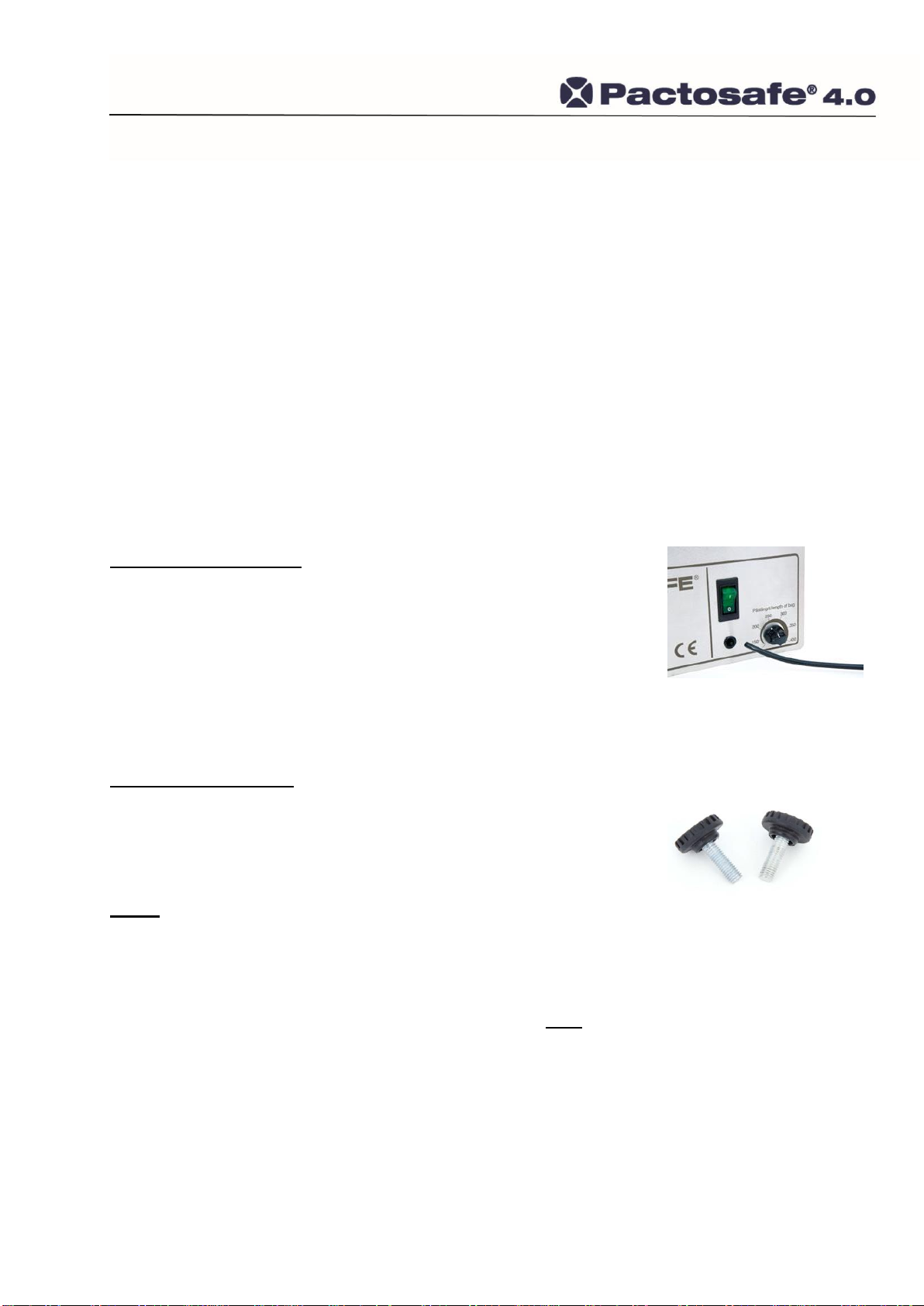

Set the stand (1) to the desired height using the four screws and nuts
(2). Connect the power adaptor (3) or battery charger (4)to a wall
socket with the same specification as indicated on the label on the
power adaptor or battery charger. N.B.: The picture is only an
example. The sign may vary depending on the country where the
Pactosafe is to be used.
Open the lid and insert the foil cassette (5) (ordered separately).
Close the lid.
Fit the foot pedal on the front (6).
Make sure that the feeder wheels are gripping the foil.
Turn on the switch. N.B.: The machine takes approx. 5 seconds to
start up.
Press the foot pedal and check that the foil is feeding down on both
sides and that it is being welded.
Check the welding result against the pictures in Section 10.
The Pactosafe is now ready for operation.
1
Knobs

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
14
6. Replacement of foil
A red STOP mark indicates when the foil is running out. The foil should then be
replaced immediately. It is important to use the right type of foil as otherwise
functionality cannot be guaranteed.
Use the original foil from PAXXO, item no. 10880. Other types of foil might inflame
and start burning.
Turn off the switch.
Open the lid. Place the foil cassette around the funnel and
take the foil from the outside.
Make sure that the feeding wheels are gripping the foil.
Turn on the switch and wait approx. 5 seconds.
Press the foot pedal and check that the foil is feeding
down on both sides and that it is being welded.
Close the lid.
Check the welding result against the pictures in Section 10.
The Pactosafe is now ready for operation.
7. Disposal of used foil
The packaged waste should be collected in a container for hazardous waste and
handled according to local instructions. The system is tested for safe disposal of
cytotoxic waste for 7 days. For more information see www.pactosafe.com.
8. Adjustment of bag length
If required, the bag length can be adjusted. Avoid unnecessarily long bags to conserve foil
usage. The adjustment range is from approx. 140 mm to 400 mm.
The length of the bag is preset using a knob on the right of the front panel.
The preset value is the length of the next bag after sealing.
The bag length can be increased by keeping the foot pedal depressed before welding.

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
15
9. Battery operation (optional)
A battery is available as an optional extra when ordering.
If the red LED is constantly illuminated on the front panel, the machine may not be used.
The machine must be charged when the red LED is constantly illuminated on the front
panel.
The red LED may come on during welding.
Conserve battery power by switching off the machine if it is not to be used for a longer
period. Remember that the machine takes around 5 seconds to start after the switch has
been turned on.
Recharge the battery at least once a month to prevent it discharging completely.
The machine may not be used during charging.
The battery is fast charging if the orange LED on the charger is on.
Yellow led on charger, no battery is connected or when initializing starts.
If orange/green led is trickle, something is error with the charger/connection.
Green/yellow led lights when reaching topp-off charging
The battery is fully charged once the green LED comes on on the charger.
After about 6 hours of charging, the charger will go to trickle of charging.
Disconnect the charger once the green LED comes on.
Always disconnect the charger from wall before You disconnect from Pactosafe.
When charging, always connect to Pactosafe first before You connect to the wall.
To prolong battery life, the battery should be completely discharged prior to
charging and should then always be fully charged.
Pactosafe may only be used with Pactosafe charger Type 2216 made by Mascot.
10. Checking the welding result
It is important to check the result of the welding to ensure that the bags are hermetically sealed at least
once per year. Severe wear and tear on the welding bars can adversely affect the result.
The foil has not melted together Correct welding joint. Holes in the foil, uneven
Flat and even. melting.
11. Checking the safety device
It is important to check the crush guard at least once per year.
Press on the foot pedal and hold an object of 10-20 mm thickness between the welding
bars.
The welding bars should return when they encounter resistance in excess of 8 mm in
thickness.
Check anually whether the stickers on the funnel are damaged, unreadable or missing.
Contact the manufacturer if they need to be replaced.

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
16
12. Troubleshooting
Fault
Possible cause
Action
Nothing happens when
pressing the foot pedal.
The Pactosafe is not connected to a
mains socket
Connect the Pactosafe to a mains
socket.
Switch not on.
Turn on the switch.
No signal from foot pedal.
Check its connection and whether it is
damaged. Shorten or replace if
necessary.
The Pactosafe is starting up.
The system takes 5 seconds to
become operational.
Battery discharged
Charge battery
The feeding of the foil
works but not the
welding.
Something is jamming the cog wheels
and is blocking the welding bars.
Remove the item causing the
blockage.
The welding bars are damaged.
Contact the distributor/manufacturer.
Something is wrong inside the unit.
Contact the distributor/ manufacturer.
Incomplete welding of
the foil. See picture in
Section 10.
The welding bars are damaged.
Contact the distributor/ manufacturer.
Something is wrong inside the unit.
Contact the distributor/ manufacturer.
The welding of the foil
is too powerful. See
picture in Section 10.
Something is wrong inside the unit.
Contact the distributor/ manufacturer.
The foil is adhering to
the welding bars.
The welding bars are damaged.
Contact the distributor/ manufacturer.
Waste is stuck
between the welding
bars.
Switch the unit OFF and then ON
again. The Pactosafe will then return
to its start mode.
If the error remains, contact the distributor/manufacturer. The plug-in units are repaired and delivered
in tailor-made boxes. When ordering, a newly repaired plug-in unit is sent with replacement
instructions, and the defective plug-in unit should be returned in the same box.
5410 Funnel Wide
5424 Power adaptor
5617 Power cable
5426 Battery charger
5428 Battery pack
543WS Plug-in unit
543WM Plug-in unit with battery
5524 Knobs
5602 Foot pedal
Wing nuts for legs
ON / OFF Switch
Connection to foot pedal

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
17
13. Cleaning and decontamination
Pactosafe must be decontaminated by cleaning according to the
following instructions.
It´s important to decontaminate the Pactosfe to avoid transmission of
drugs and infection.
Turn off the switch.
Remove the wall plug from the wall socket.
Undo the power cable from the Pactosafe.
Cleaning can now be done with alkaline detergent (pH 7), and water to wash
away the drug residues. Then use disinfectant to eliminate microorganisms.
Disinfectants containing tensides may be used which will eliminate both drug
residues and microorganisms.
Attach the connection cable and connect it to the wall socket.
Turn on the switch.
The Pactosafe is now ready for use.
14. Replacing the plug-in unit
Removing the plug-in unit
Turn off the switch on the front.
Pull out the air hose that leads to the foot pedal from the front panel
(see picture).
Disconnect the cable at the back.
Unscrew the two knobs in the upper edge of the back.
Carefully remove the plug-in unit from the frame.
a. Clean the plug-in unit according to the instructions above before returning it.
b. Wash the welding bars and the four feeder wheels.
c. Turn the unit (upside down) and clean the rectangular area where
all waste passes.
Fitting a new plug-in unit
Fit the supplied replacement plug-in unit into position.
Screw the two black knobs at the back securely into place.
Connect the cable at the back.
Push the hose for the foot pedal in the front panel into place.
Turn on the switch.
Return
Put the used and replaced plug-in unit in the box. Return the box immediately to the
supplier / Paxxo.
15. Disposal
The connection cable/battery and plug-in unit for the Pactosafe must be sent back to
the manufacturer for recycling. The stand and chassis are recycled as metal. When
replacing the battery, the battery should be taken to a battery disposal/recycling station.

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
18

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
19
TABLE DES MATÈRES - FRANÇAIS
Introduction ................................................................ 20
Consignes de sécurité................................................. 21
Description du fonctionnement.................................... 23
Caractéristiques techniques........................................ 24
Déballage et mise en service...................................... 25
Remplacement du film ................................................ 26
Traitement des sachets utilisés................................... 26
Ajustement de la longueur des sachets ...................... 26
Fonctionnement avec batterie..................................... 27
Contrôle du résultat de soudage................................. 27
Contrôle du dispositif de sécurité................................ 27
Dépannage technique................................................. 28
Nettoyage et décontamination .................................... 29
Remplacement de la recharge de film......................... 29
Mise au rebut ............................................................. 29

Paxxo AB / Bjurögatan 35, SE-211 24 Malmö, Sweden / Tel: [phone]/ Fax: [phone] / www.paxxo.com
20
1. Introduction
Ce mode d'emploi contient des informations sur Pactosafe®.
Fabricant :
PAXXO AB
Bjurögatan 35
SE-222 24 MALMÖ
Suède
Tél. : [phone]
Fax : [phone]
e-mail : [e-mail]
www.paxxo.com
Important !
Toute personne manipulant cet appareil doit lire et comprendre ce mode d'emploi.
Une attention particulière doit être portée au paragraphe concernant les consignes
de sécurité.
Ne pas apporter de modifications à l'appareil sans l'autorisation écrite préalable
du fabricant.
L'entreprise est certifiée EN ISO 9001 et 14001.
Application :
La machine à sceller les déchets Pactosafe a été conçue pour l'emballage des déchets dangereux. Ne pas
emballer d'objets pointus ou coupants.
Emplacement :
La machine à sceller les déchets Pactosafe est fournie avec un support et des roulettes pour la pose au
sol.
PAXXO AB
Henrik Péters
Directeur Gérant
