TX70-.1s 70 CM ATV TRANSMITTER
USERS MANUAL
The TX70-.1s transmitter is designed to provide 50 - 100 mW continuous duty peak envelope
power (sync tip) of video modulated RF in the 70 CM (420-450 MHz) amateur band on 4 switch selected
frequencies and to drive a linear amplifier. Any licensed Technician class or higher RadioAmateur may
operate this transmitter in accordance with 47 CFR part 97 of the FCC Rules and Regulations. The
TX70-.1saccepts U.S.A. standardcomposite video (1volt pk-pk) fromany source suchas color orblack
and white TV cameras or camcorders, VCRs, or computers for transmission. Audio from these sources
or a low impedance dynamic mic is also transmitted on the 4.5 MHz sound subcarrier. Transmit / receive
power and antenna switching is provided for the companion TVC-4s downconverter.
PLEASE read through this manual before plugging in an cables and attempting operation. Each
connector and control is described here to enable your proper hookup and operation. Also the unique
video practices associated with ATV and the 70 CM band are described.
1

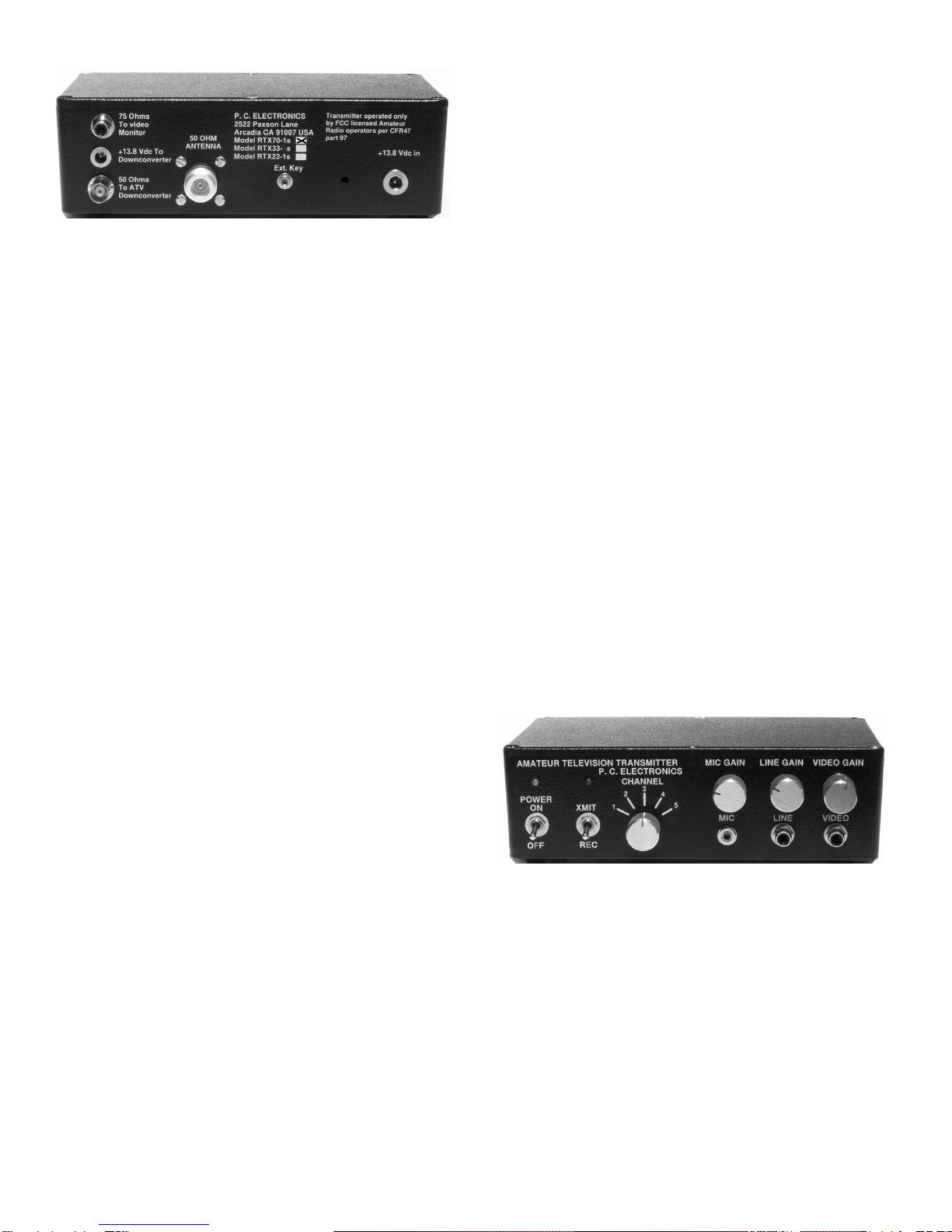

REAR PANEL:
POWER INPUT JACK. A2.1x5.5mmplugcableisprovided
for connection to your source of +12 to14 Vdc. Currant draw
is <500 MA in transmit. Center of the plug and the marked
side of the cable is +, all black is - or ground. If used at a
repeater site, make a cable using RG174 coax. The TX70-
.1sworksbestfromawellregulated voltage sourcewithleads
no longer than necessary. The transmitter is set up by us
from a regulated 13.8 Vdc supply. Do not exceed 15 Vdc
input. There is a series diode incase the voltage is reversed
and a 16 v zener on the sound board which should blow the
1A fuse if this voltage is exceeded
Any ripple or noise on the DC line may be seen in the
transmitted video. For this reason, if a single large power
supply is used to power this and other equipment, all leads
must connect directly at the power supply terminals, not to
an external terminal block. If a external amp is added, it is
best to run it from its own separate power supply. The Radio
Shack22-120regulatedpowersupplywillrunboththeTX70-
.1s and TVC-4G.
1 AMP FUSE INSIDE. The TX70-.1s itself draws about .5
amp in transmit, and .1 amp plus external downconverter in
receive - a 1.0 amp 3AG fuse should handle both.
75OHMS TOMONITOR. Thisoutput providesthecomposite
videofrom the front panel Videojackduringreceivetoenable
youaimthe camera and to bestadjust the focus andlighting,
etc. Usea RCA plug shieldedcable to connect toyour video
monitor or VCR video in.
In this model, there is no video present a this jack when
in transmit.
50 OHM 70 CMANTENNA. AUG21typeN plug is provided
to attatch to low loss .5" size 50Ωcoax. Losses at 70 CM
are very high in transmission lines. We suggest using the
foam filled types such as Belden 8214, or semi rigid Belden
9913orTimesLMR400. Puttheconnectortogetherproperly.
See ARRL HandBook ATV section. The type N connector
has good moisture resistance and low loss at UHF but use
twolayers ofvinyltapeor coax sealonalloutside connections
to prevent moisture contamination. The antenna and feed
line are the most important part of your ATV system, and
therefore the last item to just try and get by with.
Take great care with preparing connectors and cable. If
usinganexternalamp,oninitialturnon,donottransmitmore
than 10 seconds if the reflected power is more than 10% or
2:1 VSWR. You could damage the final or modulator
transistor. Also, VSWR or being too near your antenna can
cause RF interference in your camera or buzz in the audio.
Use a good resonant broad bandwidth 70 CM antenna
such as the 15 element Quagi described in the ARRL
HandBook Chapter 33 or commercially made antennas like
the DSFO25-ATV, OAL 5L-70cm or circularly polarized OAL
7CP-70cm. Do not be tempted to just try it out with a rubber
duckie, 2 meter antenna, or other antenna not specifically
designed for the video carrier frequency. Place the antenna
as high as practical, at least above the trees or roof tops.
See the section on dx vs. power vs. gain on page 4.
EXT KEY JACK. Grounding the tip keys the transmitter.
This jack is in parallel with the front panel transmit/receive
toggle switch and can be used to key the transmitter from a
repeatercontrollerortoprovideagroundingkeytoanexternal
amplifieras long astheamp is runfroma13.8V power supply.
VIDEO INPUT. This input accepts any standard NTSC
composite video into 75Ωfrom cameras, VCRs, computers,
SSTV or RTTY converters, home satellite converters, etc.
Use RCA phono plug and shielded cable (Radio Shack 15-
1535) up to 12' or RG59 for longer runs. When unplugging,
only twist clockwise to keep the jack from coming loose.
FRONT PANEL:
2
DOWNCONVERTER POWER JACK. A 6 FT cable is
supplied with 2.1 X 5.5 mm plugs on each end to connect
from this jack to a TVC downconverter. + power is at this
jack when the XMIT / REC switch is in REC and open when
in XMIT.
50 OHMS TO ATV DOWNCONVERTER. This BNC output
jack is connected to the antenna input of your 70 CM 420-
450 MHz ATV down-converter. Downconverters for other
bands are not connected to the TX70-.1s, rather to their own
antennaandleftonwhen transmitting on 70cm for full duplex
or crossband repeat. If a TVC-4s downconverter is used
you will need a short 50 Ohm cable with a male BNC on one
end and type N on the other. This can be made up with
Radio Shack RG58/U (276-1326) plus UG88 (278-103) and
N (278-151) connectors or equivalent. Keep this lead short
to minimize losses in receive. The TX70-.1s contains a T/R
relay to switch the antenna input as well as DC power
between the downconverter and the transmitter.
VIDEO GAIN control. This sets the white level or depth of
modulation of the selected video source. In transmit, the
knob should be slowly increased clockwise just to the point
ofwhitesmearingor blooming as described back to youfrom
a station located at least a quarter mile away. The distant
ATV receiving station can describe your picture back to you
over 2 meters.

LINE AUDIO INPUT. High level line audio usually from the
same source as plugged into the companion Video input is
pluggedinto this jack usinganotherRCAphono plug shielded
cable. Minimum level is.1 vpk-pk intoa 10Kload. The level
is controlled by the line audio gain knob.
LINEAUDIO GAIN control varies the high level audio applied
tothe subcarrier from the frontpanel audioinput RCAphono
jack. Increas ethe level to the point where the red XMIT light
winksoff,and thenback down the gainslightly. Thisaudio is
independentfrom the mic audioandismixedin the subcarrier
generator. This makes varying the level of a video tape audio
verses mic for voice over comments easy.
MIC jack accepts any low Z dynamic mic in the range of 100
- 600 Ohms with a mini plug. Mic audio is active at all times
and mixes with the camera or VCR line audio input to more
direct pickup, commenting while running video tapes, etc.
Mikes must have a shielded cable to prevent RF pickup hum
and buzz. Unidirectional mics are suggested for full duplex
to minimize speaker feedback or to reduce pickup of
unwanted sounds and noise. Electret and amplified mics
are very susceptible to RF pickup - buzz and should not be
used.
MIC GAIN control varies the level of the low Z microphone.
It is independent of the line audio level. Speak directly into
the microphone at the normal operating distance. Increase
the level to the point where the red XMIT light winks off, and
then back down the gain slightly. There is a volume
compressor that will keep the audio at the standard 25 kHz
deviation and 40 kHz peaks. Audio usually drops out about
the same time as color does in a snowy picture - P3 -
depending on the TV sets audio IF gain and limiting.
XMIT/REC switch. It is in parallel with the EXT KEY jack.
Thered lamp above thisswitch willlight wheneveryouare in
the transmit mode and the audio inputs are below 40 kHz
deviation. There can also a delay of up to 1 second for this
LED to light eventhough there is RF output. In receive, the
applied+ voltage appears on thedownconverter powerjack
to power a TVC-4s 70CM ATV downconverter.
OPERATING NOTES: ATV practices are somewhat different
from the other bands and modes. Since we must use
directional antennas to make up for the 26 dB higher noise
floor difference compared to NBFM due to bandwidth (15
kHz vs. 3 MHz), the probability of someone pointing their
beam at you while at the same time you at them and calling
CQ is very low. This is why manyATV contacts are initiated
by calling or listening on an area 2 meter FM simplex ATV
coordination frequency (146.43 in 434.0 areas, and 144.34
in 439.25 transmit video areas due to the 3rd harmonic
relationship).
Two meters, even for FM, has about 9 dB less path loss
than 70CM so that all possibleATVers can be received on 2
meter FM using just an omni antenna. You will find with
experience the correlation between 2 meter simplex and
70CMATV. It is much easier for all localATVers to monitor a
squelched 2 meter FM simplex channel than to try tuning
and swinging the 70CM beam looking for sync bars. Once
anotherATVer comes up on2 meters, you canroughly swing
the beams on each other before turning on the ATV
transmitter. Then, if the picture is better than 20% snow, the
video transmitting station can talk on the sound subcarrier,
and all those receiving him can talk back at the same time
on 2 meters (full duplex) to comment on picture content, etc.
Others listening to the 2 meter channel are often hooked
into ATV this way. You can also run full duplex audio and
video with another station on 900 or 1200 MHz bands.
It is more fun as time goes on to have many hams put
their families, other hobbies, and varied interests on the
screen. Letothers know your 2 meterATV freq. by publishing
inlocal radioclubsnewsletters, contactyourlocalARRLSCM,
or pick a night and time to start anATV net. The TX70-.1s is
portable enough to give a little demo at your local radio club
or hamFest.
IF YOU BELIEVE THE TX70-.1s ISN’T WORKING,
checkall cablesand connections,internal fuseand 16V
protectionzener, VSWR,powersupplyandDC voltages
at the board test points. Then call or email us and
describe the problem or ask any questions you might
have. Itwill save usboth timeandmoney ifwesuggest
some things to try that may have been over-looked, or
for us to better evaluate the problem. The TX70-.1s
can be repaired by us for $80 plus parts cost in a few
days if we believe the problem is customer caused or
nothing wrong. If we determine that it was due to our
workmanship and materials within a reasonable time
and given circumstances then your cost is only the
shipping to us. However the repair and service policy
stated in our latest catalog will supercede the general
policy listed here. Include with the unit a filled out
Return Authorization Form - download from our web
site. It will be sent back normally within 2 days after we
receive it. There is no other warranty expressed or
implied. We believe this policy is more realistic than
theusual 90day warrantyotheramateurmanufacturers
have since various parts have different expected
lifetimes.
3
CHANNEL SWITCH. This model has 5 synthesized
channels:
1 - Open - *can be special programmed
2 - 426.25 MHz also is the open switch default.
3 - 427.25 MHz
4 - 434.00 MHz
5 - 439.25 MHz
*421.25 MHz can only be used with a VSB filter in the
antenna line to keep sideband energy from falling outside
the band edge at 420 MHz as is done at a repeater site.
439.25 MHz only can be used in Canada and those above
the A line - approx 100 miles south of Canada - in the USA
since the band edge is 430 MHz.
POWER ON switchturns on the applied+12 to14 Vdc tothe
TX70-.1s. If the green light does not come on, check the
internal fuse and why it blew before replacement.

DX vs. POWER vs. ANTENNA GAIN. The 100 mW output of the
TX70-.1s was chosen to provide an easy low cost entry into the
world of ATV, but at the same time give flexibility to all the applica-
tions that hams might put the equipment to. 100 mW connected to
OAL5L-70cm beams for short distance video up to5 miles with low
battery drain public service applications is ideal. But for greater
distance or areas of high path attenuation, it’s output is matched
for the best linearity drive region of Downeast Microwave 7025PA
amp. The primary design difference between these amplifiers and
others is the addition of various values of capacitors on the transis-
tor bias and collector supply lines to keep the applied voltage con-
stant under the high current swings to 5 MHz of theAM video enve-
lope. Without these caps, the color and sync become distorted.
While it is almost impossible to predict actualATV DX due
to different terrain and conditions, the line of sight snow free picture
distance can be calculated given all the controllable factors. We
must know the transmitter peak envelope power (p.e.p. - sync tip),
coax loss, and antenna gain over a dipole. At the receive end, we
must also know the system noise figure and bandwidth. See the
ATV DX chart on our web site to find the line of sight mileage.
The purpose of the DX chart is to enable you to better
figure what is needed in your system to have the best chance of
getting good pictures where you want them. This is especially
importantto repeater owners or those setting up for a public service
event to figure the expected area of coverage. The DB Products
DB420 is a popular high gain broadband omni exposed dipole
vertical used at single antenna/duplexer inband repeaters - two
Diamond F718x antennas with >20 ft separation is also used. A
simple starter antenna for home or portable is the ground plane
you can make yourself - see our application notes web page. For
every 6 dB of increase between two fixed points, you will gain one
P unit or double the distance to a farther line of sight point with the
same picture level.
Obviously, putting most of your time and money into the
antennasystem pays offin both transmit and receive. Adding more
power does nothing to improve the receive DX. If you have one of
our TVC-4s downconverters you have a low noise figure (≈1 dB)
and sufficient gain (≈25 dB) to put your receiving system at the
noise floor.
The theoretical noise floor for a 3 MHz wide 70CM ATV
system with a perfect 0 dB noise figure is .8 microvolts (-109 dBm).
So adding another preamp at the shack will do nothing but pump
up your AGC on noise making you more susceptible to intermod
and overload interference without improving the sensitivity. Only
changing to lower loss coax or adding a good quality GaAsfet
preamp at the antenna will give you a little sensitivity improvement.
Since most cases are not line of sight, the distance will be
lessened depending on the amount and type of trees, foliage, hills,
buildings, etc., in the path. On the other hand, there is temperature
inversion ducting, especially in the summer months, or knife edge
refraction that can equal or better the chart estimates. The RF
horizon is about 10 miles for an antenna height of 50 ft - Miles = 2x
sq.rootantennaheightin feet. If the otherstationalsohasanantenna
height of 50 ft then you should get good results over the 20 mile
path in flat terrain. Antenna height is most important at UHF (see
The ARRL Antenna Book pages 1-4) Other sources of ATV
information can be found in the ARRL Handbook.
ANTENNA POLARIZATION must be the same in any area or you
could be losing up to 20 dB by being opposite. Polarization in any
area seems to be more of an emotional rather than technical
decision. If most of the ATVers come from the weak signal or 432
SSB/DX group or using 439.25, they will push for horizontal. The
FMers or those using 434.0 will push for vertical. The main
motivation is not to have to get separate antennas for each mode
ofinterest. Technicallythereislittledifferencebetween polarization’s
above 300 MHz according to a US Army study. However, below
300 MHz horizontal is generally better. Vertical polarization is
preferred in areas that have a repeater or want omni directional
coverage for weather radar or other public service applications due
to the fact that there are many manufacturers of high gain vertical
omnidirectional antennas for base station as well as mobile.
Horizontal omni gain takes many more elements for the same gain
as vertical and few are made commercially. So this is a regional
decision that should be made by the local ATV community. One
alternative is for individual ATVers to use circular polarized
antennas, which works great for all modes. There are many
exaggerated claims for antenna gain and performance. When you
select yours, it should have sufficient bandwidth, and go by the
actual measured gains published from the various VHF/UHF
Conference contests rather than advertisements and
unsubstantiated articles.
Diamond
X510NJ,A
9dBd vertical
omni, 17 ft.
4
Broad band
exposed dipole
vertical 6-9 dBd
omni used at
inband repeaters
with duplexer.
DSFO-ATV 25 has 16
dBd and 17 ft boom.
OAL 5L-70cm 8 dBd 420-
450 MHz Yagi Mounts
horzontal or vertical.
31” boom ideal for portable
& public service uses.
Ground
Plane
EXTERNALAMPLIFIER SET UP. There are amplifier application
notes on our web site. Basically, they all setup in the same way.
1. With no video source plugged in, turn the pedestal pot in the
ATV exciter/modulator to its maximum power position and RF OUT
potto minimum. Make sure the amp is connected to a good 50 ohm
dummy load or low vswr antenna (less than 10% reflected).
2. Turn on the amp and transmitter and slowly increase the RF
OUT pot to no more than 90% of the max rated power of the
particular amp - you need that 10% headroom for the sound that
rides on the sync. Never detune the trimmer caps as it can distort
the video or make the transmitter unstable.
3. Then set the blanking pedestal pot for 50 to 60% of the max
pedestal pot power. For example: Downeast Microwave 7025PA.
Pedestal pot at full CCW set the RF OUT pot to 35 W x .9 = 33
Watts pep on the sync tip. Then set the pedestal pot .57 x 33 Watts
= 19 Watts. This sets the final video to sync ratio.
4.Plug the camera back in and havea distant stationon two meters
talk your video gain in to just before white clipping or smearing.
That's it. Your peak envelope power on sync tip will be the 33 Watts
regardless of what the power meter reads.
See our app
note web
page

5
