PDi medTAB14D User manual

mymedTV.com
USER MANUAL
Document Number: PD196-434R1
Model Numbers: medTAB14D, medTAB16D, medTAB19D
Arm-Mounted, Healthcare-grade Touchscreen LED
Smart HDTV with Android™OS
and GENiO™Remote Device Management

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 2 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
Table of Contents
IMPORTANT SAFETY INSTRUCTIONS................................................................................................................................................................................................................................ 5
INTRODUCTION............................................................................................................................................................................................................................................................................. 6
INSTALLING THE TELEVISION .............................................................................................................................................................................................................................................. 6
Installation Precautions....................................................................................................................................................................................................................................................... 6
Coax Cable Specifications.................................................................................................................................................................................................................................................... 6
Category Cable Specifications ........................................................................................................................................................................................................................................... 6
Arm Mounting........................................................................................................................................................................................................................................................................... 6
KEYPAD CONTROLS .................................................................................................................................................................................................................................................................... 6
INITIAL SETUP............................................................................................................................................................................................................................................................................... 7
CHANGE USER INTERFACE ..................................................................................................................................................................................................................................................... 9
UNLOCK ANDROID SETTINGS MENU...............................................................................................................................................................................................................................10
DEVICE INTERNAL SETTINGS..............................................................................................................................................................................................................................................10
ANDROID SETTINGS .................................................................................................................................................................................................................................................................10
Android Device Settings ..........................................................................................................................................................................................................................................................11
Settings –Preferences UPDATE IMAGE......................................................................................................................................................................................................................12
TELEVISION SETTINGS............................................................................................................................................................................................................................................................12
CHANNEL SETUP...................................................................................................................................................................................................................................................................13
Auto Program....................................................................................................................................................................................................................................................13
Customize Channel List................................................................................................................................................................................................................................14
Parental Controls............................................................................................................................................................................................................................................14
ADVANCED OPTIONS –PICTURE..................................................................................................................................................................................................................................16
Back Light...........................................................................................................................................................................................................................................................16
Picture Mode.....................................................................................................................................................................................................................................................16
Color Temperature.........................................................................................................................................................................................................................................16
Image Noise Reduction ................................................................................................................................................................................................................................16
Mpeg Noise Reduction..................................................................................................................................................................................................................................16
ADVANCED OPTIONS –SOUND......................................................................................................................................................................................................................................17
Internal Speaker..............................................................................................................................................................................................................................................17
Minimum Volume ...........................................................................................................................................................................................................................................17
Maximum Volume...........................................................................................................................................................................................................................................17
Power on Volume............................................................................................................................................................................................................................................17
Pillow Speaker Boost ....................................................................................................................................................................................................................................17
Sound Mode.......................................................................................................................................................................................................................................................17
Equalizer .............................................................................................................................................................................................................................................................17
Balance.................................................................................................................................................................................................................................................................17
AVC or Surround Sound...............................................................................................................................................................................................................................17
SRS .........................................................................................................................................................................................................................................................................17
ADVANCED OPTIONS –CHANNELS.............................................................................................................................................................................................................................18

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 3 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
Service Level .....................................................................................................................................................................................................................................................18
Configure Channels........................................................................................................................................................................................................................................18
Clear Service Level .........................................................................................................................................................................................................................................18
Copy Service Level..........................................................................................................................................................................................................................................18
Power on Channel...........................................................................................................................................................................................................................................18
Channel Lock.....................................................................................................................................................................................................................................................18
Channel Override/Auto Update...............................................................................................................................................................................................................18
Signal Information..........................................................................................................................................................................................................................................18
ADVANCED OPTIONS –HDMI.........................................................................................................................................................................................................................................18
ADVANCED OPTIONS –TIME..........................................................................................................................................................................................................................................19
Time Source.......................................................................................................................................................................................................................................................19
Date and Current Time.................................................................................................................................................................................................................................19
Off Time...............................................................................................................................................................................................................................................................19
Scheduled Time ...............................................................................................................................................................................................................................................19
Sleep Time..........................................................................................................................................................................................................................................................19
ADVANCED OPTIONS –FEATURES..............................................................................................................................................................................................................................20
Auto Power On/Lock.....................................................................................................................................................................................................................................20
Bed A/B/C/D.....................................................................................................................................................................................................................................................20
Closed Caption..................................................................................................................................................................................................................................................20
Channel to Other Sources............................................................................................................................................................................................................................20
Power On ARC MODE....................................................................................................................................................................................................................................20
Power On Source.............................................................................................................................................................................................................................................20
Analog Pillow Speaker..................................................................................................................................................................................................................................20
ADVANCE OPTIONS –SYSTEM.......................................................................................................................................................................................................................................20
Diagnostics.........................................................................................................................................................................................................................................................21
Reset to Factory Defaults............................................................................................................................................................................................................................21
USB Cloning .......................................................................................................................................................................................................................................................21
Save Settings to USB........................................................................................................................................................................................................................................................21
Restore Settings from USB............................................................................................................................................................................................................................................21
RF Cloning ..........................................................................................................................................................................................................................................................21
USB Firmware Update..................................................................................................................................................................................................................................21
Security................................................................................................................................................................................................................................................................21
Support Information .....................................................................................................................................................................................................................................21
Limited Warranty .......................................................................................................................................................................................................................................................................21

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 4 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
Overhead Falling Hazard
WARNING: To prevent injury, this apparatus must be
securely attached to the floor/wall in accordance with the
installation instructions.
TV can pose a striking hazard when mounted at an
elevated position. Use only PDi mounting brackets,
support arms, and appropriate hardware to assure TV
will not fall from the mounted position
Rain and Moisture
WARNING: To avoid the hazards of fire or electrical shock,
DO NOT expose this television to rain or moisture.
Oxygen Environment
WARNING: Do not use in any oxygen tent or oxygen
chamber. Such use may cause a fire hazard.

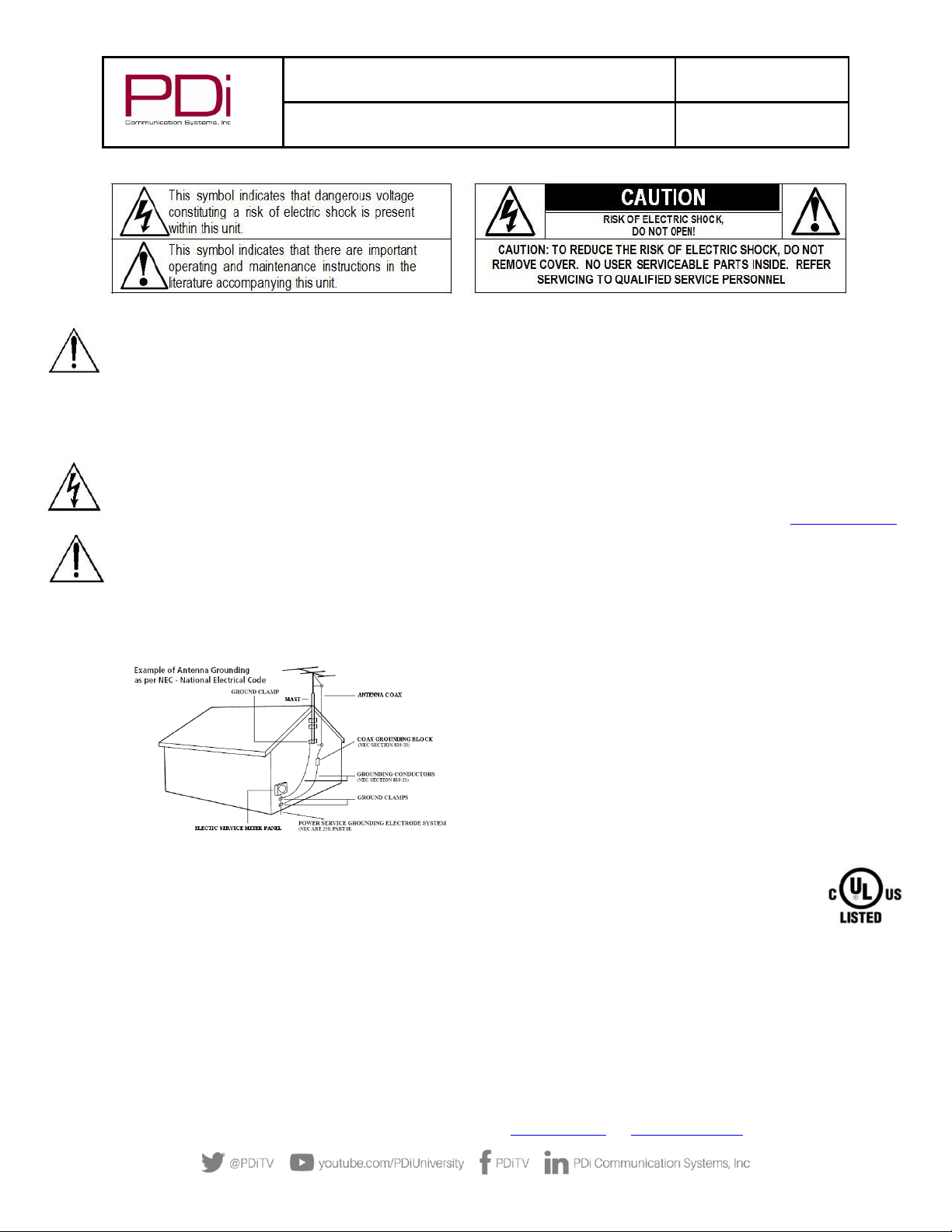

Note to Cable TV Installer
This reminder is provided to call the cable TV system installer’s
attention to Article 820-40 of the National Electrical Code. The code
provides guidelines for proper grounding and in particular specifies
that the
cable
ground
shall be
connected
to the
grounding
system of
the
building, as
close to the
point of
the cable entry as practical. Canadian installations shall be properly
grounded in accordance with the Canadian Electrical Code, Part 1.
FCC
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Maintenance and Servicing
The TV does not require periodic maintenance other than cleaning.
Never remove the back cover of the TV; this can expose you to high
voltage and other hazards. If the TV does not operate properly, unplug
it and call an authorized service center or PDi.
Cleaning and Disinfection
Clean the exterior of this television by removing dust with a lint-free
cloth. Spot test a new disinfectant by test cleaning a non-obvious small
spot on the TV’s back cabinet, keypad, and LCD panel. PDi recommends
using a premoistened disinfectant cloth, like PD600-001 Super Sani-
Cloth or similar, or spraying cleaner onto a dry cloth and then wiping
the unit. Specific recommendations can be found at www.pdiarm.com.
CAUTION: To avoid damage to the surface of the television, do not use
abrasive or chemical cleaning agents.
Product Modification
Do not attempt to modify this product in any way without written
authorization. Unauthorized modification could void the user’s
authority to operate this product.
Copyright, Trademarks
© 2022 PDi Communication Systems, Inc. All rights reserved. PDi®, medTV®
and medTAB®are registered trademarks of PDi Communication Systems,
Inc. Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio,
and the double-D symbol are trademarks of Dolby Laboratories. The terms
HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product logos, brands and other trademarks displayed within PDi’s products
are the property of their respective trademark holders, who are not affiliated
with, endorsing, or sponsoring PDi Communication Systems, Inc. or our
products.
Underwriters Laboratories
This model Hospital Grade LCD HDTV is a specialized TV and should be installed
to National Electrical Code specifications. This device is safety
tested and listed by the Underwriters Laboratories as a
product suitable for use in healthcare facilities in both the
United States and Canada.
Disclaimer
The author and publisher have used their best efforts in preparing this
manual. PDi Communication Systems, Inc. makes no representation or
warranties with respect to the accuracy or completeness of the contents of
this manual and specifically disclaims any implied warranties or
merchantability or fitness for any purpose and shall in no event be liable for
any loss of profit or any other damages. The information contained herein is
believed accurate, but is not warranted, and is subject to change without
notice or obligation.

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 5 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: THIS INSTALLATION SHOULD BE MADE BY A
QUALIFIED SERVICE PERSON AND SHOULD CONFORM TO ALL
LOCAL CODES. READ AND FOLLOW THE SAFETY INSTRUCTIONS
BEFORE ATTEMPTING THIS INSTALLATION.
1. Read Instructions –All the safety and operating instructions
should be read before the product is operated.
2. Keep these Instructions –The safety and operating instructions
should be retained for future reference.
3. Heed all Warnings –All warnings on the product and in the
operating instructions should be adhered to.
4. Follow all Instructions –All warnings on the product and in the
operating instructions should be followed.
5. Water and Moisture –Do not expose this product to rain or
moisture. Do not use this product near water –for example, near
a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet
basement; near a swimming pool; and the like.
6. Cleaning –Please see specific recommendations under “Cleaning
and Disinfection” on previous page.
7. Ventilation –Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the product and to
protect it from overheating. These openings must not be blocked
or covered. The openings should never be blocked by placing the
product on a bed, sofa, rug, or other similar surface. This product
should not be placed in a built-in installation such as a bookcase
or rack unless proper ventilation is provided, or the
manufacturer’s instructions have been adhered to.
8. Heat –The product should be situated away from heat sources
such as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.
9. Power-Cord Protection –Protect the power cord from being
walked on or pinched, particularly at plugs, convenience
receptacles, and the point where they exit from the product.
10. Attachments –Only use attachments/accessories specified by the
manufacturer.
11. Use only with cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
12. Lightning –For added protection for this product during a
lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage to the product
due to lightning and power-line surges.
13. Servicing –Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in
any way, such as power cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally,
or has been dropped.
14. Oxygen Environment –Do not use in an oxygen tent or oxygen
chamber. Such use may cause a fire hazard.
15. To prevent injury, this apparatus must be securely attached to the
wall in accordance with the installation instructions. TV’s can
pose a striking hazard when mounted at an elevated level.
16. Power Sources –This product should be operated only from the
type of power source indicated on the marking label. If you are
not sure of the type of power supply to your home, consult your
product dealer or local power company. For products intended to
operate from battery power, or other sources, refer to the
operating instructions.
CONSIGNES DE SÉCURITÉ IMPORTANTES
CETTE INSTALLATION DOIT ÊTRE EFFECTUÉE PAR UN
TECHNICIEN QUALIFIÉ ET DOIT ÊTRE CONFORME À TOUS LES
CODES LOCAUX. LIRE ET SUIVRE LES CONSIGNES DE SÉCURITÉ
AVANT DE PROCÉDER À L’INSTALLATION.
1. Lire ces instructions.
2. Conserver ces instructions.
3. Respecter tous les avertissements.
4. Suivre toutes les instructions.
5. Ne pas utiliser cet appareil près de l'eau - par exemple près
d'une baignoire, d'un lavabo, dans un sous-sol humide, ou près
d'une piscine ou similaire.
6. Veuillez voir les recommandations sous “Nettoyage et
Désinfection” à la Page précédente.
7. Ne pas obstruer les ouvertures de ventilation. Installer
conformément aux instructions du fabricant. Les ouvertures ne
doivent jamais être obstruées en plaçant le produit sur un lit, un
canapé, un tapis ou toute autre surface similaire.
8. NE PAS installer près de sources de chaleur telles que
radiateurs, registres de chaleur, poêles ou tout autre appareil (y
compris les amplificateurs) qui produit de la chaleur.
9. NE PAS neutraliser le dispositif de sécurité de la fiche polarisée
ou de terre. Ce produit est équipé d'une prise de terre à trois fils,
une fiche ayant une troisième broche (mise à la terre). Cette
fiche ne peut s'insérer que dans une prise de courant avec mise
à la terre. Il s'agit d'une caractéristique de sécurité. Si vous êtes
incapable d’insérer la fiche dans la prise, contacter votre
électricien pour remplacer votre prise obsolète.
10. Protéger le cordon d'alimentation pour qu’il ne soit pas piétiné
ni pincé, en particulier au niveau des fiches, des prises de
courant et au point de sortie de l’appareil.
11. Accessoires - Utiliser uniquement les attaches/accessoires
recommandés par le fabricant.
12. Utiliser uniquement avec un chariot, stand, trépied, support ou
table recommandé par le fabricant ou vendu avec l'appareil.
Lorsqu’un chariot est utilisé, faire attention lors du déplacement
de l'ensemble chariot/appareil afin d’éviter des blessures en cas
de basculement.
13. Débrancher cet appareil en cas d'orages ou lorsqu'il reste
inutilisé pendant de longues périodes.
14. Confier toute réparation à un personnel de service qualifié. Des
réparations sont nécessaires si l'appareil est endommagé d'une
façon quelconque, par exemple : cordon ou prise d'alimentation
endommagé, liquide renversé ou des objets sont tombés dans
l'appareil, l'appareil a été exposé à la pluie ou à l'humidité, ne
fonctionne pas normalement ou s'il est tombé.
15. Sources d'alimentation - Ce produit doit être utilisé uniquement
à partir du type de source d'alimentation indiqué sur l'étiquette.
Si vous n'êtes pas sûr sur le type d'alimentation de votre
domicile, consultez le détaillant de votre produit ou la
compagnie d'électricité locale. Pour les produits proposés de
fonctionner par piles, ou autres sources d’alimentation,
reportez-vous aux consignes d’utilisation.
16. Environnement d’oxygène - Ne pas utiliser sous une tente à
oxygène ou chambre à oxygène. Une telle utilisation peut causer
un risque d'incendie.

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 6 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
INTRODUCTION
The medTAB® model-D includes cloud-based GENiO™remote content management software. medTAB can deliver a custom patient
TV experience with your brand logo, weblinks to your patient education videos, daily menus, video call software, patient surveys,
and more. This affordable solution is easy to manage with NO ADT integration. This complete, customizable, personal patient
television system by PDi delivers a touchscreen experience that patients understand and enjoy as soon as they touch it. Contact
PDi for more information on using GENiO to create a customized user interface with your weblinks or custom applications.
Not ready to customize? medTAB is simple and scalable out-of-the-box. Choose to setup TV with internet or offer patients
expanded entertainment with built-in tv, games and relaxation apps, no internet required. When connected to the internet via WIFI
or Ethernet, without customization, patients also enjoy access to a web browser, social sites, and a direct link to health news at
cdc.gov.
INSTALLING THE TELEVISION
Installation Precautions
For models powered over coax, use only a power source from PDi suitable for use in a healthcare facility. The single coaxial cable
on top of the TV is used to supply both low voltage AC or DC power (28VAC or 24VDC) and RF signal to the television.
For models powered by ethernet (PoE) use only UL listed power sourcing equipment that offers 60W per port using all 4 pairs for
power delivery. This is sometimes called UPoE, PoE++ or 802.3bt type 3. PDi recommends the
Microchip Microsemi PD-9506G/ACDC/M midspan power inserter. The ethernet cable on top of the TV is used to supply both
power and data. Be sure power is not applied to the coaxial cable entering the TV.
Coax Cable Specifications
When using a central power supply, cable selection is crucial. Due to long coax cable runs encountered in hospital installations,
coax cable employing a solid copper center conductor and copper shield is required. Cable run lengths MUST NOT exceed 150 feet.
Required coaxial cable numbers include Alpha M4182 (replaced Alpha 9804C) (non-plenum), Belden 9248 (non-Plenum), West
Penn 806 (non-Plenum), or West Penn 25806 (Plenum), which have been tested with coax-powered TVs.
Category Cable Specifications
PoE models are IEEE 802.3bt compatible. When using a PoE power inserter to apply power to ethernet, CAT5e or better cable may
be used. The total cable length from network switch to PDI device may be up to the standard 330ft.
Arm Mounting
This television is designed to attach to a PDi suspension arm.
Arm Recoil Hazard: The safety brake pin must remain in the SAFETY BRAKE PIN HOLE whenever the television is removed from
the arm or when the arm is removed from the wall bracket to prevent INJURY from the arm springing open. Note: Contact PDi for
additional information on arm compatibility and cable requirements.
KEYPAD CONTROLS

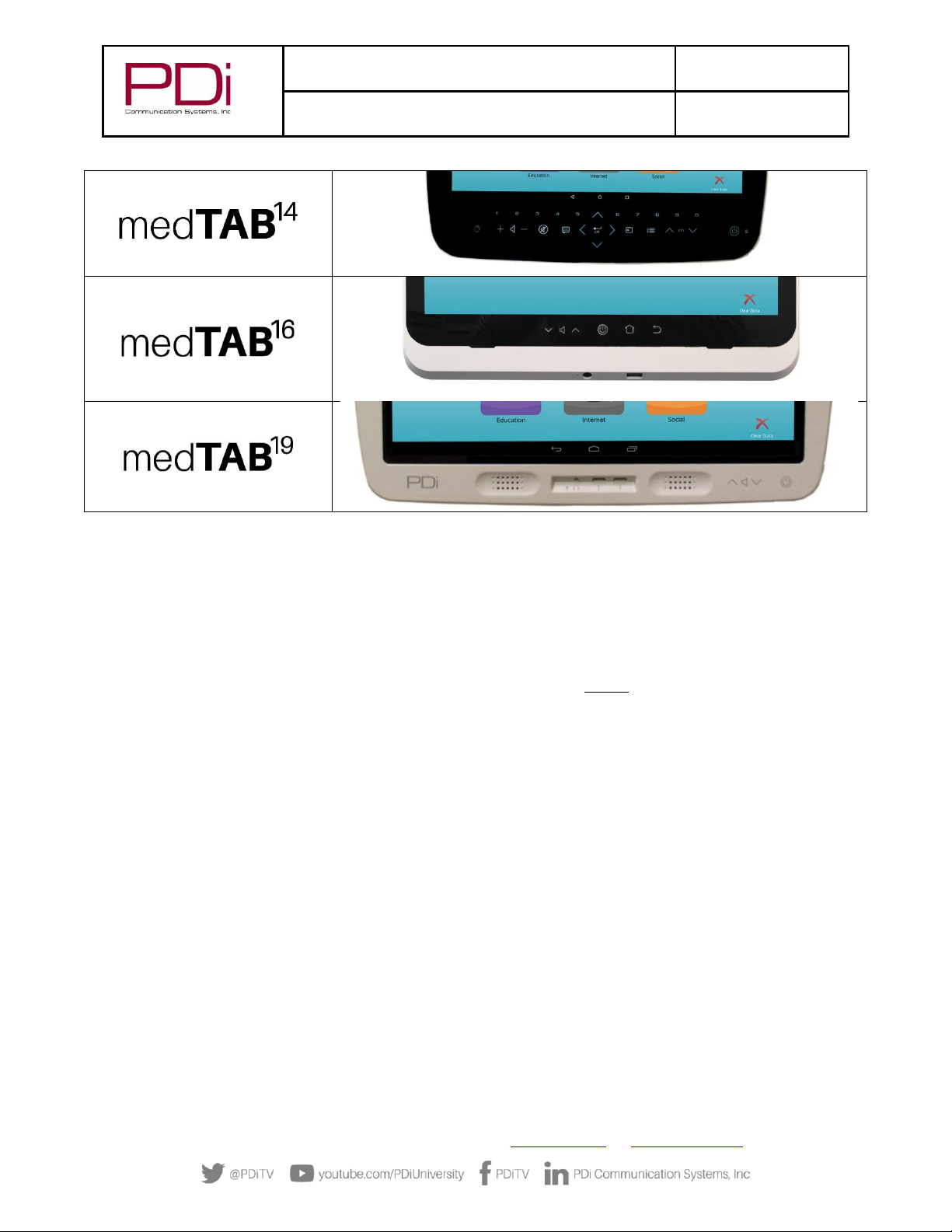

Keypad buttons vary by model as shown below. Each model has at least a HOME and BACK button.

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 7 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]

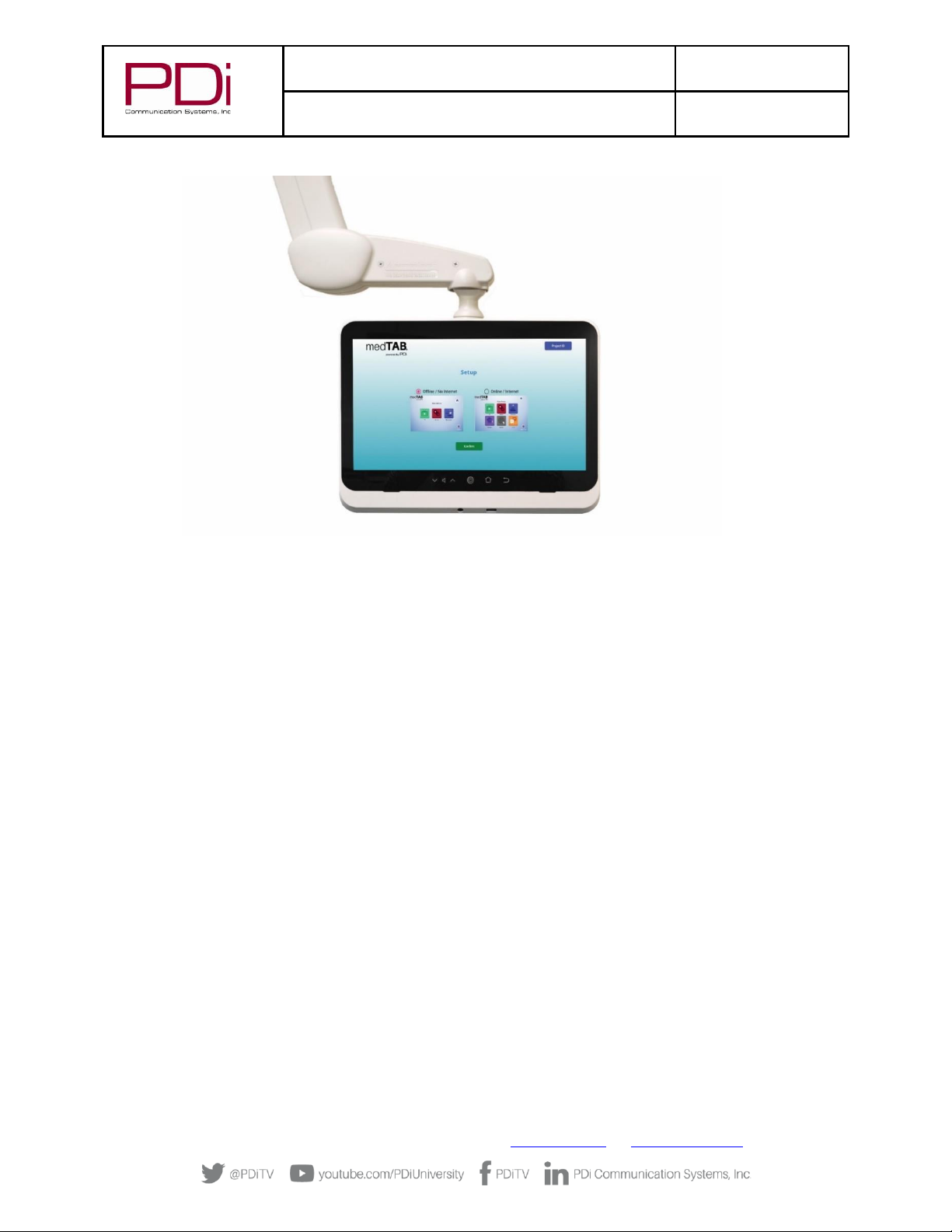

INITIAL SETUP
The following instructions assume you have correctly mounted the TV and connected a cable that provides power and RF signal.
Out-of-the-box, the first time you power on the Android™based medTAB patient television, you must select the desired user
interface (UI) and press the green CONFIRM button. The device will REBOOT automatically.
Setup choices out-of-the-box include:
•Offline / No Internet, the 3-icon image for TV, games, and relaxation without internet access. Select and press CONFIRM.
•Online / Internet, the 6-icon image for full internet access, now including cdc.gov weblink for patient education. You
must connect to the Internet via ANDROID SETTINGS shown below before you choose to use the Online interface. Press
green button on SETUP menu to CONFIRM.
•Connect your device to the GENiO cloud-based server. An account with GENiO remote management allows you to have
a customized patient TV experience with your brand logo, weblinks to your patient education videos, daily menus, video
call software, patient surveys, and more. No ADT integration is required. You will need a GENiO subscription. Work with
PDi or authorized reseller to customize your user interface and get your Project ID. You must connect to the Internet via
ANDROID SETTINGS shown below before you enter your ProjectID in the blue ProjectID button to connect the device to
the GENiO cloud server. Press green button on SETUP menu to CONFIRM.

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 8 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
NOTE: To change your user interface, please see further instructions below.

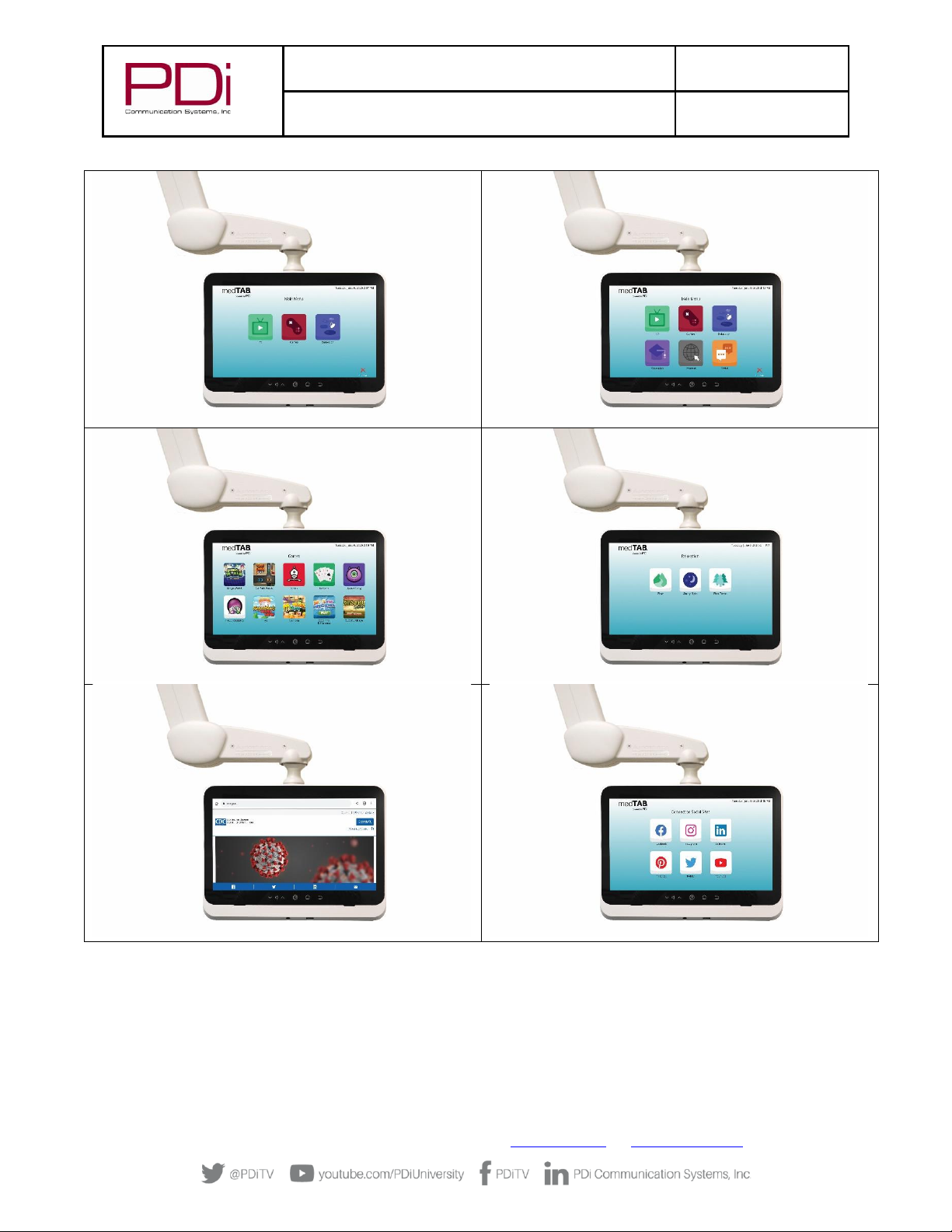

A description of the default Main Menu apps and screenshots follows:
1. TV-Games-Relaxation apps are all active without internet connection.
2. Education - Internet Browser –Social are URL browser links available once you connect to WIFI or Ethernet (See
Android Network Settings below). The Education icon defaults to the website cdc.gov for general patient education
information. The Social icon defaults to Facebook, Instagram. LinkedIn, Pinterest, Twitter, and YouTube. The internet
browser defaults to Google on Chrome.
3. Clear Data –Patients can choose to clear cache memory on-demand using the Clear Data feature on the Main Menu. Cache
is automatically erased when the device powers OFF or times out.
4. Black Toolbar –This provides shortcuts for BACK or HOME. The HOME button will take the patient user directly to the
Main Menu. The BACK arrow will take the patient user back one screen at a time. BACK is also used by the administrator
during system settings.
5. medTAB Logo in top left corner is used to access system settings.

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 9 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
CHANGE USER INTERFACE
1. To change the user interface, follow instructions below to UNLOCK ANDROID SETTINGS. For GENiO or Online Interface,
you will need to click thru to SETTINGS to make a network connection to enable the Internet.
2. Touch the screen outside of the pop-up keyboard to clear the keyboard from view if shown.

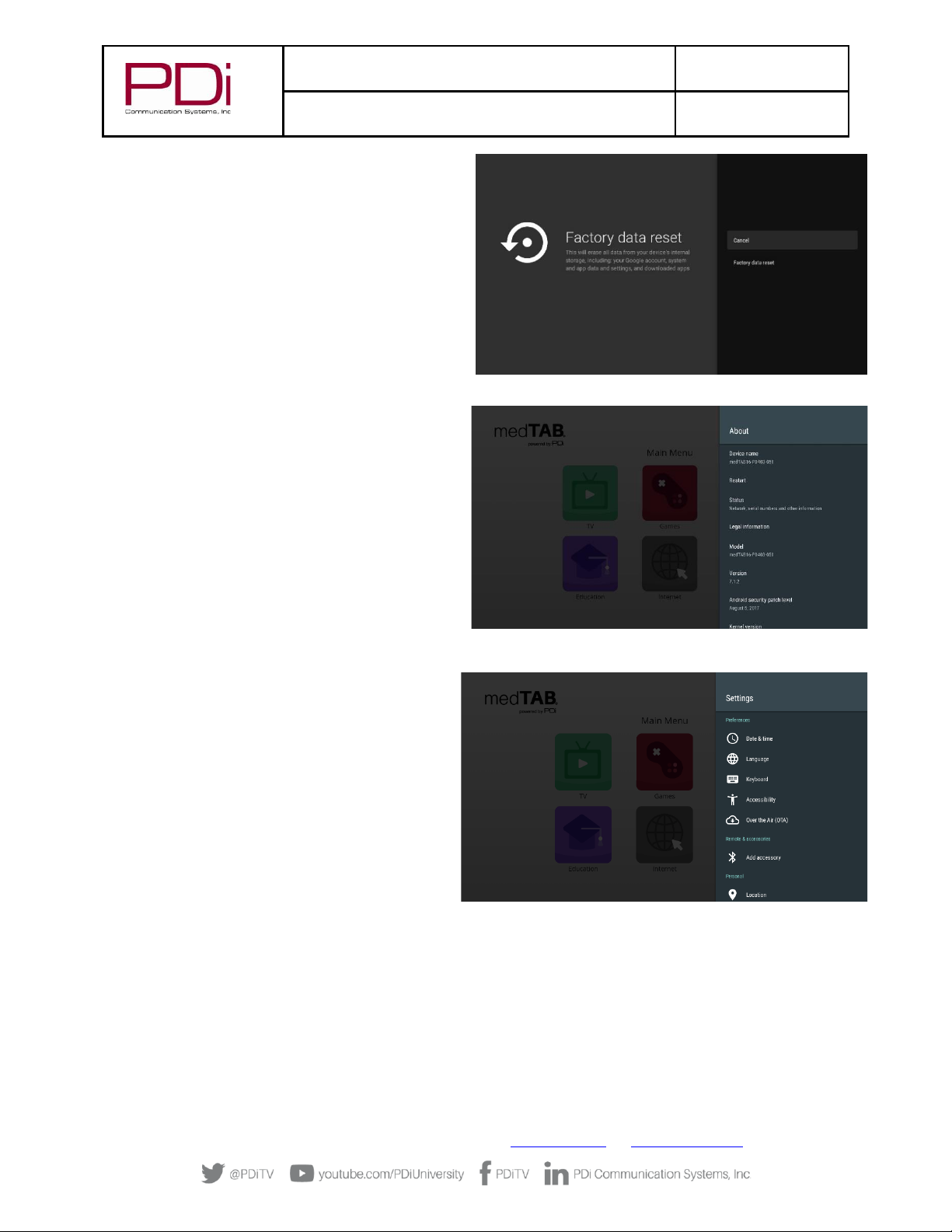

3. Press RESET button at the bottom of Device Internals menu which you will see first.
4. Press YES to confirm.
5. Choose online or offline setup or press the PROJECT ID button to enter your ID.
6. Press green button to CONFIRM.
7. The device will automatically reboot to your new interface.

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 10 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
UNLOCK ANDROID SETTINGS MENU

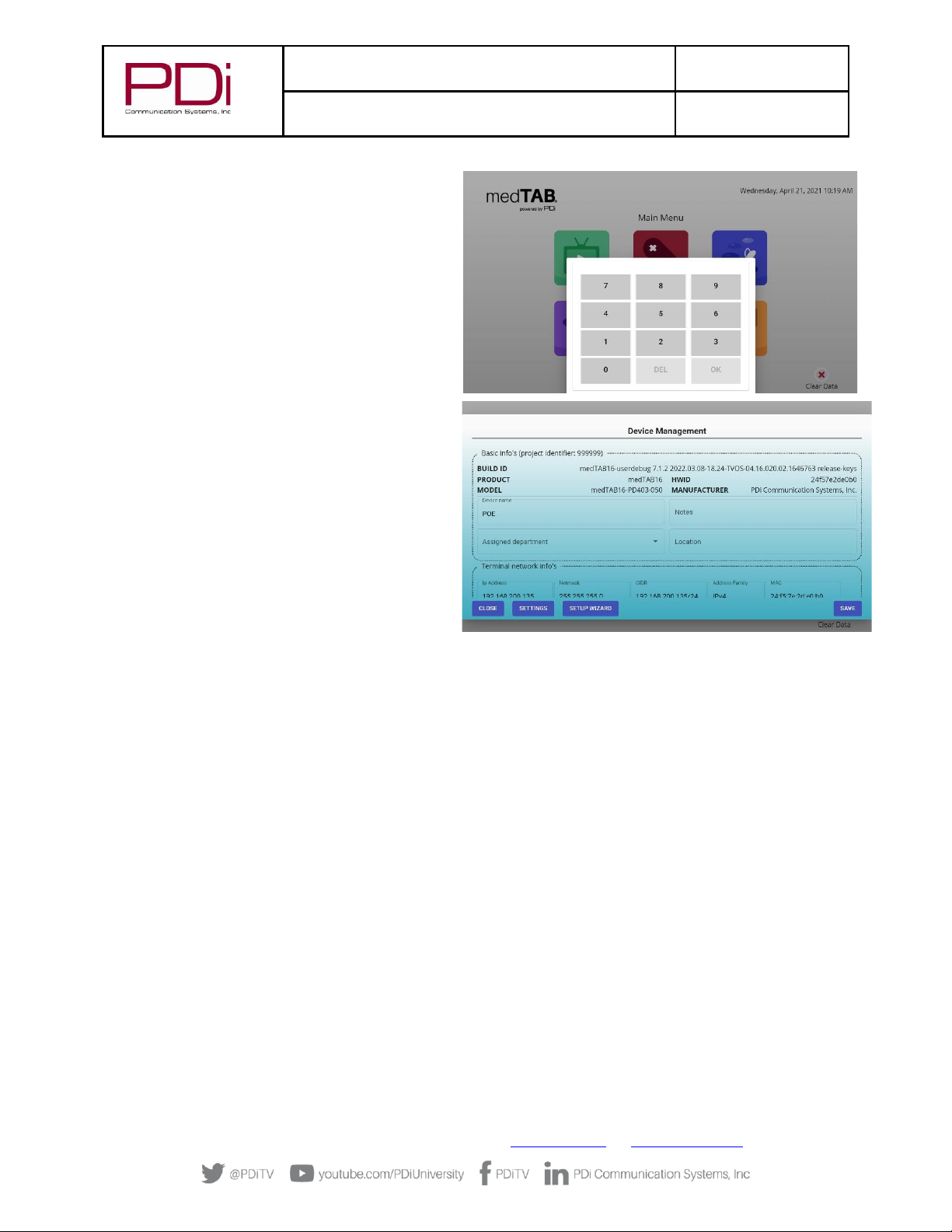

Press and hold the “medTAB” logo on the top left of the
screen or you may press the date on the top right of the
screen. The Unlock Settings keypad will appear. Enter the
default passcode “45066”, then press “OK”.
The person who will be responsible for managing the
network on the device and updating it should know the
passcode.
NOTE: This passcode cannot be changed.
DEVICE INTERNAL SETTINGS
The first menu to appear on-screen after entering the
passcode to unlock Android device settings is the Device
internals menu.
1. Initially, for GENiO or Online Interface, you will
need to click thru here to SETTINGS to make a
network connection to enable the Internet. This
screen shows two-way information so once you
connect to the network, it will pull in information
from GENiO to display here.
2. You may also manually enter information here on
the Device Internals menu. For example, if you are
moving a medTAB to another room, you can edit
info directly on the device here.
3. Once you enter information, press SAVE.
If you make a mistake, you can press the RESET button.
ANDROID SETTINGS
The Settings screen is where you can adjust network, source inputs, sleep timer, other account settings, OTA, and factory reset.
First unlock Android settings menu per above. At any time, touch BACK Arrow on black toolbar at bottom of display screen to exit
out of the Settings screens.
NOTE: TV Settings are not found here. To make changes to the television, you must first open the green TV app found on the home
screen, see TELEVISION SETTINGS.

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 11 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
Android Device Settings

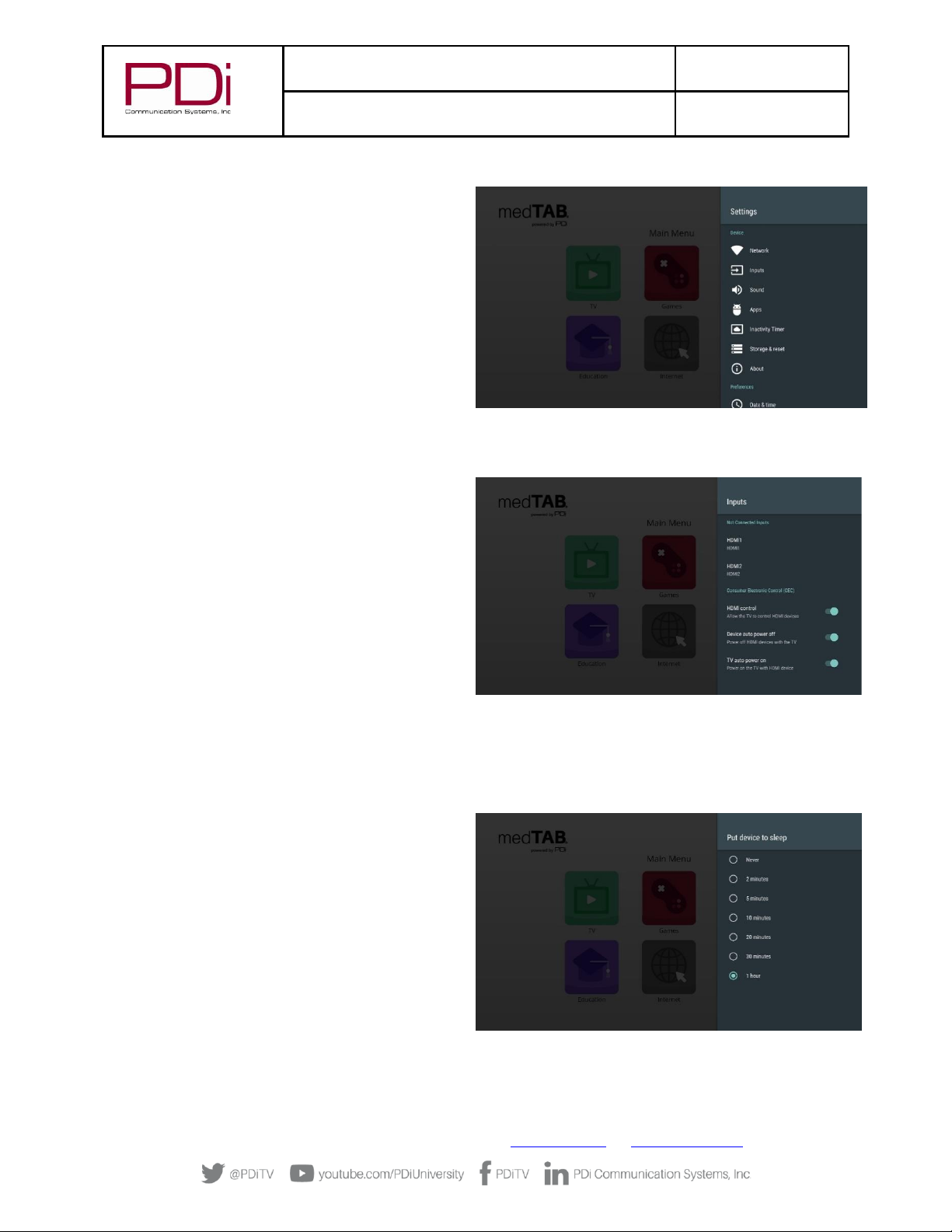

1. Settings –Network. Connect to the internet via WIFI
or Ethernet. Verify network settings here. To search
for WIFI networks, simply touch the word Wi-Fi or
slide the Wi-Fi toggle to the right/ON. If the device
finds a network previously used, it will reconnect to
it. Touch the network name to see more details or
enter WIFI password to connect to the network.
Connect to Ethernet or view IP Settings.
NOTE: touch BACK Arrow on black toolbar to go back
one menu.
NOTE FIREWALL SETTINGS:
The medTAB has no special firewall requirements to
access the web and the GENiO servers. The only external port used is 443 HTTPS. As some websites still use port 80
HTTP, PDi recommends allowing it as well.
2. Settings –Inputs. Identify your HDMI input sources
from a list of common names. You can also
enable/disable CEC controls (Consumer Electronic
Controls) such as
HDMI Control - allow the TV to control HDMI
devices,
Device Auto Power Off - power off HDMI devices
with the TV power
TV Auto Power On -power on the TV with HDMI
device.
NOTE: touch BACK Arrow on black toolbar to go back
one menu.

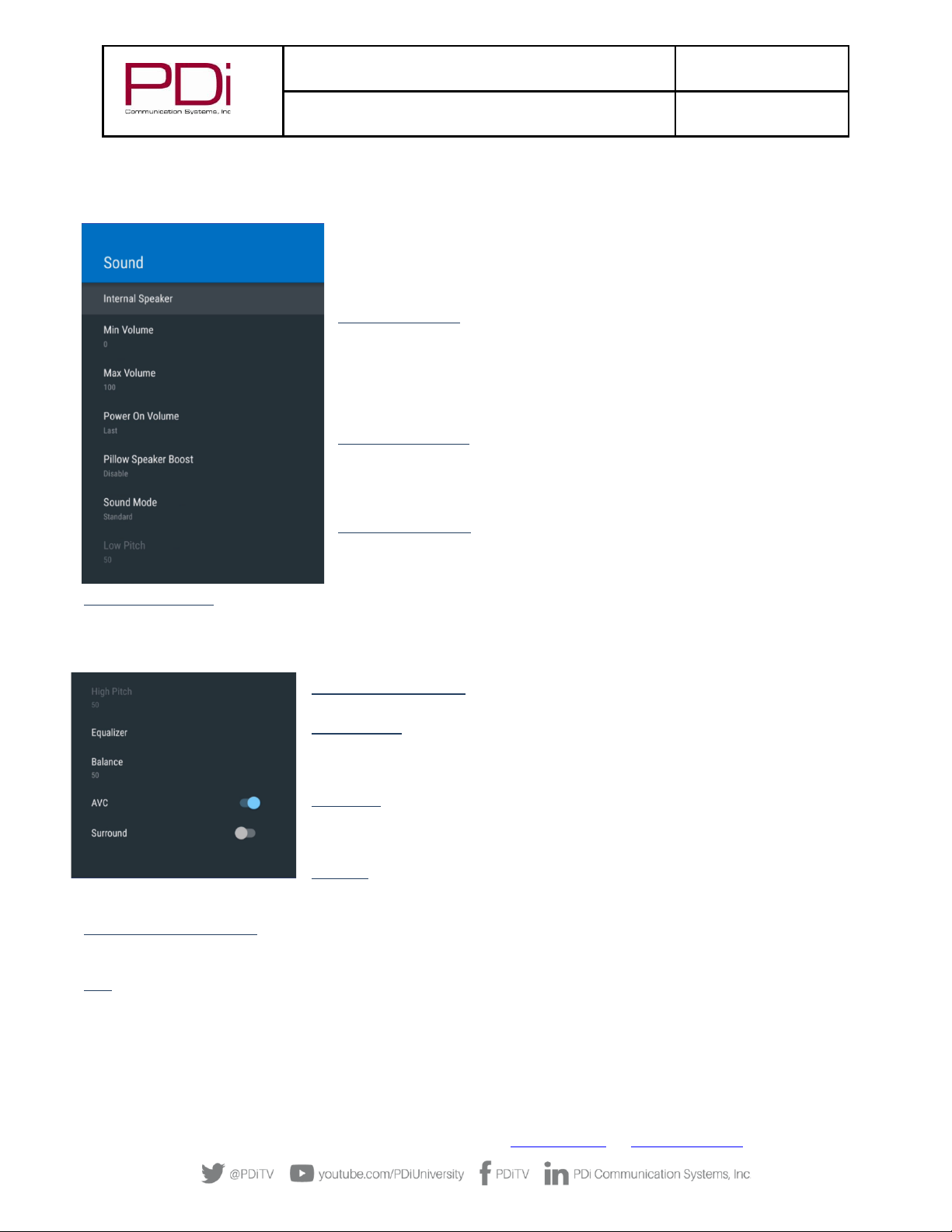

3. Settings –Sound. Set surround sound on Auto/Always/Never. NOTE: touch BACK Arrow on black toolbar to go back one
menu.
4. Settings –Apps. Set App permissions, and review system app settings. NOTE: touch BACK Arrow on black toolbar to go
back one menu.
5. Settings - Inactivity Timer. Choose when to put
device into Sleep mode: Never –2 min –5 min –10
min –20 min –30min –1hour. Default setting is 5
min.
NOTE: touch BACK Arrow on black toolbar to go back
one menu.

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 12 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
6. Settings –Storage & reset. View shared storage
space or reset device to factory settings.
NOTE: touch BACK Arrow on black toolbar to go back
one menu.
7. Settings –About. The About menu is where you can
find important information about the Android
system. It cannot be edited. Information shown
includes model number, serial number, build
version, kernel version, legal and more reference
data.
NOTE: touch BACK Arrow on black toolbar to go
back one menu.
Settings –Preferences UPDATE IMAGE

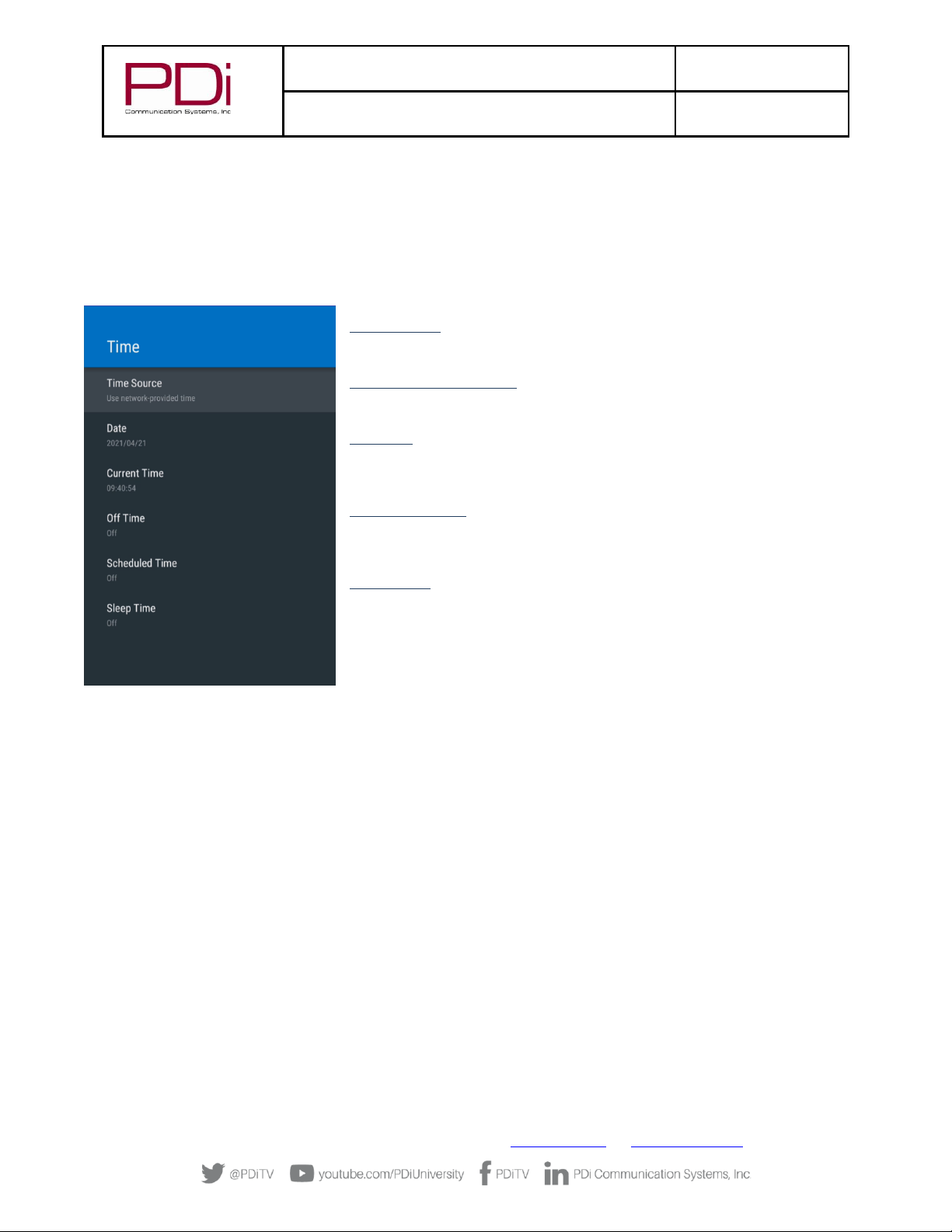

1. Settings - Date & time. Use this menu to adjust
Date & Time. Use BACK arrow to return to Settings
menu. The day, date and time appear on the Main
Menu screen. If you use GENiO, you have the option
to hide this information.
2. Settings –Language. Default language is English
(US). If you choose an alternate language, it will
change the menu and the web browser language.
3. Settings –Keyboard. Device includes AOSP
keyboard and Gboard.
4. Settings –Accessibility. Set captions or high
contrast text (experimental) only.
Settings - Over the Air (OTA). OTA allows you to
update the Android build. Select “Check for System
Updates” to download the latest image, if necessary. If given a custom OTA, you can edit the configuration build filename
and Archive suffix filename here. Use BACK arrow to return.
NOTE: Internet is required to perform the system update. Please contact PDi ProServices for help updating your
device. Phone [phone].
TELEVISION SETTINGS
The TV setup on 14” and 16” devices can be done using either the touchscreen or a PDi programming remote; the 19” does not have
IR remote capability. On the 19” devices you must do all programming using the touchscreen. If you choose to use the PDi
programming remote (Part Number PD108-420), that must be ordered separately. Using the PD108-420 remote, use the LAST
button in place of the BACK function on the touchscreen.

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 13 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
NOTE: If the SETUP screen goes blank while you are changing any settings, simply touch the screen or press SETUP on the
programming remote PD108-420.
Accessing TV Settings and Setup
To make changes to the television settings, you must first open the green TV app found on the Main Menu. Touch the screen to get
the pop-up TV remote or if using a 14” or 16” TV you can press SETUP on the PD108-420 programming remote. Touch Settings
sprocket to open TV Settings on the TV app user controls. Enter the Settings menu password (See pg. 10 for default password)
then touch the blue checkmark on the touchscreen or press “OK” on remote.
From the onscreen user interface, press Settings on the TV app user controls or press SETUP on the PD108-420 remote. The
Settings menus are password protected. Enter password (See pg. 10 for default password) then touch the blue checkmark on the
touchscreen or press “OK” on remote.
CHANNEL SETUP
This TV offers three different programmable service levels: Free, Basic, and Premium. Only
one service level is usable at a time.
Auto Program
During Auto Program, the TV scans each available channel for activity. Channels that
display activity are memorized into the selected Service Level.
From the TV app:
1. Select Settings. Enter Password (See pg. 10 for default password)

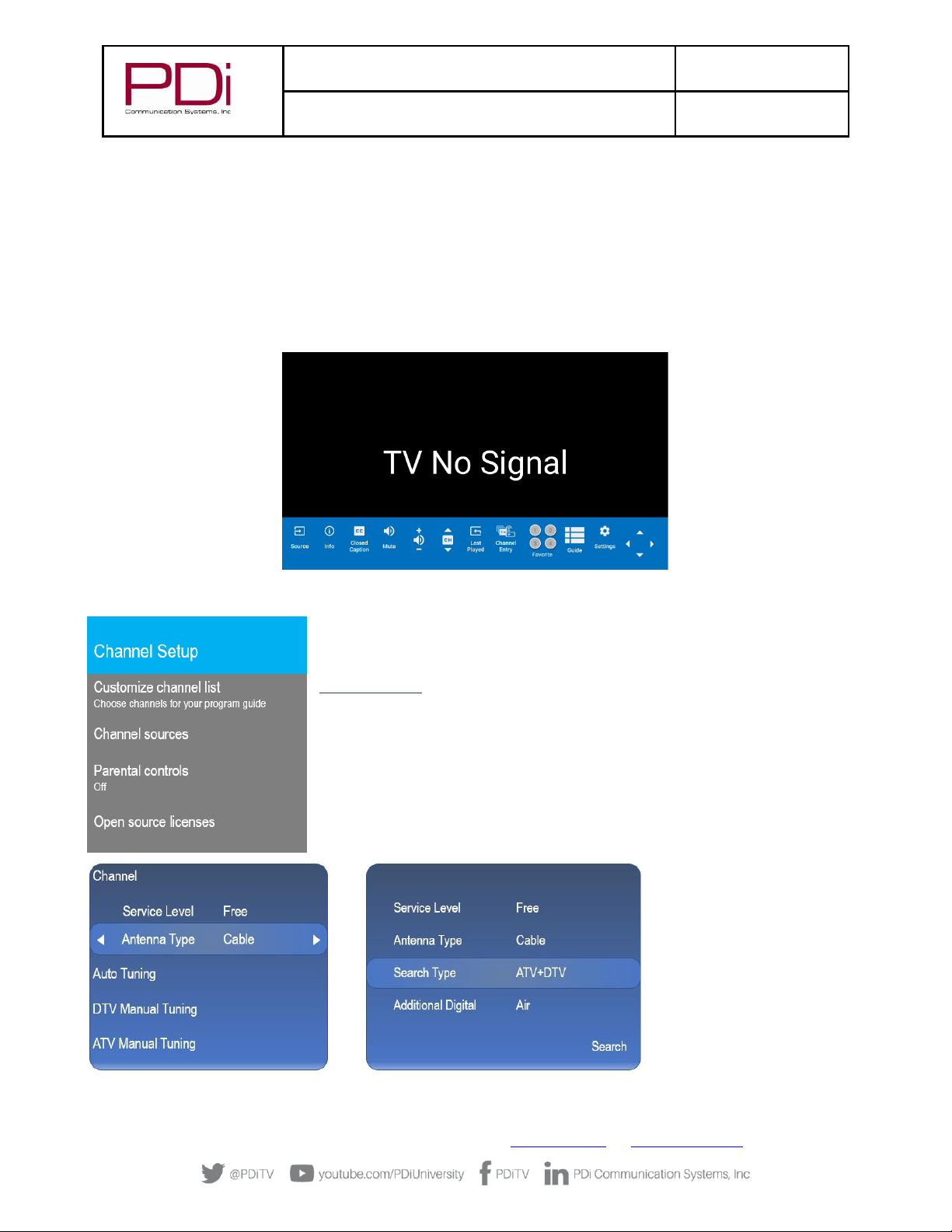

2. Select Channel Setup
3. Select Channel sources to open the menu to set up your sources
4. Select TV
1. Set the Service Level you are programming (Free, Basic, Premium).

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 14 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
2. Set the Antenna Type (Air or Cable) depending upon the healthcare facility’s signal style.
3. Select Auto Tuning to go to next step
4. Service Level and Antenna Type carry over from the prior menu. Confirm that these are correct.
5. Set the Search Type (ATV, DVT, ATV+DTV)
ATV = Analog Only: TV searches for analog channels only.
DTV =Digital Only: TV searches for digital channels only.
ATV+DTV = Analog and Digital: TV searches for both analog and digital channels.
Note: Any tuning mode that includes digital channels will require several minutes to complete the auto programming.
6. Press the Search button to start scanning. When auto programming is complete, press OK.
7. Touch BACK or press LAST on TV remote to exit settings.
Customize Channel List
From the TV app:
1. Select Settings. Enter Password (See pg. 10 for default password).
2. Select Channel Setup.
3. Select Customize channel list.
4. Scroll thru the channel list and uncheck any channels you want to exclude from the channel list.
5. Touch BACK or press LAST on TV remote to exit settings.
Parental Controls
Parental Controls allow you to block channels, TV shows, and movies. The default setting for parental controls is set to OFF. To
enable parental controls,
From the TV app:
1.Select Settings. Enter Password (See pg. 10 for default password)
2.Select Channel Setup
3.Select Parental controls
4.To enable parental controls, create a pin.
5.Slide the toggle button to the right to turn parental controls on.
Channels blocked: Use this setting to block channels from the line up by selecting the
channels from the list.
Program restrictions: Use this setting to filter programs based on their rating as classified
by the rating systems explained below.
Rating Systems
1. There are four Rating Systems: Canada, Canada (French), United States, and United States
(Film ratings) as shown below. Note: For details Canada (French) rating system, contact PDi.
2.You can choose between High Restrictions (content suitable for children), Medium
Restrictions (content suitable for older children), Low restrictions (Content suitable for
teens), Custom (Manual restrictions) or None.

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 15 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
Canada Ratings
E
Exempt
Exempt programming includes news, sports, documentaries and other information
programming; talk shows, music videos
C
Young Children
Content not offensive to most viewers. Intended for younger children under age 8
years.
C8
Children 8 and over
Considered suitable for children over 8 years. It is suggested a parent/guardian co-
view programming.
G
General Audience
Considered suitable for all audiences and appropriate for entire family.
PG
Parental Guidance
Suggested Unsuitable for younger children, may contain: Suggestive Dialogue, Bad
Language, Sex, and Violence Scenes
14+
Parents Strongly Cautioned
Unsuitable for children under 14, may contain; Strong Dialogue, Bad Language, Sex,
and Violence Scenes.
18+
Mature Audience Only
Adults only, may contain: Strong Dialogue, Bad Language, Sex, and Violence Scenes
US Ratings
TV-Y
Young Children
Content designed to be appropriate for all children.
TV-Y7
Children 7 and over
Considered suitable for children age 7 and above.
TV-G
General Audience
Considered suitable for all audiences; most parents would find this suitable for all
ages.
TV-PG
Parental Guidance
Suggested Unsuitable for younger children. Many parents may want to watch
together with children.
TV-14
Parents Strongly Cautioned
Unsuitable for children under 14, may contain; Strong Dialogue, Bad Language, Sex,
and Violence Scenes.
TV-MA
Mature Audience Only
Adults only, may contain: Strong Dialogue, Bad Language, Sex, and Violence Scenes
US Film Ratings
G
General Audiences
Content not offensive to most viewers
PG
Parental Guidance Suggested
May contain some material parents might not like for their young children.
PG-13
Parents Strongly Cautioned
Program is inappropriate for preteens, with a greater degree of offensive
material suggested than a PG rated program
R
Restricted Viewing
Not for children under age 17. Contains some adult material, strong
elements of sex and/or violence.
NC-17
No Children under age 17
Not for children age 17 or younger, under any circumstances.
Strong sexual content or violence.
NR
No Rating
MPAA not rated.

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 16 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
ADVANCED OPTIONS –PICTURE

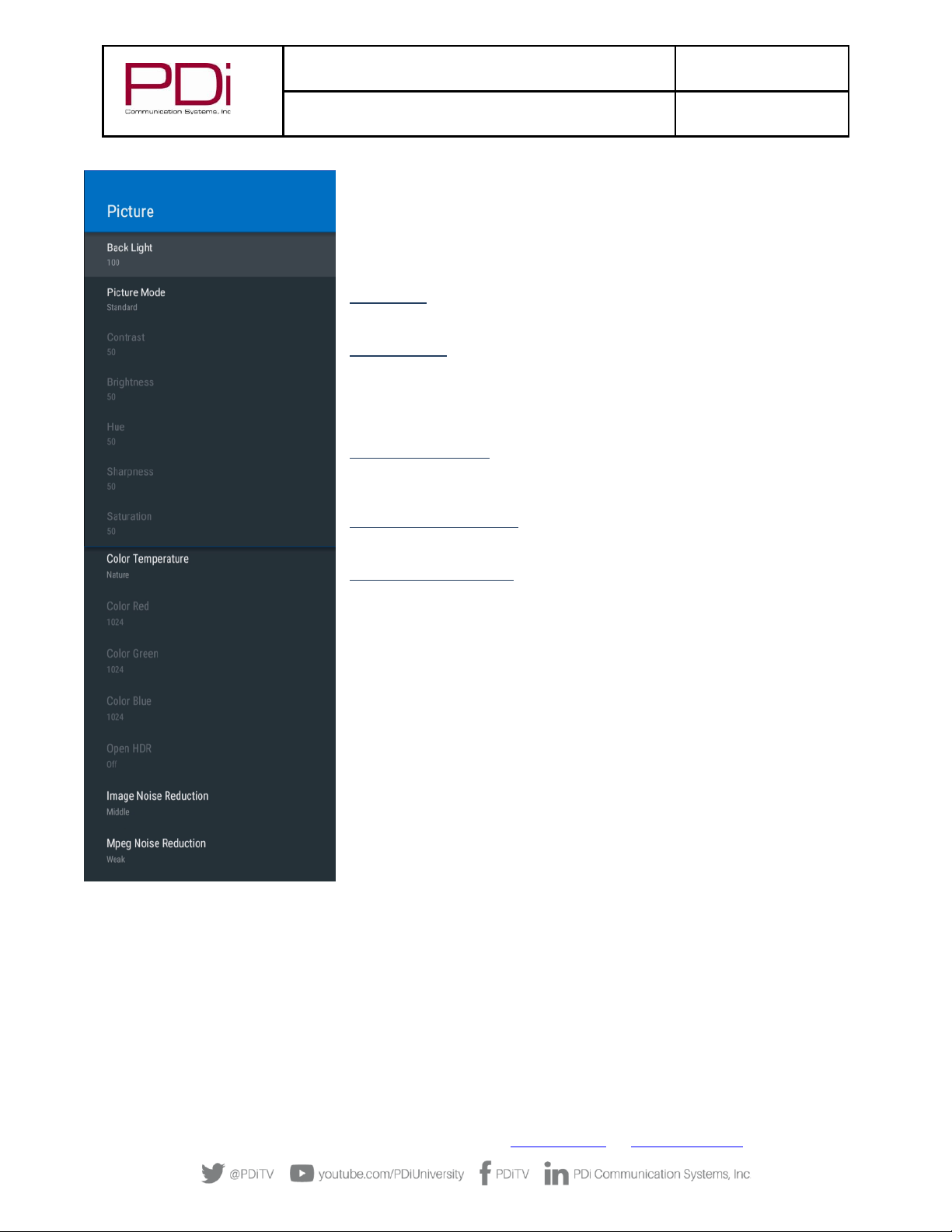

Use this menu to adjust Picture settings shown below. Touch BACK or press LAST on
TV remote to exit settings.
From the TV app:
1. Select Settings. Enter Password (See pg. 10 for default password)
2. Select Advanced Option
3. Select Picture
Back Light can be adjusted from 0 to 100. This setting applies to all TV and
Android screens.
Picture Mode includes 8 automated options to adjust the picture quality:
Dynamic, Standard, Soft, User, Game, Vivid, Natural, and Sports Picture Mode.
The picture settings can also be adjusted manually. Contrast, Brightness, Hue,
Sharpness, and Saturation have a range of 1-100.
Color Temperature can be set to Cold, Nature, Warm, or User defined. User
defined allows for manual adjustment of Red, Green, Blue along a scale of 0 to 2048
intensity.
Image Noise Reduction options include Off, Weak, Middle, Strong, and Auto. This
setting reduces noise from the image on the TV.
Mpeg Noise Reduction options include Off, Weak, Middle, and Strong. This setting
cleans up block noise around outlines and mosquito noise on the background.

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 17 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
ADVANCED OPTIONS –SOUND
From the Sound menu, you can customize the speaker settings. This allows you to set max volume levels, disable internal speakers,
etc. Touch BACK or press LAST on TV remote to exit settings.
From the TV app:
1. Select Settings. Enter Password (See pg. 10 for default password)
2. Select Advanced Option
3. Select Sound
Internal Speaker
The TV’s internal speakers can be enabled or disabled by TV source/input requiring the
use of a headphone for private listening. This option is commonly used in dialysis clinics
and multiple occupancy rooms. Uncheck the boxes next to the sources/inputs for which
you want the internal speakers disabled. To ensure the speakers are always disabled,
uncheck all boxes.
Minimum Volume
Sets the minimum volume level the unit can reach. Setting this to any value other than 0
guarantees that some level of sound will always be heard when the TV is operating.
Touch the sliding scale to adjust volume from 0 to 100.
Maximum Volume
Sets the maximum volume level the TV can reach. Touch the sliding scale to adjust
volume from 0 to 100.
Power on Volume
Sets the initial volume for the TV upon powering on. Options include “Use last volume” or “Set volume” to manually set the power
on volume level. Once the TV is on, the volume can be set to any allowable level. NOTE: If Power on Volume is set to LAST, and
physical power is removed (ie. a power outage), the TV will power on with a volume of zero.
Pillow Speaker Boost
Disable, Normal or Strong audio for pillow speakers.
Sound Mode
Sound Mode can be set to Standard, Music, Movie, Sports, or User defined. User defined
allows you to set the Low Pitch and High Pitch from 0 to 100.
Equalizer
Sound adjustments can be made at 5 levels 120 Hz, 500 Hz, 1.5 KHz, 5 KHz, and 10 KHz from
0 to 100.
Balance
Adjust speaker volume left to right.
AVC or Surround Sound
Automatic Volume Control (AVC) and Surround can be set to On/Off for these two settings.
SRS
N/A

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 18 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]

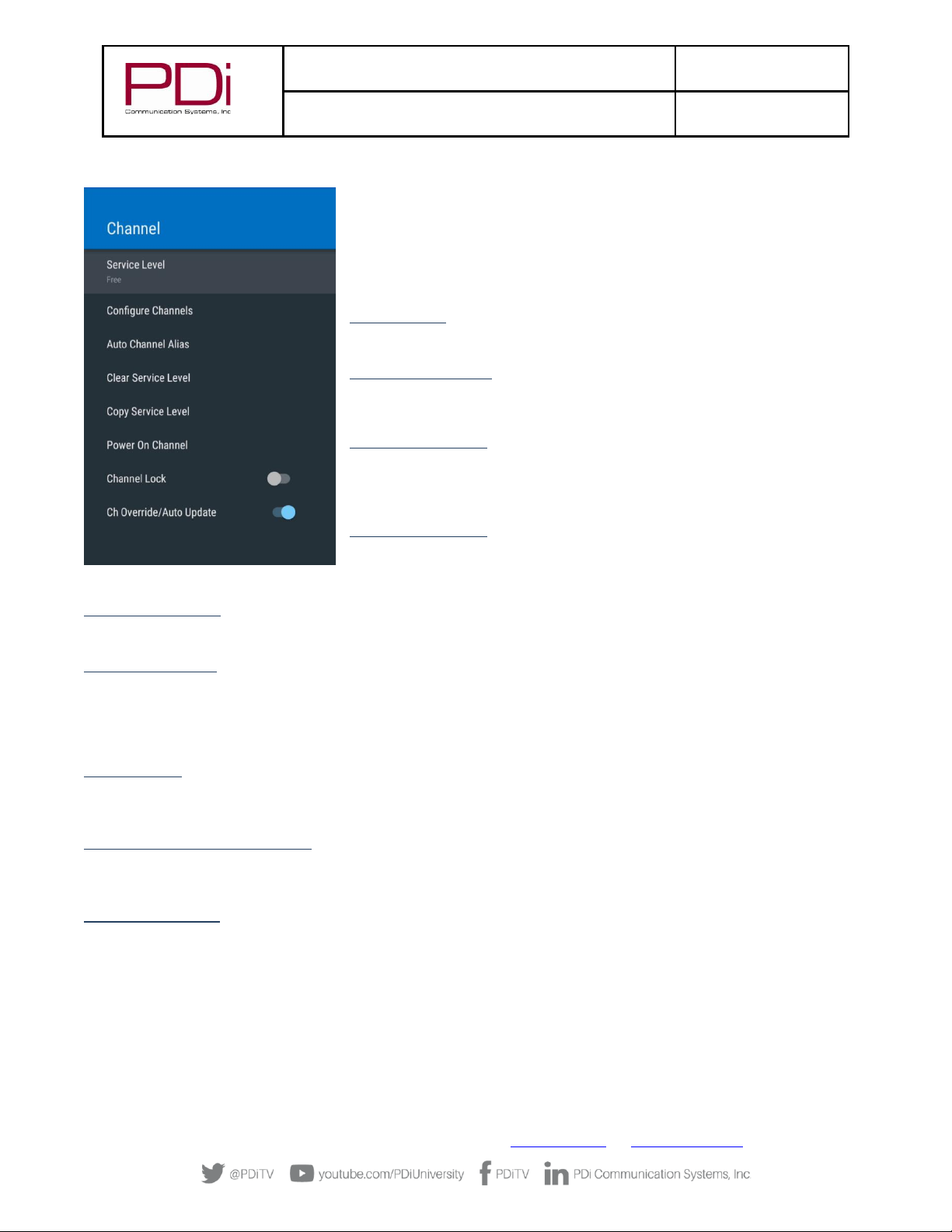

ADVANCED OPTIONS –CHANNELS
The Channel menu allows the following controls:
From the TV app:
1. Select Settings. Enter Password (See pg. 10 for default password)
2. Select Advanced Option
3. Select Channel
Service Level
Set the appropriate service level (Free, Basic, Premium)
Configure Channels
This setting allows individual channel numbers to be reassigned and individual
channels to be assigned to different service levels.
Auto Channel Alias
This setting automatically assigns a sequential channel number to the channels in the
list. Select the appropriate option: Fill Analog Gaps with Digital Channels, Renumber
Only Enabled Channels, Renumber All Channels, or Remove All Aliases.
Clear Service Level
This setting clears the channel map for the specified service level
Copy Service Level
This setting copies the channel map from one service level to another service level (ie. Free copied to Basic).
Power on Channel
Power on Channel will display a certain channel each time the TV is turned on. This feature is useful for hospitals that have a
Welcome Channel and wish to have it displayed upon initial use of the TV. The patient can then tune to any other available channel.
To set the power on channel select the applicable service level, then scroll through the channel list and select the desired power on
channel.
Channel Lock
Channel lock will fix the TV to a specific channel. To enable channel lock, tune the TV to the desired channel. Then go to the
Advance Option –Channel menu per the instructions above. Toggle the Channel Lock option to the right.
Channel Override/Auto Update
Override allows any channel to be entered using the TV remote’s number pad, even if the channel is not memorized in the current
Service Level. Toggle the switch to turn Channel Override On/Off.
Signal Information
You can display signal information on the current channel here. The information shown includes Antenna Type, Channel number,
and Signal Strength.
ADVANCED OPTIONS –HDMI
HDMI Control - allow the TV to control HDMI devices,
Device Auto Power Off - power off HDMI devices with the TV power
TV Auto Power On -power on the TV with HDMI device.

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 19 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
ADVANCED OPTIONS –TIME
View clock settings, adjust on/off time settings, and sleep timers through this menu.
From the TV app:
1. Select Settings. Enter Password (See pg. 10 for default password)
2. Select Advanced Option
3. Select Time
Time Source
You may choose to use network provided time or DTV time source.
Date and Current Time
Displays current date and Current Time settings. This can not be changed.
Off Time
Set the TV to turn OFF automatically at a specified time. Toggle the menu item to on
and then set the Off time.
Scheduled Time
Set the TV to turn ON automatically at a specified time. Toggle the menu item to on
and then set the On time.
Sleep Time
The Sleep Time function can be set to OFF, 10-20-30-40-50-60-90 min, or 2-3-4-5-6-7-
8 hrs.

MODEL:
medTAB19D/ medTAB16D/medTAB14D
Document Number:
PD196-434R1
User Manual –medTAB®with GENiO™
Page 20 of 21
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]

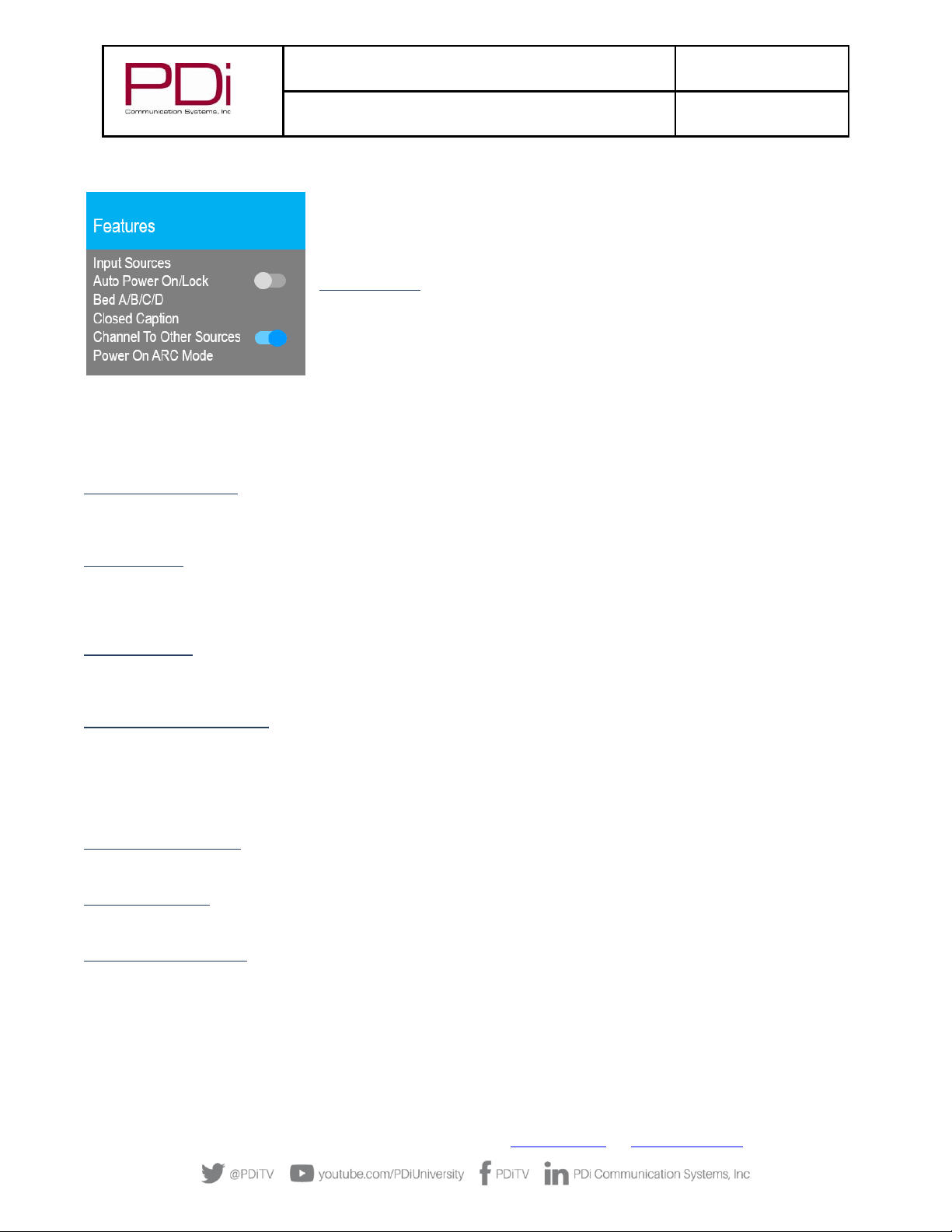

ADVANCED OPTIONS –FEATURES
From the TV app:
1. Select Settings. Enter Password (See pg. 10 for default password)
2. Select Advanced Option
3. Select Features
Input Sources
The TV’s signal sources can be individually Enabled or Disabled. The available sources in
this menu correspond with the components you have connected to the TV’s connectors.
Change the source status to either Disabled or Enabled/APO (Auto Power Off) or
Enabled/No APO (No Auto Power Off).
NOTE: Please disable all TV sources that are not to be used. A TV that is switched to a non-connected source generates
nuisance hospital maintenance calls of TV Not Working, when in fact the TV does work, but has been set to an inactive
source.
For Bella operation, HDMI input must be enabled for Set-Top-Box HDMI Video/Audio.
Auto Power On/Lock
This toggle switch will allow the TV to remain on whenever electrical power is applied to the set. The feature is useful for
controlling the TV from a wall switch or preventing the TV from being turned off by the TV power button or the remote control.
Bed A/B/C/D
The TV can be controlled by a patient IR remote. The TV offers selectable codes Bed A, Bed B, Bed C, and Bed D for independent
control of a single television in a multi-television room. NOTE: The patient remote can be toggled between Bed A, Bed B, Bed C, and
Bed D codes by using a paperclip to press the CODE button on the remote.
Closed Caption
Modify closed caption settings here. Set Closed Captioning to On, Off or On When Mute. Use Power On CC Mode menu item to set CC
to Off or Last.
Channel to Other Sources
By enabling this setting, patient can access enabled sources by channeling up or down at the end or beginning of the channel map.
To enable, slide toggle to the right or ON position.
For Bella operation, “Channel to Other Sources” must be enabled for the HDMI Video/Audio source. Otherwise, the “TV/AV” button
will need to be pressed on the PDI remote.
Power On ARC MODE
Change from the default 16:9 to 16:9 Panorama, 14:9, 4:3, or Last
Power On Source
Set source to use when TV powers on. Choose from Last, TV, HDMI1 or HDMI2.
Analog Pillow Speaker
Toggle switch to turn On/Off analog pillow speaker controls.
ADVANCE OPTIONS –SYSTEM
Find useful information about your device and manage cloning and firmware
From the TV app:
1. Select Settings. Enter Password (See pg. 10 for default password)
2. Select Advanced Option
3. Select System
