PDi PERSONA 10 Manual

Installation
Operating
Instructions
Communication
Systems, Inc.
40 Greenwood Lane
Springboro, Ohio 45066
PH: 937-743-6010
FX: 937-743-5664
http://www.pdiarm.com
PERSONA
10
Hospital-Grade LCD
Television Receiver
MODEL PDI-P10LCDD
Better Solutions Are Within Reach®
DOCUMENT NUMBER PD196-058R4

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
2
Graphical Symbols
This lightning flash with arrowhead symbol, within an equilateral is intended to alert the
user of the presence of un-insulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
of the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
CAUTION
RISK OF ELECTRIC SHOCK,
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO
NOT REMOVE COVER, NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Important Safety Instructions
PLEASE READ AND KEEP THESE INSTRUCTIONS. OBSERVE ALL WARNINGS AND FOLLOW ALL
INSTRUCTIONS CONTAINED IN THESE SAFETY INSTRUCTIONS AND THOSE ON YOUR
TELEVISION. RETAIN THESE INSTRUCTIONS FOR FUTURE USE.
Electrical energy can perform many useful functions. This unit has been engineered and manufactured to
assure your personal safety. However, improper use can result in potential electrical shock or fire
hazards. In order not to defeat the safe-guards incorporated on this receiver, observe the following basic
rules for its installation, use and servicing. Your television does not contain any user serviceable
components. Removal of the cabinet cover may expose you to dangerous voltages. Refer all servicing
to qualified service personnel.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do no block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat source such as radiators,
heat registers, stove, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The
wide blade or the third prong is provided for your
safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand,
tripod, bracket or table
specified by the manufacturer,
or sold with the apparatus.
When a cart is used, use
caution when moving the
cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long period of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
3
WARNING – To reduce the risk of fire or electric shock, do not expose this apparatus to
rain or moisture.
WARNING – OXYGEN ENVIRONMENT: Do not use in any oxygen tent or oxygen
chamber. Such use may cause a fire hazard.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases,
shall be placed on the apparatus
Copyright, Disclaimer, and Trademarks
COPYRIGHT
PDI Communication Systems, Inc. claims proprietary right to the material disclosed in this user manual.
This manual is issued for user information only and may not be used to manufacture anything shown
herein. Copyright © 2000 – 2009 by PDI Communication Systems, Inc. All rights reserved.
DISCLAIMER
The author and publisher have used their best efforts in preparing this manual. PDI Communication
Systems, Inc. make no representation or warranties with respect to the accuracy or completeness of the
contents of this manual and specifically disclaim any implied warranties or merchantability or fitness for
any particular purpose and shall in no event be liable for any loss of profit or any other damages. The
information contained herein is believed accurate, but is not warranted, and is subject to change without
notice or obligation.
TRADEMARKS
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of
Dolby Laboratories. All brand names and product names used in this manual are trademarks, registered
trademarks, or trade names of their respective holder. PDI and Better Solutions Are Within Reach are
registered trademarks of PDI Communication Systems, Inc., Springboro, Ohio.
Regulatory Information
FCC
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a residential or commercial installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one of more of the
following measures:
•Re-orient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
Underwriters Laboratories
The model PDI-P10LCDD Hospital Grade LCD TV is a specialized LCD television
and should be installed to National Electrical Code specifications.
This device is safety tested and listed by the Underwriters Laboratories as a product
suitable for use in health care facilities in both the United States and Canada.

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
4
USE RECOMMENDED
COAX. USE OF ANY
OTHER CABLE
NUMBER IS NOT
RECOMMENDED.
Installation Precautions
1. Any changes or modifications in construction of this television, which
are not expressly approved by the party responsible for compliance,
could void the user’s authority to operate the equipment.
2. Use only a power source from a CSA Certified / UL Approved Class 2
Power Supply suitable for use in a Health Care Facility. This TV will
operate on either DC or AC voltage, range 18 to 32 volts.
3. THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED
SERVICE PERSON AND SHOULD CONFORM TO ALL LOCAL
CODES. READ AND FOLLOW THE SAFETY INSTRUCTIONS
BEFORE ATTEMPTING THIS INSTALLATION.
4. NOTE TO CATV INSTALLER: This reminder is provided to call the
CATV system installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding system of
the building, as close to the point of cable entry as practical.
5. COAX CABLE SPECIFICATION: Coax cable selection is critical
when the TV is powered from a central power supply. Due to long
coax cable runs encountered in hospital installations, coax cable
employing a solid copper center conductor and copper shield is
required. Cable run lengths MUST NOT exceed 150 feet. Required
coaxial cable numbers include Alpha 9804C (non-plenum), Belden
9248 (non-Plenum), West Penn 806 (non-Plenum), or West Penn
25806 (Plenum), which have been tested with coax-powered
televisions.
6. CLEANING: Clean the exterior of this television by removing dust
with a lint-free cloth. For further cleaning, use a soft cloth or paper
towel dampened with water. CAUTION: To avoid damage to the
surface of the television, do not use abrasive or chemical cleaning
agents.
7. DISINFECTING: Do not immerse this TV, rather clean with a soft
damp cloth. To avoid damage to the surface of the television, test a
small portion of the TV’s cabinet with any new disinfectant to verify
that the disinfectant will not discolor or soften the enclosure.
8. WARNING: To avoid the hazards of fire or electrical shock, DO NOT
expose this television to rain or moisture.
9. WARNING OXYGEN ENVIRONMENT: Do not use in any oxygen
tent or oxygen chamber. Such use may cause a fire hazard.

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
5
Contents
Graphical Symbol ………………………………………………………………………...........………...2
Important Safety Instructions .........................................................................................................2
Copyright, Disclaimer, and Trademarks .........................................................................................3
Regulatory Information .....................................................................................................................3
Installation Precautions ....................................................................................................................4
Contents ...........................................................................................................................................5
About the PERSONA 10 ..................................................................................................................6
Installing TV on Suspension Arm .....................................................................................................7
Control Panel....................................................................................................................................9
Earphone Operation .......................................................................................................................10
Remote Control ..............................................................................................................................10

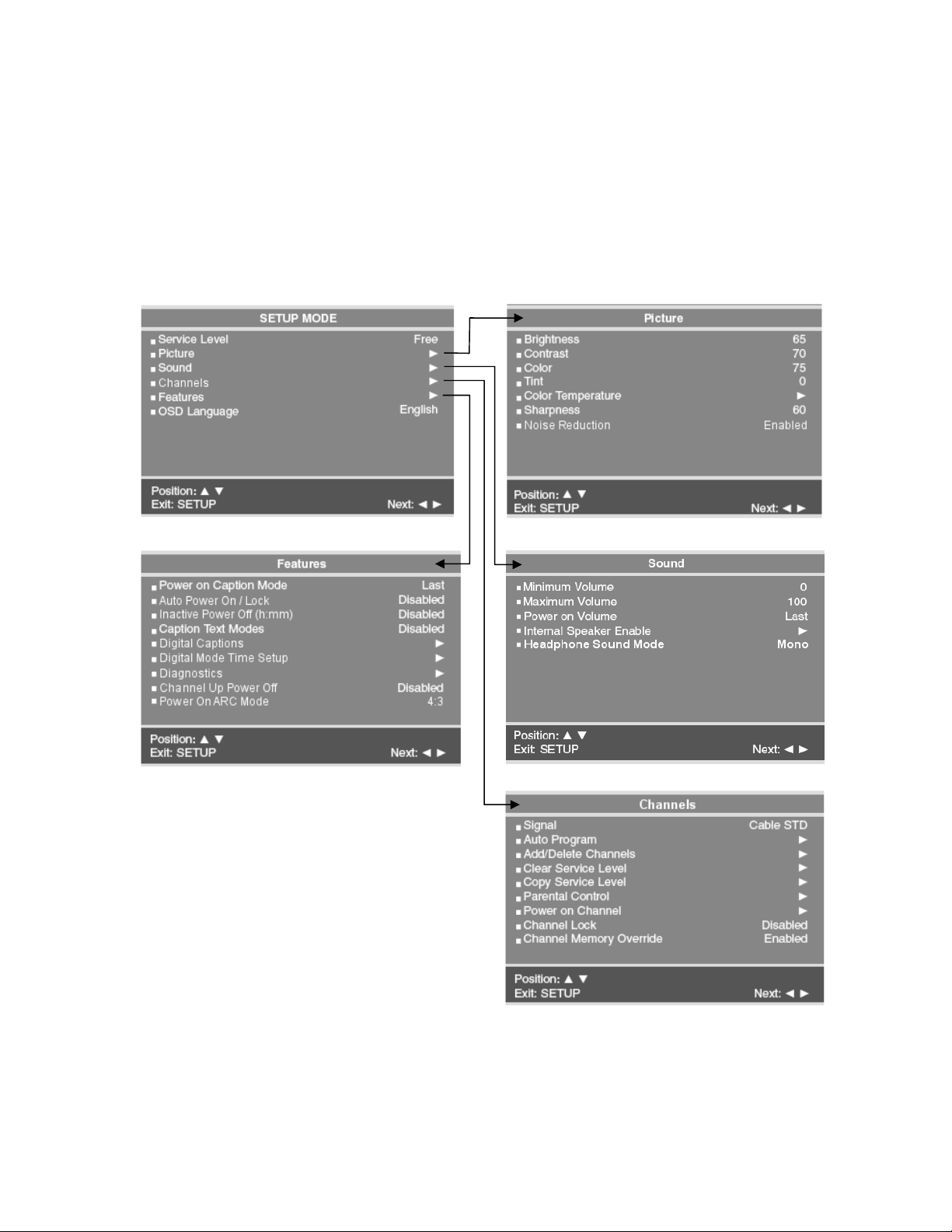

On Screen Menu Tree....................................................................................................................11
Service Levels (Tiers).....................................................................................................................12
Picture ............................................................................................................................................12
Sound .............................................................................................................................................14
Channels ........................................................................................................................................16
Features .........................................................................................................................................22
CLONING .......................................................................................................................................27
FAQ – Frequently Asked Questions...............................................................................................29
APPENDIX A – Installation on Other PDI-508C Arms ...................................................................30

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
6
About the PERSONA 10
This television is specifically designed for entertainment purposes and for use in a hospital, a nursing
home, a medical-care center, or a similar health-care center in which installation is limited to a non-
hazardous area in accordance with the National Electrical Code, ANSI/NFPA 70.
This user’s guide has been designed for both the TV installer and TV Rental Representatives. It
identifies the features of the PERSONA 10 and describes how to program the TV using an infrared (IR)
remote control.
Programming is the process of selecting from among the many features of the PERSONA 10 television.
It is also the process of adding and removing channels from the three service levels this TV provides.
Please read through this guide carefully, with a PERSONA 10 TV in front of you, as you begin the
process of learning how to program these televisions. Also keep the guide handy, so you can refer to it,
for future programming changes. The information in this guide describes each of the main SETUP
MENU items:
Service Level
Channel Setup (Programming)
Features
Picture Adjustment
Sound Setup

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
7
Installing TV on Suspension Arm
The PERSONA 10 is designed to attach to a wall mounted suspension arm capable of supporting a
television weighing 7 pounds. The single coaxial cable on top of the unit is used to supply either low
voltage AC or DC power (range 18 to 32 volts) and the RF signal to the television. The USB cable
provides cloning capability.
DANGER: ARM RECOIL HAZARD The safety brake
pin must remain in the SAFETY BRAKE PIN HOLE
whenever the television set is removed from the arm
or when the arm is removed from the wall bracket to
prevent the arm from springing open.
CAUTION: DO NOT REMOVE the WHITE PLASTIC CAP from the swivel assembly. This swivel
assembly is factory preassembled and adjusted. There is no need to remove the cap.
IMPORTANT: These instructions detail installing the TV onto the PDI-508C-7 suspension arm. This
arm is configured specifically for this television. The PDI-P10LCD TV may be installed on other PDI-
508C arms. Please refer to Appendix A of this document for detailed instructions for this case.
3/4“ Socket Head
Cap Screw
Retainer Plate
Safety Brake
Pin Hole
Swivel Cap

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
8
INSTALLING THE TV TO THE PDI-508C-7 SUSPENSION ARM
1. Remove and save the ¾” Socket Head Cap Screw from the plastic “H” clip. Remove the plastic “H”
clip and discard.
2. Remove the two nose cover retainer screws. Raise the metal nose cover and slide the television
completely into the arm’s clevis (slot). The
swivel retainer plate should rest inside the nose
of the arm and the plastic swivel cap beneath
(see picture on previous page).
3. Align the retainer plate’s mounting hole over the
arm mounting hole. Thread the ¾” Socket Head
Cap Screw through the retainer plate and into
the arm’s nose. Tighten.
4. The coax cable in the nose of the arm should be
joined with the coax cable from the television.
Wrench tighten the connection and cover by sliding the plastic boot sections into mating position.
IMPORTANT: Finger tightening of this cable connection will result in reliability problems later.
Because the TV draws its power current through this connection, eventually the finger-tightened
connection will loosen. Wrench tighten all “F” fitting connections!
5. Remove the safety brake pin, see picture above, from the parking brake hole, reattach the acorn nut
to the pin, and store the assembly inside the nose of the arm by attaching it to the coax cable using
the attached plastic clip. NOTE: Do not store the safety brake pin inside the 400 series arm nose.
However, the pin should be saved for future removal of the TV from the Arm or removal of the Arm
from the wall bracket.
6. Dress both coax and USB cables inside the arm’s nose. Close the metal nose cover onto the nose.
Reinstall the two nose cover retainer screws.
7. Attach three sets of plastic arm covers (start with long “nose cover” section):
a. Assemble supplied spring pins into
one of the arm cover halves. Pins
should be installed into one cover side
only.
b. Position the Arm Cover halves around
the arm’s nose section. Align
exposed pins with the open holes in
the second cover half.
c. Squeeze the two halves together.
When the halves are properly installed
there should only be a thin seam
visible where the halves meet.
d. Repeat steps a, b, c for the elbow
covers and base covers.
8. Connect the coax cable at the base of the arm to the wall bracket “F” fitting and wrench tighten.
Cycle the arm once or twice to check for free movement.
Spring
Pin
Nose Cove
r
Brake Pin
Nose Cover
Retainer Screws

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
9

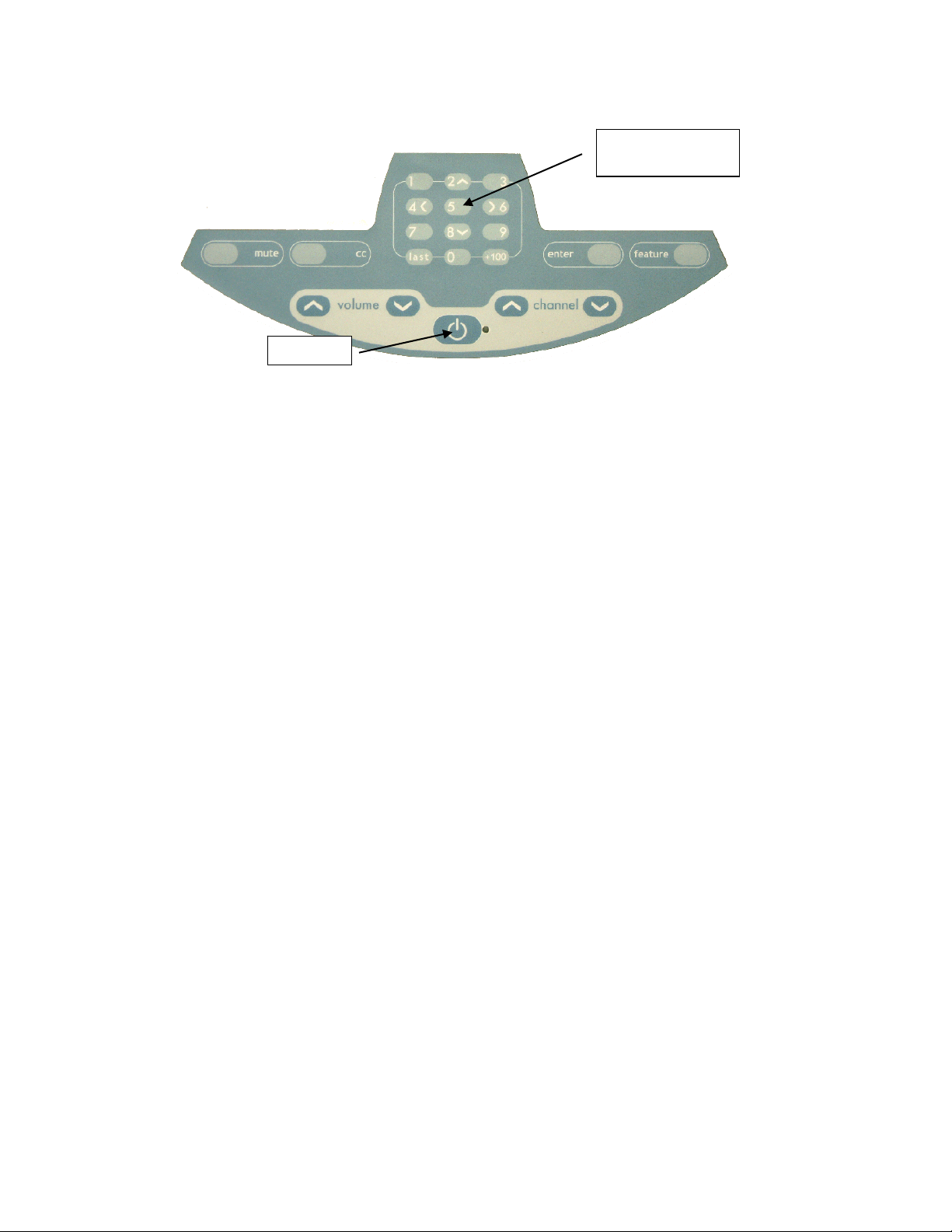

Control Panel
The easy to clean membrane control panel located below the display contains 9 large easy to read
buttons and a numbered “direct entry” keypad for both channel and cursor control. The 5 lower buttons
are used to turn the TV ON or OFF, change channels and raise or lower the sound volume.
In addition to the Channel Up and Down buttons, the numbered “direct entry” keypad may be used to
directly enter the channel desired for viewing. If the channel entered using this keypad is not
programmed into the current Service Level (see sections following on “Service Levels” and “Channels”)
and the feature “Channel Memory Override” is disabled, the symbol “[X]” will be displayed in red in place
of the channel number, and the channel will not change.
The “2”, “4”,”6” and “8” buttons on the direct entry keypad are also used for cursor positioning on
televisions used in computer control applications.
The “feature” button displays the current screen mode of the current channel.
The “enter” button displays the program information for the current channel.
The “cc” button alternately activates and deactivates program closed captioning. Note: Not all programs
offer closed captions. Pressing the button may not immediately result in the display of any captions.
The “mute” button will mute the TV audio. The speaker symbol and red X will then appear on screen.
Pressing the button again or pressing the volume up or volume down buttons will enable the TV audio
and remove the mute symbol from the screen.
BUTTON FUNCTION SUMMARY
POWER Turns the TV ON or OFF.
VOLUME Increase or decrease the TV volume.
CHANNEL Changes the viewed channel up or down.
ENTER
MUTE
Displays channel program information.
Mutes TV audio.
CC Activates or deactivates closed captions.
FEATURE Displays program screen mode.
NUMBERS Direct channel entry.
POWER
DIRECT ENTRY
KEYPAD

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
10

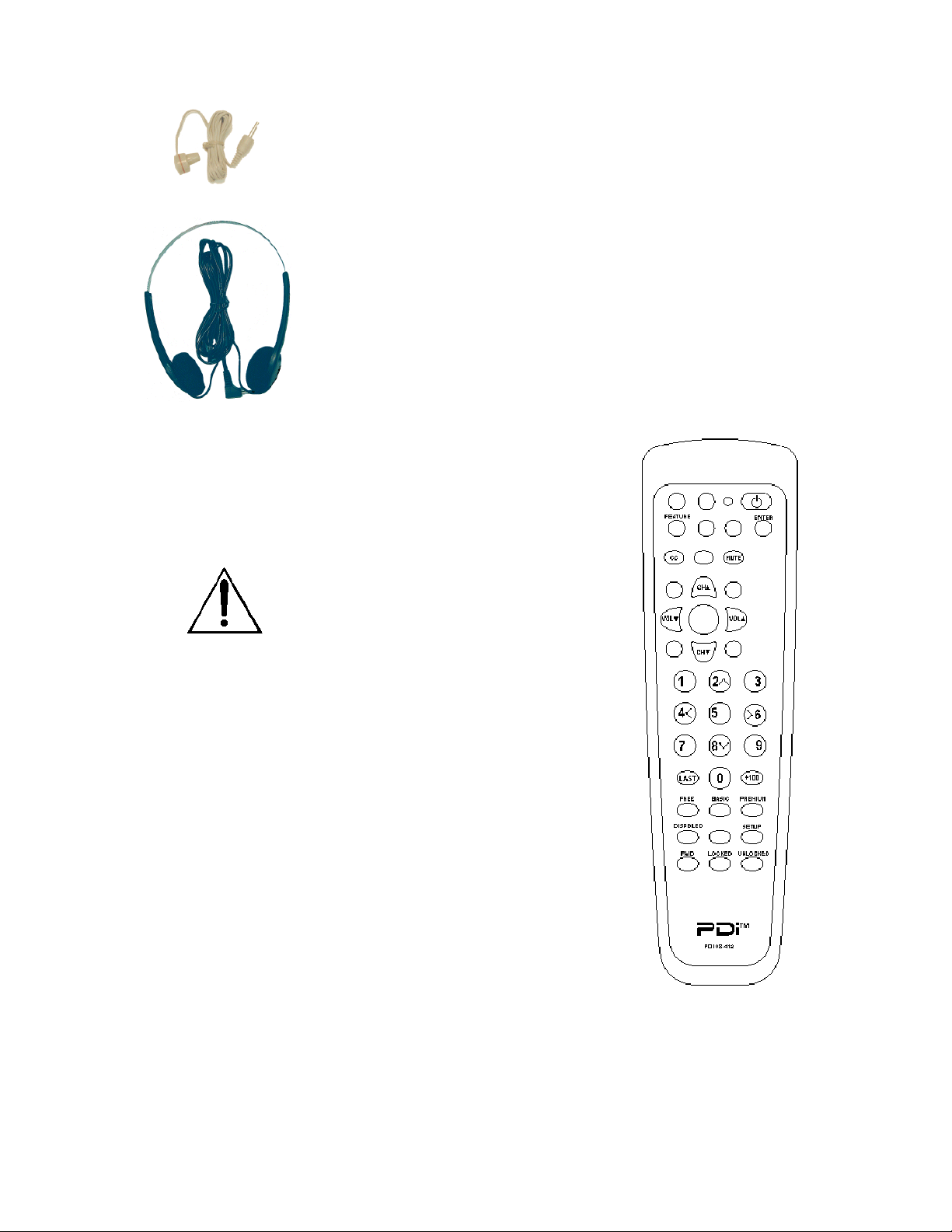

Earphone Operation
Inserting an earphone in the “earphone” jack hole located on the right
side of the cabinet will allow silent operation of the TV. The speaker will
be shut OFF and all program audio will be available through the
earphone. Remove the earphone to enable the internal TV speaker.
The sound delivered to a connected earphone can be either mono or
stereo and is set accordingly in the “Sound” menu.
PDI offers two Mono styled earphones; PD108-005C single earphone or
the PD108-112 dual ear headset. Additional second party stereo
headphones can also be used.
Remote Control
The PERSONA 10 requires a
remote control part number
PD108-412 to program the set.
You will NOT find a remote control
packed with the television. The
remote control is an available
option and would be shipped
separate from the television.
The remote control has a limited
range to prevent dual
programming of an adjacent room
TV. Stand within 3 feet from the
front of the TV to use the remote
control.
PD108-112
Mono Headset
PD108-005C Earphone
A remote control is NOT
packaged with each TV.
The remote control must
be ordered separately.

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
11
On Screen Menu Tree
The TV is programmed using the Menus. A programming remote control is required to perform all TV
setup menu adjustments including programming channels. The remote control is NOT included with the
TV and must be ordered separately. Order programming remote control PD108-412.
1. Press the SETUP button on the IR remote control to display the main SETUP menu.
2. Press the CH▲or CH▼buttons to select a menu item.
3. Enter or Adjust the menu item using the VOL▲or VOL▼buttons.
4. Press the SETUP button on the IR remote control to return to the preceding menu.

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
12
Service Levels (Tiers)
The TV can be configured with 3 different banks of channels called Service Levels. The Service
Levels are named “Free, Basic, and Premium”. Each Service Level can be programmed with any
combination of channels. For example, a hospital usually elects to dedicate one of the service
levels for Pediatrics and another for Maternity since additional or banned channels may be found
in either location that would not be normally shown to the general patient population. A
DISABLED service level, is available, yet does not display any channels, rather a disabled
message on the TV’s screen.
NOTE: To prevent direct entry of non-
programmed channels using the keypad,
the feature “Channel Memory Override”
must be disabled.
To change a Service Level.
1. Press the SETUP button to display
the MENU.
2. Press the
CH▲ / CH▼ buttons to
highlight the Service Level item.
3.
Press the VOL▲ / VOL▼ button to
select the desired service level.
4.
Press the SETUP button to exit.
NOTE: If a Service Level is selected that is empty and has not been programmed
with channels, a warning message will be displayed on the TV stating “No
Channels Available, Please Contact a TV Representative.” After 15 seconds the
TV will shut itself off to conserve power. To eliminate this message switch the TV
to a Service Level that has been programmed with channels.
Adjustment of picture Brightness, Contrast, Color, Tint, Color Temperature and Sharpness is available
to customize the levels you prefer using the on-screen menus.
1. Press the SETUP button to display the SETUP MODE menu.
2. Select the Picture menu item.
3. Press the
CH▲ / CH▼buttons to highlight the desired picture item – Brightness, Contrast,
Color, Tint or Sharpness.
4.
Adjust the picture item using the VOL ▲ / VOL ▼ buttons to the desired level.
5.
Press the SETUP button to store the picture values.

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
13
Color Temperature
The color temperature menu adjusts the color balance of the picture. “Standard”, “Reddish”, “Greenish”,
“Bluish” color temperatures are available for selection; however the individual colors are not adjustable.
The “USER” setting allows individual adjustment of each of the TV’s primary colors. The color
temperature setting is best set using a calibrated signal source capable of generating a test signal
containing both pure white and pure black picture components.
Noise Reduction
Additional picture improvement may be achieved by enabling the Noise Reduction function found in the
Picture menu.
1. Press the SETUP button to display the
SETUP MODE menu.
2. Select the Picture menu item.
3. Press the
CH▲ / CH▼buttons to highlight
the Noise Reduction.
4.
Use the VOL ▲ / VOL ▼ buttons to
alternate, Enable or Disable.
5.
Press the SETUP button to return to the
previous menu.

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
14

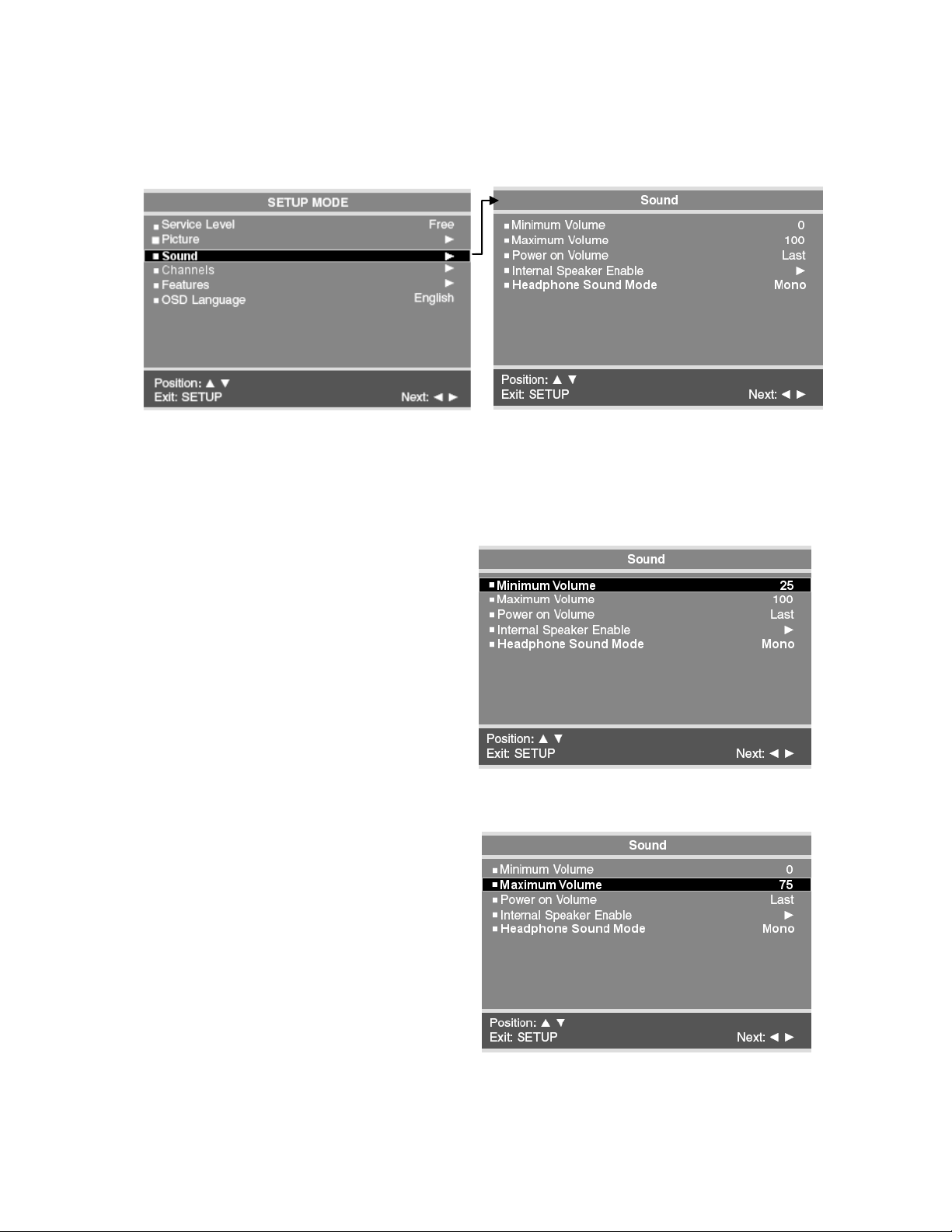

Sound
The Sound menu allows precise adjustment of several parameters.
1. Press the SETUP button to display the SETUP MODE menu.
2. Press the
CH▲ / CH▼buttons to highlight the Sound menu item.
3.
Use the VOL▲/ VOL▼to display the Sound Menu.
Minimum Volume
Sets the minimum volume level the TV can
reach. Setting this to any value other than
0
guarantees that some level of sound will
always be heard when the
TV is operating.
1.
In the Sound menu, press the CH▲/
CH▼
button to select Minimum Volume .
2.
Press the VOL▲/ VOL▼button to select
your preferred minimum volume with the
TV turns on.
3.
Press the SETUP button to return to the
preceding menu.
Maximum Volume
Sets the maximum volume level the TV can
reach.
1. In Sound menu, press the CH▲/ CH▼
button to select Maximum Volume.
2.
Press the VOL▲/ VOL▼button to
determine your preferred maximum
volume allowed.
3.
Press the SETUP button to return to the
preceding menu.

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
15

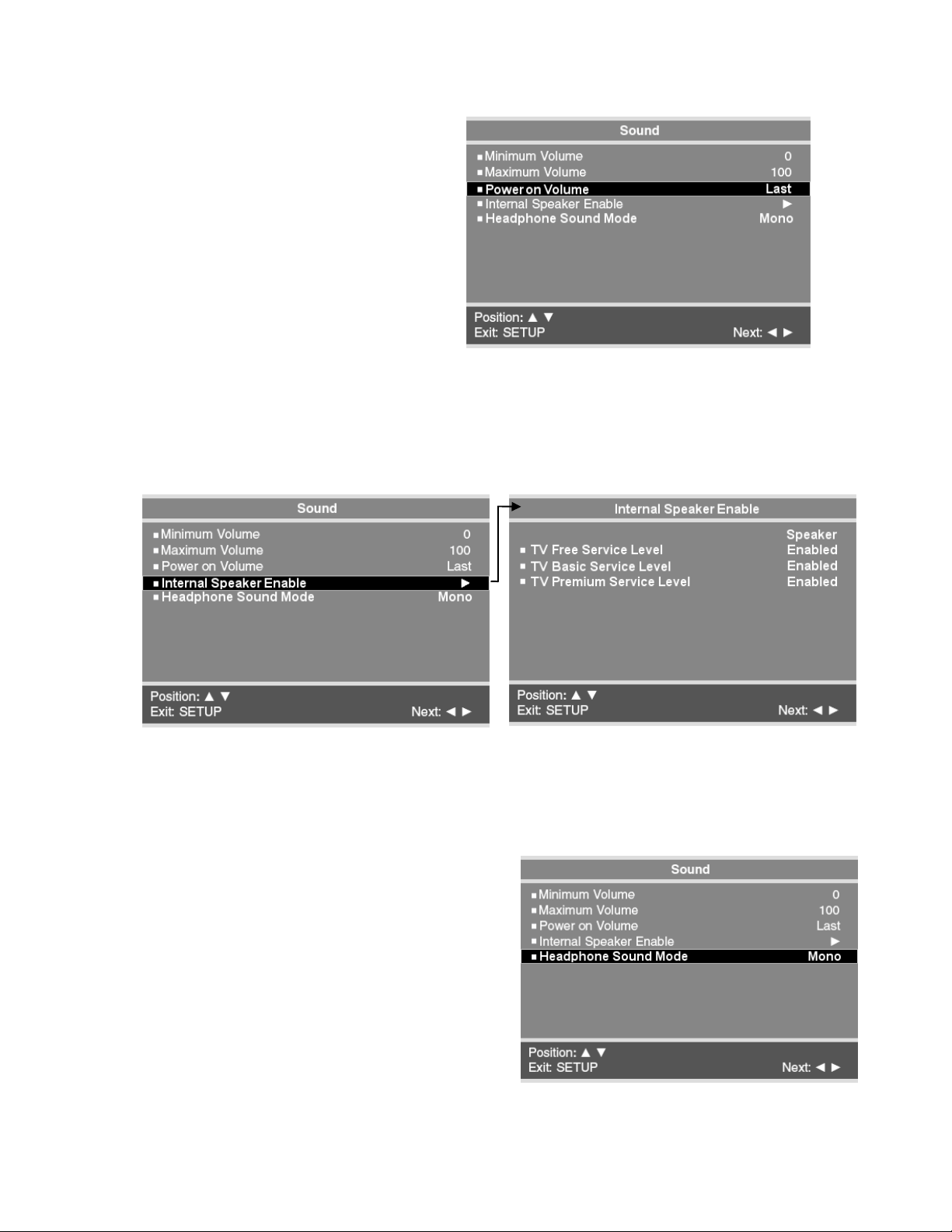

Power on Volume
Sets the initial volume for the TV upon
powering on. Once the
TV is on, the
volume can be set to any allowable level.
NOTE: If “Power on Volume” is set to LAST,
and physical power is removed, the TV will
power on with a volume of zero.
1. In Sound menu, press the CH▲/ CH▼
button to select Power on Volume.
2. Press the VOL▲/ VOL▼button to
determine your preferred volume when
the
TV turns on. Setting the level to
LAST
causes the TV to remember the
last volume level used by the
TV prior to
turning off.
3. Press the SETUP button to return to the
preceding menu.
Internal Speaker Enable
The speaker’s inside the TV’s cabinet can be turned on or off for each TV Service Level. Note: Sound to
the earphone jack remains on at all times.
1. In the Sound menu, press CH▲/ CH▼ button to select the Internal Speaker Enable menu item.
2.
Press the CH▲/ CH▼ button to select the desired Service Level.
3.
Press VOL▲/ VOL▼to select Disable or Enabled.
4. Press the SETUP button to return to the preceding menu.
Headphone Sound Mode
The earphone jack sound can be used with
either a mono (single ear) or stereo (dual ear)
style.
1. In the Sound menu, press CH▲/ CH▼
button to select the Headphone Sound
Mode menu item.
2.
Press VOL▲/ VOL▼to select Mono or
Stereo.
3. Press the SETUP button to return to the
preceding menu.

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
16
Channels
The TV offers three different programmable channel banks or Service Levels. A programming remote
control is required to perform all TV setup adjustments including programming channels. The remote is
NOT included with the TV and must be ordered separately – one remote is capable of programming an
entire hospital of televisions. Please order programming remote control part number PD108-412.
1. Press the SETUP button to display the SETUP MODE menu.
2. Press the CH▲/ CH▼
button and select Channels.
3. Press
VOL▲/ VOL▼to select.
Signal
Four different tuning types are available depending upon the healthcare facilities signal style.
Selection of the correct signal type is required for the TV to recognize all possible channels and before
any channel programming can begin.
1. From the SETUP menu select channels.
2. Press the CH▲/ CH▼
button to select
Signal.
3. Press
VOL▲/ VOL▼to select Air, Cable
STD, Cable IRC or Cable HRC. NOTE:
Most hospitals use the Cable STD signal
style.
4.
Now perform Auto Program or Add/Delete
Channels to adjust the channels.

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
17
Auto Program
The TV automatically scans each available channel for activity. Channels that display activity are
memorized into the selected Service Level.
1. From the Channels Menu select Auto Program.
2. Press the CH▲/ CH▼
button to select Mode.
3. Press
VOL▲/ VOL▼to set the scope of channel scanning.
Analog Only: TV searches for analog channels only.
Digital Only: TV searched for digital channels only.
Analog and Digital: TV searches for both analog and digital channels.
4. Press the CH▲/ CH▼
button to select the Channel Sequence menu item.
5.
Press VOL▲/ VOL▼to set the Channel Sequence in which the channels are displayed after
searching. Most hospitals use Interleave A+D.
Interleave A+D: In the order of channel number regardless of the system.
All A then D: Digital channels are displayed after all analog channels.
6.
Press the CH▲/ CH▼ button to select the Service Level you wish to program. The menu displays the
current programming status of each level as either Programmed or Blank. NOTE: A Programmed
service level can also be re-programmed if desired.
7.
Press the VOL▲ button to start auto
programming.
8. A confirmation menu will appear before
proceeding. Press either the CH▲to
start auto programming. Press CH▼
button to cancel the operation. The TV
will now search all available channels.
Auto programming requires several
minutes to complete. NOTE: Digital
channel auto programming may take
longer than 10 minutes to complete.
9. Press the SETUP button to return to
normal TV viewing.

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
18
Add / Delete Channels
Individual analog TV channels that are missing can be manually added to a Service Level. Or, analog TV
channels that require deletion can be manually removed from a Service Level. Digital channels found
during Auto Programming can be enabled or disabled in each service level.
1. From the Channels menu press the CH▲/ CH▼
button to
select Add/Delete Channels.
Press VOL▲/ VOL▼ to select.
2. Press the CH▲/ CH▼button to select the Service Level
you wish to add or delete channels.
3. Press
VOL▲/ VOL▼ to enter the Add/Delete Channels
menu for that Service Level.
4. Press the CH▲/ CH▼button to select
Analog Channel.
5. Press
VOL▲/ VOL▼ to scroll through every
available channel. The channel number
changes to indicate the current channel
viewed.
6. Press the CH▲/ CH▼button to select
Add/Delete Analog Channel.
7. Press
VOL▲/ VOL▼ to alternately Add or
Delete the current Analog Channel from the
Service Level.
8. Press the CH▲/ CH▼button to select
Enable/Disable Digital Channel.
9. A listing of all digital channels found during Auto Programming will be displayed. NOTE: If the
Enable/Disable Digital Channels states “No Channels”, either the TV did not locate any channels
during Auto Programming or the Mode was set to “Analog Only” during Auto Programming.
10. Press the CH▲/ CH▼button to select a Digital Channel.
11. Press
VOL▲/ VOL▼ to alternately Enable or Disable the current Digital Channel from the Service
Level.

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
19
12. Press the SETUP button to return to the previous menus.
Clear Service Level
Empties a service level of all programmed channels leaving it Blank.
1. From the Channel Setup menu, press the
CH▲/ CH▼buttons to select Clear
Service Level menu.
2. A listing of service levels is shown with the
current programmed status. Press the
CH▲/ CH▼button to select the desired
Service Level.
3. Press the
VOL▲/ VOL▼ button once. A
Confirm Clear menu appears.
4. Press the CH▲to confirm clearing of the
selected Service Level. Press the CH▼
button to exit without making any changes
to the selected Service Level.
5. Press the SETUP button to return to the
preceding menu.

PDI-P10LCDD USER MANUAL
Document Number PD196-058R4
PDI Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066
Phone [phone] Fax [phone] email: [email protected]
20

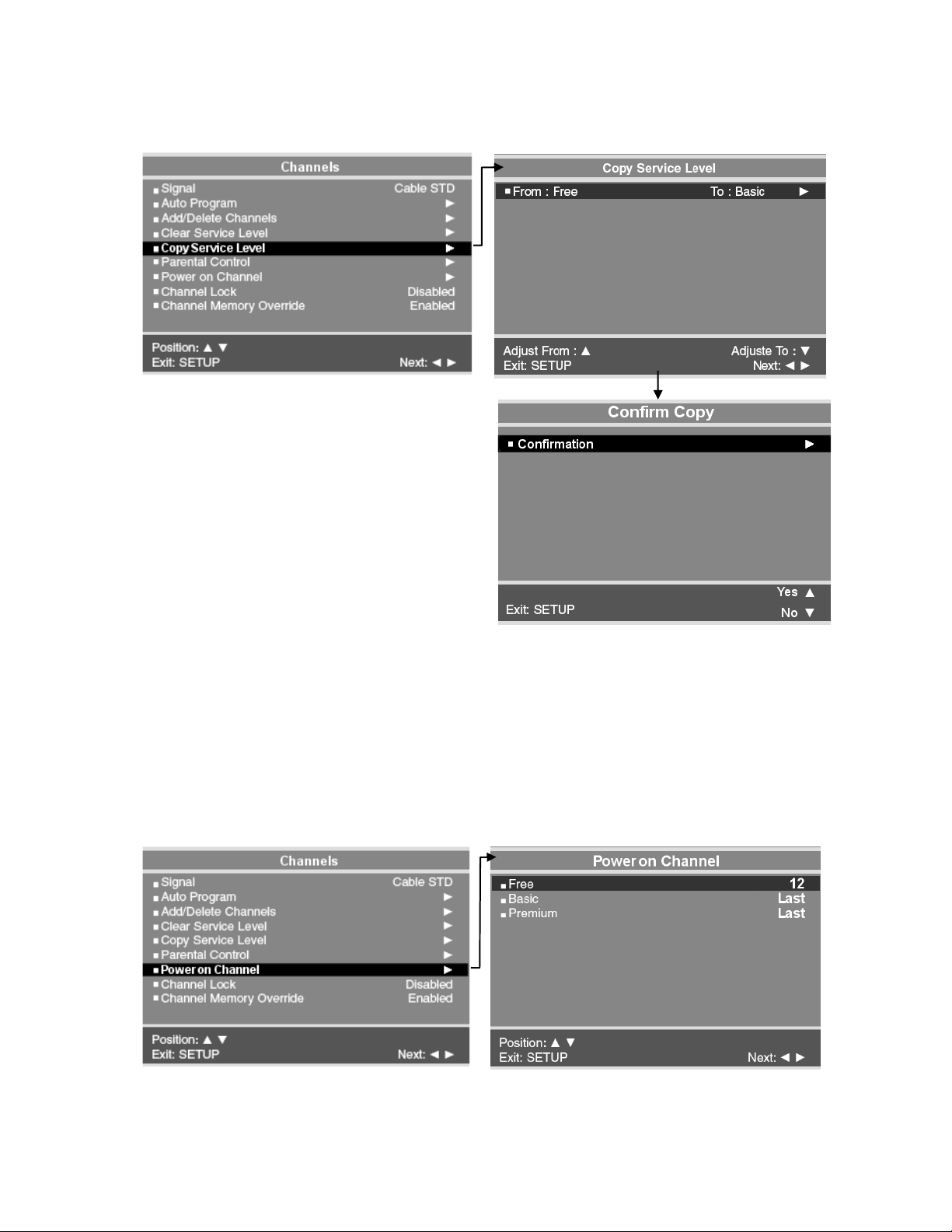

Copy Service Level
Copies one service level to another.
1. From the Channel Setup menu, press the
CH▲/ CH▼buttons to select Copy
Service Level menu. A Copy Service Level
menu appears and shows a source (From)
and destination (To) Service Level.
2. Press the CH▲button to adjust the From
Service Level.
3. Press the Press the CH▼button to select
the To Service Level.
4. Press the
VOL▲/ VOL▼ button once. A
Confirm Copy menu appears.
5. Press the CH▲to confirm clearing of the
selected Service Level. Press the CH▼
button to exit without making any changes
to the selected Service Level.
6. Press the SETUP button to return to the
preceding menu.
Power on Channel
The TV can be preset to power on to a select Channel such as a hospital welcome channel. If set to last,
and physical power is removed, TV will power up to the lowest channel in current service level.
1. From the Channels menu, press the CH▲/ CH▼buttons to select Power on Channel. Press VOL►
button to activate.
