TOC 1500 User Manual
2014 © Peak Scientific - Rev. 3A - 18.11.14

TOC 1500 User Manual
Page 2 2014 © Peak Scientific - Rev. 3A - 18.11.14
Contents
Change History 3
How to Use This Manual 3
Introduction 4
Warranties and Liabilities 5
Safety Notices 6
Symbols 6
Safety Notice to Users 6
Declaration of Conformity 7
Environmental Declaration 8
Technical Specification 9
Environment 9
Outlet Gas 9
Electrical Requirements 9
General 9
Unpacking 9
Installation 11
Generator Environment 11
Voltage and Power 11
General Dimensions 11
External Connections 12
Start up Procedure 13
IMPORTANT DOCUMENT S 14
Normal Operation 15
Principal of Operation 15
TOC 1500 15
Service Requirements 16
Routine Maintenance 16
Service Schedule 17
Service Plans 17

TOC 1500 User Manual
Page 3 2014 © Peak Scientific - Rev. 3A - 18.11.14
Change History
Rev. Comment Name Date
1 Initial release Safder Khan 26.10.07
2 Filter Info Update Liam Couttie 01.05.13
3A Content Update Liam Couttie 18.11.14
How to Use This Manual
This manual is intended for end users and has been written so that it can either
be read as a step by step guide to installation and usage or as a reference
document where you can skip to the relevant information.
Users of a hard copy version can refer to the contents page to find the relevant
information. Users of the soft copy version can use the hyperlinks from the
contents page as well as the hyperlinks between sections.
Please review each of the following sections carefully.
Thank you for selecting Peak Scientific to meet your Gas Generation needs, and
should you require any further assistance or support please do not hesitate to
contact Peak Scientific or the Peak Partner from which you purchased your
Generator.

TOC 1500 User Manual
Page 4 2014 © Peak Scientific - Rev. 3A - 18.11.14
Introduction
Welcome to the User Manual for the Peak Scientific TOC 1500 Gas Generator.
Enclosed in this manual you will find the information required to ensure that
your Dryer is operated according to our recommended guidelines which will
prepare you for long and trouble free life.
Attachable to any compressed air source, Peak Scientific’s TOC 1500 Gas
Generators offer a compact and light weight must-have for any modern
laboratory. The generator comes with just a few moving parts and are very
sturdy products – ideal to prevent moisture contamination of any of your
applications.

TOC 1500 User Manual
Page 5 2014 © Peak Scientific - Rev. 3A - 18.11.14
Warranties and Liabilities
1. The Company warrants that it has title to the Goods.
2. Subject to the provisions of this clause the Company warrants that the
Goods shall comply in all material respects with any specification
referred to in the Order Confirmation (as the same may be amended)
and shall, subject thereto, be free from defects in material and
workmanship for the lesser of a period of twelve months from the date
of delivery or thirteen months from the date of dispatch from the
factory.
3. Save as provided in this clause and except where the Goods are sold to a
person dealing as a consumer (within the meaning of the Unfair Contract
Terms Act 1977) all warranties, conditions or other terms implied by
statute or common law are hereby expressly excluded save to the extent
they may not be lawfully excluded. When the Goods are sold to a
consumer within the meaning of the Unfair Contract Terms Act 1977 their
statutory rights are not affected by the provisions of this clause.
4. In the event of the Customer making a claim in respect of any defect in
terms of clause 2 hereof the Customer must.
1. Reasonably satisfy the Company that the Goods have been
properly installed, commissioned, stored, serviced and used and
without prejudice to the generality of the foregoing that any
defect is not the direct or indirect result of lack of repair and/or
servicing, incorrect repair and/or servicing, use of wrong
materials and/or incorrect spare parts
2. Allow the company to inspect the Goods and/or any installation
and any relevant packaging as and when reasonably required by
the Company.
5. Subject to the Company being notified of any defect as is referred to in
sub-clause 2 hereof within a reasonable time of it becoming apparent
and subject always to the terms of sub-clause 4 hereof, the Company
shall, in its option, replace or repair the defective Goods or refund a
proportionate part of the Price. The Company shall have no further
liability to the Customer (save as mentioned in sub-clause 6 hereof).
6. The Company shall be liable to indemnify the Customer in respect of any
claim for death or personal injury to any person in so far as such is
attributable to the negligence or breach of duty of the Company or any
failure by the Company to comply with the provisions of sub-clause 2
hereof.
7. Save as provided in sub-clause 2 hereof the Company shall not be liable
in respect of any claim by the Customer for costs, damages, loss or
expenses (whether direct, indirect, consequential or otherwise) or
indemnity in any respect howsoever arising including, but not by way of
limitation, liability arising in negligence (other than pursuant to clause 6
above) that may be suffered by the Customer or any third party.

TOC 1500 User Manual
Page 6 2014 © Peak Scientific - Rev. 3A - 18.11.14
Safety Notices
Symbols
This manual uses the following symbols to highlight specific areas important to
the safe and proper use of the Generator
Safety Notice to Users
These instructions must be read thoroughly and understood
before installation and operation of your Peak Generator. Use
of the Generator in a manner not specified by Peak Scientific
MAY impair the SAFETY provided by the equipment.
When handling, operating or carrying out any maintenance,
personnel must employ safe engineering practices and
observe all relevant local health and safety requirements and
regulations. The attention of UK users is drawn to the Health
and Safety at Work Act 1974, and the Institute of Electrical
Engineers regulations.
A WARNING notice denotes a hazard. It calls attention to an operating procedure,
process or similar, which if not correctly performed or adhered to, could cause personal
injury or in the worst case death. Do not proceed beyond a WARNING notice until the
indicated conditions are fully understood or met.
A CAUTION notice denotes a hazard. It calls attention to an operating procedure,
process or similar, which if not correctly performed or adhered to, could cause damage
to the Generator or the Application. Do not proceed beyond a CAUTION notice until the
indicated conditions are fully understood or met.
Caution, risk of electric shock. Ensure power to the Generator has been removed before
proceeding.

TOC 1500 User Manual
Page 7 2014 © Peak Scientific - Rev. 3A - 18.11.14
Declaration of Conformity
Unit is currently under accreditation.

TOC 1500 User Manual
Page 8 2014 © Peak Scientific - Rev. 3A - 18.11.14
Environmental Declaration
Unit is currently under accreditation.

TOC 1500 User Manual
Page 9 2014 © Peak Scientific - Rev. 3A - 18.11.14
Technical Specification
Environment
Min/Max operating ambient temperature
5°C (41°F)- 25°C (77°F)
Maximum relative humidity
70%
Inlet Conditions
Min/Max Air Inlet Pressure
6.90 bar (100 psi) – 8.60 (125 psi)
Minimum Air Inlet Flow Rate
61 L/min
Oil Content
<5mg per cubic meter
Min/Max Inlet Air Temperature
5oC (41oF)*-25oC (77oF)*
*NOTE – When taken out of storage the Generator should be allowed to
acclimatize at room temperature for a minimum of 3 hours before operation.
Outlet Gas
Output Flow Rate
105 L/min
Pressure
5 psi Below Inlet Pressure
Pressure Dewpoint
-70°C (100°F)
Particles
0.01 um
Startup Time
16 Hours
Electrical Requirements
Fully Pneumatic Option Available
None
100-240 VAC 50/60Hz
80mA
Fuse Rating
6.3Amps
Electrical Connection
IEC Euro Connector
General
Dimensions in cm (inches) W x D x H
25(9.8) x 16(6.3) x 66(26)
Shipping weight
18.5 kg (41 lb)
Unpacking
Although Peak Scientific takes every precaution with safe transit and
packaging, it is advisable to fully inspect the unit for any sign of transit
damage.

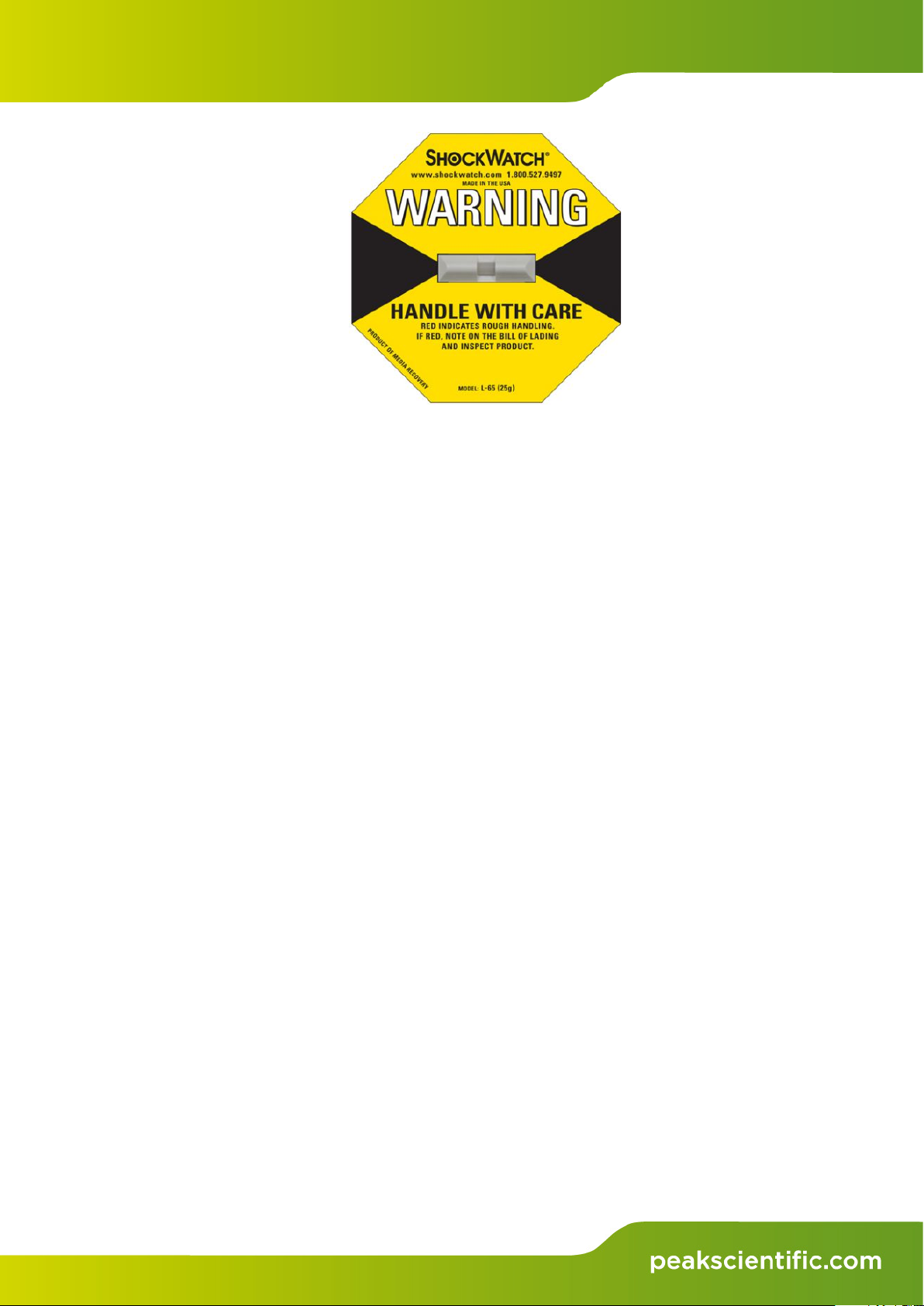

Check ‘SHOCKWATCH’ label for signs of rough handling prior to un-packing –

TOC 1500 User Manual
Page 10 2014 © Peak Scientific - Rev. 3A - 18.11.14
Any damage should be reported immediately to the carrier and Peak
Scientific or the Peak Partner from where the unit was purchased.
Follow the unpacking instructions posted on the side of the crate. It will require
two people to remove the unit from the shipping crate and to manoeuvre the
Generator onto the floor.
Please save the product packaging for storage or future shipment of the
Generator.
Note: Included with the Generator is a “Fittings Kit” containing mains
power leads for UK, EU and US also all the required fittings. Be careful not
to discard these with the packaging.

TOC 1500 User Manual
Page 11 2014 © Peak Scientific - Rev. 3A - 18.11.14
Installation
Generator Environment
The TOC 1500 Gas Generator is designed for indoor use only.
The unit can be free standing, in which case it must be placed
on a steady and level surface.
The minimum and maximum ambient operating temperatures are 5oC and 25oC.
Keep the unit in a well ventilated site away from direct sunlight.
Voltage and Power
The TOC 1500 Gas Generator are fitted with an internal switch
mode power supply that will accept a power inlet from
100VAC - 240VAC, 50/60HZ. The current consumption is 80
mA.
General Dimensions
472.4
660
160
100
570
TOC 1500

TOC 1500 User Manual
Page 12 2014 © Peak Scientific - Rev. 3A - 18.11.14

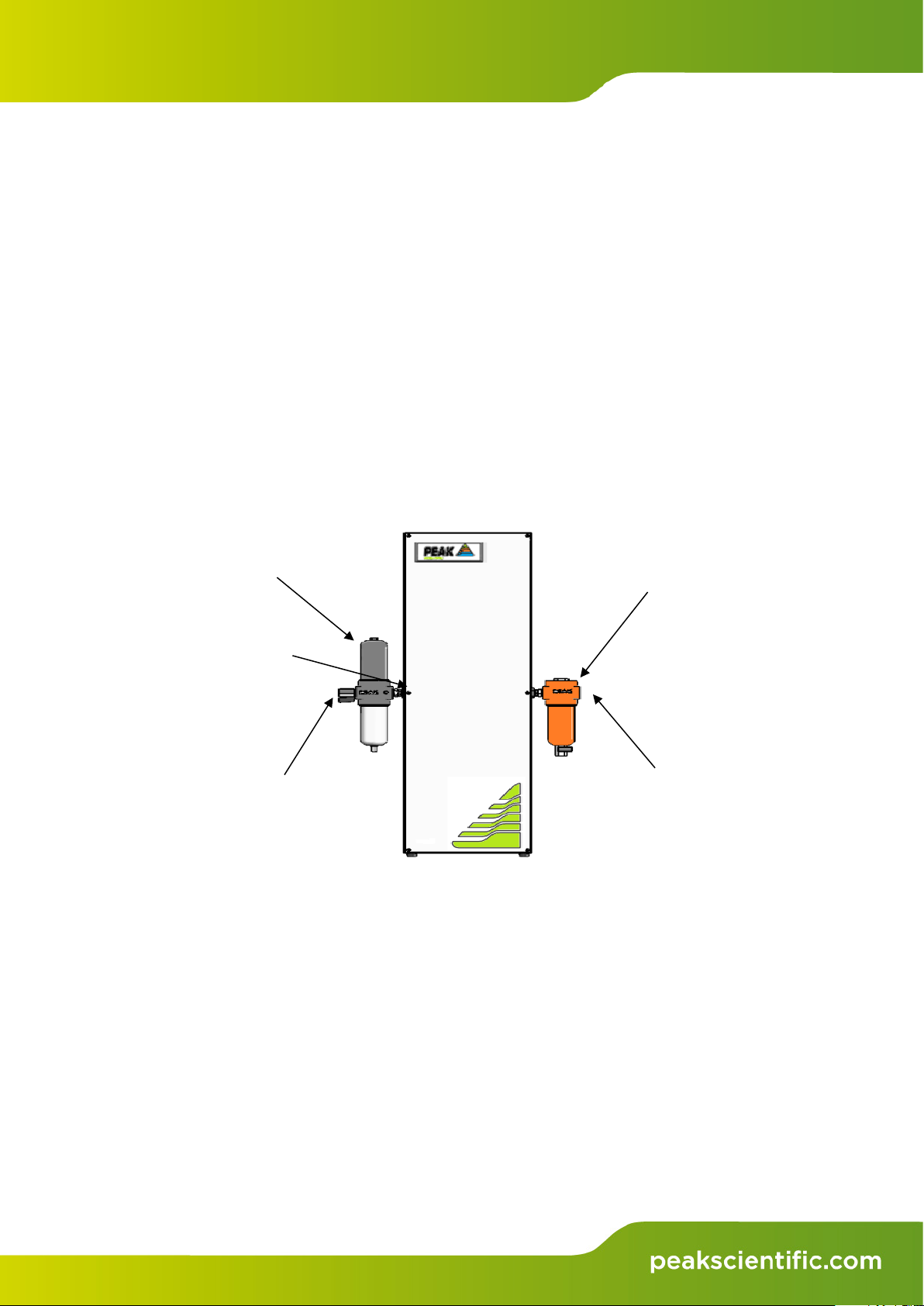

External Connections
Connect the unit to a suitable electrical supply (N/A for Pneumatic system).
Attach the input filter supplied to the input port of the unit (on the left hand
side of the unit).
Attach a suitable air supply to the inlet port of the filter.
Note that the inlet and outlet air connections are ¼” BSP Female.
Attach the outlet of the purifier to your instrument and ensure that you do not
draw any more than the specified amount of purified air from the system.
Outlet Filter
Outlet Port ¼” BSP Female
Input Filter
Input Port ¼” BSP Female

TOC 1500 User Manual
Page 13 2014 © Peak Scientific - Rev. 3A - 18.11.14
Start up Procedure
Connect fitting to the input of the filter on the generator and connect up to in
house Air supply. Restrict output to the Manufacturer specification.
Ensure that the power to the Air Dryer is turned on before starting the air
supply. Gradually introduce air pressure to the unit until the recommended
pressure has been reached.
Allow unit to vent to atmosphere for 16 Hours before connecting to any
equipment.
The system is now operational and requires no further intervention.
Outlet Filter
Outlet Port ¼” BSP Female
Input Filter
Input Port ¼” BSP Female
Attach Here

TOC 1500 User Manual
Page 14 2014 © Peak Scientific - Rev. 3A - 18.11.14
IMPORTANT
DOCUMENT S
Warranty Entitlement
To register your generator for your warranty entitlement, send the completed
form to Peak Scientific by:
•
Email
[e-mail]
•
Online
http://www.peakscientific.com/service-and-support/warranty_registration
•
•
Phone
F ax
[phone]
[phone]
PRODUCT WARRANTY REGISTRATION
COMPANY: CONTACT NAME:
ADDRESS:
EMAIL ADDRESS:
CITY/TOWN: GENERATOR SERIAL NUMBER:
POSTCODE:
COUNTRY: MODEL TYPE:
TELEPHONE: INSTALLATION DATE (DD/MM/YYYY):
Important Please Note:
You have 1 month to register your Peak Scientific product from the date of shipment.
If you wish to defer installation of your generator you must notify Peak Scientific within
1 month of the shipment date. This can be done by emailing
[e-mail] Once registered the warranty will be honoured for a
period of 12 months after the installation date.
For any generators that remain unregistered the warranty will begin from date of
shipment.
Thank you on behalf of Peak Scientific.

TOC 1500 User Manual
Page 15 2014 © Peak Scientific - Rev. 3A - 18.11.14
Normal Operation
Principal of Operation
The TOC 1500 works on the principle of Pressure Swing Adsorption (PSA).
This is where gases and moisture can be selectively adsorbed from compressed
air into a porous crystalline sieve material. The adsorption process is aided by
the electrostatic interaction between the adsorbate sieve material and the
gases to be adsorbed.
The sieve material used in the Air Dryer is a specially developed Mol sieve
compound, utilising the Skarstrom process of pressure swing adsorption where
there are two columns of sieve material utilised alternately as described below.
The inlet air to the Dryer passes through a pre-filtration process where it
undergoes particulate removal (0.01 micron) and bulk moisture removal (by a
coalescing element). The air is then passed to the sieve columns.
TOC 1500
The air is fed at pressure into one of the columns and the outlet air from this
column is split into two paths. Part of the air is directed to the outlet of the
Dryer for use by the consuming instrument and the other part is ‘blown’ back
down the other unused column (open to atmosphere) to purge out the
adsorbed impurities. After specified time period the columns swap over to
ensure that any adsorbed impurities are purged out before they can build up to
saturation point within the adsorbate material.
In this way each column repetitively adsorbs impurities and then releases them
to atmosphere assisted by the purge of dried air that is ‘blown’ through it.

TOC 1500 User Manual
Page 16 2014 © Peak Scientific - Rev. 3A - 18.11.14
Service Requirements
Routine Maintenance
Servicing and/or repair of the Generator should only be
undertaken by a TECHNICALLY COMPETENT PERSON, with
the generator in its safely isolated condition.
Safely Isolated Condition; The unit is in a Safely Isolated
Condition when it is disconnected from its application, fully
de-pressurised and isolated from the Electrical Supply.
Directions for isolating the generator are shown below.
Isolating the Generator
a. Switch off the unit.
b. Disconnect the unit from the mains supply.
c. Disconnect from the application.

TOC 1500 User Manual
Page 17 2014 © Peak Scientific - Rev. 3A - 18.11.14
Service Schedule
Service Interval
Component
Part No.
Qty.
12 Months
Inlet/Outlet Coalescer Filter Element
00-4424
2
Inlet RAC Filter Element
00-4427
1
Exhaust Silencers
02-1033
1
As an alternative to purchasing the 12 month service items individually an
Annual Service Kit is available as one part number. This contains all the filters
required for this Generator and offers a cost saving over buying the
components separately.
Purchase Interval
Component
Part No.
Qty.
12 months
TOC 1500- Annual Service Kit
08-8222
1
Service Plans
Peak Scientific offer two service plans. The Complete Service Plan, specifically
designed for Generators operated in critical environments, also includes full
breakdown cover, guaranteed response times and Generator upgrades if
available. Our Standard Service Plan, covering the basic needs of our
Generators, features special deals on spare parts and breakdowns.
If you want to know more about our Service Plan options and how we ensure
that your instrument can run with the maximum uptime and performance,
please contact us at [e-mail]

2014 © Peak Scientific - Rev. 3A - 18.11.14
Peak Scientific UK
Fountain Crescent
Inchinnan Business Park
Inchinnan
PA4 9RE
Scotland, UK
Peak Scientific North America
19 Sterling Road
Suite #1
Billerica, MA 01862
USA
Peak Scientific India
202, Amsri Shamira
Old Lancer Line
Opp. St. Mary’s Degree College
S.D. Road Secunderabad
500 025, India
Peak Scientific Africa
PO Box 478
Somerset Mall
7137
South Africa
Tel: [phone]
Fax:
[phone]
Tel: [phone]
Fax:
[phone]
Tel: [phone]
Fax:
[phone]
Tel: [phone]
Fax:
[phone]
Peak Scientific Germany
Herriotstrasse 1
60528 Frankfurt
Germany
Peak Scientific China
Room 606 Building 1
Lane 2277 Zuchongzhi Road
Pudong New Area
Shanghai
201203, China
Peak Scientific Mexico
Solon 352
Col. Los Morales Polanco
11530 Mexico, D.F.
Mexico
Peak Scientific Australia
PO Box 65
Belmont
Victoria 3216
Australia
Tel: [phone]
Fax:
[phone]
Tel: [phone]
Fax:
[phone]
Tel: [phone]
Fax:
[phone]
Tel: [phone]
Peak Scientific Taiwan
4F.-6, No.736
Zhongzheng Rd.
Zhonghe Dist.
New Taipei City
Tel:
[phone]
Fax:
[phone]
Peak Scientific Brazil
Peak Scientific Brasil
Av. Quieroz Filho
1700 – torre Sunny-Conj. 602
São Paulo SP Brasil
Tel:
[phone]
Peak Scientific Japan K.K.
2-7-56, 2F Fuji Building 28
Kita Aoyama, Minato-Ku
Tokyo, Japan
107-0061
Tel:
[phone]
Peak Scientific Singapore
3 Science Park Drive
#03-14 The Franklin
Science Park Drive 1
Singapore, 118223
Tel:
[phone]
Fax:
[phone]
