Peak Scientific Infinity 9000 User manual

Infinity 9000
User Manual
2014 © Peak Scientific - Rev. 2 - 28/05/14

Infinity 9000 User Manual
Page 2 2014 © Peak Scientific - Rev. 2 - 28/05/14
Contents
Change History 3
How to use this manual 3
Warranties and Liabilities 4
Safety Notices 5
Symbols 5
Safety Notice to Users 5
Technical Specifications 6
Environment 6
Inlet Conditions 6
Outlet Gas 6
General 6
Introduction 7
Unpacking and Installation 7
General Dimensions 8
Air Connection 9
Fittings Kit 9
Commissioning 10
Pressure & Flow Settings 10
Maintenance Schedule 11
Service Schedule 11
Safely Isolated Condition 11

Infinity 9000 User Manual
Page 3 2014 © Peak Scientific - Rev. 2 - 28/05/14
Change History
Rev. Comment Name Date
1 Update to Service Kit Information Liam Couttie 16/04/2014
2 Part Number Amendment Liam Couttie 28/05/2014
3
4
5
How to use this manual
This manual is intended for end users and has been written so that it can either
be read as a step by step guide to installation and usage; or as a reference
document where you can skip to the relevant information.
Please review each of the following sections carefully.
Thank you for selecting Peak Scientific to meet your Gas Generation needs,
should you require any further assistance or support please do not hesitate to
contact Peak Scientific or the Peak Partner from which you purchased your
Generator.

Infinity 9000 User Manual
Page 4 2014 © Peak Scientific - Rev. 2 - 28/05/14
Warranties and Liabilities
1. The Company warrants that it has title to the Goods.
2. Subject to the provisions of this clause the Company warrants that the
Goods shall comply in all material respects with any specification referred
to in the Order Confirmation (as the same may be amended) and shall,
subject thereto, be free from defects in material and workmanship for the
lesser of a period of twelve months from the date of delivery or thirteen
months from the date of dispatch from the factory.
3. Save as provided in this clause and except where the Goods are sold to a
person dealing as a consumer (within the meaning of the Unfair Contract
Terms Act 1977) all warranties, conditions or other terms implied by statute
or common law are hereby expressly excluded save to the extent they may
not be lawfully excluded. When the Goods are sold to a consumer within
the meaning of the Unfair Contract Terms Act 1977 their statutory rights are
not affected by the provisions of this clause.
4. In the event of the Customer making a claim in respect of any defect in
terms of clause 2 hereof the Customer must.
4.1. Reasonably satisfy the Company that the Goods have been properly
installed, commissioned, stored, serviced and used and without
prejudice to the generality of the foregoing that any defect is not the
direct or indirect result of lack of repair and/or servicing, incorrect
repair and/or servicing, use of wrong materials and/or incorrect spare
parts
4.2. Allow the company to inspect the Goods and/or any installation and
any relevant packaging as and when reasonably required by the
Company.
5. Subject to the Company being notified of any defect as is referred to in
sub-clause 2 hereof within a reasonable time of it becoming apparent and
subject always to the terms of sub-clause 4 hereof, the Company shall, in its
option, replace or repair the defective Goods or refund a proportionate part
of the Price. The Company shall have no further liability to the Customer
(save as mentioned in sub-clause 6 hereof).
6. The Company shall be liable to indemnify the Customer in respect of any
claim for death or personal injury to any person in so far as such is
attributable to the negligence or breach of duty of the Company or any
failure by the Company to comply with the provisions of sub-clause 2
hereof.
7. Save as provided in sub-clause 2 hereof the Company shall not be liable in
respect of any claim by the Customer for costs, damages, loss or expenses
(whether direct, indirect, consequential or otherwise) or indemnity in any
respect howsoever arising including, but not by way of limitation, liability
arising in negligence (other than pursuant to clause 6 above) that may be
suffered by the Customer or any third party.

Infinity 9000 User Manual
Page 5 2014 © Peak Scientific - Rev. 2 - 28/05/14
Safety Notices
Symbols
This manual uses the following symbols to highlight specific areas important to
the safe and proper use of the Generator.
Table 1 - Safety Symbols
Safety Notice to Users
These instructions must be read thoroughly and understood before installation
and operation of your Peak Scientific Infinity 9000. Use of the Generator in a
manner not specified by Peak Scientific MAY impair the SAFETY provided by
the equipment.
When handling, operating or carrying out any maintenance, personnel must
employ safe engineering practices and observe all relevant local health and
safety requirements and regulations. The attention of UK users is drawn to the
Health and Safety at Work Act 1974, and the Institute of Electrical Engineers
regulations.
Nitrogen is not a poisonous gas, but if the concentration in
the inhaled air becomes too high there will be a risk of
asphyxiation.
A
WARNING
notice denotes a hazard. It calls attention to an operating
procedure, process or similar, which if not correctly performed or adhered
to, could cause personal injury or in the worst case death. Do not proceed
beyond a
WARNING
notice until the indicated conditions are fully
understood or met.
A
CAUTION
notice denotes a hazard. It calls attention to an operating
procedure, process or similar, which if not correctly performed or adhered
to, could cause damage to the Generator or the Application. Do not
proceed beyond a
CAUTION
notice until the indicated conditions are fully
understood or met.

Infinity 9000 User Manual
Page 6 2014 © Peak Scientific - Rev. 2 - 28/05/14
Technical Specifications
Environment
Min/Max Air Operating Temperature
5°C-30°C / 41°F-86°F
Maximum Relative Humidity
70%
Inlet Conditions
Min/Max Air Inlet Pressure
8.3-10 bar / 120-145 psi
Minimum Air inlet Flow
70 l/min
Outlet Gas
Maximum Gas output Pressure
100 psig
Maximum Pressure Drop (Outlet-Inlet)
8 psig
Maximum Gas output flow (zero grade air)
34 l/min (ATP)
Start-up time for purity
60 minutes
Particles
0.01um
General
Dimensions (cm/ins) WxDxH
47x16x76 / 19x7x30
Shipping Weight (Kg/lbs)
21 / 46

Infinity 9000 User Manual
Page 7 2014 © Peak Scientific - Rev. 2 - 28/05/14
Introduction
The Peak Scientific Infinity 9000 Nitrogen Generator is designed specifically for
use with LCMSMS applications, but has also been used successfully for
Turbovap or ELSD applications. The generator has been designed to produce
Nitrogen from an existing source of dry, oil free, compressed air in the
laboratory.
Unpacking and Installation
Although Peak Scientific take every precaution with safe transit and packaging,
it is advisable to fully inspect the unit for any sign of transit damage.
Check ‘SHOCKWATCH’ label for signs of rough handling prior to un-packing –
Any damage should be reported immediately to the carrier and Peak Scientific
or the Peak Partner from where the unit was purchased.
Follow the unpacking instructions posted on the side of the crate. It will require
two people to remove the unit from the shipping crate and to manoeuvre the
Generator onto the floor.
Please save the product packaging for storage or future shipment of the
Generator.
After unpacking and a visual inspection, the unit should be
placed in a ventilated area away from direct sunlight. Care
should be taken not to obstruct the ventilation holes on the
side of the unit. The Generator should be placed on a steady
and level base. The Infinity 9000 has been designed to fit
under most workbenches. Alternatively, the unit may be wall
mounted using the fixing slots provided.
Performance of the Generator (like all sophisticated
equipment) is affected by ambient temperatures. Prolonged
operation in temperatures exceeding 30°C will shorten the
life of the unit.

Infinity 9000 User Manual
Page 8 2014 © Peak Scientific - Rev. 2 - 28/05/14

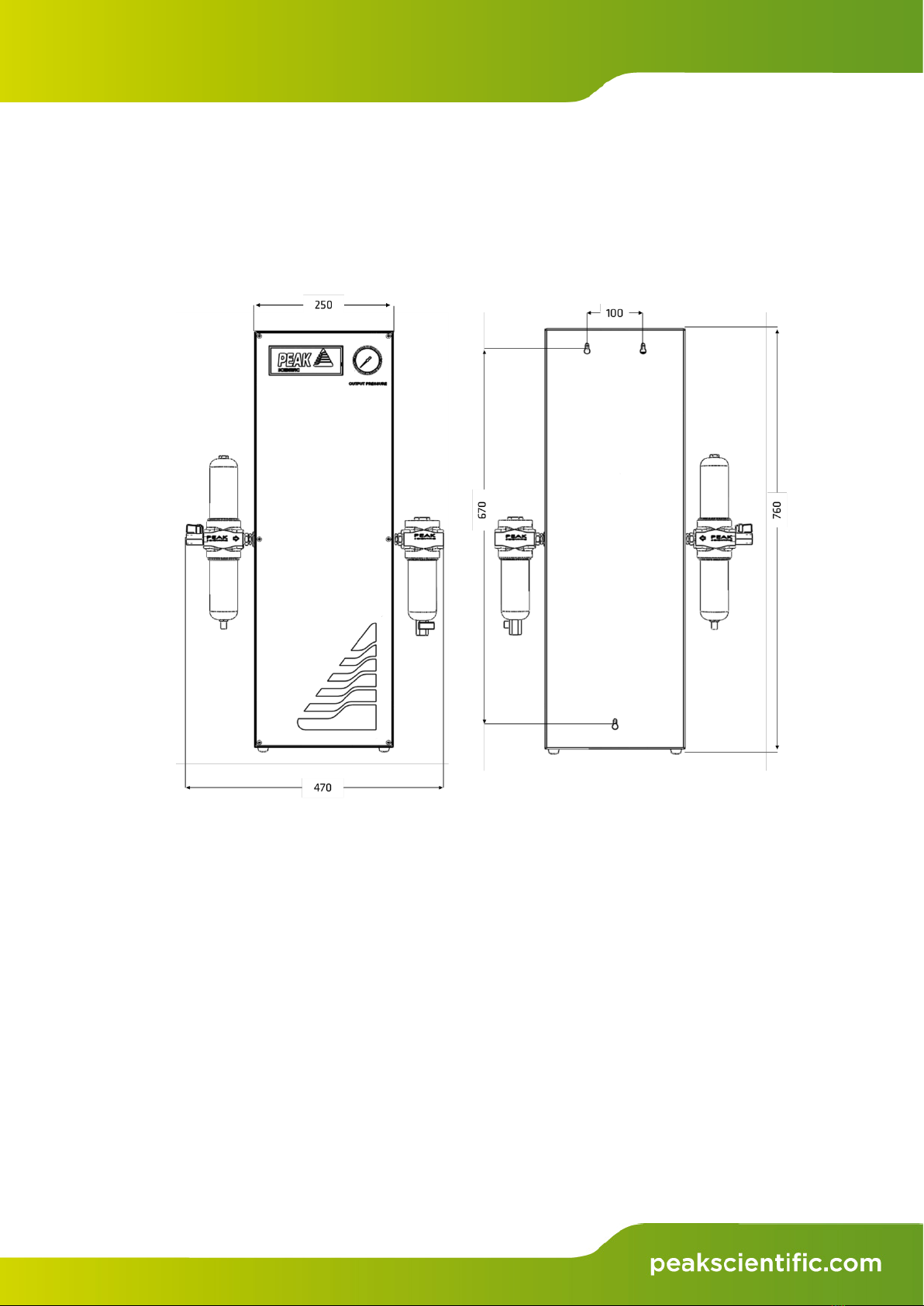

General Dimensions
In addition to being floor or bench free standing, the generator may be fixed to
a wall in the upright position shown below.
The diagram shows the clearances and mounting hole centres required.
*Dimensions in mm.

Infinity 9000 User Manual
Page 9 2014 © Peak Scientific - Rev. 2 - 28/05/14
Air Connection
Infinity 9000 Generator should be connected to a clean, dry, OIL - FREE source
of compressed air. A minimum inlet pressure of 100 psig (6.7 barg) is required.
Any doubts as to the suitability of your compressed air supply should be
referred to Peak Scientific or any of their authorised partners.
The generator has a Breathing Air Filter with ¼” BSPT connection to the left
side of the unit. The Compressed Air supply should be connected here. This
filter will drain moisture and is equipped with an automatic drain. The drain
should be led to a convenient place. Nitrogen outlet is via an Activated Carbon
reverse-acting filter mounted on the right side, again with a ¼” BSPT
connection for outlet.
Fittings Kit
Supplied in the Fittings Kit are all the fittings required to connect the Infinity
9000 Generator to the application. The contents of the Fittings Kit are as
follows:
1. 6mm Push Fit Tube Fitting × 2
2. 6mm Tubing × 3m
3. N8 Supa Counter Sunk Screw x 2
4. Raw plug for No.8 Screw x 2
5. User Manual – Infinity 9000 × 1
All of the Generator output ports are located on the output panel at the rear of
the Generator.

Infinity 9000 User Manual
Page 10 2014 © Peak Scientific - Rev. 2 - 28/05/14
Commissioning
With the Generator installed as previously described, open the air supply to the
unit. The Generator has been pre-set in the factory to give the specified output
flow-rate and pressure. On reaching operational pressure the Generator will
produce Nitrogen.
The design of the generator is such that it will deliver up to the rated output
flow of Nitrogen at 100 psig (6.7 barg). Flow at any time is determined by
demand of the consuming equipment. In circumstances of no demand, the
generator remains operational and will provide nitrogen immediately as
demand resumes.
Pressure & Flow Settings
The above settings should allow the generator to be operated with all standard
configurations of instruments. Should the above settings not provide sufficient
flow or pressure for your application please contact Peak Scientific for
assistance.
Generator
Flow/Pressure
Infinity 9000 34l/min @ 100psig

Infinity 9000 User Manual
Page 11 2014 © Peak Scientific - Rev. 2 - 28/05/14
Maintenance Schedule
Servicing and/or repair of the Generator should only be
undertaken by a TECHNICALLY COMPETENT PERSON with
the Generator in a safely isolated condition.
Due to the simplicity of the design and the small number of moving parts, the
Infinity 9000 Nitrogen Generators will have a long and trouble free life.
However as with all scientific and technical equipment it should be regularly
inspected and serviced as below.
Service Schedule
As an alternative to purchasing the 12 month service items individually an
Annual Service Kit is available as one part number. This contains all the filters
required for this Generator.
Safely Isolated Condition
The unit is in a safely isolated condition when it is disconnected from its
application and fully de-pressurised. Directions for isolating the Generator are
shown below.
Failure to place the Generator in a safely isolated condition
when instructed to do so may lead to personal injury or injury
to others and even death.
a) Disconnect from air supply.
b) Ensure the output pressure gauge read zero. (If gauge does not fall to
zero, loosen the outlet fitting slightly to allow trapped gas to escape).
Disconnect from the application.
Service interval
Component
Part No.
Qty.
12 months
Element Active Carbon
00-0046
1
Element 0.01 micron
00-0045
1
RAC Filter Element
00-0041
1
Purchase Interval
Component
Part No.
Qty.
12 months
Annual Service Kit
08-0316
1

Infinity 9000 User Manual
Page 12 2014 © Peak Scientific - Rev. 2 - 28/05/14
Breathing Air Filter Element Replacement
Ensure that Generator is in Safely Isolated Condition
1. Remove 6mm drain tubing from push-fit stud situated on
under-side of the bowl.
2. Remove the top and bottom filter bowls by turning the
bowl clockwise and anti-clockwise respectively.
3. Remove the filter element by pulling it away from the filter
assembly.
4. Fit the replacement elements.
5. Re-fit the filter bowls.
00-0046
00-0045

Infinity 9000 User Manual
Page 13 2014 © Peak Scientific - Rev. 2 - 28/05/14

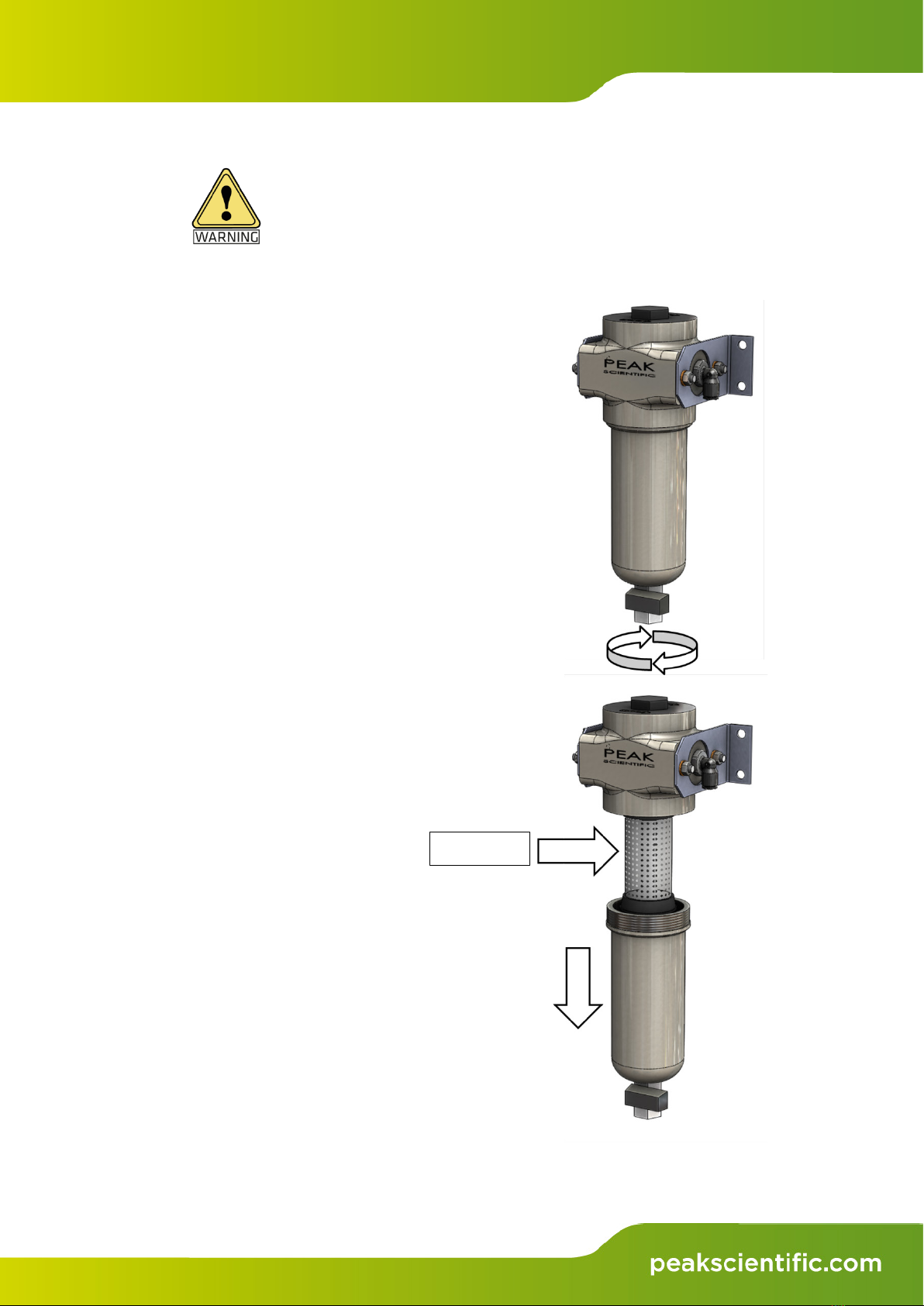

RAC Filter Element Replacement
Ensure that Generator is in Safely Isolated Condition
1. Open the filter bowl valve to ensure it
is depressurised.
2. Remove the filter bowl by turning it
as shown to reveal the RAC filter
element Part number
00-0041.
a. For easier access, the filter
assembly can be removed
from the cabinet
by removing the 4 of nyloc
nuts and disconnecting the
tubing.
3. Remove and replace the filter
element and re-assemble.
00-0041

2014 © Peak Scientific - Rev. 2 - 28/05/14
Peak Scientific UK
Fountain Crescent
Inchinnan Business Park
Inchinnan
PA4 9RE
Scotland, UK
Peak Scientific North America
19 Sterling Road
Suite #1
Billerica, MA 01862
USA
Peak Scientific India
202, Amsri Shamira
Old Lancer Line
Opp. St. Mary’s Degree College
S.D. Road Secunderabad
500 025, India
Peak Scientific Africa
PO Box 478
Somerset Mall
7137
South Africa
Tel: [phone]
Fax:
[phone]
Tel: [phone]
Fax:
[phone]
Tel: [phone]
Fax:
[phone]
Tel: [phone]
Fax:
[phone]
Peak Scientific Germany
Herriotstrasse 1
60528 Frankfurt
Germany
Peak Scientific China
Room 606 Building 1
Lane 2277 Zuchongzhi Road
Pudong New Area
Shanghai
201203, China
Peak Scientific Mexico
Solon 352
Col. Los Morales Polanco
11530 Mexico, D.F.
Mexico
Peak Scientific Australia
PO Box 65
Belmont
Victoria 3216
Australia
Tel: [phone]
Fax:
[phone]
Tel: [phone]
Fax:
[phone]
Tel: [phone]
Fax:
[phone]
Tel: [phone]
Peak Scientific Taiwan
4F.-6, No.736
Zhongzheng Rd.
Zhonghe Dist.
New Taipei City
Tel:
[phone]
Fax:
[phone]
Peak Scientific Brazil
Peak Scientific Brasil
Av. Quieroz Filho
1700 – torre Sunny-Conj. 602
São Paulo SP Brasil
Tel:
[phone]
Peak Scientific Japan K.K.
2-7-56, 2F Fuji Building 28
Kita Aoyama, Minato-Ku
Tokyo, Japan
107-0061
Tel:
[phone]
Peak Scientific Singapore
3 Science Park Drive
#03-14 The Franklin
Science Park Drive 1
Singapore, 118223
Tel:
[phone]
Fax:
[phone]
