Peak PCAN-MicroMod FD User manual

PCAN-MicroMod FD
Evaluation
User Manual
© 2019 PEAK-System Technik GmbH

Relevant products PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH
Relevant products
Product name Model Part
number
PCAN-MicroMod FD Evaluation Board with PCAN-MicroMod FD IPEH-003081
PCAN-MicroMod FD Evaluation Kit with PCAN-MicroMod FD, PC-CAN-Interface
PCAN-USB FD, and terminated CAN cable IPEH-003082
The front page shows the Evaluation Board with plugged-in PCAN-MicroMod FD.
Imprint
PCAN® is a registered trademark of PEAK-System Technik GmbH. CANopen® and CiA® are registered
community trade marks of CAN in Automation e.V. Arm and Cortex are registered trademarks of Arm
Limited (or its subsidiaries) in the United States and/or elsewhere.
Other product names in this document may be the trademarks or registered trademarks of their
respective owners. They are not explicitly marked by ™ or ®.
© 2019 PEAK-System Technik GmbH
Duplication (copying, printing, or other forms) and the electronic distribution of this document is only
allowed with explicit permission of PEAK-System Technik GmbH. PEAK-System Technik GmbH reserves
the right to change technical data without prior announcement. The general business conditions and
the regulations of the license agreement apply. All rights are reserved.
PEAK-System Technik GmbH
Otto-Roehm-Strasse 69
64293 Darmstadt
Germany
Phone: [phone]
Fax: [phone]
www.peak-system.com
[e-mail]
Document version 1.0.0 (2019-07-10)
2

Contents PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH
Contents
Relevant products 2
Imprint 2
Contents 3
1 Introduction 5
1.1 Features Overview 5
1.2 Operation Requirements 6
1.3 Scope of supply Board (IPEH-003081) 6
1.4 Scope of supply Kit (IPEH-003082) 7
2 Setting Up the Evaluation Kit for Operation 8
3 Components of the Evaluation Board 9
3.1 Socket for PCAN-MicroMod FD (J1A/J1B) 9
3.2 Power Supply (J6, J7) 11
3.3 CAN Connection (J4) 11
3.4 Analog Inputs (J8) and Potentiometers 13
3.5 Digital Inputs (J9) 14
3.6 Digital and Frequency Outputs (J3) 15
3.7 Module Number (S2) 16
3.8 RS-232 Connector (J5) 17
3.9 USB Connector (J7) 18
3.10 Push Buttons for Reset and Flash Mode 18
4 Firmware Update of the PCAN-MicroMod FD 20
4.1 Firmware Update via CAN Bus 20
4.1.1 System Requirements 20
4.1.2 Activating the Flash Mode 20
4.1.3 Preparing the Software 21
4.1.4 Uploading the Firmware 21
4.2 Firmware Update via USB Connection 24
4.2.1 System Requirements 24
3

Contents PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH
4.2.2 Activating the Flash Mode 24
4.2.3 Uploading the Firmware 24
4.3 Firmware Update via Serial RS-232 Interface 25
4.3.1 System Requirements 25
4.3.2 Activating the Flash Mode 25
4.3.3 Uploading the Firmware 25
5 Technical Specifications Evaluation Board 27
Appendix A Dimension Drawing 29
Appendix B Circuit Diagram Evaluation Board 30
Circuit Diagram Evaluation Board 31
4

1 Introduction PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH
1 Introduction
The PCAN-MicroMod FD Evaluation Board is a development board for the PCAN-
MicroMod FD and allows the conception and development of own circuits with CAN
connection and I/O functionality. Via pick-offs, screw terminals, switches, and poten-
tiometers, the user can access the resources of the attached PCAN-MicroMod FD and
check configurations or test circuits.
The configuration is done with a supplied Windows software which transfers the
configuration data to the module via CAN. The optionally available Evaluation Kit also
includes the CAN interface and cable required for this purpose.
This document describes the hardware and function of the Evaluation Board. A
separate document is available for the plug-in board PCAN-MicroMod FD itself.
1.1 Features Overview
Screw terminal connections for all I/Os
CAN bus connection via D-Sub, 9-pin (in accordance with CiA®303-1)
Switchable CAN termination of 120 Ohm
Pick-offs for all pins of the PCAN-MicroMod FD
Low-side switches for the digital outputs
DIP switches for status change of the digital inputs
Protected digital inputs
LEDs for digital inputs and outputs
4 potentiometers for analog inputs
Soldering fields for individual additional wiring
RS-232 connection with V.24 signal levels for direct access to the microcontroller
4-bit rotary coding switch for setting the module ID
5

1 Introduction PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH
Configuration via the CAN bus with the Windows software PCAN-MicroMod FD
Configuration
Firmware upload via CAN, USB, or RS-232; switchable via 3 buttons
Reset button for restarting the board
Voltage supply 5 V via Micro-USB connection or barrel connector
Operating temperature range from 0 to 70 °C (32 to 185 °F)
Board 100 x 102 mm with rubber feet
1.2 Operation Requirements
Plugged-in PCAN-MicroMod FD
Power supply 5 V DC, either via the provided USB cable or via the barrel connector
(separate power supply unit required).
For the creation and transfer of a configuration:
Computer with Windows 10, 8.1, 7 (32/64-bit) and a CAN interface of the PCAN
series*
* The CAN interface PCAN-USB FD is included with the purchase of the PCAN-MicroMod Evaluation Kit.
1.3 Scope of supply Board (IPEH-003081)
Plug-in board PCAN-MicroMod FD (IPEH-003080)
PCAN-MicroMod FD Evaluation Board (motherboard)
USB cable for power supply
Configuration software for Windows
Manuals in PDF format
6

1 Introduction PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH
1.4 Scope of supply Kit (IPEH-003082)
As above (IPEH-003081) and in addition:
PC-CAN interface PCAN-USB FD (IPEH-004022)
CAN cable, terminated with 2 x 120 Ω, 2 m (IPEK-003001)
7

2 Setting Up the Evaluation Kit for Operation PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH
2 Setting Up the Evaluation Kit for
Operation
This chapter gives a quick overview of the needed steps for the straightforward
startup of the Evaluation Kit.
Attention! Electrostatic discharge (ESD) can damage or
destroy components on the circuit board. Take precautions to
avoid ESD when handling the circuit board.
Do the following for the setup:
1. On the PC under Windows, install the device driver for the PCAN-USB FD from
the supplied data carrier.
2. Use the CAN cable to connect the PCAN-USB FD to the Evaluation Board
(connector J4 CAN).
3. Plug the PCAN-USB FD into a USB port of the PC.
4. In order to supply the Evaluation Board with power, use the USB cable to
connect the Evaluation Board to a USB port on the computer or to a power
supply unit.
5. Under Windows, install the program PCAN-MicroMod FDConfiguration from
the provided data carrier (Tools section).
6. Start PCAN-MicroMod FD Configuration, create a configuration, and eventually
transfer it to the PCAN-MicroMod FD (see program help).
You can now work with signals at the I/O ports as defined in the configuration. Please
observe the explanations in the following chapter. On the PC, you can use the CAN
monitor PCAN-View to watch and send CAN messages.
8

3 Components of the Evaluation Board PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH
3 Components of the Evaluation
Board
This chapter describes the function units and connectors of the Evaluation Board. For
details you can also refer to the circuit diagram, Appendix B Circuit Diagram Evalu-
ation Board on page30.
3.1 Socket for PCAN-MicroMod FD (J1A/J1B)
For orientation when plugging the MicroMod FD onto the evaluation board, white
triangular markings are provided both on the MicroMod FD (upper left corner) and on
the Evaluation Board. These markings must align.

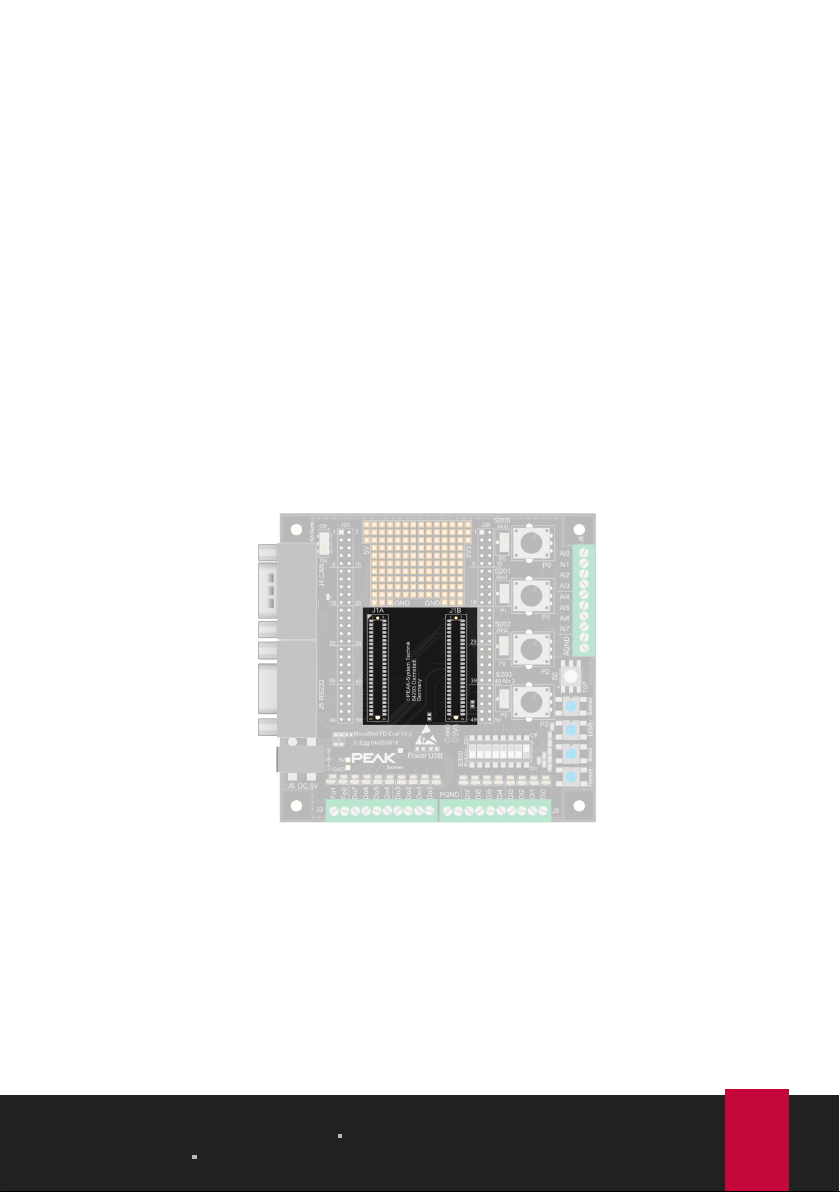

Figure 1: Socket for the PCAN-MicroMod FD
9

3 Components of the Evaluation Board PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH
Figure 2: Positionining marking on the PCAN-MicroMod FD and on the Evaluation Board
Via the test points of the fields J2A and J2B, which are arranged laterally to the
socket strips for the MicroMod FD, each pin of the plugged-on MicroMod FD can be
accessed directly.
Figure 3: Test point fields J2A and J2B for all pins of the PCAN-MicroMod FD
10

3 Components of the Evaluation Board PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH
3.2 Power Supply (J6, J7)
The Evaluation Board requires a supply voltage of 5 V DC. It can be applied either via
the Micro USB connector or the barrel connector.

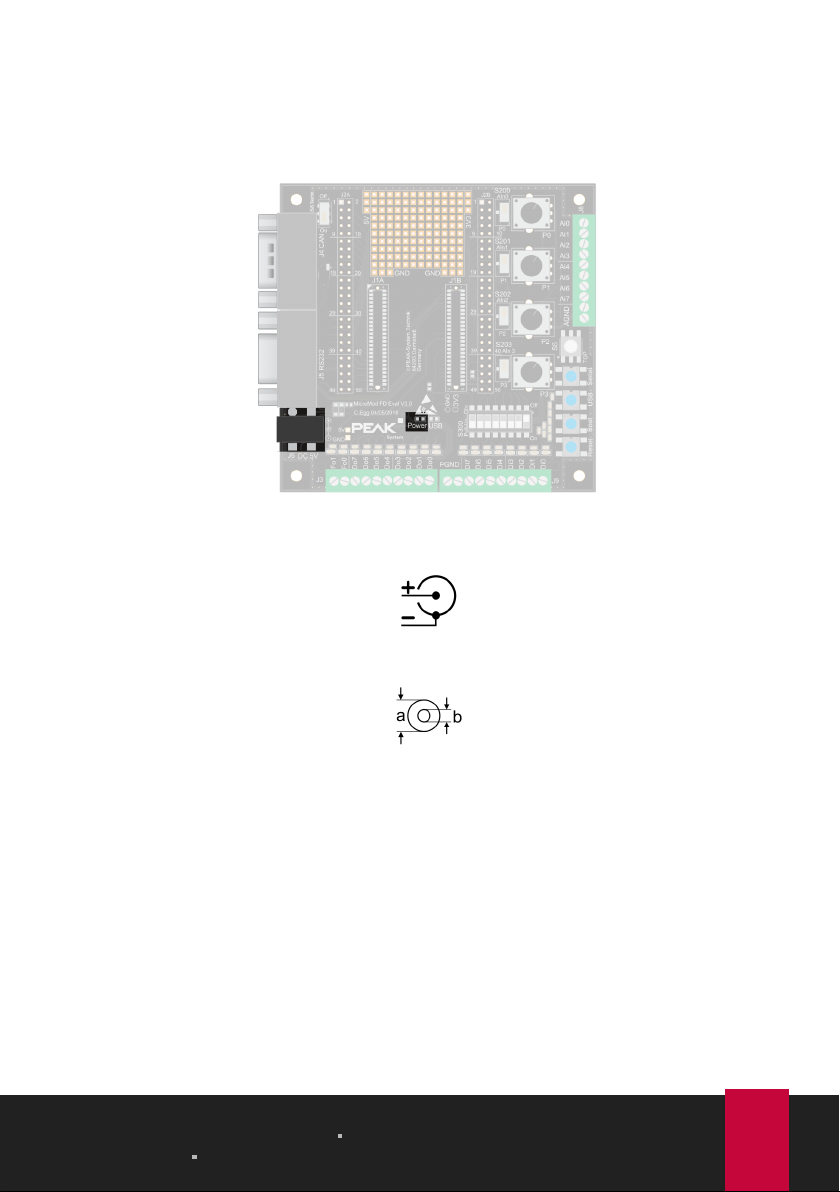

Figure 4: Barrel connector J6 for voltage supply, Power LED,
Micro USB connector J7 in the same area on the bottom side of the board (not visible in this figure)
Figure 5: Polarity of the supply socket
Figure 6: Diameter of barrel connector: a = 5.5 mm, b = 2.5 mm; minimum length: 11 mm
The Power LED indicates that the Evaluation Board is supplied.
3.3 CAN Connection (J4)
The 9-pin D-Sub male connector J4 is used for CAN connection, positioned on the
upper right of the Evaluation Board. The pin assignment of the CAN connector
11

3 Components of the Evaluation Board PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH
corresponds to the specification CiA®303-1.

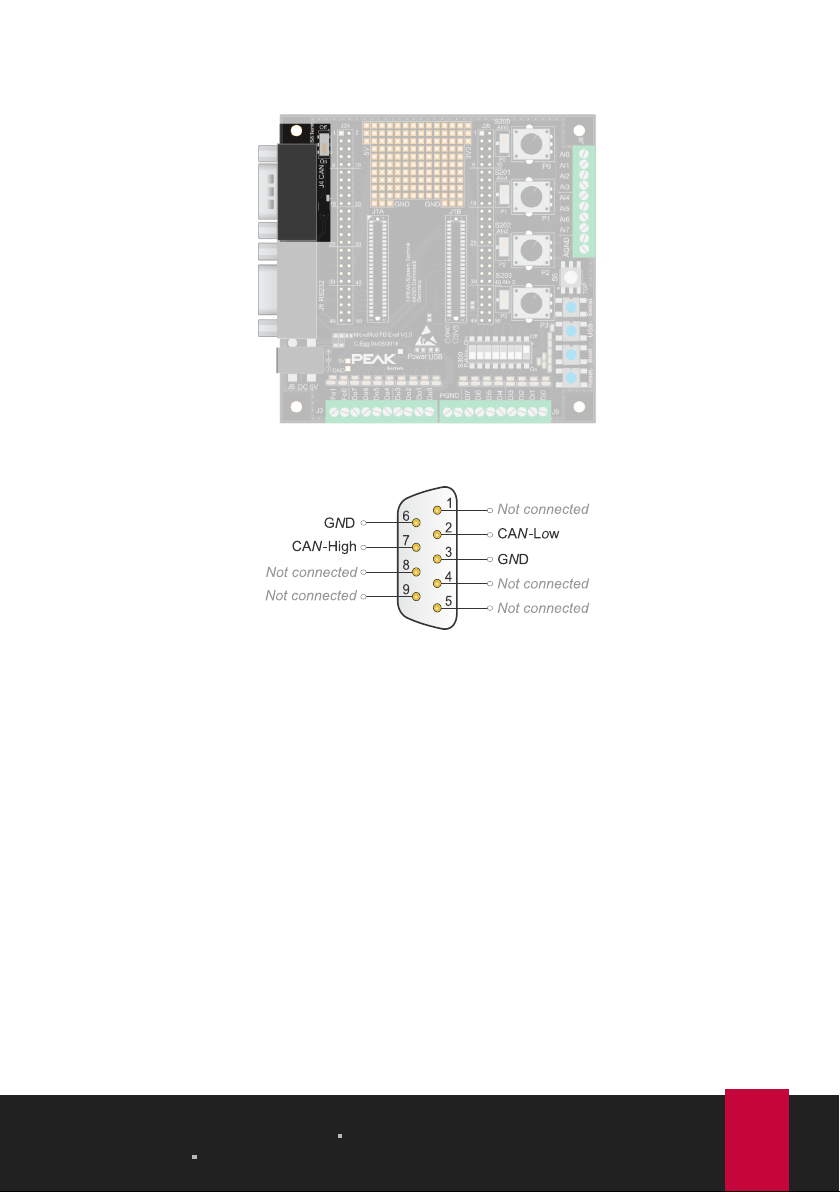

Figure 7: CAN connector and switch for the CAN bus termination
Figure 8: Assignment of the D-Sub male connector for CAN
CAN Bus Termination
If the Evaluation Board is connected to one end of the High-speed CAN bus and the
CAN bus is not terminated at that end, a termination can be activated on the Evalu-
ation Board. For this purpose, switch S3 (next to the CAN connector) must be set to
the On position.
For better electromagnetic compatibility, a split termination is implemented.
12

3 Components of the Evaluation Board PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH

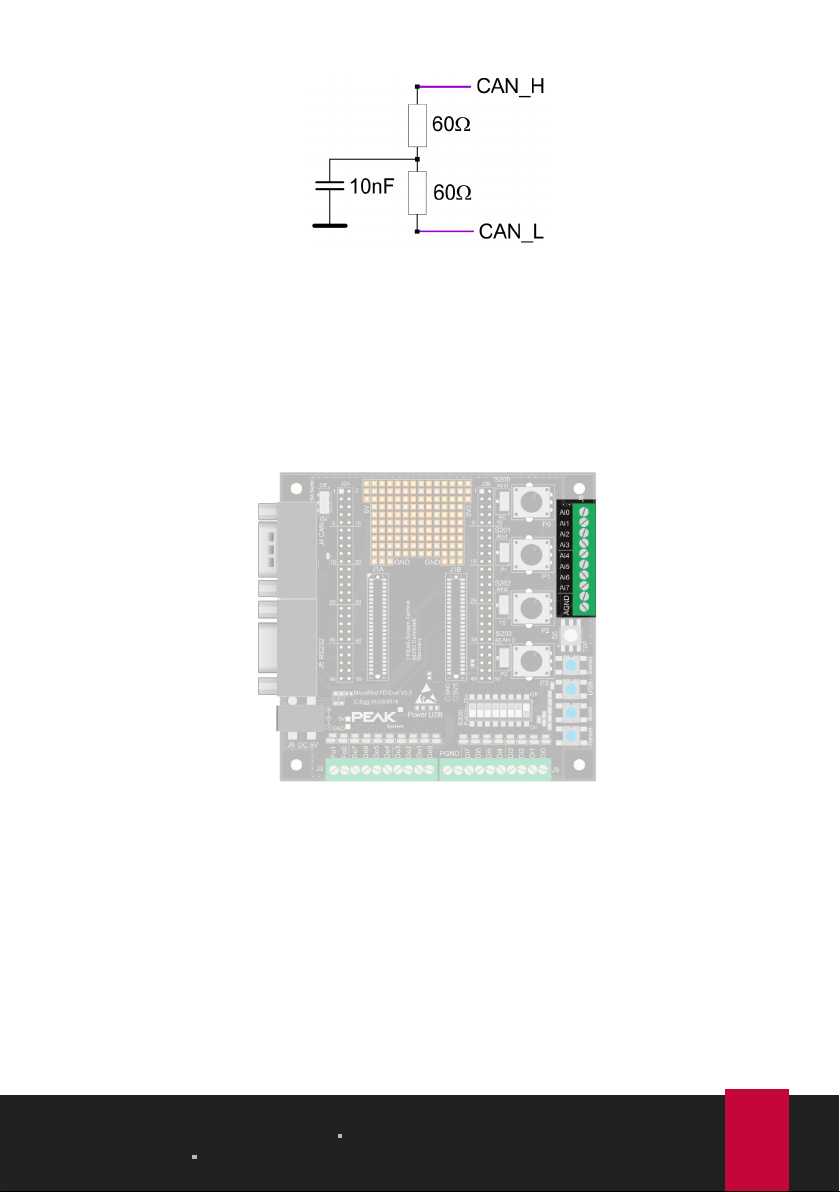

Figure 9: Split termination for the High-speed CAN bus
3.4 Analog Inputs (J8) and Potentiometers
The Evaluation Board has 8 analog inputs (Ai0 to Ai7). The corresponding connector is
J8 (screw terminals on the upper right).
Figure 10: Screw terminals J8 for analog inputs
The analog reference voltage is 3.0V. The input impedance is 11kΩ.
The Evaluation Board has 4 potentiometers (P0 to P3) which can be used for simu-
lating input signals. Using the switches S200 to S203, the analog inputs Ai0 to Ai3 are
disconnected from the screw terminals and connected to the respective poten-
tiometer.
13

3 Components of the Evaluation Board PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH
Figure 11: Potentiometers for analog inputs Ai0 to Ai3
3.5 Digital Inputs (J9)
The Evaluation Board has 8 digital inputs with TTL levels (Di0 – Di7). The corres-
ponding connector is J9 (screw terminals, bottom right).

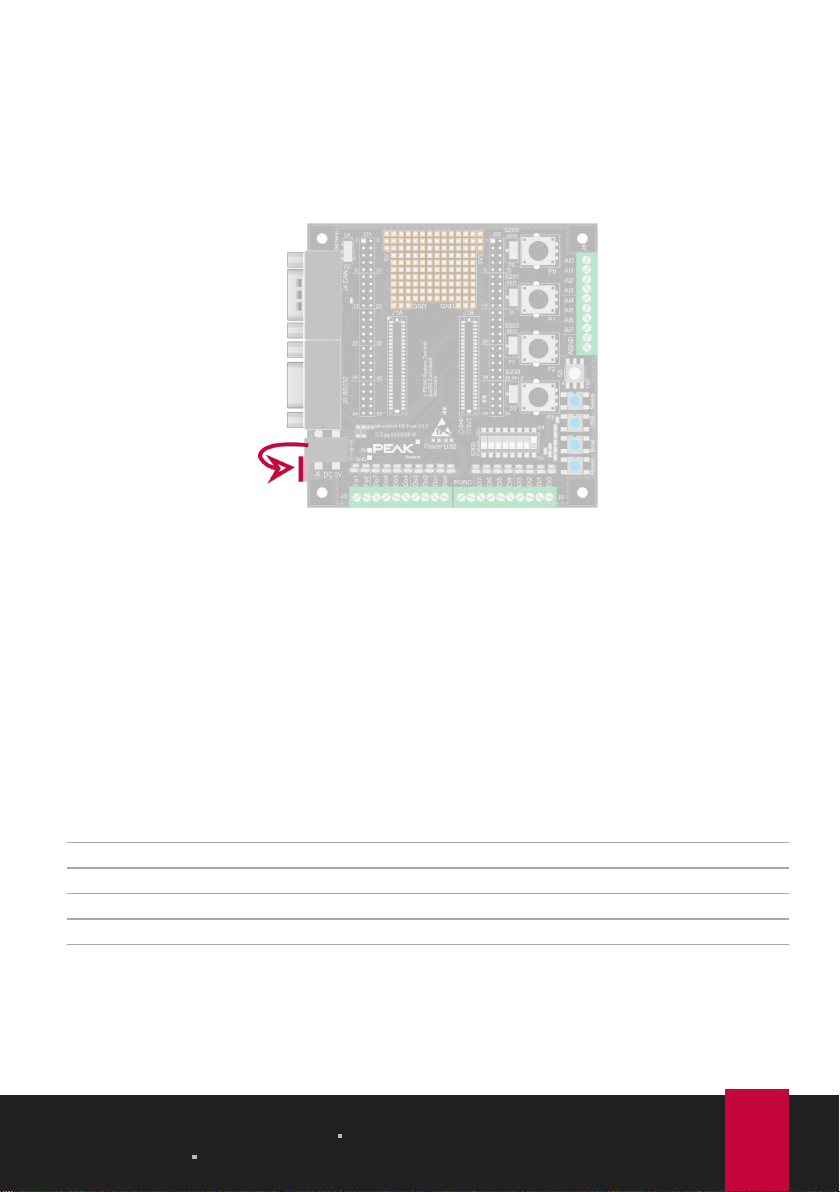

Figure 12: Screw terminals for digital inputs with associated DIP switches and LEDs
14

3 Components of the Evaluation Board PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH
The inputs each have a pull-down resistor and are High-active. The switching
thresholds are below 2.2V to the Low state and above 3.3V to the High state. Each
input status is indicated by an LED.
For test purposes, the individual input signals can be switched via the DIP switches
S300. A DIP switch activates a pull-up resistor with 2.7kΩ to the 5-Volts supply. It can
be permanently activated if a low-active signal is fed to the input via the screw
terminal (e.g. push button connected to ground).
Signals that directly lead to the MicroMod FD can be accessed on the following points
of the field J2B:
Pin on J2B Processed input signal (inverted)
31 Di0
33 Di1
35 Di2
37 Di3
39 Di4
41 Di5
43 Di6
45 Di7
3.6 Digital and Frequency Outputs (J3)
The Evaluation Board has 8 digital outputs (Do0 to Do7) and two frequency outputs
(Fo0 and Fo1). Each output status is indicated by an LED. An illuminated LED corres-
ponds to the active state.
15

3 Components of the Evaluation Board PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH

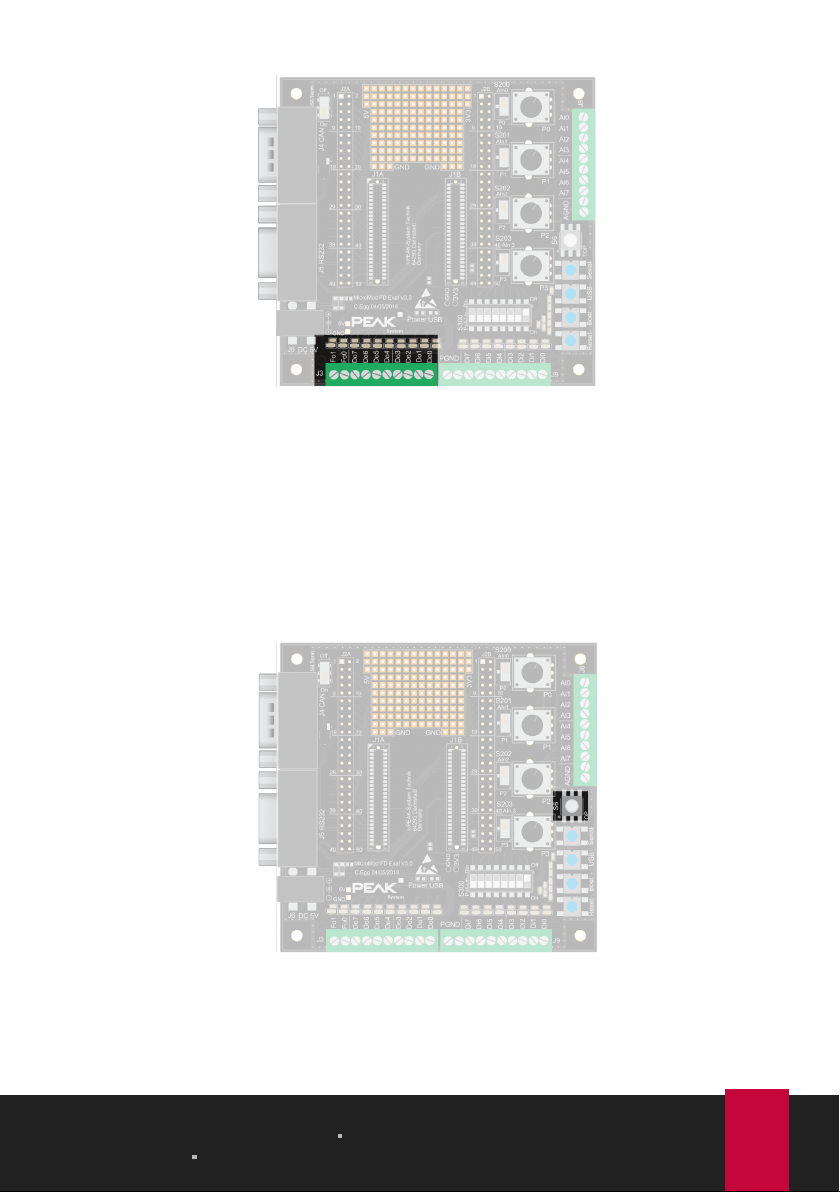

Figure 13: Screw terminals J3 for digital outputs and frequency outputs with associated LEDs
3.7 Module Number (S2)
The module number is used for the identification of a single MicroMod FD on the CAN
bus when configurations are sent and received. The rotary switch can be used to set
a module number from 0 to 15 (hexadecimal 0 to F).
Figure 14: Rotary switch for module number, position 0 on the left
16

3 Components of the Evaluation Board PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH
Each MicroMod FD connected to the CAN bus must have a unique module number for
the configuration process, else unpredictable configuration results may occur.
The set module number has no influence on the CAN communication during normal
operation. If there are several MicroMod FD on the CAN bus, various configurations
must be used to ensure that there is no overlap in the transmit CAN IDs.
3.8 RS-232 Connector (J5)
The RS-232 connector can alternatively be used for transferring firmware to the
PCAN-MicroMod FD. You need a suitable flashing tool, e.g. Flash Magic (www.-
flashmagic-tool.com), and a firmware file in hex format.
Figure 15: RS-232 connector
Figure 16: Pin assignment of the D-Sub socket for RS-232
17

3 Components of the Evaluation Board PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH
3.9 USB Connector (J7)
The Micro USB connector is located on the left edge of the Evaluation Board, on the
bottom side of the board. Primarily, it is used for voltage supply of the Evaluation
Board with 5V DC.
Figure 17: Micro USB socket on the bottom side of the Evaluation Board
In addition, the USB connector can be used as one possibility to transfer firmware to
the PCAN-MicroMod FD.
3.10 Push Buttons for Reset and Flash Mode
The four blue push buttons located on the lower right side have the following func-
tions:
Push button Function
Reset Reset of the PCAN-MicroMod FD, restart of the firmware
Boot Flash mode for a firmware update via CAN
USB Flash mode for a firmware update via USB
Serial Flash mode for a firmware update via RS-232
18

3 Components of the Evaluation Board PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH
Figure 18: Blue push buttons
More information about the procedure for firmware update is available in chapter 4
Firmware Update of the PCAN-MicroMod FD on the next page.
19

4 Firmware Update of the PCAN-MicroMod FD PCAN-MicroMod FD Evaluation
User Manual 1.0.0 © 2019 PEAK-System Technik GmbH
4 Firmware Update of the PCAN-
MicroMod FD
The PCAN-MicroMod FD can be equipped with new firmware in three different ways:
via CAN bus
via USB connection (easiest way on the Evaluation Board)
via serial RS-232 interface (only for special purposes)
The following sections describe the procedures. Step through all subsections in a
section.
4.1 Firmware Update via CAN Bus
4.1.1 System Requirements
Computer with operating system Windows 10, 8.1, 7 (32/64-bit)
CAN interface of the PCAN series installed in/attached to the computer
CAN cabling between the CAN interface and the Evaluation Board with proper
termination (120 Ω on each end of the CAN bus)
4.1.2 Activating the Flash Mode
Do the following to set the PCAN-MicroMod FD to flash mode for CAN:
1. Make sure that the Evaluation Board is supplied with power (Power LED on the
Evaluation Board is on).
2. Press and hold the button for the Boot flash mode.
3. Briefly press the Reset button.
20
