Peak PCAN-MicroMod Mix 2 User manual

Application-specific PCAN-MicroMod
Motherboard
PCAN-MicroMod Mix 2
User Manual
Document version 1.11.2 (2017-02-03)

PCAN-MicroMod Mix 2 – User Manual
2
Relevant products
Product Name Model Part number
PCAN-MicroMod Mix 2 Including casing and
PCAN-MicroMod
IPEH-002203
PCAN-MicroMod Configuration Version 2.5
(Windows software)
CANopen® and CiA® are registered community trade marks of CAN in Automation
e.V.
All other product names mentioned in this document may be the trademarks or
registered trademarks of their respective companies. They are not explicitly marked
by “™” and “®”.
© 2017 PEAK-System Technik GmbH
PEAK-System Technik GmbH
Otto-Roehm-Strasse 69
64293 Darmstadt
Germany
Phone: [phone]
Fax: [phone]
www.peak-system.com
[e-mail]
Document version 1.11.2 (2017-02-03)

PCAN-MicroMod Mix 2 – User Manual
3
Contents
1 Introduction 4
1.1 Properties at a Glance 4
1.2 Prerequisites for Operation 6
1.3 Scope of Supply 6
2 Hardware Configuration 7
2.1 Pull-up/Pull-down Circuits for the Digital
Inputs 8
2.2 Measuring Range Extension of the Analog
Inputs 9
2.3 Using a PT1000 with Three-Wire Connection 10
3 Operation 11
3.1 Port Assignment 11
3.2 Configuration Program 12
3.2.1 System Prerequisites 12
3.2.2 Installing the Program 13
3.2.3 Creating a Configuration 13
3.2.4 Applicable MicroMod Services 14
3.2.5 Relation Temperature/Digits 16
3.3 Status LEDs 17
3.4 Several MicroMods on the CAN Bus 17
4 Technical Specifications 19
Appendix A CE Certificate 22
Appendix B Dimension Drawing 23

PCAN-MicroMod Mix 2 – User Manual
4
1 Introduction
The motherboards for PCAN-MicroMod provide an application-
oriented environment. Typical characteristics of this product group
include a wide supply voltage range and the protective circuit for
the inputs and outputs. CANopen® firmware is available for all
PCAN-MicroMod motherboards.
The Mix 2 motherboard serves common analog and digital require-
ments and supports temperature measurement.
Note: This manual only refers to the motherboard as base for a
PCAN-MicroMod and to the standard firmware. For the PCAN-
MicroMod and the configuration program PCAN-MicroMod
Configuration, there is separate documentation.
1.1 Properties at a Glance
Completely configurable using the Windows program PCAN-
MicroMod Configuration
Communication through High-speed CAN (ISO 11898-2)
Operating voltage 11 to 26 V (8 to 26 V w/o use of analog
outputs)
Aluminum profile casing with spring terminal connectors
Top hat rail mounting option available
Extended operating temperature range from -40 to +85 °C
(-40 to +185 °F)

PCAN-MicroMod Mix 2 – User Manual
5
2 digital inputs:
 Pull-up or pull-down circuit selectable (for both together)
 High state at 5 to 18 V input voltage
 Schmitt trigger behavior, inverting
 Low-pass behavior
 Parallel connection of a frequency input for alternative use
(e.g. fast status changes, countings)
2 inputs for connecting a thermistor and a platinum sensor
PT1000, measuring range each 0 to 70 °C (32 to 158 °F)
3 analog inputs:
 Pull-down circuit
 Measuring range unipolar 0 to 4.1 V
 Resolution 10 bits
 Sampling rate 1 kHz
 Measuring range extension possible
 Low-pass behavior
 Protection against undervoltage and overvoltage
1 digital output:
 Fast low-side switch, max. 55 V, 0.75 A
 Short circuit protection
1 analog voltage output:
 Voltage range 0 to 10 V (based on 16-bit PWM)
 Load ability: 15 mA, short-circuit proof
1 analog current output with 0 to 20 mA (based on 16-bit PWM)
Status LEDs for power supply and digital output

PCAN-MicroMod Mix 2 – User Manual
6
1.2 Prerequisites for Operation
Power supply in the range of 11 to 26 V DC (8 to 26 V w/o use of
analog outputs)
For creating and transferring configurations: computer with
Windows 10, 8.1, 7 (32-bit or 64-bit) and a CAN interface from
the PCAN series
1.3 Scope of Supply
PCAN-MicroMod
PCAN-MicroMod motherboard in casing including mating
connectors
PCAN-MicroMod Configuration for Windows
Manual in PDF format

PCAN-MicroMod Mix 2 – User Manual
7
2 Hardware Configuration
You can customize the motherboard by modifying the hardware.
The following subsections contain descriptions about possible
modifications.
Accessing the Motherboard
In order to carry out the modifications described in the following
sections, unscrew the lid of the casing and pull off the MicroMod
from the motherboard.
Attention! Electrostatic discharge (ESD) can damage or destroy
components on the motherboard or the PCAN-MicroMod. Take
precautions to avoid ESD when handling the boards.
Remounting the MicroMod
When you remount the MicroMod, take notice of the white triangu-
lar marks on each the motherboard and the MicroMod (upper left
corner). These marks must align.

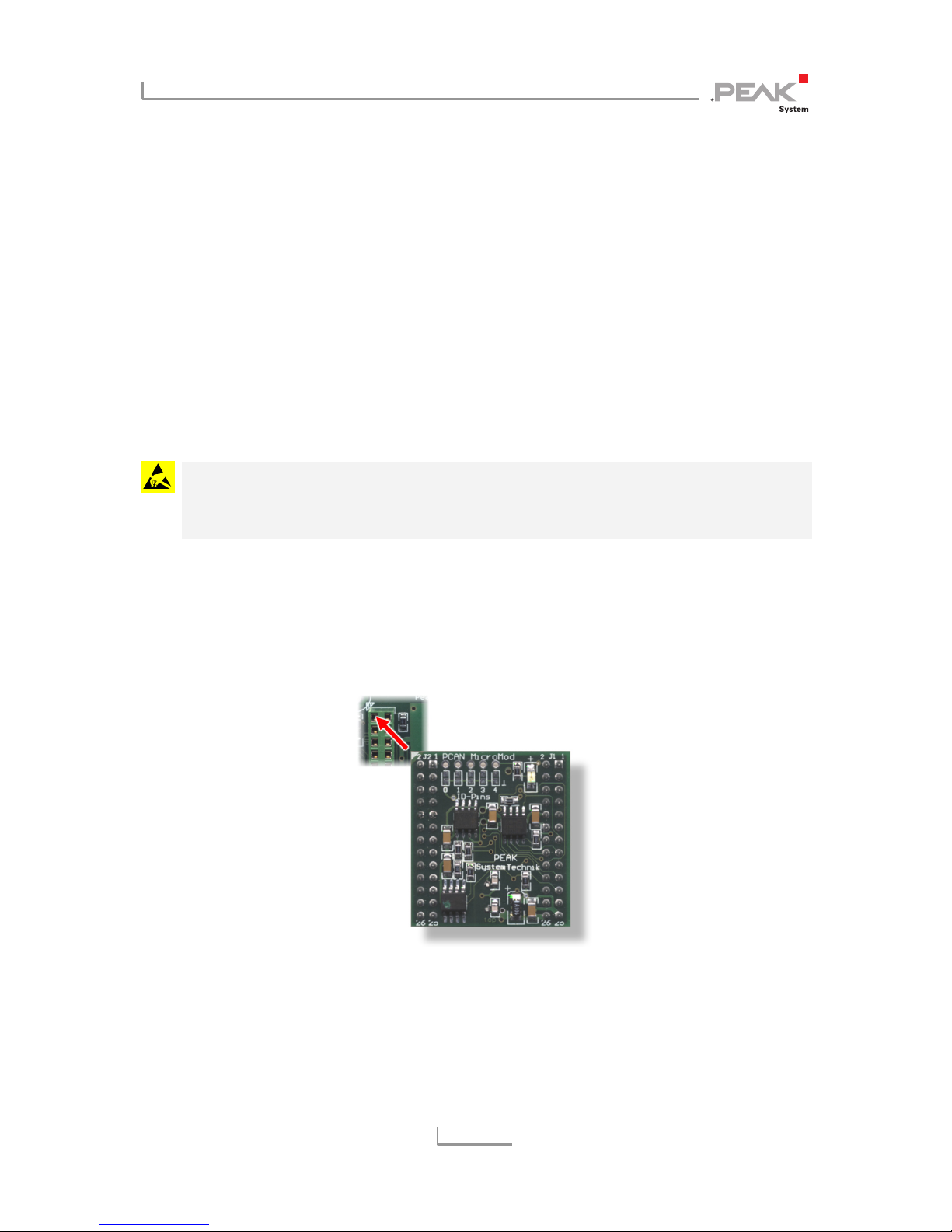

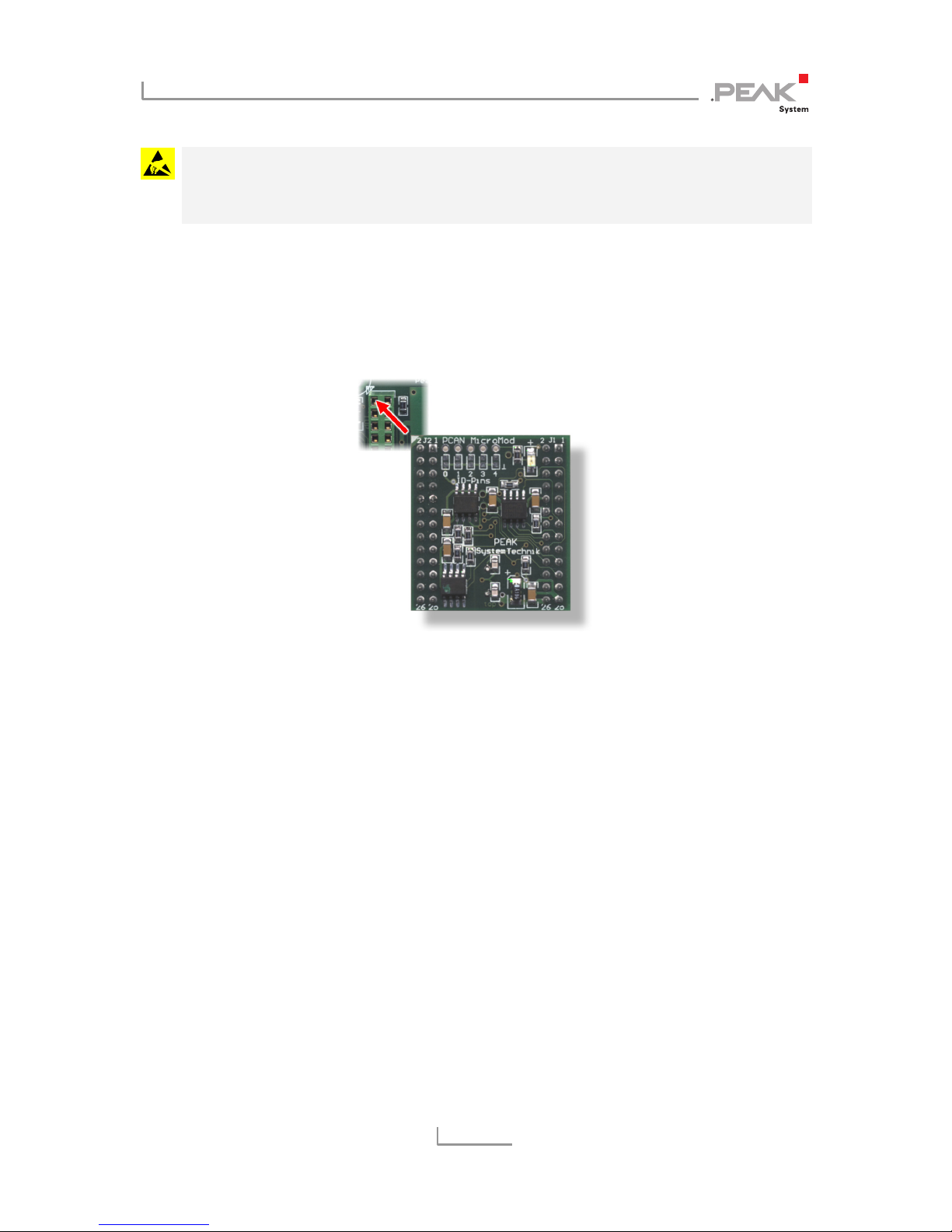

Figure 1: Positioning of the MicroMod

PCAN-MicroMod Mix 2 – User Manual
8
2.1 Pull-up/Pull-down Circuits for the
Digital Inputs
At delivery the digital inputs are set to pull-up circuits. You can set
them together to pull-down circuit. This is done by repositioning a
0-Ohm resistor.
Digital inputs Pull-up (+Ub)*Pull-down (GND)
DI 0 and DI 1 R73 (0 ) R74 (0 )
*Setting at delivery

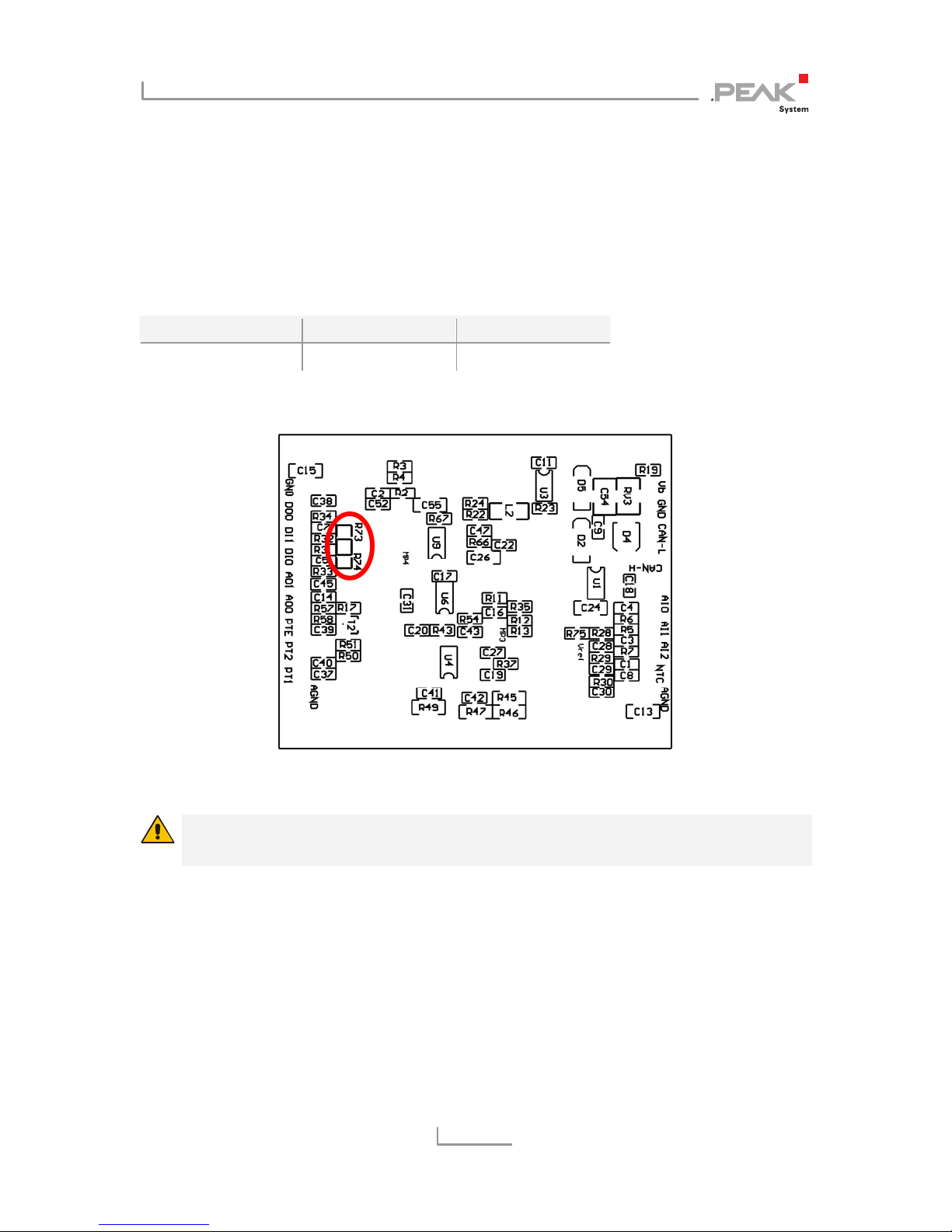

Figure 2: Position R73/R74 (bottom side of the PCB)
Attention! Double-check for an inadvertent short circuit after
altering the setup.

PCAN-MicroMod Mix 2 – User Manual
9
2.2 Measuring Range Extension of the
Analog Inputs
You can extend the measuring range of each analog input to a
higher maximum voltage than 4.1 Volts by using a voltage divider.
On delivery of the motherboard the resistor positions R28 to R30 on
the bottom side of the PCB are not equipped. By inserting a resistor
Rxwith a value calculated with the following formula the measuring
range is extended to the desired maximum voltage UMB.
)V1.4U(
1
V1.4
U
2400
RMB
MB
x



Figure 3: Position R28 to R30 (bottom side of the PCB)

PCAN-MicroMod Mix 2 – User Manual
10
2.3 Using a PT1000 with Three-Wire
Connection
At delivery the Mix 2 motherboard is configured to be used with a
PT1000 thermistor with two-wire connection. If you would like to
use a PT1000 with three-wire connection instead (e.g. in case of a
long connection cable), you must remove the 0-Ohm resistor on the
PCB located on position R76.
Figure 4: Position R76
