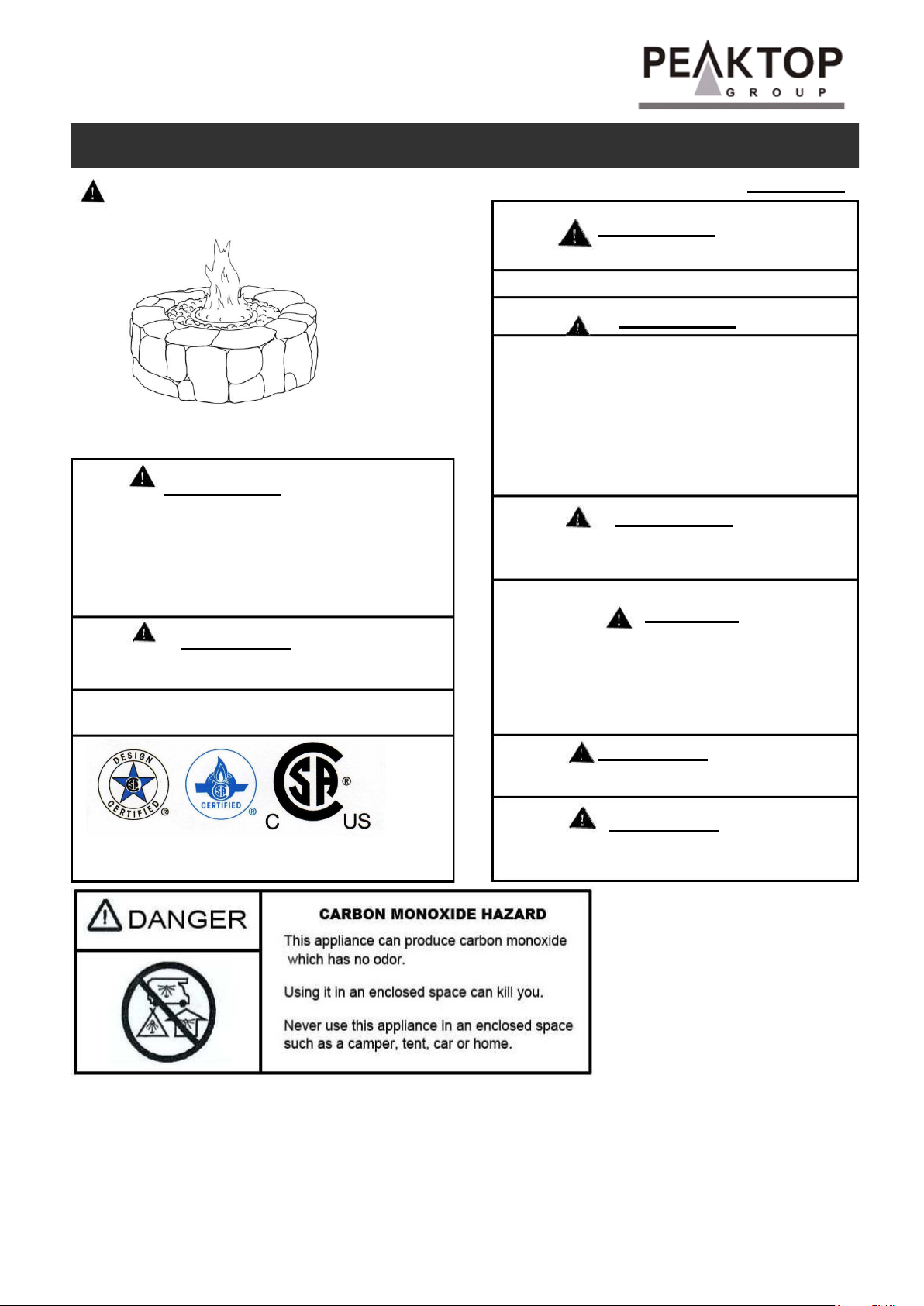

PEAKTOP HF09501AA User manual

USE AND CARE GUIDE
Item No.: HF09501AA
READ BEFORE USE!
WARNING
For Outdoor Use Only! Use Propane Gas Only !
Propane cylinders sold separately.
WARNING
Improper installation,
adjustment, alteration, service or maintenance can cause
injury or property damage. Read the owner's manual
thoroughly before installing or servicing this equipment. If
the information in this manual is not followed exactly, a
fire or explosion may result causing property damage,
personal injury or loss of life.
WARNING
USE PROPANE GAS ONLY!
WARNING
-Do not store or use gasoline or other
flammable vapors in the vicinity of this or any other
appliance.
The propane cylinder must be disconnected when
this firebowl is not use.
- Service must be performed by a qualified installer, service
agency or the gas supplier.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call your gas supplier or fire department.
WARNING
For use with cylinders marked PROPANE only. DO NOT
connect to a remote gas supply.
If the firebowl is stored indoors, detach and leave
propane cylinder outdoors.
WARNING
This firebowl must be attended at all times!
WARNING
An LP-cylinder not connected for use shall not be stored
in the vicinity of this or any other appliance.
Design Complies with ANSI Z21.97-2014 • CSA 2.41-(2014)
Outdoor Decorative Gas Fireplaces.
1
1
READ BEFORE USE!
OWNER'S MANUAL
Factory No.: HYFP50095-32 Item No.: 67761







Design certified under ANSI =21.97 CSA 2.41-(2014)
Requirements for Outdoor Gas Fireplaces

WARNING

USE PROPANE GAS ONLY!
-Do not store or use gasoline or other
flammable vapors in the vicinity of this or any
other appliance.
- Service must be performed by a qualified installer,
service agency or the gas supplier.
WARNING
For use with cylinders marked PROPANE only. DO
NOT connect to a remote gas supply.

If the firebowl is stored indoors, detach and leave
propane cylinder outdoors.

WARNING

For Outdoor Use Only! Use Propane Gas Only !
Propane cylinders sold separately.
WARNING
Improper installation, adMustment, alteration,
service or maintenance can
cause inMury or
property damage.RHDG WKH RZQHUV
manual
thoroughly Eefore installing or VHUYLFLQJ WKLV
eTuipment.
II WKH LQIRUPDWLRQ LQ WKLV PDQXDO LV
QRW IROORZHG H[DFWO\
DILUH RU H[SORVLRQ PD\
UHVXOW FDXVLQJ SURSHUW\
GDPDJH
SHUVRQDO LQMXU\
RU ORVV RI
OLIH
WARNING

The propane cylinder must be disconnected
when
this firebowl is not
use.

DANGER
If you smell gas:
1. Shut off gas to the
appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance
and
immediately call your gas supplier or fire
department.
WARNING

This fireEoZlmust Eeattended at all times!

WARNING
AnLP-cylinder not connected for use shall not Ee
stored in the vicinity of this or any other appliance.


DANGER
Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious
bodily injury or death, or in a fire or an explosion causing damage to property.
WARNING
*Do not use this firebowl for cooking.
*Remove the PVC Cover from the firebowl before opening the appliance.
*Do not lay the PVC Cover over the firebowl until it is turned off and completely cooled down.
*Do not burn any other materials than are supplied with and intended for use in this firebowl.
*Do not pour water into firebowl.
*The installation of this product must conform with local codes or, in the absence of local codes, with either the National
Fuel Gas Code,ANSI Z223.1/NFPA 54, OR CAN/CGA-B149.1, National Gas and Propane Installation Code.
*Do not use this firebowl if any part has been under water.
*Do not store a spare or disconnected propane cylinder under or near this firebowl.
*After a period of storage, and/or non use, the propane firebowl should be checked for gas leaks and burner obstructions before use.
*Do not operate the propane firebowl if there is a gas leak present.
*Never use a flame to check for gas leaks.
*Combustible materials should never be within 48 inches of the top, back or sides of your propane firebowl.
*Do not put any other fireplace cover or anything flammable on, or beneath the firebowl.
*The propane firebowl should never be used by children. Children must be supervised when they are anywhere near the appliance.
*Users should be alerted to the hazards of high surface temperatures and keep a safe distance to avoid burning or clothing ignition.
*Pay attention when operating the firebowl. It is hot in use and should never be left unattended. Do not transit it while in operation.
*Should fire go out while burning, turn the gas valve off. Follow the instruction and wait five minutes before attempting to relight.
*Never use charcoal or any other solid fuel in the firebowl. Never parch clothing or other flammable materials on or near the firebowl.
*Never lean over the open firebowl or place hands or fingers on the upper portion of an operational unit.
*Keep ventilation openings in cylinder enclosure(FIREBOWL BODY) free and clear of debris.
*Inspect the burner before each use of the appliance. If there is evidence of damage, the burner must be replaced prior to the appliance
being put into operation. Use Manufacturer approved or supplied replacement burner only.
*Do not rest feet on the firebowl.
*Please take out the battery when not using the firebowl for an extended length of time.
*Do not enlarge valve orifices or burner ports when cleaning the valve or burner.
*Cylinder supply system must be arranged for vapor withdrawal.
*Propane Tank used must include a collar to protect the cylinder valve.
*Never fill the cylinder beyond 80% full.
*Propane gas is not natural gas. Only use propane for this firebowl.
*The conversion or attempted use of natural gas in a propane unit or propane gas in a natural gas unit is dangerous.
*Do not use this firebowl on vehicles or boats. Always operate the appliance on flat ground outdoors.
*Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.
*Do not use this firebowl unless all parts are in place.
*The maximum gas supply pressure is 250psi.
*Use LP cylinders only with these required measurements: 12"(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.) capacity
maximum.
*Clean the battery contacts and also those of the device prior to battery installation.
*Remove batteries from equipment which is not to be used for an extended period of time.
*Remove used batteries promptly.
2

FOR PROPANE GAS UNITS
*The gas pressure regulator provided with the propane fire bowl must be used.
*Do not attempt to disconnect the gas regulator or any gas fitting while your firebowl is in operation.
*A dented or rusty propane cylinder may be hazardous and should be checked by your gas supplier prior to use.
*Do not use a propane cylinder with a damaged valve and any other worn out parts.
*Transit and store the empty gas cylinders carefully and properly.
*If you see, smell or hear the hiss of escaping gas from the propane cylinder:
1. Turn off the gas supply and get away from the gas cylinder and the firebowl at once.
2. Do not attempt to correct the problem yourself.
3. Get to your gas supplier and/or the fire department for help.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the area of the appliance.
• Clothing or other flammable materials should not be hung from the appliance, or placed on or near the appliance.
• Any guard or other protective device removed for servicing the appliance must be replaced prior to operating the appliance.
• Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually
by a qualified service person. More frequent cleaning may be required as necessary. It is imperative that the control compartment,
burners and circulating air passageways of the appliance be kept clean.
•Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least
annually by a qualified service person.
Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas
control which has been under water.
• Use only the specific size and capacity of the cylinder noted.
• A statement that the LP-gas supply cylinder to be used must be constructed and marked in accordance with the specifications for LP-
gas cylinders of the U.S. Department of Transportation (DOT).
• This appliance shall be used only outdoors in a well-ventilated space and shall not be used in a building, garage or any other enclosed
area as the instructions state.
•How to disconnect a gas bottle
Turn OFF control knob and LP cylinder valve. Turn coupling nut counterclockwise by hand only - do not use tools to
disconnect. Loosen cylinder screw beneath bottom shelf, then lift LP cylinder up and out of shelf. Place dust cap on cylinder
valve outlet whenever the cylinder is not in use.
• Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance. Cylinders must be
stored outdoors in a well-ventilated area out of reach of children. Disconnected cylinders must have threaded valve plugs tightly
installed and must not be stored in a building, garage or any other enclosed area.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the
owner’s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service
agency or the gas supplier.
• The LP-gas supply cylinder must be disconnected when this appliance is not in use
• Only cylinder marked “propane” shall be used.
Caution:
Only use the pressure regulator and hose assembly supplied with this firebowl. Replacement pressure regulator and hose assemblies
must be specified .
3

Inspect the hose before each use of the appliance. If the hose shows signs of cracks, abrasions, cuts or damage of any kind, do not
operate the appliance. Fix or replace the hose as required before using the appliance. For assistance with repair or replacement of
the hose, call Bond Manufacturing at 1-866-771-2663. Use only replacement parts from the manufacturer.
WARNING !
* Do not light or use gas unit if lava rocks are wet. Ensure lava rocks are completely dry before igniting as intense heat could cause the
rocks to crack.
* Lava rocks could hit somebody's face or eyes during initial start of this unit, so please keep away from the firebowl for the first 20
minutes after it has been ignited.
*LP GAS WARNING: Do not exceed 1/4" depth of fire glass or small lava rocks directly above burner holes. Applying too many lava
rocks/fire glass may result in unburned gas pooling in firebowl or firepit. Ventilation is required to allow fresh air into enclosure and any
residual gas to escape.
*Caution: This heating item should not be used on plastic composite or artificial wood decks.
Warranty and Installation Information:
The Bond warranty will be voided by and Bond disclaims any responsibility for the following actions:
►Modification of the firebowl and/or components including the gas valve assembly.
►Use of any component part not manufactured or approved by Bond.
►Use and installation other than as instructed in this manual.

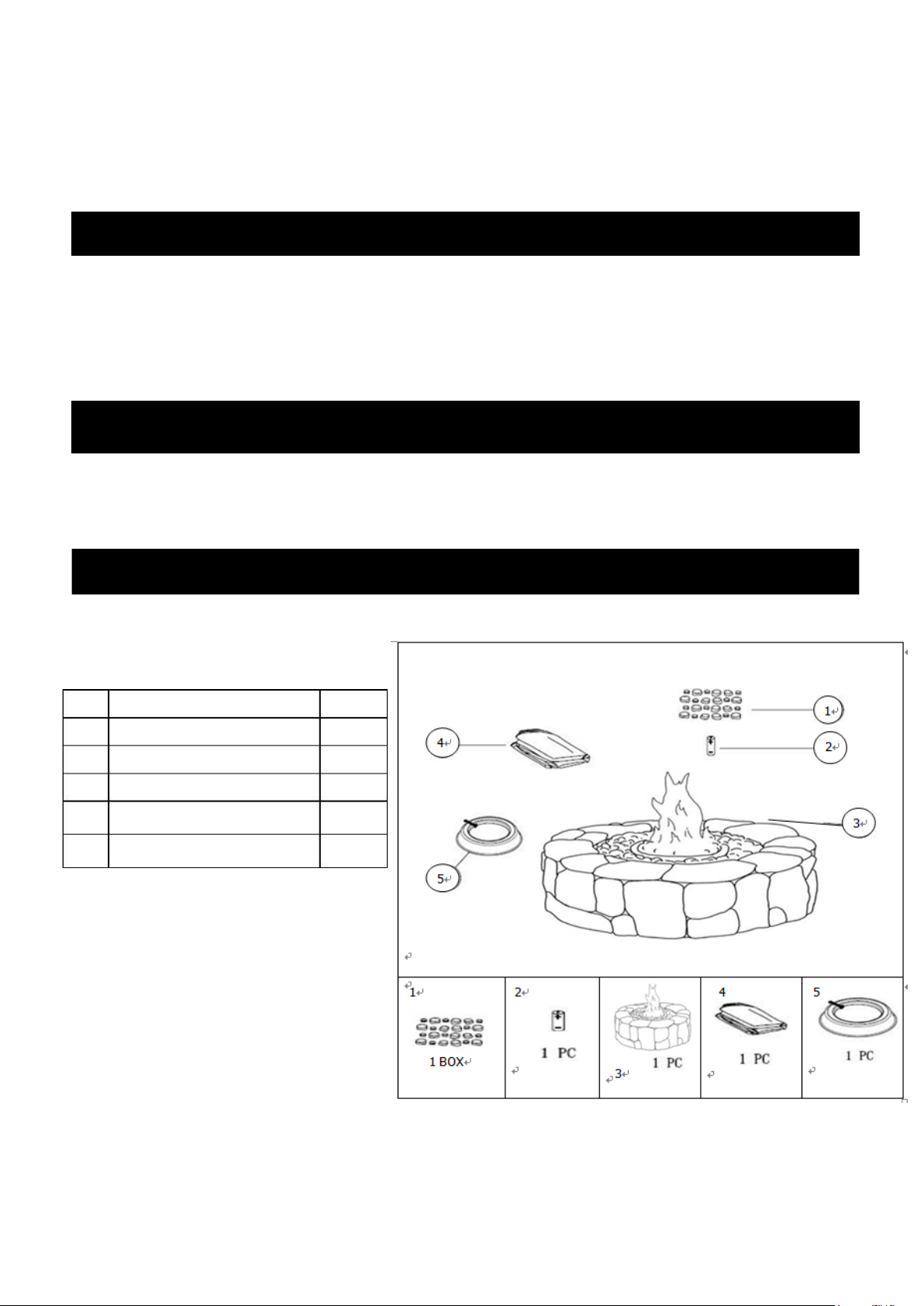

Accessories
ITEM
DESCRIPTION
Lava rocks
QTY
1
2
3
4
1 BOX
Battery (AAA)
Body
1PC
1PC
1PC
PVC cover
5
Tank Seat
1PC
4
call the seller,Use only replacement parts from the manufacturer.
We warranty will be voided by and We disclaims any responsibility for the following actions:
us.

ITEM
SPECIFICATION
Firebowl
QTY
A
B
1
1
1
1
1
1
1
1
Body
C
Burner
D
Screen
Lava Rock
Battery
Control Knob
Electric Ignition
E
F
G
H
5

ASSEMBLY INSTRUCTIONS
* Please keep these owner's manual for future reference.
*If you have opened the carton and removed all packages, please disregard the STEP 1 and 2. See the STEP 3
directly.
STEP 1. (1) Open the carton and turn it upside down, make sure the 4 STEP 2. (1) Turn the firebowl heads up on a flat ground.
pieces of the carton being open up.
(2) Lift off the carton carefully and be wary of the accessories inside
falling away.
(2) Remove all the paper honeycomb board rounding the top
of the firebowl.
(3) Take all the packing materials away except for the paper
honeycomb board rounding the top of the firebowl.
STEP 3.
(I) Check each part before using the product. Make sure the gas supply
system is turned "OFF" before assembling. See Figure C.
(II)Put the gas tank in the metal tank seat. Make sure the gas tank sits on
the metal seat completely. Turn the wing screw on the outer part of
metal seat clockwise to secure the gas tank tightly. See Figure F
(III) Locate the battery, remove the plastic cover first. Unscrew the
rubber cap of the Electric Ignitor, place a AAA battery into the battery
case. Make sure the positive pole ("+") towards the cap. Screw the cap
back to the battery case tightly. See Figure D.
(IV)
Place the lava rock averagely in the fire bowl on the top of
the firebowl. See Figure E.

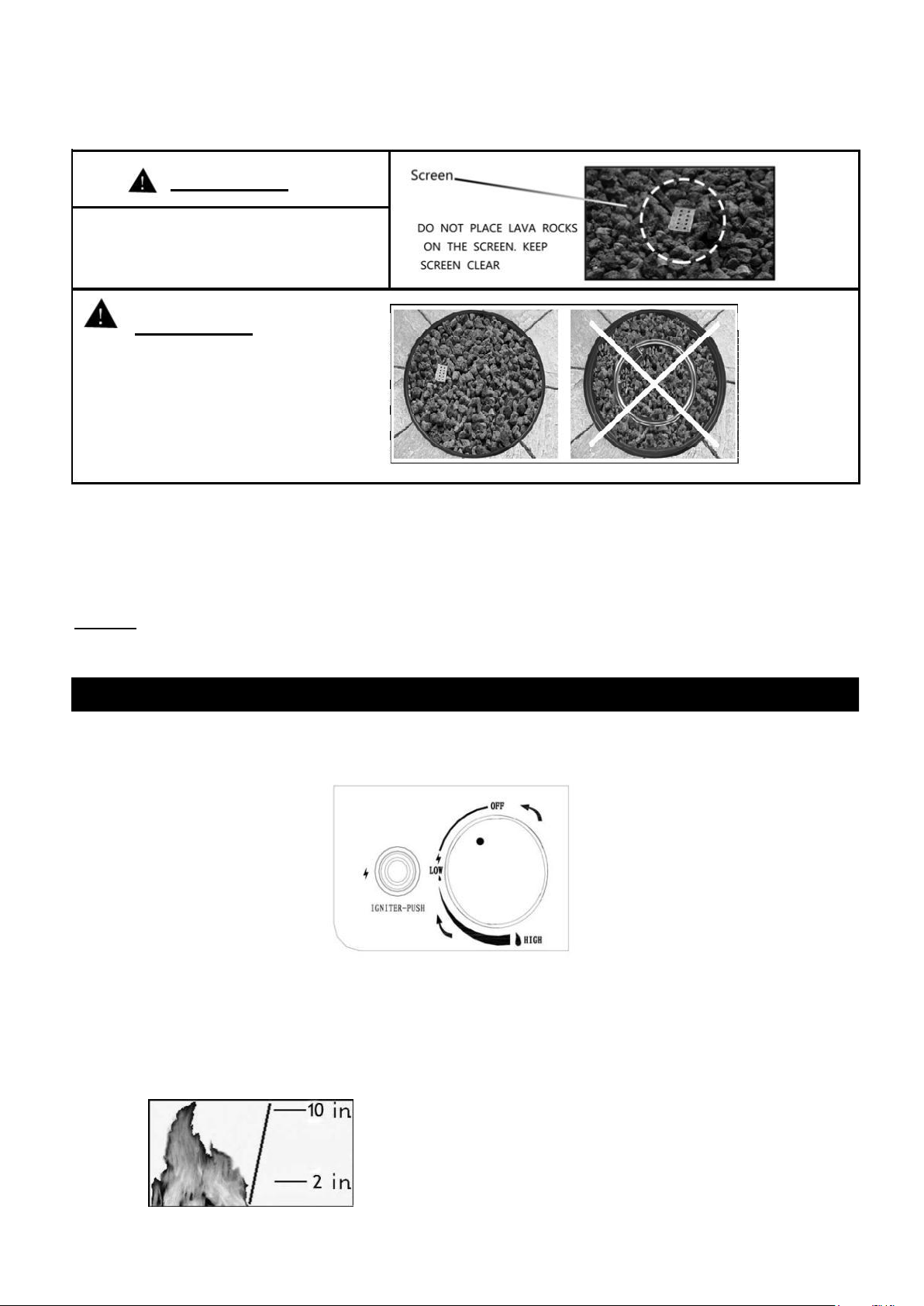

** DO NOT COVER THE IGNITION SCREEN when
placing the lava rock into the fire bowl. Always keep
Ignition SCREEN visible.
** Connect the Pressure-Regulating Valve to the gas tank.
See Figure H.
1) Turn the cylinder valve clockwise to close the gas supply
on the gas tank.
2) Screw Regulator Coupling clockwise by hand only. Make
sure it is fastened.
H
6

See WARNING and Figures:
WARNING
This screen must be clear and free of
obstructions at all times to insure proper
operation.
WARNING
The burner of the firebowl must be covered by
lava rocks completely. Otherwise the flame
may be extinguished. See the Figure for
the CORRECT and INCORRECT ways
for reference.
CORRECT
INCORRECT
Perform leak test in a well ventilated area outside and where no source of spark can occur.
Remove battery from igniter. Open tank valve fully (counter-clockwise). Turn the on/off valve at the unit to the ‘off’ position to
pressurize the hose assembly. Use a soapy water solution to check all the connections leaks before attempting to light the appliance. If a
leak is found, turn the tank valve off and do not use the appliance until repairs can be made.
TIPS:
Before Starting • Read the instructions thoroughly.
•
Check and make sure that all parts are present.
• For future reference, save this instruction manual.
TO LIGHT
Before each use, inspect the hose. Replace hose if there are any signs of cutting, wear or abrasion.
(1) Turn the cylinder valve on the gas tank counter-clockwise to open the gas supply.
(2) Close the storing door on the firebowl for the gas tank.
(3) Light the firebowl as below steps:

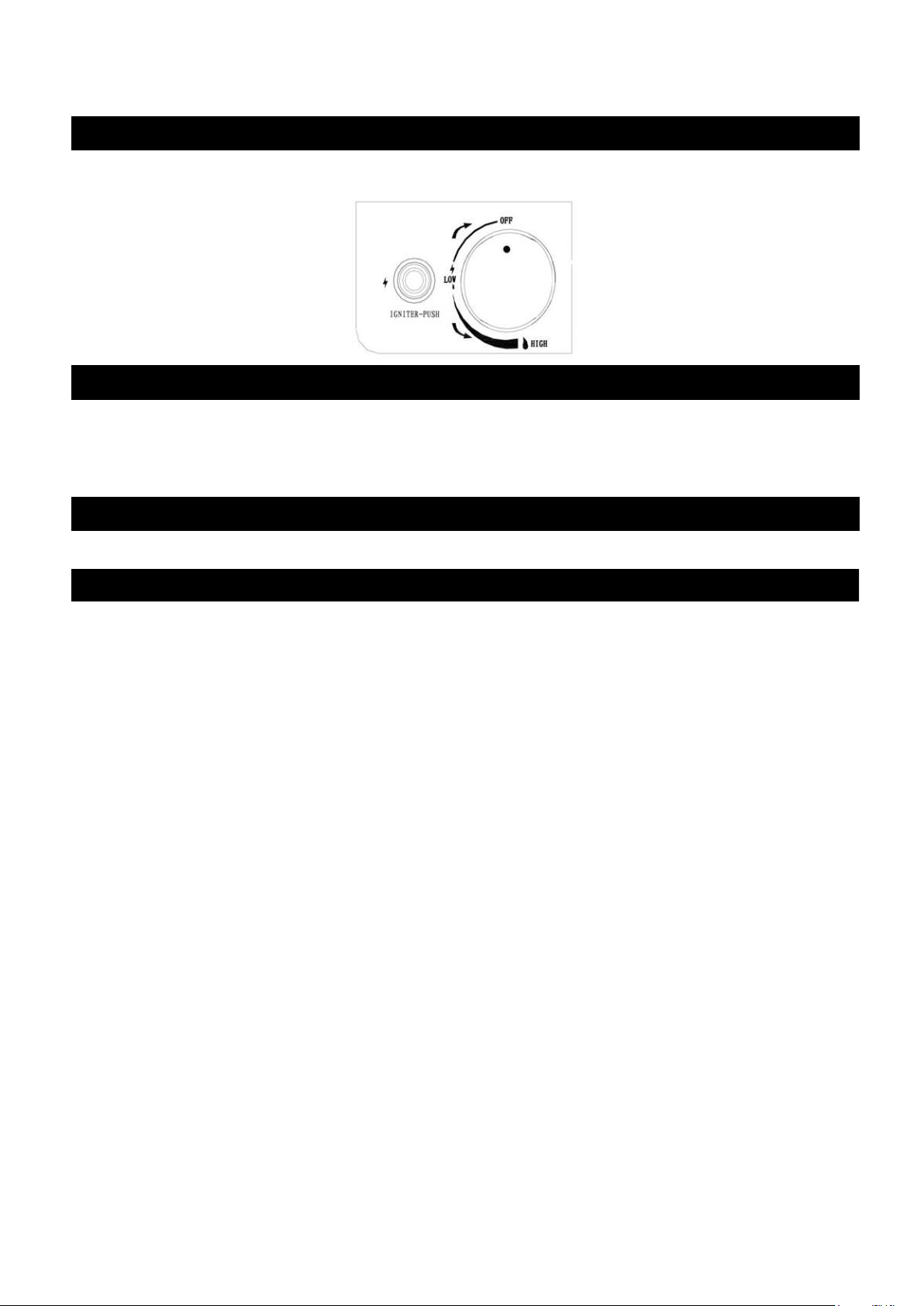

A. Press and hold the Electric Ignitor. Meanwhile, push and turn the Control Knob counter-clockwise to the "LOW" position.
Keep pushing the Control Knob to light the burner .
B. After ignition, release the Electric Ignitor. Continue to push and hold the Control Knob for 45 seconds.
C. If ignition does NOT immediately take place in seconds, push and turn the Control Knob clockwise to "OFF". Wait 5
minutes, then repeat the lighting procedure as above.
Caution: *If the burner does not ignite with the valve open, gas will continue to flow out of the burner and could accidently
ignite with risk of injury.
Observe flame height when lit:
Flame should possibly be a yellow/blue color between 2
to 10 inches high.
7
7
See WARNING and Figures :
WARNING
This screen must be clear and free of
obstructions at all times to insure proper
operation.
WARNING
The burner of the firebowl must be covered by
lava rocks completely. Otherwise the f la me
may be extinguished. See
the Figure for
the CORRECT and INCORRECT ways
for reference.
CORRECT INCORRECT
Perform leak test in a well ventilated area outside and where no source of spark can occur.
Remove battery from igniter. Open tank valve fully (counter-clockwise). Turn the on/off valve at the unit to the ‘off’ position
to
pressurize the hose assembly. Use a soapy water solution to check all the connections leaks before attempting to light the appliance. If a
leak is found, turn the tank valve off and do not use the appliance until repairs can be made.
TIPS: Before Starting • Read the instructions thoroughly.
• Check and make sure that all parts are present.
• For future reference, save this instruction manual.
TO LIGHT
Before each use, inspect the hose. Replace hose if there are any signs of cutting, wear or abrasion.
(1) Turn the cylinder valve on the gas tank counter-clockwise to open the gas supply.
(2) Close the storing door on the firebowl for the gas tank.
(3) Light the firebowl as below steps:
A. Press and hold the Electric Ignitor. Meanwhile, push and turn the Control Knob counter-clockwise to the "LOW" position.
Keep pushing the Control Knob to light the burner .
B. After ignition, release the Electric Ignitor. Continue to push and hold the Control Knob for 45 seconds.
C. If ignition does NOT immediately take place in seconds, push and turn the Control Knob clockwise to "OFF". Wait 5
minutes, then repeat the lighting procedure as above.
Caution: *If the burner does not ignite with the valve open, gas will continue to flow out of the burner and could accidently
ignite with risk of injury.
Observe flame height when lit:
Flame should possibly be a yellow/blue color between 2
to 10 inches high.

TO EXTINGUISH
䥧䢢䢢
Push the Control Knob and turn clockwise to the "OFF" position.
䥧䢢䢢Turn the cylinder valve on the gas tank clockwise to close the gas supply if not in use for a long time.(See figure below)
ROUTINE CARE
䥧䢢䢢
Keep your firebowl free and clear from combustible materials.
䥧䢢䢢
Visually inspect burner from obstructions and keep fireplace free and clear from debris.
䥧䢢䢢After the burner and lava rocks are completely cooled down, use a soft brush to get rid of the mild stains,
loose dirt and soil. Wipe with a soft cloth.
STUBBORN STAINS
䥧䢢
Stubborn stains, discoloration and possibly rust pitting can occur from exposure to harsh outdoor conditions.
䥧䢢Be careful not let any powder or solvent come in contact with painted or plastic components as damage may occur.
MAINTENANCE
䥧䢢
Store the firebowl in a cool dry place away from direct sunlight.
䥧䢢
The propane cylinder must be disconnected and removed from the firebowl before the appliance can be stored indoors.
䥧䢢Make sure both the gas and the firebowl are turned off before changing battery. Please refer to the process of assembling
battery.
䥧䢢
Use Manufacturer approved or supplied replacement parts and accessories only. Otherwise thi s may void the warranty of this product
And result in a hazardous condition.
䥧䢢
Please contact the Manufacturer for information regarding replacement hoses, thermocouples, ignitors, lava rocks, etc.
8
