PEAKTOP HF45701AA-S User manual

Owner’s Manual
HYFP50095
Item# HF45701AA-S
DANGER
WARNING
WARNING
WARNING
For outdoor use only.
Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Refer to the owner's information manual provided with this appliance.
For assistance or additional information consult a qualified installer, services agency or
the gas supplier.
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, leave the area immediately.
After leaving the area, call your gas supplier
or fire department.
Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury, or death.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance. An LP-cylinder not connected
for use shall not be stored in the vicinity of
this or any other appliance.
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage,personal injury,or loss of life.
•
•
•
•
Installation and service must be performed
by a qualified installer, service agency,
or the gas supplier.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.

WARNING
Before you assemble or operate this unit, please carefully read this entire manual. Failure to do so
may result in a re, explosion, injury or death.
SAFETY INFORMATION
Page 2
•
•THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall be used outdoors, in a
ventilated space and shall not be used in any enclosed area.
•This unit is to be used with propane gas only! (sold separately)
•Do not attach a remote gas supply to this unit.
•Only use propane gas for this unit.
•Solid fuels shall not be burned in this appliance.
•
•LP GAS WARNING: Do not use any more than 1/4in depth lava rocks/pumice stones/LavaGlass®
above the bur
•If the propane gas tank is leaking gas, you may hear, see, or smell a hiss. Do the following:
e department for help.
•Applying too much propane may result in gas pooling and will not burn. Allow fresh air into the unit
so that the remaining gas may escape.
•
•Manifold pressure: 11 inch w.c. (2.74kPa).
•
•You must use a propane tank that has a collar to protect the gas valve.
•
•The tank system must be set up for vapor withdrawal.
•Discontinue use if any part of the propane tank is damaged. Rust and dents may be hazardous and
should be inspected by a gas supplier.
•
•
rocks/pumice stones/LavaGlass®could pop out and cause injury. Should any rocks pop out, discard
them.
•Always ensure that lava rocks/pumice stones/LavaGlass®are completely dry before use. Failure to
do so will cause them to crack or pop.
•Do not operate unit until all parts are fully assembled.
•Do not paint or color any part of this heating unit.
•Unit may be hot while in use, do not attempt to move it while in use.
•Never leave this heating unit unattended while in use.
•This unit is not intended for cooking.
•
•Keep a safe distance to avoid burning skin or clothing.
•Do not sit or rest hands or feet on this heating unit.
•
•Keep all electrical cords and fuel supply hose away from heated surfaces.
Use LP propane tanks with the following dimensions: diameter 12 in, height 18 in - capacity 20 lbs.
The installation of this unit must adhere to local codes or Propane Storage and Handling Code,
CSA B149.2.

Page 3
IF APPLICABLE:
• Allow heating item to cool completely before placing on lid.
• DO NOT use heating item while lid is installed. Always remove the lid while heating item is in use.
•Combustible material should not be within 60 inches of the top of the unit, or within 48 inches
around the entire unit.
•Keep the appliance area clear and free fr
vapors and liquids.
•
•Do not add water into the unit.
•Do not operate unit if any part has been under water. Immediately call a qualied service
technician to inspect the appliance and replace any part of the control system and any gas
control that has been under water.
•Do not disconnect any part while unit is in use.
•Do not store a spare propane tank on or near this unit.
•If the heating unit is indoors, detach the propane tank and leave outdoors.
•Always remove protective cover before operating (if applicable).
•Do not set the protective cover over the unit until it is turned off and completely cooled down.
•Check for leaks after not using the unit for long periods of time.
•Children should never operate this unit. Children must be supervised while near this unit.
•Keep gas tank at least 5 feet away from unit when lit. (if external tank)
•Maximum gas supply:250 psi; Min. gas supply:10 psi.
inspected annually and cleaned regularly.
•Inspect all elements of this heating unit before each use. If there is damage, the burner must be
replaced.
•Keep the hose out from any pathways to eliminate any accidental damage. (if external tank)
•Be aware of the hazards of high temperatures and stay away from the unit to avoid any burns or
injury.
of the U.S. Department of Transportation or the National Standard of Canada CAN/CSA-B339, LP gas
tanks, spheres and tubes for Transportation of Dangerous Goods; and Commission.
gas tank connection.
cks.
•Children and adults should be alerted to the hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
•Young children should be carefully supervised when they are in the area of the appliance.
near the appliance.
•Any guard or other protective device removed for servicing the appliance shall be replaced
prior to operating the appliance.
may be required as necessary. It is imperative that the control compartment, burners and
circulating airways of the appliance are kept clean.
(CGA791) LP

Only use the regulator and hose assembly provided with this unit. Replacement parts must be
supplied directly by Teamson design corp .
Inspect the burner before use of this unit. If the burner shows any kind of damage, do not operate the
appliance. For assistance with repair or replacement of the burner or any other parts, calls
1-800-935-3959.
NOTE: You must follow all steps to properly assemble this heating item. Make sure the gas
valve is turned “OFF” before assembling. Do NOT attempt to assemble without proper tools.
SAFETY INFORMATION
Min. Clearance
48 in. (121.9 cm)
Min. Clearance
60 in. (152.4cm)
Min. Clearance
48 in. (121.9 cm)
Page 4
Combustible materials should not be within 60
inches of the top of the unit, or within 48 inches
around the entire unit.

ITEM# PICTURE DESCRIPTION QTY
A
B
C
D
E
F
G
H
I
J
K
L
1PC
1PC
1PC
1PC
1PC
1PC
1PC
1PC
1PC
1PC
1PC
1PC
Table Leg
Table Leg
Table Leg
Table Leg
Panel
Panel
Panel
Door
Tank Holder/Base
Contorl Knob
Table Lid
Fire Table with Burner
PART LIST
Page 5

ITEM# PICTURE DESCRIPTION QTY
M
N
O
P
1PC
1
22 PCS
1PC
PVC
Screw(M6*12MM)
Screwdriver
Q22 PCS
M6 Washer
PART LIST
Page 6

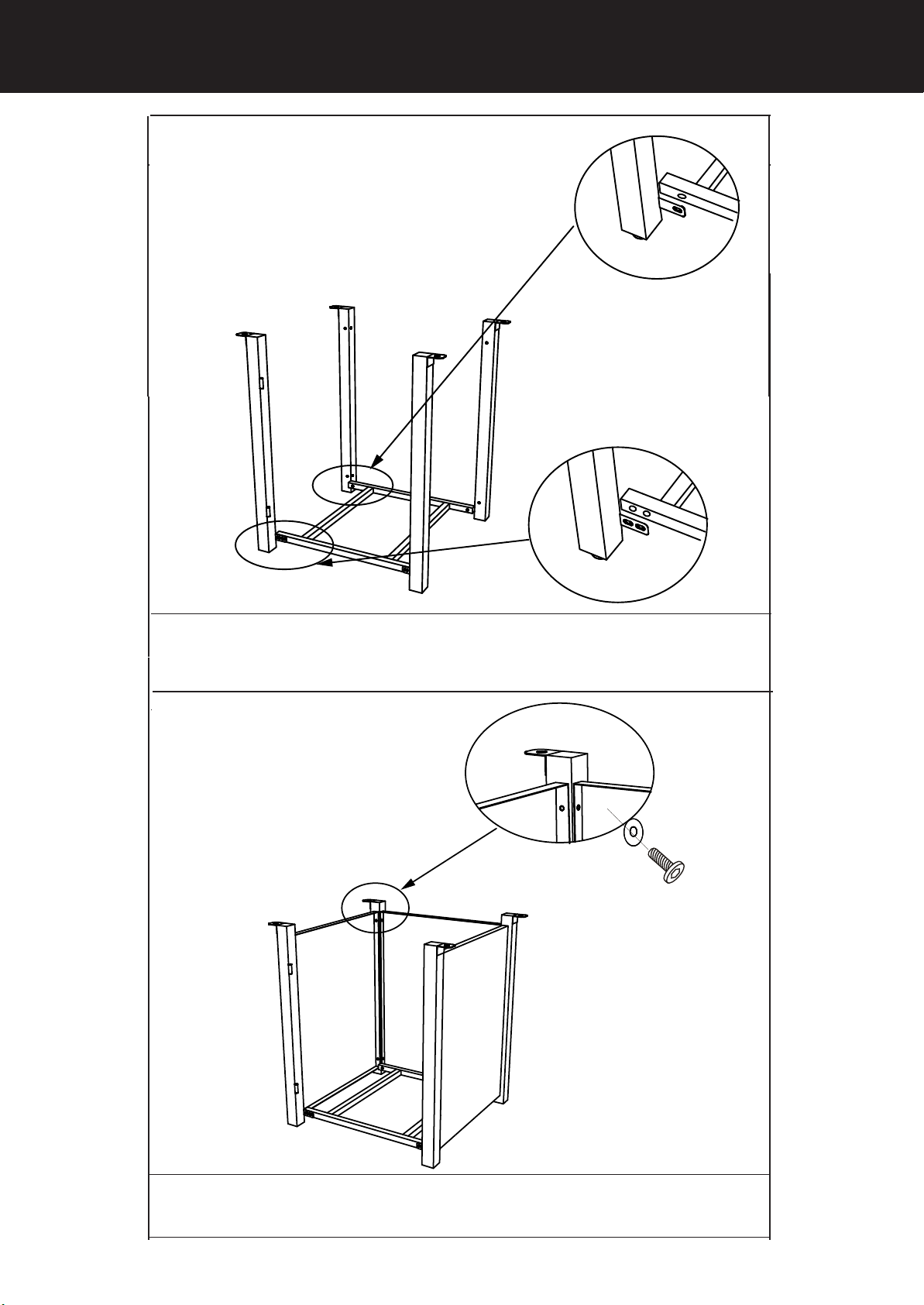

2.Connect panel (E,F,G)with table legs(A,B,C,D) by 12pcs screws (O) and 12pcs
M6 washers(Q).
1. Connect the tank holder/base (I) With table Lets(A/B/C/D) by 6pcs
screws (O) and 6pcs M6 washers(Q).
A
B
C
D
A
B
C
D
E
F
G
ASSEMBLY INSTRUCTION
Page 7
O
Q

3.Place the table(L) upside down on a soft surface.
4.Attach the assembled base to the bottom of top using 4pcs of screws (O),
and 4pcs M6 washers(Q), make sure the panel (L) faces the valve stem.
Tighten the Bolts.
ASSEMBLY INSTRUCTION
Page 8
O
Q

5.Hang the door panel (H) on the circular mounts.
ASSEMBLY INSTRUCTION
Page 9
6.Put the table lid.

Page 10
Place propane gas tank (not included) into the
metal stand (I). Make sure the gas tank sits on the
metal stand (I) completely.
CYLINDER VALVE
PRESSURE
RELIEF VALVE
BLEED-OFF
VALVE
BLACK COUPLING NUT
REGULATOR
turn clockwise to connect
turn clockwise
to reseal
Turn the cylinder valve on the tank clockwise to
close the propane tank. Attach the preassembled
regulator from the table top (L) to the cylinder valve
by turning the regulator coupling nut clockwise.
Make sure it is fastened securely and tighten
connections by hand only.
I
Pour the fire glass into the firebowl.
CAUTION
To ensure proper function, the guard on this
burner should be free of fire glass at all times.

Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor
area. Connect the propane gas tank to the regulator and turn the valve on the unit to the “off”
position. Brush a soap and water mixture on all connections. Turn the gas supply on; if bubbles
occur on any connection there may be a leak. If you smell gas or a leak is discovered turn the
gas valve off, disconnect propane gas tank and do not use the appliance until the leak is
repaired.
Do not use the heating unit without inspecting the gas hose. If there are signs of wear or abrasion
you must replace the hose (if applicable). Pumice stones/lava rocks/LavaGlass®could pop up and
strike somebody’s face during the process of lighting this unit; stand away from the unit for the rst
20 minutes after igniting. Flame height should be a yellow/blue color between 2 - 10 inches in height.
OPERATION
Page 11
To Light
To Extinguish
1.Make sure the control knob is in the "OFF" position.
2.Open the door and slowly open the valve on the propane gas tank by turning the knob
counterclockwise.
3.Close the door on the body.
4.Push the ignition control knob in fully and rotate about 1/4 turn counterclockwise until a
click is heard, it may take several attemps to light the burner. Once lit, keep holding down
the control knob for 15 seconds.
5.If ignition doesn't occur within a few seconds, release the control knob and rotate to
the "OFF" position. Wait for 5 minutes for gas to clear and then repeat the above
lighting instructions.
6.To adjust the flame, turn the control knob either clockwise or counterclockwise
depending on whether you want to lower or raise the flame.
1.Turn control knob clockwise to the "HIGH" position; push and continue turning the control
knob to the "OFF" position.
2.Close the cylinder valve on the propane gas tank if you don't intend to use it for a long time.
Wait 50 minutes after extinguishing ame prior to placing a lid (if applicable) or protective cover on
heating item.

MAINTENANCE
Page 12
•Before performing any maintenance always disconnect propane gas tank.
•Keep the heating item free and clear from combustible materials.
•Visually inspect burner for obstructions and keep tank enclosure free and clear from debris.
•Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner and pumice stones/
lava rocks/LavaGlass®are completely cooled down. Wipe down with a soft cloth.
•Harsh weather conditions may cause stubborn stains, discoloration and possibly rust pitting.
•Permanent damage may occur if powder or solvent comes in contact with painted or plastic
components on this heating unit.
•Keep the heating unit stored away from direct sunlight.
•If storing this unit inside, disconnect the propane gas tank from the gas valve.
•Not using manufacturer approved or supplied parts/accessories may result in a defective condition
and void the warranty of this heating unit.
•Always place lid (if applicable) or protective cover on heating item when not in use.
Store your product indoors during winter months. Avoiding extreme cold temperatures will
prevent from exposure damage.
•

TROUBLESHOOTING
Page 13
Problem Cause Solution
Igniter pin and burner are wet Dry off with a soft cloth
Igniter battery is incorrectly inserted Check which direction the battery is
inserted
Igniter pin is broken Contact Teamson design corp. for a
replacement part
Electrode wire is loose or disconnected Reconnect wire to the igniter box located
inside the fire pit behind the igniter box
Electrode wire is shorting between valve
and igniter pin
No gas flow Check that the gas tank isn’t empty
Regulator isn’t connected securely to the
tank
Tighten regulator connection to the gas
tank
Gas flow is obstructed Check all hoses for kinks and bends
Burner ports are clogged Turn all gas flow connections off. Insert
an opened paperclip (or similar item) into
each of the burner ports to clear them
out.
Flame is obstructed at burner ports
Regulator hose is kinked Straighten hose of all bends or kinks
No gas flow Check that the gas tank isn’t empty
Excess flow safety valve has been
activated
Turn the control knob to the ‘off’ posi-
tion. Close the tank valve and disconnect
propane gas tank. Turn the control knob
to ‘high’; wait 1 minute. Turn the control
knob back to the ‘off’ position. Recon-
nect propane gas tank. Light the fire unit
as indicated in the ‘To Light’ section of
this manual.
High or gusting winds Increase flame to ‘high’
No gas flow Check that the gas tank isn’t empty
Excess flow safety valve has been
activated
See ‘sudden drop in gas flow’ above
Heating unit won’t light
Burner won’t light
while using a match
Heating unit emits a lot
of black smoke
Sudden drop in gas
flow
Flame blows out easily
Contact Contact Teamson design corp. for a
replacement part. for a replacement part
Check that all burner ports are free of
any small lava rocks/pumice stones/
LavaGlass®pieces

WARRANTY
The manufacturer warranty will be voided by, and manufacturer disclaims any responsibility for, the
following actions:
•Modification of the unit and/or components including the gas valve assembly.
•Use of any component part not manufactured or approved by Teamson design corp.
•Use and installation other than what is listed in this manual.
Please contact the manufacturer for replacement parts.
Page 14
This product has a one-year warranty against manufacturing defects in workmanship, or materials.
CCONTACT
If you have any questions or concerns,    :
Toll Free Phone [phone] | |   
Email [email protected]
