Pebble Grey GLENDALE 800.10.30 User manual

- page 1 -
LED Illuminated Mirrors
Min. 150mm
Back board holes (Fig A)
Thank you for purchasing our product.
Please read through these instructions carefully and refer back to them
during installation to ensure that your product is fitted safely and that it
retains its high quality finish.
Please retain for future reference.
Please Note that a distance of 150mm is required between the infra-red
sensor switch and any other object to avoid any unnecessary
interference.
C
D
A
B
REAR VIEW
REAR VIEW
Portrait Mounting
Landscape Mounting
800.10.30
800.10.31
800.10.32
GLENDALE

- page 2 -
Distance
Art No
Specific information list (Fig B)

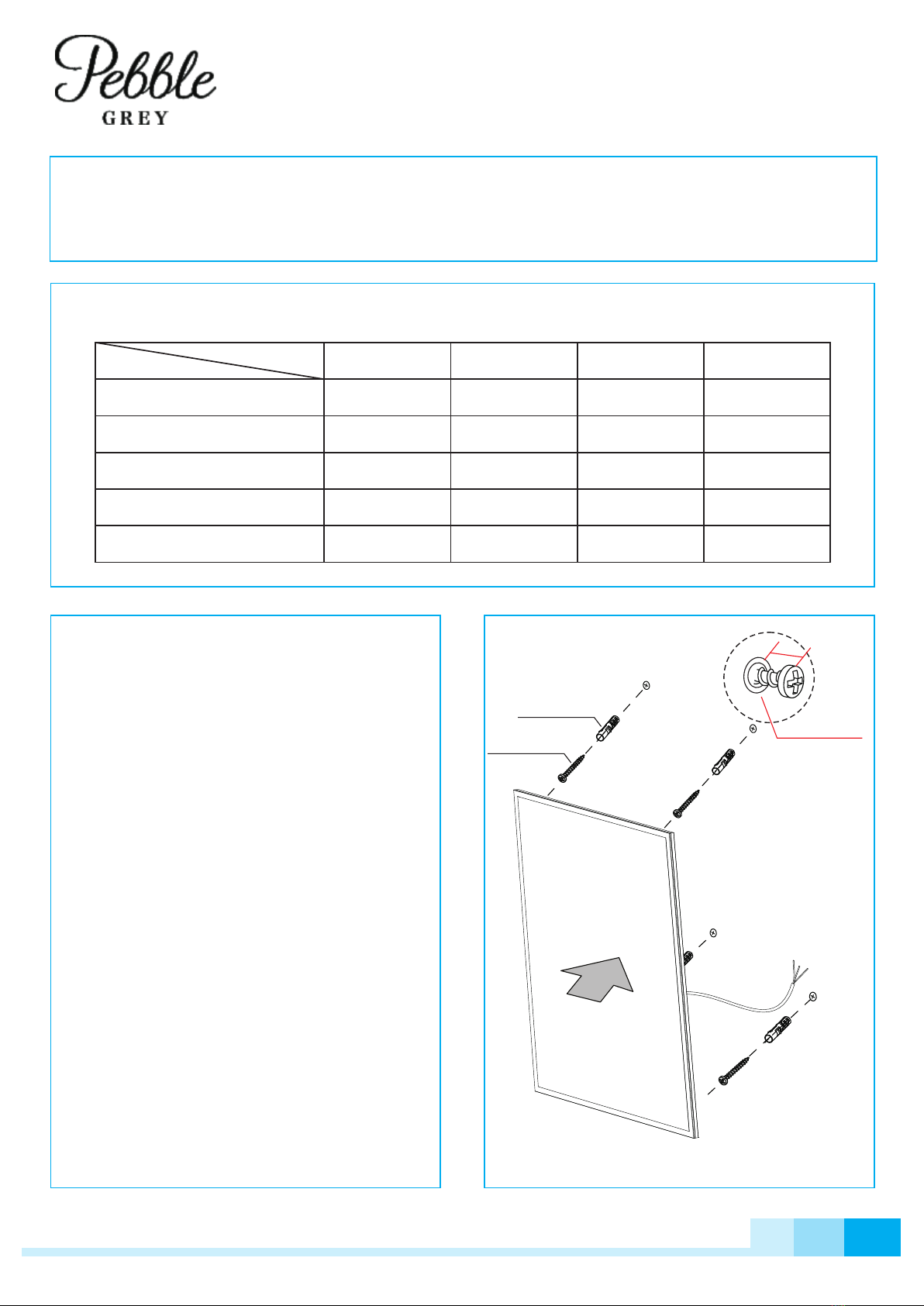

Fixing mirror (Fig C)
1. Position the mirror in a suitable location
(according to the zonal diagram (Fig 1)
on the back page) ensuring that the
mains supply cable is within reach of
the cable connection point of the mirror
(Fig A). Carefully mark the desired
position of the mirror using a soft pencil,
ensuring it is level.
2. Remove the mirror from the wall and
using a spirit level, mark a horizontal
line below the pencil mark, taking into
account the location of the screw
positions(Fig B). Carefully mark the
position of the holes using a soft pencil.
3. Before drilling, ensure there are no
hidden cables or pipes behind the
mounting points. Using a suitable drill
bit, drill holes in the marked positions
to a suitable depth. If drilling through
tiles, use a ceramic drill bit.
4. Insert rawl plugs into the holes.
5. Insert the provided screws into the wall.
Using a spirit level to ensure it is level
(Fig C)
6. Connect the cable at the rear of the
mirror to the mains supply cable using a
suitable terminal block(not supplied)
according to the wiring diagram(Fig 2)
on the back page.
7. Carefully lift mirror onto screws.
8. Switch the mains supply on.
800.10.30
No less than 5mm
5mm
(mm)
A(mm)
B
261
(mm)
C(mm)
D
800.10.31
800.10.32
230 230 261
365 330 330 365
465 550
Wall plugs
Wall Screws
Mains Supply
550 465
Installation:
When unpacking the mirror ,please handle with care .Always lay the mirror
on a soft flat surface.

How to isolate the sensor so you can switch ON & OFF with a mains switch.
Wiring Diagram (Fig 2)
- page 3 -
How the mirror is wired. How to isolate the sensor.
Rewire the as shown in the diagram above. We recommend that all electrical bathroom products should
only be fitted by a suitably qualified registered electrician.
mirror
These are suitable for Zone 2 or higher and not Zone 0 or 1(see diagram above). mirrors (Fig 1)
