Peco Country Clipper XLT Series User manual

OPERATOR’S MANUAL
RESIDENTIAL PTO - GRASS
COLLECTION SYSTEM
48” & 52” DECKS
Reference#: 49120908 (629JH-001A)
2018-NEWER
MODEL YEAR:
XLT Series
P
PP
PECO
PECOPECO
PECO
PECOPECO
P
PP
P
PP
P
P
PECO
PECO
RRR
MANUAL PART#: Q0521 Rev: 3 - Aug 2021
ASSEMBLY OPERATION MAINTENANCE
Model# A2244 (629JP-001A)

2
GRASS COLLECTION SYSTEM
TABLE OF CONTENTS
SECTION PAGE
Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2
Safety Alert Symbols- - - - - - - - - - - - - - - - - - - - - - 3
Warranty - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
I INTRODUCTION AND DESCRIPTION - - - - - - - - - - - - 5
Introduction- - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
Description - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
II INSTALLATION FOR USE - - - - - - - - - - - - - - - - - - - - - 5
Preparation Of Mower - - - - - - - - - - - - - - - - - - - - 6

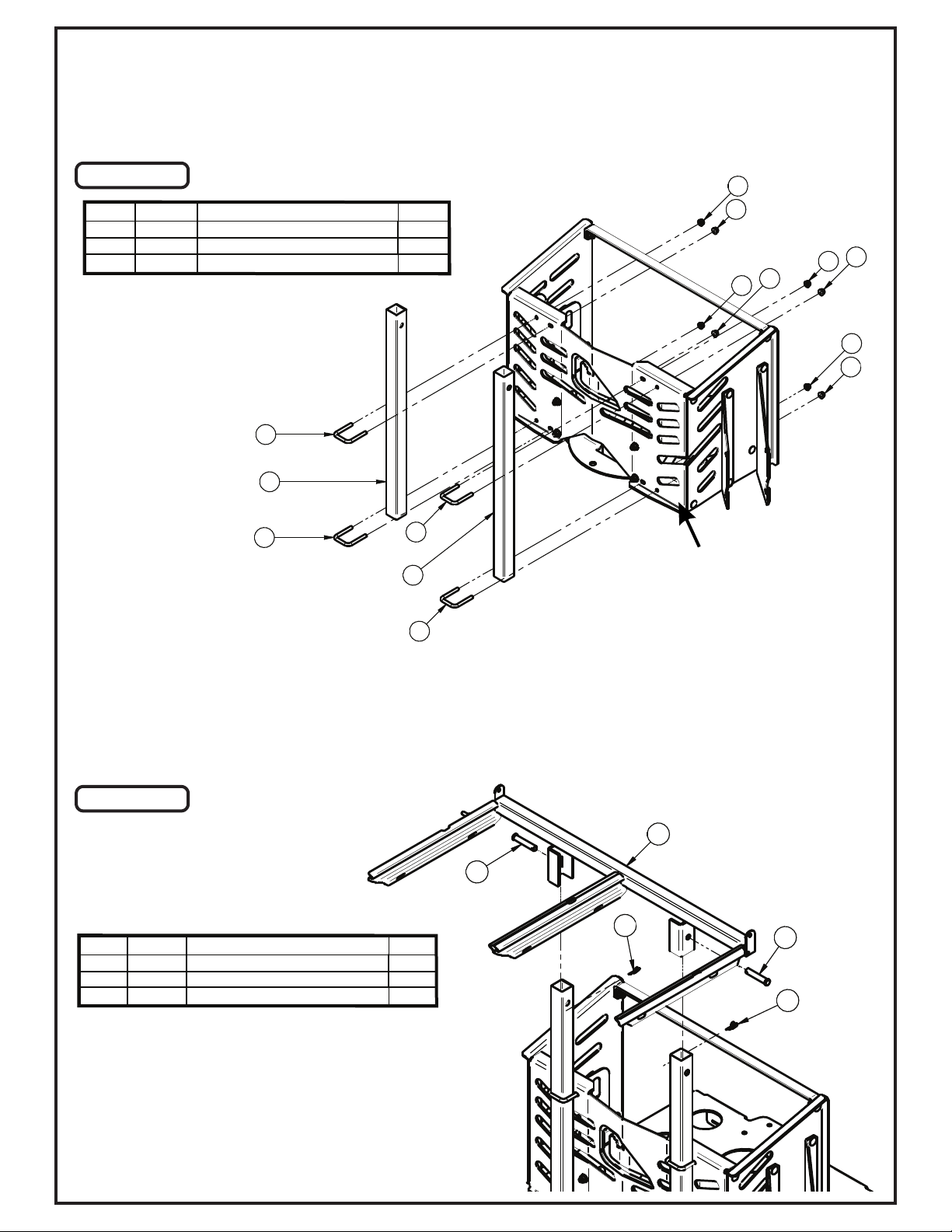

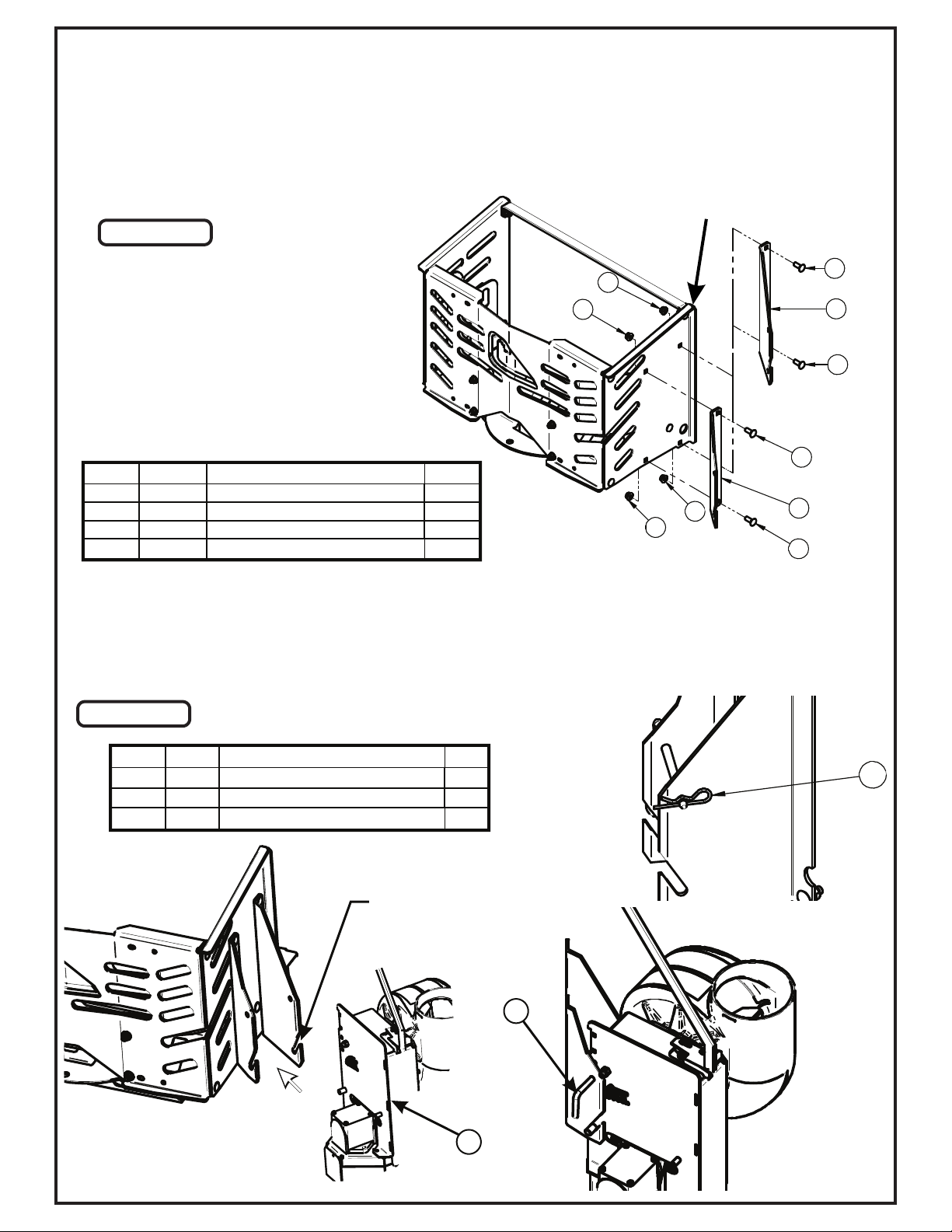

Rear Frame Assy & Installation - - - - - - - - - - - - - - 7-9
PTO Mount Assy Installation - - - - - - - - - - - - - - - - 10
PTO Drive Assy Installation - - - - - - - - - - - - - - - - - 10
Lower Mount Tube Installation - - - - - - - - - - - - - - - 11
Upper Frame Assy Installation - - - - - - - - - - - - - - - 11
Belt Installation & Adjustment - - - - - - - - - - - - - - - - 12

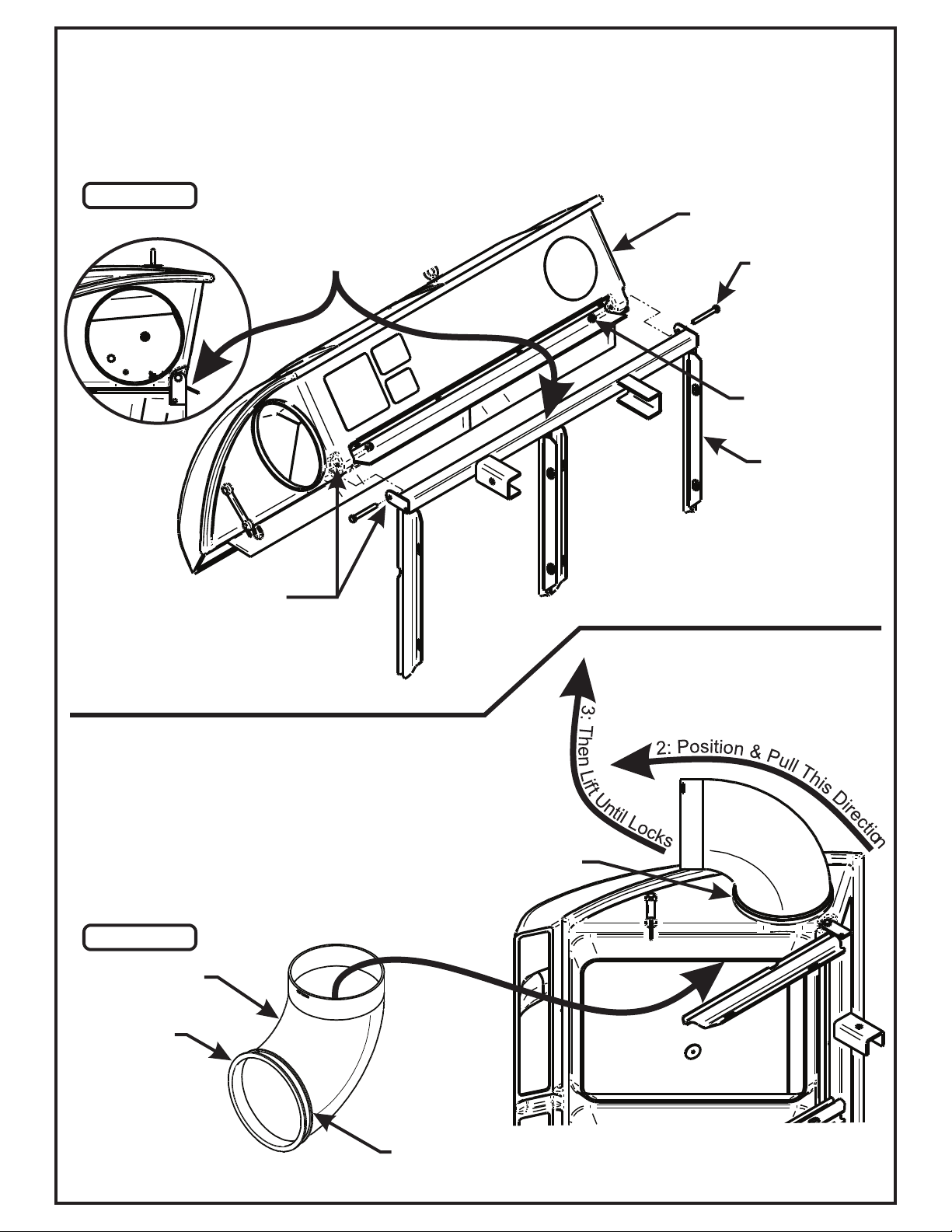

Top Assy To Upper Frame Assy Installation - - - - - - - 13
Inlet Installation - - - - - - - - - - - - - - - - - - - - - - - - - 13

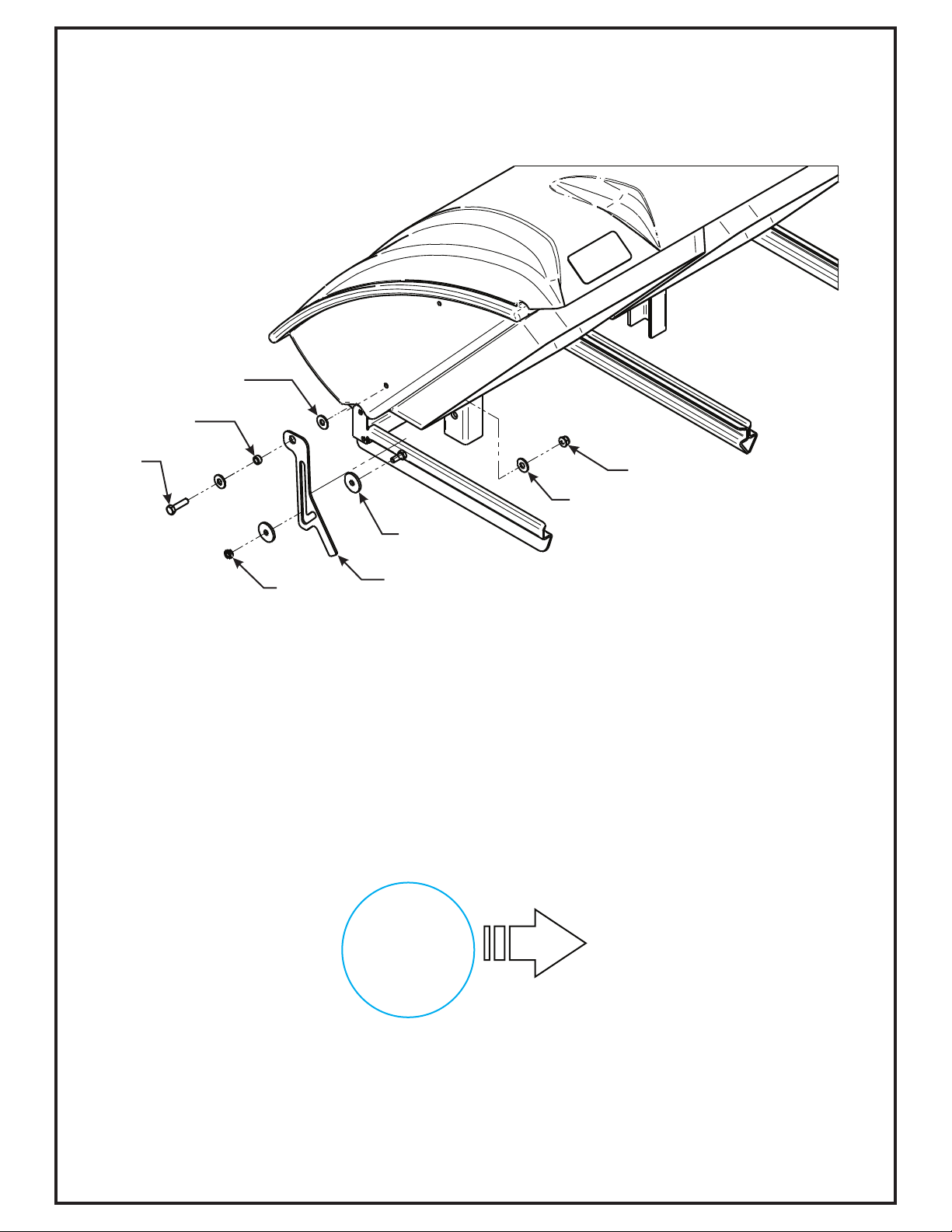

Hinge Kit Assy Installation - - - - - - - - - - - - - - - - - - 14
Even Bag Fill Adjustment - - - - - - - - - - - - - - - - - - 14

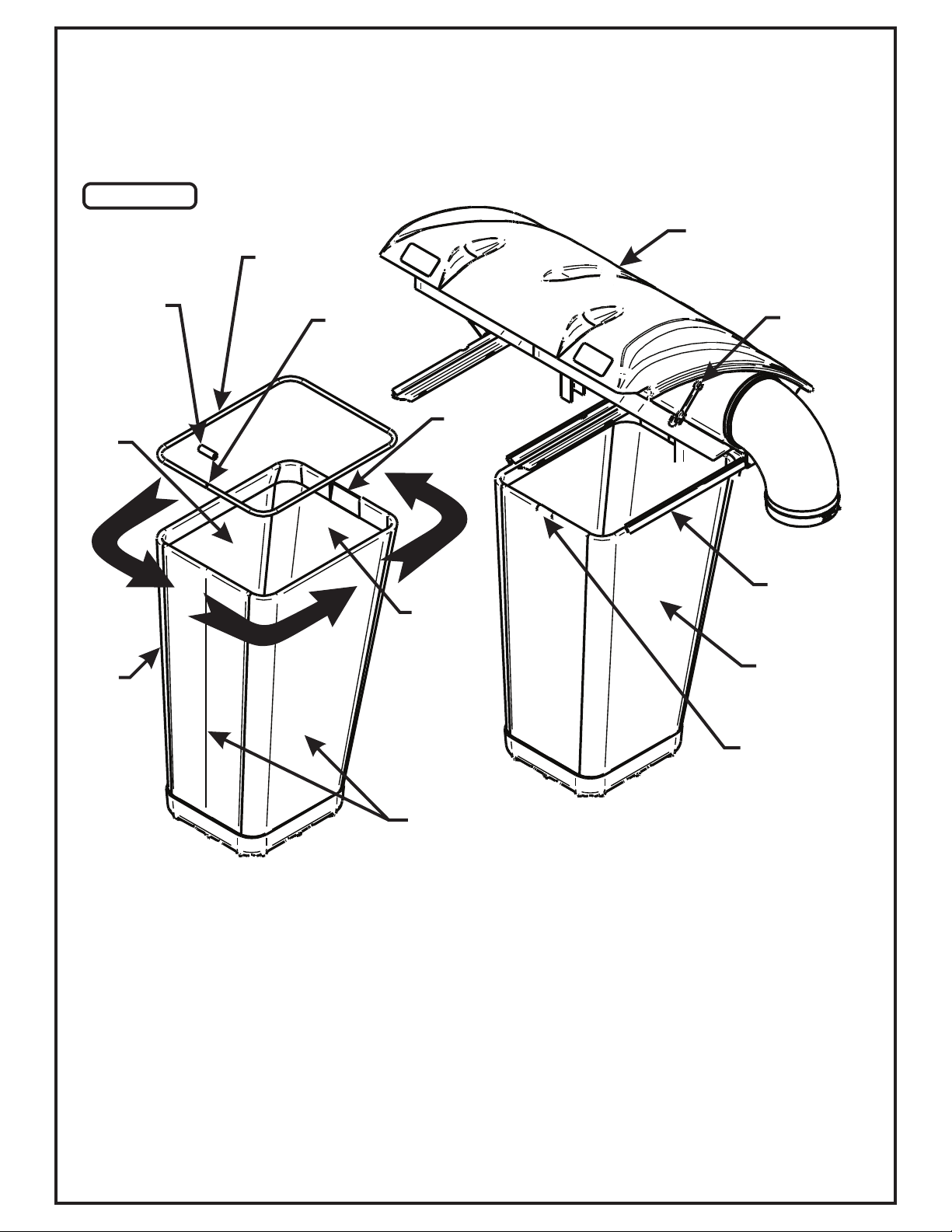

Bag Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - 15
Bag Assembly Installation - - - - - - - - - - - - - - - - - - 15
Blower Cone Installation - - - - - - - - - - - - - - - - - - - 16
Boot Kit Installation- - - - - - - - - - - - - - - - - - - - - 17-18
SECTION PAGE
Length of Hose Adjustment - - - - - - - - - - - - - - - - - 19
Upper Hose Installation - - - - - - - - - - - - - - - - - - - - 19
Lower Hose to Blower Cone Installation - - - - - - - - - 19
Lower Hose to Boot Installation - - - - - - - - - - - - - - 19

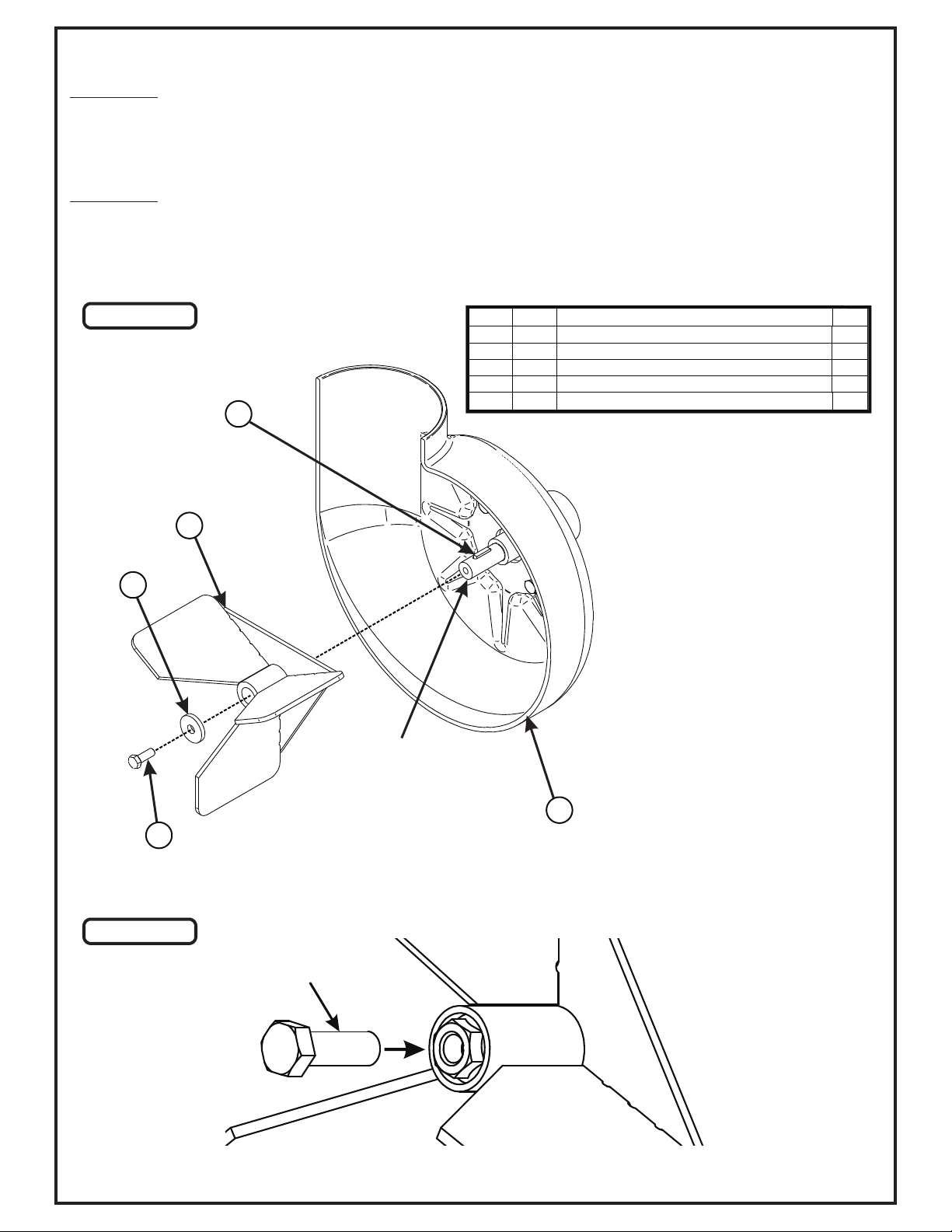

Impeller Blade Removal/Replacement - - - - - - - - - - 20
Weight Kit Installation - - - - - - - - - - - - - - - - - - - - - 21
Exploded Views & Parts List - - - - - - - - - - - - - - - 22-26
Overall Parts List - - - - - - - - - - - - - - - - - - - - - - 27-29
Safety Decals - - - - - - - - - - - - - - - - - - - - - - - - - - 30
III OPERATING INSTRUCTIONS - - - - - - - - - - - - - - - - - 31
General Safety - - - - - - - - - - - - - - - - - - - - - - - - - 31
Operation & Tips On Mowing - - - - - - - - - - - - - - - - 31
Disengagement Of The PTO Assembly - - - - - - - - - 31
Unloading The Collection System - - - - - - - - - - - - - 31
IV MAINTENANCE - - - - - - - - - - - - - - - - - - - - - - - - - 31-32
Maintenance Checklist - - - - - - - - - - - - - - - - - - - - 32
Lubrication - - - - - - - - - - - - - - - - - - - - - - - - - - - - 32
V PARTS AND SERVICE - - - - - - - - - - - - - - - - - - - - - - - 32
Parts And Service Information - - - - - - - - - - - - - - - 32
Torque Specifications - - - - - - - - - - - - - - - - - - - - - 33
Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - 34
SAFETY
1. Read the operator’s manual carefully and familiarize yourself with the proper use of your attachment. Do not allow
anyone who is not acquainted with the Safety Instructions to use your attachment.
2. Know the controls and how to stop them quickly. READ THE OPERATOR’S MANUAL!
3. Do not allow children to operate the machine. Do not allow adults to operate it without proper instruction.
4. Be especially watchful of children and pets entering into the area while operating.
5. Keep your eyes and mind on your machine while mowing or operating your attachment. Don’t let others distract
you.
6. Do not attempt to operate your machine when not in the driver’s seat.
7. Always shut off blades and engine when emptying the container.
8. Stop machine, shut off deck attachment, set parking brake, shut off engine and remove ignition key before
removing clogs, removing or replacing hose, boot, blower cone, or performing any maintenance.
9. Mow across the face of slopes (not more than 10 degrees); never up and down the face.
10. It is recommended that the container be emptied when half full while operating on slopes. Start mowing on slopes
when the container is empty.
11. Inspect your lawn and remove any foreign objects before mowing. Never deliberately run the mower across any
foreign object.
12. Wear hearing protection.
13. Wear eye protection to prevent debris from getting into your eyes.
2017 (v1.0)

3
SAFETY
WARNING! NEVER operate the mower unless the discharge guard and either the deflector assembly or
the vacuum collector adapter are fastened securely in place.
WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower
blades and the blower impeller have stopped rotating.
WARNING! To avoid serious injury, perform maintenance on the vacuum collector; ONLY AFTER
STOPPING THE MOWER’S ENGINE AND WAITING FOR ALL MOVING PARTS TO COME TO A
COMPLETE STOP. Set the parking brake. Always remove the ignition key before beginning maintenance.
WARNING! For your own personal safety, ALWAYS mow ACROSS the face of slopes and
NEVER UP and DOWN the face. NEVER attempt to mow excessively steep slopes, and use
caution when turning on any slope.
Safety Alert Symbol
This Safety Alert Symbol means: “ATTENTION! BECOME
ALERT! YOUR SAFETY IS INVOLVED!”
This symbol is used to call attention to safety precautions that
Should be followed by the operator to avoid accidents. When
you see this symbol, carefully read the message that follows
and heed its advice. Failure to comply with safety precautions
could result in death or serious bodily injury.
Safety Signs
The signal words DANGER, WARNING, and CAUTION are used on the equipment safety signs. These words
are intended to alert the viewer to the existence and the degree of hazard seriousness.
DANGER
!
CAUTION
This signal word indicates a potentially hazardous situation which, if not
avoided, will result in death or serious injury.
This signal word indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
It may also be used to alert against unsafe practices.
This signal word indicates a potentially hazardous situation which, if not
avoided, will result in minor or moderate injury.
It may also be used to alert against unsafe practices.
White letters on RED
Black letters on ORANGE
Black letters on YELLOW
WARNING
!
!
!
2017 (v1.0)

4
New PECO, Inc. extends the following warranties to the ORIGINAL PURCHASER of each New PECO, Inc. consumer product
purchased from one of our Dealers or directly from New PECO, Inc., subject to the following limitations:
A. ITEMS COVERED UNDER WARRANTY:
1. PRODUCT WARRANTY – Any part or parts which are deemed defective in material or workmanship, as delivered to the
original purchaser, will either be repaired or replaced, as New PECO, Inc. elects, without charge for parts or labor, if
the defect appears within 12 months from the date of purchase of the product to the Original Purchaser.
2. PARTS REPLACED DURING WARRANTY – Any New PECO, Inc. part which is furnished in performance of this warranty
and is defective in material or workmanship as delivered to the purchaser will be repaired or replaced, as New PECO,
Inc. elects, before the expiration of the original warranty period.
B. WARRANTY DISTINCTIONS:
1. RESIDENTIAL - Products put to a personal use around a single household or residence are considered Residential.
Products designated as “Residential” are warrantied for 12 months from the date of purchase of the product, to the
ORIGINAL PURCHASER with proof of purchase, when used for or in residential applications.
2. COMMERCIAL – Products put to any business use (agricultural, commercial or industrial) or used at multiple locations
are considered Commercial. Products designated as “Commercial” are warrantied for 12 months from the date of
purchase of the product, to the ORIGINAL PURCHASER with proof of purchase, when used for or in commercial
applications. Products designated as “Residential” are warrantied for 90 days from the date of purchase of the
product, to the ORIGINAL PURCHASER with proof of purchase, when used for or in Commercial applications.
3. RENTAL – Products used for Rental or Lease Purposes are warrantied for 45 days from date of purchase of the product,
to the ORIGINAL PURCHASER with proof of purchase, when used for or in a rental business.
C. ITEMS NOT COVERED BY NEW PECO WARRANTY:
1. ENGINES & BATTERIES: Engines and Batteries attached to New PECO, Inc. products are covered under their respective
separate manufacturer warranties and those companies must be contacted directly to file a warranty claim. Briggs &
Stratton: https://www.briggsandstratton.com/na/en_us/support/warranty.html
2. UNAPPROVED ALTERATION OR MODIFICATION: All obligations of New PECO, Inc. under this warranty shall be
terminated if products are altered or modified in any way not approved by New PECO, Inc.
3. ACCIDENTS & NORMAL MAINTENANCE: This warranty covers ONLY manufacturers defective material and
workmanship. It does not cover depreciation or damage caused by normal wear & tear, accident, improper
maintenance, misuse or abuse of products. New PECO, Inc. products must be operated and maintained in
accordance with the instructions furnished in the manuals. The cost of normal maintenance and normal replacement
of service items such as belts, cutting blades, hoses, bags, etc., which are not defective shall be paid for by the
purchaser.
4. NO SERVICE CENTER WARRANTY: The selling Service Center/Dealer makes no warranty on his own on any item
warranted by New PECO, Inc. unless he delivers to purchaser a separate written warranty certificate specifically
warranting the item. The Service Center or Dealer has no authority to make any representation or promise on behalf
of New PECO, Inc. or to modify the terms of the original warranty in any way.
5. NO REPRESENTATIONS ADDITONAL WARRANTIES, DISCLAIMER: Neither New PECO, Inc. nor any company affiliated
with New PECO, Inc. makes any warranties, representations or promises as to the quality of performance of its
products other than those set forth herein. Except as described above, New PECO, Inc. makes no other warranties
AND SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES OF FITNESS AND MERCHANTABILITY.
6. REMEDIED EXCLUSIVE: The only remedies the purchaser has in connection with the breach or performance of any
warranty on New PECO, Inc. consumer products are set forth above. In no event will New PECO, Inc. be liable for
special incidental or consequential damages.
Warranty service is available through your local authorized service dealer or distributor. If you do not know the dealer or
distributor in your area, search by your zip code on www.lawnvac.com or contact our Sales Department at New PECO, Inc.
800-438-5823 or email [e-mail].
PECO LIMITED WARRANTY FOR NEW PRODUCTS
2020 (v1.0)

5
Section I - INTRODUCTION AND DESCRIPTION
Introduction
We are pleased to have you as a PECO customer. Your
collection system has been designed to give you a low
maintenance, simple, and effective way to collect the
grass clippings from your mower. The manuals are
provided to give you the necessary instructions to
properly mount, operate and maintain the collection
system on your mower. Please read this manual
thoroughly. Understand what each control is for and how
to use it. Observe all safety decal precautions on the
machine and noted throughout the manual.
NOTE: All references made to right, left, front, rear, top
or bottom are as viewed from the normal operator’s
position on the mower.
Description
The grass collection system is designed for turf
maintenance where there is a need to collect the grass
clippings as the mower cuts the turf. It is also used for
picking up leaves in pre-season and post-season clean-
up. The blower, mounted on the right side of the unit,
uses a belt and gearbox system from the engine PTO
shaft. Drive train protection comes through belt slippage.
The blower draws grass clippings from the discharge
area of the cutting deck back to the collection bags at
the rear portion of the mower frame. The operator can
engage the blower with a push of the over-center linkage
on the right side of the unit. Once the bags are full with
clippings, they can be easily released for dumping.
Note: There are different installation instructions between the model years. Installations for specific units will be
specified under the current section heading or where needed as:
or
PREV MODEL & 2022 MODEL will also share similar installation instructions. These instructions will not have any
specification under the section heading.
PREV MODEL 2022 MODEL

6

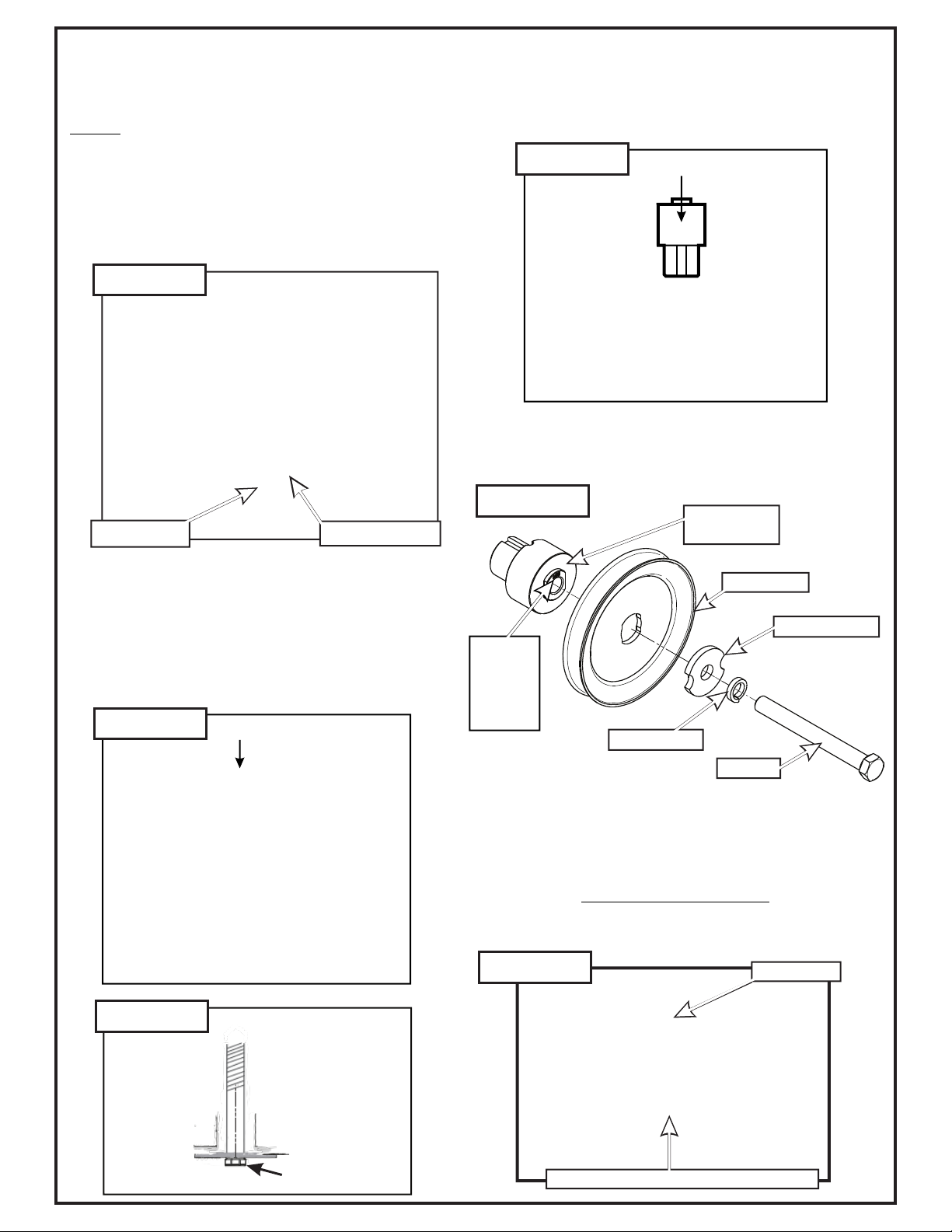

Preparation Of Mower
NOTE: The mower deck PTO belt must be removed
from the electric clutch before continuing with the
installation. Refer to your mower’s owner’s manual for
instructions on PTO belt removal.
From the underside of the engine, disconnect the wiring
harness attached to the electric clutch. Remove the bolt
and electric clutch from the mower. Refer to Figure A.
Upon removal of clutch determine if your mower is
equipped with a D-drive spacer. If so, then proceed to
Figure B. If your mower is equipped with bolt, fender
and lock washer without D-drive spacer proceed to
Figure C. Remove the D-drive spacer using an arbor
press or equivalent. On removal, adjacent bearing
OUTER race must be supported or bearing damage
may occur. Refer to Figure B.
The engine pulley assembly must be installed using an
arbor press or equivalent. During installation, opposite
bearing inner race must be supported or bearing
damage may occur. Refer to Figure D.
Once the Engine Pulley Bushing is installed, reattach
the clutch assembly & deck PTO belt to the mower and
then review Figure E.
To assemble and fasten the Engine Pulley, align the
Engine Pulley Bushing to the mower’s clutch pulley and
fasten using (1) Clamp Washer, (1) Lock Washer, and
(1) Hex Bolt. Torque the bolt to 55 ft./lbs. The added
pulley will power the collection system and should
resemble Figure F when installed.
Section II - INSTALLATION FOR USE
PRESS
Figure B
Remove Bolt D-Drive Spacer
Figure A
Remove 7/16”-20
Bolt & Washers
Figure C
PRESS
Engine Pulley Bushing Installation
Figure D
Engine Pulley
Bushing
Hex Bolt
Lock Washer
Pulley
Bushing
Number
Located
Here
Clamp Washer
Engine Pulley
Figure E
Electric Clutch
Engine Pulley Assembled Into Electric Clutch
Figure F
P# K0550 - 7/16”-20 x 3-1/2” Bolt (Older Model Clutches)
P# K0427 - 7/16”-20 x 4-1/2” Bolt (Newer Model Clutches)
P# K0350 - 7/16”-20 x 3-3/4” Bolt (MY2022 Clutches)
P# K0140
P# K0278
P# M0266
P# S0191 - #6 (Prev Model Clutches)
P# S0237 - #40 (MY2022 Clutches)

7
Rear Frame Assembly & Installation
To install the Rear Frame Mount Kit, first remove the (2) existing bolts located on the left and right side of the rear
bumper. Position the Rear Frame Bracket (Item#1) up against the rear bumper and secure the Rear Frame Bracket by
fastening (2) 3/8”-16 x 3-1/2” U-Bolts (Item#5) and (4) 3/8”-16 Ny-Flange Lock Nuts (Item#6) around the mower’s
lower frame and through the bolt holes of the Rear Frame Bracket. (Refer to Figure A)
To install the Right Frame Bracket (Item#2) and the Left Frame Bracket (Item#3), align the mounting holes, located on
the left side of the Right Frame Bracket and on the right side of the Left Frame Bracket, to the mounting holes of the
Rear Frame Bracket. Secure the Right Frame Bracket to the Rear Frame Bracket by using (2) 3/8”-16 x 1” Carriage
Bolts (Item#8) and (2) 3/8”-16 Ny-Flange Lock Nuts (Item#6). To secure the Right Frame Bracket to the mower’s
bumper, align the mount hole of the bumper to the bracket and use (1) 3/8”-16 x 3” Carriage Bolt (Item#7) and (1)
3/8”-16 Ny-Flange Lock Nut (Item#6). Repeat the steps for the Left Frame Bracket.
(Refer to Figure A).
To Install the Frame Strap (Item#4), align the mounting holes of the Frame Strap to the mounting holes on both the
Left and Right Frame Bracket. Secure the Frame Strap by using (2) 3/8”-16 x 1” Carriage Bolts (Item#8) and (2) 3/8”-
16 Ny-Flange Lock Nuts (Item#6).
Note: It is recommended to not tighten all hardware on the Right Frame Bracket until the PTO Mount Assembly has
been installed so the parts could be easily positioned and aligned.
PREV MODEL
1
2
3
4
8
8
8
8
8
8
7
7
5
5
6
6
6
66
66
6
6
6
66
Item # Part # Desc. Qty.
1 B1035 Rear Frame Bracket 1
2 B1036 Right Frame Bracket 1
3 B1037 Left Frame Bracket 1
4 B1040 Frame Strap 1
5 K1480 U-Bolt 3/8"-16 x 3-1/2" W x 2-3/4" L 2
6 K2038 Ny-Flange Lock Nut 3/8"-16 12
7 K1187 3/8"-16 x 3" CARRIAGE BOLT 2
8 K1182 Carriage Bolt 3/8"-16 x 1" 6
Rear Bumper
Lower Frame
Figure A

8
2022 MODEL
Rear Frame Assembly & Installation (Cont.)
To install the Rear Frame Mount Kit, first remove the (2) existing bolts located on the left and right side securing the
Rear Bumper and completely remove the Rear Bumper, refer to Figure B below.
Note: Some parts and part features have been hidden from view for visual clarity.
Figure B
Next, position the Rear Frame Bracket (Item#1) up against the Lower Frame and secure the Rear Frame Bracket by
fastening (2) 3/8”-16 x 3-1/2” U-Bolts (Item #5) and (4) 3/8”-16 Ny-Flange Lock Nuts (Item #6) around the mower’s
Lower Frame and through the bolt holes of the Rear Frame Bracket, refer to Figure C.
Figure C

9
2022 MODEL
Rear Frame Assembly & Installation (Cont.)
Then, install the Right Frame Bracket (Item #2) by first placing and aligning (1) 3/8” Washer (Item #7) between the
Right Frame Bracket and Lower Frame and secure the Right Frame Bracket to the Lower Frame by using (1) 3/8”-16
x 3” Carriage Bolt (Item #6) and (1) 3/8”-16 Ny-Flange Lock Nuts (Item #8), refer to Figure D.
Next, align the mounting holes of the Right Frame Bracket to the mounting holes of the Rear Frame Bracket (Item
#1). Secure the Right Frame Bracket to the Rear Frame Bracket by using (2) 3/8”-16 x 1” Carriage Bolts (Item #5) and
(2) 3/8”-16 Ny-Flange Lock Nuts (Item #8).
Repeat the same procedures above for the Left Frame Bracket (Item #3).
Finally, Install the Frame Strap (Item #4), align the mounting holes of the Frame Strap to the mounting holes on both
the Left and Right Frame Bracket. Secure the Frame Strap by using (2) 3/8”-16 x 1” Carriage Bolts (Item #5) and (2)
3/8”-16 Ny-Flange Lock Nuts (Item #8), refer to Figure D.
Note: It is recommended to not tighten all hardware on the Right Frame Bracket until the PTO Mount Assembly has
been installed so the parts could be easily positioned and aligned.
Figure D

10
1
2
3
3
3
3
4
4
4
4
Figure A
Right Frame Bracket
Item # Part # Desc. Qty.
1 B1041 Right PTO Mount Plate 1
2 B1042 Left PTO Mount Plate 1
3 K1182 Carriage Bolt 3/8"-16 x 1" 4
4 K2038 Ny-Flange Lock Nut 3/8"-16 4
PTO Drive Assembly Installation
Locate the PTO mounting slots on both the Left and Right PTO Mount Plates. Insert the pivot rod of the PTO
Assembly (Item #1) into the mounting slots of the Left and Right PTO Mount Plates. Secure the PTO Assembly by
using (1) PTO Assembly Mount Pin (Item #2) and (1) Hair Pin Clip (Item #3). Refer to Figure A.
Figure A
Item # Part # Desc. Qty.
1 A2154 PTO Assy. / 3-Blade Impeller 1
2 B0274 PTO Assy. Mnt. Pin 1
3 K0086 Hair Pin Clip .125 OD x 2.50 1
2
1
PTO Mount
Slots
3
PTO Mount Assembly Installation
To Install the Right PTO Mount Plate (Item #1), first align the mounting holes to the holes on the Right Frame Bracket
as shown in Figure A. Secure the Right PTO Mount Plate by using (2) 3/8”-16 x 1” Carriage Bolts (Item #3) and (2)
3/8”-16 Ny-Flange Lock Nuts (Item #4). Next, align the mounting holes of the Left PTO Mount Plate (Item #2) to the
mounting holes of the Right Frame Bracket. Secure the Left PTO Mount Plate by using (2) 3/8”-16 x 1” Carriage Bolts
(Item #3) and (2) 3/8”-16 Ny-Flange Lock Nuts (Item #4). Refer to Figure A.
Tighten all hardware at this time.

11
1
2
2
3
3
Figure A
Item # Part # Desc. Qty.
1 A2047 Upper Frame Assy / P2B+ Gen. 2 1
2 K0133 Clevis Pin 1/2" x 2-1/2" 2
3 K1437 Rue Ring Cotter Pin 2
Upper Frame Assembly Installation
Position the Upper Frame Assembly ( #1) on top of the (2) Lower Mount Tubes aligning the holes of the Upper Item
Frame Assembly to the holes of the Lower Mount Tubes. Use (1) Clevis Pin (Item #2) and (1) Hair Pin Clip ( #3) Item
PER LEG to secure the Upper Frame Assembly to the Lower Mount Tubes. Refer to Figure A.
Figure B
1
1
2
2
22
3
3
3
3
3
3
3
3
Rear Frame
Bracket
Item # Part # Desc. Qty.
1 B0752 Lower Mount Tube / 25" 2
2 K1098 U-Bolt / 5/16"-18 x 2" x 2-1/2" 4
3 K2516 Ny-Flange Lock Nut 5/16"-18 8
Lower Mount Tube Installation
Secure (2) Lower Mount Tubes ( #1) to the Rear Frame Bracket using (2) 5/16”-18 x 2” x 2-1/2” U-Bolts ( #2) Item Item
and (2) 5/16”-18 Ny-Flange Lock Nuts ( #3) PER TUBE. Allow the Lower Mount Tubes to rest on the tabs of the Item
Rear Frame Bracket. Refer to Figure A.

12
Loosen Bolts
Loosen Bolts
Connect Belt
To Both Pulleys
Tighten Bolts
Tighten The Adjustment
Bolt To Tension The Belt
Figure B
Figure C
Figure E
Figure F
Figure G
Loosen The
Adjustment Bolt
Slide Gear Box
Towards The
Engine Pulley
Figure D
Figure A
Remove
Gearbox Pulley
Guard
Belt Installation and Adjustment
Remove (3) 1/4”-20 x 1/2” HHSTS P#(K0353) from the
gearbox pulley guard located on the bottom of the PTO
assembly (Refer to Figure A).
Loosen the (4) bolts P#(K1153), (2) on each side, that
secure the gear box assembly to the PTO assembly
P#(A1950) (Figure B and C).
Loosen the adjustment bolt P#(K0348) until the gear box
assembly is at its far left adjustment (the gear box is
moved toward the mower’s engine pulley). Refer to
Figure D.
Connect the belt A56K P#(M0239) from the engine
pulley to the lower gear box pulley (Figure E).
To tension the drive belt, turn the adjustment bolt
clockwise (Figure F) until there is 1” of deflection, with
10-11 lbs. of pressure, at the center of the belt between
the engine pulley and the gear box pulley.
Once the correct tension of the belt is achieved, tighten
the (4) bolts that secure the gear box assembly. Refer to
Figure G. Replace the belt guard.

13
Upper Frame
Assembly
Pivot Holes
5/16” Ny-Flange
Locknut
5/16” x
2-1/2” HHCS
:
I
n
s
1
e
r
t
I
n
l
et
Inlet
Hole
Inlet
Inlet Flange
Inlet Retaining Lip
Top Assembly
Figure A
Figure B
Top Assembly To Upper Frame Assembly Installation
Align the Top Assembly Pivot Holes to the Upper Frame Assembly. See Figure A below. Before fastening, pull Rubber
Dust Guard outward to seal against Upper Frame Assembly (towards the mower’s operator seat). Fasten the Top
Assembly to the Upper Frame Assembly using (2) 5/16”-18 x 2-1/2” HHCS P#(K0125) and (2) 5/16”-18 Ny-Flange
Locknuts P#(K2516). Leave the Ny-Flange Locknuts slightly loose to allow the Top Assembly to open and close
easily.
Inlet Installation
Position the Top Assembly on its side with the Inlet Hole facing up.
See Figure B. 1: Insert the Inlet from inside the Top Assembly, up
through the Inlet Hole, until the Inlet Retaining Lip meets the Inlet
Hole. 2: Position the Inlet as shown in Figure B, then pull the Inlet
until a portion of the Inlet Retaining Lip protrudes from the Inlet
hole. 3: Next, lift the Inlet as shown in Figure B until all of the Inlet
Retaining Lip protrudes from the Inlet Hole. Once installed, the
Inlet should pivot freely about the Inlet Hole.
Pull Rubber Dust Guard
Outward To Seal Against
Upper Frame Back Edge

14
K0506 B0884
K2516
K0042
S0006
K0505
K0042
K1156
Even Bag Fill Adjustment
Flap can be adjusted Up/Down depending on mowing conditions. Adjust flap up to allow more dense material to reach
left bag. Adjust flap down to allow less dense material to reach the right bag. Once adjusted properly, both bags
should fill evenly, but may require further adjusting when mowing conditions change.
Hinge Kit Assembly Installation
Assemble the Hinge Kit using (1) Latch Plate P#(B0884), (1) 5/16”-18 x 1-1/4” HHCS P#(K1156), (1) 5/16”-18 Ny-
Flange Lock Nut P#(K2516), (3) 5/16” Flat Washers P#(K0042), (1) Latch Spacer P#(S0006), (2) Extra Heavy 5/16”
Fender Washers P#(K0505) and (1) 5/16”-18 Lock Nut P#(K0506). Leave the nuts loose enough to allow fluid
movement of the top when opening and closing. When opened, the top should rest in the Latch Plate Slot.

15
Bag Assembly Installation
Slide the Completed Bag Assembly into the Upper Frame Assembly Rails and close the Top Assembly. Fasten the
Draw-Latch on either side to hold the bagger closed.
Bag Ring
Split Ends
Bag Seam
Opening
Bag Ring
End
Connector
Completed
Bag Assembly
Note Final
End Connector
Location
Bag
Top Assembly
Draw-Latch
Upper Frame
Assembly
Rail
Mesh
Panel
Nylon
Panel
Mesh
Panel
Figure A
Bag Assembly
First, take one of the Bag Ring Split Ends and insert it through the Bag Seam Opening. Next, rotate the Bag around
the Bag Ring (1) full turn (360 degrees) until the Bag Ring Split Ends and the Bag Seam Opening are positioned on
the same side. Then, connect the Bag Ring Split Ends using (1) End Connector. Last, rotate the Bag Ring and the
End Connector Assembly (1/2”) turn (180 degrees) to position the Connector opposite of the Bag Seam Opening.
Note Final End Connector Location below in Figure A. Repeat for each Bag.

16
2
2
3
3
4
4
1
Figure B
Blower Housing
Blower Housing
Figure A
Blower Cone Installation
Align the bolt holes of the Blower Cone (Item #1) to the bolt holes located on the Blower Housing of the PTO
Assembly. Secure the Blower Cone to the Blower Housing by using (3) 1/4”-20 x 3/4” HHCS (Item #4), (3) 1/4” Lock
Washers (Item #3), and (3) 1/4” Flat Washers (Item #2).
For 2020 - Newer Models
For 2018-2019 Models

17
Figure B
Figure A
Figure C
Rubber Strap
Front Boot
Plate
Rubber Strap
Thumb Screw
Rear Boot
Plate
Boot Kit Installation
For 2018-2019 Models :
Attach Rubber Strap P#(J4009) to mower deck using (1) P#(K1025) 1/4”-20 Carriage Bolt, (1) P#(K0037) 1/4” Flat
Washer and (1) P#(K2014) 1/4”-20 Ny-Flange Lock Nut. Open end of hook should be facing deck discharge. Refer to
Figure A
Attach Front Boot Plate P#(B0920) to outside of the Boot and the Boot Plate Fastener P#(B0922) on the inside using
(2) P#(K1010) 1/4”-20 x 5/8” Carriage Bolts and (2) P#(K2014) 1/4”-20 Ny-Flange Lock Nuts. Refer to Figure B.
Attach the Rear Boot Plate P#(B0921) to the outside of the Boot and Boot Plate Fastener P#(B0922) to the inside
using (2) P#(K1010) 1/4”-20 x 5/8” Carriage Bolts and (2) P#(K2014) Flange Lock Nuts to the Boot. Secure Rear Boot
Plate using (1) P#(J0008) Thumb Screw with 1/4”-20 x 1/2” threads, (1) P#(K0037) 1/4” Flat Washer and (1)
P#(K0039) 1/4” Lock Washer to mower deck. Refer to Figure C.

18
(2) 3/8”-16 x 1”
Carriage Bolts
(2) 3/8”-16
Locknuts
Boot Plate
Boot Rod
Aluminum
Boot
Hair Pin
Clip
Figure B
Figure A
Boot
Boot Kit Installation (Continued)
For 2020 - Newer Models :
Secure the Boot Plate (Item #1) to the Aluminum Boot P#(E0032A) using (2) 3/8”-16 x 1” Carriage Bolts (Item #2)
and (2) 3/8”-16 Nylon Flange Locknuts (Item #3). Insert the Carriage Bolts from the inside of the Boot so the threads
are on the top of the Boot. This will prevent grass clippings from collecting on the threads. Leave the hardware loose
until the Boot Plate has been attached to the mower deck. Refer to Figure A.
Remove the hardware from the grass deflector and insert (1) Boot Rod P#(B4331) into the grass deflector mounting
holes as shown in Figure B. Secure the Boot Rod using (1) Hair Pin Clip P#(K0099). With the Carriage Bolts from the
Boot Plate still loose, adjust the position of the Boot so that there is no gap between the mower deck and the Boot.
Tighten the hardware at this time.

19
Inlet Hose
Clamps
Hose
Clamps
Blower
Outlet
Upper
Hose
Blower
Cone Boot
Lower
Hose
2018-2019 Model Shown
Length Of Hose Adjustment
The hoses in the following steps must be cut to fit your
machine. Do not cut the hoses until you have tried to fit
them on your machine. Remember that the hoses need
to be long enough to allow for the opening and closing of
the collection system as well as allowing ample clamping
surface between each component.
Upper Hose Installation
Slide a Hose Clamp P#(J0060) over one end of the 6”
Upper Hose. Secure this end of the 6” Upper Hose to the
Blower Outlet. See Figure below for details. Secure
opposite end of the 6” Upper Hose to the Inlet. Make
sure both ends are securely fastened by tightening the
Hose Clamp and rotating the Inlet Snap Fastener
towards the hose to lock in place.
Lower Hose To Blower Cone
Installation
Slide a Hose Clamp over both ends of the Lower Hose.
Secure one end of the Lower Hose to the Blower Cone
and fasten by tightening the Hose Clamp.
Lower Hose To Boot Installation
Take the unattached end of the Lower Hose and secure
it to the circular end of the Boot and fasten by tightening
the Hose Clamp.
Tip: Before securing Hose Clamp fully, rotate Lower
Hose counter-clockwise (away from yourself)
approximately 1” to aid in retaining Boot to mower deck.
For 2020-Newer Models :
(2) J0080 - 8” Hose Clamps
(1) F0080 - 8” Lower Hose
For 2018-2019 Models :
(2) J0060 - 6” Hose Clamps
(1) F0060 - 6” Lower Hose

20
1
2
3
4
5
PTO Shaft
Item # Part # Desc. Qty.
1 V0015 Blower Hsg. 1
2 A1839 3-Blade Impeller Assy. 1
3 K1171 HHCS / 5/16"-24 LH x 1-1/4" / G5 w/ Patch Coating 1
4 K1446 PTO Housing Washer 1
5* J0254 Key / 3/16" x 3/16" x 3/4" 1
Figure A
Figure B
1/2”-13 x 1” Hex Bolt
Impeller Blade Removal/Replacement
To Remove: To access the impeller blade, remove the Blower Cone and Blower Cone Hardware from the Blower
Housing (Item #1). Remove the 5/16”-24 x 1-1/4” LH HHCS (Item #3) and (1) Washer (Item #4) (Refer to Figure A).
Insert (1) 1/2”-13 x 1” Hex Bolt into the threads on the Impeller Blade (Refer to Figure B). Tighten the Hex Bolt until
the Impeller Blade breaks free from the PTO Shaft. Remove the Impeller Blade Assembly (Item #2) from the PTO
Shaft. Remove the Key (Item #5) from the PTO shaft.
To Replace: Insert the Key (Item #5) into the keyway slot on the PTO Shaft. Align the keyway slot on the Bushing of
the Impeller Blade Assembly with the Key on the PTO Shaft and insert the Impeller Blade onto the PTO Shaft.
Secure the Impeller Blade with (1) 5/16”-24 x 7/8” LH HHCS (Item #3) and (1) Washer (Item #4) (Refer to Figure A).
Replace the Blower Cone and Blower Cone Hardware.
NOTE: Figure A is portraying a cross section view of the PTO Blower Housing.
