OPERATOR’S MANUAL
GRASS COLLECTION
SYSTEM
ASSEMBLY OPERATION MAINTENANCE

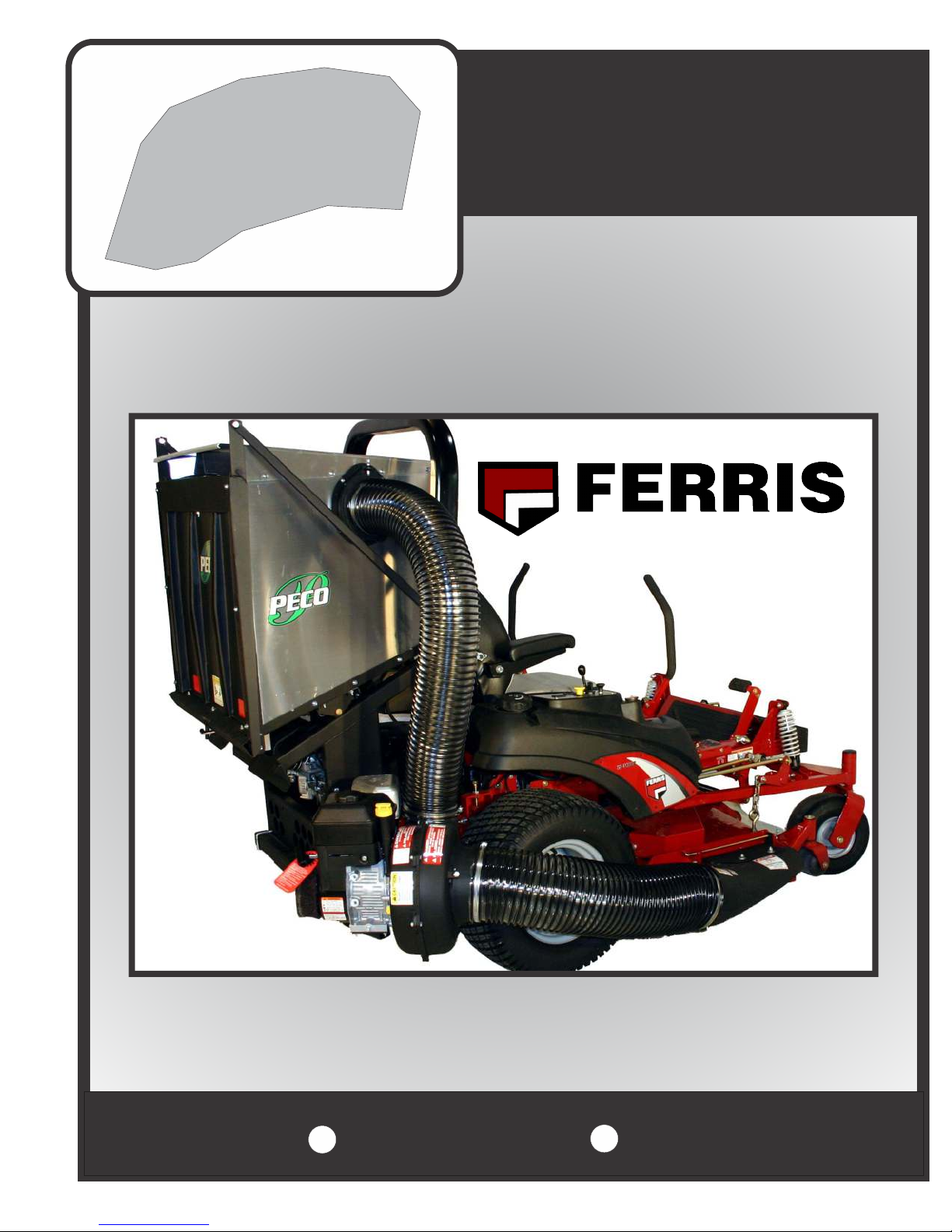

MODEL 41721209 & 41721215
FERRIS IS 3100Z SERIES MOWER
MANUAL PART#: Q0406 $10.00 REV: 1
P
PECOPECO
PPPP
PECOPECOPECO
PRO 12

2
PECO GRASS COLLECTION SYSTEM
TABLE OF CONTENTS
SECTION PAGE
Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2
Safety Alert Symbols - - - - - - - - - - - - - - - - - - - - - - 3
Warranty - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
I INTRODUCTION AND DESCRIPTION - - - - - - - - - - - - - - 5
1-1 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - 5
1-2 Description - - - - - - - - - - - - - - - - - - - - - - - - - 5
II PREPARATION FOR USE - - - - - - - - - - - - - - - - - - - - - - 5
2-1 Preparation Of Mower - - - - - - - - - - - - - - - - - - 5
2-2 Lower Main Frame Leg Installation - - - - - - - - - - 5
2-3 Lower Stiffener Installation - - - - - - - - - - - - - - - 6
2-4 Outer Engine Mount Tube Installation - - - - - - - - 6
2-5 Main Frame Assembly Installation - - - - - - - - - - 6
2-6 Engine Mount Arm Assembly Installation - - - - - - 6
2-7 Exhaust Deflector Installation - - - - - - - - - - - - - 6
2-8 Engine/Blower/Blade Assembly Installation- - - - - 7
2-9 Lift Handle Installation - - - - - - - - - - - - - - - - - - 7
2-10 Aluminum Grass Container Installation- - - - - - - 7
2-11 Dump Mechanism Adjustment - - - - - - - - - - - - 7
2-12 Blower Cone Installation - - - - - - - - - - - - - - - - 8
Safety
1. Read the operator’s manual carefully and familiarize yourself with the proper use of your attachment. Do not allow
anyone who is not acquainted with the Safety Instructions to use your attachment.
2. Know the controls and how to stop quickly. READ THE OPERATOR’S MANUAL!
3. Do not allow children to operate the vehicle. Do not allow adults to operate it without proper instruction.
4. Be especially watchful of children and pets darting into the area while operating.
5. Keep your eyes and mind on your unit while mowing or operating your attachment. Don’t let others distract you.
6. Do not attempt to operate your unit or mower when not in the driver’s seat.
7. Always stop unit when emptying the container.
8. Stop unit, shut off deck attachment, set parking brake, shut off mower engine and remove spark plug wire before
removing clogs, removing or replacing hose, boot, blower cone, or performing any maintenance.
9. Mow across the face of slopes (not steeper than 10 degrees); never up and down the face of the slope.
10. It is recommended that the container be kept only half full when negotiating any slopes. Start mowing on slopes
when the container is empty.
11. Inspect your lawn and remove any foreign objects before mowing. Never deliberately run the mower across any
foreign object.
12. Wear ear protection if the noise level is offensive.
13. Wear eye protection to prevent debris from damaging your eyes.
SECTION PAGE
2-13 Impeller Blade Removal and Replacement - - - - 8
2-14 Throttle Cable Installation - - - - - - - - - - - - - - - 9
2-15 Boot To Mower Deck Installation - - - - - - - - - - - 10
2-16 Length Of Hose Adjustment - - - - - - - - - - - - - - 10
2-17 Upper Hose Installation - - - - - - - - - - - - - - - - 10
2-18 Lower Hose Installation - - - - - - - - - - - - - - - - 10
2-19 Weight Kit Assembly Installation - - - - - - - - - - - 10

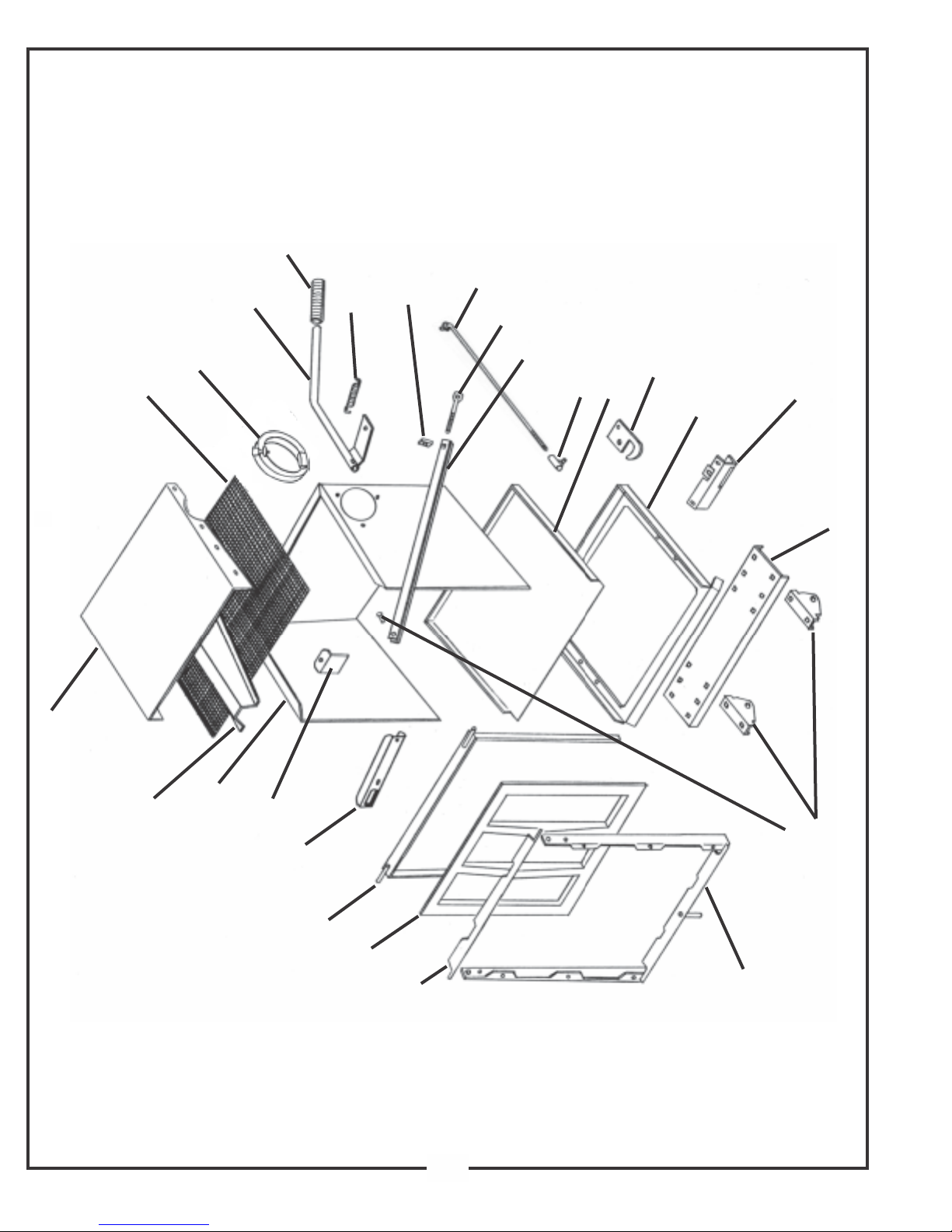

Exploded Parts Views And Assemblies - - - - - - - - 11-14
III OPERATING INSTRUCTIONS - - - - - - - - - - - - - - - - - - 15
3-1 General Safety - - - - - - - - - - - - - - - - - - - - - - - 15
3-2 Operation & Tips On Mowing - - - - - - - - - - - - - - 15
3-3 Unloading The Collection System - - - - - - - - - - - 15
IV MAINTENANCE- - - - - - - - - - - - - - - - - - - - - - - - - - - - 15
4-1 Maintenance Checklist - - - - - - - - - - - - - - - - - - 15
V PARTS AND SERVICE - - - - - - - - - - - - - - - - - - - - - - - 16
5-1 Parts And Service Information - - - - - - - - - - - - - 16
Safety Decals - - - - - - - - - - - - - - - - - - - - - - - - - - 17
Torque Specifications - - - - - - - - - - - - - - - - - - - - - 18

3
SAFETY
WARNING! NEVER operate the unit unless the discharge guard and either the deflector assembly or the
vacuum collector adapter are fastened securely in place.
WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower
blades and the blower impeller have stopped rotating.
WARNING! To avoid serious injury, perform maintenance on the vacuum collector; ONLY AFTER
STOPPING THE MOWER’S ENGINE AND WAITING FOR ALL MOVING PARTS TO COME TO A
COMPLETE STOP. Set the parking brake. Always remove the ignition key before beginning maintenance.
WARNING! For your own personal safety, ALWAYS mow ACROSS the face of slopes and NEVER UP
and DOWN the face. NEVER attempt to mow excessively steep slopes, and use caution when turning on any slope.
Safety Alert Symbol
This Safety Alert Symbol means: “ATTENTION! BECOME
ALERT! YOUR SAFETY IS INVOLVED!”
This symbol is used to call attention to safety precautions that
Should be followed by the operator to avoid accidents. When
you see this symbol, carefully read the message that follows
and heed its advice. Failure to comply with safety precautions
could result in death or serious bodily injury.
Safety Signs
The signal words DANGER, WARNING, and CAUTION are used on the equipment safety signs. These words are
intended to alert the viewer to the existence and the degree of hazard seriousness.
!
DANGER
!
WARNING
!
CAUTION
!
This signal word indicates a potentially hazardous situation which, if not
avoided, will result in death or serious injury.
This signal word indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
It may also be used to alert against unsafe practices.
This signal word indicates a potentially hazardous situation exist which, if
not avoided, will result in minor or moderate injury.
It may also be used to alert against unsafe practices.
White letters on RED
Black letters on ORANGE
Black letters on YELLOW

4
PECO LIMITED WARRANTY FOR NEW PRODUCTS
A. WHAT IS UNDER WARRANTY?
PECO extends the following warranties to the original purchaser of each new PECO consumer product subject
to the following limitations.
1. PRODUCT WARRANTY: Any part of any consumer product, which is defective in material or workmanship as
delivered to the purchaser will be repaired or replaced, as PECO elects, without charge for parts or labor, if the
defect appears within 12 months (On most products, see owners manual for specifics) from the date of delivery
of the product to the original purchaser. ALL DEFECTIVE PARTS MUST BE RETURNED TO PECO
FOR INSPECTION TO DETERMINE VALIDITY OF WARRANTY CLAIMS. Freight and mailing will
be borne by the customer.
2. PARTS REPLACED DURING WARRANTY: Any new PECO part which is furnished in performance of this
warranty and is defective in material or workmanship as delivered to the purchaser will be repaired or replaced,
as PECO elects, without charge if the defect appears within 90 days from the date of installation of such part or
before the expiration of the original warranty period, whichever is later.
B. SECURING WARRANTY ADJUSTMENTS.
Call PECO for Return Authorization. Damaged or broken parts other than engines or batteries, must be
returned to New PECO Inc., 100 Airport Road, Arden, NC 28704 before any warranty adjustment can be
authorized. At the time of requesting warranty adjustment, the purchaser must present evidence of the date of
delivery of the product. The purchaser shall pay any charge for the product to and from Arden, NC.
C. ITEMS NOT COVERED BY PECO WARRANTY.
Engines and batteries attached to PECO products are covered under a separate warranty by the respective
manufacturer.
D. UNAPPROVED ALTERATION OR MODIFICATION.
All obligations of New PECO, Inc. under this warranty shall be terminated if products are altered or modified in
ways not approved by New PECO Inc.
E. ACCIDENTS AND NORMAL MAINTENANCE.
The warranty covers only defective material and workmanship. It does not cover depreciation or damage
caused by normal wear, accident, improper use or abuse of products. The cost of normal maintenance and
normal replacement of service items such as belts, cutting blades, hoses, etc., which are not defective shall be
paid for by the purchaser.
F. NO REPRESENTATIONS ADDITIONAL WARRANTIES, DISCLAIMER.
Neither New PECO Inc. nor any company affiliated with it makes any warranties, representations or promises
as to the quality of performance of its products other than those set forth herein. Except as described above,
New PECO Inc. makes no other warranties AND SPECIFICALLY DISCLAIMS ANY AND ALL
IMPLIED WARRANTIES OF FITNESS AND MERCHANTABILITY.
G. ANY MACHINE USED FOR RENTAL PURPOSES ARE GUARANTEED FOR 45 DAYS FROM DATE
OF ORIGINAL SALE ONLY.
H. REMEDIED EXCLUSIVE.
The only remedies the purchaser has in connection with the breach or performance of any warranty on New
PECO Inc. consumer products are set forth above. In no event will PECO be liable for special incidental or
consequential damages.
1. NO SERVICE CENTER WARRANTY.
The selling Service Center makes no warranty on his own on any item warranted by New PECO Inc. unless he
delivers to purchaser a separate written warranty certificate specifically warranting the item. The dealer has no
authority to make any representation or promise on behalf of PECO or to modify the terms of this warranty in
any way.

5
SECTION I
INTRODUCTION AND DESCRIPTION
1-1 Introduction
We are pleased to have you as a PECO customer. Your
collection system has been designed to give you a low
maintenance, simple and effective way to collect the
grass clippings from your mower. This manual is
provided to give you the necessary instructions to
properly mount and operate the collection system on
your mower. Please read this manual thoroughly.
Understand what each control is for and how to use it.
Observe all safety decal precautions on the machine and
noted throughout the manual.
Note: All references made to right, left, front, rear, top or
bottom are as viewed from the normal operator’s
position on the mower.
1-2 Description
The collection system is designed for turf maintenance
where there is a need to collect the grass clippings as
the mower cuts the turf. It is also good for picking up
leaves and twigs in pre-season and post-season clean-
up.
The engine/blower/blade assembly, is mounted on the
right side of the unit. The blower draws grass clippings
from the discharge area of the cutter deck up to the
aluminum container mounted over the rear portion of the
frame. The operator can engage the
engine/blower/blade assembly by starting the engine.
Once the container is full of clippings, the operator can
easily push and raise the lift handle, releasing the
container’s rear door and the container will pivot towards
the ground.
Section II
PREPARATION FOR USE
2-1 Preparation Of Mower
Carefully dismantle wooden shipping crate from around
the components. Cut retaining straps and separate the
parts. The collection system will have various parts
located inside. Remove and sort all parts for easy
identification.
Note: Before each step of assembly it will help to study
the exploded drawings on pages 11 thru 14.
Remove the rear guard from the mower. Remove the
grass deflector and mounting hardware from the mower
deck as shown in Figure 2-1a and 2-1b.
2-2 Lower Main Frame Leg Installation
Attach the left lower main frame leg P#(B0609) and the
right lower main frame leg P#(B0610) to the rear frame
of the mower using (2) 3/8”-16 x 1-1/4” HHCS
P#(K1192), (1) 3/8” flat washer P#(K0047), and (2) 3/8”-
16 nyloc nuts P#(K1216) PER LEG. Refer to Figure 2-2.
(2) 3/8”-16 x 1-1/4” HHCS
(2) 3/8”-16 Nyloc Nut
(1) 3/8” Flat Washer
Left Lower
Main Frame Leg
Right Lower
Main Frame Leg
Figure 2-2

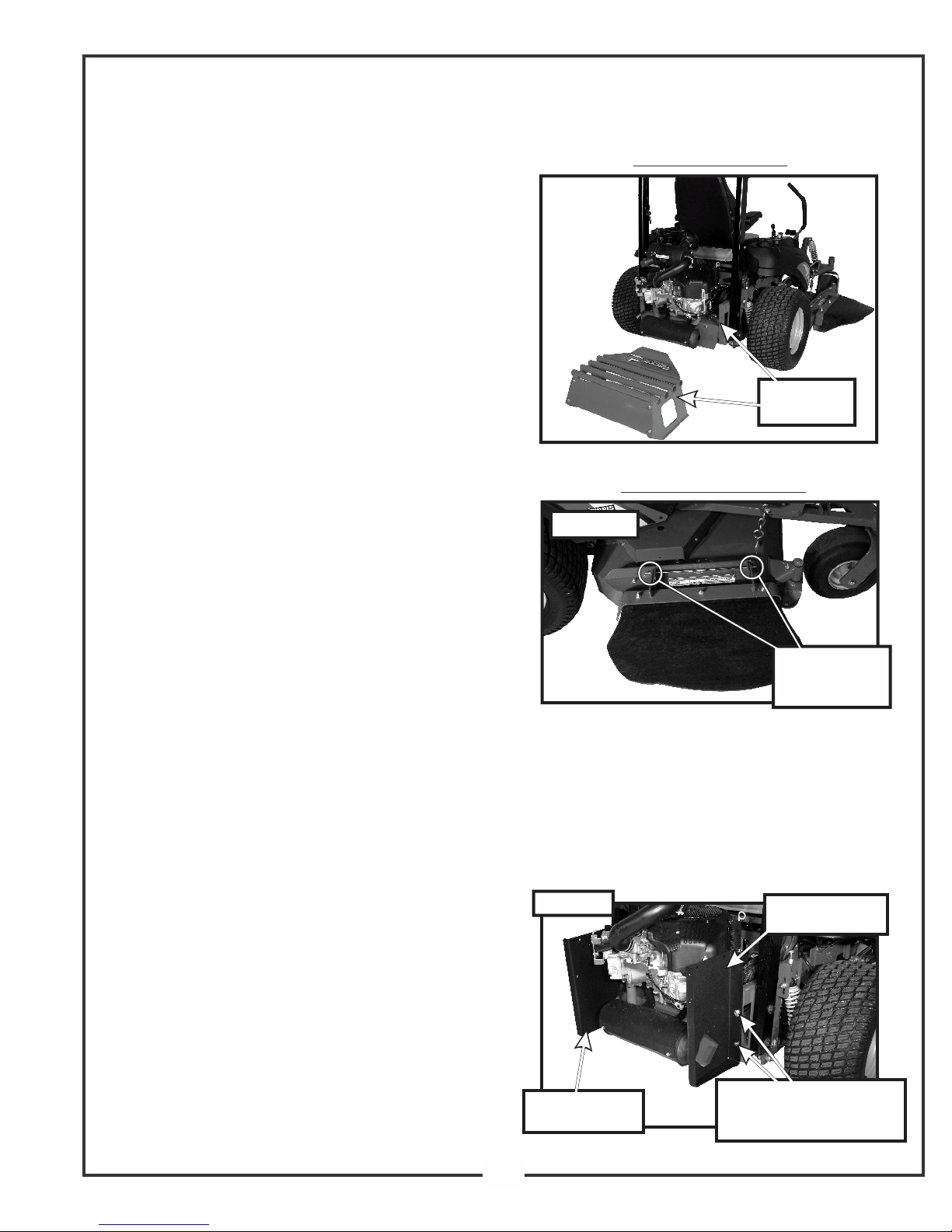

Figure 2-1a
Remove
Rear Guard
Rear Guard Removal
Remove Grass
Deflector And
Hardware
Figure 2-1b
Grass Deflector Removal

2-3 Lower Stiffener Installation
Attach the lower stiffener P#(B0611) to the left and right
lower main frame legs, using (4) 3/8”-16 x 1-1/4” HHCS
P#(K1192) and (4) 3/8”-16 nyloc nuts P#(K1216). Refer
to Figure 2-3.
2-4 Outer Engine Mount Tube
Installation
Fasten the outer engine mount tube P#(B1117) to the
lower stiffener using (2) 3/8”-16 x 2-1/4” u-bolts
P#(K1119), (2) 3/8” flat washers P#(K0047), and (4) 3/8”-
16 nyloc nuts P#(K1216). Use the flat washers on the
slotted mounting holes located on the lower stiffener.
Position the engine mount arm assembly mount hole to
the right side of the mower. Refer to Figure 2-4.
2-5 Main Frame Assembly Installation

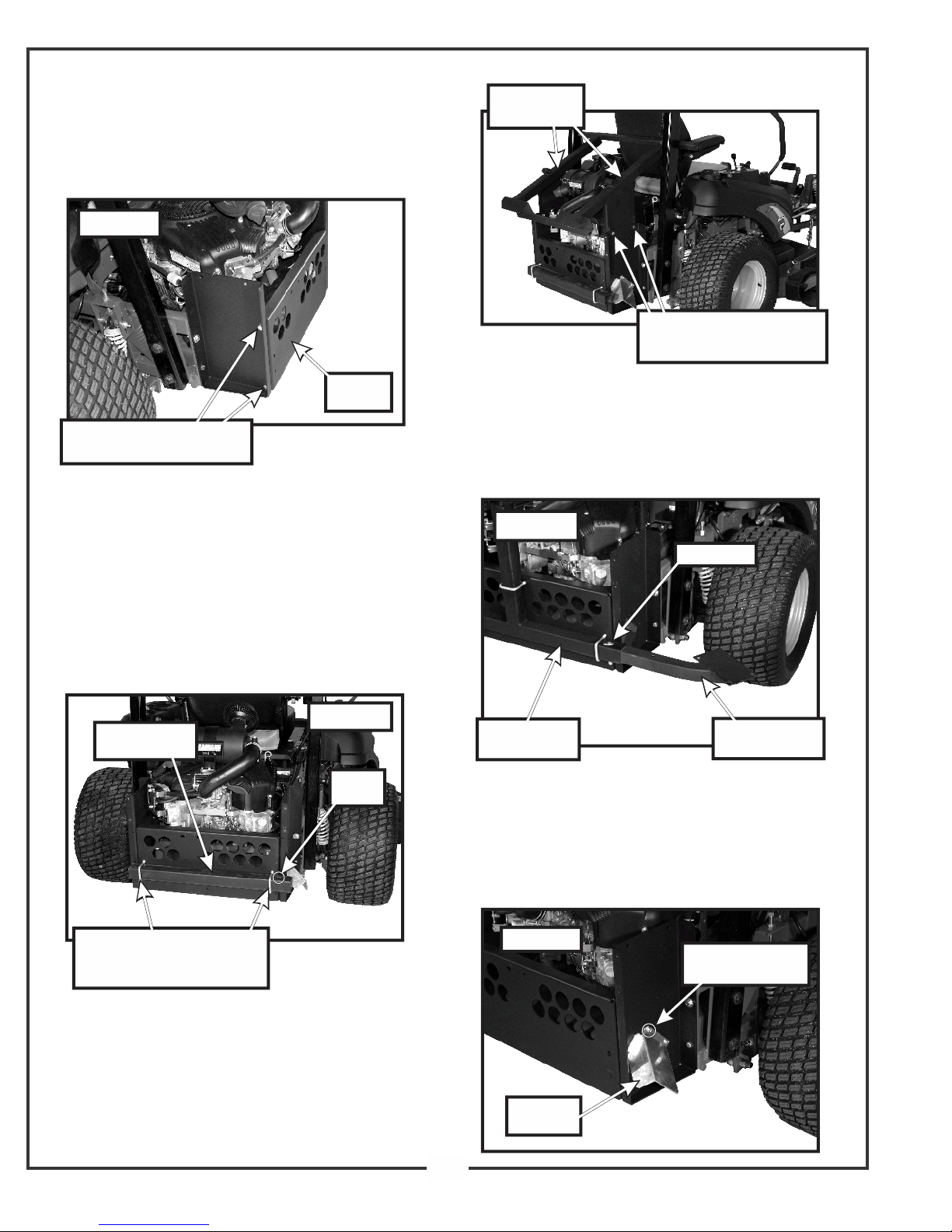

Attach the main frame assembly P#(A1052) to the left
and right lower main frame legs using (4) 3/8”-16 x 1-
1/4” HHCS P#(K1192) and (4) 3/8”-16 nyloc nuts
P#(K1216). Refer to Figure 2-5.
2-6 Engine Mount Arm Assembly
Installation
Insert the engine mount arm assembly P#(A0138) into
the outer engine mount tube P#(B3727), and fasten
using (1) detent pin P#(J0248). Refer to Figure 2-6.
2-7 Exhaust Deflector Installation
Fasten the exhaust deflector P#(C0062) to the right
lower main frame leg using (3) 1/4”-20 x ½” HWHTCS
P#(K0353). Refer to Figure 2-7.
6
Lower
Stiffener
(4) 3/8”-16 x 1-1/4” HHCS
(4) 3/8”-16 Nyloc Nut
Figure 2-5
(4) 3/8”-16 x 1-1/4” HHCS
(4) 3/8”-16 Nyloc Nuts
Main Frame
Assembly
Outer Engine
Mount Tube
Engine Mount
Arm Assembly
Detent Pin
Figure 2-3
Outer Engine
Mount Tube
(2) 3/8”-16 x 2-1/4” U-Bolts
(2) 3/8 Flat Washers
(4) 3/8”-16 Nyloc Nuts
Mount
Hole
Figure 2-4
Figure 2-6
(3) 1/4”-20 x 1/2”
HWHTCS
Exhaust
Deflector
Figure 2-7

2-8 Engine/Blower/Blade Assembly
Installation
Position the engine/blower/blade assembly on top of the
engine mount arm assembly and secure using (4) 5/16”-
18 x 1-1/2” HHCS P#(K1157) and (4) 5/16”-18 nyloc nuts
P#(K1180). Refer to Figure 2-8.
2-9 Lift Handle Installation
The various parts of the handle assembly P#(A0574)
must be attached to the container frame. PAGE 11
shows the orientation and location of the components.
Slide the lift handle into the slot in the handle mount
bracket P#(B1730) on the grass container. It may be
necessary to remove the handle grip P#(J0522) to allow
the handle to fit through the slot.
Before attaching the handle, hook one end of the spring
P#(J0176) into the hole on the underside of the handle.
Hook the other end of the spring into the open hole in
the handle mount bracket. Fasten the handle to the
grass container frame by using (1) 3/8”-16 x 2” HHCS
P#(K1208) and (2) 3/8”-16 flange nuts P#(K1215). At this
point the handle can pivot back and forth in the slot of
the handle mount bracket. With the handle in place,
fasten the ball joint P#(K1442) to the end of the latch rod
P#(A0260) (PAGE 8). Tighten to approximately half way
down the threads of the latch rod. Slide the ball joint into
the hole on the latch hook P#(B1529). Use (1) 5/16”-24
hex nut P#(K1444) and (1) 5/16” lock washer P#(K0043)
to fasten the ball joint to the latch hook. Attach the
opposite end of the latch rod into the handle. Fasten the
rod to the handle by using (1) 3/32” x 3/4” cotter pin
P#(K0094). Adjust the rod to allow the hook to close the
box door completely.
Refer to page 11 for exploded parts drawings and
photographs of the complete assembly.
7
2-10 Aluminum Grass Container
Installation
NOTE: It is recommended that (3) people assist in
mounting the container.
With three people available, two can lower the container
onto the frame while the third person inserts the pivot
pins P#(K0172) through the holes. Insert the pins from
the outside to the inside. Secure with (1) 5/8” washer
P#(K0058) and (1) 5/32” x 2-5/8” hair pin clip P#(K0088)
per pivot pin. Refer to Figure 2-10. Reattach the bottom
ends of the door opening linkages to the main frame by
using (1) Rue-Ring cotter pin P#(K1437) per side.
To test the functionality of the dump mechanism, pull the
lift handle away from the unit, and lift upward (Page 11).
The door of the container should open and the box
should pivot clockwise towards the ground.
2-11 Dump Mechanism Adjustment
The linkage may be adjusted in two places, at the
adjusting screw P#(K1435) and the latch assembly
items. See page 11 for visual clarification. To change the
door closure tightness, screw the adjusting screw
(Figure 2-11) in or out. To adjust the latch, change the
length of the latch rod by screwing the latch adjusting
ball joint in or out. The latch hook pivot should be in the
middle of the slot in the latch hook pivot plate. Slide the
pivot back or forth and then re-tighten.
Hair Pin
Clip
Washer
Figure 2-10
Adjustment Screw
Figure 2-11
Figure 2-8 Engine/Blower
Blade Assembly
(4) 5/16”-18 x 1-1/2” HHCS
(4) 5/16”-18 Nyloc Nuts

2-12 Blower Cone Installation
Thread (1) 5/16”-18 jam nut P#(K0120) onto each end of
(2) 5/16”-18 x 2-1/2” HHCS P#(K0125). Now partially
thread the bolts into each of the two tabs located on the
blower housing. Place blower cone so the two tabs line up

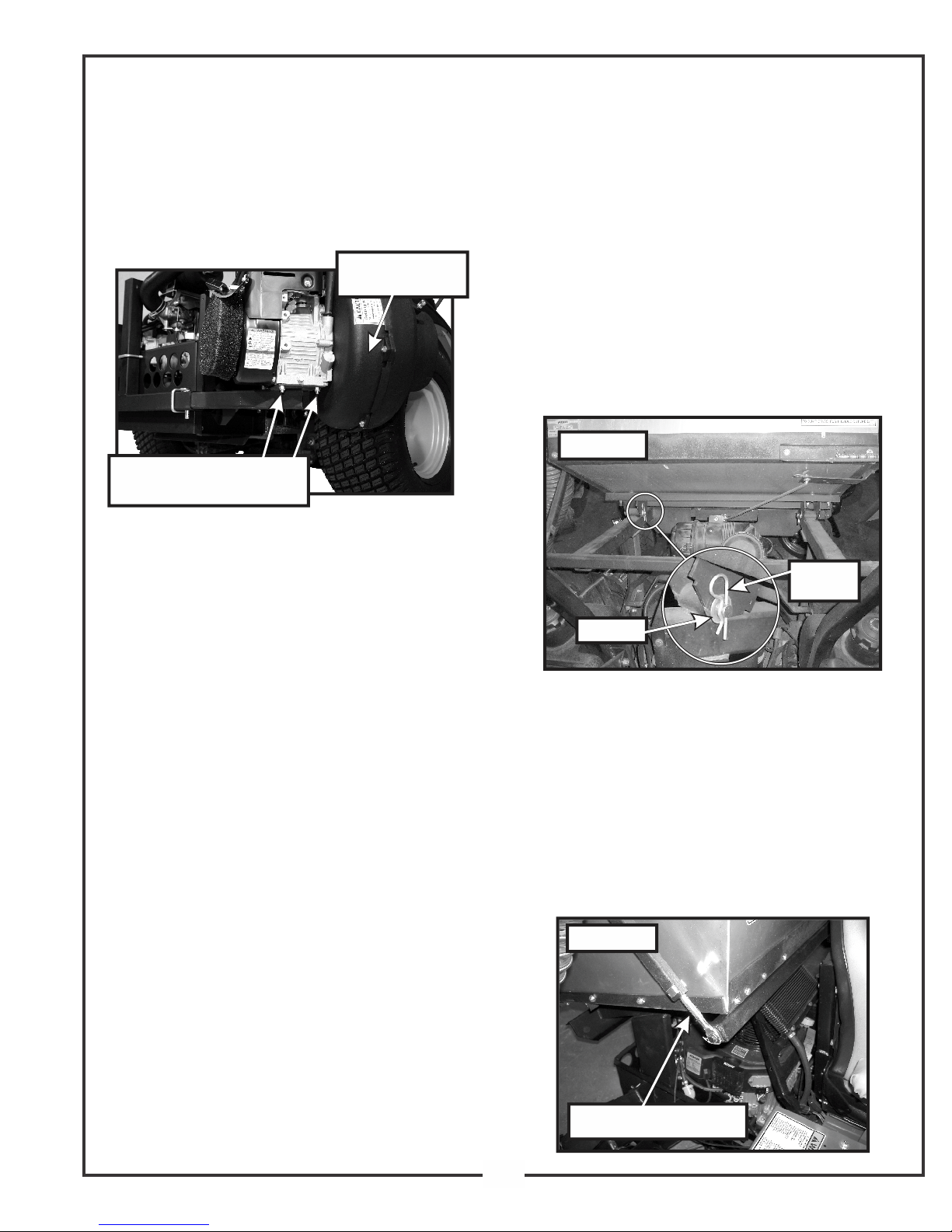

with the bolts then tighten completely. See Figure 2-12.

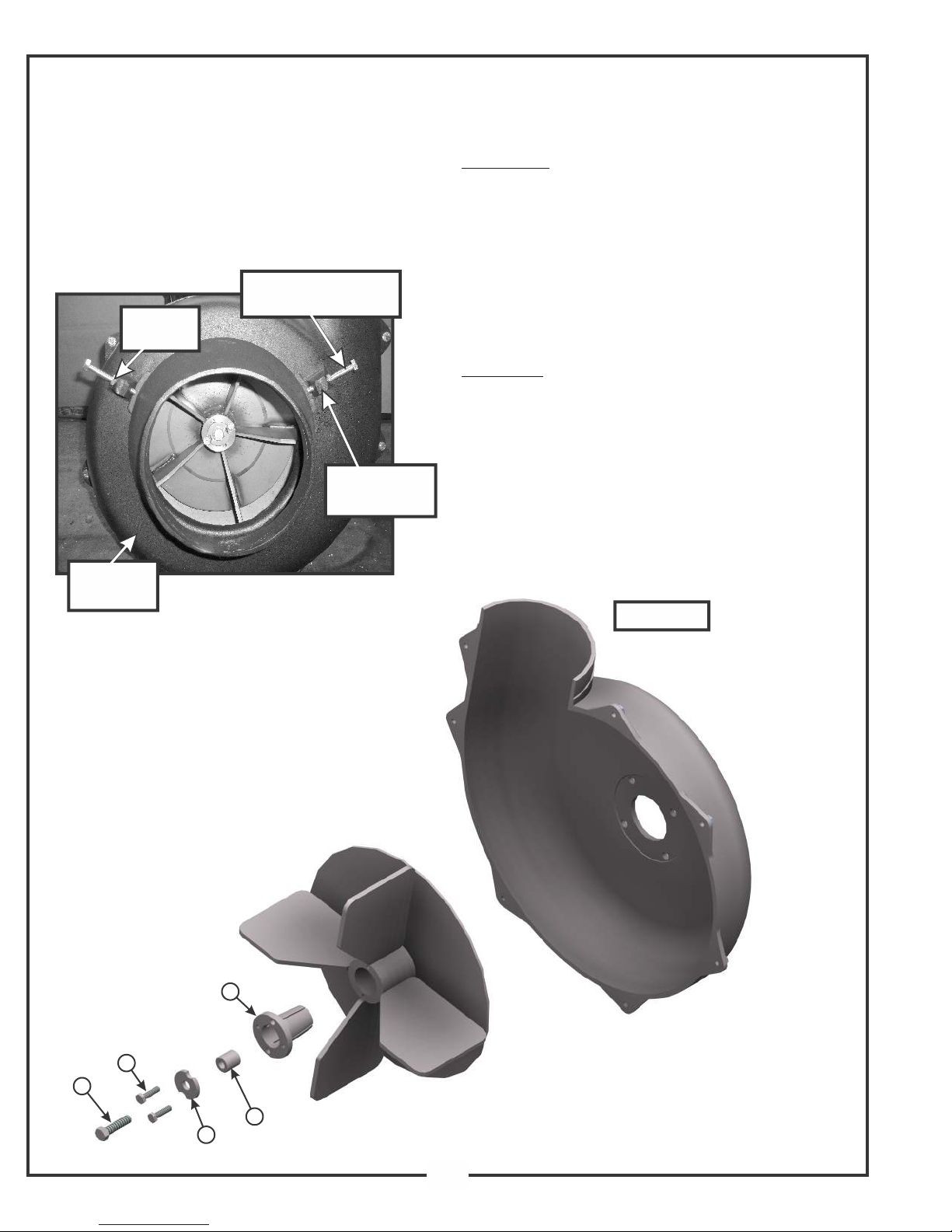

2-13 Impeller Blade
Removal/Replacement
To Remove: First remove the 3/8”-16 x 1-1/2” HHCS
P#(K1211) (#1), taper lock bushing washer P#(K0278)
(#3) and spacer bushing P#(S3242) (#4) from the taper-
lock bushing (#5). See Figure 2-13. Next remove the (2)
1/4”-20 x 1” HHCS (#2) and place them into the threaded
holes of the taper-lock bushing P#(S4302) (#5).
Gradually thread each bolt evenly into the taper-lock
bushing, forcing the blade to break-away from the taper-
lock bushing. If the impeller will not move, carefully hit
the base of the impeller, between each vein, with a
hammer, then try again.
To Replace: Place impeller blade over the engine shaft.
Slide the taper-lock bushing (#5) on to the engine shaft
and into the impeller blade, aligning the non-threaded
holes of the taper-lock bushing to the threaded holes of
the impeller blade. Fasten by using (2) 1/4”-20 x 1”
HHCS (#2), (1) spacer bushing (#4) (1) taper lock
bushing washer (#3), and (1) 3/8”-16 x 1-1/2” HHCS

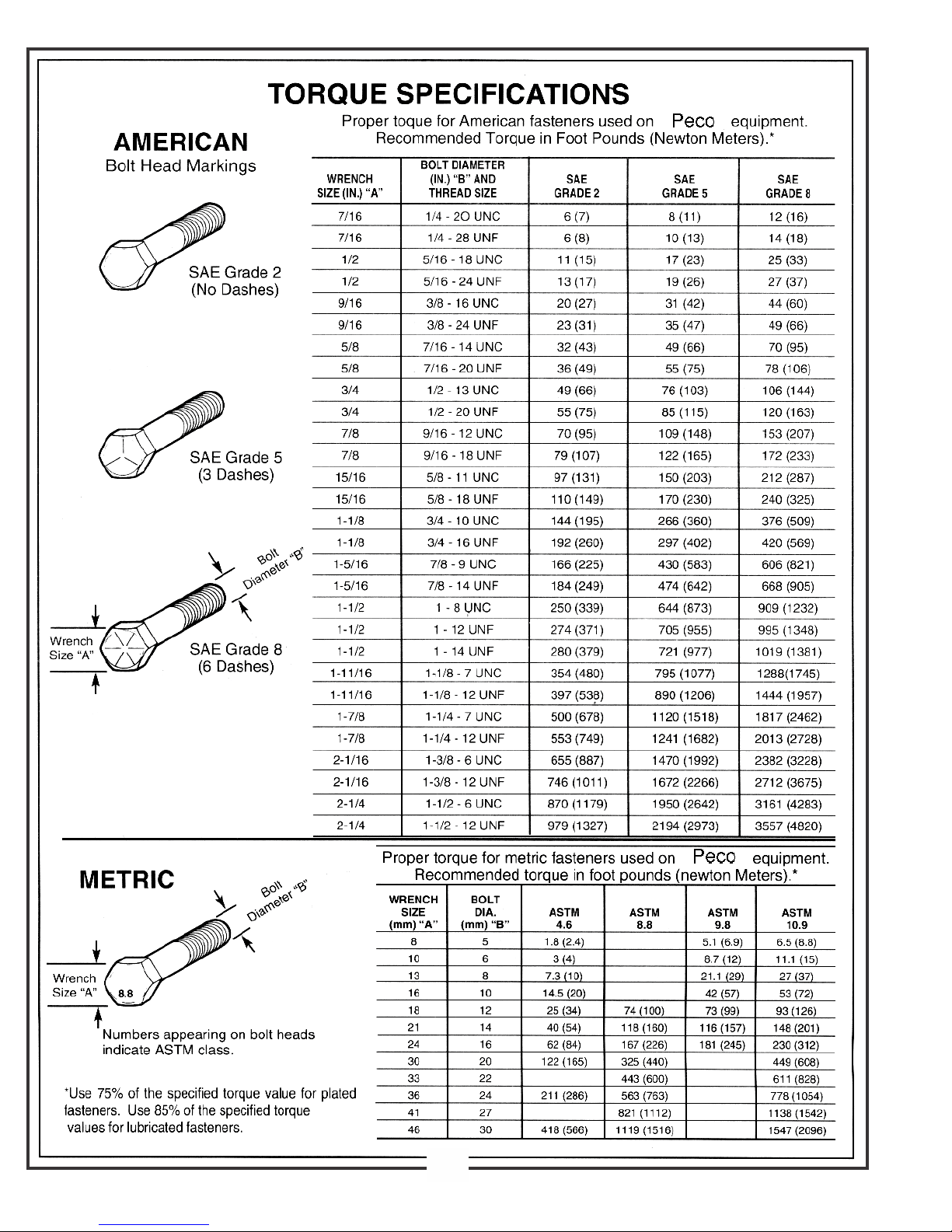

(#1). Torque to the proper specifications in the torque
chart on the back of this manual. Next, rotate the
impeller blade to ensure that the blade is clear of contact
on all sides of the blower housing.
8
3
1
2
4
5
Figure 2-13
Figure 2-12
Blower
Housing Tab
5/16”-18 x 2-1/2”
All Thread HHCS
5/16”-18
Jam Nut
Blower
Housing

9
To fasten the throttle cable end to the engine, place the
throttle control lever into the “stop” position. Rotate the
engine throttle lever to the “stop” position. Thread the
wire end of the throttle cable into the engine throttle lever
eyelet and tighten the screw. Fasten the throttle cable
sleeve to the clamp on the engine throttle. Rotate the
throttle control lever into the “fast” position to check for
proper installation.
Note: Cable sleeve may need to be cut depending on
the engine type. Once throttle cable is attached, pull the
box handle to dump the box and be sure the cable does
not alter the movement of the box.
Throttle Base Plate
Throttle Spring
Plate Throttle

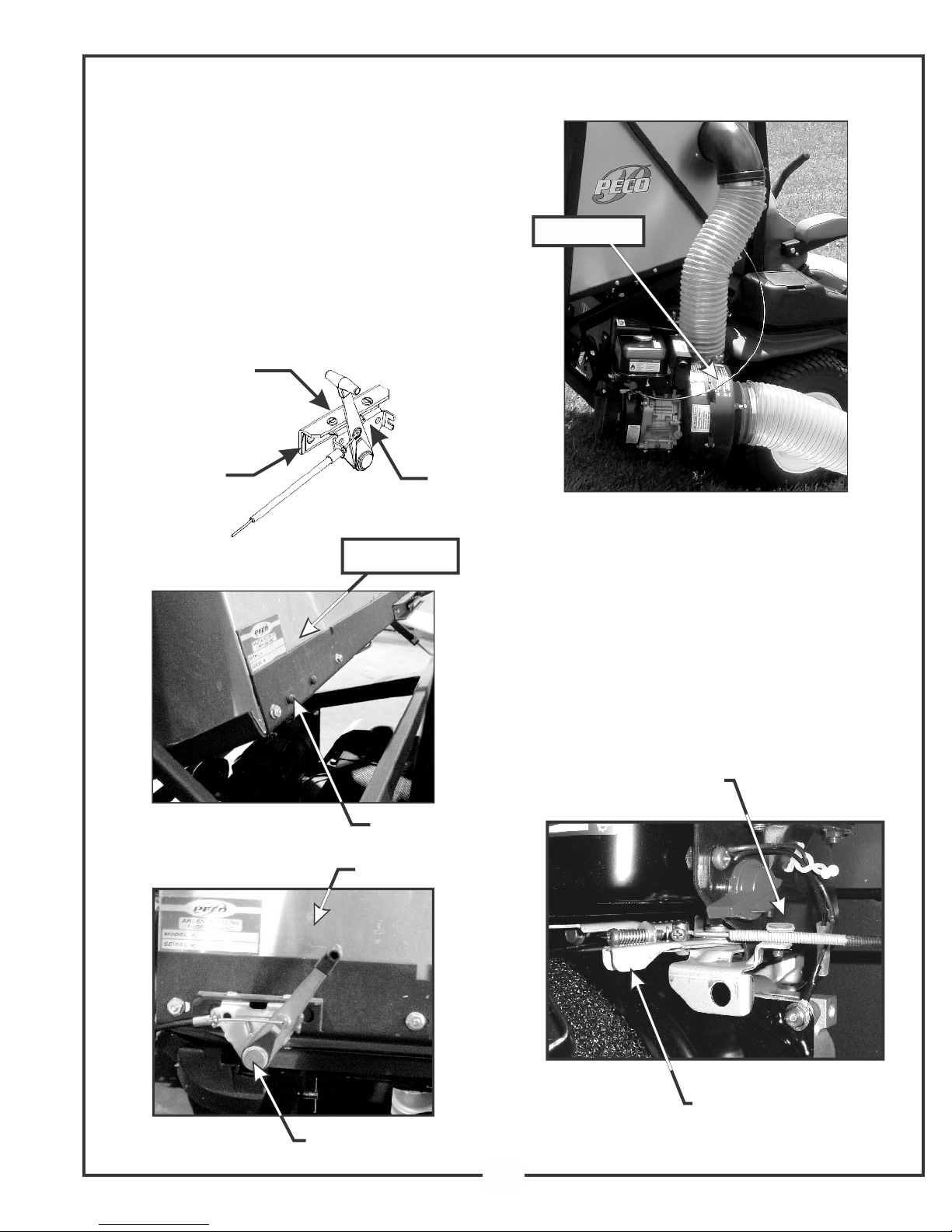

2-14 Throttle Cable Installation
To install the throttle cable kit P#(A0060 for 5.5HP) or
P#(A0294 for 6.0 HP) to the box assembly, align the
large end of the slot in the throttle base plate (Figure 2-
14a) with the rivets located on the front of the box
assembly frame (Figure 2-14b). Place the throttle base
plate over the rivets, Slide the throttle cable kit to the
right, moving the smaller end of the slot over the rivets.
When positioned correctly, the throttle spring plate will
snap into place (Figure 2-14c).
To remove the throttle cable kit, lift the throttle spring
plate and slide the throttle kit to the left.
Figure 2-14a
Figure 2-14b
Box Assembly
Rivet
Figure 2-14c Box Assembly
Throttle Cable Kit
Properly Positioned
Figure 2-14d
Figure 2-14e
Throttle Cable Clamp
Engine Throttle Lever
Throttle Cable

2-15 Boot To Mower Deck Installation
Fasten the boot plate P#(B0612) to the boot P#(E2502)
using (2) 3/8”-16 x 1” carriage bolts P#(K1182), (2) 3/8”
flat washers P#(K0047), and (2) 3/8”-16 nyloc nuts
P#(K1216). Insert the bolts from the inside of the boot to
prevent grass clippings from collecting on the threads.
Align the holes in the boot plate with the grass deflector
mounting holes and secure the boot plate to the mower
deck using (1) boot rod P#(B0348) and (1) hair pin clip
P#(K0099). Refer to Figure 2-15.
2-16 Length Of Hose Adjustment
The hoses in steps 2-17 and 2-18 must be cut to fit your
mower. Follow steps 2-17 and 2-18, however, do not cut
the hoses until you have tried to fit them on your mower.
Remember that the hoses have to be long enough to
allow for enough clamping surface between the inlet,
blower assembly, and boot.
2-17 Upper Hose Installation
Slide (1) upper hose clamp P#(J1000) onto both ends of
the 6” upper hose. Then slide one end of the 6” hose
onto the 6” hose ring P#(E0007). Make sure there is
about a two-inch overlap between the hose end and the
hose ring. Lift the locking pin on the 7” inlet ring
P#(V1152) and insert the hose ring. Secure the hose
ring with the locking pin. Proceed to slide the opposite
end of the 6” hose onto the outlet of the blower assembly
and tighten hose clamp. See Figure 2-17 and 2-18 for
details. Make sure both ends of the hose are clearly
attached to the inlet and the blower assembly outlet.
Tighten the hose clamps.
2-18 Lower Hose Installation
Slide a lower hose clamp P#(J1000) onto both ends of
the 8” lower hose. Slide one end of the lower hose onto
the blower cone, with 2” of the hose overlapping the
cone, and tighten the clamp. Slide the other end of the
lower hose over the boot, with 2” of the hose overlapping
the boot, and tighten the clamp. Refer to Figure 2-18 for
reference.
2-19 Weight Kit Installation
Fasten the (2) weight brackets P#(B0383) to the mower
frame, using (4) 3/8”-16 x 3-1/2” HHCS P#(K1200), (4)
3/8” flat washer P#(K0047), and (4) 3/8”-16 nyloc nuts
P#(K1216). Use the flat washers on the slotted mount
holes in the weight bracket. After the weight brackets are
securely fastened to the mower frame, lift the weight
P#(B2220) into position, and secure the weight using (2)
1/2”-13 x 4-5/16” u-bolts P#(K0331), (4) 1/2” flat washers
P#(K0055), and (4) 1/2”-13 nyloc nuts P#(K1247). Refer
to Figures 2-19a and 2-19b.
10

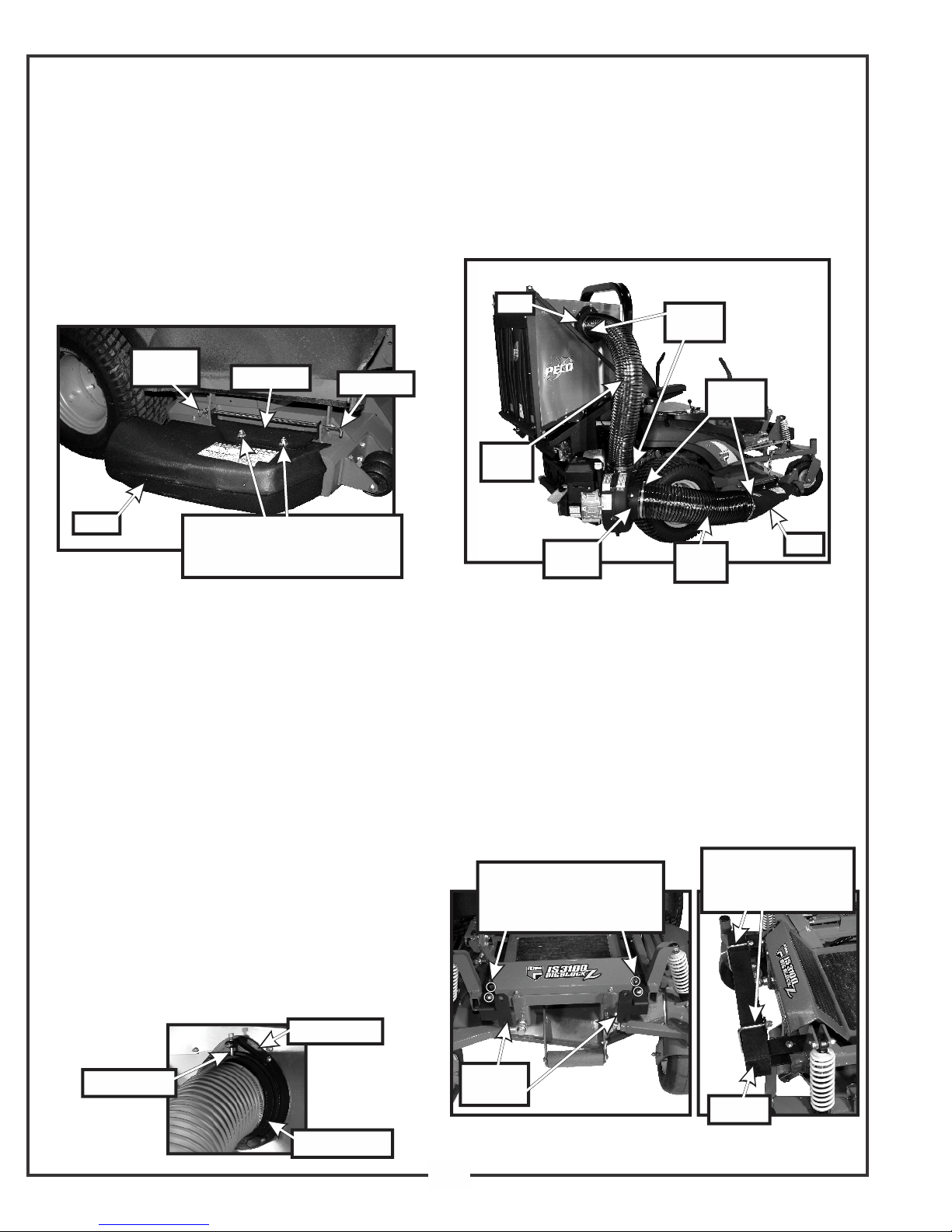

Figure 2-17 7” Inlet Ring
6” Hose Ring
Locking Pin
Hose
Clamps
Hose
Clamps
Lower
Hose
Boot
Upper
Hose
Blower
Cone
Inlet
Figure 2-18
Figure 2-19a Figure 2-19b
Weight
Bracket
Weight
(4) 3/8”-16 x 3-1/2” HHCS
(4) 3/8” Flat Washer
(4) 3/8”-16 Nyloc Nut
(2) 1/2”-13 U-Bolt
(4) 1/2” Flat Washer
(4) 1/2”-13 Nyloc Nut
Figure 2-15
Boot
Boot Rod
Boot Plate
Hair Pin
Clip
(2) 3/8”-16 x 1” Carriage Bolts
(2) 3/8” Flat Washer
(2) 3/8”-16 Nyloc Nuts

11
INLET RING

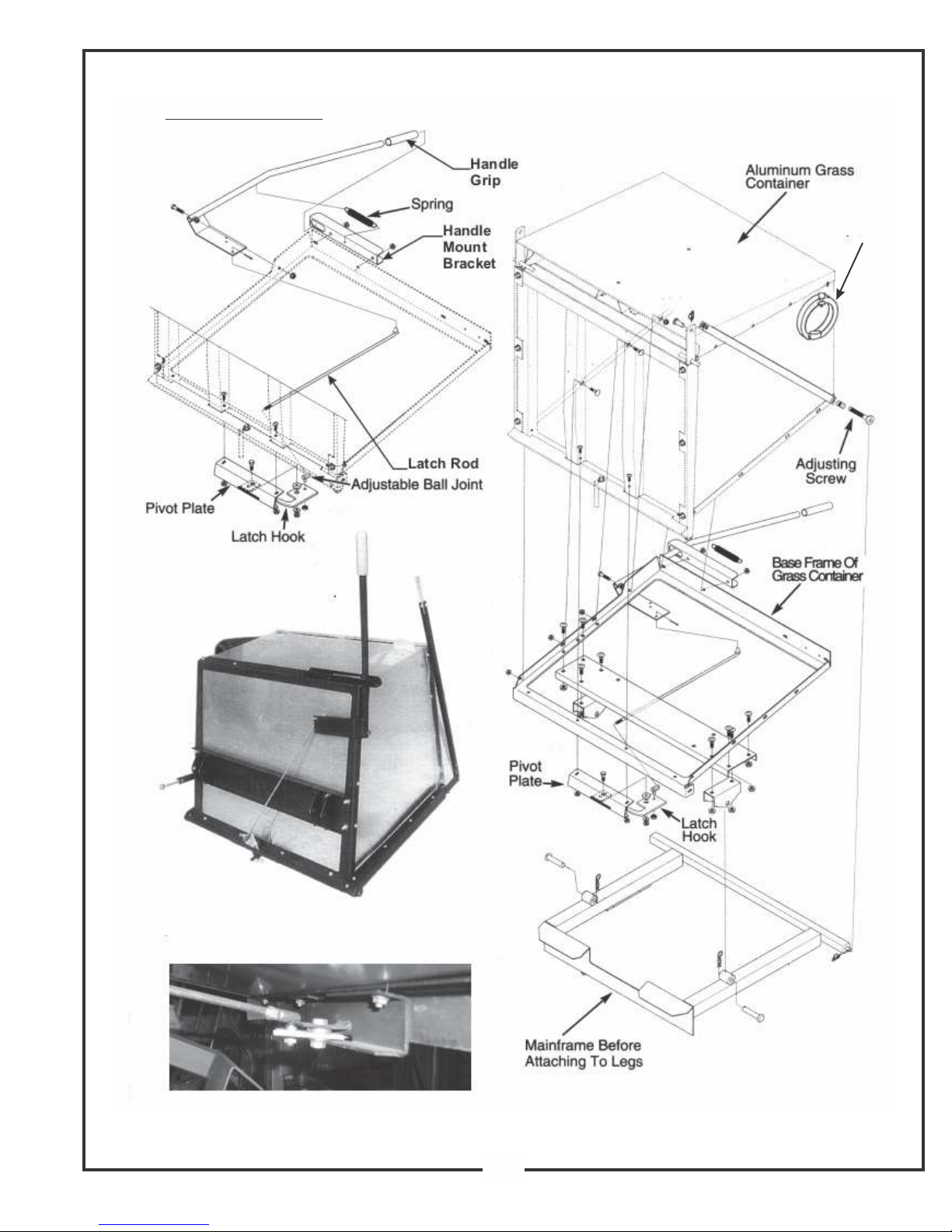

Lift Handle Assembly
Figure-10.
Aluminum Grass Container
With Handle Attached
Figure-11.
Latch Hook Mechanism Assembly
Figure -12.
Aluminum Grass Container Assembly

Aluminum
Grass Container
Exploded View
C0040 - BOX TOP
C0029 - SCREEN SUPPORT
C1184 - FILL GAGE
K1418 - LINKAGE PIN
C0046 - BOX BOTTOM
K1435 - ADJUSTING SCREW
A0260 - LATCH ROD
K1422 - ADJUSTING NUT
B0193 - LINKAGE ROD
J0176 - LATCH SPRING
J0522 - HANDLE GRIP
A0574 - BOX HANDLE
V1152 - INLET RING W/
LOCKING PIN
B8113 - SCREEN
B0205 - BASE FRAME
B1529 - LATCH HOOK
B0192 - BASE FRAME PIVOT MOUNT
K1442 - ADJUSTING BALL JOINT
A0557 - DOOR FRAME ASSEMBLY
C0031 - BOX BACK & SIDES
B1730 - HANDLE MOUNT
A0558 - BOX/DOOR FRAME
V1131 - PLASTIC DOOR
B0194 - UPPER DOOR
MEMBER
B1574 - PIVOT BRACKET
A0087 - LATCH HOOK PIVOT PLATE
12

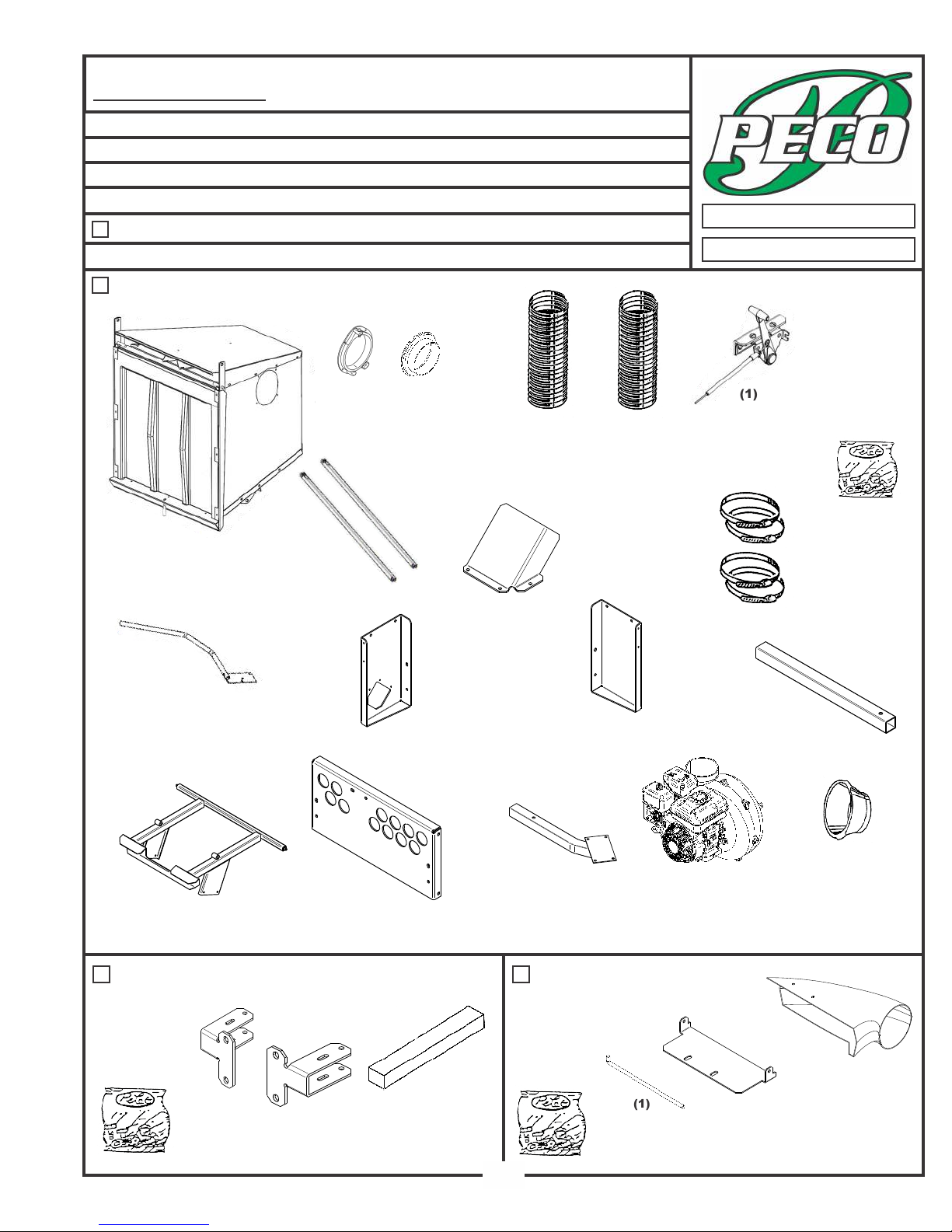

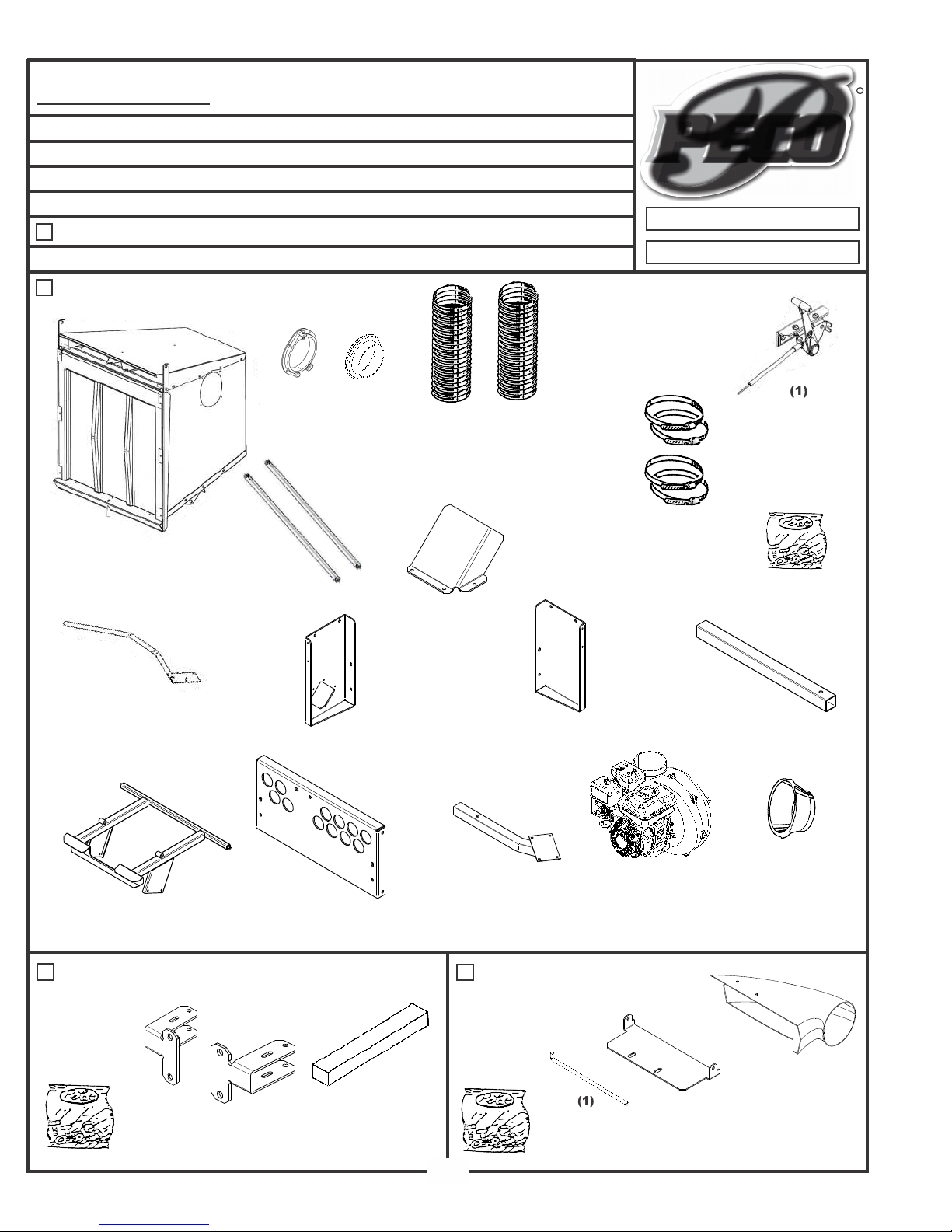

MODEL#: 41721209
MOWER NAME: FERRIS
MOWER MODEL: IS 3100Z
MOWER DECK SIZE: 61”
VAC NAME: PRO 12
REVISED: 10/22/2012
ENG: 900 SER. BR (9.00 GROSS TORQUE / 205 cc)
(1)
B2220
WEIGHT
(1)
E6009
8” BLOWER
CONE
A1782 UNIT ASSEMBLY
(1)
HB0421
HARDWARE
BAG
- WEIGHT KIT A1784
(1)
A0060
70” THROTTLE
KIT
(4)
J1000
HOSE
CLAMPS
(1)
F0007
8” x 36”
LOWER
HOSE
(1)
F0001
6” x 50”
UPPER
HOSE
(1)
A0560
12 CU. FT. BOX
ASSEMBLY
(2)
B0193
DOOR LINKAGE
(1)
HB0419
HARDWARE
BAG
(2)
B0383
WEIGHT
BRACKET
FOR YEAR: 2010
(1)
ENGINE/
BLOWER/
BLADE ASSY.
(1)
V1152
7” INLET
RING
(1)
E0007
6” HOSE
RING
(1)
A0574
BOX HANDLE
ASSEMBLY
(1)
A0138
ENGINE MNT.
ARM ASSY.
(1)
A1052
MAIN FRAME
ASSEMBLY
(1)
B0611
LOWER
STIFFENER
(1)
B0609
LT. LWR. MAIN
FRAME LEG
(1)
B0610
RT. LWR. MAIN
FRAME LEG
(1)
C0062
EXHAUST
DEFLECTOR
MANUAL: QO406
(1)
HB0422
HARDWARE
BAG
A1785 - BOOT KIT
(1)
E2502
BOOT
(1)
B0612
BOOT
PLATE
(1)
B0348
BOOT
ROD
13
(1)
B3727
OUTER ENGINE
MOUNT TUBE

MODEL#: 41721215
MOWER NAME: FERRIS
MOWER MODEL: IS 3100Z
MOWER DECK SIZE: 61”
VAC NAME: PRO 12
REVISED: 10/22/2012
6.5HP BRIGGS AND STRATTON VANGUARD
(1)
B2220
WEIGHT
(1)
E6009
8” BLOWER
CONE
A1782 UNIT ASSEMBLY
(1)
HB0421
HARDWARE
BAG
(1)
HB0422
HARDWARE
BAG
- WEIGHT KIT A1784 A1785 - BOOT KIT
(1)
E2502
BOOT
(1)
A0060
70” THROTTLE
KIT FOR
(5.5 & 6.5 HP)
(4)
J1000
HOSE
CLAMPS
(1)
B0612
BOOT
PLATE
(1)
B0348
BOOT
ROD
(1)
F0007
8” x 36”
LOWER
HOSE
(1)
F0001
6” x 50”
UPPER
HOSE
(1)
A0560
12 CU. FT. BOX
ASSEMBLY
(2)
B0193
DOOR LINKAGE
(2)
B0383
WEIGHT
BRACKET
FOR YEAR: 2010
(1)
A639
ENGINE/
BLOWER/
BLADE ASSY.
(1)
V1152
7” INLET
RING
(1)
E0007
6” HOSE
RING
(1)
A0574
BOX HANDLE
ASSEMBLY
(1)
A0138
ENGINE MNT.
ARM ASSY.
(1)
A1052
MAIN FRAME
ASSEMBLY
(1)
B0611
LOWER
STIFFENER
(1)
B0609
LT. LWR. MAIN
FRAME LEG
(1)
B0610
RT. LWR. MAIN
FRAME LEG
(1)
C0062
EXHAUST
DEFLECTOR
MANUAL: QO406
(1)
HB0419
HARDWARE
BAG
P
P P
PECO PECOPECO PECO PECOPECO
P
P P
P
P P
P
P P P
PECO PECOPECO
R
14
(1)
B3727
OUTER ENGINE
MOUNT TUBE

15
SECTION III
OPERATING INSTRUCTIONS
3-1 General Safety
Only qualified people familiar with this operator’s manual
and the mower’s operator’s manual should operate this
machine.
3-2 Operation & Tips On Mowing
A. Perform BEFORE EACH USE maintenance list in
paragraph 4-1.
B. Start the engine/blower/blade assembly.
B. Start mower.
C. With the mower at high idle speed, engage the mower
deck.
D. Proceed to operate the control levers of the mower.
Note: If the collection system does not appear to be
collecting the grass clippings; disengage the deck,
and blower, engage the parking brake and turn the
mower off. Check the upper hose, lower hose, top
screen and boot for clogs.
To obtain the maximum effectiveness from your
collection system the tips listed below should be
followed:
* Watch your speed- Normal conditions will allow a
speed of up to approximately 5 mph, but thick, heavy
damp conditions will require reduced ground speed.
* Mow with sharp blades- A sharp blade cuts cleaner.
* Wet grass and leaves will decrease effectiveness and
will increase horsepower requirements.
* Mow at higher cutting heights- Remove and mulch no
more than 2” of grass length with each mowing.
(Experts recommend not cutting off more than 1/3 of
the grass blade length at any given time.)
* Mow twice, at different height settings, (high, then low),
if grass is extra tall.
* Remember that horsepower requirements will vary with
the mowing conditions such as type and height of turf
grass, moisture content, amount of leaves, whether the
terrain is flat or hilly, etc.
3-3 Unloading The Collection System
Note: Press the tab, located behind the operator’s left
side, downward to feel if the collection system is full. If
the container is full there will be resistance when
depressing the tab.
A. Stop the forward movement of the mower.
B. Disengage the mower deck.
C. Using the throttle cable slow the engine down to idle.
D. Push the dump handle, on the left of the operator,
away from the unit. While holding the handle pushed
away, move the handle upward. The container door
will swing upward and the container will rotate
downward. The container will release its contents.
E. Once the contents of the container have fallen out,
the container is ready to move back into its normal
operating position. With the handle in the ‘away’
position, pull the handle downward until it stops.
Move the handle towards the center of the mower.
This motion will allow the latch to lock back into
collection position.
Note: If you do not hold the handle away from the
mower as you pull the handle downward, the latch will
not lock and the container can unexpectedly release the
contents collected.
SECTION IV
MAINTENANCE
4-1 Maintenance Checklist
Before each use:
1. Check blades and spindles to be sure that no foreign
objects, such as wire or steel strapping bands, are
wrapped around them.
2. Inspect blades for wear. Replace if necessary. If it is
necessary to sharpen the blades, remove the blades
from the spindles before sharpening. DO NOT
sharpen blades while still attached to the mower.
3. Make sure all shields are in place and in good
condition. Repair or replace any missing or damaged
shields.
4. Listen for abnormal sounds, which might indicate
loose parts, damaged bearings, or other damage.
Correct any deficiency before continuing operation.
5. Check for wear or deterioration of the upper or lower
hoses. If there are any portions of the hose that have
been torn or worn through, replace with genuine
PECO parts.
After Each Use:
1. Clean all debris from machine especially from the
container, and off of safety decals. Replace any
missing or illegible decals.
2. Clean all debris from the box screen.
3. Inspect unit for worn or damaged components. Repair
or replace before the next use. Any replacement
component installed during repair shall include the
components current safety decal specified by the
manufacturers to be affixed to the component.

16
Model Number
Serial Number
PECO
OUTDOOR POWER EQUIPMENT
Arden, North Carolina 28704
WRITE THE MODEL AND
SERIAL NUMBER IN THE
BOX ABOVE FOR FUTURE
REFERENCE.
THE SERIAL NUMBER PLATE
IS LOCATED ON THE BOX
ASSEMBLY P#(A0560)
Unit Model Number: _____________________________
Unit Engine Size: _____________________________
Unit Serial Number: _____________________________
Date of purchase: _____/_____/_________
Dealer/Distributor Name: ________________________________________
Dealer’s/Distributor’s: _______________________ State: __________ Zip: ___________
Phone Number: ____________________________
Address: NEW PECO Inc.
100 Airport Road
Arden, NC 28704
Phone #: [phone] or Toll Free: [phone]
Email: [e-mail]
SECTION V
PARTS AND SERVICE
5-1 Parts And Service Information
PECO collection system owners should record the name
and telephone number of their Service Center. Your
Service Center will be happy to supply replacement
parts, accessories, and do any service or repairs to your
collection system. If for any reason your Service Center
is unable to service your collection system or supply
replacement parts, contact PECO and include the
following information on the chart below.

SAFETY DECALS
To promote safe operation, PECO supplies safety decals on all products manufactured. Damage can occur to
safety decals either through shipment, use or reconditioning. Contact your local Service Center for replacement decals.
Part #: R1054
Part #: R1049 Part #: R1057
Part #: R1053
Part #: R1055
Part #:R1051
17
Part #: R1070
Part #: R1065
Part #: R4027
Part #: R1069
Part #: R4028
Part #:R4008
Part #:R4015 Part #:R4054

18

19
NOTES

100 AIRPORT ROAD
ARDEN, NORTH CAROLINA 28704
[phone] OR [phone] FAX: [phone]
EMAIL: [e-mail]
WEBSITE: www.lawnvac.com
P
PECOPECO
PPPP
PECOPECOPECO
