Peco PRO 12 DECK DRIVE User manual

OPERATOR’S MANUAL
ASSEMBLY OPERATION MAINTENANCE
MANUAL PART#: Q0399 $10.00 REV: 0
P
PECOPECO
PPPP
PECOPECOPECO
PRO 12 PRO 12
DECK DRIVE
GRASS COLLECTION
SYSTEM
DESIGNED FOR
EXMARK LAZER Z
48” AND 52” DECKS
MODEL: 35621219 - 48” DECK
MODEL: 35621220 - 52” DECK

2
PECO GRASS COLLECTION SYSTEM
TABLE OF CONTENTS
SECTION PAGE
Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2
Safety Alert Symbols- - - - - - - - - - - - - - - - - - - - - - 3
Warranty - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
I INTRODUCTION AND DESCRIPTION - - - - - - - - - - - - - - 5
1-1 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - 5
1-2 Description - - - - - - - - - - - - - - - - - - - - - - - - - 5
II PREPARATION FOR USE - - - - - - - - - - - - - - - - - - - - - - 5
2-1 Preparation Of Mower - - - - - - - - - - - - - - - - - - 5
2-2 Lower Main Frame Leg Installation - - - - - - - - - - 5,6
2-3 Main Frame Assembly Installation - - - - - - - - - - 6
2-4 Lift Handle Installation - - - - - - - - - - - - - - - - - - 7
2-5 Aluminum Grass Container Installation - - - - - - - 7
2-6 Aluminum Grass Container Inlet Installation - - - - 7
2-7 Dump Mechanism Adjustment - - - - - - - - - - - - - 8
2-8 Deck Pulley Installation - - - - - - - - - - - - - - - - - 8
2-9 Deck Drive Assembly Installation - - - - - - - - - - - 9
2-10 Belt Installation - - - - - - - - - - - - - - - - - - - - - 10
Safety
1. Read the operator’s manual carefully and familiarize yourself with the proper use of your attachment. Do not allow
anyone who is not acquainted with the Safety Instructions to use your attachment.
2. Know the controls and how to stop quickly. READ THE OPERATOR’S MANUAL!
3. Do not allow children to operate the vehicle. Do not allow adults to operate it without proper instruction.
4. Be especially watchful of children and pets darting into the area while operating.
5. Keep your eyes and mind on your unit while mowing or operating your attachment. Don’t let others distract you.
6. Do not attempt to operate your unit or mower when not in the driver’s seat.
7. Always stop unit when emptying the container.
8. Stop unit, shut off deck attachment, set parking brake, shut off mower engine and remove spark plug wire before
removing clogs, removing or replacing hose, boot, blower cone, or performing any maintenance.
9. Mow across the face of slopes (not steeper than 10 degrees); never up and down the face of the slope.
10. It is recommended that the container be kept only half full when negotiating any slopes. Start mowing on slopes
when the container is empty.
11. Inspect your lawn and remove any foreign objects before mowing. Never deliberately run the mower across any
foreign object.
12. Wear ear protection if the noise level is offensive.
13. Wear eye protection to prevent debris from damaging your eyes.
SECTION PAGE
2-11 Pulley Guard Installation - - - - - - - - - - - - - - - 10,11
2-12 Hose Installation - - - - - - - - - - - - - - - - - - - - - 12
2-13 Front Weight Assembly Installation - - - - - - - - - 12
Exploded Parts Views And Assemblies - - - - - - - - - 13-21
III OPERATING INSTRUCTIONS - - - - - - - - - - - - - - - - - - 22
3-1 General Safety - - - - - - - - - - - - - - - - - - - - - - - 22
3-2 Operation & Tips On Mowing - - - - - - - - - - - - - - 22
3-3 Unloading The Collection System - - - - - - - - - - - 22
IV MAINTENANCE- - - - - - - - - - - - - - - - - - - - - - - - - - - - 22
4-1 Maintenance Checklist - - - - - - - - - - - - - - - - - - 22
V PARTS AND SERVICE - - - - - - - - - - - - - - - - - - - - - - - 23
5-1 Parts And Service Information - - - - - - - - - - - - - 23
Safety Decals - - - - - - - - - - - - - - - - - - - - - - - - - - 24
Torque Specifications - - - - - - - - - - - - - - - - - - - - - 25

3
SAFETY
WARNING! NEVER operate the unit unless the discharge guard and either the deflector assembly or the
vacuum collector adapter are fastened securely in place.
WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower
blades and the blower impeller have stopped rotating.
WARNING! To avoid serious injury, perform maintenance on the vacuum collector; ONLY AFTER
STOPPING THE MOWER’S ENGINE AND WAITING FOR ALL MOVING PARTS TO COME TO A
COMPLETE STOP. Set the parking brake. Always remove the ignition key before beginning maintenance.
WARNING! For your own personal safety, ALWAYS mow ACROSS the face of slopes and NEVER UP
and DOWN the face. NEVER attempt to mow excessively steep slopes, and use caution when turning on any slope.
Safety Alert Symbol
This Safety Alert Symbol means: “ATTENTION! BECOME
ALERT! YOUR SAFETY IS INVOLVED!”
This symbol is used to call attention to safety precautions that
Should be followed by the operator to avoid accidents. When
you see this symbol, carefully read the message that follows
and heed its advice. Failure to comply with safety precautions
could result in death or serious bodily injury.
Safety Signs
The signal words DANGER, WARNING, and CAUTION are used on the equipment safety signs. These words are
intended to alert the viewer to the existence and the degree of hazard seriousness.
!
DANGER
!
WARNING
!
CAUTION
!
This signal word indicates a potentially hazardous situation which, if not
avoided, will result in death or serious injury.
This signal word indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
It may also be used to alert against unsafe practices.
This signal word indicates a potentially hazardous situation exist which, if
not avoided, will result in minor or moderate injury.
It may also be used to alert against unsafe practices.
White letters on RED
Black letters on ORANGE
Black letters on YELLOW

4
PECO LIMITED WARRANTY FOR NEW PRODUCTS
A. WHAT IS WARRANTED?
PECO extends the following warranties to the original purchaser of each new PECO consumer product subject
to the following limitations:
1. PRODUCT WARRANTY: Any part of any consumer product, which is defective in material or workmanship as
delivered to the purchaser will be repaired or replaced, as PECO elects, without charge for parts or labor, if the
defect appears within 12 months from the date of delivery of the product to the original purchaser. ALL
DEFECTIVE PARTS MUST BE RETURNED TO PECO FOR INSPECTION TO DETERMINE
VALIDITY OF WARRANTY CLAIMS. Freight and mailing will be borne by the customer.
2. PARTS REPLACED DURING WARRANTY: Any new PECO part which is furnished in performance of this
warranty and is defective in material or workmanship as delivered to the purchaser will be repaired or replaced,
as PECO elects, without charge if the defect appears within 90 days from the date of installation of such part or
before the expiration of the original warranty period, whichever is later.
B. SECURING WARRANTY ADJUSTMENTS.
Call PECO for Return Authorization. Damaged or broken parts, other than engines or batteries, must be
returned to PECO Inc., 100 Airport Road, Arden, NC 28704 before any warranty adjustment can be authorized.
At the time of requesting warranty adjustment, the purchaser must present evidence for date of delivery of the
product. The purchaser shall pay any charge for the product to and from Arden, NC.
C. ITEMS NOT COVERED BY PECO WARRANTY.
Engines and batteries attached to PECO products are covered under a separate warranty by the respective
manufacturer.
D. UNAPPROVED ALTERATION OR MODIFICATION.
All obligations of PECO Inc., under this warranty, shall be terminated if products are altered or modified in ways
not approved by PECO Inc..
E. ACCIDENTS AND NORMAL MAINTENANCE.
The warranty covers only defective material and workmanship. It does not cover depreciation or damage
caused by normal wear, accident, improper use or abuse of products. The cost of normal maintenance and
normal replacement of service items such as belts, cutting blades, hoses, etc., which are not defective shall be
paid for by the purchaser.
F. NO REPRESENTATIONS ADDITIONAL WARRANTIES, DISCLAIMER.
Neither PECO Inc. nor any company affiliated with it makes any warranties, representations or promises as to
the quality of performance of its products other than those set forth herein. Except as described above, PECO
Inc. makes no other warranties AND SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED
WARRANTIES OF FITNESS AND MERCHANTABILITY.
G. ANY MACHINE USED FOR RENTAL PURPOSES ARE GUARANTEED FOR 45 DAYS FROM DATE
OF ORIGINAL SALE ONLY.
H. REMEDIED EXCLUSIVE.
The only remedies the purchaser has in connection with the breach or performance of any warranty on PECO
Inc. consumer products are set forth above. In no event will PECO be liable for special incidental or
consequential damages.
1. NO SERVICE CENTER WARRANTY.
The selling Service Center makes no warranty on his own on any item warranted by PECO Inc. unless he
delivers to purchaser a separate written warranty certificate specifically warranting the item. The dealer has no
authority to make any representation or promise on behalf of PECO or to modify the terms of this warranty in
any way.

Figure 2-1a
5
SECTION I
INTRODUCTION AND DESCRIPTION
1-1 Introduction
We are pleased to have you as a PECO customer. Your
collection system has been designed to give you a low
maintenance, simple and effective way to collect the
grass clippings from your mower. This manual is
provided to give you the necessary instructions to
properly mount and operate the collection system on
your mower. Please read this manual thoroughly.
Understand what each control is for and how to use it.
Observe all safety decal precautions on the machine and
noted throughout the manual.
Note: All references made to right, left, front, rear, top or
bottom are as viewed from the normal operator’s
position on the mower.
1-2 Description
The collection system is designed for turf maintenance
where there is a need to collect the grass clippings as
the mower cuts the turf. It is also good for picking up
leaves and twigs in pre-season and post-season clean-
up.
The engine/blower/blade assembly, is mounted on the
right side of the unit. The blower draws grass clippings
from the discharge area of the cutter deck up to the
aluminum container mounted over the rear portion of the
frame. The operator can engage the
engine/blower/blade assembly by starting the engine.
Once the container is full of clippings, the operator can
easily push and raise the lift handle, releasing the
container’s rear door and the container will pivot towards
the ground.
Section II
PREPARATION FOR USE
2-1 Preparation Of Mower
Carefully dismantle wooden shipping crate from around
the components. Cut retaining straps and separate the
parts. The collection system will have various parts
located inside. Remove and sort all parts for easy
identification.
Note: Before each step of assembly it will help to study
the exploded drawings on pages 13 thru 15.
Rotating The Donaldson Air Cleaner
Note: If equipped with a Donaldson air cleaner, unit
must be rotated to make clearance for top main frame
assembly. To rotate Donaldson air cleaner, loosen bolt
on air cleaner bracket, rotate air cleaner forward as
needed for clearance as shown in Figure 2-1a and
tighten.
2-2 Lower Main Frame Leg Installation
Looking from the rear of mower, locate the ROPS
mounting bolts and remove the lower hex bolt and
washer from each side of the ROPS. On the mowers
rear bumper, locate the slotted hole on each side.
See Figure 2-2a.
Rotate To The
Forward Position
Loosen Bolt
Figure 2-2a
R.O.P.S. with Lower
Hex Bolt Removed
Slotted Hole in
Rear Bumper

2-2 Lower Main Frame Leg Installation
Cont...
From the rear of the mower, align each lower main frame
leg, P#(B0528 Right) and P#(B0529 Left), to the lower
ROPS mounting holes and to the rear bumper slot holes.
Fasten to the lower ROPS mounting hole with existing
hex bolt and washer removed in section 2-3a. Fasten to
the rear bumper slotted hole by using (1) 1/2”-13 x 1”
HHCS P#(K1231), (1) 1/2” flat washers P#(K0055) and
(1) 1/2”-13 nyloc nut P#(K1247) per side. Refer to Figure
2-2b and 2-2c.
2-3 Main Frame Assembly Installation
Note: It is recommended that someone assist during
this step.
Position the main frame assembly P#(A0601) over each
of the lower frame legs previously installed and align
holes as shown in Figure 2-3a and 2-3b. Fasten each
side by using (2) 3/8”-16 x 1 HHCS P#(K1191) and (2)
3/8”-16 P#(K1216) nyloc nuts.
Figure 2-2b
Left Lower
Main Frame
Leg
Fasten Using Existing
Bolt and Washer
(1) 1/2” x 13 x 1” HHCS
(1) 1/2” Flat Washer
(Per Frame Leg)
Figure 2-3b Upper Main
Frame Legs
Main Frame
Assembly
P#(A0601)
Figure 2-3a
Upper Main
Frame Leg
(Left Side View)
Left Lower
Main Frame Leg
(2) 3/8”-16 x 1” HHCS
(2) 3/8”-16 Flange Nuts
(Per Side)
Figure 2-2c
Attach to R.O.P.S.
Right Lower Frame Leg
b0528
Left Lower Frame Leg
B0529
Attach to
Rear Bumper
6

2-4 Lift Handle Installation
The various parts of the handle assembly P#(A0273)
must be attached to the container frame. PAGE 13
shows the orientation and location of the components.
Slide the lift handle into the slot in the handle mount
bracket P#(B1730) on the grass container. It may be
necessary to remove the handle grip P#(J0522) to allow
the handle to fit through the slot.
Before attaching the handle, hook one end of the spring
P#(J0176) into the hole on the underside of the handle.
Hook the other end of the spring into the open hole in
the handle mount bracket. Fasten the handle to the
grass container frame by using (1) 3/8”-16 x 2” HHCS
P#(K1208) and (2) 3/8”-16 flange nuts P#(K1215). At this
point the handle can pivot back and forth in the slot of
the handle mount bracket. With the handle in place,
fasten the ball joint P#(K1442) to the end of the latch rod
P#(A0260) (PAGE 8). Tighten to approximately half way
down the threads of the latch rod. Slide the ball joint into
the hole on the latch hook P#(B1529). Use (1) 5/16”-24
hex nut P#(K1444) and (1) 5/16” lock washer P#(K0043)
to fasten the ball joint to the latch hook. Attach the
opposite end of the latch rod into the handle. Fasten the
rod to the handle by using (1) 3/32” x 3/4” cotter pin
P#(K0094). Adjust the rod to allow the hook to close the
box door completely.
Refer to page 13 for exploded parts drawings and
photographs of the complete assembly.

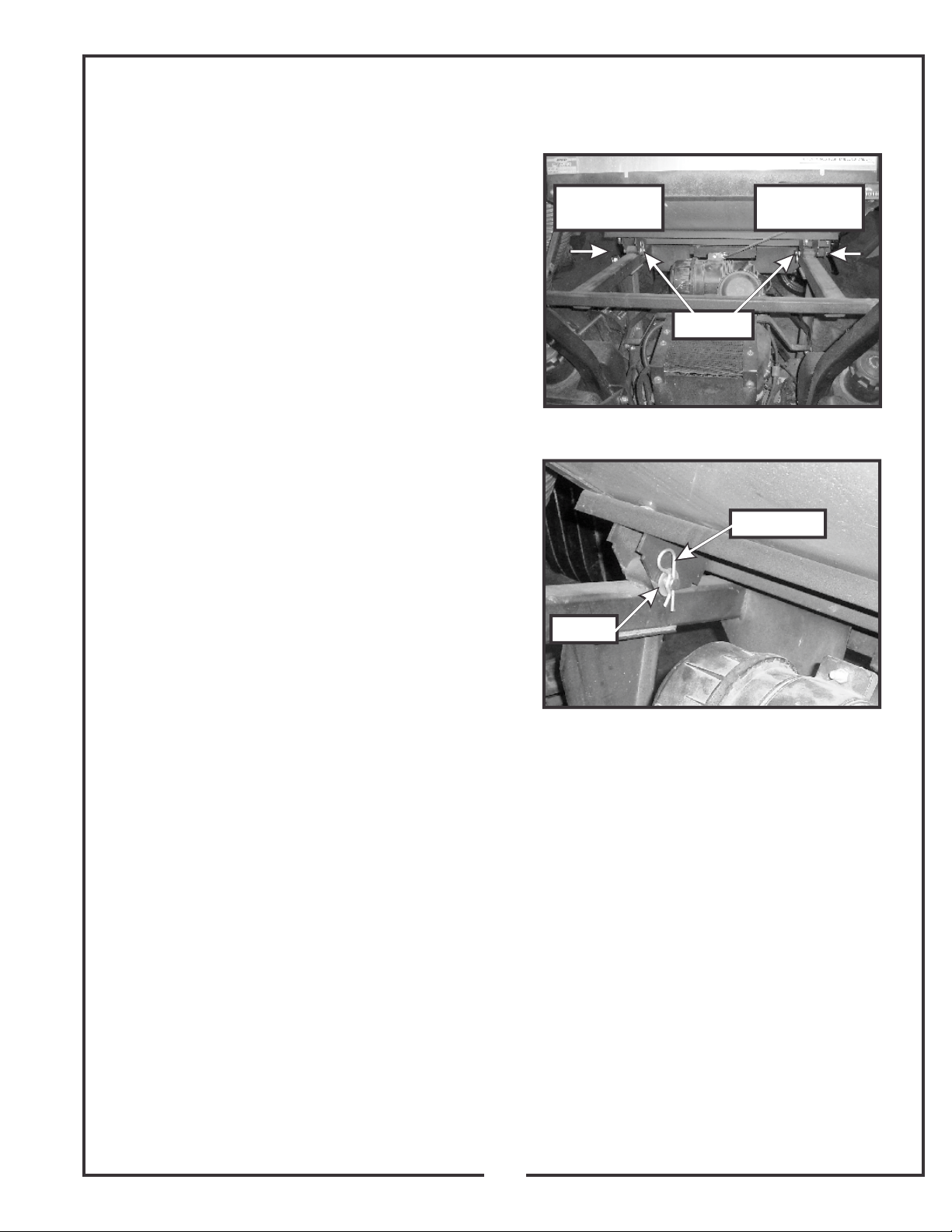

2-5 Aluminum Grass Container
Installation
NOTE: It is recommended that (3) people assist in
mounting the container.
With three people available, two can lower the container
onto the frame while the third person inserts the pivot
pins P#(K0172) through the holes. Insert the pins from
the outside to the inside. Secure with (1) 5/8” washer
P#(K0058) and (1) 5/32” x 2-5/8” hair pin clip P#(K0088)
per pivot pin. Refer to Figures 2-5a and 2-5b.
Reattach the bottom ends of the door opening linkages
to the main frame by using (1) Rue-Ring cotter pin
P#(K1437) per side.
To test the functionality of the dump mechanism, pull the
lift handle away from the unit, and lift upward (Page 13).
The door of the container should open and the box
should pivot clockwise towards the ground.
Figure 2-5b
Figure 2-5a
Pivot Pins
Washer
Hair Pin Clip
Insert Pins
From Outside
Insert Pins
From Outside
2-6 Aluminum Grass Container Inlet
Attachment
The inlet will need to be attached to the container. Open
the container, push the inlet, from the inside of the
container through the hole in the container to the
outside. Orient the inlet opening to face the ground. Use
the tabs P#(B1668) inside of the box to hold the inlet in
place. It is recommended that two people Perform this
step. That way, one person on the inside of the container
can position the tabs, while the other person tightens the
bolts. Looking at the outside of the container, the most
difficult tab to tighten down will be the tab at the 4-5
o’clock position. Tighten that tab first. Then proceed to
tighten the others. Figure 2-6a.
7

2-7 Dump Mechanism Adjustment
The linkage may be adjusted in two places, at the
adjusting screw P#(K1435) and the latch assembly
items. See page 10 for visual clarification. To change the
door closure tightness, screw the adjusting screw
(Figure 2-7a) in or out. To adjust the latch, change the
length of the latch rod by screwing the latch adjusting
ball joint in or out. The latch hook pivot should be in the
middle of the slot in the latch hook pivot plate. Slide the
pivot back or forth and then re-tighten.
8
Figure 2-6a
Inlet
Figure 2-7a
Adjustment Screw
2-8 Deck Pulley Installation
Remove the grass deflector shield from the grass
dishcarge on the mowers deck. Remove the existing
spindle cover and hardware from the deck pulley. Figure
2-8a.
Remove the bolt and hardware from the existing pulley
and place the pulley assembly P#(A1057) on top of the
existing deck pulley. Fasten both pulleys to the deck
using the existing hardware removed from the original
deck pulley. Figure 2-8b.
Figure 2-8a
Figure 2-8b
Pulley Assembly
Existing Pulley Assembly

2-9 Deck Drive Assembly Installation
Stop unit, shut off deck attachment, set parking
brake, shut off mower engine and remove spark plug
wire before installing PTO Deck Drive Assembly.
Do not work around the mower deck, PTO deck drive
or the blower area until you are certain that the
mower blades and the blower impeller have stopped
rotating.
The deck drive assembly P#(A1055) will mount to the
flanges on the discharge side of the mower deck where
the grass deflector was removed in Section 2-8. The
mounting brackets on the deck drive assembly slide
down onto the existing brackets that held the grass
deflector on the mower deck. The deck drive assembly is
secured with (1) mount rod P#(B8168) which is placed
through the holes in the deck brackets and the holes in
the deck drive assembly bracket. Secure rod with (2)
hair pin clips P#(K0099). There is a hole in each end of
the mount rod. Place one hair pin clip in each hole. This
holds the deck drive assembly in place. Figures 2-9a
thru 2-9e.
Figure 2-9a Grass Deflector Brackets
Figure 2-9b
Deck Drive Assembly
Figure 2-9c
Deck Bracket
PTO Deck Drive Bracket
Hair Pin Clip
Figure 2-9d
9
WARNING
!

2-10 Belt Installation
NOTE: 48” DECK USES BELT P#(M0261)
NOTE: 52” DECK USES BELT P#(M0306)
Wrap the belt around the top deck pulley (A1057)
previously installed in section 2-9. Wrap the other end of
belt around the engine pulley P#(A1055). Refer to
Figures 2-10a and 2-10c.
Figure 2-10a
Engine Pulley (Inside)
Figure 2-10b
Figure 2-10c
Note: The belt tension may need to be adjusted to
properly install the belt to both pulleys. To tension the
drive belt, turn the tension adjustment knob clockwise
until there is 1” of deflection with 10-11lbs of pressure
between the deck pulley assembly and the deck drive
idler pulley. Refer to Figure 2-10c and 2-10d.
2-11 Pulley Guard Installation
Place the PTO pulley guard P#(A1751) over the deck
pulley while inserting the tab into the slot on the deck
drive assembly. Figure 2-11a and 2-11b.
Mount the Pulley Guard Clamp. It is used to hold the
pulley guard in place. Align the hole in the pulley guard
clamp P#(B0586) with the bolt on the engine pulley
guard. Pulley guard clamp should be placed to the
outside of the mower deck U-bolt. Figure 2-11c thru
2-11e.
Tension Adjustment Knob
Figure 2-10d
Proper Tension:
1” Of Deflection for 10-10lbs of Pressure Applied
To Center of belt
10
Figure 2-9e
Deck Drive Assembly
Deck Drive Pulley

2-11 Pulley Guard Installation Cont...
Figure 2-11b Pulley Guard Flange
Mower Deck U-bolt
Pulley Guard Clamp
Figure 2-11c
Engine Pulley Guard
Mower Deck U-bolt
Secure pulley guard clamp with (1) 5/16”-18 star knob
P#(J0256). Figure 2-11f and 2-11g.
Figure 2-11e
Pulley Guard Clamp
Mower Deck U-bolt
Figure 2-11d
Figure 2-11f
5/16”-18 Star Knob
11
Figure 2-11a
Pulley Guard Tab
Deck Drive Assembly Slot

12
2-12 Hose Installation
Slide (1) upper hose clamp P#(J1000) onto both ends of
the 7” hose. Slide one end of the 7” hose onto the inlet.
Make sure there is about a two-inch overlap between the
hose end and the container inlet. Proceed to slide the
opposite end of the 7” hose onto the outlet of the PTO
deck drive assembly and tighten hose clamp. See
Figure 2-12a and 2-12b for details. Make sure both ends
of the hose are clearly attached to the inlet and the outlet
of the deck drive drive assembly. Tighten the hose
clamps.
2-13 Front Weight Assembly
Place (1) weight bracket P#(B0026) over each front
caster. Fasten each weight bracket to the front caster
loosely, by using (1) 3/8”-16 x 4” U-bolt P#(K1419) and
(2) 3/8”-16 nyloc nuts P#(K1216) per bracket. When
installing the weight you should have another person
help position the weight. Lift the weight and place on top
of the weight brackets. Fasten the weight to the weight
brackets by using (1) 1/2”-13 U-bolt X 4 - 1/4” P#(K0331)
and (2) 1/2”-13 nyloc nuts P#(K1247) per bracket. Once
the weight is secure tighten all nuts. See Figure 2-13a
for more detail.
Figure 2-12b
PTO Outlet w/ Hose and Clamp
Figure 2-12a
Inlet w/ Hose and Clamp
Figure 2-13a
Weight
(1) 3/8”-16 U-Bolt
(2) 3/8”-16 Flange Nut
(Per Bracket)
Weight
Bracket
(1) 1/2”-13 U-Bolt
(2) 1/2”-13 Flange Nut
(Per Bracket)
Figure 2-11g
Installed Pulley Guard

Lift Handle Assembly
Aluminum Grass Container
With Handle Attached
Latch Hook Mechanism Assembly
Aluminum Grass Container Assembly
Inlet
MAIN FRAME
13

14

Blower
Outlet
Blade
Assembly
Belt Tension
Adjustment Knob
Front Housing
Mount Rear Housing
Mount
Blower
Housing
Gear Box
Pulley
Flat Idler
Pulley
Idler
Pulley
15
A1055
VIEW 1

1
1
1 4 4 1
VIEW 2
1
2
4
3
5
5
5
5
6
6
A1055
16

17
A1096 / A1055 / A1733
VIEW 3

1
3
5
4
5
4
4
4
5
5
5
4
4
5
5
4
5
4
25
6
4
1 2
3 4
5
B0580
B0582
B0556
K1142
K1180
1 1 1 9 9
DECK DRIVE MOUNT PLATE
DISCHARGE MOUNT PLATE
WEAR PLATE
5/16”-18 X 3/4” CARRIAGE BOLT
5-16”-18 NYLOC NUT
5
6A1086 1
HOUSING ASSEMBLY
A1055
VIEW 4
18

FAN ASSEMBLY FOR
A1055 / A1096 / A1733 PTO DECK DRIVE
5
9
4
2
56
8
7
3
1
4
7
VIEW 5
5
3
1
8
2
9
4
7
N0105
K0035
K0075
A1088
A0498
B0543
K1180
K1142
1
1
1
1
1
6
6
BROWNING MOUNTED BALL BEARING
5/16” - 18 SET SCREW
3/16” SQUARE X 1” LONG KEYWAY
FAN BLADE ASSEMBLY
GEAR BOX PULLEY ASSEMBLY
RIGHT HOUSING PLATE
5/16” -18 NYLOC NUT
5/16 -18 X 3/4” CARRIAGE BOLT
6B0541 1
LEFT HOUSING PLATE
2
19

MODEL#: 35621219
MOWER NAME: EXMARK
MOWER MODEL: LAZER Z NEXT GENERATION
MOWER DECK SIZE: 48”
VAC NAME: 12 CUBIC FOOT BOX
MANUAL: Q0399 REVISED:
PTO DECK DRIVE
A1748 - UNIT ASSEMBLY
A0665 - WEIGHT KIT
(1)
A0273
BOX HANDLE
(1)
A0794
12 CU. FT. BOX
ASSEMBLY
(1)
7” x 45”
UPPER
HOSE
(1)
HB0405
HARDWARE
BAG
(2)
J1000
HOSE
CLAMPS
(1)
A0601
MAIN FRAME
ASSEMBLY
(1)
HB0370
HARDWARE
BAG
(2)
B0026
WEIGHT
BRACKETS
(1)
B2220
WEIGHT BAR
(2)
B2526
DOOR LINKAGE
(1)
V1054
INLET
FOR YEAR: 2010
(1) B0529 LEFT &
(1) B0528 RIGHT
LOWER MAIN
FRAME LEGS
(1)
M0251
A62K KEVLAR
BELT
A1055 - PTO DECK DRIVE ASSEMBLY
(1)
B0586
PULLEY
GUARD CLAMP
(1)
A1751
PTO PULLEY
GUARD
ASSEMBLY
(1)
B8168
PTO DECK DRIVE
ASSEMBLY MOUNT ROD
20
