OPERATOR’S MANUAL
PTO-R Driven - GRASS
COLLECTION SYSTEM
Model# 54120901
ZXR & ZXR SE
48”, 52” & 60” DECK
MODEL YEAR:
2018-NEWER
P
PP
PECO
PECOPECO
PECO
PECOPECO
P
PP
P
PP
P
P
PECO
PECO
RRR
MANUAL PART#: Q0538 Rev.0 - Feb 2020
ASSEMBLY OPERATION MAINTENANCE

2
GRASS COLLECTION SYSTEM
TABLE OF CONTENTS
Torque Specifications - - - - - - - - - - - - - - - - - - - - - 34
Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - 35
Safety Decals - - - - - - - - - - - - - - - - - - - - - - - - - - 31
III OPERATING INSTRUCTIONS - - - - - - - - - - - - - - - - - - 32
Disengagement Of The PTO Assembly- - - - - - - - - - 32
IV MAINTENANCE - - - - - - - - - - - - - - - - - - - - - - - - - - 32-33
Impeller Blade Removal/Replacement - - - - - - - - - - 22
Upper Hose Installation - - - - - - - - - - - - - - - - - - - - 21
Overall Parts List - - - - - - - - - - - - - - - - - - - - - - - - 30
Maintenance Checklist - - - - - - - - - - - - - - - - - - - - 33
Lower Hose to Boot Installation - - - - - - - - - - - - - - - 21
Lubrication - - - - - - - - - - - - - - - - - - - - - - - - - - - - 33
V PARTS AND SERVICE - - - - - - - - - - - - - - - - - - - - - - - 33
Unloading The Collection System - - - - - - - - - - - - - 32
Operation & Tips On Mowing - - - - - - - - - - - - - - - - 32
Parts And Service Information- - - - - - - - - - - - - - - - 33
Exploded Views & Parts List - - - - - - - - - - - - - - - 24-29
Weight Kit Installation - - - - - - - - - - - - - - - - - - - - - 23
General Safety - - - - - - - - - - - - - - - - - - - - - - - - - 32
Lower Hose to Blower Cone Installation - - - - - - - - - 21
Length of Hose Adjustment - - - - - - - - - - - - - - - - - - 21
SECTION PAGE

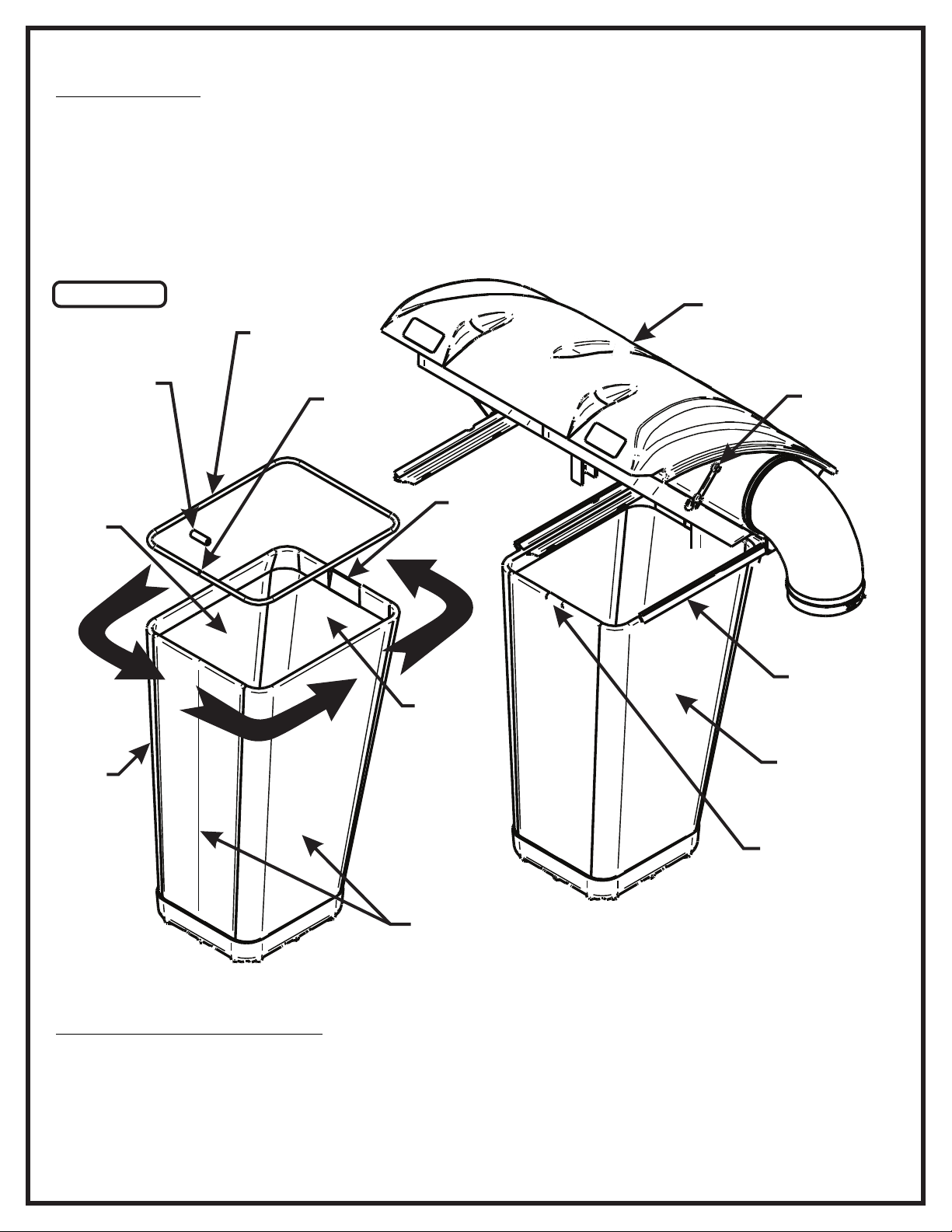

Bag Assembly Installation - - - - - - - - - - - - - - - - - - 19
Boot Kit Installation- - - - - - - - - - - - - - - - - - - - - - - 20
Bag Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - 19
Blower Cone Installation - - - - - - - - - - - - - - - - - - - 20
SAFETY
1. Read the operator’s manual carefully and familiarize yourself with the proper use of your attachment. Do not allow
anyone who is not acquainted with the Safety Instructions to use your attachment.
7. Always shut off blades and engine when emptying the container.
9. Mow across the face of slopes (not more than 10 degrees); never up and down the face.
6. Do not attempt to operate your machine when not in the driver’s seat.
8. Stop machine, shut off deck attachment, set parking brake, shut off engine and remove ignition key before
removing clogs, removing or replacing hose, boot, blower cone, or performing any maintenance.
3. Do not allow children to operate the machine. Do not allow adults to operate it without proper instruction.
you.
4. Be especially watchful of children and pets entering into the area while operating.
2. Know the controls and how to stop them quickly. READ THE OPERATOR’S MANUAL!
5. Keep your eyes and mind on your machine while mowing or operating your attachment. Don’t let others distract
10. It is recommended that the container be emptied when half full while operating on slopes. Start mowing on slopes
13. Wear eye protection to prevent debris from getting into your eyes.
when the container is empty.
foreign object.
11. Inspect your lawn and remove any foreign objects before mowing. Never deliberately run the mower across any
12. Wear hearing protection.
2017 (v1.0)
Belt Installation and Adjustment - - - - - - - - - - - - - - 16
Hinge Kit Assy Installation - - - - - - - - - - - - - - - - - - 18

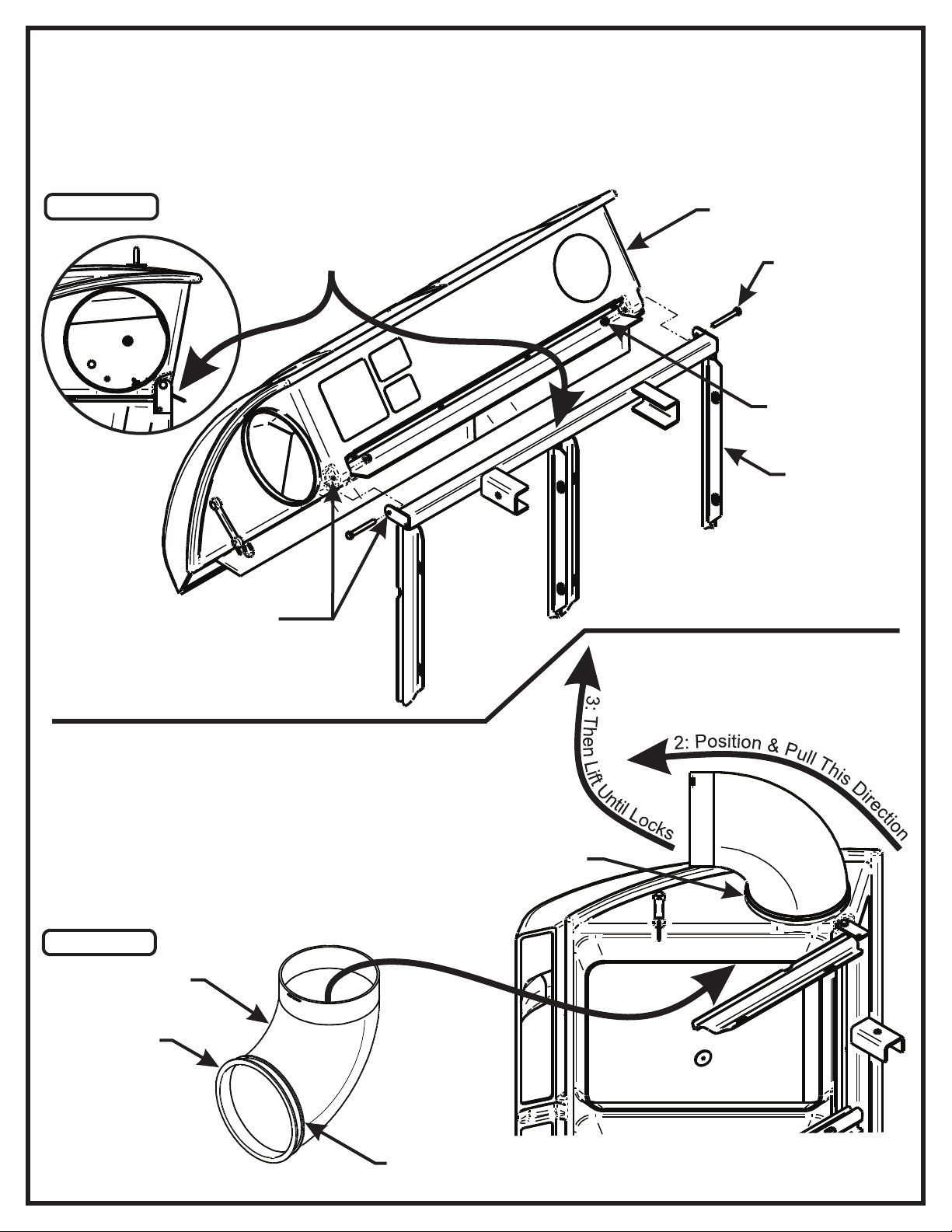

Top Assy To Upper Frame Assy Installation - - - - - - - 17
Even Bag Fill Adjustment - - - - - - - - - - - - - - - - - - - 18
Inlet Installation - - - - - - - - - - - - - - - - - - - - - - - - - 17
Handle Extension Kit Installation - - - - - - - - - - - - - - 15
II INSTALLATION FOR USE - - - - - - - - - - - - - - - - - - - - - 6
I INTRODUCTION AND DESCRIPTION - - - - - - - - - - - - 5
Introduction- - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
Description - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
Warranty - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
Preparation Of Mower - - - - - - - - - - - - - - - - - - - - - 6
Safety Alert Symbols- - - - - - - - - - - - - - - - - - - - - - 3
Rear Frame Bracket Assy Installation - - - - - - - - - - - 8
PTO Stop Plate Installation - - - - - - - - - - - - - - - - - 10
Exhaust Deflector Installation - - - - - - - - - - - - - - - - 11

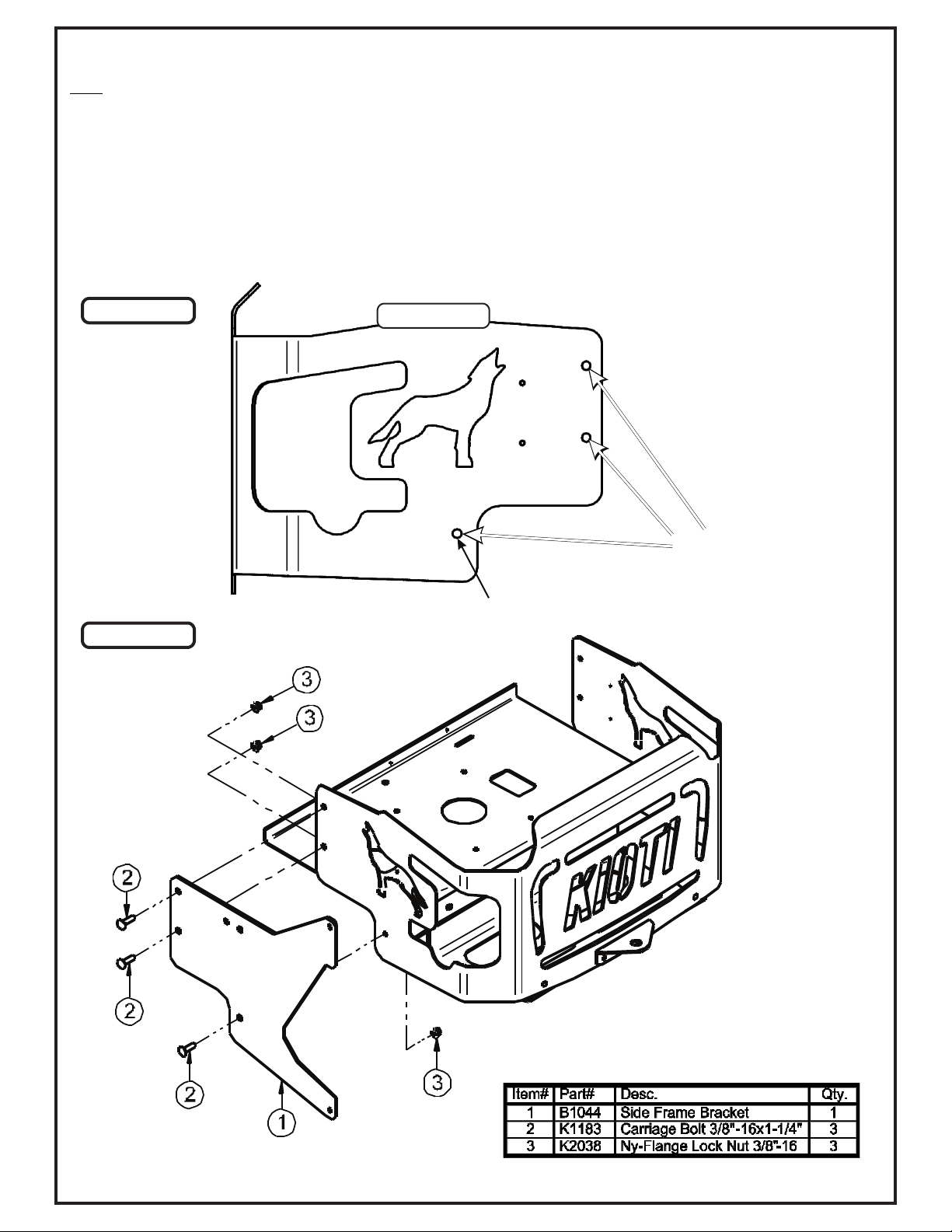

Side Frame Bracket Installation - - - - - - - - - - - - - - 7
PTO Mount Arm Installation - - - - - - - - - - - - - - - - - 9
Exhaust Diverter Installation - - - - - - - - - - - - - - - - - 12
Lower Mount Tube Installation - - - - - - - - - - - - - - - 13
Upper Frame Assy Installation - - - - - - - - - - - - - - - 14
PTO Drive Assembly Installation - - - - - - - - - - - - - - 15
SECTION PAGE
Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2

3
The signal words DANGER, WARNING, and CAUTION are used on the equipment safety signs. These words
are intended to alert the viewer to the existence and the degree of hazard seriousness.
This symbol is used to call attention to safety precautions that
could result in death or serious bodily injury.
you see this symbol, carefully read the message that follows
and heed its advice. Failure to comply with safety precautions
Should be followed by the operator to avoid accidents. When
Safety Signs
WARNING! To avoid serious injury, perform maintenance on the vacuum collector; ONLY AFTER
STOPPING THE MOWER’S ENGINE AND WAITING FOR ALL MOVING PARTS TO COME TO A
COMPLETE STOP. Set the parking brake. Always remove the ignition key before beginning maintenance.
SAFETY
WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower
blades and the blower impeller have stopped rotating.
WARNING! For your own personal safety, ALWAYS mow ACROSS the face of slopes and
NEVER UP and DOWN the face. NEVER attempt to mow excessively steep slopes, and use
caution when turning on any slope.
Safety Alert Symbol
This Safety Alert Symbol means: “ATTENTION! BECOME
ALERT! YOUR SAFETY IS INVOLVED!”
WARNING! NEVER operate the mower unless the discharge guard and either the deflector assembly or
the vacuum collector adapter are fastened securely in place.
DANGER
!
CAUTION
This signal word indicates a potentially hazardous situation which, if not
avoided, will result in death or serious injury.
This signal word indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
It may also be used to alert against unsafe practices.
It may also be used to alert against unsafe practices.
This signal word indicates a potentially hazardous situation which, if not
avoided, will result in minor or moderate injury.
White letters on RED
Black letters on ORANGE
Black letters on YELLOW
WARNING
!
!
!
2017 (v1.0)

4
New PECO, Inc. extends the following warranties to the ORIGINAL PURCHASER of each New PECO, Inc. consumer product
purchased from one of our Dealers or directly from New PECO, Inc., subject to the following limitations:
A. ITEMS COVERED UNDER WARRANTY:
1. PRODUCT WARRANTY – Any part or parts which are deemed defective in material or workmanship, as delivered to the
original purchaser, will either be repaired or replaced, as New PECO, Inc. elects, without charge for parts or labor, if
the defect appears within 12 months from the date of purchase of the product to the Original Purchaser.
2. PARTS REPLACED DURING WARRANTY – Any New PECO, Inc. part which is furnished in performance of this warranty
and is defective in material or workmanship as delivered to the purchaser will be repaired or replaced, as New PECO,
Inc. elects, before the expiration of the original warranty period.
B. WARRANTY DISTINCTIONS:
1. RESIDENTIAL - Products put to a personal use around a single household or residence are considered Residential.
Products designated as “Residential” are warrantied for 12 months from the date of purchase of the product, to the
ORIGINAL PURCHASER with proof of purchase, when used for or in residential applications.
2. COMMERCIAL – Products put to any business use (agricultural, commercial or industrial) or used at multiple locations
are considered Commercial. Products designated as “Commercial” are warrantied for 12 months from the date of
purchase of the product, to the ORIGINAL PURCHASER with proof of purchase, when used for or in commercial
applications. Products designated as “Residential” are warrantied for 90 days from the date of purchase of the
product, to the ORIGINAL PURCHASER with proof of purchase, when used for or in Commercial applications.
3. RENTAL – Products used for Rental or Lease Purposes are warrantied for 45 days from date of purchase of the product,
to the ORIGINAL PURCHASER with proof of purchase, when used for or in a rental business.
C. ITEMS NOT COVERED BY NEW PECO WARRANTY:
1. ENGINES & BATTERIES: Engines and Batteries attached to New PECO, Inc. products are covered under their respective
separate manufacturer warranties and those companies must be contacted directly to file a warranty claim. Briggs &
Stratton: https://www.briggsandstratton.com/na/en_us/support/warranty.html
2. UNAPPROVED ALTERATION OR MODIFICATION: All obligations of New PECO, Inc. under this warranty shall be
terminated if products are altered or modified in any way not approved by New PECO, Inc.
3. ACCIDENTS & NORMAL MAINTENANCE: This warranty covers ONLY manufacturers defective material and
workmanship. It does not cover depreciation or damage caused by normal wear & tear, accident, improper
maintenance, misuse or abuse of products. New PECO, Inc. products must be operated and maintained in
accordance with the instructions furnished in the manuals. The cost of normal maintenance and normal replacement
of service items such as belts, cu翿ng blades, hoses, bags, etc., which are not defective shall be paid for by the
purchaser.
4. NO SERVICE CENTER WARRANTY: The selling Service Center/Dealer makes no warranty on his own on any item
warranted by New PECO, Inc. unless he delivers to purchaser a separate written warranty certificate specifically
warranting the item. The Service Center or Dealer has no authority to make any representation or promise on behalf
of New PECO, Inc. or to modify the terms of the original warranty in any way.
5. NO REPRESENTATIONS ADDITONAL WARRANTIES, DISCLAIMER: Neither New PECO, Inc. nor any company a翿liated
with New PECO, Inc. makes any warranties, representations or promises as to the quality of performance of its
products other than those set forth herein. Except as described above, New PECO, Inc. makes no other warranties
AND SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES OF FITNESS AND MERCHANTABILITY.
6. REMEDIED EXCLUSIVE: The only remedies the purchaser has in connection with the breach or performance of any
warranty on New PECO, Inc. consumer products are set forth above. In no event will New PECO, Inc. be liable for
special incidental or consequential damages.
Warranty service is available through your local authorized service dealer or distributor. If you do not know the dealer or
distributor in your area, search by your zip code on www.lawnvac.com or contact our Sales Department at New PECO, Inc.
800-438-5823 or email [email protected].
PECO LIMITED WARRANTY FOR NEW PRODUCTS

5
We are pleased to have you as a PECO customer. Your
collection system has been designed to give you a low
maintenance, simple, and effective way to collect the
grass clippings from your mower. The manuals are
provided to give you the necessary instructions to
properly mount, operate and maintain the collection
system on your mower. Please read this manual
thoroughly. Understand what each control is for and how
to use it. Observe all safety decal precautions on the
machine and noted throughout the manual.
NOTE: All references made to right, left, front, rear, top
or bottom are as viewed from the normal operator’s
position on the mower.
Introduction
Section I - INTRODUCTION AND DESCRIPTION
The grass collection system is designed for turf
maintenance where there is a need to collect the grass
clippings as the mower cuts the turf. It is also used for
picking up leaves in pre-season and post-season clean-
up. The blower, mounted on the right side of the unit,
uses a belt and gearbox system from the engine PTO
shaft. Drive train protection comes through belt
slippage. The blower draws grass clippings from the
discharge area of the cutting deck back to the collection
bags at the rear portion of the mower frame. The
operator can engage the blower with a toggle switch
mounted on the control panel to the right of the operator.
Once the bags are full with clippings, they can be easily
released for dumping.
Description

6
NOTE: The mower deck PTO belt must be removed
from the electric clutch before continuing with the
installation. Refer to your mower’s owner’s manual for
instructions on PTO belt removal.
Preparation Of Mower
From the underside of the engine, disconnect the wiring
harness attached to the electric clutch. Remove the bolt
and electric clutch from the mower. Refer to Figure A.
Upon removal of clutch determine if your mower is
equipped with a D-drive spacer. If so, then proceed to
Figure B. If your mower is equipped with bolt, fender
and lock washer without D-drive spacer proceed to
Figure C. Remove the D-drive spacer using an arbor
press or equivalent. On removal, adjacent bearing
OUTER race must be supported or bearing damage
may occur. Refer to Figure B.
The engine pulley assembly must be installed using an
arbor press or equivalent. During installation, opposite
bearing inner race must be supported or bearing
damage may occur. Refer to Figure D.
Once the Engine Pulley Bushing is installed, reattach
the clutch assembly & deck PTO belt to the mower and
then review Figure E.
To assemble and fasten the Engine Pulley, align the
Engine Pulley Bushing to the mower’s clutch pulley and
fasten using (1) Clamp Washer, (1) Lock Washer, and
(1) Hex Bolt. Torque the bolt to 55 ft./lbs. The added
pulley will power the collection system and should
resemble Figure F when installed.
Section II - INSTALLATION FOR USE
PRESS
Figure B
Remove Bolt D-Drive Spacer
Figure A
Remove 7/16”-20
Bolt & Washers
Figure C
PRESS
Engine Pulley Bushing Installation
Figure D
Engine Pulley
Bushing
Hex Bolt
Lock Washer
Pulley
Bushing
Number
Located
Here
Clamp Washer
Engine Pulley
Figure E
Electric Clutch
Engine Pulley Assembled Into Electric Clutch
Figure F
P# M0266
P# K0278
P# K0140
P# S0172
P# K0550 - 7/16”-20 x 3-1/2” HHCS

7
Side Frame Bracket Installation
Position the Side Frame Brackets (Item #1) on either side of the mower as shown in the figure below.
Note: It is recommended to start on either the Left or the Right side of the mower and completely install both Side
Frame Brackets (Item #1) before installing the Rear Frame Bracket.
Starting on one side, remove the (3) bolts Located on the side of the mower’s rear end bumper. Refer to Figure A.
Secure the Side Frame Bracket to the Left of the mower using (3) 3/8”-16 x 1-1/4” Carriage Bolts (Item #2) and (3)
3/8”-16 Ny-Flange Lock Nuts (Item #3). Refer to Figure B. To secure the Side Frame Bracket to the Right side of the
mower, repeat the process but leave the bottom bolt hole empty for the installation of the Mount Arm Assembly. See
Figure A.
Figure A
Remove Existing Bolts
Before Installation
Figure B
Leave Open for
Mount Arm Assy Installation
Right Side View

8
Leave the hardware Loose on the Right Side Frame Bracket for the installation of the Mount Arm Assembly, all other
hardware maybe tightened at this time.
Rear Frame Bracket Assembly & Installation
Before installing the Rear Frame Bracket, first remove the existing hitch and its hardware located at the rear end of
the mower and set it aside (Refer to Figure A). Next, remove the two bolts located on either side of the hitch kit that
was just removed.
To install the Rear Frame Bracket (Item #1), position the Rear Frame Bracket over the rear end of the mower aligning
all of the lower bolt holes of the Rear Frame Bracket to those on the mower’s rear end. Secure the Rear Frame
Bracket to the mower by replacing the existing hitch removed from earlier and using (4) 5/16”-18 x 1” Carriage Bolts
(Item #3) and (4) 5/16”-18 Ny-Flange Lock Nuts (Item #4). Refer to Figure B.
Secure the Rear Frame Bracket (Item #1) to the Side Frame Brackets by using (4) 5/16”-18 x 1” Carriage Bolts (Item
#3) and (4) 5/16”-18 Ny-Flange Lock Nuts (Item #4). Refer to Figure B.
Figure A
Remove Existing Hardware
From Lower Rear End of Mower
Bracket
Side Frame
Figure B
8
8
Rear End View
Side Frame Bracket
Hitch

9
Note: Keep all hardware relatively loose for the installation of the PTO Stop Plate.
PTO Mount Plate Assembly & Installation
To Install the Right PTO Mount Plate (Item #1), remove the loose hardware from the far right side of the Side Rear
Frame Bracket. Align the bolt holes of the Right PTO Mount Plate to those of the Side Rear Frame Bracket and
secure the Right PTO Mount Plate by replacing the (2) 3/8”-16 x 1-1/4” Carriage Bolts (Item #3) and (2) 3/8”-16 Ny-
Flange Lock Nuts (Item #4). Refer to the Figure below.
To Install the Left PTO Mount Plate (Item #2), align the bolt holes of the Left PTO Mount Plate to those located on the
Side Rear Frame Bracket. Refer to the Figure below. Secure the Left PTO Mount Plate by using (2) 3/8”-16 x 1-1/4”
Carriage Bolts (Item #3) and (2) 3/8”-16 Ny-Flange Lock Nuts (Item #4).
Figure A
Side Rear
Frame Bracket

10
To install the PTO Stop Plate (Item #1), align the bolt holes of the PTO Stop Plate to those of the PTO Mount Plates.
Secure the PTO Stop Plate to the PTO Mount Plates by using (4) 1/4”-20 x 3/4” HHCS (Item #2) and (4) 1/4”-20 Ny-
Flange lock Nuts (Item #3). Refer to the Figure Below.
Note: Keep all hardware relatively loose until the end.
PTO Stop Plate Assembly & Installation
Tighten all hardware at this time.
Figure A

11
Exhaust Deflector Installation
To install the Exhaust Deflector (Item #1), Fasten a 1/4”-20 x 1/2” HWHTCS self-tapping screw (Item #2) between the
front bolt hole and the rear tab bolt hole of the Exhaust Deflector. Refer to Figure A. This will help keep the Deflector
stable.
Next, align the carriage bolt holes of the Exhaust Deflector to the carriage bolt holes located on the tab of the Rear
Frame Bracket. Secure the Exhaust Deflector using (2) 5/16”-18 x 1” Carriage Bolts (Item #3) and (2) 5/16”-18 Ny-
Flange Lock Nuts (Item #4). Refer to Figure B.
Figure A
Figure B

12
If the mower’s exhaust sits higher, angle the Exhaust Diverter to about 110°.
Exhaust Diverter Installation
Note: Keep hardware relatively loose until the Exhaust Diverter has been optimally positioned.
To keep the Exhaust Diverter from burning the grass, position the Exhaust Diverter to the optimal position based on
the mower’s exhaust positioning:
To install the Exhaust Diverter (Item #1), slide the part over the exhaust of your mower. Secure the Exhaust Diverter
by using the 1-3/8” Exhaust Clamp Kit (Item #2) over the Exhaust Diverter. Refer to Figure A.
If the mower’s exhaust sits lower, angle the Exhaust Diverter to about 90°.
Refer to Figure B.
Figure A
Figure B
Mower’s Exhaust
J0295
X1046 1-3/8”

13
Lower Mount Tube Installation
To Install the Lower Mount Tubes (Item #1), align the mount tubes to the bolt holes on the furthest right of the Rear
Frame Bracket. Refer to the Figure below.
Secure (2) Lower Mount Tubes ( #1) to the Rear Frame Bracket using (2) 5/16”-18 x 2” x 2-1/2” U-Bolt ( #2) Item Item
and (4) 5/16”-18 Ny-Flange Locknuts ( #3) PER TUBE. Item
Allow the Lower Mount Tubes to rest on the tabs of the Rear Frame Bracket. Refer to the Figure below.
Rear Frame
Bracket
Figure A

14
Upper Frame Assembly Installation
Position the Upper Frame Assembly (Item #1) above the Lower Mount Tubes as shown in Figure A. Slide the Upper
Frame Assembly down onto the Lower Mount Tubes and secure using (2) Clevis Pins (Item #2) and (2) Rue Ring
Cotter Pin Clips (Item #3). Refer to Figure B.
Figure B
1
Figure A
Mounting
Tube
Item # Part # Desc. Qty.
1 A2047 Upper Frame Assy / P2B+ Gen. 2 1
2 K0133 Clevis Pin 1/2" x 2-1/2" 2
3 K1437 Rue Ring Cotter Pin 2
2
2
3
3
1

15
Locate the PTO mounting slots on both the Left and Right PTO Mount Plates. Insert the pivot rod of the PTO
Assembly (Item#1) into the mounting slots of the Left and Right PTO Mount Plates. Secure the PTO Assembly by
using (1) PTO Assembly Mount Pin (Item#2) and (1) Hair Pin Clip (Item#3). Refer to Figure A.
PTO Drive Assembly Installation
Figure A
PTO Mount
Slots
3
A2266 PTO-R Assy / Sm. Pulley Gd.
Figure B
To install the Handle Extension Kit, align the (2) bolt holes of the Handle Extension (Item #2.1) to the Base Handle of
the PTO-R Assy (Item #1). Secure the Handle Extension using (2) 5/16”-18 x 1” Carriage Bolts (Item #2.2.1) and (2)
5/16”-18 Ny-Flage Lock Nuts (Item #2.2.2). Finally, install the Black Handle Grip (Item #2.2.3) onto the top of the
Handle Extension. Refer to Figure B.
Handle Extension Kit Installation

16
Loosen the (4) bolts P#(K1153), (2) on each side, that
secure the gear box assembly to the PTO assembly
P#(A1950) (Figure B and C).
PTO MODELS ONLY
Remove (3) 1/4”-20 x 1/2” HHSTS P#(K0353) from the
gearbox pulley guard located on the bottom of the PTO
assembly (Refer to Figure A).
Belt Installation and Adjustment
Loosen the adjustment bolt P#(K0348) until the gear box
assembly is at its far left adjustment (the gear box is
moved toward the mower’s engine pulley). Refer to
Figure D.
Loosen Bolts
Loosen Bolts
Connect Belt
To Both Pulleys
Tighten Bolts
Tighten The Adjustment
Bolt To Tension The Belt
Figure B
Figure C
Figure E
Figure F
Figure G
Loosen The
Adjustment Bolt
Slide Gear Box
Towards The
Engine Pulley
Figure D
Figure A
Remove
Gearbox Pulley
Guard
To tension the drive belt, turn the adjustment bolt
clockwise (Figure F) until there is 1” of deflection, with
10-11 lbs. of pressure, at the center of the belt between
the engine pulley and the gear box pulley.
Connect the belt A60K P#(M0249) from the engine
pulley to the lower gear box pulley (Figure E).
Once the correct tension of the belt is achieved, tighten
the (4) bolts that secure the gear box assembly. Refer to
Figure G. Replace the belt guard.

17
Top Assembly To Upper Frame Assembly Installation
Align the Top Assembly Pivot Holes to the Upper Frame Assembly. See Figure A below. Before fastening, pull Rubber
Dust Guard outward to seal against Upper Frame Assembly (towards the mower’s operator seat). Fasten the Top
Assembly to the Upper Frame Assembly using (2) 5/16”-18 x 2-1/2” HHCS P#(K0125) and (2) 5/16”-18 Ny-Flange
Locknuts P#(K2516). Leave the Ny-Flange Locknuts slightly loose to allow the Top Assembly to open and close easily.
Upper Frame
Assembly
Pull Rubber Dust Guard
Outward To Seal Against
Upper Frame Back Edge
Pivot Holes
5/16” Ny-Flange
Locknut
5/16” x
2-1/2” HHCS
Position the Top Assembly on its side with the Inlet Hole facing
up. See Figure B. 1: Insert the Inlet from inside the Top Assembly,
up through the Inlet Hole, until the Inlet Retaining Lip meets the
Inlet Hole. 2: Position the Inlet as shown in Figure B, then pull the
Inlet until a portion of the Inlet Retaining Lip protrudes from the
Inlet hole. 3: Next, lift the Inlet as shown in Figure B until all of the
Inlet Retaining Lip protrudes from the Inlet Hole. Once installed,
the Inlet should pivot freely about the Inlet Hole.
Inlet Installation
:
I
n
s
1
e
r
t
I
n
l
e
t
Inlet
Hole
Inlet
Inlet Flange
Inlet Retaining Lip
Top Assembly
Figure A
Figure B

18
K0506 B0884
K2516
K0042
S0006
K0505
K0042
K1156
Assemble the Hinge Kit using (1) Latch Plate P#(B0884), (1) 5/16”-18 x 1-1/4” HHCS P#(K1156), (1) 5/16”-18 Ny-
Flange Lock Nut P#(K2516), (3) 5/16” Flat Washers P#(K0042), (1) Latch Spacer P#(S0006), (2) Extra Heavy 5/16”
Fender Washers P#(K0505) and (1) 5/16”-18 Lock Nut P#(K0506). Leave the nuts loose enough to allow fluid
movement of the top when opening and closing. When opened, the top should rest in the Latch Plate Slot.
Hinge Kit Assembly Installation
Flap can be adjusted Up/Down depending on mowing conditions. Adjust flap up to allow more dense material to reach
left bag. Adjust flap down to allow less dense material to reach the right bag. Once adjusted properly, both bags
should fill evenly, but may require further adjusting when mowing conditions change.
Even Bag Fill Adjustment

19
Bag Assembly
First, take one of the Bag Ring Split Ends and insert it through the Bag Seam Opening. Next, rotate the Bag around the
Bag Ring (1) full turn (360 degrees) until the Bag Ring Split Ends and the Bag Seam Opening are positioned on the same
side. Then, connect the Bag Ring Split Ends using (1) End Connector. Last, rotate the Bag Ring and the End Connector
Assembly (1/2”) turn (180 degrees) to position the Connector opposite of the Bag Seam Opening. Note Final End
Connector Location below in Figure A. Repeat for each Bag.
Bag Assembly Installation
Slide the Completed Bag Assembly into the Upper Frame Assembly Rails and close the Top Assembly. Fasten the Draw-
Latch on either side to hold the bagger closed.
Bag Ring
Split Ends
Bag Seam
Opening
Bag Ring
End
Connector
Completed
Bag Assembly
Note Final
End Connector
Location
Bag
Top Assembly
Draw-Latch
Upper Frame
Assembly
Rail
Mesh
Panel
Nylon
Panel
Mesh
Panel
Figure A

20
Secure the Boot Plate P#(B1049) to the Aluminum Boot P#(E0035A) using (2) 3/8”-16 x 1” Carriage Bolts P#(K1182)
and (2) 3/8”-16 Nylon Flange Locknuts P#(K2038). Insert the bolts from the inside so that the threads are on top of the
boot. This will prevent grass clippings from collecting on the bolt threads. Leave the hardware loose until the boot
assembly has been attached to the mower deck. Lift the grass deflector and position the boot plate between the two
tabs. Secure the boot plate by using (1) Boot Rod P#(B0288) and (1) Hair Pin Clip P#(K0099) Close any gaps
between the boot and the mower deck by adjusting the position on the boot in the boot plate slots. Tighten all
hardware at this time. Refer to Figure A.
Boot Kit Installation
Figure A
Aluminum
Boot
(2) 3/8”-16 x 1”
Carriage Bolts
(2) 3/8”-16 Locknuts
Boot
Plate
Figure B
Blower Housing
Align the bolt holes of the 8” Blower Cone (Item#1) to the bolts holes located on the Blower Housing of the PTO
Assembly. Secure the 6” Blower Cone to the Blower Housing by using (3) 1/4”-20 x 3/4” HHCS (Item#2), (3) 1/4”
Lock Washers (Item#3), and (3) 1/4” Flat Washers (Item#4). Refer to Figure B.
Blower Cone Installation
