Pecron E1500 LFP User manual

E1500
100V~120V-15A(MAX)
AC INPUT AC OUTPUT-2200W
DC 输出
12V-30A(MAX)
12V-5A 12V-10A
12V-10A
USB
100W 18W 18W
18W 18W 18W
32V~95V
700W(MAX) 12V~18V
100W(MAX)
DC INPUT
Please read the user manual thoroughly before using
USER MANUAL
100V~120V-50Hz/60Hz

E1500
100V~120V-15A(MAX)
AC INPUT AC OUTPUT-2200W
DC 输出
12V-30A(MAX)
12V-5A 12V-10A
12V-10A
USB
100W 18W 18W
18W 18W 18W
32V~95V
700W(MAX) 12V~18V
100W(MAX)
DC INPUT
①
④
⑦
⑩
⑬
LCD Display
Fuse
Wireless Charger
DC12V XT60 Output
USB-A/USB-C Ports
②
⑤
⑧
⑪
⑭
DC 32V~95V Charging Port
AC 100V~120V Input
DC 12V/USB/ Wireless Switch
DC12V Auxiliary Output
Battery Expansion Port
③
⑥
⑨
⑫
DC 12V~18V Charging Port
AC 100V~120V Output
AC 100V~120V Switch
DC12V(5525)Output

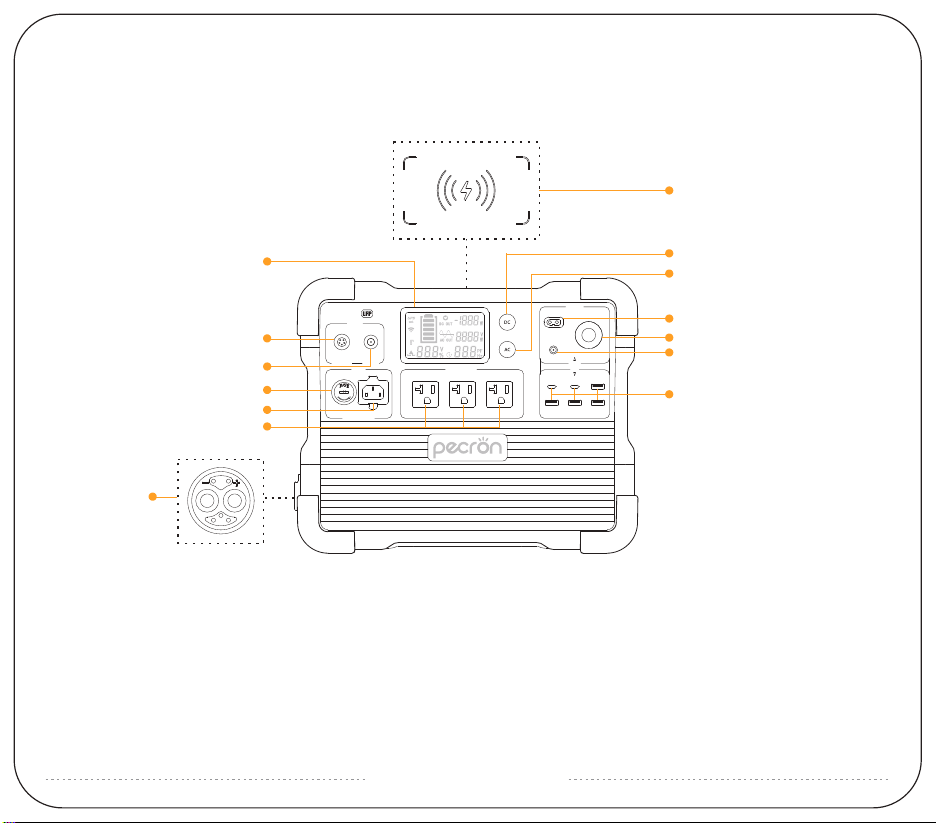

FUNCTION INTRODUCTION
①
②
③
④
⑤
⑥
⑭
⑧
⑨
⑩
⑪
⑬
⑦
⑫
3 5
4
2 1

Battery Type
LiFePO4 Battery
Retain 80%+
Original Capacity
At 3500 Cycles
Temperature
0℃~45℃/32°F~113°F
(Charging)
-20℃~45℃/-4°F~113°F
(Discharging)
Dimension
L14.8*W9.3*H12 in
L377*W237*H305
mm
Capacity
1536Wh
(51.2V30Ah)
Protections
Over-Voltage,
Overheat,
Overload,
Short-Circuit,
Self-Recovery
Charging Time
0.9H to 80%
1.8H to 100%
Net Weight
Around 39.7lb
Around 18Kg
E1500
210V~230V-10A(最大)
AC 输入 AC 输出 220V-2200W
DC 输出
12V-30A(最大)
12V-5A 12V-10A
12V-10A
USB
100W 18W 18W
18W 18W 18W
32V~95V
700W(最大) 12V~18V
100W(最大)
DC 充电
AC Out *3
Pure sine wave
100V~120V
Rated 2200W
USB-A *4
(5V,9V,12V,
Max 18W)*4
(5V,9V,12V,
Max 18W)*1
(5V,9V,12V,20V,
Max 100W)*1
USB-C *2
DC 12V-10A
Cigar Port *1
Max 15W
Wireless Charger *1
DC 12V-30A
XT60 Output *1
DC 12V-5A
DC 5525 Output *1
SPECIFICATIONS
OUTPUT SPECS
UPS SPECS
AC 100V~120V
Max 15A
CASCADE FUNCTION
Cascadable
EP3000-48V
Port For Cascade *1
INPUT SPECS
DC Charging
(32V~95V)
Max 700W
Max 15A
5521 *1
DC Charging
(12V~18V)
Max 100W
Max 7A
GX16MF *1
AC 100V~120V
1400W
AC INLET *1
3 5
4
2 1

E1500
100V~120V-15A(MAX)
ACINPUT ACOUTPUT-2200W
DC 输出
12V-30A(MAX)
12V-5A 12V-10A
12V-10A
USB
100W 18W 18W
18W 18W 18W
32V~95V
700W(MAX) 12V~18V
100W(MAX)
DC INPUT
HOW TO USE THE E1500 LFP
press and hold to turn on / off DC / USB / Wireless Charger
press and hold to turn on / off AC

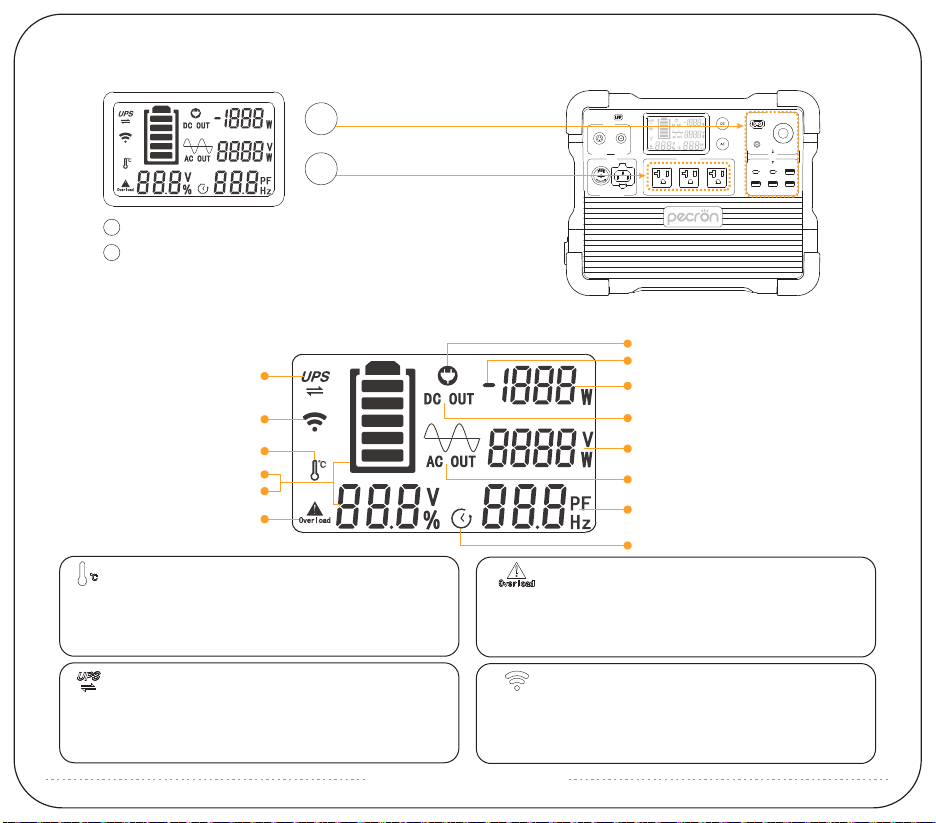

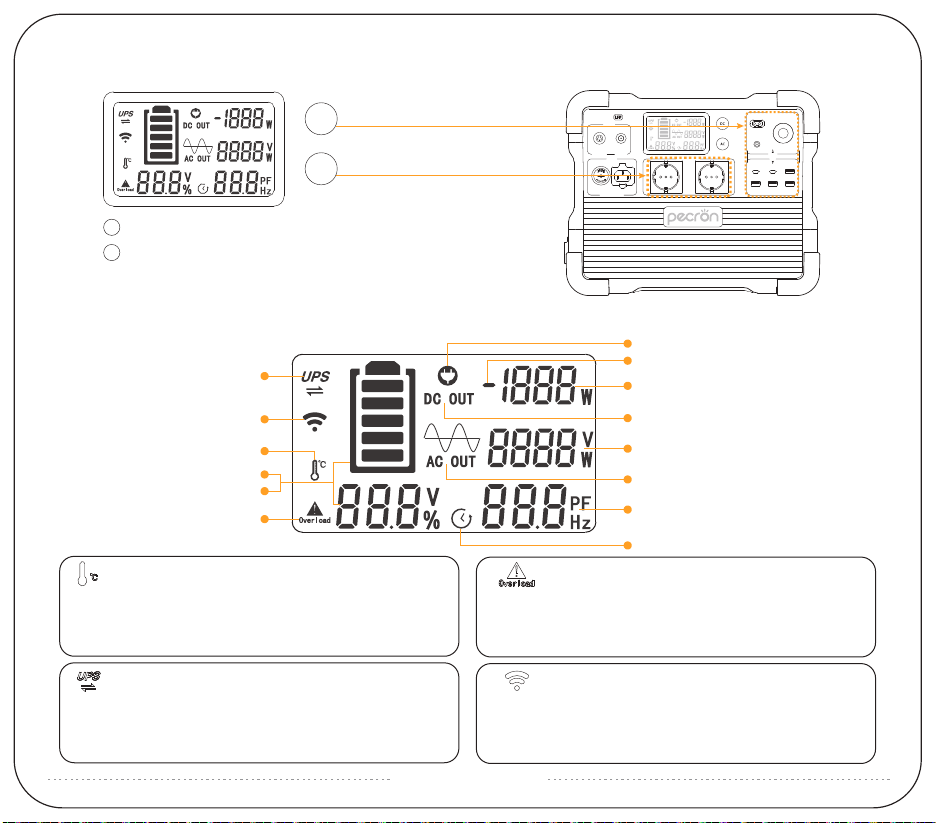

LCD SMART DISPLAY
Time Indicator
DC Out
Temperature Alarm
Battery Soc(%)
Voltage(V)
AC Overload Alarm
Charge Indicator
Discharge Indicator
Net Input/Output Wattage
AC Out
AC Input Wattage(W)/Voltage(V)
PF Value/Remaining Charging/
Discharging Time(Hrs)
UPS
Wireless connection
(Please turn off the AC function if there is no AC load on the unit)
AC Overload Alarm Icon
E1500 LFP can power most devices with power consumption
less than 2200 watts.
If your devices exceed 2200W, The AC overload alarm indicator
will flash, The unit will stop supplying power.
Temperature Alarm Icon
The operating temperature range of E1500 LFP is -20~45°C. If it
outputs high power in a hot conditions for a long time, the high
temperature alarm icon will flash, indicating that the inverter is
overheated, and the AC output will be turned off.
Wireless function prompt
When the power station is connected to the network via WIFI,
this icon will be always on to indicate.
UPS function prompt
When the power station has AC input and the AC output is
turned on, the UPS will be turned on, and the UPS icon will
always be on to remind.
DC
AC
AC
DC

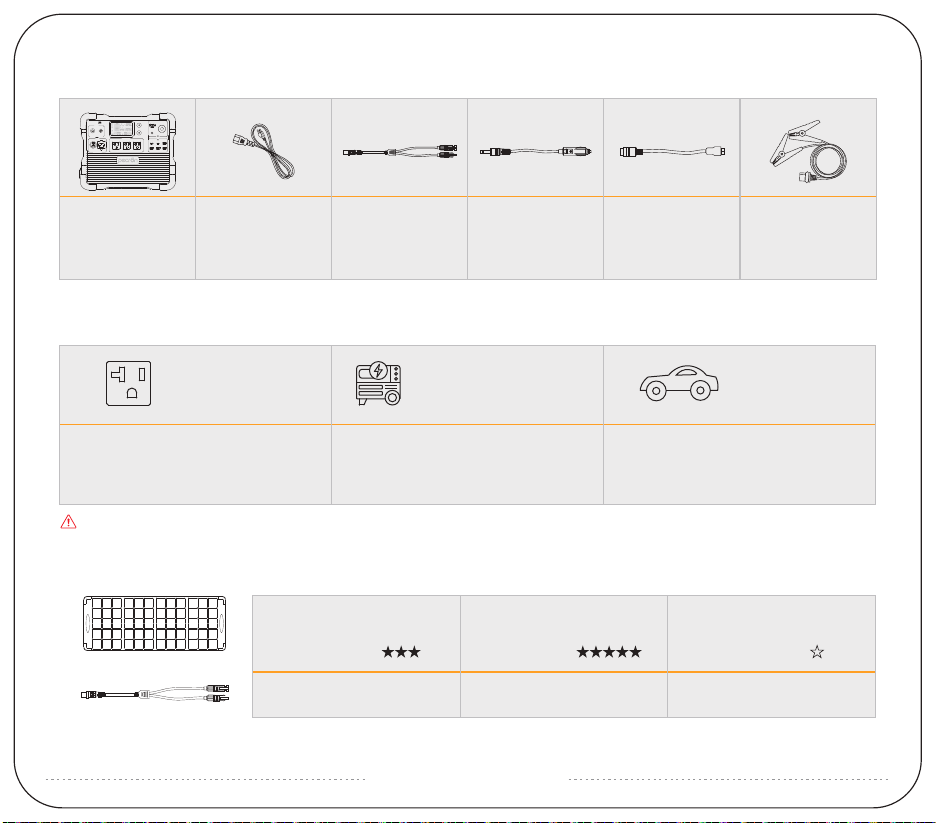

PACKING LIST
RECHARGE TIME
SOLAR CHARGE TIME
Recommended
MC4 Solar Charging Cable
PECRON solar panel
The solar charging time depends on weather conditions. E1500 LFP has a built-in MPPT charge controller that
supports 32~95V, 15A PV charging up to 700W.
200W
9~10 Hours
Recommended
400W
5~6 Hours
Recommended
600W
3.5~4 Hours
Anderson Solar
Charging Cable*1
PECRON E1500 LFP*1 AC Charing Cable*1 MC4 Solar Charging
Cable(LSMC4-5GX16)*1
Car Charging
Cable*1
12V Alligator Clips*1
Around 1.8Hours
Car Charger
Around 18HoursAround 1.8Hours
Wall Charger Electric Generator
When charging with the engine, the instability of the voltage and frequency of the generator may damage the machine!
E1500
100V~120V-15A(MAX)
ACINPUT ACOUTPUT-2200W
DC 输出
12V-30A(MAX)
12V-5A 12V-10A
12V-10A
USB
100W 18W 18W
18W 18W 18W
32V~95V
700W(MAX) 12V~18V
100W(MAX)
DCINPUT

UPS FUNCTION
The E1500 LFP supports UPS function. It can provide the loads(such as computers, data centers, telecommunication equipment)
near-instantaneous(within 8~20ms) protection from unexpected power interruptions of the main power supply.
Note: Not applicable to specific applications that need transfer time under 8ms, such as servers and workstations.
This UPS function only support protection for loads under 1800W(120V), we recommend that you only connect one
device at a time to avoid overload and thus result in protection failure.
PECRON is not responsible for any devices damege or loss of data resulting from failing to follow the instructions.
1:After power on, long press the AC + DC switch,
see the battery symbol flashing, enter the setting
item;
2:See item 001 setting, which is the AC output frequency,
short press DC, switch 50/60Hz; short press AC, enter
the next item;
HOW TO ADJUST THE AC OUTPUT FREQUENCY VOLTAGE
AND NO-POWER AUTOMATIC SHUTDOWN TIME OF E1500 LFP.
E1500
100V~120V-15A(MAX)
ACINPUT ACOUTPUT-2200W
DC 输出
12V-30A(MAX)
12V-5A 12V-10A
12V-10A
USB
100W 18W 18W
18W 18W 18W
32V~95V
700W(MAX) 12V~18V
100W(MAX)
DCINPUT

3:Enter item 002 setting, which is AC output voltage,
short press AC, switch voltage; short press AC, enter
the next item;
4:Enter 003 item settings, the default value is OFF, this
is the automatic shutdown setting of the machine
without output, short press DC, cycle switching
settings; short press AC, enter the next item;
5:Enter 004 item settings, this is the WIFI reset command,
the default is not reset, short press DC, the screen
display reads rst, indicating reset;
6:Press and hold AC to exit the setting, EEP is displayed
when exiting, which means the setting is successful.

Two PECRON EP3000-48V power packs can be
cascaded using PECRON's dedicated MJ32 socket.
Do not expand with any battery modules other
than the PECRON's, this could damage the unit!
After cascade completion, the display will
show the percentage of the sum of E1500 LFP
and EP3000-48V.
USING SOLAR PANELS TO CHARGE THE E1500 LFP
1. DC5521 Charging Port: PV/DC 12V~18V, 100W maximum; VOC(open circuit voltage) of solar panel must be less than
25V;
2. GX16MF-5 Charging Port: PV(operating voltage) range 32V~95V, 700W maximum; VOC(open circuit voltage) of solar
panel/array must be less than 95V, otherwise, it will damage the unit! Do not wire more than two 36V solar panels in
series, or more than four 18V solar panels in series.
(18V/36V stands for Vmp, the operating voltage, of the solar panel)
3. If you have any questions, feel free to contact us:[email protected]
EXPANDABLE BATTERY
E1500
100V~120V-15A(MAX)
ACINPUT AC OUTPUT-2200W
DC 输出
12V-30A(MAX)
12V-5A 12V-10A
12V-10A
USB
100W 18W 18W
18W 18W 18W
32V~95V
700W(MAX) 12V~18V
100W(MAX)
DCINPUT
3 5
4
2 1
E1500
100V~120V-15A(MAX)
ACINPUT ACOUTPUT-2200W
DC 输出
12V-30A(MAX)
12V-5A 12V-10A
12V-10A
USB
100W 18W 18W
18W 18W 18W
32V~95V
700W(MAX) 12V~18V
100W(MAX)
DCINPUT
DC5521 Charging Port:
PV12V~18V-100W Maximum Input
GX16MF-5 Charging Port:
PV32V~95V-700W Maximum Input

USING SOLAR PANELS TO CHARGE THE E1500 LFP
Charging the E1500 LFP with one solar panel
MC4 Solar Charging Cable*1
MC4 Solar Charging Cable*1
※ This sentence recommends using PECRON solar panels for the best user experience. The VOC of a single solar panel should
be less than 95V, and the VMP should be greater than 32V.
Use two solar panels in series to charge the E1500 LFP
※ This sentence recommends using PECRON solar panels for the best user experience. The VOC of a single solar panel should
be less than 48V, and the VMP should be greater than 16V.

USING SOLAR PANELS TO CHARGE THE E1500 LFP
MC4 Solar Charging Cable*1
Y Branch MC4 Charging Cable(+)*1
Y Branch MC4 Charging Cable(-)*1
(NOTE:This parallel charging cable sold separately)
※ This sentence recommends using PECRON solar panels for the best user experience. The VOC of a single solar panel should
be less than 95V, and the VMP should be greater than 32V.

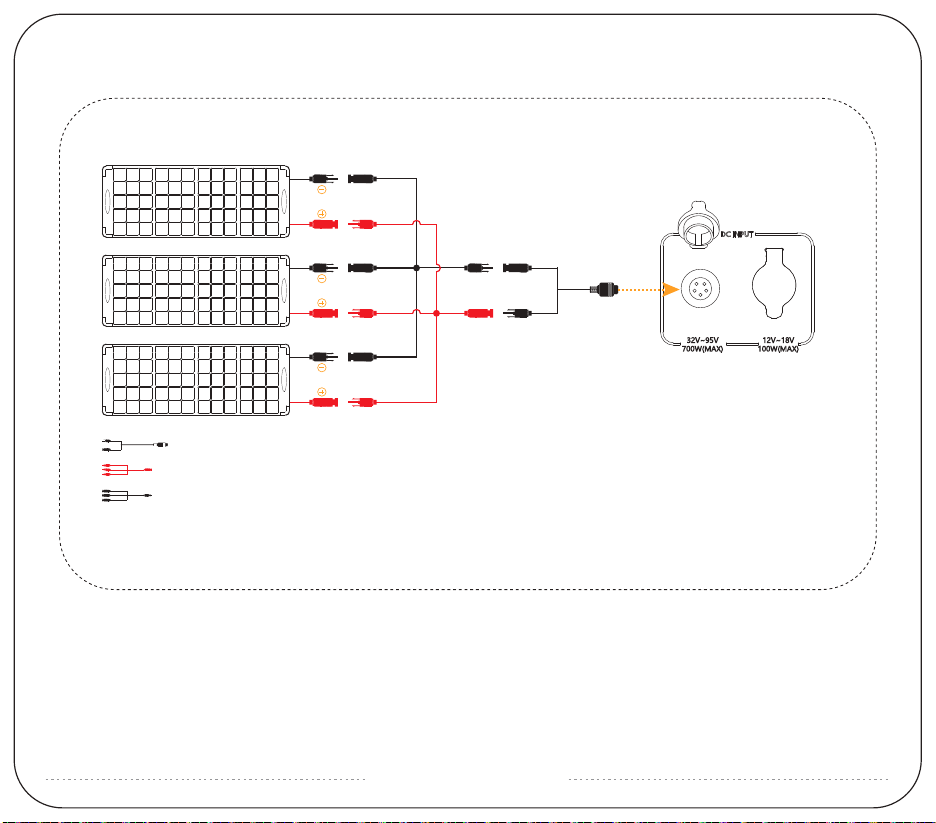

Use three solar panels in parallel to charge the E1500 LFP
(Recommended to use solar panels of the same specification model to obtain the best power.)

※PV(GX16MF-5) Port Only work within 32V~95V Open Circuit voltage,exceeding 95V will damage the machine.

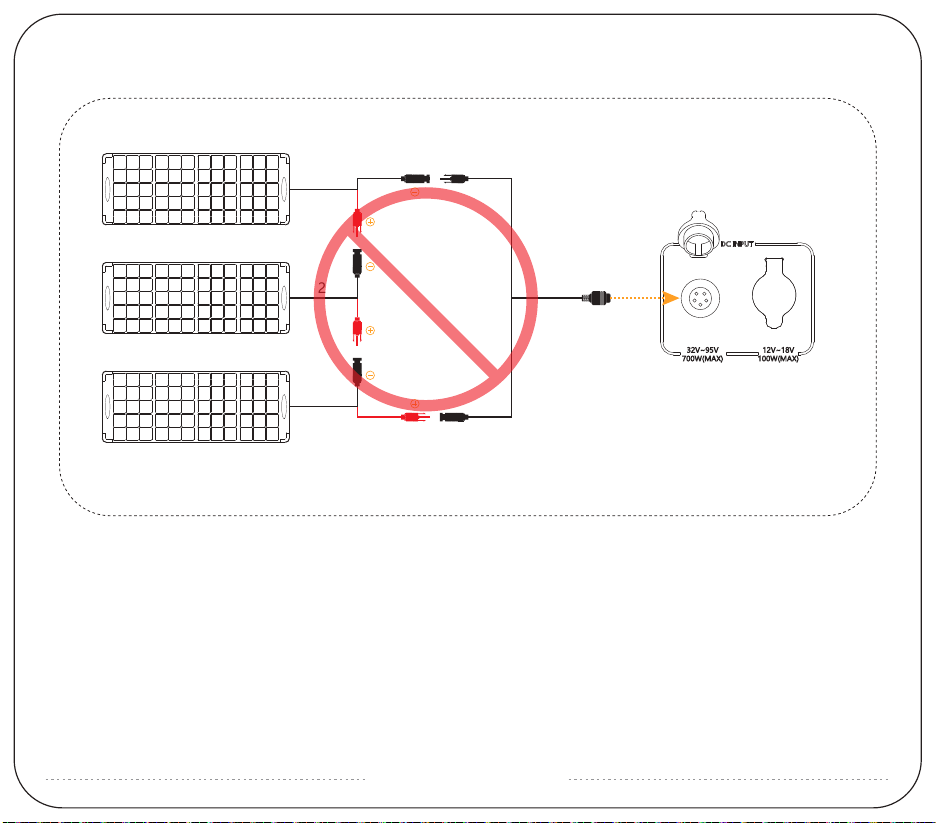

DO NOT WIRE THREE SOLAR PANELS IN SERIES!
32V
32V 96V
32V

Q1: What kind of battery is used in E1500 LFP? How long it can last?
A: E1500 LFP utilizes high quality UL certified automotive LiFePO4 battery, it can retain 80% of its original capacity at
3500 complete charge cycles.
Q2: What devices can E1500 LFP power?
A: Please note that the AC output port can only charge or power devices that operate at less than 2200W.
DC output port can only charge or power that operate at less than 12V-30A.
Q3: Can the E1500 LFP be used as UPS?
A: E1500 LFP supports UPS function with an automatic switchover time of 8~20ms.
Q4: Can the E1500 LFP be charged while discharging?
A: Yes, It can be charged and discharged at the same time. In the non-UPS state, if uninterrupted use is required, the
average power of charging must be greater than the average power of electricity, otherwise the battery will
eventually run out and shut down.
Q5: How to calculate the E1500 LFP running time?
A: Running Time=Total Capacity(1536Wh) * 0.85(Depth of Discharge)/Loading Power(Watts)
Q6: Can I use the E1500 LFP indoors and charge the E1500 LFP indoors?
A: Yes, the E1500 LFP is safe to use indoors.
Q7: Does E1500 LFP have built-in MPPT charge controller?
A: Yes, there are two independent built-in MPPT charge controllers; “5521”port supports 12~18V(Max 100W) PV
input, and “GX16MF”port supports 32~95V(Max 700W) PV input.
Q8: How to store the E1500 LFP?
A: Please turn off the unit and then store it in a dry, ventilated place at normal room temperature. Do not place this
unit near water sources or a wet/moist environment. For long-term storage, it is recommended to discharge the
battery to 30% every three months and recharge it to 60% to sustain the battery life.
FAQS

1、 Do not place the device near heat source, such as a fire or a heating furnace.
2、 Do not immerse in any liquid, or expose the unit to rain or wet conditions.
3、 Do not use the battery in a strong static electricity or electromagnetic environment.
4、 Do not disassemble or puncture the product with sharp objects in any way.
5、 Short circuits can be caused by: vermin or pests chewing through wires; water or other fluids coming into contact
with electrical wiring.
6、 It's prohibited to be used as car jump starter, only can be used to charge the car battery.
7、 Do not use accessories or parts other than those provided by PECRON. Please visit our website www.pecron.com or
reach our support team for a complete list of accessories and parts.
Please read the user manual thoroughly before using this product, and keep this manual in a safe place for future
reference. Failure to follow the instructions for proper set up, use, and care for the device can increase the risk of serious
personal injury, death, or property damage. Once you use this device, you are deemed to have understood, recognized
and accepted all terms and contents of this document. The user shall be responsible for his own actions and all
consequences arising from failure to use the device in accordance with the “User Manual”, or as authorized in PECRON's
current product literature.
In compliance with laws and regulations, PECRON reserves all rights for final explanation, and to change these terms and
conditions at any time without prior notice. In the event that any revisions are made, the revised terms and conditions
shall be posted on our website immediately, please visit our website to inform yourself of any changes.
DISCLAIMER
WARNING

8、 When using this product, please strictly follow the ambient temperature for use in the user manual. If the temperature
is too high, the battery can potentially result in self-combustion and will burst into flames, which can cause
widespread damage. If the temperature is too low, the performance of the battery will be seriously degraded, and it
may even fail to meet the normal use requirements.
9、 Do not stack heavy objects on this product.
10、Do not block the air vents during use, or leave the device in a non-ventilated or dusty space.
11、Please avoid impacts, fall off, and violent vibration. Please turn off the device immediately and stop using it in the
event of major exterior impact. Please fasten the unit firmly during transportation to avoid vibration and impact.
12、In the event of immersing the device into the water accidently, please place the unit in a safe open area and keep
away from the unit until it is completely dry. The dried unit should not be reused and should be disposed of properly
according to the local regulation. If the device catches fire, use the fire extinguishing equipment in the following
recommended order: water or mist, sand, fire blanket, dry chemical, carbon dioxide fire extinguisher.
13、Please wipe it with a dry cloth to clean the surface of the device.
14、Please place this device with care to prevent the product from being damaged due to fall off. If the product is
damaged due to fall off, please turn off the unit immediately and place it in an open area, keep away from
combustibles and crowds, and dispose of in accordance with local laws and regulations.
15、Please store this device in a place out of reach of children and pets.

WEBSITE:www.pecron.com
PECRON.LLC
DISPOSAL
1、When conditions permit, please be sure to completely discharge the battery of this product, and then put the product
in the designated battery recycling box. This product contains batteries. Batteries are dangerous chemicals and are
strictly prohibited from being disposed of in ordinary trash. For details, please follow local laws and regulations on
battery recycling and disposal.
2、If the battery cannot be completely discharged due to the failure of the product itself, please do not dispose of the
battery directly in the battery recycling box, and contact a professional battery recycling company for further disposal.
3、The battery will not be able to start after being over-discharged, please dispose of it according to the principle of
disposal.
EXCLUSIONS
PECRON’s warranty does not apply to:
Misused, abused, modified, damaged by accident, or used for anything other than normal consumer
use as authorized in Pecron’s current product literature.
CUSTOMER SUPPORT:[email protected]

Please read the user manual thoroughly before using
USER MANUAL
E1500
220V~240V-15A(MAX)
AC INPUT AC OUTPUT-2200W
DC 输出
12V-30A(MAX)
12V-5A 12V-10A
12V-10A
USB
100W 18W 18W
18W 18W 18W
32V~95V
700W(MAX) 12V~18V
100W(MAX)
DC INPUT
220V~240V-50Hz/60Hz

E1500
220V~240V-15A(MAX)
AC INPUT AC OUTPUT-2200W
DC 输出
12V-30A(MAX)
12V-5A 12V-10A
12V-10A
USB
100W 18W 18W
18W 18W 18W
32V~95V
700W(MAX) 12V~18V
100W(MAX)
DC INPUT
①
④
⑦
⑩
⑬
LCD Display
Fuse
Wireless Charger
DC12V XT60 Output
USB-A/USB-C Ports
②
⑤
⑧
⑪
⑭
DC 32V~95V Charging Port
AC 220V~240V Input
DC 12V/USB/ Wireless Switch
DC12V Auxiliary Output
Battery Expansion Port
③
⑥
⑨
⑫
DC 12V~18V Charging Port
AC 220V~240V Output
AC 220V~240V Switch
DC12V(5525)Output
FUNCTION INTRODUCTION
①
②
③
④
⑤
⑥
⑭
⑧
⑨
⑩
⑪
⑬
⑦
⑫
3 5
4
2 1

Battery Type
LiFePO4 Battery
Retain 80%+
Original Capacity
At 3500 Cycles
Temperature
0℃~45℃/32°F~113°F
(Charging)
-20℃~45℃/-4°F~113°F
(Discharging)
Dimension
L14.8*W9.3*H12 in
L377*W237*H305
mm
Capacity
1536Wh
(51.2V30Ah)
Protections
Over-Voltage,
Overheat,
Overload,
Short-Circuit,
Self-Recovery
Charging Time
0.9H to 80%
1.8H to 100%
Net Weight
Around 39.7lb
Around 18Kg
AC Out *2
Pure sine wave
220V~240V
Rated 2200W
USB-A *4
(5V,9V,12V,
Max 18W)*4
(5V,9V,12V,
Max 18W)*1
(5V,9V,12V,20V,
Max 100W)*1
USB-C *2
DC 12V-10A
Cigar Port *1
Max 15W
Wireless Charger *1
DC 12V-30A
XT60 Output *1
DC 12V-5A
DC 5525 Output *1
SPECIFICATIONS
OUTPUT SPECS
UPS SPECS
AC 220V~240V
Max 15A
CASCADE FUNCTION
Cascadable
EP3000-48V
Port For Cascade *1
INPUT SPECS
DC Charging
(32V~95V)
Max 700W
Max 15A
5521 *1
DC Charging
(12V~18V)
Max 100W
Max 7A
GX16MF *1
AC 220V~240V
1400W
AC INLET *1
3 5
4
2 1
E1500
220V~240V-15A(MAX)
ACINPUT ACOUTPUT-2200W
DC 输出
12V-30A(MAX)
12V-5A 12V-10A
12V-10A
USB
100W 18W 18W
18W 18W 18W
32V~95V
700W(MAX) 12V~18V
100W(MAX)
DCINPUT

E1500
220V~240V-15A(MAX)
ACINPUT ACOUTPUT-2200W
DC 输出
12V-30A(MAX)
12V-5A 12V-10A
12V-10A
USB
100W 18W 18W
18W 18W 18W
32V~95V
700W(MAX) 12V~18V
100W(MAX)
DC INPUT
HOW TO USE THE E1500 LFP
press and hold to turn on / off DC / USB / Wireless Charger
press and hold to turn on / off AC
LCD SMART DISPLAY
Time Indicator
DC Out
Temperature Alarm
Battery Soc(%)
Voltage(V)
AC Overload Alarm
Charge Indicator
Discharge Indicator
Net Input/Output Wattage
AC Out
AC Input Wattage(W)/Voltage(V)
PF Value/Remaining Charging/
Discharging Time(Hrs)
UPS
Wireless connection
(Please turn off the AC function if there is no AC load on the unit)
AC Overload Alarm Icon
E1500 LFP can power most devices with power consumption
less than 2200 watts.
If your devices exceed 2200W, The AC overload alarm indicator
will flash, The unit will stop supplying power.
Temperature Alarm Icon
The operating temperature range of E1500 LFP is -20~45°C. If it
outputs high power in a hot conditions for a long time, the high
temperature alarm icon will flash, indicating that the inverter is
overheated, and the AC output will be turned off.
Wireless function prompt
When the power station is connected to the network via WIFI,
this icon will be always on to indicate.
UPS function prompt
When the power station has AC input and the AC output is
turned on, the UPS will be turned on, and the UPS icon will
always be on to remind.
DC
AC
AC
DC

PACKING LIST
RECHARGE TIME
SOLAR CHARGE TIME
Recommended
MC4 Solar Charging Cable
PECRON solar panel
The solar charging time depends on weather conditions. E1500 LFP has a built-in MPPT charge controller that
supports 32~95V, 15A PV charging up to 700W.
200W
9~10 Hours
Recommended
400W
5~6 Hours
Recommended
600W
3.5~4 Hours
Anderson Solar
Charging Cable*1
PECRON E1500 LFP*1 AC Charing Cable*1 MC4 Solar Charging
Cable(LSMC4-5GX16)*1
Car Charging
Cable*1
12V Alligator Clips*1
Around 1.8Hours
Car Charger
Around 18HoursAround 1.8Hours
Wall Charger Electric Generator
When charging with the engine, the instability of the voltage and frequency of the generator may damage the machine!
E1500
220V~240V-15A(MAX)
ACINPUT ACOUTPUT-2200W
DC 输出
12V-30A(MAX)
12V-5A 12V-10A
12V-10A
USB
100W 18W 18W
18W 18W 18W
32V~95V
700W(MAX) 12V~18V
100W(MAX)
DCINPUT
Table of contents
Other Pecron Power Supply manuals
Popular Power Supply manuals by other brands

TDK-Lambda
TDK-Lambda GXE600 Series Communication GUI Guide

Ultra Products
Ultra Products X4 user manual

ROCKSOLAR
ROCKSOLAR RS81 MAX User instruction manual

Miyachi
Miyachi IPB-5000A-00-00 Operation manual

Hama
Hama PC Power Supply user manual

Lucent Technologies
Lucent Technologies Galaxy Power System 2408 product manual

Whelen Engineering Company
Whelen Engineering Company ISP9424A installation guide

Ativa
Ativa 516-015 user guide

Gallagher
Gallagher HobbyMaster installation instructions

PS Audio
PS Audio PS POWER Owner's reference

Vimo
Vimo ALSCB138V15 installation manual

Altronix
Altronix MAXIMAL FIT MaxFit11FE installation guide
