BEFORE YOUBEGIN
Thank youfor selecting theWB859. For your safetyandbenefit, readthismanual
carefullybefore usingthe machine.Asthe manufacturer, weare committedto
provideyoucompletecustomer satisfaction. If youhaveanyquestions, or find
there are missing or damagedparts, weguaranteeyour complete satisfaction
through direct assistance from our factory.Our CustomerServiceAgentswill
provide immediateassistance to you.
1
MEKMAS.A.
21 Gr.Lambraki str.-14123 Lykovrisi Athens-Greece
Tel.[phone]
Fax. [phone]
e-mail: [e-mail]
http://www.mekma.gr

IMPORTANTSAFETYNOTICE
PRECAUTIONS
Thisexercise machine is built for optimumsafety.However, certainprecautionsapply
whenever you operateapiece of exerciseequipment. Be suretoreadtheentiremanual
beforeyou assemble or operateyour machine. In particular, notethe followingsafety
precautions:
1. Keep childrenand pets awayfrom the machineat all times. DONOT leave children
unattendedinthesame roomwiththemachine.
2. Only onepersonat atimeshould use themachine.
3. Iftheuserexperiencesdizziness, nausea,chestpain, or anyother abnormalsymptoms,
STOP the workout at once. CONSULTA PHYSICIAN IMMEDIATELY.
4. Position themachineonaclear, leveled surface. DO NOT usethemachinenear water or
outdoors.
5. Keephandsawayfromall movingparts.
6. Always wear appropriate workout clothingwhen exercising.DONOTwear robes or other
clothing thatcouldbecome caught inthe machine. Running or aerobicshoesarealso
required when using themachine.
7. Usethemachineonly for its intendeduse as describedinthis manual.DONOTuse
attachmentsnot recommended bythe manufacturer.
8. Do notplaceanysharp object around themachine.
9. Disabled person shouldnot use themachinewithout a qualified personor physicianin
attendance.
10. Beforeusing the machine to exercise,always do stretching exercises toproperlywarmup.
11. Never operatethe machineifthemachineis notfunctioning properly.
12. A spotter is recommendedduringexercise.
13. Thismachineis designedand intended for home andconsumer useonly,not for
commercial use.
14. Maximumuser’s weight: 300lbs.
15. Maximumweightonuprights: 600lbs.
16. Maximumweightonleg developer: 100 lbs.
CAREAND MAINTENANCE
1. Inspect and tightenallpartsbeforeusing themachine.
2. Themachinecanbecleanedusinga damp cloth and mildnon-abrasivedetergent.
DONOTusesolvents.
WARNING: BEFOREBEGINNINGANYEXERCISEPROGRAM,CONSULT
YOUR PHYSICIAN.THISISESPECIALLY IMPORTANT FORINDIVIDUALS
OVER THE AGEOF35ORPERSONS WITHPRE-EXISTINGHEALTH
PROBLEMS. READALLINSTRUCTIONS BEFORE USINGANYFITNESS
EQUIPMENT. WE ASSUMES NORESPONSIBILITYFORPERSONALINJURY
ORPROPERTYDAMAGE SUSTAINED BY ORTHROUGHTHEUSE OFTHIS
PRODUCT.
SAVE THESE INSTRUCTIONS. 2

WARNING LABEL REPLACEMENT
TheWarningLabelsshownherehave been placed on the Rear Stabilizer. If thelabelsare
missingorillegible,pleasecall customer service at (0030)2102758228for replacement.
Applythe labelsinlocationshown
3

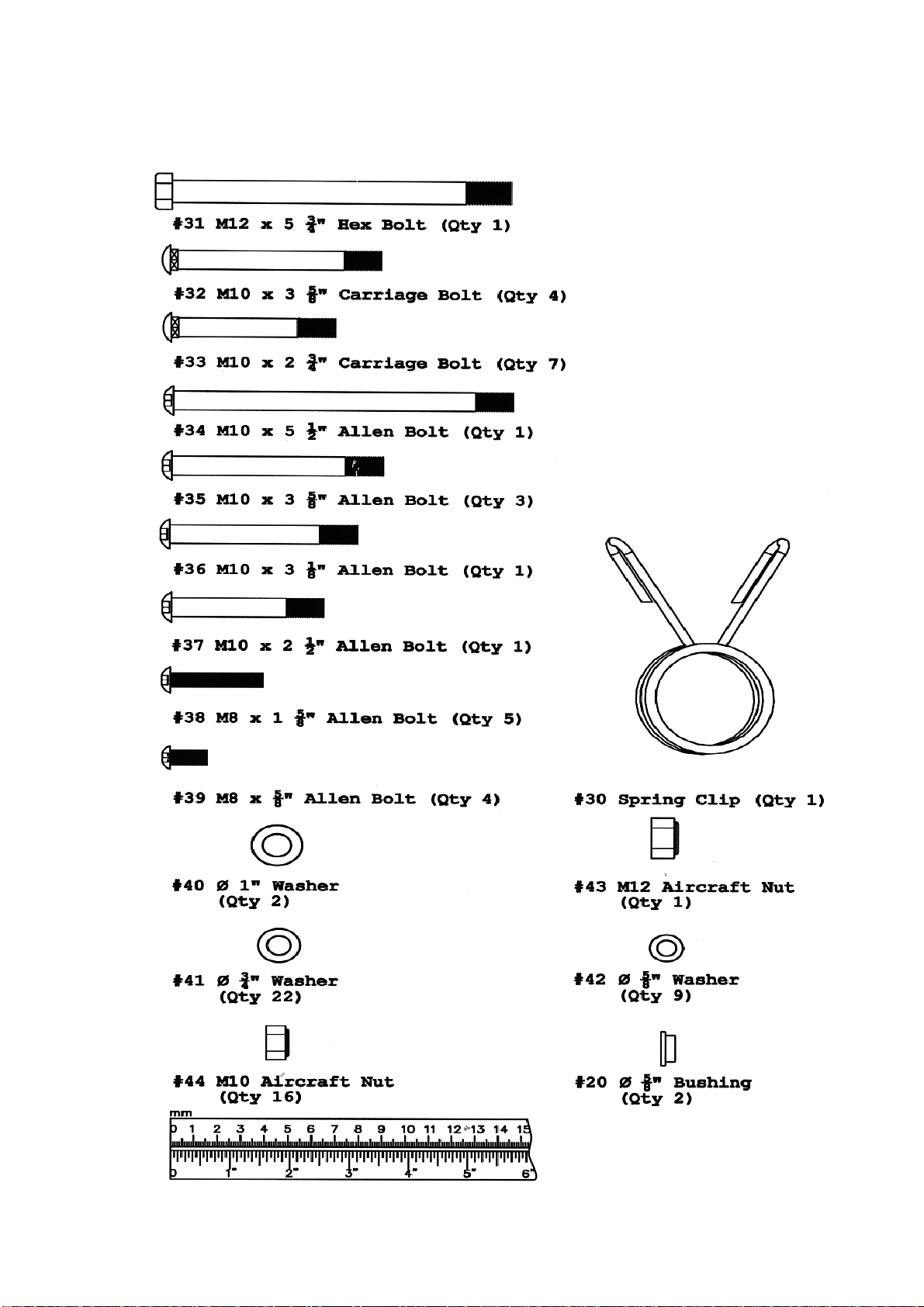

HARDWAREPACK
NOTE: Thefollowing parts arenot drawn to scale. Pleaseuse your own ruler to measurethesize.
4

ASSEMBLY INSTRUCTION
ToolsRequiredFor AssemblingtheMachine: TwoAdjustable Wrenchesand Allen
Wrenches. NOTE: Itisstronglyrecommendedfor twoor morepeopleto assemble this
machine to avoid possibleinjury.
STEP 1 (See Diagram 1)
A.) Attach one Base Frame(#3) to theRear Base Frame(#2).Attach anUpright Beam
(#1)ontotheBaseFrame andRearBase Frame.SecurethemtogetherwithtwoM10x
3 5/8” CarriageBolts(#32), one5 ½” x2” Bracket (#15), two ¾” Washer (#41), and
twoM10AircraftNuts(#44) frombottom.Secure withtwoM10x2 ¾” CarriageBolts
(#33),two ¾” Washer (#41), and twoM10Aircraft Nuts (#44) from side. Do not
tightenthe Nuts and Boltsyet. Repeat thesame procedure to install theother side.
B.)Securelytighten all Nutsand Bolts.
C.)Insert twoCrutches (#4) into thetwoUprightBeams. Insert twoM18LockKnobs (#19)
throughthe selectedholesto obtain desiredheight. DIAGRAM1
5

STEP 2 (See Diagram 2)
A.)Attach theMainSeat Support (#5)totheRear Stabilizer(#6). Secure it withtwoM10x2 ¾”
CarriageBolts(#33),one51/8” x2 ¾”Bracket(#14), two ¾”Washers(#41),andtwoM10
Aircraft Nuts(#44).
B.)Attach thetwo InclineSupport Frames (#12) tothe MainSeat Support.Secure them tothe
Main Seat Support with threeM10x3 5/8” Allen Bolts (#35), six ¾” Washers (#41), and
threeM10Aircraft Nuts (#44). DIAGRAM2
6

STEP 3 (See Diagram 3)
A.)Attach thepivotontheLegDeveloper Holder (#7) to theopenbracket onthe MainSeat
Support(#5). Attach thebottomof Leg DeveloperHolder to theMain SeatSupport. Secure
itwith oneM10 x2 ¾” CarriageBolt(#33)fromfront,oneM10x2 ½” AllenBolt (#37) from
rear,two ¾” Washers (#41), andoneM10Aircraft Nut (#44).

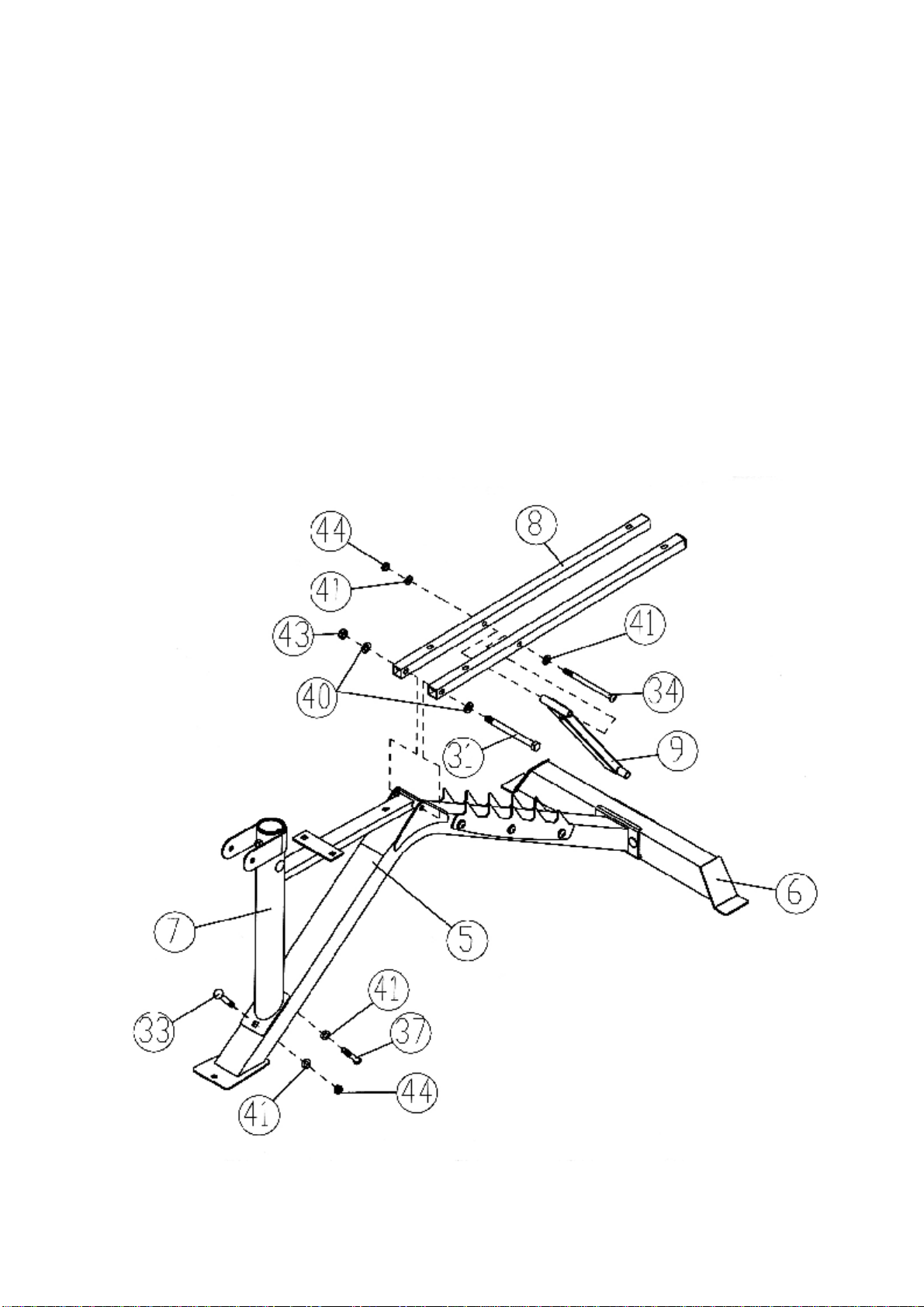

B.)Attach theInclineSupport (#9) totheside-holesonthe twoBackrest Supports (#8). Align
theholes.Secure itwithoneM10x5½” AllenBolt(#34),two ¾”Washers (#41), andone
M10Aircraft Nut(#44).
C.) Attach theholes ontheendoftheBackrest Supports (#12)tothe bracketon theMain Seat
Support.Align theholes. SecurethetwoBackrestSupportstothebracket,andthepivoton
Leg Developer Holder together with oneM12x5 ¾” HexBolt (#31), two 1” Washers
(#41), andoneM12AircraftNut(#44).
D.) Donot over tightentheNuts andBolts. MakesuretheBackrest Supports andBackrest
Inclineareabletoswivel.
E.)Place theother endsof InclineSupport ontotheselectedslotonInclineSupport Frames
(#12) toholdthe Backrest Inclinein position. DIAGRAM3
7

STEP 4 (See Diagram 4)

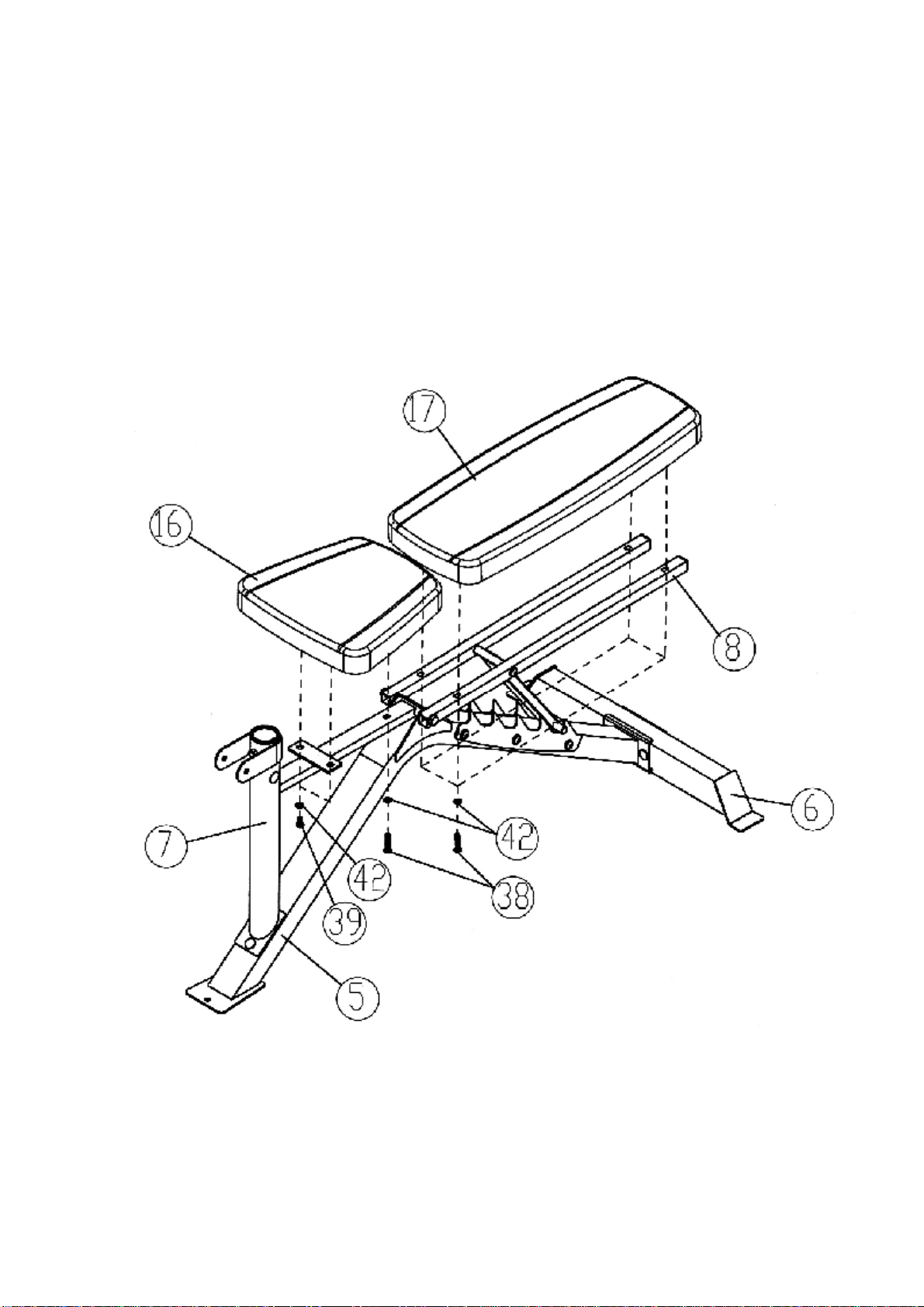

A.)Attach theBackrest Board(#17) totheBackrest Supports (#8).Secure itwithfour M8x1
5/8” AllenBolts (#38) andfour 5/8” Washers (#42).
B.)Place theSeatPad(#16)ontothe seatbracket onLeg DeveloperHolder(#7). Secure itwith
oneM8 x 15/8”AllenBolts (#38),twoM8 x5/8” Allen Bolts(#39),andtwo 5/8” Washers
(#42). DIAGRAM4
8

STEP 5 (See Diagram 5)

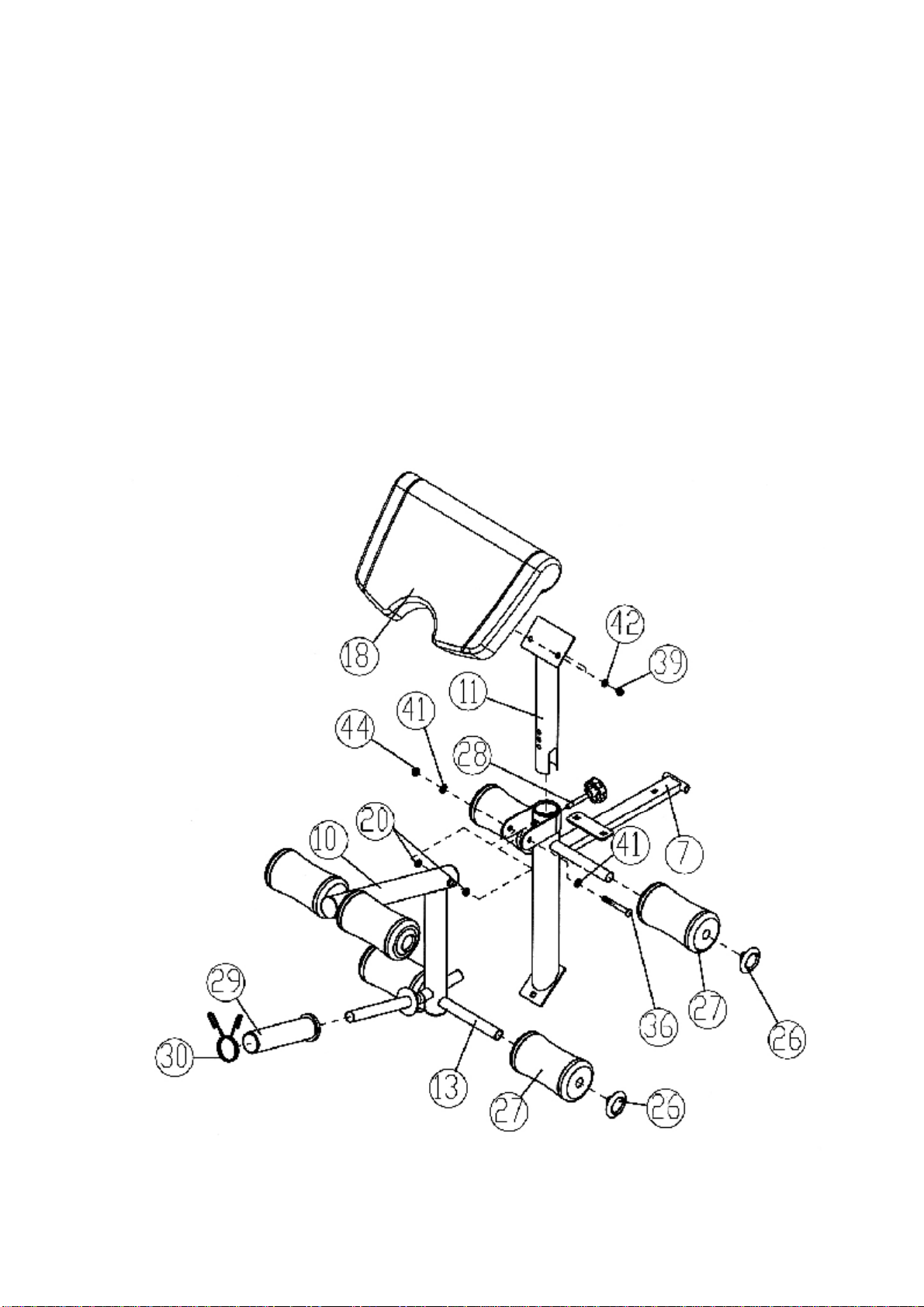

A.)Attach two 5/8” Bushings(#20)tothe Leg Developer (#10).Attachthe Leg Developer to
theLegDeveloper Holder(#7). Secure it withoneM10x3 1/8” Allen Bolt(#36), two ¾”
Washers(#41),andone M10 Aircraft Nut (#44).
B.)Insert threeFoamTubes (#13) halfwaythrough theholesonthe LegDeveloper andLeg
DeveloperHolder.Pushsix Foam Rolls(#27) ontotheTubesfromboth ends. PlugsixFoam
Roll EndCaps (#26) intotheends.
C.) SlideanOlympicSleeve(#29) onto theweightpost onLeg Developer. AttachaSpringClip
(#30) ontotheSleeve.
D.) Attach theArmCurl Pad (#18) to theArmCurlStand(#11). Secureitwith twoM8x5/8”
Allen Bolts(#39) and two 5/8” Washers (#42).
E.)Insert theArmCurl StandintotheLegDeveloper holder. UsetheM10Lock Knob(#28) to
locktheArmCurl Standinposition.
F.)Remove theArmCurlStandwhendoingLeg Developer exercises. DIAGRAM5
9

10

PARTS LIST
KEY NO.DESCRIPTIONQUANTITY
1Upright Beam 2
2Rear Base Frame1
3BaseFrame2
4Crutch 2
5Main Seat Support1
6Rear Stabilizer1
7Leg Developer Holder1
8BackrestSupport 2
9InclineSupport 1
10Leg Developer1
11ArmCurlStand1
12 InclineSupport Frame 2
13FoamTube3
1451/8” x2 ¾” Bracket1
155½” x2”Bracket2
16SeatPad1
17BackrestBoard1
18ArmCurlPad1
19 M18LockKnob2
20 5/8”Bushing2
21 3” Sleeve2
22 23/8” Sleeve1
231” Square EndCap2
24 1” EndCap2
25 2” EndCap3
26FoamRoll EndCap6
27FoamRoll6
28M10LockKnob1
29OlympicSleeve1
30SpringClip1
31M12x5 ¾” HexBolt 1
32M10x35/8” Carriage Bolt 4
33M10x2 ¾” CarriageBolt7
34M10x5½” AllenBolt1
35M10x35/8” AllenBolt 3
36M10x31/8” AllenBolt 1
37M10x2½” AllenBolt1
38M8 x1 5/8” AllenBolt5
39M8 x5/8” Allen Bolt 4
40 1” Washer2
41 ¾” Washer22
42 5/8”Washer9
43M12Aircraft Nut1
44M10Aircraft Nut16
