Peloton Bike+ User manual

USER MANUAL
MODEL:
PL-02
SKUS:
BK02 | NEW
BK02-A/B | REFURBISHED

23|
TABLE OF CONTENTS
TABLE OF CONTENTS
WARNING: To reduce your risk of injury, read all precautions and instructions in
this manual before using this equipment. Improper use or maintenance can void the
warranty. Keep this manual for future reference. Access the latest user manual, plus
additional languages, at onepeloton.com/manuals.
WARNINGS AND SAFETY INFORMATION
NOTICES
LABELS
MEMBER SUPPORT
SPECIFICATIONS
SETTING UP YOUR BIKE
Location Requirements
Moving the Bike
Clipping In and Out
Adjusting Resistance
GETTING STARTED
Plugging In
Powering On and Off
Connecting to the Internet
Logging In
04
06
08
09
10
16
16
17
24
26
27
27
28
29
29
30
30
31
32
34
38
42
Peloton 101
Adding a Rider
Joining a Ride
CLASS SCREEN
ASSEMBLY
MAINTENANCE AND CARE
WARRANTY

45|
WARNINGS AND SAFETY INFORMATION
WARNINGS AND SAFETY INFORMATION
Read all safety information before operating
the bike. It is the owner’s responsibility to
ensure that users are aware of all warnings
and precautions.
Consult a physician before beginning a new
tness plan. Incorrect or excessive training
can result in serious injury.
If you experience faintness, chest pain,
or shortness of breath, stop exercising
immediately and consult a physician.
Metrics on the screen, including heart rate
monitoring, may be inaccurate. Values
should be used for reference only.
The resistance knob can be used as an
emergency brake. To stop immediately,
push down on the resistance knob.
This bike has a direct driven ywheel. If
the ywheel is moving, the pedals are
moving. Removing your feet from the
pedals while they are moving can cause
serious injury. Stop by reducing pedaling
frequency in a controlled manner or by using
the emergency brake. Do not remove your
feet from the pedals until the ywheel
stops moving. Spinning pedals can cause
injury.
Use caution when mounting
and dismounting.
To prevent injury, always adjust the seat
and handlebars to your personal preference
and verify that all adjustment knobs and
latches are fully tightened. Loose seats or
handlebars can lead to serious injury.
Keep children under 14 and pets away from
the bike at all times. Children over the age
of 14 and persons with a lack of experience
and knowledge must be given supervision
or instruction before using the bike. Do not
allow children to perform maintenance or to
play with the bike.
Keep hands, loose clothing, shoelaces,
and accessories away from moving parts.
Do not insert objects into openings on
the equipment.
The bike is equipped with Delta-compatible
pedals. Always cycle using footwear
equipped with appropriate cleats. Cycling
barefoot or with inappropriate footwear can
cause serious injury.
Make sure that your cleats are properly
positioned and all bolts are fully tightened
before clipping in. Riding with loose cleats
could lead to serious injury.
Do not attempt to walk in cycling shoes
with cleats. Wear cycling shoes only while
using the Peloton Bike+ and remove them
immediately after clipping out. Walking on
cleats may cause you to fall or twist your
ankle, or otherwise result in serious injury.
Be careful when clipping in and out. While
you may need to use some force, excessive
force or aggressive movements could
result in an ankle, foot, or leg injury.
Perform regular maintenance for optimal
performance and longevity. To ensure
safety, check the bike for wear and damage
on a regular basis. Replace any damaged
or worn parts immediately. Do not use the
bike until the repair is performed.
Use only original parts from the
manufacturer. Changes or modications
to this unit not expressly approved by
Peloton could void the warranty
Ensure that the power cable never passes
under the bike. Always keep the power
cable clean and dry. Sweat, spills, and other
damage to the power cable may result in
property damage or bodily harm.
Always unplug the bike immediately after
use and before cleaning or performing
maintenance. Service other than the
procedures described here must be
performed by an authorized technician.
The bike should not be used by persons
exceeding 297lb/135kg in weight.
This bike is for indoor use only. Do not store
the bike outdoors, near water, or at high
humidity levels.
This bike is for home use only. Do not use
in a commercial setting. Use the bike only
for its intended purpose.

67|
NOTICES
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
must not cause harmful interference,
and (2) this device must not accept any
interference received, including interference
that may cause undesired operation.
NOTE: This equipment has been tested
and found to comply with the limits for
a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy
and, if not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user
is encouraged to try to correct
the interference by one or more of the
following measures:
1Reorient or relocate the receiving
antenna.
2Increase the separation between the
equipment and receiver.
3 Connect the equipment to an outlet on a
circuit different from that towhich the
receiver is connected.
4Consult the dealer or an experienced
radioTV technician for help.
CAUTION:
1To comply with FCC RF exposure
compliance requirements, a separation
distance of at least 20cm must be
maintained between the antenna of
this device and all persons.
2This transmitter must not be co-located
or operating in conjunction with
any other antenna or transmitter.
Waste electrical products must
be handed over to a designated
collection point for disposal to be
recycled in an environmentally sound
manner. Improper disposal of this
product could result in harm to the
environment or to human health.
Check with your local waste authority
or the retailer where you purchased
this product for available collection
facilities or further recycling advice
Please avoid the generation of waste
from electrical products as much as
possible, e.g. by giving preference to
products with a longer service life or
by reusing used electrical products
instead of disposing of them.
You are responsible for deleting any
personal data from this product
before disposing of it.
This product is ANT+™ certied and
is compatible with ANT+ sensors
that support heart rate monitoring.
Apple Watch is a trademark of Apple
Inc., registered in the U.S. and other
countries.
NOTICES
DISTRIBUTED BY:
US/CANADA
Peloton Interactive, Inc.
441 9th Avenue, 6th Fl
New York, NY 10001
USA
UK
Peloton Interactive UK Limited
1 Langley Street
London WC2H 9JG
United Kingdom
EU
Peloton Interactive Deutschland GmbH
c/o WeWork Neue Schönhauser Str. 3-5
Neue Schönhauser Straße 3-5
10178 Berlin
Germany
AUSTRALIA
Peloton Interactive Australia Pty Ltd
ACN 644 958 047
20 Martin Place
Sydney NSW 2000
Australia

89|
MEMBER SUPPORT
LABELS MEMBER SUPPORT
Peloton’s #1 concern is member satisfaction. If you require assistance or are experiencing
issues with your Peloton Bike+, please visit support.onepeloton.com for additional help.
When you contact member support, have the following information ready:
1 Bike ID and serial number*
2 Purchase Date
3 Your order number or the email address associated with your Peloton Bike+ purchase
To access the ID and serial numbers from the touchscreen, tap the menu icon at the lower
right, and select About.
Familiarize yourself with all warnings on the bike before use.
If any label is damaged or lost, contact member support for a replacement immediately.
A B
Read user manual prior to use and follow all warning and instructions. 
Misuse of this bike may result in serious injury. Set up and operate on a solid, level
surface. Keep children and pets away from the bike at all times. Before mounting or
dismounting, move the pedal on the mounting or dismounting side to its lowest position
and bring the pedals to a complete stop. This bike does not free-wheel. Reduce pedal
speed in a controlled manner. Spinning pedals and other moving parts can cause
injury. Always unplug the bike after use and before servicing. 
Maximum user weight: 297 lbs / 135 kg
Lisez le guide d'utilisation avant d'utiliser le vélo et respectez l'ensemble des
avertissements et consignes. Une utilisation inadéquate du vélo pourrait entraîner
des blessures sérieuses. Installez et utilisez le vélo sur une surface solide et plane. 
Tenez les enfants et les animaux de compagnie éloignés du vélo en tout temps. Avant
de monter ou de descendre de l'appareil, mettez la pédale du côté d'où vous souhaitez
monter ou descendre à sa position la plus basse et assurez-vous qu'elle soit
complètement arrêtée. La roue de ce vélo n'est pas libre. Réduisez la vitesse des
pédales de façon contrôlée. Les pédales et les autres parties en mouvement peuvent
causer des blessures. Débranchez toujours le vélo après usage et avant d'effectuer
son entretien. Poids maximum de l'utilisateur : 135 kg / 297 lb
WARNING / AVERTISSEMENT
A
B
*

10 11|
SPECIFICATIONS
SPECIFICATIONS
A TOUCHSCREEN
B SWIVEL
C HANDLEBAR HEIGHT ADJUSTMENT KNOB
D WATER BOTTLE HOLDER
E FLYWHEEL
F WHEELS
G FEET
H PEDALS
I BELT GUARD
J SEAT HEIGHT ADJUSTMENT KNOB
K SEAT SLIDER LATCH
L WEIGHT HOLDERS
M SADDLE
N RESISTANCE KNOB/EMERGENCY BRAKE
O AUDIO JACK
P HANDLEBARS
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P

12 13|
SPECIFICATIONS
SPECIFICATIONS CONTINUED
Q VOLUME CONTROLS
R POWER BUTTON
S AUDIO JACK
T POWER/DATA PORT
U NETWORK PORT
R
S
T
U
Q

14 15|
SPECIFICATIONS
BIKE SPECIFICATIONS
Footprint: 4ft x 2ft/120cm x 60cm
Maximum Height: 4ft 11in/150cm
Weight: 141lb/64kg
User Height Range: 4ft 11in - 6ft 5in/150cm - 195cm
Maximum User Weight: 297lb/135kg
Weight Holder Capacity: 5lb/2.26kg
Displayed Power Output Accuracy: +/-10 % for Power > 50W, +/-5W for Power < 50W.
POWER CONSUMPTION
NETWORKED STANDBY MODE
Power Consumption: 1.91W
Power consumption with all interfaces connected: 1.91W
Time to enter Standby Mode: 20 mins of inactivity
OFF MODE
Power Consumption: 0.39W
Time to enter Off mode: N/A; Turn off equipment using power switch
TOUCHSCREEN SPECIFICATIONS
23.8in 1080P HD Touchscreen
WiFi 802.11 a/b/g/n/ac MIMO 2x2 antenna
1 Gbps Ethernet (via network port)
4 GB Memory
16 GB Internal Flash Storage
ANT+™ Wireless
Bluetooth® 5.0
8MP Still Photo/1080P Video Camera with Privacy Cover
4 Digital Microphone Array
3.5mm Headphone Port
2x10 Watt Woofers with 2x3W Front-Facing Tweeters
Stereo Speakers with 80Hz to 20KHz Frequency Response
SPECIFICATIONS CONTINUED

16 17|
SETTING UP YOUR BIKE

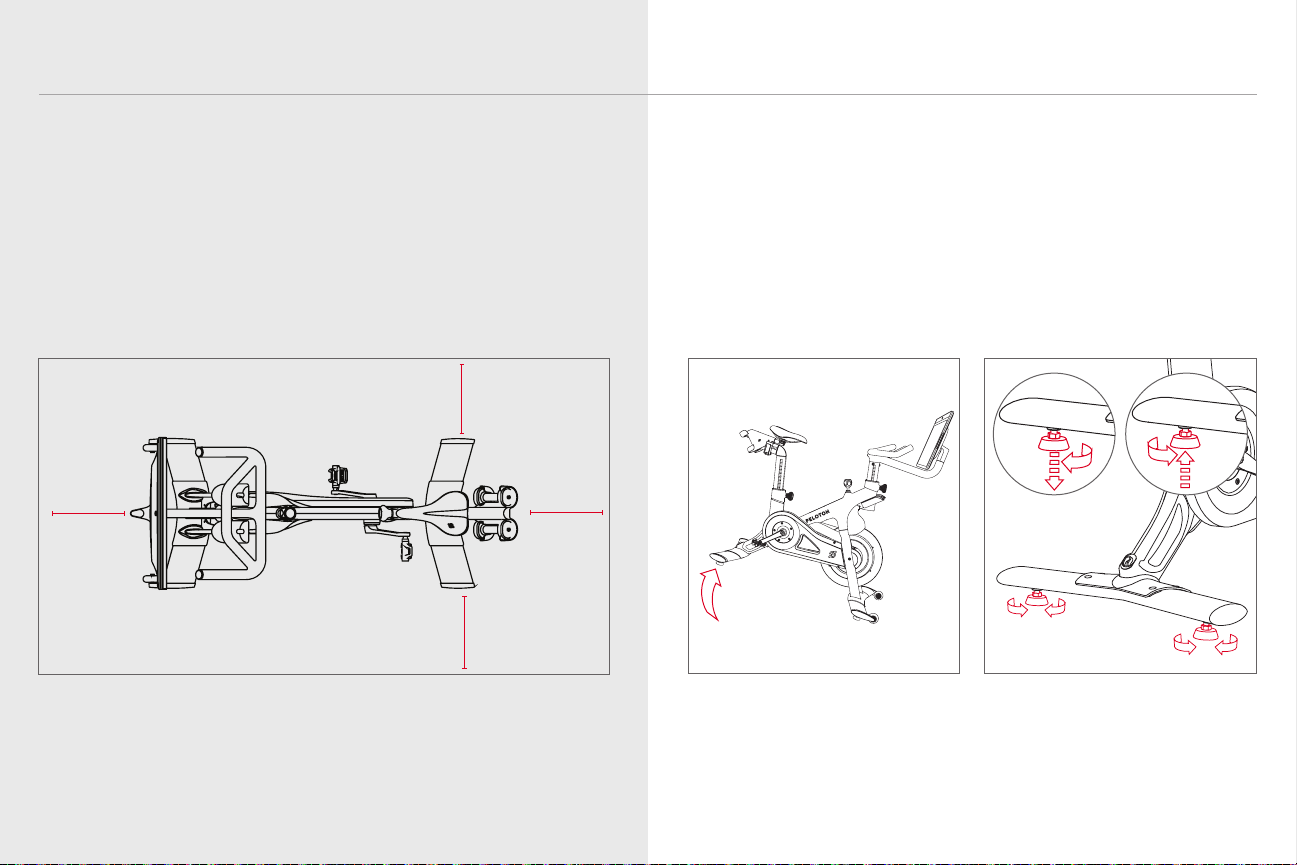

LOCATION REQUIREMENTS MOVING THE BIKE
yPlace the bike on a solid, level surface.
yUse a mat to avoid damage to the bike and oor.
yAllow a clearance of 24in/60cm on each side of the bike.
yDo not use extension cords or adapters. The included power cord must
be able to reach an outlet.
yTilt the bike forward onto the wheels. Lift the rear stabilizer while a second person
holds the handlebars.
yCarefully roll the bike to the new location. Avoid uneven surfaces.
yIf the bike rocks or wobbles after being set down, adjust each foot until all four feet rest
rmly on the oor. Tighten a foot to shorten, or unscrew to lengthen.
2 4 i n / 6 0 c m
2 4 i n /60c m
2 4 i n / 6 0 c m
2 4 i n / 6 0 c m
SETTING UP YOUR BIKE

18 19|
SETTING UP YOUR BIKE
SEAT HEIGHT
SEAT DEPTH
Set the seat height level with the top of your hip bone.
1 Loosen the knob to adjust the seat height.
2 Raise or lower seat.
3 Tighten the knob to lock the seat in place.
Set the seat elbow-to-ngertips length from the handlebars.
1 Open the latch to adjust the seat depth.
2 Move seat forward or back.
3 Close the latch to lock the seat in place.
CAUTION: Always remove any weights from the weight holder before
adjusting the seat.
CAUTION: Verify that all adjustment knobs and latches are fully tightened. Loose
seats or handlebars can lead to serious injury.
CAUTION: To prevent injury, always adjust the seat and handlebars to your
personal requirements. Do not exceed maximum adjustment marks on seat and
handlebar posts or seat slider. CAUTION: Always remove any weights from the weight holder before
adjusting the seat.
CAUTION: Verify that all adjustment knobs and latches are fully tightened. Loose
seats or handlebars can lead to serious injury.
2
1 3
2
31
SETTING UP YOUR BIKE CONTINUED

20 21|
SETTING UP YOUR BIKE
HANDLEBAR HEIGHT PROPER BODY POSITION
Set to seat height, then adjust until you feel comfortable.
1 Loosen the knob to adjust the handlebar height.
2 Raise or lower the handlebars
3 Tighten the knob to lock the handlebars in place.
1 Arms slightly bent
2 Hands rest on the handlebars without reaching
3 Leg slightly bent at the bottom of the stroke
1
2
3
These adjustments should get you started. If you’re uncomfortable, or want to ne-tune
your bike’s settings, access Peloton 101 from the menu on your touchscreen or
go to support.onepeloton.com.
1
2
3
CAUTION: Verify that all adjustment knobs and latches are fully tightened. Loose
seats or handlebars can lead to serious injury.
SETTING UP YOUR BIKE CONTINUED

22 23|
SETTING UP YOUR BIKE
ADJUSTING THE TOUCHSCREEN ANGLE ROTATING THE TOUCHSCREEN
Hold the top and bottom of the touchscreen and tilt it forward or back. You should be able
to view the screen comfortably when seated on the bike.
1 Make sure that the touchscreen is vertical.
2 Rotate it to the left or right.
1 2
Rotate the screen to view non-cycling content from off the bike.
90°
SETTING UP YOUR BIKE CONTINUED

24 25|
SETTING UP YOUR BIKE
CLIPPING OUT
CLIPPING IN
Point your toes down to t the cleat into the pedal, then push down through your heel.
Hold down the resistance knob and kick your heel away from the bike.
WARNINGS AND SAFETY INSTRUCTIONS
The Peloton Bike+ is equipped with Delta-compatible pedals. Always cycle using
footwear equipped with appropriate cleats. Cycling barefoot or with inappropriate
footwear can cause serious injury.
Make sure that your cleats are properly positioned and all bolts are fully tightened before
clipping in. Riding with loose cleats could lead to serious injury.
Do not attempt to walk in cycling shoes with cleats. Wear cycling shoes only while using
the Peloton Bike+ and remove them immediately after clipping out. Walking on cleats
may cause you to fall or twist your ankle, or otherwise result in serious injury.
Be careful when clipping in and out. While you may need to use some force, excessive
force or aggressive movements could result in an ankle, foot, or leg injury.
SETTING UP YOUR BIKE CONTINUED

26 27|
GETTING STARTED
ADJUSTING RESISTANCE
yTurn knob right to increase resistance.
yTurn knob left to decrease resistance.
yPress knob down for emergency brake.
GETTING STARTED
SETTING UP YOUR BIKE CONTINUED
PLUGGING IN
yPlug the power supply into the wall.
yPlug the power cord into the power jack at the back of the bike.
WARNING: Do not use extension cords or adapters. The included power cord must
be able to reach an outlet.
CAUTION: Ensure that the power cable never passes under the bike. Always keep
the power cable clean and dry. Sweat, spills, and other damage to the power cable may
result in property damage or bodily harm.

28 29|
GETTING STARTED
POWERING ON AND OFF
yHold the power button for two seconds to power on the bike.
yThe bike will sleep after about 20 minutes of inactivity. To wake the bike, press
the power button.
yTo power down, hold the power button for two seconds. Select Shut Down
when prompted.
GETTING STARTED CONTINUED
CONNECTING TO THE INTERNET
LOGGING IN
ySelect your WiFi network and enter the password. Tap Connect.
yIf a WiFi network is not available, you can connect to a wired network. Use an adapter to
connect an Ethernet cable to the network port on the back of the touchscreen. The bike
will connect to the network automatically.
When logging in for the rst time, please have available your Subscription Activation Key or
the login information you set up when you purchased the Peloton Bike+.
Once a subscription is activated and associated with this bike, any user can log in and
access subscription content.

30 31|
GETTING STARTED
PELOTON 101
ADDING A RIDER
Check out our introduction to Peloton for more on adjusting your bike to t your body and
maintaining proper body position when you ride.
To access Peloton 101, tap on the icon on the lower right of the home screen and
select Peloton 101.
To let another rider use your bike, tap the icon next to your username at the lower left of
the home screen and tap Add/Remove Proles. Select another logged-in user or tap
Add Prole to create a new account, or to log in a rider who hasn’t used this bike before.
CLASSES
ySelect a live or on-demand ride from the home screen, or tap Classes to lter and search
thousands of on-demand rides by length, instructor, title, and featured music.
yTap the icons at the top of the Classes screen to view classes in strength, stretching,
yoga, and other disciplines.
yUse the buttons along the bottom of the screen to view a Schedule of upcoming
classes, join Challenges, or view Programs of preselected classes.
yTap More for a Scenic Ride, or to Just Ride without instruction or video.
ySelect a class to view details. Tap Start to enter the class screen.
yTo connect a heart rate monitor, wireless headphones, or Apple Watch, select a class
and press Start. You will have the chance to connect to an available device before
the class begins.
yYour instructor will guide you through a workout that includes a warmup and cooldown.
JOINING A RIDE
GETTING STARTED CONTINUED

32 33|
GETTING STARTED
LEADERBOARD
ALL TIME HERE NOW
All 14,678
FILTER
WilpersPowerZonePack
WilpersPowerZonePack
M · 20’s · New York City, N…
Spincity281 14
352
10 MIN PERSONAL RECORD (109) 19
WilpersPowerZonePack
WilpersPowerZonePack
bombmomma 14
350
369
M · 60’s · Dallas, TX
GeingMarried
Rome2rome
354
WilpersPowerZonePack
WilpersPowerZonePack
alwaysOntheGlo…
F · 20’s · New York City, Ne…
14
348
DavidnoGoliath 14
349
F · 20’s · New York City, Ne…
RockinRobin720 14
351
WilpersPowerZonePack
F · 20’s · New York City, Ne…
alwaysOntheGlow 379
351
SPEED (mph)
19.9
CALORIES (kcal)
14
TOTAL OUTPUT (kj)
14
DISTANCE (mi)
0.54
40 42
BEST
AVG
40
percent
RESISTANCE
165 201
BEST
AVG
135
was
OUTPUT
101 114
BEST
AVG
90
rpm
CADENCE
90 100 30 40
128
2
ZONE
68
%
MAX
HEART RATE
bpm
0.6
STRIVE SCORE
08:14
Remaining
01:46
10 min Cycling
LEADERBOARD
AUTORESISTANCE
Tap the lock symbol to
automatically adjust
resistance to match the
target resistance range
RESISTANCE
Pedaling diculty, measured
as a percentage
STRIVE SCORE
A numerical score that uses your heart
rate to track your workout intensity
CADENCE
How fast you’re pedaling,
in revolutions per minute
OUTPUT
The power you’re exerting,
measured in watts
CLASS SCREEN
TIME REMAINING HEART RATE TAP ELEMENTS TO
HIDE OR REVEAL
TOTAL OUTPUT
WARNING: Heart rate
monitoring systems may be
inaccurate. Over-exercising
may result in serious injury
or death. If you feel faint stop
exercising immediately. Use
metrics on the screen for
reference only.
TARGET RANGES

34 35|
ASSEMBLY
ASSEMBLY
TOOLS REQUIRED
PARTS
6mm Allen wrench
5mm Allen wrench
4mm Allen wrench
3mm Allen wrench
Torque wrench with 4, 5 and
6mm hex bits
Bike frame
Front and back stabilizers
Stabilizer screws x 4
Handlebars
Handlebar post
Handlebar post screws with washers x 3
Handlebar post end cap
Endstop screw
Monitor mount
Monitor mount bolt
Weight holder
Weight holder screws x 4
Left and right pedals
Water bottle holder
Long screw with nut
Shoulder bolt
Touchscreen
Touchscreen screws x 2
WARNING: DO NOT ATTEMPT TO
ASSEMBLE, DISASSEMBLE, OR MOVE
THE PELOTON BIKE+ BY YOURSELF.
The Peloton Bike+ was not designed
for assembly and installation
by consumers. These assembly
instructions are intended only to
assist trained, professional installers,
using specialized tools, in assembling,
disassembling, and moving the Peloton
Bike+. Improper assembly, disassembly,
or relocation of the Peloton Bike+
can lead to serious injury or property
damage. Damage or equipment failure
resulting from the improper or negligent
assembly, disassembly or relocation
will not be covered under Peloton’s
warranties. If you use these instructions
to assemble, disassemble, or move the
Peloton Bike+, you do so entirely at your
own risk, and Peloton is not responsible
for any injuries or damage resulting
from such undertakings by anyone other
than a trained professional.

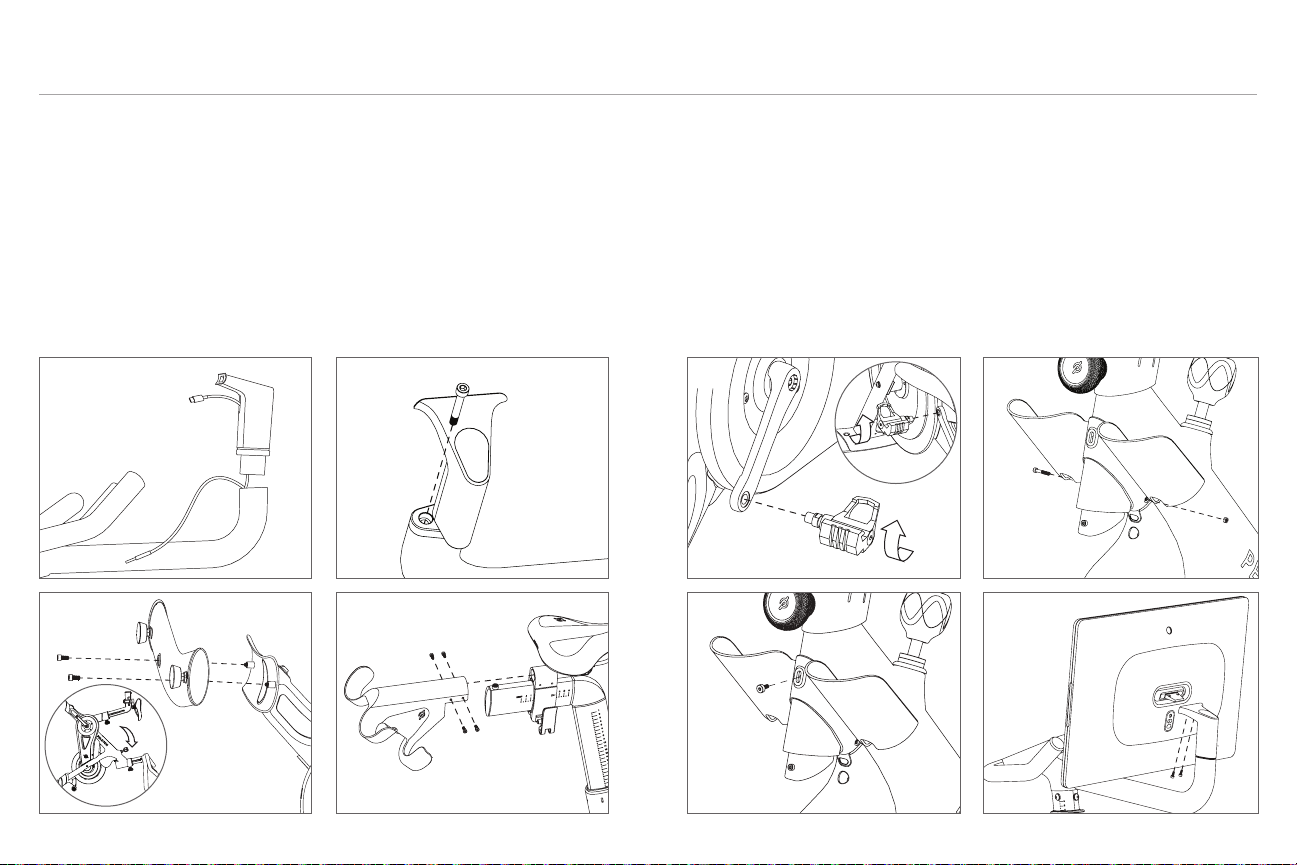

1 Rest the bike frame on its back.
2 Attach front stabilizer using the 6mm Allen wrench. Torque
screws to 20 N.m.
3 Locate the handlebars and handlebar post.
4 Route the cable from the handlebars through the post.
5 Attach the post using the 5mm Allen wrench. Torque screws to 20 N.m.
6 Add endcap.
7 Route the cable through the head tube and then insert the handlebars.
8 Add the end stop screw to the handlebar post with the 3mm Allen wrench.
5
16
2
6
7 8

36 37|
ASSEMBLY
ASSEMBLY CONTINUED
9 Thread both of the cables from the handlebar through the monitor mount.
Add the monitor mount cap.
10 Rotate the top of the monitor mount 180° to expose the bolt hole.
11 Secure the mount to the arm using the monitor mount bolt and 5mm Allen wrench.
Torque screws to 9.5 N.m.
12 Tip the bike to rest on the front wheels and monitor mount.
13 Attach rear stabilizer using the 6mm Allen wrench. Torque screws to 20 N.m.
14 Turn the bike upright.
15 Fit the weight holder onto the back of the saddle shaft and fasten with four screws and
the 3mm Allen wrench.
13 15
10-11
9
12

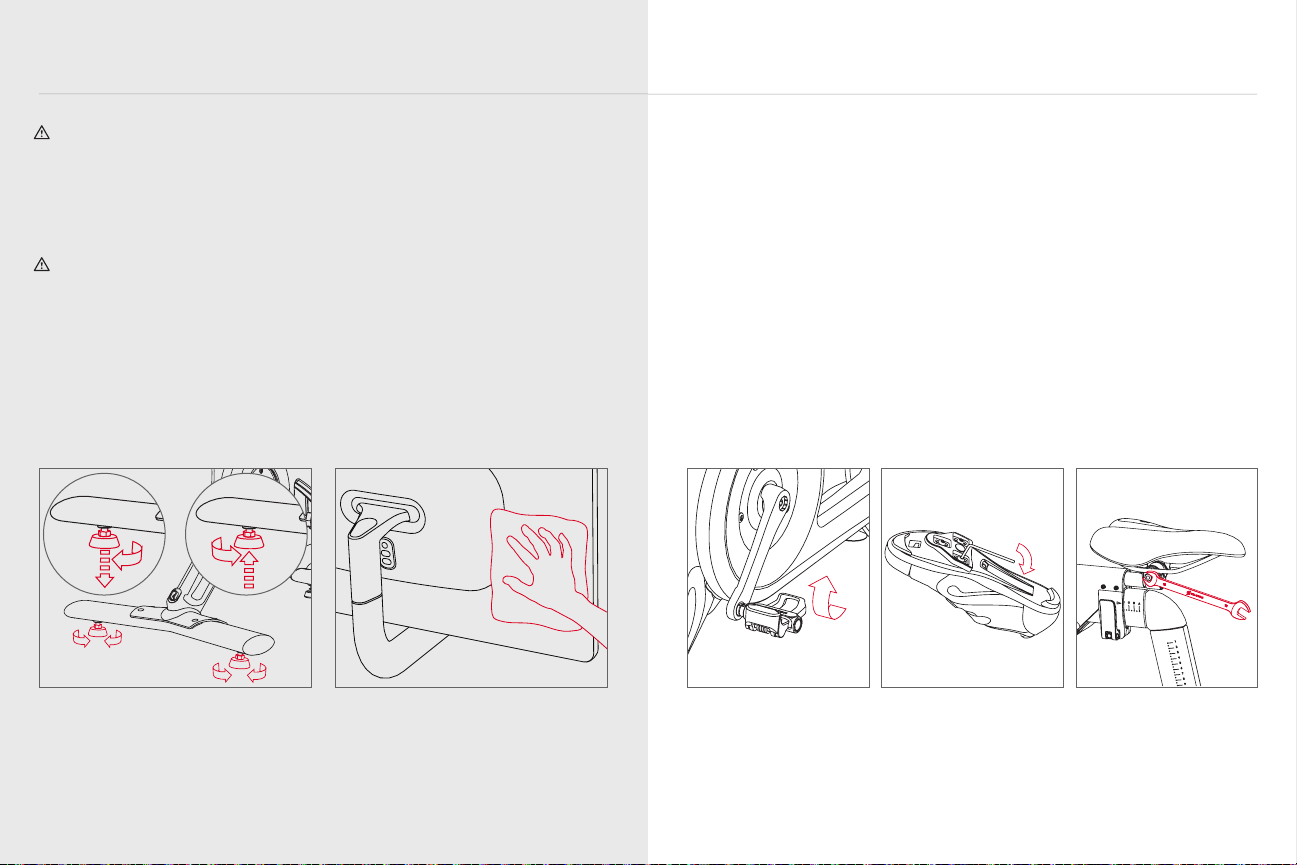

16 Using a pedal wrench, install the right pedal. Thread clockwise and tighten fully.
17 The left pedal is reverse-threaded. Thread counterclockwise and tighten fully.
18 Fit the water bottle holder onto the handlebar post.
19 Add the long screw and nut using the 3mm Allen wrench.
20 Add the shoulder bolt using the 3mm Allen wrench.
21 Fit the touchscreen onto the monitor mount. Add the screws using a 4mm Allen
wrench and torque to 10 N.m.
22 Plug the cables coming from the monitor mount into the audio and Peloton ports.
16
20 21
17
18-19

38 39|
MAINTENANCE AND CARE
MAINTENANCE AND CARE
AFTER EACH RIDE
yCleaning: Wipe down the bike using a damp cloth.
yLeveling feet: If the bike rocks or wobbles, adjust each foot until all four feet rest rmly
on the oor. Tighten a foot to shorten, or unscrew to lengthen.
CAUTION: To ensure safe operation and optimal performance, check for wear
and damage and perform maintenance on a regular basis. Replace any damaged or
defective parts immediately. Do not use the bike until the repair is performed. Only use
original parts from the manufacturer. Changes or modications to this unit not expressly
approved by Peloton could void the warranty.
CAUTION: Always unplug the bike immediately after use and before cleaning or
performing maintenance. Service other than the procedures described here must be
performed by an authorized technician.
EVERY 3 TO 5 RIDES
yCleaning: Clean the bike thoroughly using a damp cloth and a mild household cleaner
diluted in water. Do not use cleaning products containing ammonia. Clean the
touchscreen using an electronics wipe.
yPedals: Tighten any loose pedal with the included 15mm wrench. Pedals should
be tightened to 26 lb-ft/35 N•m of torque. Turn clockwise to tighten the right pedal and
counterclockwise to tighten the left pedal.
yCleats: Use a 4mm Allen wrench to tighten any loose screws attaching your cleats to
your cycling shoes.
ySeat: Make sure the seat is parallel to the ground. Then use the included combination
wrench to tighten the seat-xing nuts on both sides.
