Pennington Aquagarden 850 User manual

pond
pump
universal
all in one
for fountains, filters
and waterfalls
850/1200/1700
Instrauctions español disponible descargar en: www.PenningtonAquagarden.com
Please visit www.penningtonaquagarden.com
for helpful hints, tips, how-to videos and spares

pond pump
850 / 1200 / 1700
Congratulations on buying a
Pennington pond pump.
This pump is designed with advanced technology, to run a wide variety
of water features. The compact powerful motors are easy to maintain
having a single moving part impeller system.
Please carefully read the following guide, which will enable you to get
the best from your fountain pump.
IMPORTANT
Please attach proof of purchase to this manual and file in a safe place.
Please visit www.penningtonaquagarden.com
for helpful hints, tips, how-to videos and spares
Instrauctions español disponible descargar en:
www.PenningtonAquagarden.com

Important Safety Instructions .................................................................. 2
Getting to know your Pond pump ......................................................... 3
Parts descriptions / spares codes - with exploded diagram ............... 4 - 5
Pump performance / flow chart .................................................................. 6
Technical specifications ................................................................................ 6
Installation ................................................................................................... 7
Electrical installation ..................................................................................... 7
Locating your pond pump ............................................................................ 8
Maintenance and cleaning .................................................................... 10
Routine maintenance ...................................................................................10
Monthly maintenance ................................................................................. 11
Annual maintenance ................................................................................... 11
Winter storage ............................................................................................. 11
Troubleshooting ........................................................................................ 12
Troubleshooting and maximise performance ........................................... 12
Faults - problem procedure ....................................................................13
Returning faulty pumps ................................................................................13
Consumer advice contact details ...............................................................13
Guarantee .................................................................................................. 14
CONTENTS
1

2
FOR INDOOR AND
OUTDOOR USE IMPORTANT
SAFETY INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF ELECTRIC SHOCK, USE ONLY ON PORTABLE
SELF-CONTAINED FOUNTAINS NO LARGER THAN 5 FEET IN ANY DIMENSION.
WARNING - RISK OF ELECTRIC SHOCK - THIS PUMP IS SUPPLIED WITH A
GROUNDING CONDUCTOR AND GROUNDING TYPE ATTACHMENT PLUG. TO REDUCE THE
RISK OF ELECTRIC SHOCK, BE CERTAIN THAT IT IS CONNECTED ONLY TO PROPERLY
GROUNDED, GROUNDING-TYPE RECEPTACLE.
WARNING - TO REDUCE THE RISK OF ELECTRIC SHOCK, INSTALL ONLY ON A
CIRCUIT PROTECTED BY A GROUND-FAULT CIRCUIT-INTERRUPTER (GFCI).
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTION
WARNING - RISK OF ELECTRIC SHOCK – THIS PUMP IS SUPPLIED WITH A
GROUNDING CONDUCTOR AND GROUNDING-TYPE ATTACHMENT PLUG. TO REDUCE THE
RISK OF ELECTRIC SHOCK, BE CERTAIN THAT IT IS CONNECTED ONLY TO A PROPERLY
GROUNDED, GROUNDING-TYPE RECEPTACLE.
WARNING - TO GUARD AGAINST INJURY, BASIC SAFETY PRECAUTIONS SHOULD BE
OBSERVED, INCLUDING THE FOLLOWING:
A)
B) DANGER – TO AVOID POSSIBLE ELECTRIC SHOCK, SPECIAL CARE SHOULD BE TAKEN
SINCE WATER IS EMPLOYED AND INTENDED FOR FOUNTAINS, WATERFALLS, AND
PONDS, WHICH ARE COMPLETELY SUBMERSED FOR PUMPING WATER AND ARE
SUITABLE FOR OUTDOOR USE. FOR EACH OF THE FOLLOWING SITUATIONS, DO NOT
ATTEMPT REPAIRS BY YOURSELF; RETURN THE APPLIANCE TO AN AUTHORIZED
SERVICE FACILITY FOR SERVICE OR DISCARD THE APPLIANCE. IF THE APPLIANCE
SHOWS ANY SIGN OF ABNORMAL WATER LEAKAGE, IMMEDIATELY UNPLUG IT FROM
THE POWER SOURCE. DO NOT OPERATE ANY APPLIANCE IF IT HAS DAMAGED CORD
OR PLUG, OR IF IT IS MALFUNCTIONING OR HAS BEEN DROPPED OR DAMAGED IN
ANY MANNER.
C) CLOSE SUPERVISION IS NECESSARY WHEN ANY APPLIANCE IS USED BY OR NEAR
CHILDREN.
D) TO AVOID INJURY, DO NOT CONTACT MOVING PARTS DIRECTLY.
E) CAREFULLY EXAMINE THE PUMP AFTER INSTALLATION, IT SHOULD NOT BE
ENERGIZED IF THERE IS WATER ON PARTS NOT INTENDED TO BE WET.
F) ALWAYS UNPLUG AN APPLIANCE FROM AN OUTLET WHEN NOT IN USE, BEFORE
PUTTING ON OR TAKING OFF PARTS, AND BEFORE CLEANING. NEVER YANK CORD TO
PULL PLUG FROM OUTLET. GRASP THE PLUG AND PULL TO DISCONNECT.
G) DO NOT USE AN APPLIANCE FOR OTHER THAN INTENDED USE.
H) READ AND OBSERVE ALL THE IMPORTANT NOTICES ON THE APPLIANCE.
I) DO NOT PUMP FLAMMABILITY OR HEATED LIQUIDS.
J) DO NOT RUN DRY.
K) DO NOT CONNECT TO ANY VOLTAGE OTHER THAN SHOWN ON THE PUMP.
L) ENSURE THAT THE POWER SUPPLY CORD LOOPS BELOW THE ELECTRICAL OUTLET
TO FORM A “DRIP LOOP”. THIS WILL PREVENT WATER FROM RUNNING DOWN THE
CORD INTO THE ELECTRIC OUTLET.
READ AND FOLLOW ALL
SAFETY INSTRUCTIONS.

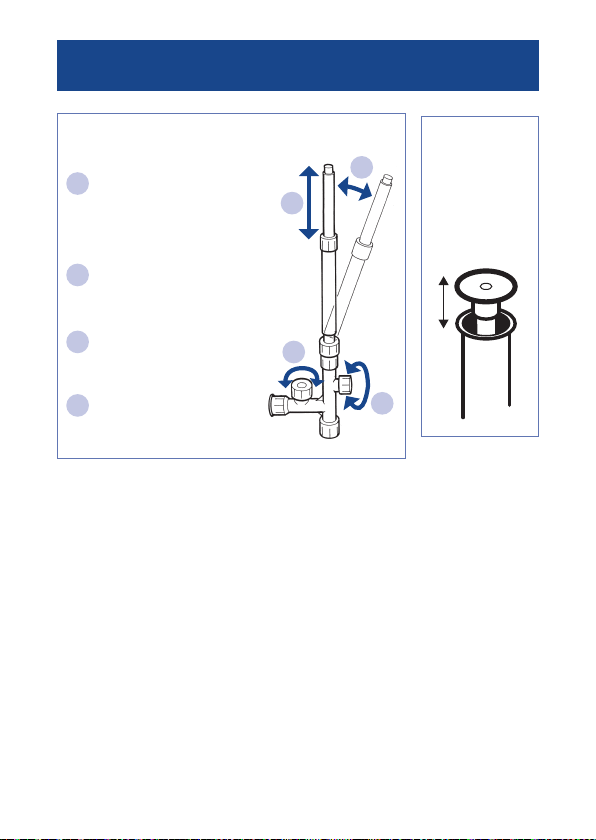

A. 7.8” extension pipe.
B. 11.8” adjustable telescopic extension pipe.
C. 20° +/- ball joint adjustment to compensate for uneven pond floor.
D. Low maintenance High performance Low velocity intakes prevent the pump from clogging.
E. Fully adjustable fountain control. Adjusts fountain height and width.
F. Fully adjustable flow control for filters/waterfalls or features.
G. Interchangeable 1” (25mm) and ½” (12.5mm) hose fittings.
FOUR FOUNTAINS TO CHOOSE FROM
TO RUN FOUNTAINS, FILTERS, WATERFALLS AND FEATURES
WATERFALL
POND
FILTER
GETTING TO KNOW YOUR POND PUMP
C
D
E F
G
A
B
DAISY TRIPLE BELL TULIP
3
SAVE THESE INSTRUCTIONS
