ThermalFlo™
Heat Pump
Autoset Control Board
Addendum
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS

ThermalFlo Heat Pump Control Panel Overview ...........................................................................................1
Control Panel Layout ......................................................................................................................................1
Control Panel Operation.................................................................................................................................2
Control Panel Menu Screens .........................................................................................................................4
Operator Setup Menu Screens ......................................................................................................................6
Locking the Control Panel ..............................................................................................................................7
Defrost Cycle .................................................................................................................................................7
AutoSet...........................................................................................................................................................8
Control Panel Alarm Messages......................................................................................................................9
ThermalFlo Heat Pump Wiring Diagram ......................................................................................................10
AutoSet Contactor to Mechanical Timer Wiring Example ............................................................................11
Replacement Parts List................................................................................................................................12
ThermalFlo Heat Pump
Contol PanelAddendum
The information in this addendum supercedes
information in the ThermalFlo Installation and User’s
Guide (P/N 473426 Rev. C 10/19/06). For additional
information not covered in this addendum, please refer to
the above-named manual.
Technical support
Phone: [phone] (8A.M. to 5 P.M. - ET) – (8A.M. to 5 P.M. - PT)
Fax: [phone]

1
ThermalFlo Addendum
THERMALFLO HEAT PUMP CONTROL PANEL
OVERVIEW

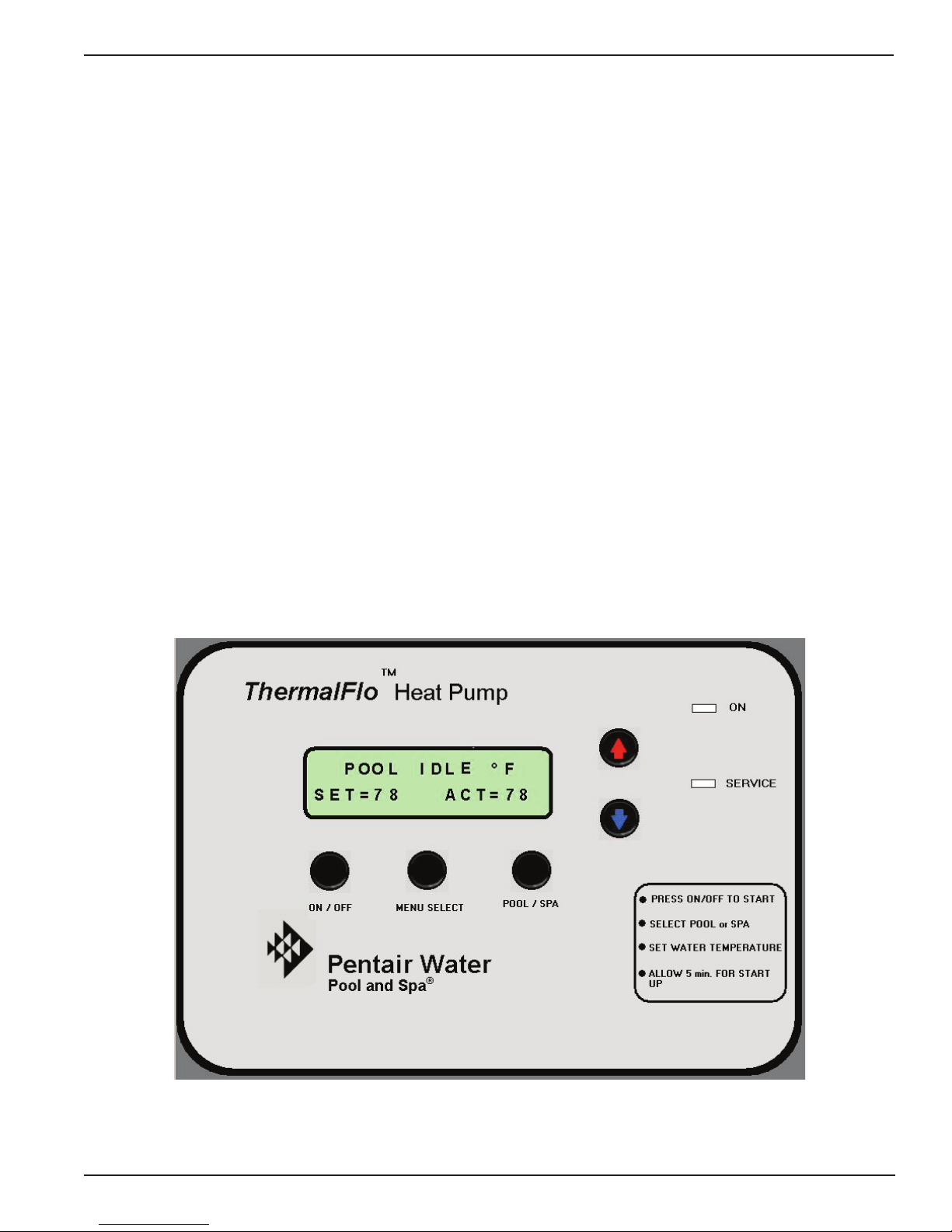

CONTROL PANEL LAYOUT
1. ON/OFF Pushbutton – Turns the heat pump On and Off.
2. MENU SELECT button – Use to select menu items. While in the Run screen, pressing this
button displays the Control Panel Menu screen. Also, use this button to scroll through Operator
Setup Menu screens
3. POOL/SPA button – On the first press the current heat, cool or auto mode will be displayed
along with the active set point, pool or spa. On subsequent presses, the use of the pool or spa
setpoints will be toggled. You can also toggle between the pool and spa set point by using
the Up and Down arrow buttons.
4. Up and Down Arrow buttons – Use the Up and Down arrows to raise or lower the
temperature setpoint while in the Run screen. These buttons are also used to scroll
through the various parameter values on the Menu Select and Operator Setup screens.
5. ON Light – Illuminated when the heat pump is on.
6. SERVICE Light – Illuminated when an alarm condition exists.

2
ThermalFlo Addendum
CONTROL PANEL OPERATION
1. Usethe ON/OFFbutton tostartandstopthe heatpump.
a. Starttheheat pump–With power supplied,press theON/OFFbutton tostart the heat
pump. TheONlightwillilluminate.
b. Stoptheheat pump–With theONlight illuminated,presstheON/OFF buttontostop the
heatpump. TheON light willbeofffollowed bythetemporaryscreenshown below.
2. Adjustingthesetpointtemperature–Therearetwo (2)independentlyadjustable
temperaturesetpoints for thepooland spa.
a. To adjustthepool orspaset point temperaturepressthe UporDown button whileinthe
Runscreen. Thesetpoint is displayedafterthelettersSET inthe lowerleft cornerofthe
display. Thenumber afterACT=onthe bottom rowistheactual measuredwater
temperature.
b. Thesetpoint need notbe active tobe adjusted. PresstheMENU SELECTbutton
repeatedlyuntilthe associated runscreen isdisplayed. With thatscreen displayed,adjust
thesetpointwith the UPand DOWNarrows. The screenwillautomaticallyreturntothe
activerunscreen after 15seconds ofkeypad inactivity.
c. Themaximum water temperatureset point inPool modeis 95°F.
d. The maximumwater temperatureset pointinSpamodeis 104°F.
3. Togglingbetween Pooland Spa- The active mode of operation between Pool and Spa can be
changedinoneofthefollowingtwoways.
a. Onthe firstpressof the POOL/SPAbuttonthe currentheat,cool orautomode will be
displayedalong with whetherthepoolor spasetpointis active. On subsequentpresses,
theuse of thepoolor spa setpointswill be toggled. You can alsotoggle
betweenthe poolandspa set pointbyusing theUPand DOWNarrowswhen this screen
isdisplayed.
b. The Modescreencan also bemadeactive byrepeatedlypressing the MENU
SELECTbutton. Once theModescreen is displayedthe active setpointcan be
toggledbetween poolandspa bypressingthe UPor DOWN arrows.
POOL
IDLE/HEAT/COOL
SET=__ ACT=__
SPA
IDLE/HEAT/COOL
SET=__ ACT=__
PENTAIR WATER
HEAT PUMP OFF
AUTO MODE
POOL/SPA

3
ThermalFlo Addendum
4. Heat,CoolandAutoModes Operation-Certain heatpumpmodels havetheability to both
heatand cool.
a. Theseheat pumpscanbe setup tooperate in anyoneof threemodes:
• Heatonlymode
• Coolonlymode
• AutomaticHeatandCool– The heatpump automaticallyswitches between heat
andcool basedonwhether the watertemperatureis beloworabove theactive
setpoint.
b. If thecooling optionisavailable,theoperating modes canbechangedasdescribed here.
Pressthe MENU SELECTbuttonrepeatedlyuntil theHeat orCoolscreenis displayed.
Oncedisplayed, presstheup or downarrows to scrollthroughthe heat,cooland auto
options. Thelastoptionshownon the displaywill becomeactive.
5. RelayRemote–In relayremote operationtheheat pumpis startedand stopped byremote
relayswhich areconnected to theremote POOL, COMMONand SPAquick connectconnectors
onthe back ofthecontrolboard. When conductivityisprovidedbetween the poolandcommon
connectionsorthe spaand commonconnectionstheheatpump will startaslongasthe water
temperatureisnot overthe localsetpoint(underfor chiller operation). Thelocalsetpointsare
activeinrelayremoteoperation.
a. Ifthe heat pumpistobe controlledby aremotedevicesuch asanautomationsystem, the
heatpumpset point shouldbe madehigher (ifheating)thanthedesiredtemperature. For
example,if yourremoteconnectionswired tothebackof theboardare connected tothe
poolandcommonterminal, and youwant yourpool maintainedat 85degrees, youshould
settheheat pump to90Fahrenheitandthen turnon theremotefunction.
b. If youhaveaseparate spa,youmusthave theautomationsystemwired tothespaand
commonterminals on thebackof the board. If youwantyour spa temperaturemaintained
at102 Fahrenheit, youshouldset the heatpumpto104 Fahrenheitandthenturn onthe
remotefunction.
c. Toactivate therelay RemoteMode,pressthe MENU SELECTbuttonrepeatedly until
theRelay Remotescreenis displayed. Oncedisplayed,press the UPor DOWN arrows
togo betweenONand OFF. The last optionshownon thedisplaywill becomeactive.
HEAT / COOL / AUTO
SET TO - H/C/A
RELAY REMOTE
REMOTE IS ON/OFF

4
ThermalFlo Addendum
6. AutoSet– Certainheatpump modelshavetheability tostartand stop aremotewater pump.
ThisAutoSetfeature,ifenabled,allowstheheatpumptoperiodicallyenergizethefilterpumpand
testthe temperature ofthewaterin thepoolorspa. If the waterrequiresheating,or coolingif
available,thefilterpumpwillremainenergizeduntilthewaterreachesthesetpointtemperature.
ThismenuisonlyshowniftheAutoSetfeatureisenabledduringfactorysetup.
a. Toactivate theAutoSetfeature,press the MENUSELECTbutton repeatedlyuntilthe
AutoSetscreen isdisplayed. Once displayed, pressthe UPor DOWN arrowsto go
betweenON andOFF. Thelast optionshownonthe displaywillbecome active.
CONTROL PANEL MENU SCREENS
Toscroll through themenuscreenspressthe MENUSELECTbuttonto vieweachscreen. Whilein
themenuscreens, if noactivityisdetectedafter 15 secondsthe mainscreenisdisplayed.
1. PoolRunScreen–Displays whethertheheatpumpisidle, heatingor coolingif thePoolsetpoint
isactive. Thisscreen also displaysthewatertemperaturesetpoint andthe actualmeasuredwater
temperature. ThePool setpoint canberaisedor loweredusing theupanddown arrowswhilethis
screenisdisplayed. Thedisplaywill automatically returnto thisscreen after 15seconds of push
buttoninactivitywhenthePoolsetpointisactive.
2. SpaRunScreen -Displayswhetherthe heat pumpisidle,heating or coolingiftheSpasetpoint is
active. Thisscreenalso displays thewatertemperaturesetpointand theactual measuredwater
temperature. TheSpa setpoint canberaised or loweredusingthe up anddownarrowswhile this
screenisdisplayed. Thedisplaywill automatically returnto thisscreen after 15seconds of push
buttoninactivitywhentheSpasetpointisactive.
3. Heat or Cool Mode Selection Screen – This screen is only shown on Auto Heat and Cool
heatpumps, noton heatonly units. On these units this screen allows the operator to switch
theheatpump betweenheat-only,cool-onlyand auto heat/coolmodes.
AUTOSET
OVERRIDE IS ON/OFF
POOL
IDLE/HEAT/COOL
SET=__ ACT=__
SPA
IDLE/HEAT/COOL
SET=__ ACT=__
HEAT / COOL / AUTO
SET TO- H/C/A

5
ThermalFlo Addendum
4. RemoteOn/OffScreen–Allows theoperatorto turntheRelay Remotemode On andOff. In
RelayRemotemode, theheatpumpisstarted andstopped byremoterelaysin an automation
controller. The local Pooland Spasetpoints arestill activein thisRelayRemotemode.
5. AutoSet On/Off Screen – This screen is only shown if the AutoSet mode is enabled
duringfactory setup. Allows the operator to turn theAutoSet mode On and Off. AutoSet
modeperiodicallyenergizesafilterpumpcontactortostart a remote filter pumpwhichallows the
heatpump toheat or coolthe waterasnecessary.
6. Time Delay Screen – This screen is only shown if the heat pump is waiting due to a pre-
programmeddelay. If theheatpumpis waitingonanyof therestart,pumpstart, sensingwater
temperatureordefrostdelays this screen showshow muchdelay timeis left.
7. Defrost Temperature – This screen is only shown if the defrost feature is enabled during
operatorsetup. Ifthe Defrostfeatureisenabled this screenwilldisplaythe temperature ofthe
compressorsuctionline. Thistemperature is usedto determinewhen the heatpump requires
defrosting.
8. AlarmScreen– Ifan alarmconditionispresentit will bedisplayedonthisscreen. If no alarms
arepresentthe screenwilldisplayALARMSTATUSNONE.
9. ModeScreen– Displayswhetherthe heat pumpisin Heatonly, CoolonlyorAuto mode.
Italso displayswhetherthePool orSpaset point isactive. Theactive setpointcanbe switched
betweenPool andSpa by usingthe UPandDOWN arrows.
REMOTE
REMOTE IS ON/OFF
AUTOSET
OVERRIDE IS ON/OFF
RESTART / PUMP START /
DEFROST / SENSING
WATER TEMP DELAYS
SUCTION TEMP
ACT = ___
ALARM STATUS
AUTO MODE
POOL/SPA

6
ThermalFlo Addendum
OPERATOR SETUP MENU SCREENS
Toaccessthis menu,presstheUpand Downarrowsimultaneously. While in theOperatorSetup
Menuscreen, if noactivityis detected after15secondsthe mainscreenisdisplayed. To getbackinto
theSetupmenuyoumustpressthe Up andDownarrowsimultaneouslyagain.
1. SoftwareRevision– Displaysthe software revisionlevelloaded onthecontrolboard.
2. Pump Start Time – This screen is only shown if the AutoSet mode is enabled during
factorysetup. This displays theperiodat which theheatpump will closetheAutoSetcontactor
tostart thefilterpump. Adjustable from 1to4 hoursusingthe UPand DOWNarrows.
3. IntellAddress-IntelliTouch RS-485 CommunicationsAddresswhichmustmatchtheaddress
usedintheIntelliTouch automation controller being communicated with. Adjustable from 1 to 16
usingthe UPandDOWNarrows.
4. SerialRemote–Determineswhether or nottheheatpump will acceptIntelliTouch RS-485
command. Adjustedto Onor Offwith theUPand DOWN arrowbuttons.
5. TemperatureScale–Thecontrol board candisplaytemperatures in eitherdegreesFahrenheitor
Celsius. Thetemperature scaleinusecan bechangedasdescribed below.
a. Pressthe MENU SELECTbuttonrepeatedly until theTemperatureScale screen is
displayed. Oncedisplayed, presstheUP orDOWNarrows totogglebetween the
FahrenheitandCelsiusoptions. Thelastoption shown onthe display willbecome active.
6. TempOffset –Adjusts the measuredwater temperatureupor downtoallow theoperator to
matchtheheatpump measured temperatureto aremote temperaturemonitoring device. The
offsetcan bevariedfrom -2to+2 using theup and downarrows. Thetemperature offsetcanbe
changedas described below.
a. Pressthe MENU SELECTbuttonrepeatedly untiltheTemperatureOffsetscreenis
displayed. Oncedisplayed, presstheUP orDOWNarrows toselect the desiredoffset.
SOFTWARE VERSION
REV. __
PUMP START TIME
TIME = 1 - 4 HRS
INTELL ADDRESS
ADDRESS = 1 - 16
SERIAL REMOTE
ON/OFF
TEMPERATURE SCALE
FAHRENHEIT / CELSIUS

7
ThermalFlo Addendum
Thelastnumbershownonthedisplaywillbecomeactive.
7. Defrost–Allows theoperatorto turnthedefrost featureon or off. Adjusted toenable or disable
withthe UPandDOWNarrow buttons.
8. Exit– PressingthePOOL/SPAbuttonwhilethis screenis displayedreturnsthedisplayto the
Pool or Spa Run Screen as appropriate.
LOCKING THE CONTROL PANEL
1. Heatpumpcontrolpanellock-out-To preventunwanted adjustingor manipulatingof theheat
pumpsettings, thecontrolpanelcan belocked. Oncelocked,if anybuttonis pressed, the
displaywillread:
• To activatethecontrol panellockout,press the MENUSELECTandPOOL/SPAbuttons
simultaneously.
• Tounlock thecontrolpanel, presstheMENUSELECTand POOL/SPAbuttons
simultaneously.
DEFROST CYCLE
Atair temperaturesbelow50°F, the heatpumpmay enteradefrostcycle.Thedefrost cycleis
initiatedwhenasensor on theevaporator detectsthattherefrigeranttemperaturehas fallen belowthe
defrostsetpoint. At thistime, theheatpumpcompressorwill stop. The heatpump evaporatorfanwill
continueto run, andwilldrawair over theevaporatorfinsfor about15minutes. If,at the endofthe
15minutes, thetemperaturesensordetects atemperatureabove44° F,thecompressor willrestart.
Otherwisetheunitwillshutdown.
Becausea heat pump'sefficiencydecreases as airtemperaturedecreases, it ispreferableto operate
theheatpump duringthe warmesttimeofday. As a rule,theunitshouldnot beoperated duringthe
coolesttime of day, or whentheairtemperature fallsbelow45°F.
TEMP OFFSET
OFFSET = -2 TO +2
DEFROST
ENABLE / DISABLE
PRESS POOL/SPA TO
EXIT SETUP
HEAT PUMP
CONTROLS LOCKED

8
ThermalFlo Addendum
AUTOSET
Autosetisafeaturethat allows the heatpump to automaticallyturn on yourwater circulation pumpat
predeterminedtimeintervalsafterthewatercirculationpumpshutsoff. Toutilizethisfeature,thewater
circulationpumpmustbewiredinparallelwithyourmechanicaltimeclockusingtheauxiliaryrelay
suppliedinthehighvoltagepower panel of theheat pump.
Forexample,ifyourpoolwatercirculation pump is wiredproperly with the timeclock through the
heatpump,have theheat pumpcontrolboardprogrammedwith a pump starttimeintervalof4 hours,
havetheAutoSet feature enabled,andyouwish to maintainyourpoolto 80°F., this isthesequenceof
eventsthatwillhappen.
1. Ifyourmechanicaltime clock isset toshut offat 9:00pm., oncethe watercirculation pumpshuts
off,the heat pump will display a countdownwindow.
2. Theheatpumpwillcontinuetocountdowninhoursand minutes.
3. Oncethe4 hours hasexpired,at1:00am, thecontrol boardwillenergizetheinternal contactor in
theheatpumpto turn onyour water circulationpump.
4. Theheatpumpwillsensewater temperature then determineif it needsto continue tocirculate
water. If the pooltemperaturehasfallen below yoursetpoint,80 degreesfor thisexample,the
heatpumpwill turnon andbeginheatingthe pool. Once thepooltemperaturehas reached itsset
point,80degrees,theheatpumpwill shut off andwill also shut offthe water circulation pump.
5. Ifafter thewatersensingtime, theheatpumpdetects thepoolwater is abovetheset point, 80
degreesforthisexample,itwillshutoffandshutthewatercirculationpumpoffalso.
6. Atthetimethewatercirculationpump shuts off, theheatpump will again resetand begin the
countdownintervalagainanddisplaythefollowingwindow.
7. Theheatpumpwillcontinuethiscycleevery time thewatercirculationpumpisshutoff.
8. Oncethetimeclock turns onin themorning, theheat pumpwill stoptheAutoSetfeatureand
resumenormaloperation.
PUMP START DELAY
REMAINING=4:00
PUMP START DELAY
REMAINING=4:00

9
ThermalFlo Addendum
CONTROL PANEL ALARM MESSAGES
PMETRETAWHGIH .°901evobasierutarepmetretaW
PMETRETAWWOL .°54wolebsierutarepmetretaW
WOLFRETAWWOL .neposiwo
lfretawgnisneshctiwserusserpehT
APSLOOPETOMER .dezigreneylsuoenatlumiserastupnietomeryalerapSdnalooP
TRO
HSMREHTRETAW .detrohstiucricrotsimrehterutarepmetretaW
NEPOMREHTRETAW .nepotiucricrotsimrehterutarepmetr
etaW
TROHSHTNOITCUS .detrohstiucricrotsimrehttsorfeD
NEPOHTNOITCUS .nepotiucricrotsimrehttsorfeD
TUONWORB .
wolsidraoblortnocehtotegatlovylppusCAV42ehT
GIRFERHGIH .neposihctiwserusserphgihtnaregirfeR
GIRFERWOL .ne
posihctiwserusserpwoltnaregirfeR
SMRALAEVIF lliwtluafsihT.ruohenoniderruccoevahstluaf5tahtsetacidnI ybte
seryllaunamebnacroruohenoniteseryllacitamotua .nottubFFO/NOehtgnisserp

10
ThermalFlo Addendum
Compressor
RC
S
24 VAC
COMPRESSOR
FAN
LOWPRES
HIPRES
REVERSING
VALVE
FLOW
10K ohm
Thermistors
1
2
3
4
5
6
Fan
Water Pres Sw Lo Ref Pres Sw
Hi Ref Pres Sw
TBL TBR
Optional
Reversing Valve
1
2
3
4
5
6
7
8
WHITE
WHITE
BLUE
YELLOW
BLUE
YELLOW
WHITE
WHITE
BLACK
RED
BLACK
RED RED
RED
BLACK
BLACK
RED
PURPLE
WHITE
GREEN
PUMP
THERM1
THERM2
COM
SPA POOL
INPUT
SWITCHES
J9
WTR
TEMP
J4
DEF
TEMP
J5
3 - WIRE
REMOTE
TERM.
PWR
J7
RS-485
J8
INTELLITOUCH
CONNECTION
BLACK
OUTPUTS
J3
BLACK
WHITE
PURPLE
BLACK
BLACK
Capacitor
50 mf 7.5 mf
FANHERM C
Transformer
208V
240V
24 VAC
COM
Filter Pump
Contactor
Compressor
Contactor
Fan
Relay
NO NC
BLACK
RED
BLACK
BLUE
BLUE
WHITE
/RED
WHITE
/RED
WHITE/RED
WHITE
PURPLE
ORANGE
BLACK
YELLOW
Tan
WHITE
BROWN
BROWN
PINK
PURPLE
BROWN
BROWN
RED BLACK
WHITE/RED
Incoming 230 VAC
Power Connection
AutoSet Contactor
GREEN
PINK TAN
ORANGE
/RED
ThermalFlo Heat Pump Control Board Connections

11
ThermalFlo Addendum
AutoSet Contactor to Mechanical Timer Wiring Example
Intermatic
T104
Timer
CLOCK
MOTOR
240V
SUPPLY
GROUND
LINE 1
LINE 2
FILTER
PUMP
GROUND
AutoSet
Contactor
A1 2 3 4
NOTES:
1. Mechanical timer is not provided with the heat pump
2. Example only, other timers will be similarly wired
3. Ensure that the elecrical power lines are not crossed when making connections

12
ThermalFlo Addendum
21 18
16
SCALE 1 : 4
19
22
17
20
23
38
12
14
30
37
42
6
35
40
9
24
15
26
8
31
2
25
7
44
13
36
32
25
29
43
11
10
34
28
27
39
5
33
25
41
4
3
1
Replacement Parts List

13
ThermalFlo Addendum
Replacement Parts List (Continued)
Item No. Part Number Description
1 473665 Probe Thermister Defrost Sensor
2 470284 Nut, J-Clip
3 473285 Nut, 1/4 - 20 SS Acorn
4 470281 Nut, U-Clip
5 470147 Wire Harness, Compressor
6 473024 Compressor, Trane GH633-LL1-G (Model # 500, 700, 900)
6 473025 Compressor, Trane GH673-LL1-G (Model # 1200, 1200R)
7 473295 Fender Washer
8 473026 Compressor Isolation kit, Grommet and Spacer (1 Set)
9 473294 Bolt 5/16 - 18 x 1.75" SS
10 98219800 Bolt 5/16 - 18 x 1" SS
11 473121 Drier (Model # 500, 700, 900, 1200)
11 473139 Drier, Reversible (Model # 1200R)
12 470441 Fan Guard Fastener Kit
13 71406 Nut, 1/4 - 20 Hex SS
14 473693 Bezel, Control Board w/ Label
15 473602 Auto Heat Control Board
16 473603 Pump Contactor AutoHeat
17 473150 Fan Relay
18 473155 Transformer
19 473422 Wire Harness Terminal Block - Fan, Compressor
20 473315 Wire Harness, Terminal Block - Sensors
21 470146 Capacitor
22 473149 Contactor, Heat Pump
23 473423 Wire Harness, Main
24 473412 Panel, Front Right(Model# 500, 700)
24 473431 Panel, Front Right(Model# 900, 1200, 1200R)
25 470159 Screw #10 x .75" Pan Head Phillips, Almond Head
26 470161 Screw #10 x 1" Button Head Torx, Almond Head
27 470419 Panel, Front Left, w/ Decal (Model# 500, 700)
27 470434 Panel, Front Left, w/ Decal (Model# 900, 1200, 1200R)
28 473134 HP Top
29 473368 Guard, Fan
30 470439 Nut, 10-32 SS Acorn
31 470289 Fan Motor w/ Acorn nut Kit
32 473223 Fan Blade
33 470137 Tie Down Bracket
34 471566 Probe Thermister - Water Temperature
35 473606 Water Pressure Switch Boot
36 473605 Water Pressure Switch
37 472737 Titanium Heat Exchanger (Model# 500)
37 472736 Titanium Heat Exchanger (Model# 700, 900, 1200, 1200R)
38 473664 Water Bypass Manifold w/ 2 Street Elbows
39 R172305 Water Bypass Check Valve
40 473381 Union PVC 2"
41 473656 Switch, Low Pressure
42 473655 Switch, High Pressure
43 472735 Thermostatic Expansion Valve
44 473657 Titanium Water Coil Tie Down Strap
473135 Reversing Valve (Model # 1200R) [Not shown]
473136 Reversing Solenoid (Model # 1200R) [Not shown]

Web sites: www.pentairpool.com - www.staritepool.com
© 2007 Pentair Water Pool and Spa, Inc. All rights reserved
1620HawkinsAve.,Sanford,NC27330•[phone]
10951WestLosAngelesAve.,Moorpark,CA93021 • [phone]
P/N 472747 Rev B 5-17-07
