IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Installation
and
User's Guide
Prowler™710
Robotic Inground Pool Cleaner

© 2006 Pentair Water Pool and Spa, Inc. All rights reserved.
This document is subject to change without notice.
1620 Hawkins Ave., Sanford, NC 27330 • [phone]
10951 West Los Angeles Ave., Moorpark, CA 93021 • [phone]
Trademarks and Disclaimers. Prowler and the Pentair Water Pool and Spa logo are trademarks of Pentair Water Pool and Spa, Inc. Other
trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Pentair
Water Pool and Spa, Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
P/N P12153 Rev. A 2/23/06
Customer Service
If you have questions about ordering Pentair replacement parts, and pool products,
please use the following contact information:
Customer Service (8 A.M. to 5 P.M. — Eastern and Pacific Times)
Phone: [phone]
Fax: [phone]
Technical Support
Sanford, North Carolina (8 A.M. to 5 P.M. — Eastern Time)
Phone: [phone]
Fax: [phone]
Moorpark, California (8 A.M. to 5 P.M. — Pacific Time)
Phone: [phone] (Ext. 6312)
Fax: [phone]
Web site
visit www.pentairpool.com or www.staritepool.com to find information about Pentair products

i
Prowler™710 Installation and User’s Guide
Contents
Important Safety Precautions .............................................................................................. ii
Section 1: Introduction .....................................................................................................1
Prowler™710 Overview ........................................................................................... 1
Prowler™710 Features ............................................................................................ 2
Section 2: Installation ....................................................................................................... 3
Cleaner Components ............................................................................................... 3
How your Prowler™710 Cleaner Works .................................................................. 4
Setting-up your Prowler™710 Cleaner .................................................................... 5
Power Supply (Transformer) .................................................................................... 5
Pool Cleaner with Floating Cable ............................................................................. 5
Power Supply Set-Up .............................................................................................. 6
Cleaner Placement .................................................................................................. 7
Adjusting the Timing Cycle ...................................................................................... 8
Cleaning Motion ....................................................................................................... 9
Cleaner Removal ..................................................................................................... 9

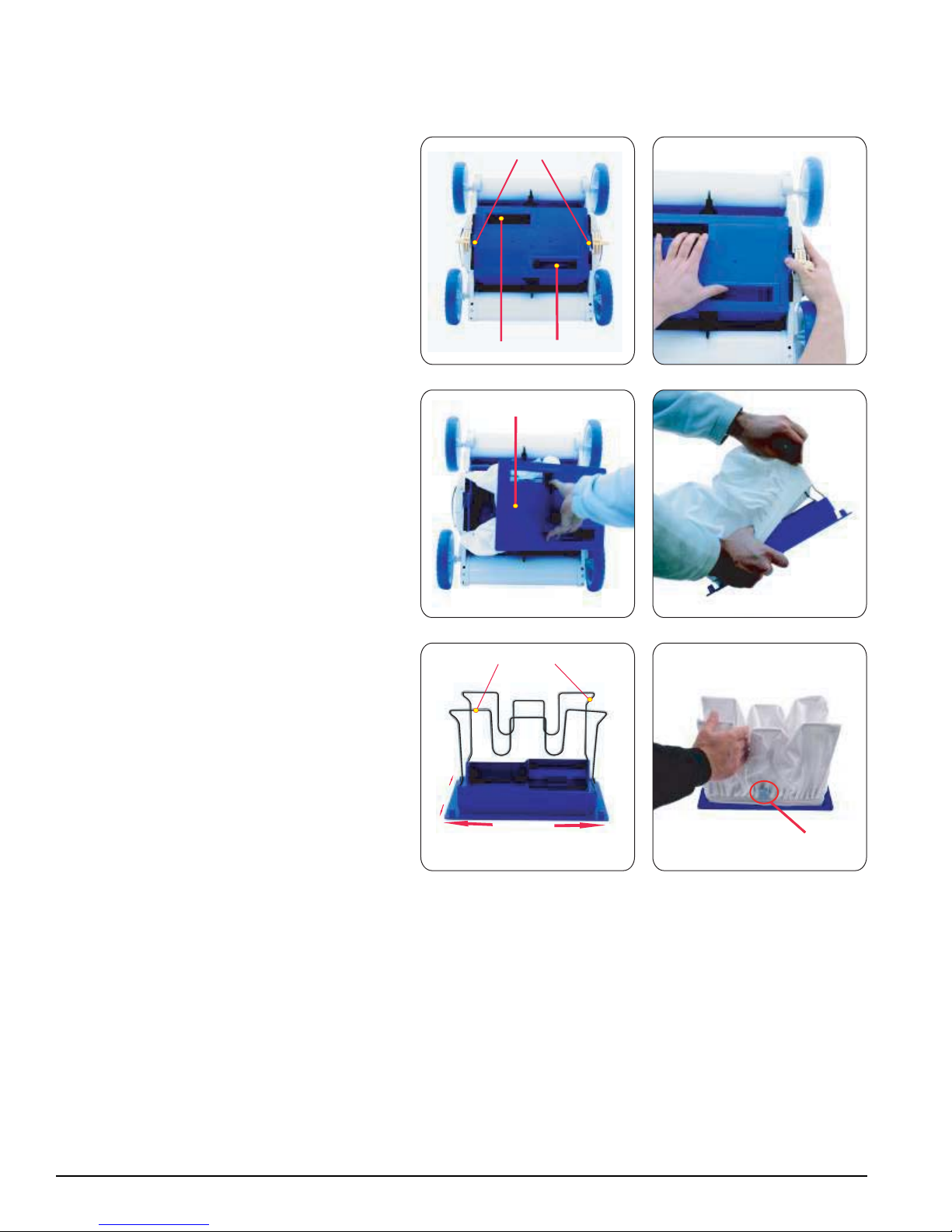

Changing/Cleaning the Filter Bag ............................................................................ 10
In/Off-Season Storage ............................................................................................. 11
Section 3: Troubleshooting .............................................................................................. 13
Section 4: Replacement Parts .......................................................................................... 16

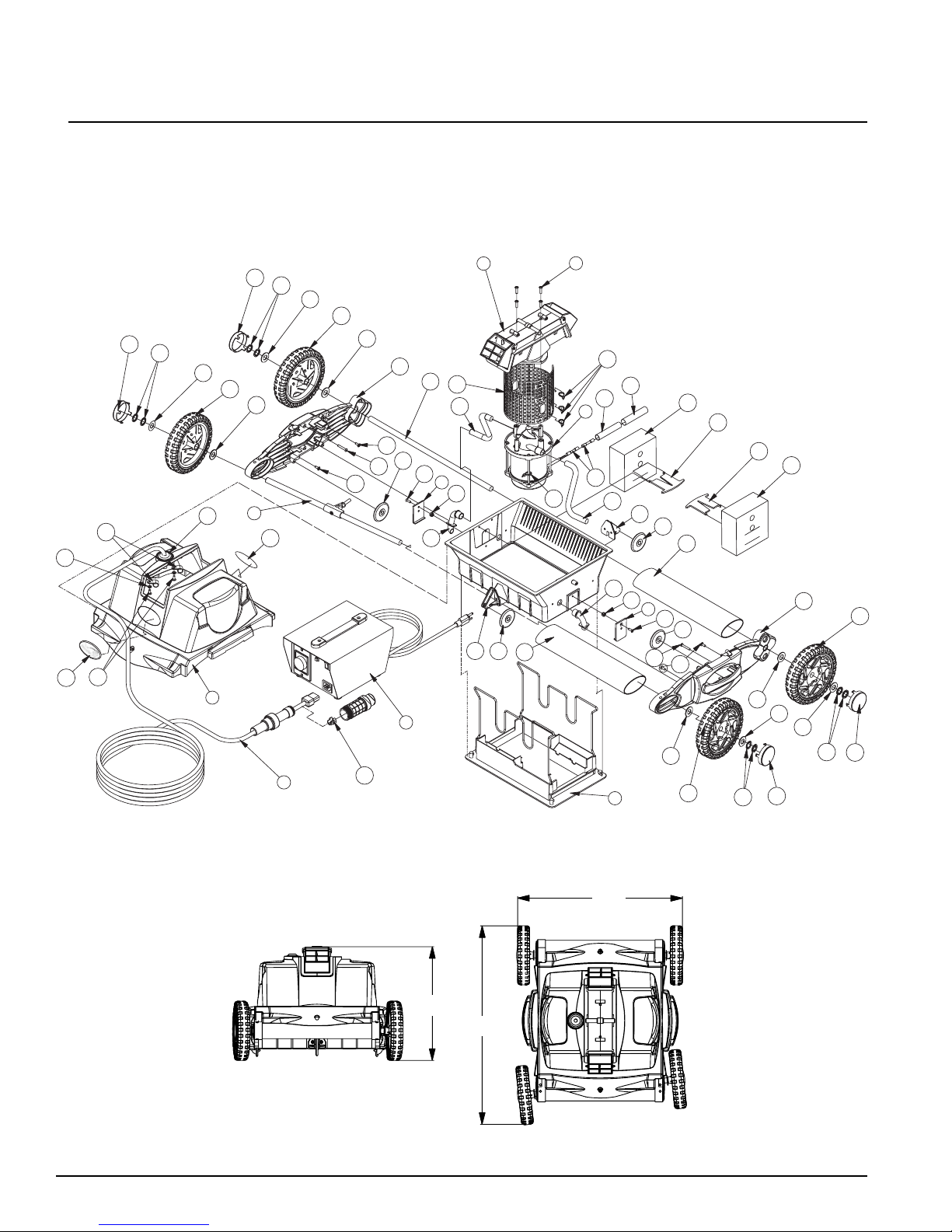

Prowler™710 Exploded View ................................................................................... 16
Prowler™710 Dimensions ....................................................................................... 16
Prowler™710 Replacement Parts List ..................................................................... 17

ii
Prowler™710 Installation and User’s Guide
IMPORTANT SAFETY PRECAUTIONS
Important Notice:
Attention Installer: This guide contains important information about the installation, operation and safe use of
this product. This information should be given to the owner and/or operator of this equipment after installation of the
pool cleaner.
Attention User: This manual contains important information that will help you in operating and maintaining this
pool cleaner. Please retain it for future reference. Consult Pentair Water with any questions regarding this equipment.
WARNING — Before installing this product, read and follow all warning notices and instructions which are
included. Failure to follow safety warnings and instructions can result in severe injury, death,
or property damage. Call [phone] for additional free copies of these instructions.
Consumer Information and Safety
The Prowler™710 pool cleaners are designed and manufactured to provide many years of safe and reliable service when
installed, operated and maintained according to the information in this manual. Throughout the manual, safety warnings
and cautions are identified by the “ “ symbol. Be sure to read and comply with all of the warnings and cautions.
DANGER —Risk of electrical shock or electrocution.
The electrical supply to this product must be installed in accordance with the National Electrical
Code and all applicable local codes and ordinances. Improper installation will create an electrical
hazard which could result in death or serious injury to pool or spa users, installers, or others due
to electrical shock, and may also cause damage to property.
Always disconnect the power to the cleaner before servicing. Failure to do so could result in death
or serious injury to serviceman, pool users or others due to electrical shock. Read and follow the
specific instructions inside this guide.
WARNING —Hazardous suction. Do not play with cleaner or cable or apply to body. Can trap and tear hair
or body parts. Cable can trip or entangle swimmers which could result in drowning.
WARNING —Do not allow swimmers in the pool while pool cleaner is operating. Cable can trip or entangle
swimmers which could result in drowning.
WARNING —To reduce the risk of injury, do not let children use or play with pool cleaner.
CAUTION — Before installing the cleaner in a gunite pool or a pool that is partially or completely tiled, repair
loose tiles and tighten any loose light rings.
CAUTION — Before installing the cleaner, understand cleaner coverage: The cleaner was not designed to
automatically clean steps or to work under a solar cover. It was also not designed to do initial
cleanup for a new pool installation.
CAUTION — The unit must be supplied through a residual current device (RCD) having a rated operating
current not exceeding 30mA.
• The connection to the branch circuit should be consistent with the local and National Electrical Code.
• Mishandling the unit can result in leakage of lubricants.
• If the supply cord is damaged, it must be replaced by a licensed or certified electrician or a
qualified pool serviceman in order to avoid hazards.

1
Prowler™710 Installation and User’s Guide
Section 1
Introduction
The Prowler™710 Overview
Automatically clean your pool in 60 to 90 minutes or less
The fastest and most effective robotic cleaner in its class, the Prowler™710 features true “plug and play”
convenience. It operates totally independently of your pool’s circulation system to cover and clean any dimension,
form, or shape of inground pool up to 50 feet in length. A Jet Drive propulsion system with a single, powerful
motor drives the cleaner and enables the cleaner to roll along floors, up inclines to the waterline so long as there
is an adequate floor-to-wall angle (most vinyl lined pools) or radius of about 6 inches – from beginning of
radius to end – (most hard surface pools) in 60 to 90 minutes or less.
Scrubs, vacuums and filters your entire pool
The Prowler™710 works while you relax, freeing you from the drudgery of manual pool cleaning and the
drawbacks of more cumbersome and costly automatic cleaners. The Prowler™710 has a patented built-in
pump motor which powers the hydroscrubbing jets (jet streams of water). The hydroscrubbing jets stir up
dirt and debris for easy vacuuming by the cleaners’ suction power without any attention from you. Plus, the
Prowler™710 won’t get stuck by ladders and other underwater obstacles.
Prowler™710

2
Prowler™710 Installation and User’s Guide
General Features
The Prowler™710 features three-way cleaning performance:
• Dual pressure wash jets lift sand, silt and algae off floors and walls – including surface pores where
brushes can’t reach.
• Powerful vacuum action removes fine particles and larger debris.
• Internal filtration system removes contaminants and bacteria as small as two microns.
• No installation, no booster pump, no hoses, and fully automatic.
Additional Features:
Time and energy-saving features:
• Reduces your filtration system’s run time up to 25%.
• Independently filters algae and bacteria.
• Cleans and hydroscrubs along floors, up inclines to the waterline so long as there is an adequate floor-to-
wall angle (most vinyl lined pools) or radius of about 6 inches – from beginning of radius to end – (most
hard surface pools).
• Vacuums all types of debris.
• Cleans any shape or type of pool in 60 to 90 minutes or less.
• Entire cleaner and key components are certified to UL standards for safety by ETL.
• Filter bag provides more than three times the capacity of other cleaners to greatly extend the time
between cleanings.

3
Prowler™710 Installation and User’s Guide
Section 2
Set-up
The following general information describes how to set-up your Prowler™710 robotic pool cleaner. Carefully
read the following so that you are fully aware of all the capabilities and features this cleaner has to offer.
NOTE: Before setting up this product, read and follow all warning notices and instructions starting
on page ii.
Introducing your new Prowler™710 Cleaner
Dear Customer, Congratulations! You have purchased one of the best pool cleaners that technology has to
offer! Your new Pentair cleaner is a fully automatic, "robotic" in-ground pool cleaner with the most powerful
water propulsion system available.
Your Prowler™710 automatic pool cleaner includes the following:
•Cleaning Unit & Cable
•Power Supply
•Fine Filter Bag
•Mesh Filter Bag

4
Prowler™710 Installation and User’s Guide
How your Prowler™710 Cleaner works
The patented built in pump motor provides the power for your cleaner’s jet drive propulsion and hydroscrubbing
jets. The hydroscrubbing jets, directed at the pool surface under your cleaner, stir up dirt and debris for easy
vacuuming by the cleaner’s suction power. All dirt from leaves to algae is collected in the internal filter bag for
easy removal. A simple patented axle tilting system allows your cleaner to alternate between straight and
curved movements, allowing the cleaner to clean the pool, in most cases, in 60 to 90 minutes or less! All you
have to do is place your cleaner in the pool, turn it on and periodically clean the filter bag.
Jet Drive Propulsion Hydroscrubbing Jets Internal Filter Bag

5
Prowler™710 Installation and User’s Guide

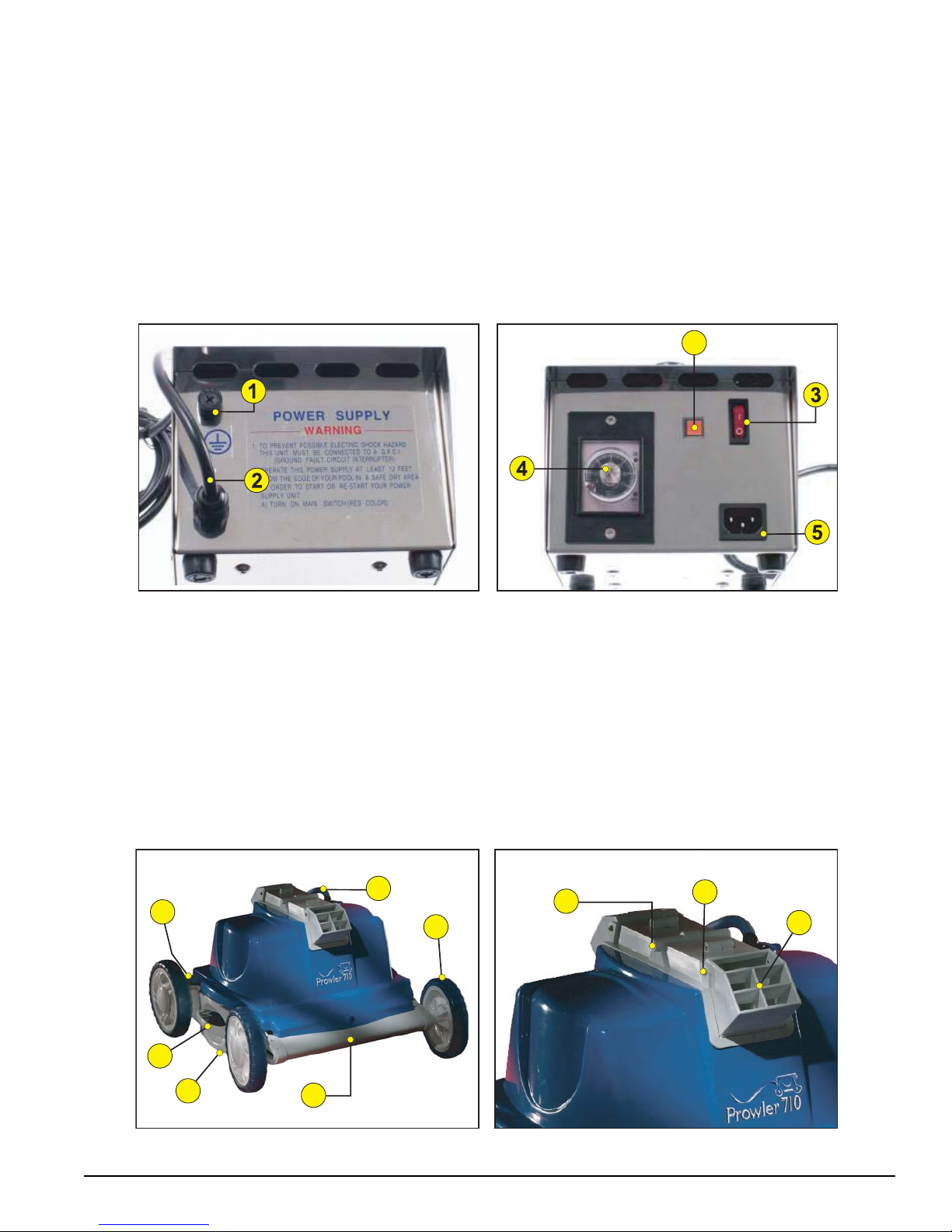

Setting up your Prowler™ 710 Cleaner
Your new cleaner consists of two main parts:
A. Power Supply (Transformer) with Two-Hour Automatic Shut-Off, Figure 1.


Fuse Holder 

Forward/ReverseTimer ControlDial


Power Supply Cord 

Socket (for Floating Cable)


Power (ON/OFF) Switch 

ResetButton
NOTE: The Power Supply appearance may vary and features may be located in different positions then what is shown above.
Rear view Front view 6
Figure 1.
B. Pool Cleaner with Floating Cable, Figure 2.


FloatingCable 

Hydroscrub Tube* (Jet Nozzle)


FixedAxleHousing 

JetValveHousing


TurningWheelAxleHousing 

Screwfor ValveExtension


Wheel(s) 

ValveExtension (Port)


Handle
* NOTE: The Hydroscrub Tubes are hidden within the cleaner’s body.
Figure 2.
Close Up 8
79
6
5
3
4
1
2

6
Prowler™710 Installation and User’s Guide
Setting up the Power Supply
WARNING —Risk of electrical shock or electrocution.
A ground fault current interrupter (GFCI) must be in place to protect your electric outlet . Failure to do
so could create an electrical hazard which could result in death or serious injury to pool or spa users,
installers, or others due to electrical shock, and may also cause damage to property.
The power supply MUST be placed a minimum distance of 10 feet away from the pool. Failure
to do so could create an electrical hazard which could result in death or serious injury to pool or spa
users, installers, or others due to electrical shock, and may also cause damage to property.
CAUTION — Never power the cleaner “ON” if it is not fully immersed in water.
This cleaner has an internal timer, which will automatically shut off the cleaner after 2 hours of
operation. However, the Switch will remain in the “ON” position. To re-start the cleaner for another
cycle, switch the Power Supply “OFF”, and then switch it back to the “ON” position and press the
Reset Button. See Figure 1.
1. Place the Power Supply in a dry, sheltered area at least 10 feet away from the pool, see Figure 3. Since the
Power Supply is water resistant, not water proof, it should not be left out in the rain or placed in puddles
of water.
2. PlugthePower Supply Cordintoa115V,threeprong grounded GFCIoutlet.Ifanoutletis not closeenough,
a grounded 115V extension cord may be used to connect to the nearest outlet, see Figure 4.
At Least 10 Feet
(Remember to keep the Power Supply at least 10 feet away from the pool.)
Figure 3.
Figure 4.

7
Prowler™710 Installation and User’s Guide
Figure 6.
Placing the Cleaner into the Pool
WARNING —Risk of electrical shock or electrocution.
The power supply MUST be placed and a minimum distance of 10 feet away from the pool.
Failure to do so could create an electrical hazard which could result in death or serious injury to pool
or spa users, installers, or others due to electrical shock, and may also cause damage to property.
1. Place the cleaner in the pool upside down, gently tilting it side to side to allow any trapped air to escape.
Oncethe airis removed,turnthe cleanerright side upand allowitto sinkto thebottomof thepool with the
wheels down. See Figure 5.
NOTE: Your cleaner must be completely submersed in the pool water before it is switched on. If the
cleaner does not sink it is because air is still trapped inside. Repeat Step 1.
2. Uncoil the Floating Cable that extends from the cleaner’s body and spread it over the pool water surface
asevenlyaspossible.Ifyourpool is elongated (rectangular,oval,etc.),placetheFloatingCableatthemiddle
ofthepool's length toallowadequatecablelength to reachtheentirepool.Makesure that theFloatingCable
is not tangled or kinked. See Figure 6.
3. Plug your cleaner's Floating Cable into the Power Supply, see Figure 7. Be sure that the Power Supply
ON/OFF Switch is in the “OFF” position.
Figure 5.
(Remember to keep the Power Supply at least 10 feet away from the pool.)

8
Prowler™710 Installation and User’s Guide
Adjusting the Timing Cycle
The Time Control Dial located on the front panel of the Power Supply can be adjusted to allow more or less
time between the cleaner's forward and reverse motion, see Figure 8.
Set your cleaner's Time Control Dial to 30 seconds. The goal is to have your cleaner move across your pool at
its widest point, from one side to the other and wait at both sides for approximately 2 seconds before reversing.
If this doesn't happen adjust the Time Control Dial accordingly.
NOTE: Turning the Time Control Dial clockwise will lengthen the time between reversals to a
maximum time of 90 seconds. Conversely, turning the dial counter-clockwise will reduce the time
between reversals.
Once the Time Control is set to your satisfaction, it does not need to be changed unless you use a different type
of Filter Bag or there is an excessive amount of debris in your pool.
NOTE: The alternate Mesh Bag may cause the cleaner to cross your pool in less time and the Time
Control should be adjusted accordingly.
Turn Power Supply switch to the “ON” position, see Figure 9 , then press the Reset Button, see Figure 9 .
1
2
Figure 7. Figure 8. Figure 9.

9
Prowler™710 Installation and User’s Guide
The Cleaning Motion in the Pool
The size of your pool, and the amount of debris in it, will determine the length of time required to clean the pool.
The time required may vary up to two hours. If the cleaner typically reaches the waterline at each side as it is
supposed to, but begins to slow down considerably (constantly reverses direction before reaching the sides of
the pool) or is unable to climb the walls of the pool, it is sending a signal that it’s time to clean the Filter Bag.
Removing the Cleaner from the Pool
CAUTION — Removing your cleaner by its Floating Cable may cause severe damage to the cable requiring
costly repairs. Keep the cleaner on all four wheels to allow water to drain from its body properly.
After two hours, your cleaner will automatically turn itself off. Although not necessary, it is suggested to turn the
Power Supply off by pressing the ON/OFF switch. See Figure 9.
Unplug your cleaner’s Floating Cable from the Power Supply, see Figure 7. Gently pull your cleaner toward
you using the Floating Cable. When your cleaner is within reach, remove it from the water using the handle
only, see Figure 10.
Figure 10.
HANDLE

10
Prowler™710 Installation and User’s Guide
Cleaning or Changing the Filter Bag
1. Make surethatthePowerSupply isturned
“OFF”andthatthecleaner'sFloatingCable
isunpluggedfromthePowerSupply.Place
the cleaner on its back on a non-abrasive
surface and release the two Lock Tabs,
(located on the sides of the unit), see
Figure 11. Using your thumbs, push the
Lock Tabs away from the center of the
cleaner to unlock the Bottom Lid
Assembly one Lock Tab at a time, see
Figure 12. Remove the Bottom Lid
Assembly, see Figure 13.
NOTE: Rest you cleaner on a non-
abrasive surface (i.e. towel, doormat,
etc.) to avoid scuffing and scratching
your cleaner.
2. RemovetheFilterBagfromthebagsupport
Wire Frames, see Figure 14. Turn the
Filter Bag inside out, (the Fine Filter Bag
has a soft felt surface on the inside), and
wash off visible dirt using high pressure
with a garden hose, or a faucet. Gently
agitate the Bag in your hands to help
removefineparticles. Continue wringing,
cleaning and squeezing the Bag gently
until rinse water is clear. Use of a
washing machine, (cold water only), is
recommended when visible dirt will not
rinseoffby othermethods. DONOT USE
DETERGENT or BLEACH! DO NOT
MACHINE DRY!
3. Turn the Filter Bag “right side out”, (felt
surfaceontheinside),re-mounttheBagon
the Wire Frames making sure that the
Label on the Bag is centered on one of the
long sides of the Bottom Lid Assembly, directly between the two U’s in the Wire Frames, see Figure 16.
Pull the Bag toward the middle of each Wire Frame so that the Bag corners are snug against the corners of
theWire Frame.Tuckthe excessBaginto theU-shapedsection oftheWire Framesasshown inFigure16.
4. Re-install theBottom Lid Assembly.Make surethatneither debrisnor the FilterBag itselfinterfereswith
complete closure of the Bottom Lid Assembly. A locking sound from each Lock Tab will be heard when
lockedproperly!
Lock Tabs
Intake Valve Flaps
Bottom Lid Assy.
Bottom Lid Assy. Filter Bag
Label
Wire Frames
Long Side
Short Side
Figure 11. Figure 12.
Figure 13. Figure 14.
Figure 15. Figure 16.

11
Prowler™710 Installation and User’s Guide
In-Season Storage
WARNING — Do not allow swimmers in the pool while your pool cleaner is in the pool. Cable can trip or entangle
swimmers which could result in drowning.
Do not leave your cleaner in the pool when not in use. Doing so, will reduce the life of your Filter Bag and
cleaner. After removing your cleaner from the pool you should clean and re-install the Filter Bag. Then, rest
your cleaner on all four wheels in a dry, shaded area along with its Power Supply and properly coiled
Floating Cable.
Off-Season Storage
When the Pool Season is over, you should thoroughly clean the Filter Bag. Make sure that there is no water in
your cleaner. Completely untangle and then properly coil the Floating Cable. Your cleaner and Power Supply
should be stored in a dry, protected area away from freezing temperatures.

12
Prowler™710 Installation and User’s Guide

13
Prowler™710 Installation and User’s Guide
Section 3
Troubleshooting
Use the following troubleshooting information to resolve possible problems with your Prowler™ 710 pool cleaner.
Problem Corrective Action
Slower motion or inefficient vacuuming. Check to see if the Filter Bag is thoroughly clean.
FYI: The Fine Filter Bag is capable of filtering particles 20 times
smaller than the naked eye can see. Therefore, thorough cleaning
of the bag may be required!
NOTE: Use the Fine Filter Bag to trap smaller debris such as
algae, bacteria, sand and silt. Use the Mesh Filter Bag to trap
larger debris such as leaves, acorns, twigs and pine needles. It
may be necessary to rinse with high pressure water and wring the
Filter Bag in a bucket of clean water. Rinse, wring, squeeze dry
and repeat until the rinse water is clear.
Check to see if the Intake Valve Flaps (Figure 11 on page 10) on
the bottom of the cleaner are free to open and close. These Flaps
should move easily to allow the entry of water and debris.
If you are not satisfied yet, remove the bag, reinstall the Bottom Lid
(without the Bag), and run it in the pool. If the cleaner moves
quickly, this is an indication that your Bag is not clean enough, and
you must repeat the cleaning instructions until the Bag is clean.
Water flow from the hydroscrub jet tubes Remove the Bottom Lid Assembly. Check clear vinyl tubing for
(Figure 2, Item 6) have no pressure or obstructions, blockages and that each are securely connected to
water coming out from them. the Pump Motor Housing. If tubes are obstructed or blocked, then
remove the tubing from the pump housing by gently pulling the
tubing from the pump. The tube is not glued in place. After the tube
is removed, you can clear blockage by running water through the
tube using the pressure from a garden hose. Be sure to replace the
tubing securely.
Does not cover the entire pool. Adjust the timing cycle on the Power Supply so that the Pentair
cleaner reaches the other side of the pool, (preferably to waterline),
and remains there for approximately 2 seconds before changing
direction.
Check to see if the Filter Bag is clean and not clogged with debris.
(Especially fine dirt).
Check to see if the wheel rotation and axle movement is free of
obstructions like hair, string or accumulated debris.
Check to see if the Floating Cable has adequate length to reach all
sides of the pool and is not tangled, or hooked, as this will limit the
movement of the cleaner.

14
Prowler™710 Installation and User’s Guide
Problem Corrective Action
Does not reverse direction. Take a garden hose with high pressure, spray into the Valve
Housing at each Valve Port opening, (Figure 2, Item 9). This
should free the Jet Valve System of any debris. If this does not
solve the problem, firmly grab hold of both of your cleaner’s
Handles (Figure 2, Item 5) and forcefully dunk the cleaner in and
out of the pool several times to flush out the dirt causing the
problem. If debris is still lodged (such as sand or dirt) or there is
debris wrapped around the Propeller the Jet Valve or between the
Valve Flap and the Valve Housing wall, proceed below to
“Cleaning the Propeller”. If this still does not solve the problem,
then use a Phillips head screwdriver to loosen each of the screws
at the top of the Valve Housing (Figure 2, Item 7) that keep each
side of the Housing together - by 1½ turns each (counterclockwise).
Then repeat high pressure spraying into the Valve Housing.
Retighten each screw 1½ turns (clockwise) to re-secure.
Cleaning the Propeller. Remove Valve Extension Screws (Figure 2, Item 8) on one side of
cleaner and respective Valve Extension Port (Figure 2, Item 9).
Bend a common large paper clip into the shape of a hook
(Figure 18 on page 15), and push the Valve Flap back with your
finger to expose the Pump Motor Propeller. You may find debris like
hair, string, or a small twig caught in the Propeller. Use your paper
clip to hook or free the debris, and remove it (Figure 20 on page 15).
Reverses before reaching the opposite Turn the Time Control Dial (located on the Power Supply)
end of the pool. clockwise a few degrees to increase the time between reversals.
Repeat if necessary.
Check to see if the Filter Bag is thoroughly clean and installed
properly.
Waits too long at the side of the pool Turn the Time Control Dial on the Power Supply counter-clockwise
before reversing. a few degrees. Repeat if necessary.
Floating Cable is twisting. Your new cleaner was designed to clean most pools without issue,
but some pool shapes may cause the Floating Cable to coil, or
tangle. This cleaner operates in a systematic cleaning pattern that
varies in nature. This may cause the Floating Cable to twist. For
this reason, we have added a new feature to your cleaner. This
patented feature will allow you to untwist your Cable easily.
Disconnect the Power Supply Cord from the Power Supply, place
your cleaner on the ground outside of the pool perpendicular to
you, (Figure 19 on page 15). At the end of the Power Cable,
located near the connection plug to the Power Supply, is a plastic
handle ”Swivel” (Figure 17 on page 15). Grab the handle
firmly as shown in the illustration. Walk away from the cleaner
while pulling the handle. This will cause the Cable to rotate within
the plastic handle and force the Cable to untwist itself. For best
results remember to pull the handle until the Cable is completely
untwisted.

15
Prowler™710 Installation and User’s Guide

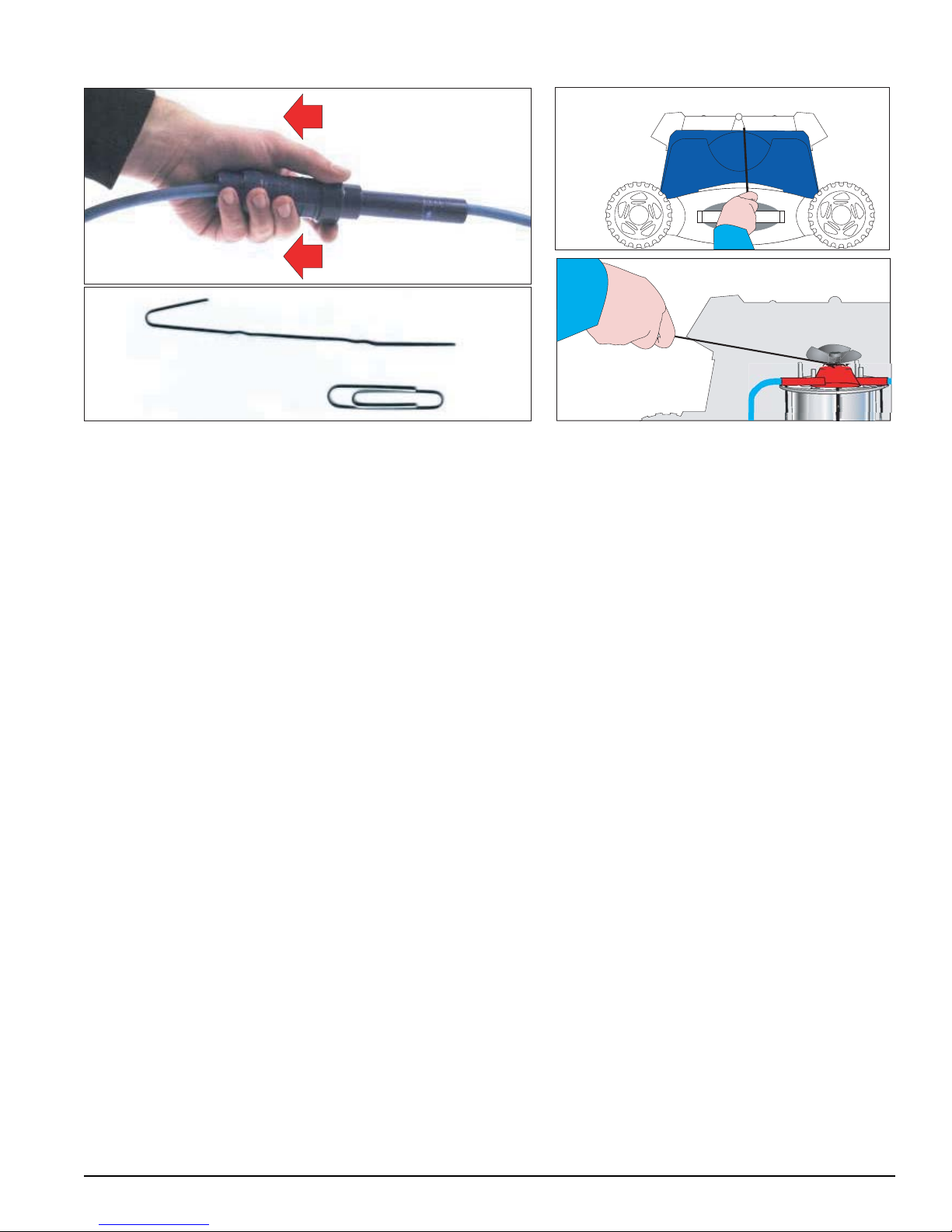

Figure 17.
Figure 18.
Figure 19.
Figure 20.

16
Prowler™710 Installation and User’s Guide
Section 4
Replacement Parts
Prowler™710 Model
12.0"
17.0"
20.1"
5
1
2
3
4
6
7
8
9
9
10
10
11
11
12
13
13
14
14
15
15
15
15
16
16
17
18
19
20
20
20
20
21 21
21
21
21
21
21
21
22
23
22
22
23
22
24
25
25
26
26
27
28
28
29
30 31
32
33
34
34
36
36
35
35
36
36
35
35
37
37
