1SIGNATURE OPERATING MANUAL
THERMAL BUILDING SOLUTIONS WWW.NUHEAT.COM
OPERATING MANUAL
SIGNATURE

2THERMAL BUILDING SOLUTIONS

3SIGNATURE OPERATING MANUAL
TABLE OF CONTENTS
INTRODUCTION ................................................................................................... 4
SYSTEM TESTS .................................................................................................... 5
SETUP WIZARD .................................................................................................... 5
GFCI ..................................................................................................................... 5
SECTION 1: HOME SCREEN ................................................................................. 6
1.1 Temporary Bypass and Hold Options ............................................ 7
1.2 Energy Use ................................................................................ 8
1.3 Settings .................................................................................... 8
SECTION 2: SETUP/PREFERENCES ...................................................................... 9
2.1 Language .................................................................................. 9
2.2 Date .......................................................................................... 9
2.3 Time ......................................................................................... 9
2.4 Unit ......................................................................................... 10
2.5 Operating Mode ....................................................................... 10
2.6 Temperature Control ................................................................. 11
2.7 Temperature Display ................................................................ 12
2.8 Floor Type ................................................................................ 12
2.9 Early Start ............................................................................... 12
2.10 Floor Limit ............................................................................... 13
2.11 Screen Brightness .................................................................... 13
2.12 Screensaver ............................................................................ 13
SECTION 3: PROGRAM/SCHEDULE .................................................................... 14
SECTION 4: WIFI SETTINGS ............................................................................... 15
SECTION 5: WEATHER SETTINGS ...................................................................... 16
SECTION 6: THERMOSTAT INFORMATION .......................................................... 17
SECTION 7: FACTORY RESET ............................................................................. 18
SECTION 8: WIFI TROUBLESHOOTING ................................................................ 19

4THERMAL BUILDING SOLUTIONS
THANK YOU FOR CHOOSING NUHEAT SIGNATURE!
You have chosen the most advanced thermostat to control your
Nuheat electric floor heating system. This manual will cover each of the
features of the Nuheat SIGNATURE thermostat.
INTRODUCTION

5SIGNATURE OPERATING MANUAL

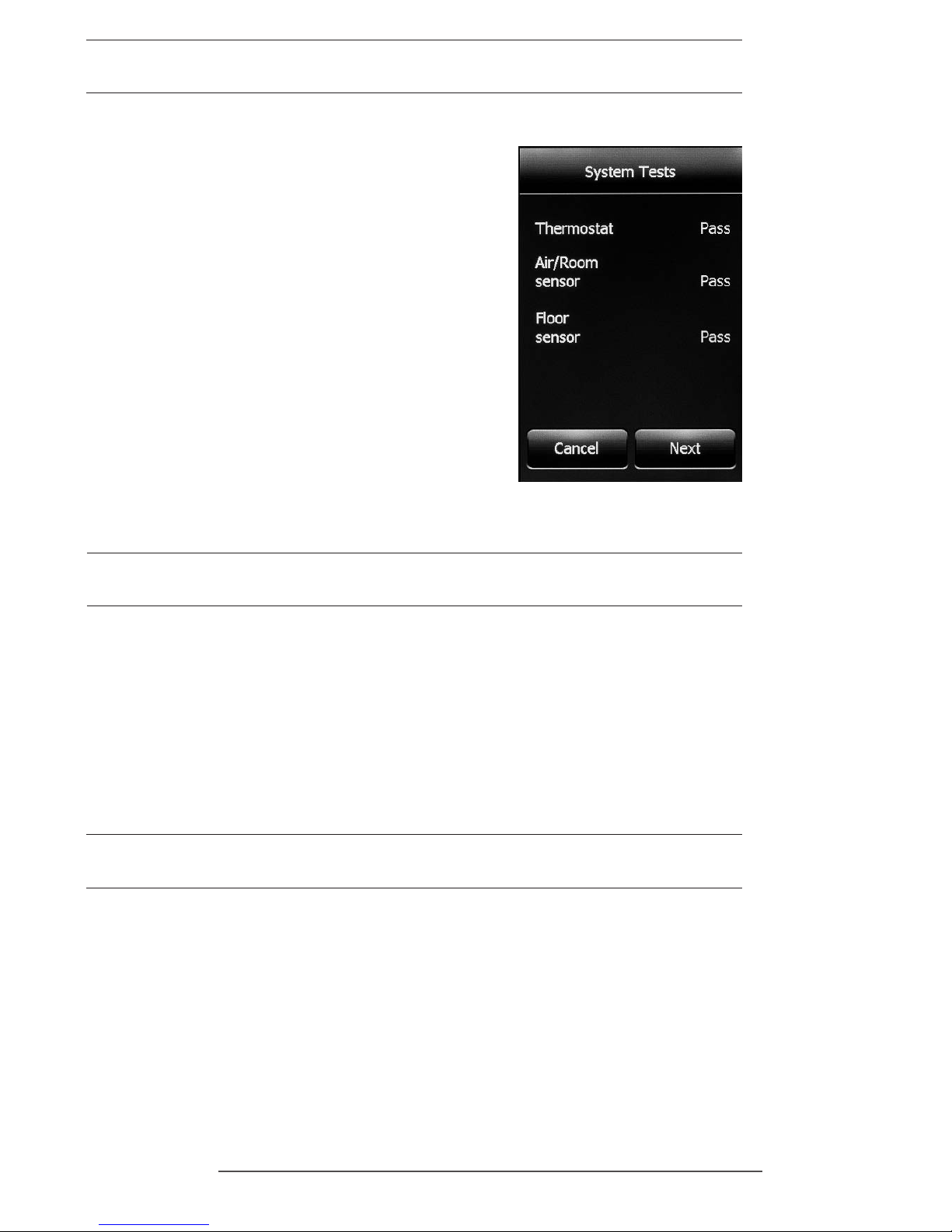

The Nuheat SIGNATURE thermostat features
a series of diagnostic tests to confirm the
thermostat is installed and functioning properly.
The System Tests option is available the first
time the thermostat is connected to power or
after a factory reset is initiated.
The Nuheat SIGNATURE thermostat features a Setup Wizard to guide you through
the basic setup process.
The Setup Wizard is available the first time the thermostat is connected to power
or after a factory reset is initiated. Refer to section 6 on page 17.
The Nuheat SIGNATURE thermostat has a built-in GFCI (Ground Fault Circuit Interrupter).
The GFCI protects against risks of electrocution caused by a current leakage. If the current
leakage exceeds 5 mA, the GFCI will automatically be triggered, thus cutting power to the
floor heating system. To indicate the fault, a message will appear on the screen informing
you of the fault. To reset the GFCI, press the button on the right side of the thermostat.
If problem persists, contact Nuheat at 1.800.778.WARM(9276).
SETUP WIZARD
GFCI
SYSTEM TESTS

6THERMAL BUILDING SOLUTIONS
1. Change date and time
2. Access WiFi settings
3. Access weather forecast
(WiFi connection required)
4. Current temperature
5. Target temperature or setpoint
6. Operating mode - Auto* means
the thermostat is following the
program/schedule. Manual means
the thermostat is NOT following
the program/schedule and is
being controlled manually.
Refer to section 2.5 on page 10.
7. Increase the temperature
8. Decrease the temperature
9. Heating indicator - when visible,
system is heating
10. Access Energy Use data
11. Access Settings menu
*When thermostat is in Auto mode:
Resume Programmed Schedule
- only appears if thermostat is in
Auto mode and temperature is
manually increased/decreased
Hold Options - only appears
if thermostat is in Auto mode
and temperature is manually
increased/decreased.
Refer to section 1.1 on page 7.
SECTION 1: HOME SCREEN
•
•
1 2 3
47
8
9
10 11
5
6

7SIGNATURE OPERATING MANUAL
SECTION 1: HOME SCREEN
Section 1.1 Temporary Bypass
and Hold Options
If the thermostat is following the
program/schedule (in Auto mode), you
can temporarily bypass the programmed
temperature by pressing the or
button until the desired Set To
temperature is displayed. The thermostat
will maintain this temperature until the
start of the next period.
Press Resume Program to cancel
the temporary bypass.
Press Hold Options to access
more options.

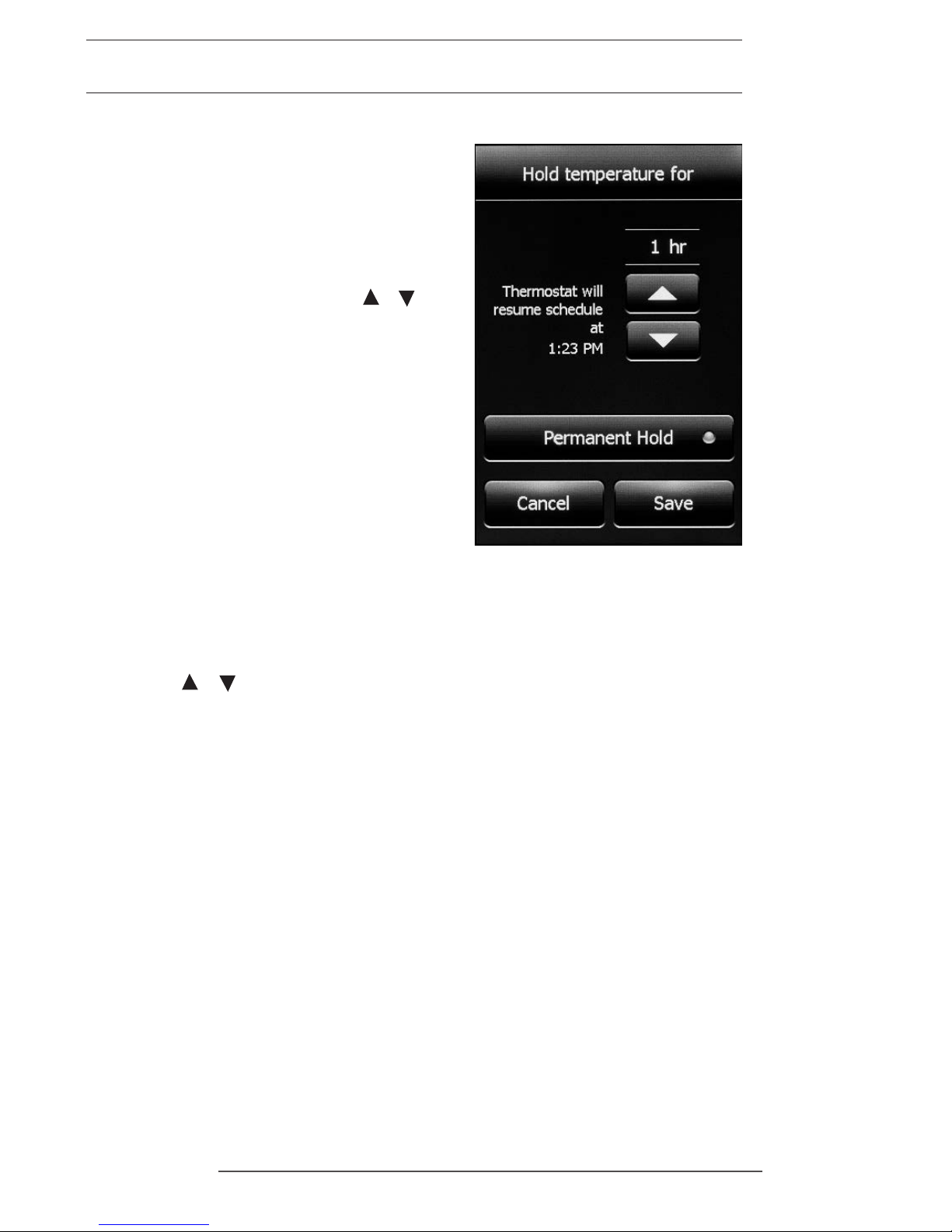

Hold Options
The Nuheat SIGNATURE thermostat allows you to set the duration you want to hold the
temporary bypass temperature. Change the duration of the hold time by pressing the
or arrows. Alternatively, press Permanent Hold to hold the temporary bypass
temperature indefinitely.
Press Cancel to ignore the change or press Save to confirm.
On the home screen, press Resume Program to cancel the temporary bypass.

8THERMAL BUILDING SOLUTIONS
SECTION 1: HOME SCREEN
Section 1.2 Energy Use
The Nuheat SIGNATURE thermostat tracks
the amount of time your floor heating
system has been heating.
Press Day/Week/Year to view the different
time ranges.
Press Back to return to the home screen.
NOTE: The thermostat cycles the heating
on and off to maintain the desired setpoint
temperature. Actual heating time is normally
a percentage of the scheduled ON time.
Section 1.3 Settings
The following options are available
under the Settings menu:
• Setup/Preferences
• Program/Schedule
• WiFi Settings
• Weather Settings
• Thermostat Info
• Factory Reset
Example: Thermostat is programmed to turn on at 5:00pm and turn off at 8:00pm. The
total ON time is 3 hours but the number of hours the system is actually HEATING may
be a percentage of the total ON time.

9SIGNATURE OPERATING MANUAL
SECTION 2: SETUP/PREFERENCES
From the home screen, access the Setup/Preferences menu by pressing
Settings>Setup/Preferences. Press the or arrows at the top to view both pages
of Setup/Preferences.

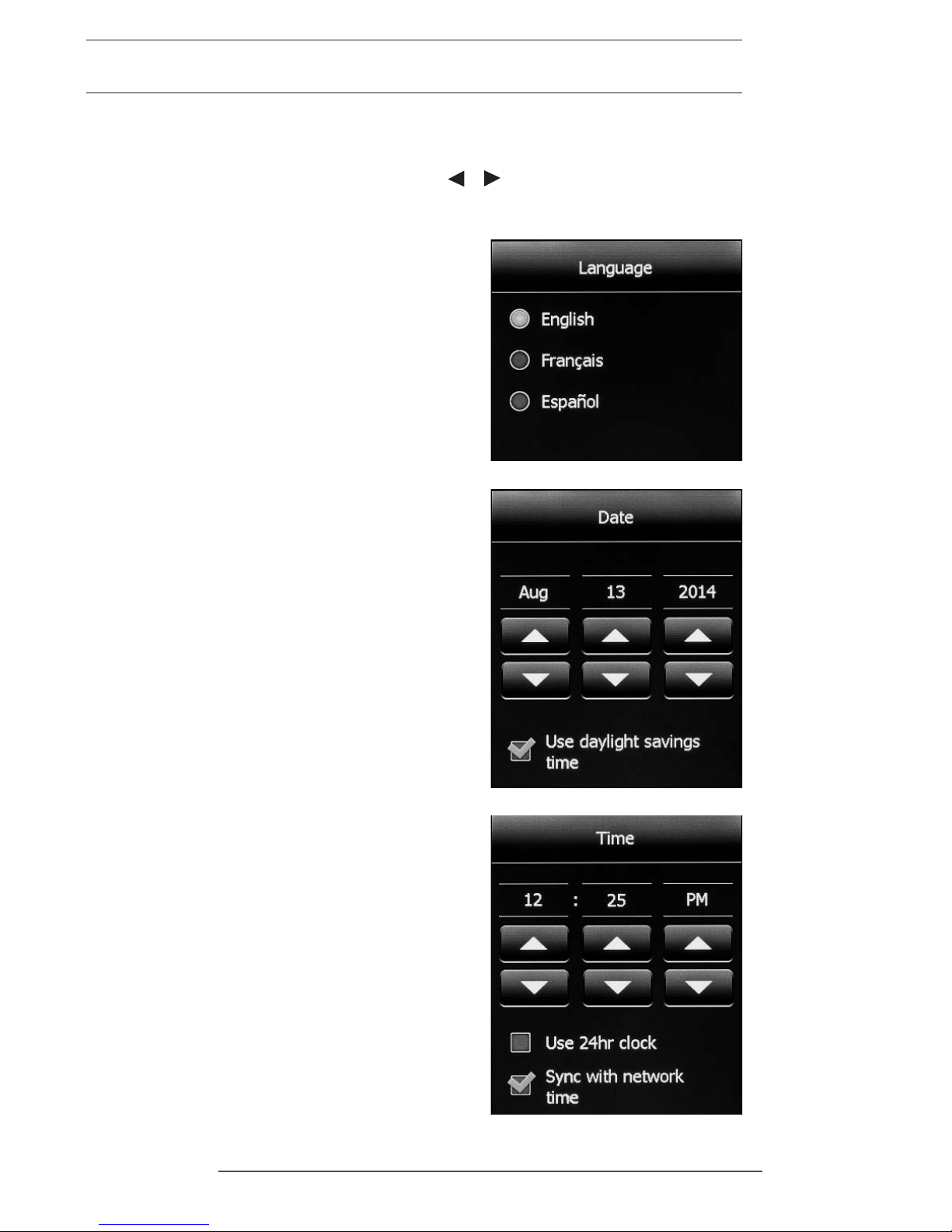

Section 2.1 Language
Section 2.2 Date
Section 2.3 Time
Choose between
English/Français/Español.
Press Cancel to ignore the change
or press Save to confirm.
Set the current month/date/year.
Select whether to enable/disable
daylight savings time based
on your region.
Press Cancel to ignore the change
or press Save to confirm.
Set the current time. Select whether
you would like the time to sync with the
network time once the thermostat is
connected to your WiFi network.
Press Cancel to ignore the change
or press Save to confirm.

10 THERMAL BUILDING SOLUTIONS
Section 2.4 Unit
Section 2.5 Operating Mode
SECTION 2: SETUP/PREFERENCES
Choose between Fahrenheit or Celsius.
Press Cancel to ignore the change
or press Save to confirm.
The thermostat has two
operating modes:
1. Auto - Use Auto (default) mode
if you want the thermostat to
follow a programmed
heating schedule. Refer to
section 3 on page 14.
2. Manual - In Manual mode,
the programmed schedule is
not followed. Use this mode
if you always want to set the
temperature manually. The
thermostat will maintain the set
temperature until it is manually
changed or until you switch to
another operating mode.
Press Cancel to ignore the change or press Save to confirm.

11SIGNATURE OPERATING MANUAL
The thermostat can be configured to
control the floor temperature, air/room
temperature, or a combination of floor
and air/room temperature.
Section 2.6 Temperature Control
SECTION 2: SETUP/PREFERENCES
Temperature Control Setting Description
Floor temp. (default) The thermostat controls the
floor temperature.
Air/Room temp.
The thermostat controls the air/room
temperature. This setting disables the
floor sensor and is useful if the floor
sensor is damaged or not installed.
Combined (advanced)
For advanced users only - This setting
allows control of the floor heating system
based on air/room temperature but will
not turn on the floor heating system if the
floor temperature is above the floor limit.
Press Cancel to ignore the change or press Save to confirm.

12 THERMAL BUILDING SOLUTIONS
SECTION 2: SETUP/PREFERENCES
Section 2.7 Temperature Display
The thermostat can display either of the
following temperatures on the
home screen and screensaver:
Floor temp. (default)
Air/Room temp.
Press Cancel to ignore the change
or press Save to confirm.
Section 2.8 Floor Type
Section 2.9 Early Start
Set according to your flooring type.
When Engineered/Laminate is
selected, the floor temperature will be
limited to 82°F / 28°C.
NOTE: This setting is not available if
Temperature Control is set to
Air/Room temp. Refer to section 2.6
on page 11.
Press Cancel to ignore the change
or press Save to confirm.
Early Start calculates the optimal time
to start heating to ensure your floor
reaches the desired temperature at
the scheduled time in your program/
schedule. It only applies if your
thermostat is following a programmed
schedule (ie. thermostat is
in Auto mode).
Press Cancel to ignore the change
or press Save to confirm.
•
•

13SIGNATURE OPERATING MANUAL
SECTION 2: SETUP/PREFERENCES

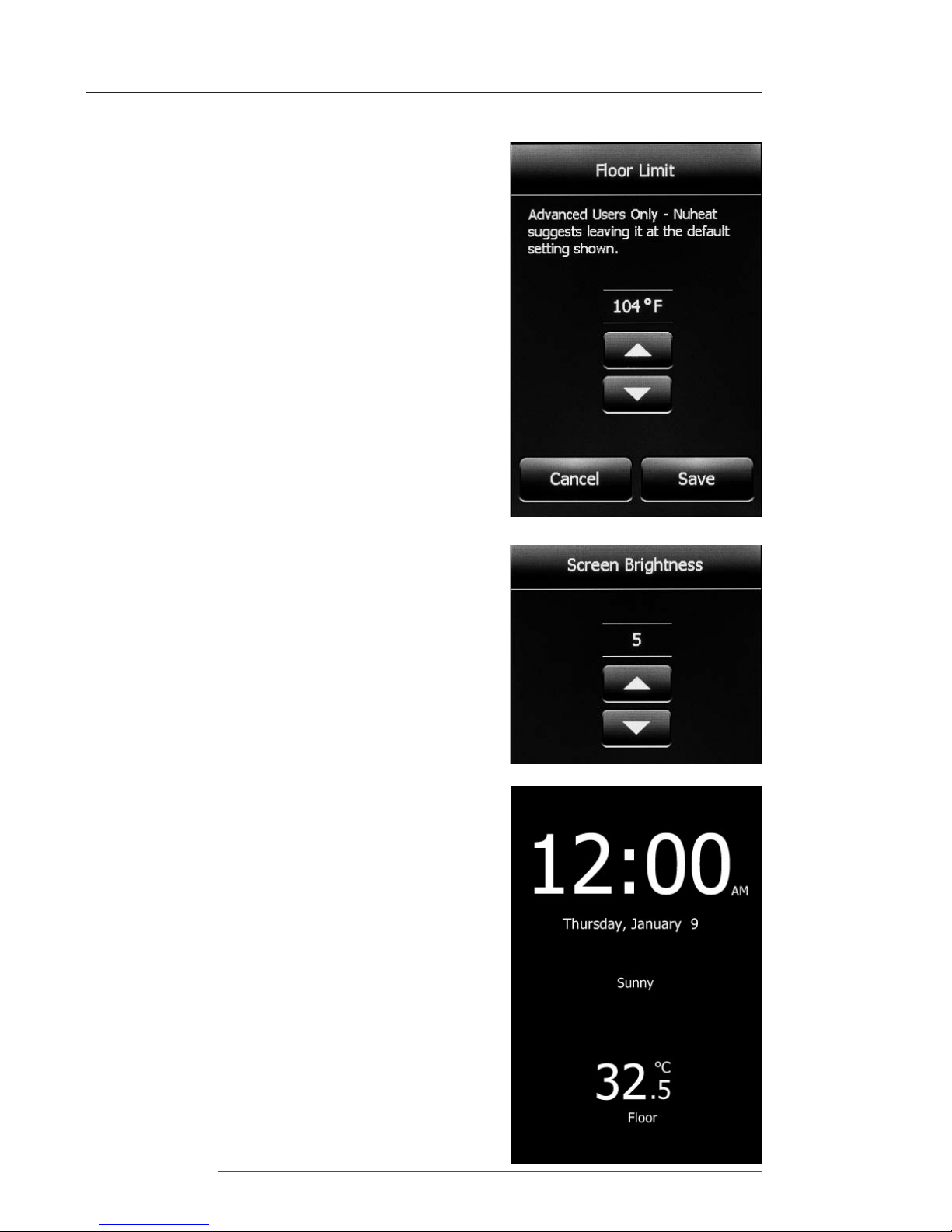

Section 2.10 Floor Limit
Section 2.11 Screen Brightness
Section 2.12 Screensaver
Set the maximum temperature you want
the floor to reach. The floor heating will not
turn on if the floor temperature is above
the set floor limit. If the floor limit is set too
low, your floor heating system will not turn
on. Nuheat suggests leaving the floor limit
at the default factory temperature setting.
NOTE: This setting is not available if
Temperature Control is set to
Air/Room temp. Refer to section 2.6
on page 11.
Press Cancel to ignore the change or
press Save to confirm.
Set the desired screen brightness.
Press Cancel to ignore the change
or press Save to confirm.
The thermostat will display the screensaver
after two minutes of inactivity. You can
choose what information to display
on the screensaver.
NOTE: Weather information is only
available if the thermostat is connected to
your WiFi network.
Press Cancel to ignore the change
or press Save to confirm.
IMAGE SOON

14 THERMAL BUILDING SOLUTIONS
SECTION 3: PROGRAM/SCHEDULE
Section 3.1 Program/Schedule
From the home screen, access the Program/Schedule menu by pressing
Settings>Program/Schedule.
Below is the default schedule of the Nuheat SIGNATURE thermostat:
Weekday
Period Start Time Floor Temperature
Tile Wood
Wake 6:00 am 88°F (31°C) 82 °F (28°C)
Leave 9:00 am 74°F (23°C) 74 °F (23°C)
Return 5:00 pm 88°F (31°C) 82 °F (28°C)
Sleep 11:00 pm 74°F (23°C) 74 °F (23°C)
Weekend
Period Start Time Floor Temperature
Tile Wood
Wake 8:00 am 88 °F (31°C) 82°F (28°C)
Sleep 11:00 pm 74 °F (23°C) 74 °F (23°C)
To adjust the setpoint(s):
1. Use the or arrows to toggle between weekdays and weekend days.
2. Select the period that you want to adjust.
3. Using the or arrows, adjust the time and temperature of the setpoint.
4. Press Cancel to ignore the change or press Save to confirm.
To set a new program/schedule, Press New Program at the bottom of the screen:
1. Select the days that share the same schedule.
2. Press Next.
3. Select the period that you want to adjust.
4. Using the or arrows, adjust the time and temperature of the setpoint.
5. Press Cancel to ignore the change or press Save to confirm.
6. Press Next.
7. Repeat steps 1 to 6 until all days have been programmed.
8. Press Done to save the program/schedule.

15SIGNATURE OPERATING MANUAL
Section 4.1 WiFi Settings
From the home screen, access the WiFi Settings menu by pressing
Settings>WiFi Settings.
To connect your Nuheat SIGNATURE thermostat to your WiFi network:
1. Select your WiFi network from the list of available networks detected by the
Nuheat SIGNATURE thermostat. If the network name does not appear, refer to
section 8 on page 19 for WiFi troubleshooting.
2. Enter the password for your WiFi network. Note upper/lower case letters, special
characters, and numbers in your password. Numbers and special characters can
be accessed by pressing the button.
3. Press Join.
4. The thermostat will now attempt to connect to your WiFi network. If this fails,
check your WiFi router and repeat steps 1 to 3. If problems persists,
refer to section 8 on page 19 for WiFi troubleshooting.
5. Press Next once the screen says Connected.
6. Enter a name for your thermostat (eg.“master bathroom” ).
7. Press Next.
8. Review the privacy policy available at www.nuheat.com and press Next.
9. Enter an email address where an activation email may be sent. Note upper/lower
case letters, special characters, and numbers in your email address. Numbers and
special characters can be accessed by pressing the button.
10. An activation email/link will be sent to the email address provided. Press OK.
11. Press Back to return to the home screen.
After 1-2 minutes, you will notice the WiFi icon turn on at the top of the home screen.
This means your Nuheat SIGNATURE thermostat is now connected to your WiFi network.
If you cannot connect to your WiFi network, refer to section 8 on page 19
for WiFi troubleshooting.
SECTION 4: WIFI SETTINGS

16 THERMAL BUILDING SOLUTIONS
From the home screen, access the
Weather Settings menu by pressing
Settings>Weather Settings.
NOTE: You must complete WiFi
setup in order to display weather
information on your Nuheat
SIGNATURE thermostat.
Refer to section 4 on page 15.
SECTION 5: WEATHER SETTINGS
Section 5.1 Weather Settings
To setup weather information to be displayed on your Nuheat SIGNATURE thermostat:
1. After you have completed the WiFi setup. Refer to section 4 on page 15.
Press Change on the Weather Location screen.
2. Enter the ZIP/Postal Code for your area.
3. Press Search.
4. After a few seconds, your city name should appear on the screen.
5. Press Next.
6. Press OK.
7. Press Back to return to the home screen.

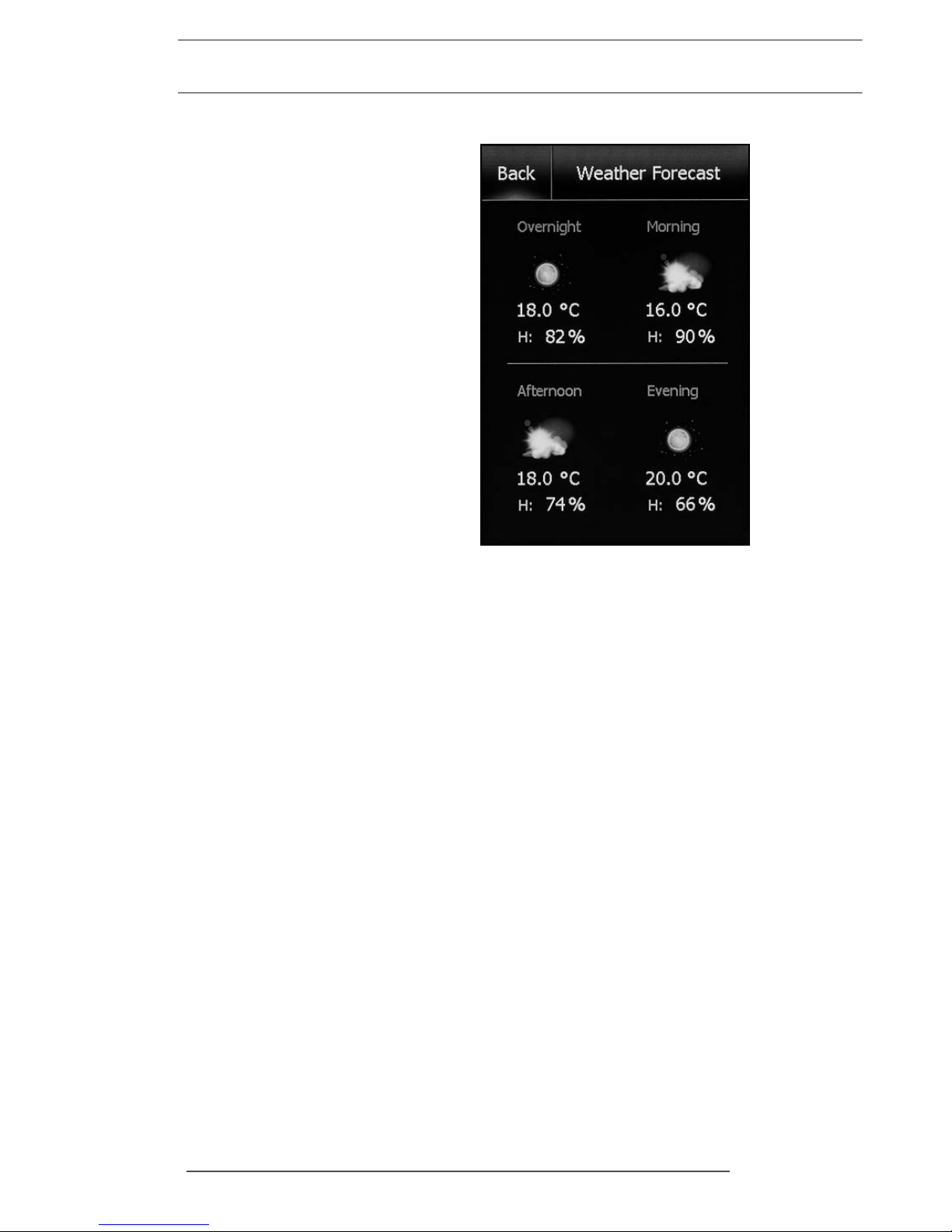

After 1-2 minutes, you will notice the weather information appear on the top right
corner of the Home Screen. Press the weather icon to access the weather forecast.

17SIGNATURE OPERATING MANUAL
From the home screen, access the
Thermostat Info items by pressing
Settings>Thermostat Info.
Press the or arrows at the top to view
both pages of thermostat information:
SECTION 6: THERMOSTAT INFORMATION
Section 6.1 Thermostat Information
• Thermostat name - Name that was entered during the WiFi Settings setup.
Refer to section 4 on page 15.
• Thermostat ID - Unique serial number assigned to the thermostat
during manufacturing.
• WiFi network - Name of the WiFi network to which the thermostat is connected.
• Account - Email address that was entered during the WiFi Settings setup.
Refer to section 4 on page 15. This is the email where the activation/verification
email was sent.
• Account status - Reports whether thermostat has been confirmed or not.
Your MyNuheat.com account must be setup in order for the thermostat to be
confirmed to your account.
• Server status - Status of the MyNuheat server.
• Floor sensor - Status of the floor sensor.
• Air/Room sensor - Status of the built-in air/room temperature sensor.
• GFCI - Status of the GFCI. If ?appears, it means the GFCI has not been tested.
Refer to GFCI Section on page 5.
• GFCI tested - Date that the GFCI was last tested.
• Appl. version - Firmware version number (for internal use during manufacturing).
• WiFi version - WiFi version number (for internal use during manufacturing).

18 THERMAL BUILDING SOLUTIONS
From the home screen, access
the Factory Reset by pressing
Settings>Factory Reset.
Factory Reset allows you to reset the
thermostat back to factory default
settings. This can be used to reset
the thermostat for a new owner or
for troubleshooting purposes.
WARNING - Factory Reset
will delete all information stored on
the thermostat including
energy usage data.
SECTION 7: FACTORY RESET
Section 7.1 Factory Reset

19SIGNATURE OPERATING MANUAL
SECTION 8: WIFI TROUBLESHOOTING
I CAN’T CONNECT TO MY WIFI NETWORK
Cause Solution
Wrong password
Try entering your password again. Be careful to
enter uppercase and lowercase letters, numbers
and symbols as needed. The Nuheat SIGNATURE
thermostat can switch between three different
keyboards to enter these characters.
Your network name is hidden
If you have another device connected to your
WiFi network such as your mobile phone, stand
next to your Nuheat SIGNATURE thermostat
and go into your phone’s WiFi settings to see
if the network name is appearing. If you do
not see the network, it could mean that your
network name is hidden. If your wireless
network is hidden, it means you’ve chosen to
not have the network name broadcasted to
devices. In the WiFi Settings on the Nuheat
SIGNATURE thermostat, select Other at the
bottom and type in the name of your network
(aka SSID). Then enter your password when
you are prompted.
Thermostat is too far from WiFi router
Try connecting another device such as your
mobile phone to your WiFi network. Standing
next to your Nuheat SIGNATURE thermostat,
go into your phone’s WiFi settings. If the WiFi
signal cannot be detected or is very weak on
your phone, it means other devices may have
trouble connecting to the network from that
area of the home. This means you may be too
far away from your WiFi router or there may be
a problem with it. If your WiFi router is too far,
you can purchase a WiFi signal repeater which
will improve the range of the WiFi signal in your
home for all devices.
Section 8.1 WiFi Troubleshooting

20 THERMAL BUILDING SOLUTIONS
SECTION 8: WIFI TROUBLESHOOTING
I CAN’T CONNECT TO MY WIFI NETWORK
Cause Solution
Insufficient security settings
on your WiFi router
With so many home devices now connected to
the Internet, we want to make sure our Nuheat
SIGNATURE thermostats are connected to
secured networks so that hackers cannot gain
control of devices in the home. There are two
main types of encryption or protection available
through wireless routers; WEP and WPA. WEP
is the original form of wireless security which
offers very minimal security. Hackers can very
easily break into your wireless network if your
router is setup with WEP encryption. It was
replaced with WPA encryption in 1999 and
WPA2 in 2006. WPA is a security protocol that
makes it much more difficult to break into the
networks. The Nuheat SIGNATURE thermostat
currently supports WPA and WPA2 encryption
only. Nuheat is releasing a version of the
SIGNATURE that will support WEP in the coming
months. If your router was manufactured after
2003, you should be able to change the setting
from WEP to WPA (http://www.tech-faq.com/
how-to-change-wep-to-wpa.html).Without
a WiFi connection, the Nuheat SIGNATURE
thermostat can still control your floor heating
system. Nuheat recommends the best course
of action is to upgrade your security settings to
properly protect your network from hackers. If
that is not an option, please contact Nuheat at
1.800.778.WARM(9276).
Too many wireless devices
connected to your network
Some WiFi routers have a limit on the number
of wireless devices that can connect to the
Internet. To test if this is your issue, shut down
one of the WiFi enabled devices in your home.
Once that device is completely shut down,
try again to connect to the network with
the Nuheat SIGNATURE thermostat. If the
Nuheat SIGNATURE thermostat successfully
connects, consult the documentation for your
access point or contact your Internet Service
Provider (ISP) to find out if you can increase
the number of simultaneous connections to
your WiFi network.
