Pepperl+Fuchs Ex-Cover 6 Pro D2 User guide

1
Smartphone for industrial
applications in hazardous
areas
Ex-Safety Manual
Manuel de sécurité Ex
Manual de seguridad contra explosiones
Ex-Cover 6 Pro D2
Class I, Div 2

2
English Page 3
Canadian/French Page 18
Español Página 33

3
Note:
The current Ex-Safety Manual, the User Manual and the Certicate of
Conformity can be requested directly from the manufacturer.
Content
1. Application ....................................................................................................... 4
2. Safety precautions........................................................................................... 4
3. Faults and damage.......................................................................................... 4
4. Ex-Data ............................................................................................................ 4
5. Applied standards............................................................................................ 5
6. Warnings.......................................................................................................... 5
7. Safety instructions........................................................................................... 5
8. Repair............................................................................................................... 6
9. Cleaning, maintenance and storage .............................................................. 6
10. Warranty and liability..................................................................................... 6
11. Quick start guide .......................................................................................... 6
12. Acknowledging Special Precautions and ISED (Innovation, Science ........ 15

4
1. Application
The Ex-Cover 6 Pro D2 *** is a nonincentive Class I Division 2 water-, dust- and
impact resistant smartphone for industrial application in hazardous areas with
gaseous atmospheres certied for use in the US and Canada.
2. Safety precautions
These safety instructions contain information and safety regulations which are
to be observed. Non-observance of this information and these instructions can
have serious consequences and may violate regulations. Please read these safe-
ty instructions carefully before using the device for the rst time! In the event of
conicting information the details specied in the safety instructions shall take
precedence. In case of any doubt (in the form of translation or printing errors)
the English text shall be applied.
3. Faults and damage
If there is any reason to suspect that the safety of the device has been impaired,
it must be withdrawn from use and removed immediately from the hazardous
area. Measures must be taken to prevent it from being used within the hazar-
dous area accidentally.
The safety of the device maybe compromised, if for example:
- There is visible damage on the housing.
- Malfunctions occur.
- The device has been improperly stored.
- Device markings or inscriptions are illegible.
- Permitted limit values have been exceeded.
4. Ex-Data
Certication details:
Ex-Marking: Class I, Division 2 Groups A, B, C, D, T4
Class I, Zone 2 Group IIC T4
800606
SGS Contract no.: 800606
Ex-Equivalent Zone marking: Zone 2 Group IIC T4
CoC no.: SGSNA/23/SUW/00036
Ambient temperature: -20°C ≤ Ta ≤ +55°
Certicate Project Number: SUW-CERT230400057

5
5. Applied standards
US: UL 62368-1, Ed. 3 dated December 13, 2019
UL 121201, 9th Ed., Rev. April 1, 2021
CAN: CAN/CSA C22.2 No. 62368-1:19
CAN/CSA C22.2 No. 213, 3rd Ed. April 2021
6. Warnings
WARNING – DO NOT USE IN HAZARDOUS/CLASSIFIED LOCATION IF THERE IS
ANY VISIBLE PERMANENT DAMAGE, INCLUDING CRACKED DISPLAY OR,
DAMAGED, OR MISSING Ex-Battery Cover 6 Pro D2
WARNING – USE ONLY BATTERY PACK TYPE SAMSUNG EB-BG736BBE*
WARNING – DO NOT OPEN THE DEVICE IN A HAZARDOUS/CLASSIFIED LOCATION
WARNING – DO NOT CHARGE OR REPLACE THE BATTERY IN A HAZARDOUS/
CLASSIFIED LOCATION
WARNING – NO ELECTRICAL CONNECTIONS ALLOWED TO ANY PORT OR POGO
PINS IN A HAZARDOUS/CLASSIFIED LOCATION
WARNING – Ex-Battery Cover 6 Pro D2 TO BE USED WITH Ex-Cover 6 Pro D2
ONLY.
7. Safety instructions
• The Ex-Battery Cover 6 Pro D2 must be correctly tted before
entering the hazardous/classied location.
• Battery pack or SD/SIM-Card replacement is only allowed in ordinary
(non-hazardous) locations.
• Charging (wired or wireless), wired connections to 3.5mm headphone jack,
wired data connection via USB and charging via POGO port is only allowed in
ordinary (non-hazardous) locations.
• The device may only be charged in a temperature range of 0°C – 45 °C.
• The Ex-Battery Cover 6 Pro D2 may be removed and the battery cover on the
back of the device may be removed to gain access to the battery and SIM card
locations in the device, in ordinary locations only. Otherwise, the device shall
not be repaired or dismantled by anyone other than a Pepperl+Fuchs authori-
zed repair center.
8. Repair
Repairs are to be conducted by a Pepperl+Fuchs authorized service center.

6
9. Cleaning, maintenance and storage
• Only use a suitable cloth or sponge to clean the smartphone.
• Do not use any solvents or abrasive cleaning agents when cleaning.
• Do not exceed the permissible storage temperature range of -20 °C to +55 °C
10. Warranty and liability
The warranty of this product follows the General Conditions of Delivery and
Payment of Pepperl+Fuchs, which are available at www.pepperl-fuchs.com, or
alternatively they can be requested directly from the manufacturer.
11. Quick start guide
Package contents
• Device
• USB cable
• Battery
• Documentation
The items supplied with the device and their images may vary by region.

7
Device layout
To turn on the device, press and hold the Side key for a few seconds.
The charger should remain close to the electric socket and easily accessible
while charging.
Headset
jack
Front
camera
Volume
keys
Side key/
Fingerprint
scanner
USB charger
/Accessory
port
Top key
Rear camera
XCover key
Speaker
Microphone

8

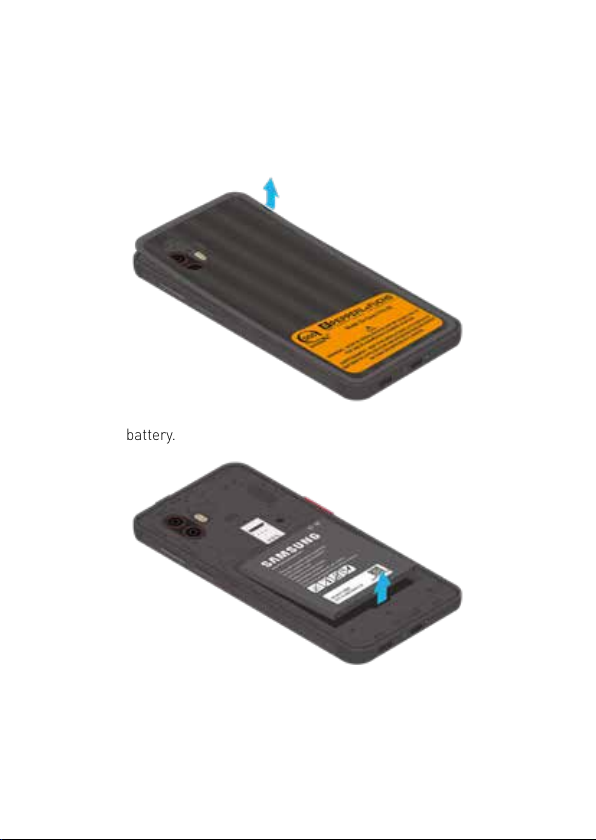

Install cards and the battery
The SIM card, optional microSD card, and battery are installed in the back of the
device.
1. The Ex-Battery Cover 6 Pro D2 needs to be removed rst then lift the cover up
and to the left of the device.
2. Remove the battery.

9
3. Carefully slide the SIM card into the SIM card slot.
Make sure that the card’s gold contacts face down into the device.
4. Slide the microSD card into the slot with the gold contacts facing down.
5. Insert the battery into the opening on the back of the device, making sure the
connectors align. Gently press down to secure the battery.

10
6. Place the back cover onto the back of the device and press down.
Press along the edge of the back cover all around until you have a secure seal.
Ensure that the back cover is closed tightly to prevent water and dust from ent-
ering the device. Open or loose back cover may allow water and dust to enter the
device and cause damage.
7. Place the Ex-Battery Cover 6 Pro D2 onto the back of the device, then slightly
pressing the upper side of the device into the Ex-Battery Cover 6 Pro D2.

11
Charge the battery
Your device is powered by a rechargeable battery.
NOTE Wall charger sold separately. Use only Samsung-approved chargers and
cables. To avoid injury or damage to your device, do not use incompatible, worn
or damaged batteries, chargers or cables. Using other charging devices and
batteries may not be covered under warranty and may cause damage. For
more information on your device, including charging compatibility, please visit
samsung.com.
TIP While charging, the device and the charger may become hot and stop
charging. This usually does not affect the device’s lifespan or performance and is
in the device’s normal range of operation. Disconnect the charger from the
device and wait for the device to cool down. For more information, visit
samsung.com/us/support/answer/ANS00076952.
Terms and Conditions
Read this document before operating the mobile device, accessories, or software
(dened collectively and individually as the “Product”) and keep it for future
reference. This document contains important Terms and Conditions. Electronic
acceptance, opening the packaging, use, or retention of the Product constitutes
acceptance of these Terms and Conditions.
Important legal information
This information can be found on the device in the “About device” or “About
phone” or “About tablet” section, for example:
• Settings > About phone or About device or About tablet > Legal information >
Samsung legal
• Or,Search “Legal”
If your device required Federal Communications Commission (FCC) approval, you
can view the FCC certication by opening Settings > About phone or About device
or About tablet> Status.

12
Health and Safety WARNING!
To avoid electric shock and damage to your device, do not charge device while
it is wet or in an area where it could get wet. Do not handle device, charger or
cords with wet hands while charging.
Maintaining dust and water resistance
The device is not impervious to dust and water damage in any situation.
It is important that all compartments are closed tightly.
Follow these tips carefully to prevent damage to the device and maintain dust
and water resistance performance:
• Water resistant based on IP68 rating, which tests submersion in fresh water
deeper than 1.5 meters or keep it submerged for more than 30 minutes. If
device is exposed to fresh water, dry it thoroughly with a clean, soft cloth; if
exposed to liquid other than fresh water, rinse with fresh water and dry as
directed.
• Any device which uses accessible compartments or ports that can be opened
should have these sealed or closed tightly to prevent liquid from entering the
system.
• If the device has been immersed in water or the microphone or speaker is wet,
sound may not be heard clearly during a call. After wiping the device with a dry
cloth, dry it thoroughly before using it.
• Do not expose the device to water at high pressure.
• If the device is dropped or receives an impact, the water and dust resistant
features of the device may be damaged.
Note:
Liquid other than fresh water may enter the device faster. Failure to rinse the
device in fresh water and dry it as instructed may cause the device to suffer from
operability or cosmetic issues.
Military Specication
This device passed military specication (MIL-STD-810G) testing against specic
conditions, including drops from 4.9 feet, extreme temperatures, dust, shock/
vibration, and low pressure/high altitude. Device may not perform as described
in all extreme conditions.

13
Samsung Knox
Samsung Knox is Samsung’s security platform. Additional licensing fees may be
required for enterprise use. For more information about Knox, please refer to:
www.samsung.com/us/knox
Specic Absorption Rate (SAR) certication information
For information about SAR, visit :
• https://www.fcc.gov/general/radio-frequency-safety-0
• www.fcc.gov/encyclopedia/specic-absorption-rate-sar-cellular-telephones
• www.samsung.com/sar
Mobile products and recycling
WARNING!
Never dispose of batteries in a re because they may explode. Do not disassem-
ble, crush, puncture, heat, burn or reuse.
For battery and cell phone recycling, go to call2recycle.org or call 1-800-822-
8837.
Your location
Location-based information on that can be used to determine the approximate
location of a mobile device. If you use applications that require location-based
information (e.g., driving directions), such information may be shared with
third-parties, including your wireless service provider, applications providers,
Samsung, and other third-parties providing services.
Navigation
Maps, directions, and other navigation data, including data relating to your cur-
rent location, may contain inaccurate or incomplete data. Therefore, you should
always pay attention to road conditions, closures, trafc, and all other factors
that may impact safe driving or walking.
FCC Part 15 Information and Notices
This device complies with part 15 of the FCC Rules. Operation is subject to con-
ditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.

14
GPS & AGPS
Certain Samsung Mobile Devices can use a Global Positioning System (GPS)
signal for location-based applications. Changes may affect the performance of
location-based technology on your mobile device.
Use of AGPS in emergency calls
When you make an emergency call, the cellular network may activate AGPS
technology in your mobile device to tell the emergency responders your approxi-
mate location.
AGPS has limitations and might not work in your area.
Wireless Emergency Alerts (WEA)
The Wireless Emergency Alerts (WEA) is part of the US emergency system. Since
2012, the WEA system been used to warn the public weather condition, missing
children, and other critical situations – all through alerts on compatible cell
phones and other mobile devices. For more information visit: https://www.fcc.
gov/document/fcc-renames-cmas-wireless-emergency-alerts-wea
Emergency calls
Emergency calls may not be possible on all wireless mobile device networks or
when certain network services and/or mobile device features are in use. Check
with local service providers. If certain features are in use (e.g. call blocking) you
may rst need to deactivate those features before you can make an emergency
call.
FCC Hearing Aid Compatibility (HAC) regulations for wireless devices
The FCC established requirements for devices to be compatible with hearing
aids and other hearing devices. For more information, visit https://www.fcc.gov/
consumers/guides/hearing-aid-compatibility-wireline-and-wireless-telephones
Device temperature
Caution!
Some applications or prolonged usage may increase device temperature.
If the device feels hot to the touch, discontinue use and close all applications
or turn off the device until it cools. Always ensure that the device has adequate
ventilation and air ow. Covering the device can trap any dissipating heat and
redirect it back to the device while it is active.

15
12. Acknowledging Special Precautions and ISED (Innovation, Science
and Economic Development Canada) Notice
Cautions
Any changes or modications to your device not expressly approved in this
document could void your warranty for this equipment, and void your authority
to operate this equipment. Only use approved batteries, antennas, and chargers.
The use of any unauthorized accessories may be dangerous and void the phone
warranty if they cause damage or a defect to the device.
Although your device is quite sturdy, it is a complex piece of equipment and can
be broken. Avoid dropping, hitting, bending, or sitting on it.
Information to User
This equipment has been tested and found to comply with the limits of a Class B
digital device. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur
in a particular installation; if this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interferen-
ce by one or more of the following measures:
• Reorient/relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: At very high volumes, prolonged listening to a headset can
damage your hearing.

16
Specic Absorption Rates (SAR) for Wireless Devices
The SAR is a value that corresponds to the relative amount of RF energy absor-
bed by the user of a wireless device. The SAR value of a device is the result of an
extensive testing, measuring and calculation process. It does not represent how
much RF the device emits. All devices are tested at their highest value in strict
laboratory settings. But when in operation, the SAR of a device can
be substantially less than the level reported to ISED. This is because of a variety
of factors including its proximity to a base station antenna, design and other
factors. What is important to remember is that each device meets strict federal
guidelines. Variations in SARs do not represent a variation in safety.
All devices must meet the federal standard, which incorporates a substantial
margin of safety. As stated above, variations in SAR values between different mo-
del devices do not mean variations in safety. SAR values at or below the federal
standard of 1.6 W/kg are considered safe for use by the public.
SAR values are measured in positions that simulate uses against the head and
held to the ear. SAR values for body-worn operations refer to accessories (i.e.
device case and device holster) that contains no metal at a minimum distance of
1.5cm from the body.
Correct disposal of this product
(Waste Electrical & Electronic Equipment)
This marking on the product, accessories or literature indicates that the product
and its electronic accessories (e.g., charger, headset, USB cable) should not be
disposed of with other household waste. To prevent possible harm to the en-
vironment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote
the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government ofce, for details of where and how they can
take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditi-
ons of the purchase contract. This product and its electronic accessories should
not be mixed with other commercial wastes for disposal.
This product is RoHS compliant.

17
Correct disposal of batteries in this product
This marking on the battery, manual or packaging indicates that the batteries in
this product should not be disposed of with other household waste at the end of
their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate
that the battery contains mercury, cadmium or lead above the reference levels in
EC Directive 2006/66.
Technical requirements for Wi-Fi operation in the 5 GHz band
Wi-Fi access points that are capable of allowing your device to operate in the
5.15 - 5.25 GHz band are optimized for indoor use only. If your Wi-Fi network is
capable of operating in this mode, please restrict your Wi-Fi use to indoors to not
violate federal regulations to protect mobile satellite services.

18
Remarque :
Les instructions actuelles de sécurité « ex », le manuel d’utilisation et le certi-
cat de conformité peuvent être demandés directement auprès du fabricant.
Sommaire
1. Application ..................................................................................................... 19
2. Précautions relatives à la sécurité ............................................................... 19
3. Pannes et dommages ................................................................................... 19
4. Données Ex.................................................................................................... 19
5. Normes appliquées....................................................................................... 20
6. Avertissements.............................................................................................. 20
7. Instructions de sécurité ................................................................................ 20
8. Réparation ..................................................................................................... 21
9. Nettoyage, maintenance et stockage .......................................................... 21
10. Garantie et responsabilité........................................................................... 21
11. Guide de démarrage rapide ....................................................................... 21
12. Précautions spéciales et avis d’Innovation, Sciences et Développement 30

19
1. Application
Le Ex-Cover 6 Pro D2 *** est un téléphone intelligent de Classe I Division 2
résistant à l’eau, la poussière et les impacts pour les applications industrielles
dans les zones dangereuses avec des atmosphères gazeuses et qui est certié
pour utilisation aux États-Unis et au Canada.
2. Précautions relatives à la sécurité
Les présentes instructions de sécurité contiennent des informations et des
réglementations de sécurité qui doivent être observées. Le non-respect de ces
informations et instructions peut avoir des conséquences graves et violer les
réglementations. Veuillez lire attentivement ces instructions de sécurité avant
d’utiliser l’appareil pour la première fois! En présence d’informations contradic-
toires, les détails précisés dans les instructions de sécurité auront préséance.
En cas de doute (éventuelles erreurs de traduction ou d’impression), le texte
anglais prévaut.
3. Pannes et dommages
Si l’on suspecte que la sécurité de l’appareil a été compromise, arrêter immé-
diatement l’utilisation de l’appareil et le retirer de la zone dangereuse. Prendre
les mesures qui s’imposent an d’exclure toute remise en marche accidentelle à
l’intérieur de la zone dangereuse.
La sécurité de l’appareil peut être compromise, si par exemple :
- Des dommages externes sont visibles sur le boîtier.
- Le dispositif présente des dysfonctionnements.
- Le dispositif a été stocké de manière incorrecte.
- Des marquages ou inscriptions sur le dispositif sont illisibles.
- Les valeurs limites autorisées ont été dépassées.
4. Données Ex
Détails concernant la certication :
Marquage Ex : Class I, Division 2 Groups A, B, C, D, T4
Class I, Zone 2 Group IIC T4
800606
Node contrat SGS : 800606
Mention de zone équivalente à Ex : Zone 2, Groupe IIC, T4
Node CoC : SGSNA/23/SUW/00036
Température ambiante : -20°C ≤ Ta ≤ +55°
Numéro de certicat du projet : SUW-CERT230400057

20
5. Normes appliquées
É.-U. : UL 62368-1, Ed. 3 dated December 13, 2019
UL 121201, 9th Ed., Rev. April 1, 2021
CAN: CAN/CSA C22.2 No. 62368-1:19
CAN/CSA C22.2 No. 213, 3rd Ed. April 2021
6. Avertissements
AVERTISSEMENT - NE PAS UTILISER DANS UN ENDROIT EN ZONE DANGEREUSE
OU CLASSIFIÉE EN CAS DE DOMMAGE PERMANENT VISIBLE, Y COMPRIS UN
ÉCRAN FISSURÉ OU UN COUVERCLE DE Ex-Battery Cover 6 Pro D2 ENDOMMAGÉ
OU MANQUANT
AVERTISSEMENT - UNIQUEMENT EMPLOYER UN BLOC-PILES DU TYPE
SAMSUNG EB-BG736BBE*
AVERTISSEMENT - INTERDICTION D‘OUVRIR L‘APPAREIL EN ZONE DANGEREUSE
OU CLASSIFIÉE!
AVERTISSEMENT - INTERDICTION DE CHARGER OU REMPLACER LA BATTERIE
EN ZONE DANGEREUSE OU CLASSIFIÉE!
AVERTISSEMENT - INTERDICTION D‘ÉTABLIR DES CONNEXIONS ÉLECTRIQUES À
TOUT PORT OU AUX BROCHES POGO EN ZONE DANGEREUSE OU CLASSIFIÉE
AVERTISSEMENT - Ex Battery Cover 6 Pro D2 À UTILISER UNIQUEMENT AVEC
EX-COVER 6 PRO D2
7. Instructions de sécurité
• Le couvercle de batterie Ex-Battery Cover 6 Pro D2 doit être ajusté de façon
appropriée avant d’entrer dans un emplacement classé dangereux.
• Le remplacement de la batterie ou de la carte SD/SIM n’est permis que dans
des emplacements ordinaires (non dangereux).
• La recharge (laire ou sans l), les connexions laires à la prise de casque
d’écoute 3,5 mm, la connexion de données par USB et la recharge par le port
POGO ne sont permises que dans des emplacements ordinaires (non dange-
reux).
• L’appareil peut uniquement être chargé avec une température située entre
0 °C et 45 ºC.
• Il est interdit de réparer ou de démanteler l’appareil (sauf pour le couvercle
de batterie Ex-Battery-Cover Pro D2 dans des emplacements ordinaires non
dangereux).
