Pepperl+Fuchs IUH-F117-V1-EU User manual

IUH-F117-V1-EU
IUH-F117-V1-US
IUH-F117-V1-CN
Read / Write Head for
IDENTControl
FACTORY AUTOMATION
MANUAL

With regard to the supply of products, the current issue of the following document is applicable: The
General Terms of Delivery for Products and Services of the Electrical Industry, published by the
Central Association of the Electrical Industry (Zentralverband Elektrotechnik und Elektroindustrie
(ZVEI) e.V.) in its most recent version as well as the supplementary clause: "Expanded reservation
of proprietorship"
IUH-F117-V1-*

IUH-F117-V1-*
Contents
2013-04
3
1 Introduction......................................................................... 5
2 Declaration of Conformity ................................................. 6
3 Safety................................................................................... 7
3.1 Symbols relevant to safety ............................................................................7
3.2 Intended Use ................................................................................................7
3.3 General notes on safety.................................................................................8
4 Product Description ........................................................... 9
4.1 RFID Frequency Bands.................................................................................9
4.2 UHF general .................................................................................................9
4.2.1 Advantages of UHF ..................................................................................9
4.2.2 Permissible Transmitting Power of UHF ....................................................9
4.2.3 Permissible Frequency Range of UHF......................................................9
4.2.4 Applications for UHF systems...................................................................9

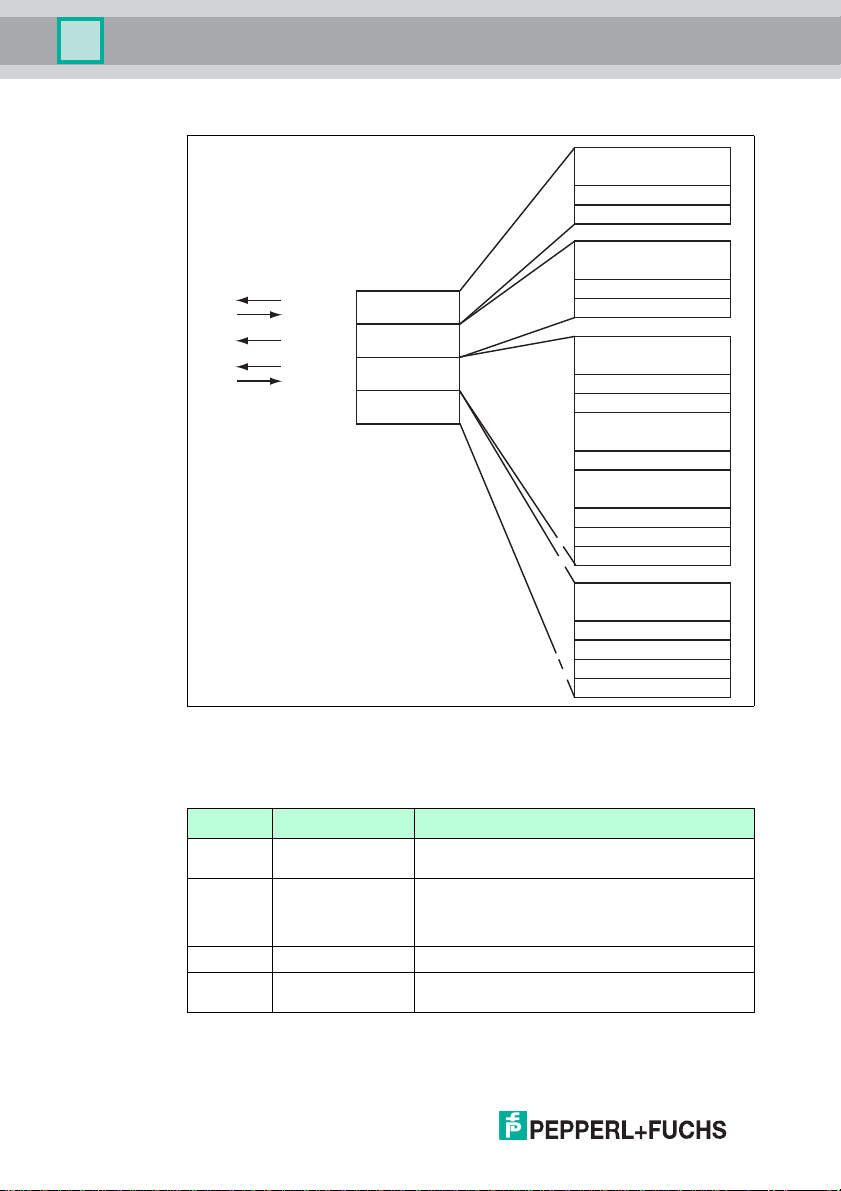

4.2.5 Memory Structurein Accordance with EPC Gen 2 (ISO/IEC 18000-63)...10
4.2.6 Electronic Product Code (EPC) ..............................................................12
4.2.7 Influence of various materials on the sensing range ...............................13
4.2.8 Dense Reader Mode (DRM)...................................................................13
4.2.9 Frequency Hopping Method ...................................................................14
4.2.10 Relevant Standards for UHF ...................................................................15
4.3 General Functions and Features..................................................................15
4.4 Indicators and Controls ...............................................................................16
4.5 Connection .................................................................................................16
4.6 Scope of Delivery........................................................................................16
4.7 Accessories ................................................................................................17
4.7.1 IDENTControl .........................................................................................17
4.7.2 Read/Write Tags .....................................................................................17

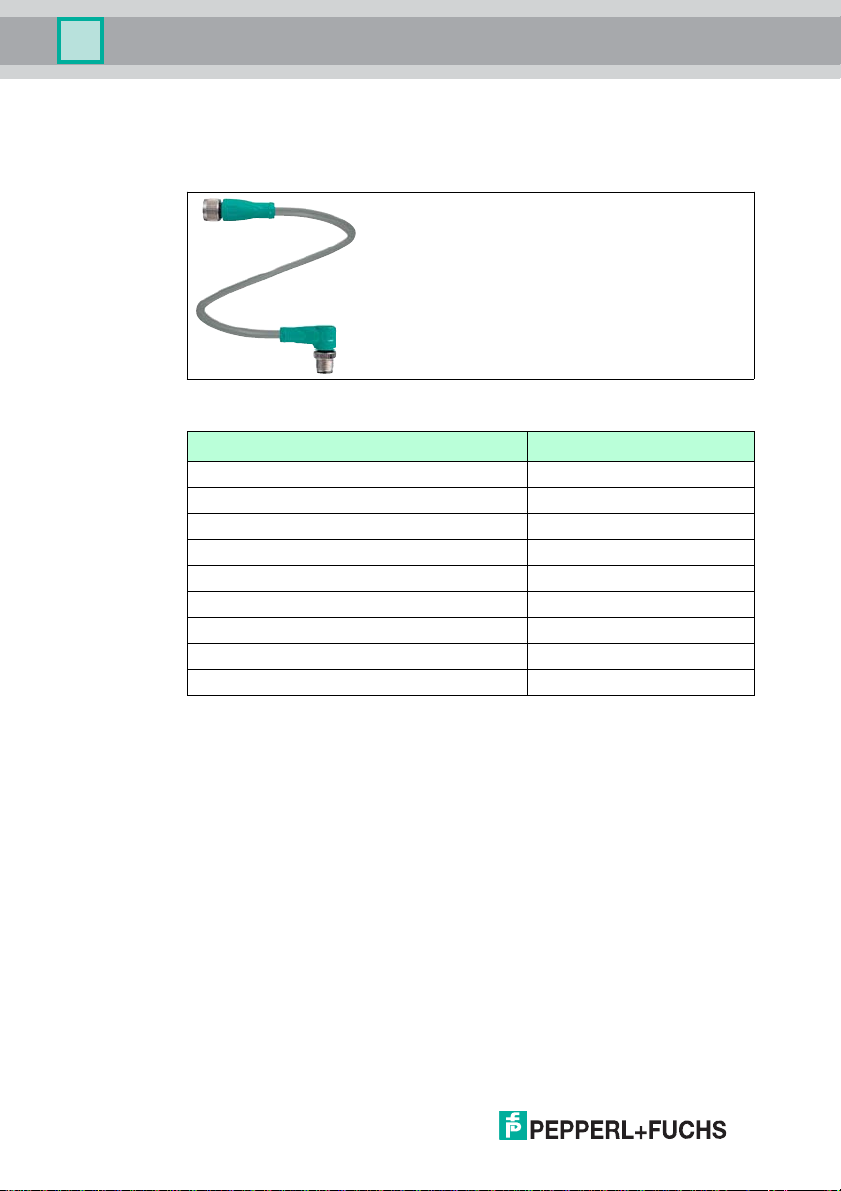

4.7.3 Connection cable for R/W heads and trigger sensors ............................18

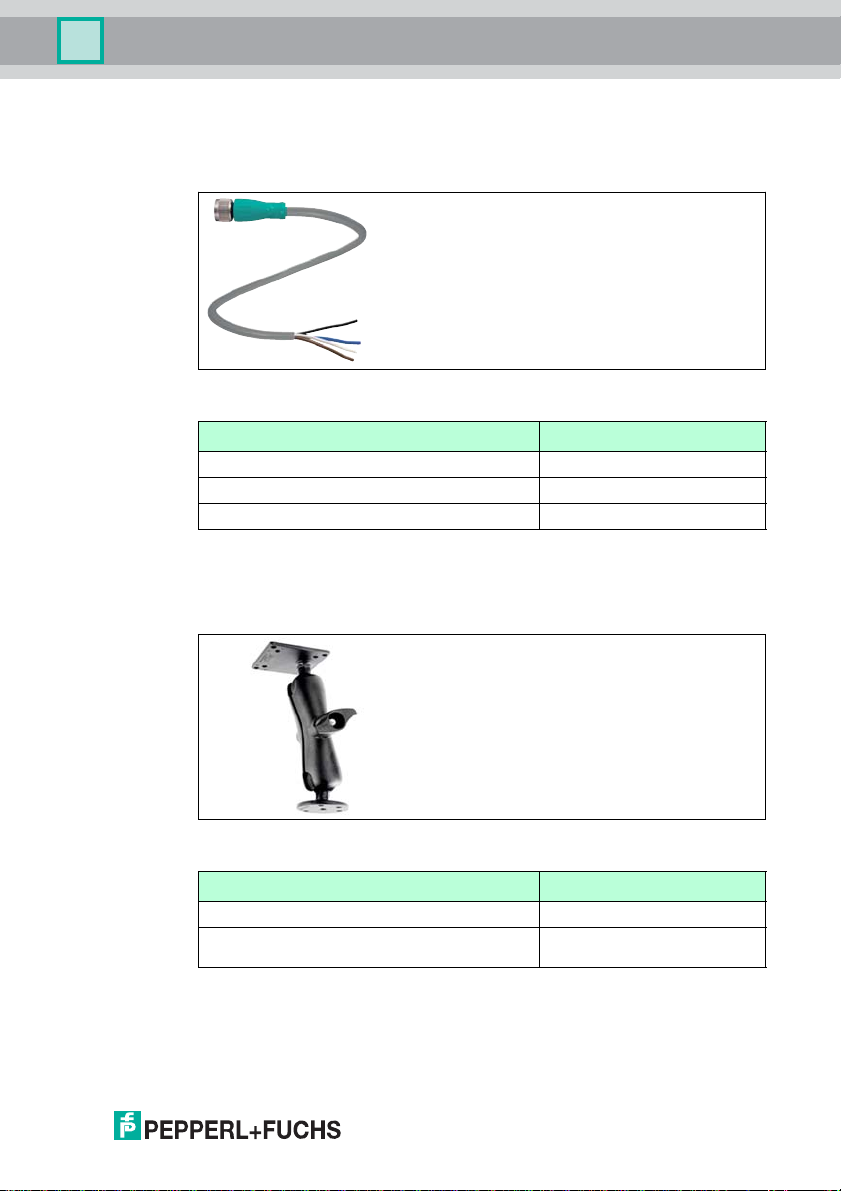

4.7.4 Cable connectors for the power supply ..................................................19
4.7.5 Installation accessories ..........................................................................19
5 Installation......................................................................... 20
5.1 Storage and transport .................................................................................20
5.2 Unpacking...................................................................................................20
5.3 Mounting.....................................................................................................20
5.3.1 Room Orientation ...................................................................................21
5.3.2 Minimum Distances ................................................................................21
5.3.3 Polarization.............................................................................................22

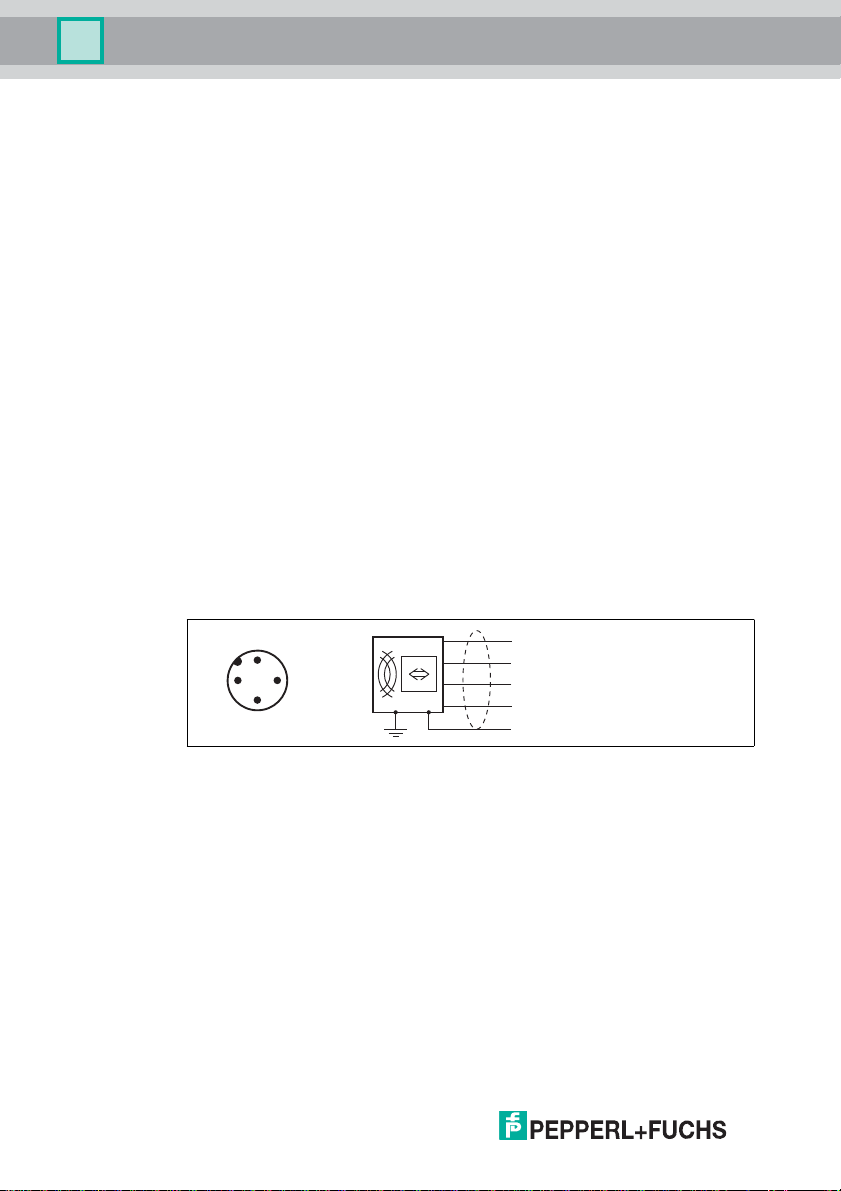

5.4 Connection .................................................................................................23
5.5 EMC Concept .............................................................................................24

2013-04
4
IUH-F117-V1-*
Contents
6 Commissioning ................................................................ 25
6.1 Definitions .................................................................................................. 25
6.1.1 Display................................................................................................... 25
6.1.2 Legend .................................................................................................. 25
6.2 Device Settings .......................................................................................... 26
6.3 Operation via the Command Interface ........................................................ 26
7 Operation .......................................................................... 29
7.1 General....................................................................................................... 29
7.2 Basic Command Process ........................................................................... 29
7.3 Command Overview................................................................................... 30
7.4 Read/Write Commands .............................................................................. 31
7.5 Configuration Commands .......................................................................... 35
7.5.1 ChangeTag Command........................................................................... 35
7.5.2 Read and Write Parameters ................................................................... 37
7.5.3 Parameters ............................................................................................ 38
7.6 Error/Status Messages ............................................................................... 41
8 Service and Maintenance ................................................ 42
9 Troubleshooting ............................................................... 43
10 ASCII table ........................................................................ 44
11 Appendix........................................................................... 45
11.1 Dimensions ................................................................................................ 45
11.2 Technical Data............................................................................................ 45
11.3 Measurement Range.................................................................................. 46

IUH-F117-V1-*
Introduction
2013-04
5
1Introduction
Congratulations
You have chosen a device manufactured by Pepperl+Fuchs. Pepperl+Fuchs
develops, produces and distributes electronic sensors and interface modules for
the market of automation technology on a worldwide scale.
Before you install this device and put it into operation, please read the operating
instructions thoroughly. The instructions and notes contained in this operating
manual will guide you step-by-step through the installation and commissioning
procedures to ensure trouble-free use of this product. By doing so, you:
■guarantee safe operation of the device
■can utilize the entire range of device functions
■avoid faulty operation and the associated errors
■reduce costs from downtimes and incidental repairs
■increase the effectiveness and operating efficiency of your plant.
Store this operating manual somewhere safe in order to have it available for future
work on the device.
After opening the packaging, please ensure that the device is intact and that the
package is complete.
Symbols used
The following symbols are used in this manual:
Handling instructions
You will find handling instructions beside this symbol
Contact
If you have any questions about the device, its functions, or accessories, please
contact us at:
Pepperl+Fuchs GmbH
Lilienthalstraße 200
68307 Mannheim
Telephone: [phone]
Fax: [phone]
E-Mail: [e-mail]
Note!
This symbol draws your attention to important information.

2013-04
6
IUH-F117-V1-*
Declaration of Conformity
2 Declaration of Conformity
All products were developed and manufactured under observance of the
applicable European standards and guidelines.
The product manufacturer, Pepperl+Fuchs GmbH, 68307 Mannheim, has a
certified quality assurance system that conforms to ISO 9001.
Note:
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Note!
A Declaration of Conformity can be requested from the manufacturer.
FCC ID: IREIUH-F117-V1
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause
undesired operation.
Notice:
Changes or modifications made to this equipment not expressly approved by
Pepperl+Fuchs GmbH may void the FCC authorization to operate this equipment.
ISO9001

IUH-F117-V1-*
Safety
2013-04
7
3Safety
3.1 Symbols relevant to safety
3.2 Intended Use
The IUH-F117-V1-* is a read/write head for passive code and read/write tags.
Always operate the device as described in these instructions to ensure that the
device and connected systems function correctly. The protection of operating
personnel and plant is only guaranteed if the device is operated in accordance
with its intended use.
Read through these instructions thoroughly. Familiarize yourself with the device
before installing, mounting, or operating.
Pepperl+Fuchs GmbH provides no guarantee that the information contained in
this document does not contain third-party industrial property rights.
Pepperl+Fuchs GmbH does not issue any licenses to its own or third-party
patents or other industrial property rights in this document.
Danger!
This symbol indicates an imminent danger.
Non-observance will result in personal injury or death.
Warning!
This symbol indicates a possible fault or danger.
Non-observance may cause personal injury or serious property damage.
Caution!
This symbol indicates a possible fault.
Non-observance could interrupt devices and any connected facilities or systems,
or result in their complete failure.
Note!
The installation recommendations made in this document are based on favorable
conditions. Pepperl+Fuchs GmbH provides no guarantee of correct function in
environments belonging to other systems.
Warning!
Minimum distance
If this device is installed in areas that fall under the US Code of Federal
Regulations Part 15 , a minimum distance of 25 cm must be maintained
between the antenna and personnel.

2013-04
8
IUH-F117-V1-*
Safety
3.3 General notes on safety
Only instructed specialist staff may operate the device in accordance with the
operating manual.
User modification and or repair are dangerous and will void the warranty and
exclude the manufacturer from any liability. If serious faults occur, stop using the
device. Secure the device against inadvertent operation. In the event of repairs,
return the device to your local Pepperl+Fuchs representative or sales office.
The connection of the device and maintenance work when live may only be
carried out by a qualified electrical specialist.
The operating company bears responsibility for observing locally applicable
safety regulations.
Store the not used device in the original packaging. This offers the device optimal
protection against impact and moisture.
Ensure that the ambient conditions comply with regulations.
Warning!
Malfunctions with Pacemakers
This device does not exceed the permissible limits for electromagnetic fields.
Maintain a minimum distance of 25 cm between the device and your pacemaker.
Inadequate distance from the read/write head can result in inhibitions,
reprogramming, or incorrect stimulation pulses.
Note!
Disposal
Electronic waste is hazardous waste. When disposing of the equipment, observe
the current statutory requirements in the respective country of use, as well as local
regulations.

IUH-F117-V1-*
Product Description
2013-04
9
4 Product Description
4.1 RFID Frequency Bands
■100–135 kHz: Low frequency LF
■13.56 MHz: High frequency HF
■865–868 MHz (Europe),
902–928 MHz (USA),
920–925 MHz (China): Ultra-high frequency UHF
■2.45 GHz and 5.8 GHz: Microwave MW
4.2 UHF general
4.2.1 Advantages of UHF
■Long detection range
■UHF tags are available as cheap and space-saving adhesive labels
■High transfer rates
■Tag is available with a large working memory (user memory)
■Bulk detection
4.2.2 Permissible Transmitting Power of UHF
In Europe, a maximum of 2 Werp are allowed (+33 dBm erp in accordance with EN
302208).
In the USA, a maximum of 4 Weirp are allowed.
In China, a maximum of 2 Werp are allowed.
4.2.3 Permissible Frequency Range of UHF
The frequency range for UHF, in which the IUH-F117-V1-* read/write head
operates, is:
■865 MHz to 868 MHz in Europe in accordance with DIN EN 302208-1
■902 MHz to 928 MHz in the USA
■920 MHz to 925 MHz in China
4.2.4 Applications for UHF systems
■Identification in galvanic coating or painting systems used in automotive
production,
■Identification of automotive superstructures in automotive production,
■Pallet identification and measurement of goods movements in the logistics
sector, and
■Access control at unloading stations with HGV identification.
Frequency
[MhZ]
125 kHz
2,45 GHz
13,56 MHz
5,8 GHz
868/915 MHz
0,1
LF
110
HF
100 1000
UHF
10000
MW

2013-04
10
IUH-F117-V1-*
Product Description
4.2.5 Memory Structure of a Tag in Accordance with EPC Gen 2 (ISO/IEC 18000-63)
Figure 4.1
The memory module of an EPC Gen 2 (ISO/IEC 18000-63) tag is split into four
segments. The main contents of these segments are:
Segment Function Length
Bank 00 Password
management
Depending on the tag type, see table "Tag Types
UHF 868 MHz" on page 36/column "Bank 00"
Bank 01 Unique Item
Identifier (UII)
Electronic Product
Code (EPC)
Depending on the tag type, see table "Tag Types
UHF 868 MHz" on page 36/column "UII/EPC"
Bank 10 Ta g I D ( T I D ) 4 bytes (MDID, TMN) + 0, 4, or 8 bytes
Bank 11 User memory Depending on the tag type, see table "Tag Types
UHF 868 MHz" on page 36/column "User Data"
USER
TID
UII/EPC
RESERVED
RFU [7:0]
10
h
1F
h
.
.
.
MSB LSB
DSFID [7:0]
00
h
0F
h
TID [15:0]
10
h
1F
h
.
.
.
MSB LSB
TID [31:16]
00
h
0F
h
UII/EPC [N:N-15]
20
h
210
h
2F
h
.
.
.
MSB LSB
PC [15:0]
10
h
1F
h
UII/EPC [15:0]
CRC-16 [15:0]
00
h
0F
h
Access Password [15:0]
30
h
3F
h
.
.
.
MSB LSB
Access Password [31:16]
20
h
2F
h
Kill Password [15:0]
10
h
1F
h
Kill Password [31:16]
00
h
0F
h
Bank 11
Bank 10
Bank 01
Bank 00
SR/ER
SW/EW
SS/ES
SP/EP
SF/EF
.
.
.
Optional XPC_W2 [15:0]
Optional XPC_W2 [15:0]
.
.
.
220
h
21F
h
22F
h
Memory module
Commands
Read / write head

IUH-F117-V1-*
Product Description
2013-04
11
Bank 00: Password Management
The segment Bank 00 contains the password management information,
comprising the access password and the kill password. The read/write head
manages the kill password with the standard read/write commands SW and SR.
The access password is not supported. see "Single Read Words SR" on page 33
and see "Single Write Words SW" on page 34.
Bank 01: UII/EPC
In addition to the Unique Item Identifier (UII), the segment Bank 01 contains a
calculated checksum CRC (Cyclic Redundancy Check) for verifying data on the
tag and the protocol control (PC) area. The PC area contains:
■The length of the UII
■The Application Family Identifier (AFI) box
■A bit switch that shows whether the UII contains an EPC sequence of
numbers in accordance with ISO (see chapter 4.2.6)
■A bit switch that shows whether data is stored in segment bank 11 (if
present)
The data is addressed via the following commands: single read special read-only
code (SS), single write special read-only code (SP), enhanced read special read-
only code (ES), and enhanced write special read-only code (EP). (see "Single
Read Special Read-Only Code SS" on page 31, see "Single Write Special Read-
Only Code SP" on page 32, see "Enhanced Read Special Read-Only Code ES"
on page 32, and see "Enhanced Write Special Read-Only Code EP" on page 33)
Bank 10: TID
The segment Bank 10 contains the tag identifier (TID), consisting of the part
number and serial number of the tag. This data is permanently stored without
being changed. The first byte denotes the class of the tag with E0hex, E2hex, or
E3hex. The rest of the TID depends on the class, and can be derived from
standard ISO/IEC 18000-63.
Example:
All tags with the class EPC Gen 2 (ISO/IEC 18000-63) are marked with E2hex. The
TID is comprised as follows:
■4 bytes: part number of the tag
• 1 byte: identifier
• 12 bits: tag mask designer identifier (MDID)
• 12 bits: tag model number (TMN), defined by the manufacturer:
■4 or 8 bytes: serial number of the tag
Depending on the manufacturer, the serial numbers do not have to be
unique or may even be omitted.
The data in segment Bank 10 can be output via the single read read-only code
(SF) and enhanced read read-only code (EF) commands. (see "Single Read
Read-Only Code SF" on page 31 and see "Enhanced Read Read-Only Code EF"
on page 31)

2013-04
12
IUH-F117-V1-*
Product Description
Bank 11: User Memory
Segment Bank 11 contains an area to which the user has free access. This size
of this area depends on the chip type, or the area may not be present.
The data in segment Bank 11 is addressed via the single read words (SR), single
write words (SW), enhanced read words (ER), and enhanced write words (EW)
commands. (see "Single Read Words SR" on page 33, see "Single Write Words
SW" on page 34, see "Enhanced Read Words ER" on page 34, and see
"Enhanced Write Words EW" on page 35)
4.2.6 Electronic Product Code (EPC)
The electronic product code is a unique identifier in the form of a sequence of
numbers. The number sequence has a set structure and a length of 64 bits, 80
bits, 96 bits, or longer (depending on the EPC Ident number used). This number
sequence is saved to the RFID tag, offering worldwide unique identification of the
tagged object.
The system of Electronic Product Codes (EPC) was defined by GS1/EPCglobal
for use in inventory management. Tags with memory banks for EPC codes must
be programmed by the user. The memory of new tags must not contain any valid
EPC codes. The EPC numbers are managed and assigned by GS1. To obtain
EPC numbers, please contact the GS1 branch in your country
(http://www.gs1.com/contact).
The electronic product code is defined by EPCglobal with at present 13 different
encryptions. SGTIN-96 (serialized global trade item number) is given here as an
example of a frequently used encryption. SGTIN-96 has a defined format, and is
structured as follows:
1. Header: The header specifies the EPC standard used, and denotes the
number sequence.
2. Filter value: Denotes the unit of the product, for example, end product, ad-
ditional packaging, pallet.
3. Partition: Denotes the point at which the following company prefix ends
and the object data begins.
4. Company Prefix: Assigned sequence of numbers that identifies the pro-
ducer.
5. Object class: Sequence of numbers that describes the object, e.g., item
number.
The company prefix and the object class are each of variable length, but to-
gether are always 44 bits long.
6. Serial number: Sequence of numbers that identifies the item, for example,
the sequential serial number of the item.
8 Bit 3 Bit 3 Bit 20 - 40 Bit 4 - 24 Bit 38 Bit
0011 0000 011 5
dez
0614141
dez
203886
dez
000734
dez
Header Filter value Partition Company Prefix Object class Serial number
Length
Value

IUH-F117-V1-*
Product Description
2013-04
13
To work with unique number sequences without having to use sometimes
expensive EPC codes, we recommend using the TID of the tag, which is
programmed into the tag chips by the semiconductor manufacturer.
4.2.7 Influence of various materials on the sensing range
In the UHF range, the nature of the surrounding area and the surface to which the
transponder is secured have a serious influence on the range that the system can
attain. The UHF transponder cannot be mounted on metal without requiring
adaptations. Glass has a negative influence on the sensing range when used as a
mounting surface. If a UHF transponder is mounted on damp material, the
sensing range is much poorer than the range of a transponder mounted on dry
material. The mounting surface often affects the read range much more than the
material between the transponder and the read/write head. The graph shows the
effect of different materials on the sensing range.
4.2.8 Dense Reader Mode (DRM)
A special operating mode for read/write tags in accordance with the specification
EPC Gen 2 (ISO/IEC 18000-63) allows several read/write heads to be operated
close to each other simultaneously without interference.
Europe
In accordance with EN 302208, only channels 4, 7, 10, and 13 are used in this
mode for transmission with the read/write head (read/write head -> read/write tag
communication path). The transmitting power is a maximum of 2 Werp.
0 %
10 %
20 %
30 %
40 %
50 %
60 %
70 %
80 %
90 %
100 %
Material
underground
Material between transponder and
read / write head
Foam material
Film
Cardboard (dry)
Cardboard (wet)
Wood (dry)
Glass
Metal
Ai
r
Film
Cardboard (dry)
Cardboard (wet)
Wood (dry)
Foam material
Glas
s
Metal

2013-04
14
IUH-F117-V1-*
Product Description
Figure 4.2
The response from the read/write tag appears via the frequency offset, which is
achieved by the modulation used in this mode on the two adjacent channels. Due
to the high level difference between the transmission channels and the response
channels, this technology offers major benefits for reusing frequencies.
Other countries in which the device can be used
The IUH-F117-V1-EU read/write head has a transmission license in accordance
with DIN EN 302208-2.
4.2.9 Frequency Hopping Method
China
In China, the frequency ranges 840–845 MHz and 920–925 MHz are available for
UHF-RFID readers. This read/write head uses the 920–925 MHz range. The
range is split into 20 channels, each with a bandwidth of 250 kHz. On channels 0,
1, 18, and 19, only 100 mWerp of transmission power are permitted at the edge of
the spectrum. On channels 2–17, 2 W areerp permitted. The transmission power
can be set. It is stated in Werp . FHSS with a maximum 2 seconds retention time is
used.
Figure 4.3
Werp
2.0
865.0 868.0865.7 867.5 MHz
123456789101112131415 Channel
866.9866.3
Note!
If you wish to use a device in a country in which this standard is not effective,
make sure that the relevant values for the device are consistent with the local
conditions.
Channel
0.1
2.0
920 925920.625 924.125 MHz
Werp
1 2 3 4 5 6 7 8 9 10111213141516171819

IUH-F117-V1-*
Product Description
2013-04
15
USA

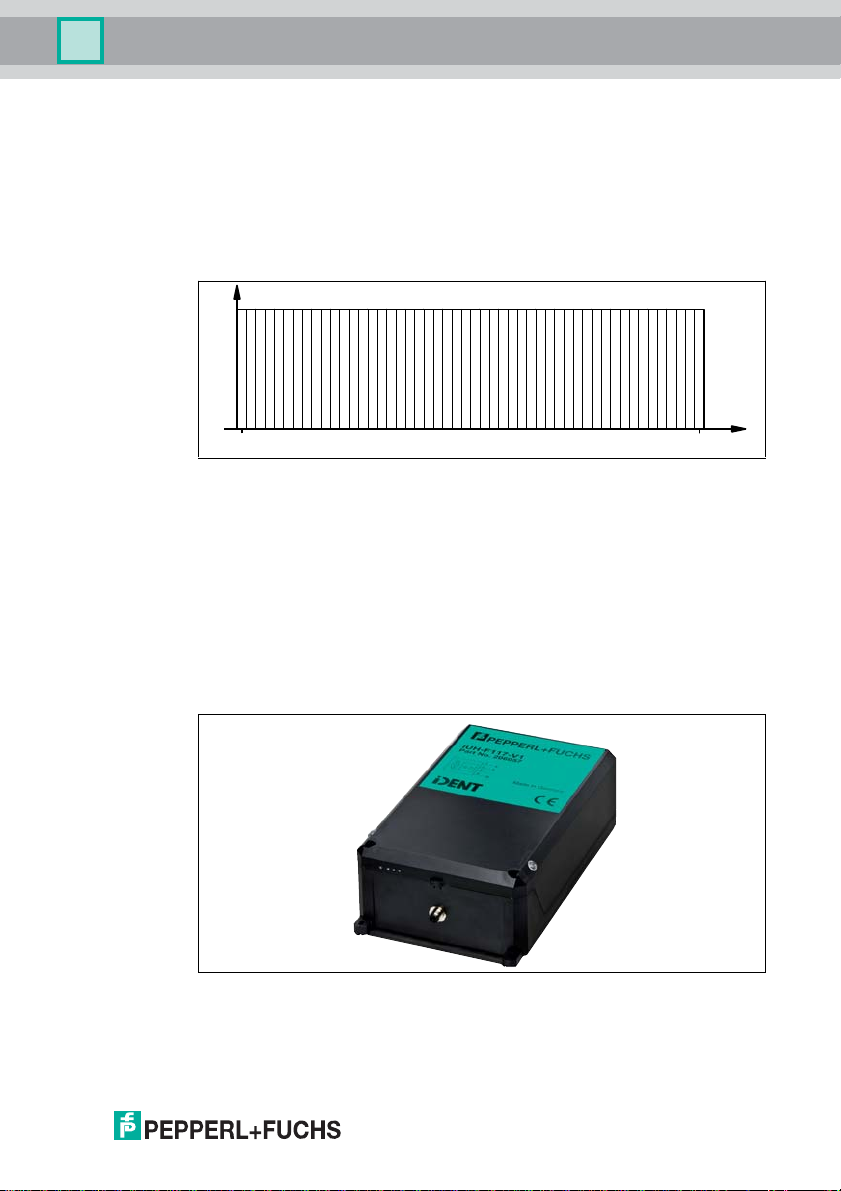

The ISM band from 902 to 928 MHz is available in the USA. The band is split into
50 channels, each with a 500 kHz bandwidth. FHSS with a maximum retention
time of 4 seconds is employed. All channels must be used. Channel restriction is
not permitted.
In contrast to the read/write heads for Europe and China, the transmission power
is stated in Weirp .
Figure 4.4
4.2.10 Relevant Standards for UHF
European radio standards: EN 300220 and EN 302208
Usage recommendations for RFID type labels, information about recycling,
installation of readers and antennae: ISO/IEC TR 24729 parts 1-4
Installation and commissioning of UHF-RFID systems: ETSI TR 102436
Description of air interface: EPC Gen 2 (ISO/IEC 18000-63)
4.3 General Functions and Features
Figure 4.5
Functions
The read/write head was developed for reading and writing passive read/write
tags with an ultra-high operating frequency.
0.2
4.0
902.75 927.25MHz
Channel
Weirp
10 15 2051 30354025 45 50

2013-04
16
IUH-F117-V1-*
Product Description
Measurement Range
The measurement range is normally 6 meters. Tags that comply with EPC Gen 2
(ISO/IEC 18000-63) are supported.
Features
The IUH-F117-V1-* read/write head is equipped with the following features:
■Two dual LEDs for function display
■Industrial housing
■Connects to the IDENTControl via connector V1 (M12 x 1)
■Protects against failures (such as antenna short-circuiting) and electrostatic
discharge
4.4 Indicators and Controls
The IUH-F117-V1-* read/write head has two dual LEDs (green/yellow). The two
LEDs are located on opposite sides and are clearly visible. The various indicators
mean:
■Green: power on
■Flashing green: attempting to read/write
■Yellow: command executed
4.5 Connection
The read/write head is connected to the IDENTControl control interface via the
M12 x 1 connector.
Figure 4.6
4.6 Scope of Delivery
■Read/write head
■Quick start guide
Shield
+
A
-
B
1
2
3
4
1
42
3

IUH-F117-V1-*
Product Description
2013-04
17
4.7 Accessories
4.7.1 IDENTControl
The read/write head can be connected to Pepperl+Fuchs IDENTControl control
interfaces.
4.7.2 Read/Write Tags
Interface Designation
4 read/write heads:
Ethernet IC-KP-B17-AIDA1
2 read/write heads:
PROFIBUS IC-KP2-2HB6-V15B
Ethernet IC-KP2-2HB17-2V1D
Serial IC-KP2-2HRX-2V1
1 read/write head:
PROFIBUS IC-KP2-1HB6-V15B
IC-KP2-1HB6-2V15B
Ethernet IC-KP2-1HB17-2V1D
Serial IC-KP2-1HRX-2V1
Ta b l e 4 . 1
Ty p e Designation
EPC Gen 2 (ISO/IEC 18000-63) IUC72-C8-T14
IUC72-F151-M
IUC72-F152-M
IUC73-F153
IUC76-50-M
Ta b l e 4 . 2

2013-04
18
IUH-F117-V1-*
Product Description
4.7.3 Connection cable for R/W heads and trigger sensors
Compatible connection cables with shielding are available for connecting the R/W
heads and trigger sensors.
Figure 4.7
Accessories Description
2 m long (straight female, angled male) V1-G-2M-PUR-ABG-V1-W
5 m long (straight female, angled male) V1-G-5M-PUR-ABG-V1-W
10 m long (straight female, angled male) V1-G-10M-PUR-ABG-V1-W
20 m long (straight female, angled male) V1-G-20M-PUR-ABG-V1-W
Field connector female, straight, shielded V1-G-ABG-PG9
Field connector male, straight, shielded V1S-G-ABG-PG9
Field connector female, angled, shielded V1-W-ABG-PG9
Field connector male, angled, shielded V1S-W-ABG-PG9
Dummy plug M12x1 VAZ-V1-B3

IUH-F117-V1-*
Product Description
2013-04
19
4.7.4 Cable connectors for the power supply
Compatible M12 sockets with an open cable end for connecting the
IDENTControl to a power supply are available in different lengths.
Figure 4.8
4.7.5 Installation accessories
Two different mounting brackets are available to mount the read/write head on a
wall or pole.
Figure 4.9 IUZ-MH10
Accessories Designation
Length 2 m (straight socket) V1-G-2M-PUR
Length 5 m (straight socket) V1-G-5M-PUR
Length 10 m (straight socket) V1-G-10M-PUR
Accessories Designation
Mounting bracket for wall attachment IUZ-MH10
Mounting bracket for pipe installation (pipe with
maximum diameter of 40 mm)
IUZ-MH11

2013-04
20
IUH-F117-V1-*
Installation
5 Installation
5.1 Storage and transport
For storage and transport purposes, package the unit using shockproof
packaging material and protect it against moisture. The best method of protection
is to package the unit using the original packaging. Furthermore, ensure that the
ambient conditions are within allowable range.
5.2 Unpacking
Check the product for damage while unpacking. In the event of damage to the
product, inform the post office or parcel service and notify the supplier.
Check the package contents against your purchase order and the shipping
documents for:
■Delivery quantity
■Device type and version in accordance with the type label
■Any accessories ordered
Retain the original packaging in case you have to store or ship the device again at
a later date.
Should you have any questions, please contact Pepperl+Fuchs.
5.3 Mounting
The read/write head is intended for wall mounting or mounting on brackets in
internal areas. Please mount the read/write head using only the holes provided in
the housing. The preferred mounting direction is with the cable connection facing
vertically downwards.
Note!
Do not lay the connection cable in the main beam direction of the antenna.
